Hayward Power Flo II & III 1700 & 1700UN Parts

MODELS SP-1705, 1710, 1711, 1720, 1725, 1750, 1778, 1780

Hayward Power Flo II & III 1700 & 1700UN Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit Hayward Power Flo 1700 Series
*	Pool Pump Union 1.5" Male x 1.5" Socket
Motor	1/2 HP Thru Bolt Motor
*	On/Off Switch for Flex-48 Motors
***	Protective Pool Motor Cover
1	HOUSING PUMP, SP1700 SERIES
2	COVER, HOUSING
3	HAYWARD POWER FLO II SHAFT SEAL (OEM)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
4	O-RING, HOUSING
5	HOUSING BOLT, NO 10-24 HEX HEAD
6	HOUSING NUT, NO 10-24 HEX
7	IMPELLER, 1/2 HP (SP1700 SERIES, POWER-FLO II)
8	STRAINER HOUSING With BASKET
9	O.E.M - STRAINER COVER, CLEAR LEXAN WITH O-RING
10	STRAINER COVER O-RING
11A	STRAINER BASKET
12	CHECK VALVE ASSY, PRIOR TO 92
13	O-RING, STRAINER
14	1/4" DRAIN PLUG WITH GASKET
15	STRAINER HOUSING C-CLIP (CURRENT)
16	UNION END CONNECTOR, SOCKET FOR SP1700UN & SP1700SD ONLY
17	NUT, UNION FOR SP1700UN & SP1700SD ONLY
18	O-RING FOR SP1700UN & SP1700SD ONLY
19	UNION (SET OF 2), 1 1/2” SLIP, 2” SPG FOR SP1700UN & SP1700SD ONLY
*	SHIME FOR VERT DISCHARGE PRIOR TO 99

View Parts List

Diagram #	Part Title
**	Tune Up Kit Hayward Power Flo 1700 Series
*	Pool Pump Union 1.5" Male x 1.5" Socket
Motor	1/2 HP Thru Bolt Motor
*	On/Off Switch for Flex-48 Motors
***	Protective Pool Motor Cover
1	HOUSING PUMP, SP1700 SERIES
2	COVER, HOUSING
3	HAYWARD POWER FLO II SHAFT SEAL (OEM)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
4	O-RING, HOUSING
5	HOUSING BOLT, NO 10-24 HEX HEAD
6	HOUSING NUT, NO 10-24 HEX
7	IMPELLER, 1/2 HP (SP1700 SERIES, POWER-FLO II)
8	STRAINER HOUSING With BASKET
9	O.E.M - STRAINER COVER, CLEAR LEXAN WITH O-RING
10	STRAINER COVER O-RING
11A	STRAINER BASKET
12	CHECK VALVE ASSY, PRIOR TO 92
13	O-RING, STRAINER
14	1/4" DRAIN PLUG WITH GASKET
15	STRAINER HOUSING C-CLIP (CURRENT)
16	UNION END CONNECTOR, SOCKET FOR SP1700UN & SP1700SD ONLY
17	NUT, UNION FOR SP1700UN & SP1700SD ONLY
18	O-RING FOR SP1700UN & SP1700SD ONLY
19	UNION (SET OF 2), 1 1/2” SLIP, 2” SPG FOR SP1700UN & SP1700SD ONLY
*	SHIME FOR VERT DISCHARGE PRIOR TO 99

Available Parts:

Tune Up Kit Hayward Power Flo 1700 Series

Part # GOKIT13

Tune Up Kit Hayward Power Flo 1700 Series

$37.26 IN STOCK

Qty:

Pool Pump Union 1.5" Male x 1.5" Socket

Part # 9348-650 Mfg # 21063-150-000

Pool Pump Union 1.5" Male x 1.5" Socket

$12.41 IN STOCK

Qty:

1/2 HP Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Qty:

3/4 HP Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP Thru Bolt Motor

$185.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

A.O. Smith 1.5 HP Thru-Bolt 48Y Motor - BN35V1

Part # BN35V1 Mfg # BN35V1

A.O. Smith 1.5 HP Thru-Bolt 48Y Motor - BN35V1

$239.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 8.0/16.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 8.0/16.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Motor

$218.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Motor

$295.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

On/Off Switch for Flex-48 Motors

Part # 18374501 Mfg # 18374501

On/Off Switch for Flex-48 Motors

$60.03 IN STOCK

Motor Speed Single

Motor Speed Single

Qty:

Toggle Switch Lo/Off/Hi

Part # 5271-73 Mfg # 18313301

Toggle Switch Lo/Off/Hi

$71.94 IN STOCK

Motor Speed Dual

Motor Speed Dual

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.97 IN STOCK

Qty:

HOUSING PUMP, SP1700 SERIES

Part # 5111-01A Mfg # SPX1705AA

HOUSING PUMP, SP1700 SERIES

$96.25 IN STOCK

Qty:

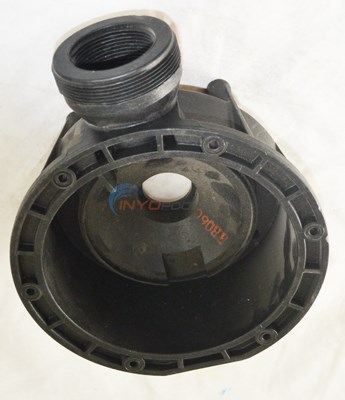

HOUSING PUMP, With EXT. THREADS FOR SP1700UN & SP1700SD ONLY

Part # 5111-01D Mfg # SPX1705AAT

HOUSING PUMP, With EXT. THREADS FOR SP1700UN & SP1700SD ONLY

$113.86 IN STOCK

Qty:

COVER, HOUSING

Part # 5111-02A Mfg # SPX1705B

COVER, HOUSING

$90.04 IN STOCK

Qty:

2

OBSOLETE HOUSING COVER WITH CONTOUR INLET SELF DRAING

Mfg # SPX1705BD

OBSOLETE HOUSING COVER WITH CONTOUR INLET SELF DRAING

NOT AVAILABLE

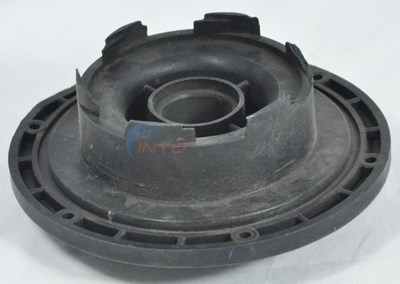

HOUSING COVER With EXT THREAD FOR SP1700UN

Part # 5111-02C

HOUSING COVER With EXT THREAD FOR SP1700UN

$53.82 IN STOCK

Qty:

HOUSING COVER With EXT THREAD FOR SP1700SD

Part # 5111-02B

HOUSING COVER With EXT THREAD FOR SP1700SD

$114.89

HAYWARD POWER FLO II SHAFT SEAL (OEM)

Part # SP1500KA Mfg # SP1500KA

HAYWARD POWER FLO II SHAFT SEAL (OEM)

$53.21 IN STOCK

Qty:

SHAFT SEAL (GENERIC)

Part # 5111-03 Mfg # PSR-2131

SHAFT SEAL (GENERIC)

$7.76 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-230 Mfg # PS-3869

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$37.92 IN STOCK

Qty:

HAYWARD SHAFT SEAL POWER FLO III (OEM)

Part # 5111-03C Mfg # SPX1720KA

HAYWARD SHAFT SEAL POWER FLO III (OEM)

$60.03 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.16 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.04 IN STOCK

Qty:

O-RING, HOUSING

Part # 5111-04A Mfg # 257

O-RING, HOUSING

$10.58 IN STOCK

Qty:

HOUSING BOLT, NO 10-24 HEX HEAD

Part # 5111-05 Mfg # SPX1500N2

HOUSING BOLT, NO 10-24 HEX HEAD

$11.37 IN STOCK

Qty:

HOUSING NUT, NO 10-24 HEX

Part # 5111-06 Mfg # SPX1500Y2

HOUSING NUT, NO 10-24 HEX

$12.41 IN STOCK

Qty:

IMPELLER, 1/2 HP (SP1700 SERIES, POWER-FLO II)

Part # 5111-07A Mfg # SPX1705C

IMPELLER, 1/2 HP (SP1700 SERIES, POWER-FLO II)

$58.99 IN STOCK

Qty:

IMPELLER, 3/4 HP (SP1700 SERIES, POWER-FLO II)

Part # 5111-07C Mfg # SPX1707C

IMPELLER, 3/4 HP (SP1700 SERIES, POWER-FLO II)

$90.04 IN STOCK

Qty:

IMPELLER, 1HP

Part # 5111-07E Mfg # SPX1711C

IMPELLER, 1HP

$52.78 IN STOCK

Qty:

7

IMPELLER, 1HP (POWER-FLO III)

Part # 5110-10CA Mfg # SPX2607C

IMPELLER, 1HP (POWER-FLO III)

NOT AVAILABLE

7

IMPELLER, 1 1/2 HP (POWER-FLO III)

Part # 5110-10DA Mfg # SPX2610C

IMPELLER, 1 1/2 HP (POWER-FLO III)

NOT AVAILABLE

STRAINER HOUSING With BASKET

Part # 5111-52 Mfg # SPX1500CAP

STRAINER HOUSING With BASKET

$96.82 IN STOCK

Qty:

O.E.M - STRAINER COVER, CLEAR LEXAN WITH O-RING

Part # 5111-17A Mfg # SPX1500D2A

O.E.M - STRAINER COVER, CLEAR LEXAN WITH O-RING

$69.23 IN STOCK

Qty:

GENERIC - COVER, STRAINER, CLEAR LEXAN WITH O-RING (SPX1500D2A)

Part # 25306-000-020 Mfg # 25306-000-020

GENERIC - COVER, STRAINER, CLEAR LEXAN WITH O-RING (SPX1500D2A)

$35.85 IN STOCK

Qty:

STRAINER COVER O-RING

Part # 5111-18B Mfg # 354

STRAINER COVER O-RING

$11.10 IN STOCK

Qty:

STRAINER BASKET

Part # 5111-19 Mfg # SPX1250RA

STRAINER BASKET

$30.00 IN STOCK

Qty:

STRAINER BASKET LARGE 4 1/2” X 7” CURRENT

Part # 5111-19A Mfg # SPX1500LX

STRAINER BASKET LARGE 4 1/2” X 7” CURRENT

$32.45 IN STOCK

Qty:

CHECK VALVE ASSY, PRIOR TO 92

Part # 5111-20 Mfg # SPX1500RA

CHECK VALVE ASSY, PRIOR TO 92

$34.14

O-RING, STRAINER

Part # 5111-21 Mfg # 135

O-RING, STRAINER

$13.17 IN STOCK

Qty:

1/4" DRAIN PLUG WITH GASKET

Part # 6761A Mfg # SPX1700FG

1/4" DRAIN PLUG WITH GASKET

$9.97 IN STOCK

Qty:

STRAINER HOUSING C-CLIP (CURRENT)

Part # 5111-50 Mfg # SPX1515C

STRAINER HOUSING C-CLIP (CURRENT)

$11.37 IN STOCK

Qty:

UNION END CONNECTOR, SOCKET FOR SP1700UN & SP1700SD ONLY

Part # 5111-24 Mfg # SPX1500JS

UNION END CONNECTOR, SOCKET FOR SP1700UN & SP1700SD ONLY

$34.14 IN STOCK

Qty:

UNION END CONNECTOR, THREADED SPX1500JT FOR SP1700UN & SP1700SD ONLY

Part # 5111-24A Mfg # SPX1500JT

UNION END CONNECTOR, THREADED SPX1500JT FOR SP1700UN & SP1700SD ONLY

$36.21

NUT, UNION FOR SP1700UN & SP1700SD ONLY

Part # 5111-25 Mfg # SPX1500G

NUT, UNION FOR SP1700UN & SP1700SD ONLY

$12.41 IN STOCK

Qty:

O-RING FOR SP1700UN & SP1700SD ONLY

Part # 4600-3062 Mfg # 227

O-RING FOR SP1700UN & SP1700SD ONLY

$6.53 IN STOCK

Qty:

UNION (SET OF 2), 1 1/2” SLIP, 2” SPG FOR SP1700UN & SP1700SD ONLY

Part # 5111-27A Mfg # SP1500UNPAK2C

UNION (SET OF 2), 1 1/2” SLIP, 2” SPG FOR SP1700UN & SP1700SD ONLY

$24.83 IN STOCK

Qty:

SHIME FOR VERT DISCHARGE PRIOR TO 99

Part # 5111-23 Mfg # SPX1500X1

SHIME FOR VERT DISCHARGE PRIOR TO 99

$25.86

* NOT SHOWN
** O-RING/GASKET REPAIR KIT
*** NOT SHOWN
