Leslie's Hydramax Above Ground Pump Parts

PUMP FOR ABOVE GROUND POOLS - MODEL SERIES SP-LE-40022 TO SP-LE-40026

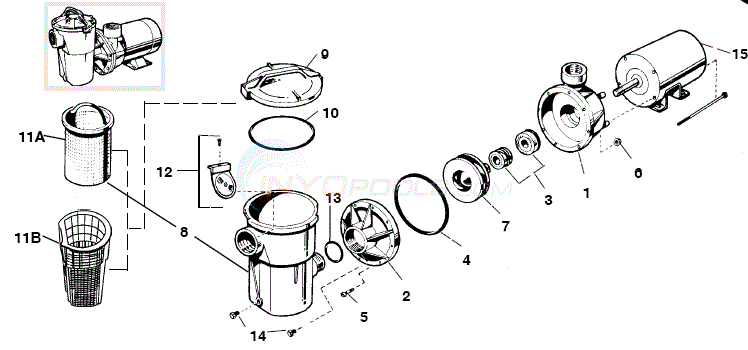

Leslie's Hydramax Above Ground Pump Diagram

Click to zoom in

Diagram #	Part Title
*	Tune Up Kit Hayward Power Flo 1700 Series

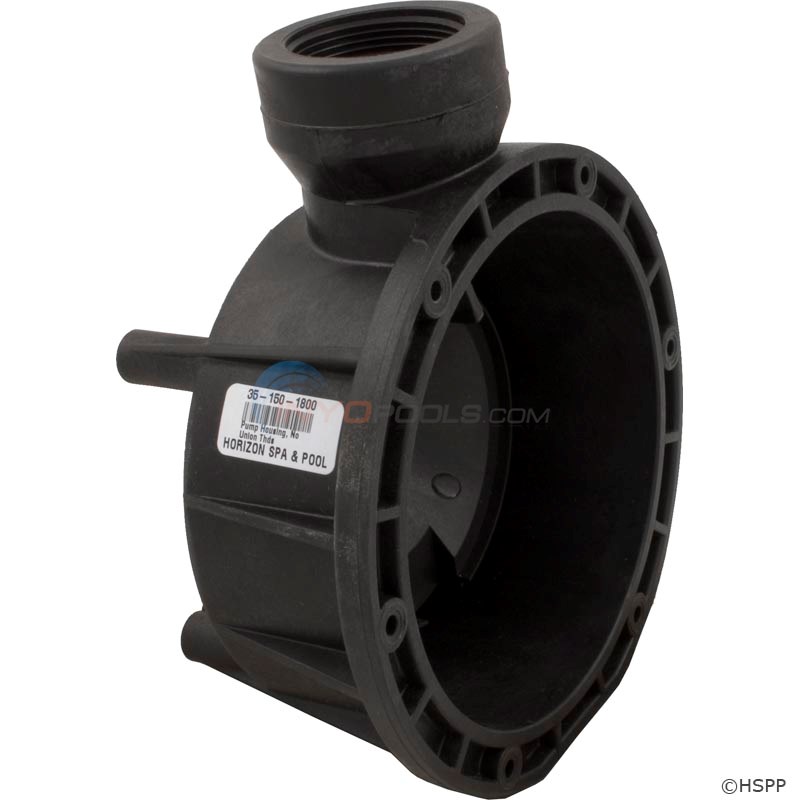

1	HOUSING PUMP

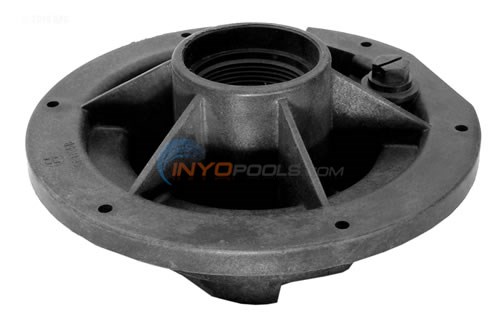

2	COVER, HOUSING
3	SEAL ASSEMBLY (PSR 2131)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
4	O-RING, HOUSING

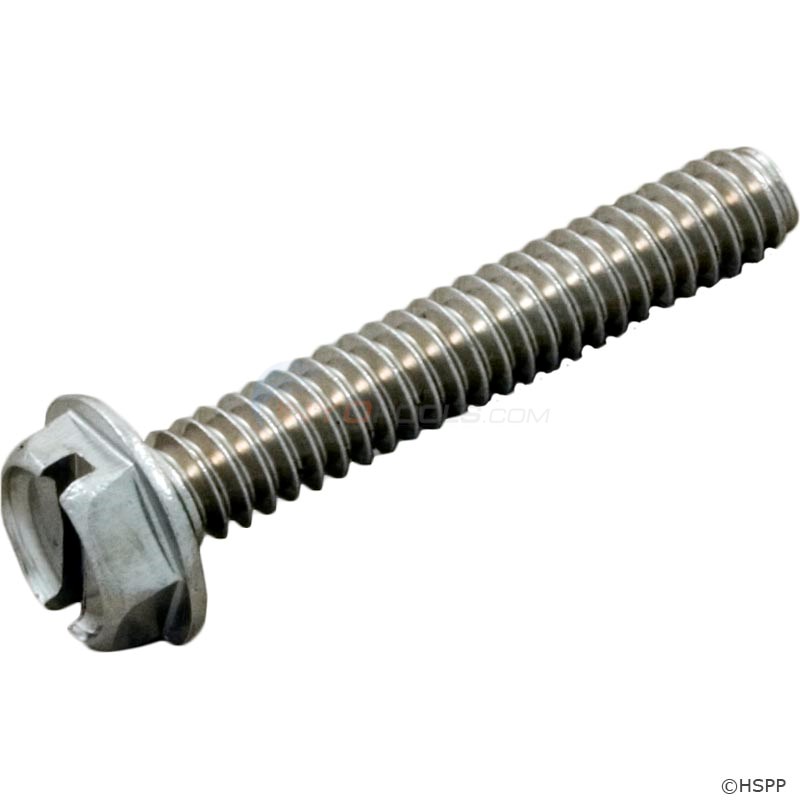

5	BOLT, HOUSING, HEX HEAD

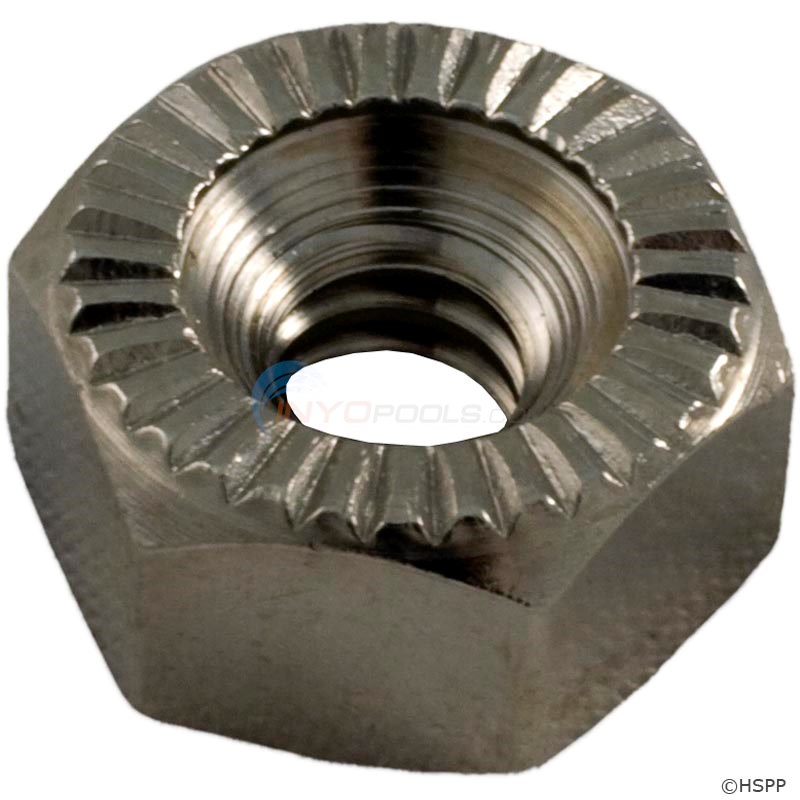

6	NUT, HOUSING- HEX HEAD
7	IMPELLER, 1/2HP POWER-FLO II
8	HOUSING With BASKET
9	O.E.M - COVER, STRAINER, CLEAR LEXAN WITH O-RING
10	O-RING, COVER
11A	BASKET, STRAINER, OEM

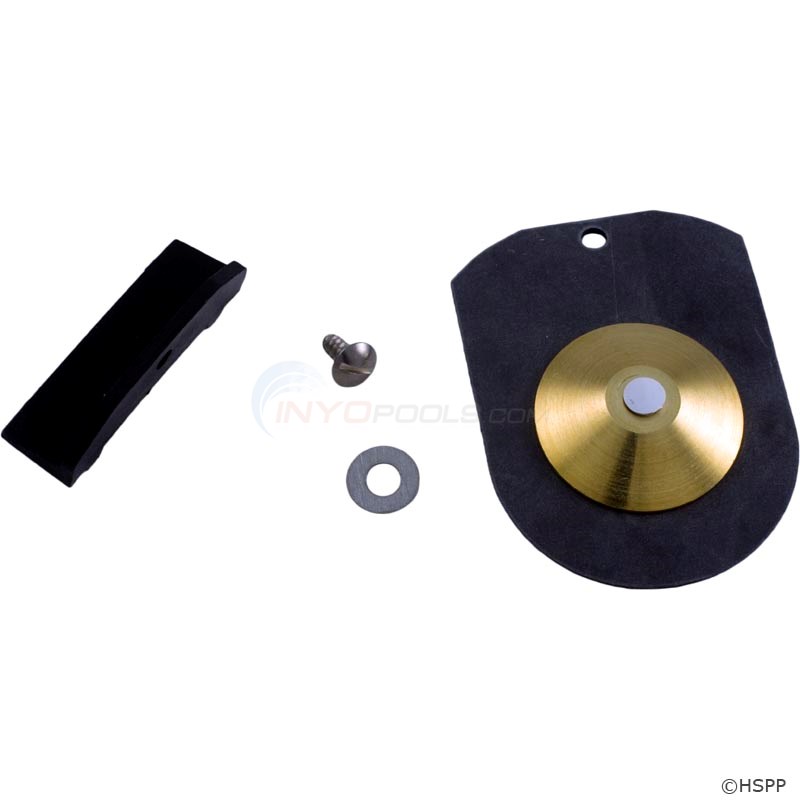

12	VALVE, CHECK (1992 & PRIOR)
13	O-RING, STRAINER
14	PLUG, POLY, 1/4" MPT (3F14)
15	1/2 HP Thru Bolt Motor
**	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
*	Tune Up Kit Hayward Power Flo 1700 Series
1	HOUSING PUMP
2	COVER, HOUSING
3	SEAL ASSEMBLY (PSR 2131)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
4	O-RING, HOUSING
5	BOLT, HOUSING, HEX HEAD
6	NUT, HOUSING- HEX HEAD
7	IMPELLER, 1/2HP POWER-FLO II
8	HOUSING With BASKET
9	O.E.M - COVER, STRAINER, CLEAR LEXAN WITH O-RING
10	O-RING, COVER
11A	BASKET, STRAINER, OEM
12	VALVE, CHECK (1992 & PRIOR)
13	O-RING, STRAINER
14	PLUG, POLY, 1/4" MPT (3F14)
15	1/2 HP Thru Bolt Motor
**	Protective Pool Motor Cover

Available Parts:

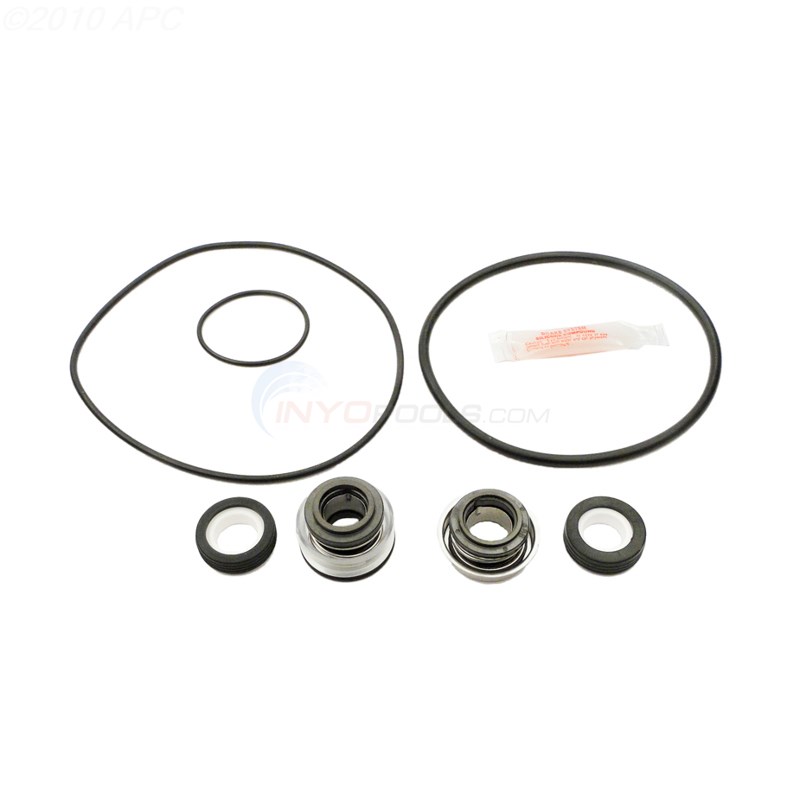

Tune Up Kit Hayward Power Flo 1700 Series

Part # GOKIT13

Tune Up Kit Hayward Power Flo 1700 Series

$37.26 IN STOCK

Qty:

HOUSING PUMP

Part # 5111-01A Mfg # SPX1705AA

HOUSING PUMP

$96.25 IN STOCK

Qty:

COVER, HOUSING

Part # 5111-02A Mfg # SPX1705B

COVER, HOUSING

$90.04 IN STOCK

Qty:

SEAL ASSEMBLY (PSR 2131)

Part # 5111-03 Mfg # PSR-2131

SEAL ASSEMBLY (PSR 2131)

$7.76 IN STOCK

Qty:

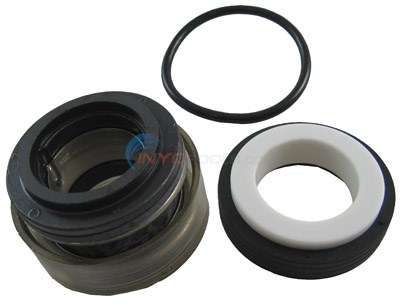

SEAL ASSY, POWER FLO III (1 & 1 1/2 HP)(SPX1720KA)

Part # 5111-03C Mfg # SPX1720KA

SEAL ASSY, POWER FLO III (1 & 1 1/2 HP)(SPX1720KA)

$60.03 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.16 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.04 IN STOCK

Qty:

O-RING, HOUSING

Part # 5111-04A Mfg # 257

O-RING, HOUSING

$10.58 IN STOCK

Qty:

BOLT, HOUSING, HEX HEAD

Part # 5111-05 Mfg # SPX1500N2

BOLT, HOUSING, HEX HEAD

$11.37 IN STOCK

Qty:

NUT, HOUSING- HEX HEAD

Part # 5111-06 Mfg # SPX1500Y2

NUT, HOUSING- HEX HEAD

$12.41 IN STOCK

Qty:

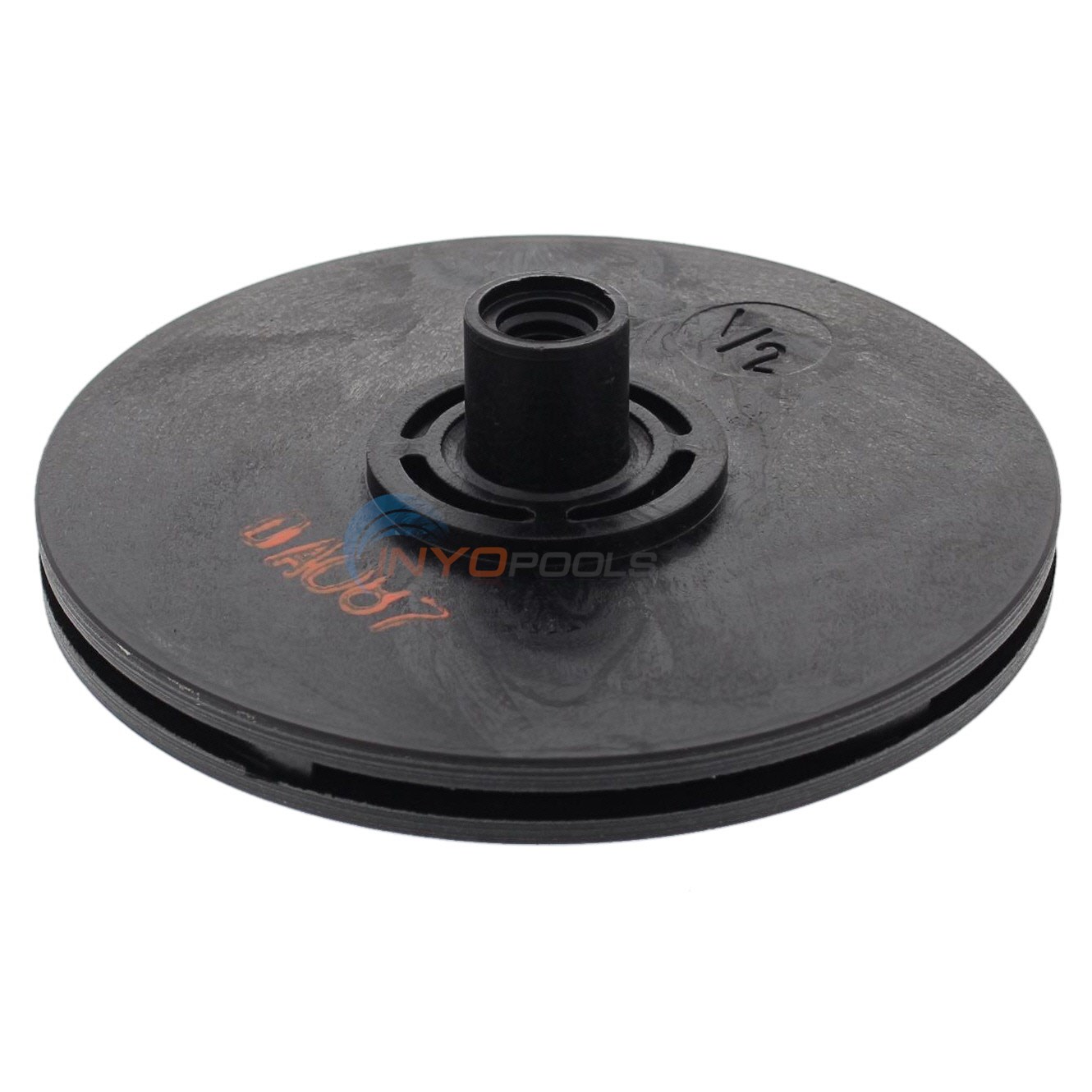

IMPELLER, 1/2HP POWER-FLO II

Part # 5111-07A Mfg # SPX1705C

IMPELLER, 1/2HP POWER-FLO II

$58.99 IN STOCK

Qty:

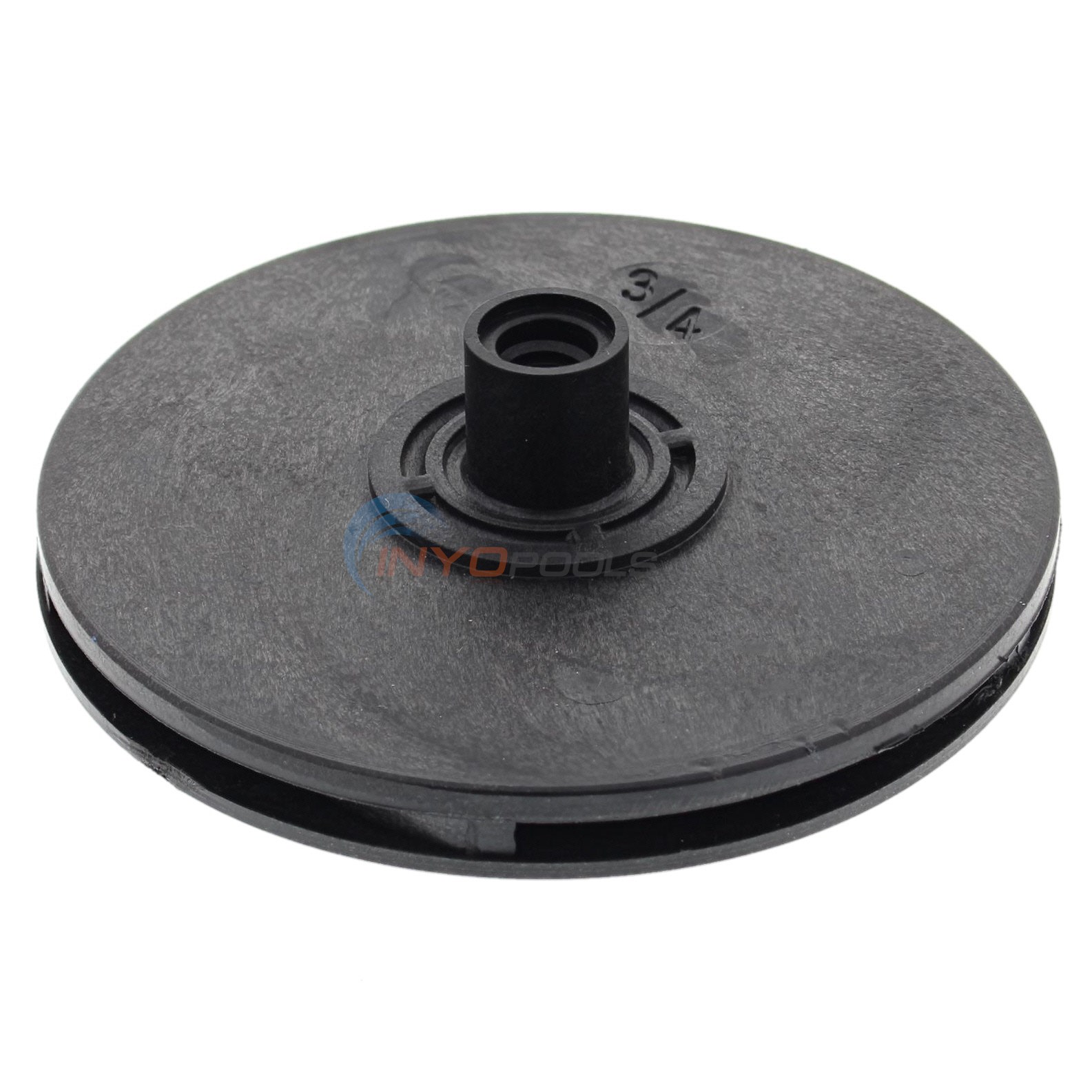

IMPELLER, 3/4HP POWER-FLO II

Part # 5111-07C Mfg # SPX1707C

IMPELLER, 3/4HP POWER-FLO II

$90.04 IN STOCK

Qty:

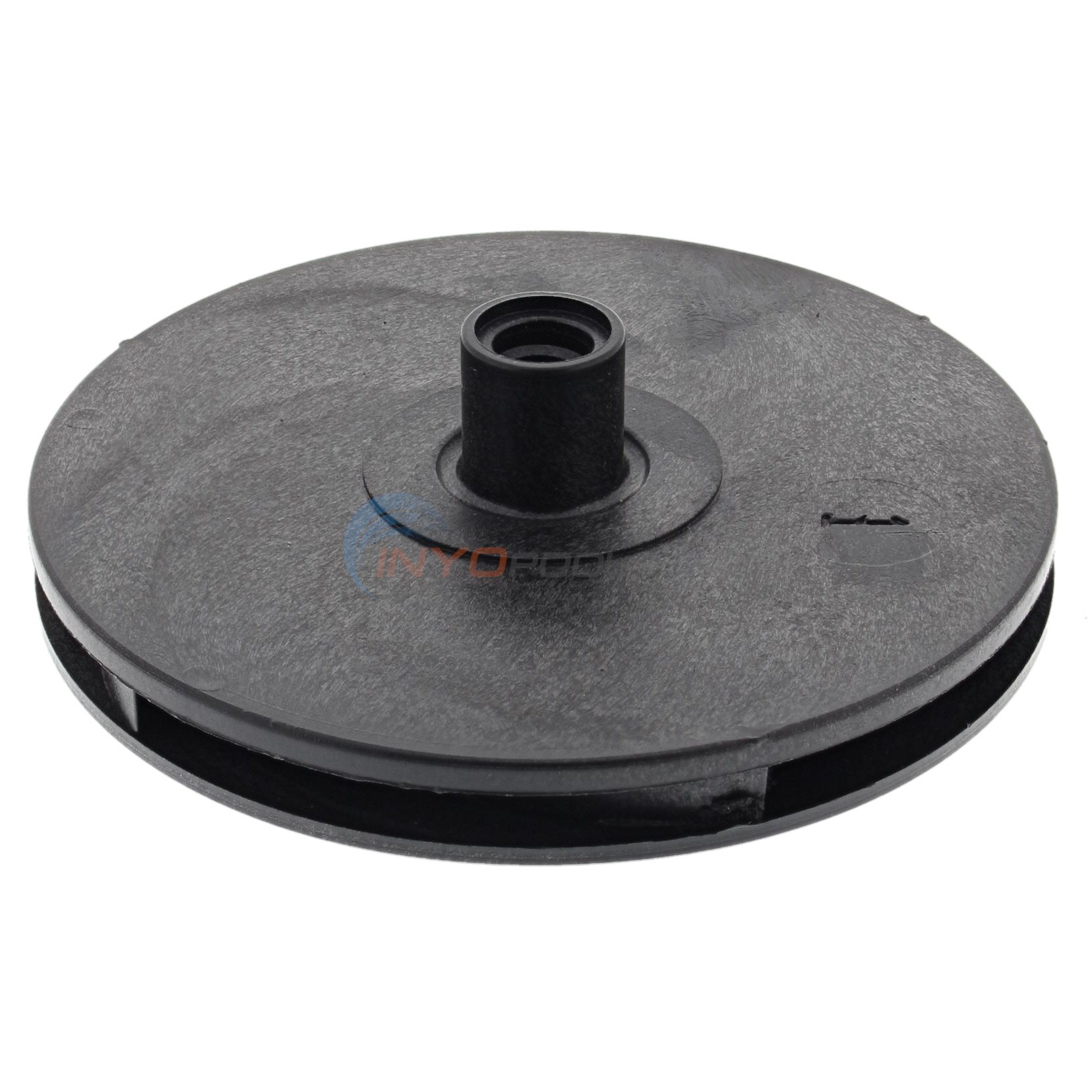

IMPELLER, 1HP POWER-FLO II

Part # 5111-07E Mfg # SPX1711C

IMPELLER, 1HP POWER-FLO II

$52.78 IN STOCK

Qty:

7

IMPELLER, 1HP POWER-FLO III (SPX2607C)

Part # 5110-10CA Mfg # SPX2607-C

IMPELLER, 1HP POWER-FLO III (SPX2607C)

NOT AVAILABLE

7

IMPELLER, 1 1/2HP POWER-FLO III (SPX2610C)

Part # 5110-10DA Mfg # SPX2610-C

IMPELLER, 1 1/2HP POWER-FLO III (SPX2610C)

NOT AVAILABLE

HOUSING With BASKET

Part # 5111-52 Mfg # SPX1500CAP

HOUSING With BASKET

$96.82 IN STOCK

Qty:

O.E.M - COVER, STRAINER, CLEAR LEXAN WITH O-RING

Part # 5111-17A Mfg # SPX1500D2A

O.E.M - COVER, STRAINER, CLEAR LEXAN WITH O-RING

$69.23 IN STOCK

Qty:

GENERIC - COVER, STRAINER, CLEAR LEXAN WITH O-RING (SPX1500D2A)

Part # 25306-000-020 Mfg # 25306-000-020

GENERIC - COVER, STRAINER, CLEAR LEXAN WITH O-RING (SPX1500D2A)

$35.85 IN STOCK

Qty:

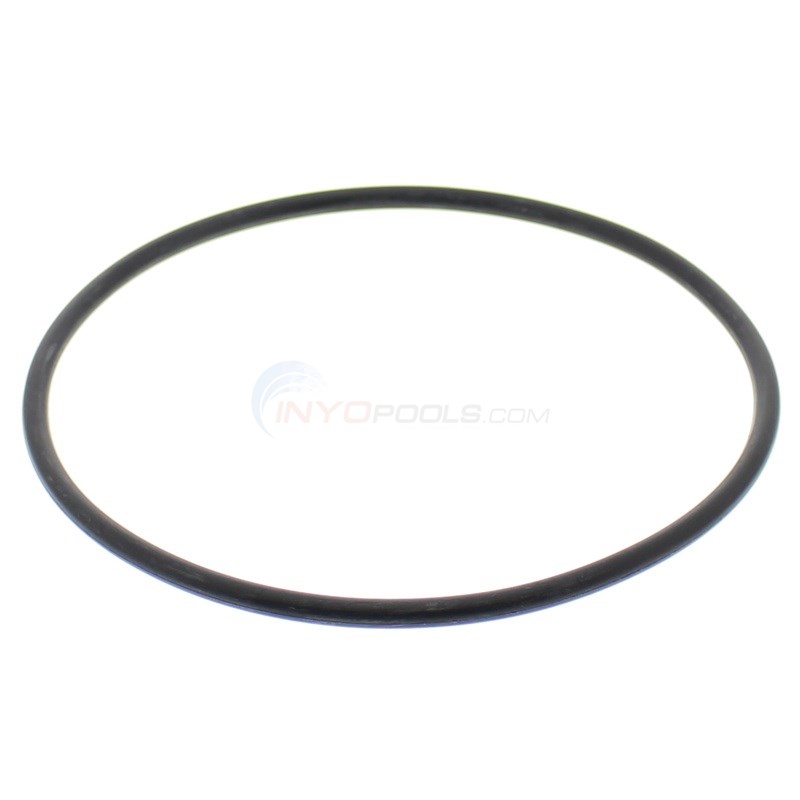

O-RING, COVER

Part # 5111-18B Mfg # 354

O-RING, COVER

$11.10 IN STOCK

Qty:

BASKET, STRAINER, OEM

Part # 5111-19 Mfg # SPX1250RA

BASKET, STRAINER, OEM

$30.00 IN STOCK

Qty:

BASKET, STRAINER (LARGE 4 1/2"x7")

Part # 5111-19A Mfg # SPX1500LX

BASKET, STRAINER (LARGE 4 1/2"x7")

$32.45 IN STOCK

Qty:

VALVE, CHECK (1992 & PRIOR)

Part # 5111-20 Mfg # SPX1500RA

VALVE, CHECK (1992 & PRIOR)

$34.14

O-RING, STRAINER

Part # 5111-21 Mfg # 135

O-RING, STRAINER

$13.17 IN STOCK

Qty:

PLUG, POLY, 1/4" MPT (3F14)

Part # 6761-0 Mfg # TP4004PP

PLUG, POLY, 1/4" MPT (3F14)

$4.78 IN STOCK

Qty:

1/2 HP Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Qty:

3/4 HP Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP Thru Bolt Motor

$185.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

15

1.5 H.P 115V / 230V Thru Bolt Motor

Part # BN35 Mfg # BN35

1.5 H.P 115V / 230V Thru Bolt Motor

NOT AVAILABLE

Service Factor 1.0 Voltage 115/230 Max Amps 8.0/16.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 8.0/16.0 Frame 48Y

3/4 HP 2 Speed 115V Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Motor

$218.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Motor

$295.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.97 IN STOCK

Qty:

NOTE - POWER FLO III MOTOR NO LONGER AVAILABLE
*NOT SHOWN
** NOT SHOWN
