Pentair - Pac Fab Dynatron Parts

PUREX/TRITON SYSTEMS

Pentair - Pac Fab Dynatron Diagram

Click to zoom in

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
2	No Longer Available NUT Replace With 4600-2256
3	ADAPTER, 1 1/2" QUICK CONNECT
4	O-RING, ADAPTER (5056-11--)
5	OBSOLETE SEAL, HOUSING
6	SEAL, PUMP 200 (PSR 200)
7	IMPELLER, 1 & 1 1/2HP
8	O-RING, LID
9	PLATE-FRONT, STRAIGHT IN SUCTION
10	SCREW
11	PLUG, POLY, 1/4" MPT (3F14)
12	UNION KIT
13	OBSOLETE COMPLETE WET END 1/2 HP
14	NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

View Parts List

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
2	No Longer Available NUT Replace With 4600-2256
3	ADAPTER, 1 1/2" QUICK CONNECT
4	O-RING, ADAPTER (5056-11--)
5	OBSOLETE SEAL, HOUSING
6	SEAL, PUMP 200 (PSR 200)
7	IMPELLER, 1 & 1 1/2HP
8	O-RING, LID
9	PLATE-FRONT, STRAIGHT IN SUCTION
10	SCREW
11	PLUG, POLY, 1/4" MPT (3F14)
12	UNION KIT
13	OBSOLETE COMPLETE WET END 1/2 HP
14	NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

Available Parts:

1/2 HP 115V Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP 115V Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Qty:

3/4 HP 115V Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP 115V Thru Bolt Motor

$177.83 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

1.5 H.P 230/115V Thru Bolt Motor

Part # BN35V1 Mfg # BN35V1

1.5 H.P 230/115V Thru Bolt Motor

$230.13 IN STOCK

Service Factor 1.0 Voltage 230/115 Max Amps 8.0/16.0 Frame 48Y

Service Factor 1.0 Voltage 230/115 Max Amps 8.0/16.0 Frame 48Y

Qty:

1.5 H.P 115V Thru Bolt Motor

Part # BV35SS

1.5 H.P 115V Thru Bolt Motor

$246.21 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 17.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 17.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Thru Bolt Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Thru Bolt Motor

$209.03 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Thru Bolt Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Thru Bolt Motor

$287.76 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

1 1/2 HP 2 Speed 230V Thru Bolt Motor

Part # BN34 Mfg # BN34V1

1 1/2 HP 2 Speed 230V Thru Bolt Motor

$290.43 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 8.0/2.6 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 8.0/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN38 Mfg # BN37V1

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

$262.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 10.3/3.1 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 10.3/3.1 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN60 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Low Amps Thru Bolt Motor

$296.24 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 13.8/3.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 13.8/3.8 Frame 48Y

Qty:

2

No Longer Available NUT Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352022577.htm">4600-2256</a>

Mfg # 35-2206

No Longer Available NUT Replace With 4600-2256

NOT AVAILABLE

NUT, BULKHEAD

Part # 4600-2256 Mfg # 352256

NUT, BULKHEAD

$30.49 IN STOCK

Qty:

ADAPTER, 1 1/2" QUICK CONNECT

Part # 5004-19 Mfg # 352257

ADAPTER, 1 1/2" QUICK CONNECT

$15.72 IN STOCK

Qty:

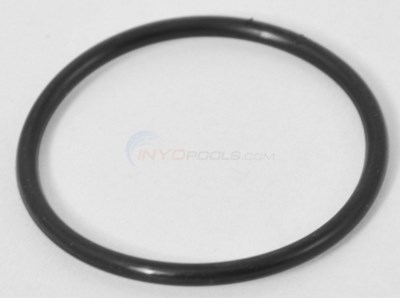

O-RING, ADAPTER (5056-11--)

Part # 5004-21 Mfg # 354571

O-RING, ADAPTER (5056-11--)

$12.28 IN STOCK

Qty:

5

OBSOLETE SEAL, HOUSING

Mfg # 35-2228

OBSOLETE SEAL, HOUSING

NOT AVAILABLE

SEAL, PUMP 200 (PSR 200)

Part # 5250-104 Mfg # PSR-200

SEAL, PUMP 200 (PSR 200)

$7.53 IN STOCK

Qty:

IMPELLER, 1 & 1 1/2HP

Part # 5006-07 Mfg # 353066

IMPELLER, 1 & 1 1/2HP

$71.34 IN STOCK

Qty:

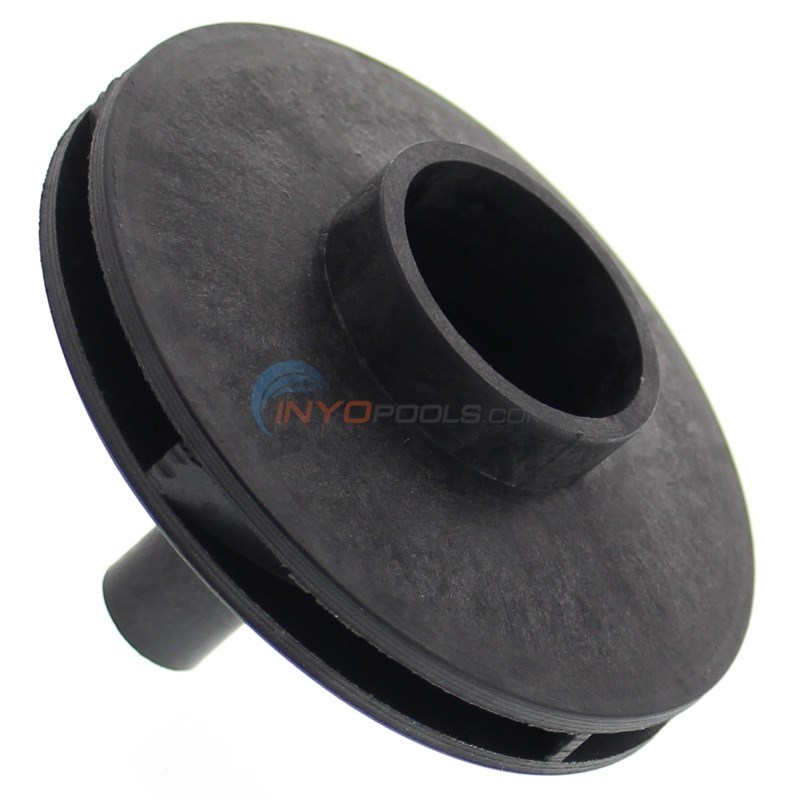

IMPELLER, 3/4, 1, & 1 1/2 HP

Part # 5006-07A Mfg # 355122

IMPELLER, 3/4, 1, & 1 1/2 HP

$41.04 IN STOCK

Qty:

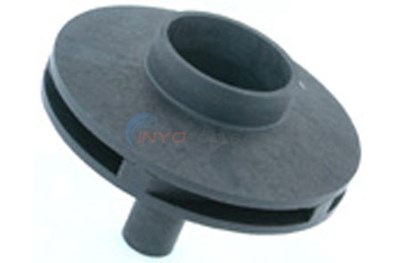

IMPELLER, 1/2 HP

Part # 5004-06 Mfg # 353002

IMPELLER, 1/2 HP

$50.24 IN STOCK

Qty:

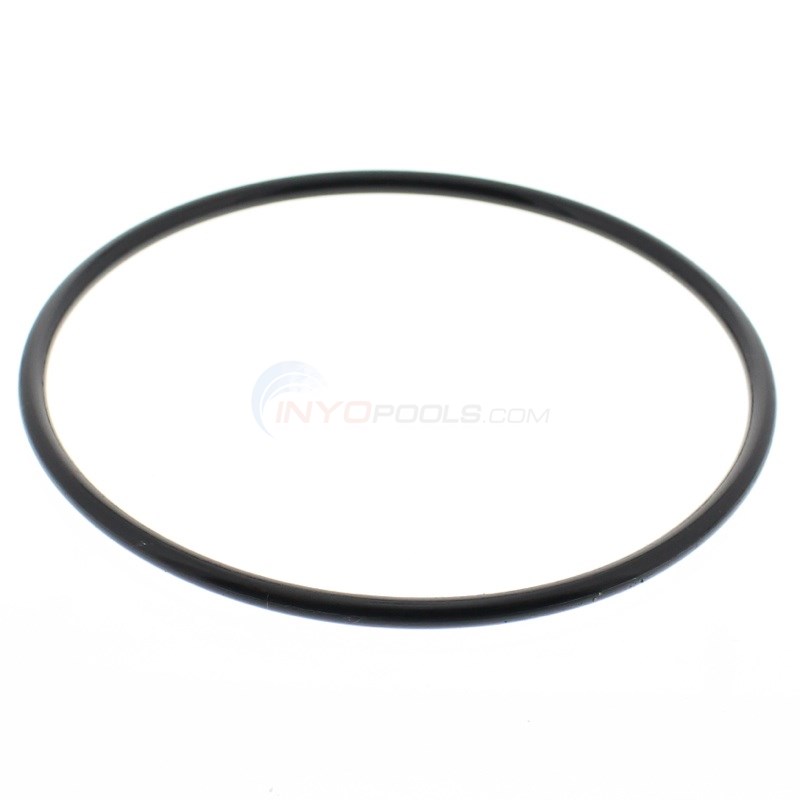

O-RING, LID

Part # 5004-13 Mfg # 353

O-RING, LID

$12.79 IN STOCK

Qty:

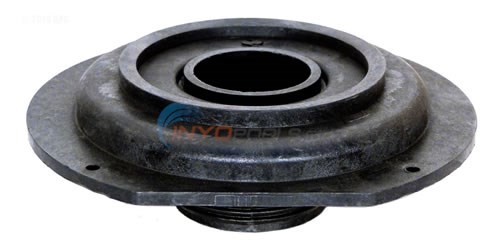

PLATE-FRONT, STRAIGHT IN SUCTION

Part # 5006-09 Mfg # 352226

PLATE-FRONT, STRAIGHT IN SUCTION

$87.42 IN STOCK

Qty:

SCREW

Part # 5120-10 Mfg # 99730050

SCREW

$11.04 IN STOCK

Qty:

PLUG, POLY, 1/4" MPT (3F14)

Part # 6761-0 Mfg # TP4004PP

PLUG, POLY, 1/4" MPT (3F14)

$4.64 IN STOCK

Qty:

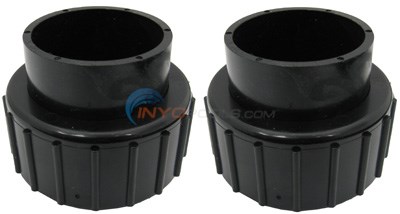

UNION KIT

Part # 5006-15 Mfg # 352210

UNION KIT

$49.77 IN STOCK

Qty:

13

OBSOLETE COMPLETE WET END 1/2 HP

Mfg # NOT AVAILABLE

OBSOLETE COMPLETE WET END 1/2 HP

NOT AVAILABLE

WET END,CTR DSCH 3/4HP With OUT UNIONS (310-1120)

Part # 5030B Mfg # 310-1320

WET END,CTR DSCH 3/4HP With OUT UNIONS (310-1120)

$99.48 IN STOCK

Qty:

WET END,CTR DSCH 1 HP With OUT UNIONS (310-1130)

Part # 5030C Mfg # 310-1330

WET END,CTR DSCH 1 HP With OUT UNIONS (310-1130)

$117.84 IN STOCK

Qty:

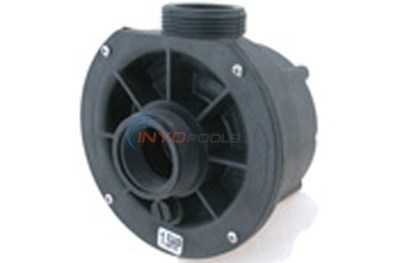

WET END,CTR DSCH 1 1/2HP With OUT UNIONS

Part # 5030D Mfg # 310-1140

WET END,CTR DSCH 1 1/2HP With OUT UNIONS

$108.35 IN STOCK

Qty:

NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

Part # 9170-17B Mfg # 25300-000-070

NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

$12.05 IN STOCK

Qty:
