$290.43

Qty:

By Magnetek


Details

Top

Part # BN34

Warranty 1 Year

Manufacturer Code BN34V1

Alternate Part #'s 10-184168-02, 165180, 17523, 176379, 177235, 177783, 1777830J, 177865, 181328, 181328PJ, 181495, 182715, 182859, 184168, 186267, 1D164, 3051280, 3420620, 41001, 5266CX, 5KCR39UN2903X, 5U149, 7-165180-02, 7-165180-04, 7-177783-01, 7-177783-02, 7-177783-62, 7-177865-02, 7-184168-01, 717778302, 8-177783-01, 8-177783-40, 8-177865-48, 9-176379-02, 9-177783-02, 90100448, agh15fl2cs, AOSBN34, B034, BN034, BN34V1, C1280, C1326, C48B59A01, MGT-60-5150, MGT605150, S48A40A79, S48B59A01, S48M2A10A1, S48M2A10A7, S48M2A7, SP1515Z2EBK3, SPH15FL2, TBS2152H, 35-126-1116W, CRMBN34V1

Product Description

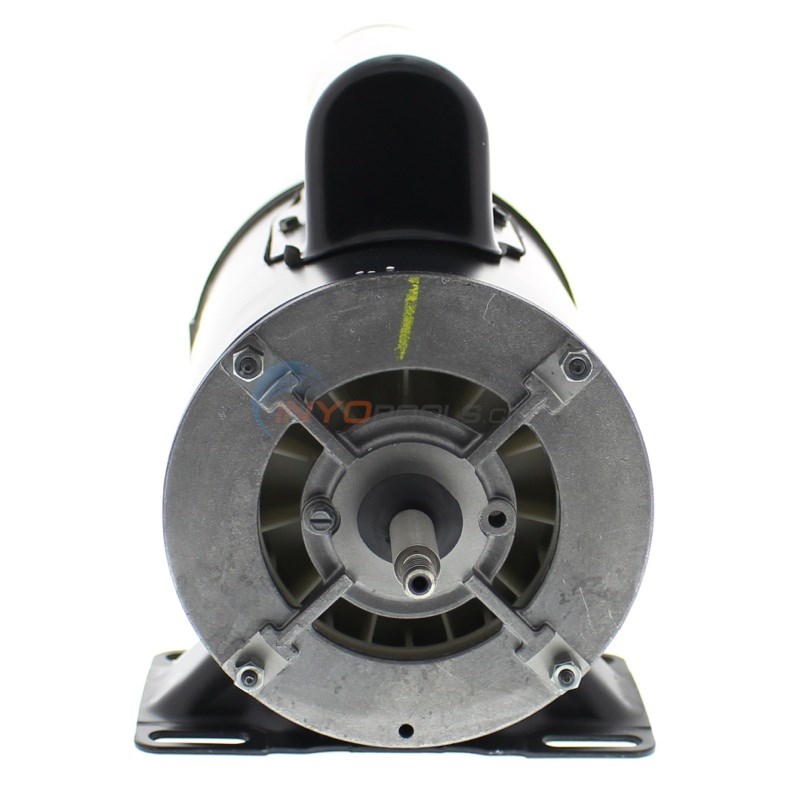

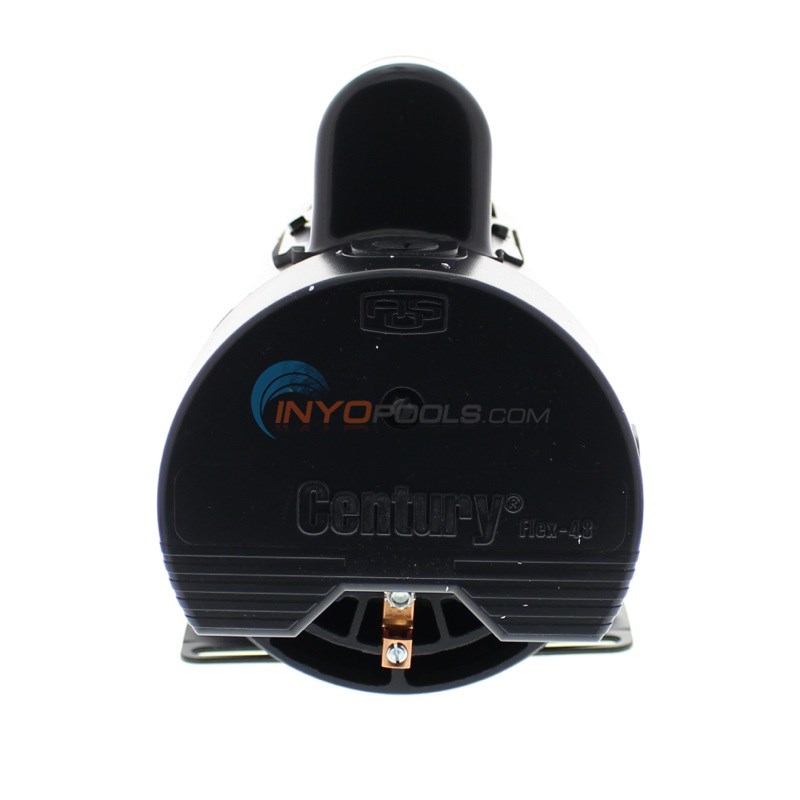

Century 1.5 HP Thru-Bolt 48Y Dual Speed 230V Motor - BN34V1

Application: Above Ground Pools & Spas Replaces: Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Etc... Features: All copper windins, Auto protector, Open drip proof, Stainless steel threaded shaft, Thrubolt pump mount, "1081" design, 60 HZ , 230V, HP = 1.5 High Speed / .188 Low Speed, Full load Amps = 6.5 High speed / 2.5 Low Speed, Frame 48Y, Threaded Shaft

**NOTE THIS MOTOR IS SHIPPED LESS HI-LO SWITCH. YOU MAY PURCHASE THE HI-LO SWITCH SEPARATELY BY ORDERING PART # 18313301.**

NOT California Title 20 Compliant

Product Specifications

HP:
1.5/.18 HP
Service Factor:
1.0
Volts:
230
Amps - High Speed:
6.5 amp
Amps - Low Speed:
2.5 amp
RPM:
3450/1725 RPM
Frame:
48Y
Top

?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/18/2012by Guest

Can you direct me to the proper hi low switch for this motor?
 Reply

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

Unfortunately the manufacturer does not offer the switch for the 2 speed 220v motors any longer. If you already have a 220 volt timer (on/off) you would need an Intermatic T106R to switch from high to low speed. If you do not have a timer currently you would need the T10604R which is a 220v on/off timer and a high/low timer.
 Reply


?     Asked on 6/7/2016by Rick

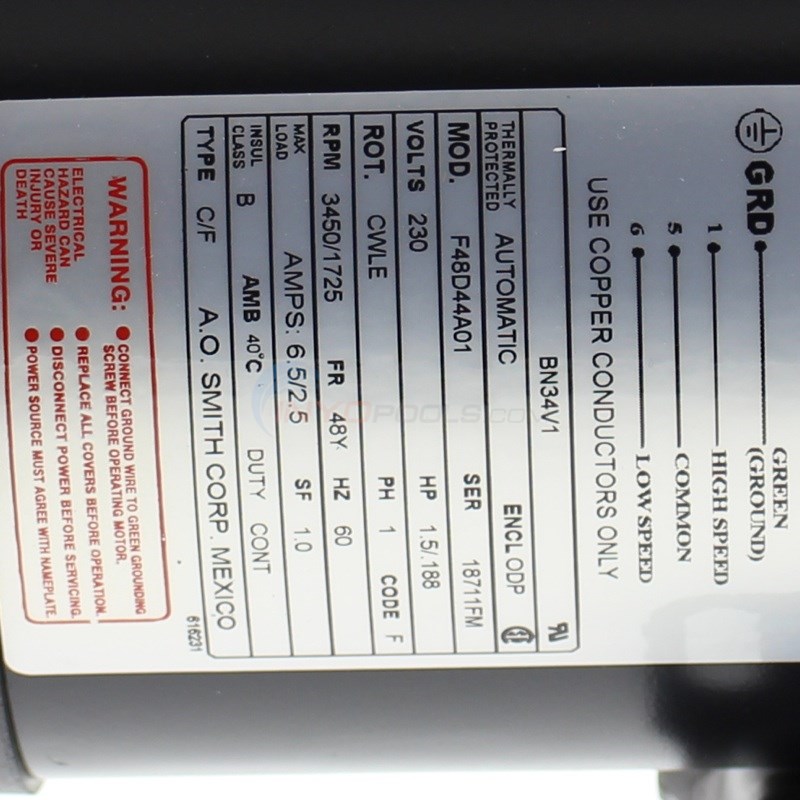

I just swapped my 115v pool pump motor for the Century 2 speed 230v motor. I have everything wired like it says on the side of the motor. I have one 120v line going to terminal 1, one 120v line going to terminal 6 and the neutral going to terminal 5. With that said, the motor only runs in the low speed??? I have the Intermatic T10604R dual timer switch ordered, will this solve my issue?
 Reply

A  Answered on 6/12/2016 by InyoPools Product Specialist Lennox H.

Hi Rick, Line 1 and 5 are where the 110 volt wire should be placed and Line 6 is your neutral line and Green for you ground. The T10604R will be able to operate your dual speed pump.
 Reply
