Pentair / Pac Fab Hydropump Parts

590 & 700 SERIES PUMPS

Pentair / Pac Fab Hydropump Diagram

Click to zoom in

Diagram #	Part Title
***	Tune Up Kit Pentair/Pac Fab Hydropump
1	MOTOR 56C KEYED FULL .5 HP
****	Protective Pool Motor Cover
2*	IMPELLER, 1/2 HP PLASTIC
3	CAP SCREW
4	SEAL BRACKET
5	VOLUTE, REINFORCED PLASTIC
6	O-RING
7	SCREW, CAP 5/16-18 X 7/8IN
8	STRAINER POT, FOR 590 1 1/2” SUCTION
9	PLUG, POLY, 1/4" MPT (3F14)
10	PIPE PLUG, BRASS
11	BASKET, STRAINER FOR 590
11	Basket, Generic (b-101) for Pentair 590 Hydropump
12	O-RING, LID 590
13	SCREW, HEX CAP (3/8-16 X 1 1/4")
14	NUT, 3/8IN
15	KNOB, ROUND With PLASTIC TOP
16	GASKET, SEAL PLATE
17	EXTENSION, SHAFT BRONZE
18	SET SCREW, SINGLE
19	PENTAIR SHAFT SEAL OEM (345001)
**	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
20	TRI-POD, FIBERGLASS PUMP
21	LID, CLEAR PLASTIC FOR 590
22	OUTRIGGER, MOTOR
23	OBSOLETE SUPPORT

View Parts List

Diagram #	Part Title
***	Tune Up Kit Pentair/Pac Fab Hydropump
1	MOTOR 56C KEYED FULL .5 HP
****	Protective Pool Motor Cover
2*	IMPELLER, 1/2 HP PLASTIC
3	CAP SCREW
4	SEAL BRACKET
5	VOLUTE, REINFORCED PLASTIC
6	O-RING
7	SCREW, CAP 5/16-18 X 7/8IN
8	STRAINER POT, FOR 590 1 1/2” SUCTION
9	PLUG, POLY, 1/4" MPT (3F14)
10	PIPE PLUG, BRASS
11	BASKET, STRAINER FOR 590
11	Basket, Generic (b-101) for Pentair 590 Hydropump
12	O-RING, LID 590
13	SCREW, HEX CAP (3/8-16 X 1 1/4")
14	NUT, 3/8IN
15	KNOB, ROUND With PLASTIC TOP
16	GASKET, SEAL PLATE
17	EXTENSION, SHAFT BRONZE
18	SET SCREW, SINGLE
19	PENTAIR SHAFT SEAL OEM (345001)
**	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
20	TRI-POD, FIBERGLASS PUMP
21	LID, CLEAR PLASTIC FOR 590
22	OUTRIGGER, MOTOR
23	OBSOLETE SUPPORT

Available Parts:

Tune Up Kit Pentair/Pac Fab Hydropump

Part # GOKIT22

Tune Up Kit Pentair/Pac Fab Hydropump

$38.29 IN STOCK

Qty:

MOTOR 56C KEYED FULL .5 HP

Part # 5201X Mfg # B120

MOTOR 56C KEYED FULL .5 HP

$268.97

Service Factor 1.6 Voltage 115/230 Max Amps 10.6/5.3 Frame 56C

Service Factor 1.6 Voltage 115/230 Max Amps 10.6/5.3 Frame 56C

MOTOR, 56C KEYED FULL .75 HP

Part # 5202X Mfg # B121

MOTOR, 56C KEYED FULL .75 HP

$269.00 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 14.6/7.3 Frame 56C

Service Factor 1.5 Voltage 115/230 Max Amps 14.6/7.3 Frame 56C

Qty:

Motor 56c Keyed Full 1 Hp

Part # B122 Mfg # B122

Motor 56c Keyed Full 1 Hp

$285.00 IN STOCK

Service Factor 1.4 Voltage 115/230 Max Amps 14.4/7.2 Frame M56C

Service Factor 1.4 Voltage 115/230 Max Amps 14.4/7.2 Frame M56C

Qty:

MOTOR 56C KEYED FULL 1.5 HP

Part # 5204X Mfg # B123

MOTOR 56C KEYED FULL 1.5 HP

$429.00 IN STOCK

Service Factor 1.3 Voltage 115/230 Max Amps 19.4/9.7 Frame 56C

Service Factor 1.3 Voltage 115/230 Max Amps 19.4/9.7 Frame 56C

Qty:

MOTOR 56C KEYED FULL 2 HP

Part # 5205X Mfg # B124

MOTOR 56C KEYED FULL 2 HP

$436.14 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 56C

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 56C

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.97 IN STOCK

Qty:

IMPELLER, 1/2 HP PLASTIC

Part # 5000-3043 Mfg # 353043

IMPELLER, 1/2 HP PLASTIC

$104.53 IN STOCK

Qty:

IMPELLER, 3/4 HP PLASTIC

Part # 5000-3044 Mfg # 353044

IMPELLER, 3/4 HP PLASTIC

$105.58 IN STOCK

Qty:

IMPELLER, 1 HP PLASTIC

Part # 5000-3013 Mfg # 353013

IMPELLER, 1 HP PLASTIC

$112.80 IN STOCK

Qty:

IMPELLER, 1 1/2 HP PLASTIC

Part # 5000-3049 Mfg # 353049

IMPELLER, 1 1/2 HP PLASTIC

$105.58 IN STOCK

Qty:

IMPELLER, 2 HP PLASTIC

Part # 5000-3050 Mfg # 353050

IMPELLER, 2 HP PLASTIC

$87.56 IN STOCK

Qty:

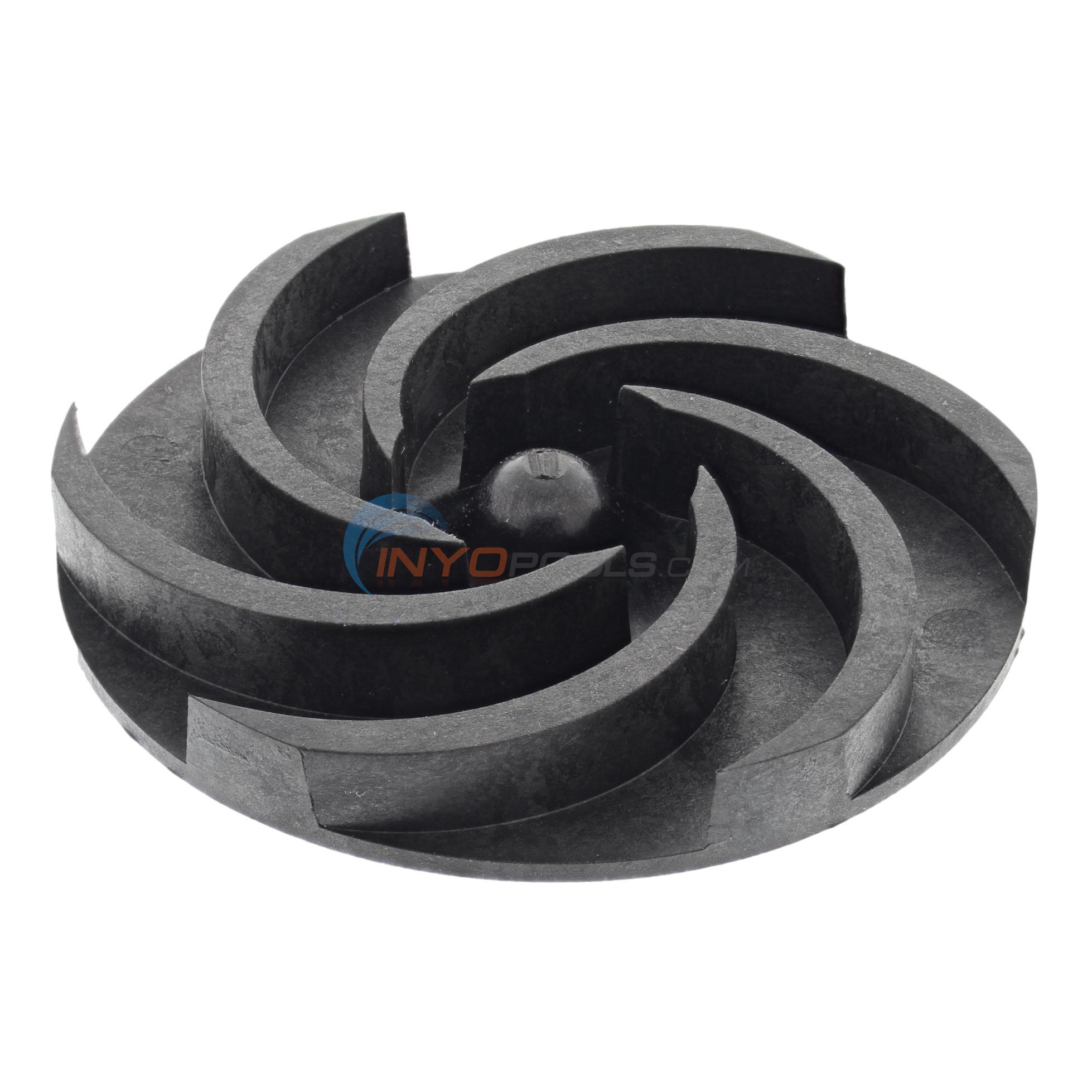

IMPELLER, 3 HP PLASTIC

Part # 5000-3220 Mfg # 353220

IMPELLER, 3 HP PLASTIC

$104.53 IN STOCK

Qty:

CAP SCREW

Part # 5110-16 Mfg # SAMPLE S-22

CAP SCREW

$7.20 IN STOCK

Qty:

SEAL BRACKET

Part # 5000-3728 Mfg # 353775

SEAL BRACKET

$116.96 IN STOCK

Qty:

VOLUTE, REINFORCED PLASTIC

Part # 5000-3912 Mfg # 353912

VOLUTE, REINFORCED PLASTIC

$263.95

O-RING

Part # 4600-2323 Mfg # 138

O-RING

$6.53 IN STOCK

Qty:

SCREW, CAP 5/16-18 X 7/8IN

Part # 6904-0 Mfg # U30-61ZP

SCREW, CAP 5/16-18 X 7/8IN

$23.79

STRAINER POT, FOR 590 1 1/2” SUCTION

Part # 5000-4125 Mfg # 354125

STRAINER POT, FOR 590 1 1/2” SUCTION

$227.72

STRAINER POT, FOR 700 2” SUCTION

Part # 5000-4127 Mfg # 354127

STRAINER POT, FOR 700 2” SUCTION

$369.53

PLUG, POLY, 1/4" MPT (3F14)

Part # 6761-0 Mfg # TP4004PP

PLUG, POLY, 1/4" MPT (3F14)

$4.78 IN STOCK

Qty:

PIPE PLUG, BRASS

Part # 6740-0 Mfg # 06121-04

PIPE PLUG, BRASS

$17.58 IN STOCK

Qty:

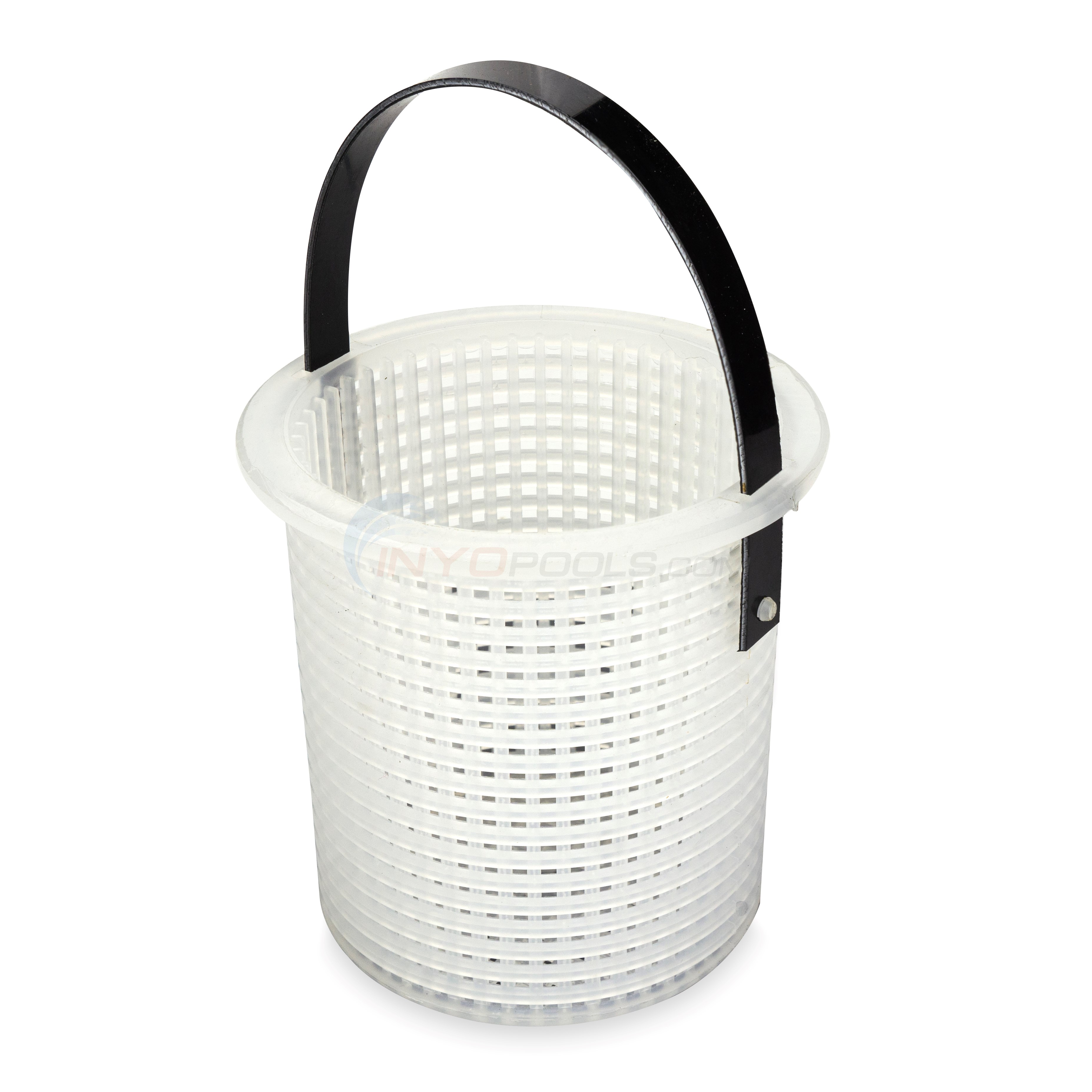

BASKET, STRAINER FOR 590

Part # 5000-2656 Mfg # 352656

BASKET, STRAINER FOR 590

$19.45 IN STOCK

Qty:

BASKET, STRAINER FOR 700

Part # 5000-2670 Mfg # B-206

BASKET, STRAINER FOR 700

$23.05 IN STOCK

Qty:

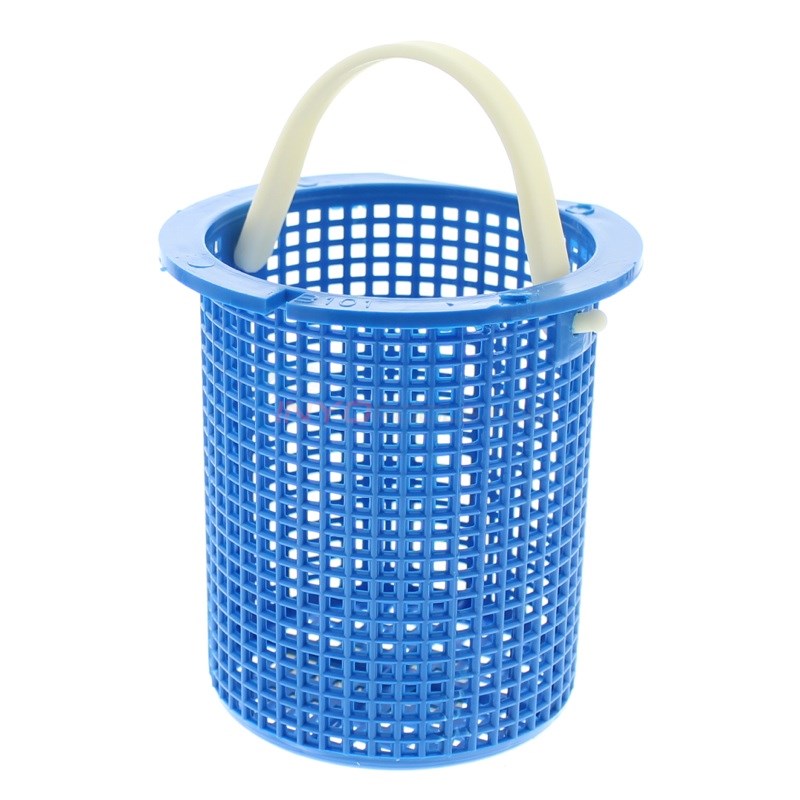

Basket, Generic (b-101) for Pentair 590 Hydropump

Part # 5400-B101 Mfg # B-101

Basket, Generic (b-101) for Pentair 590 Hydropump

$24.88 IN STOCK

Qty:

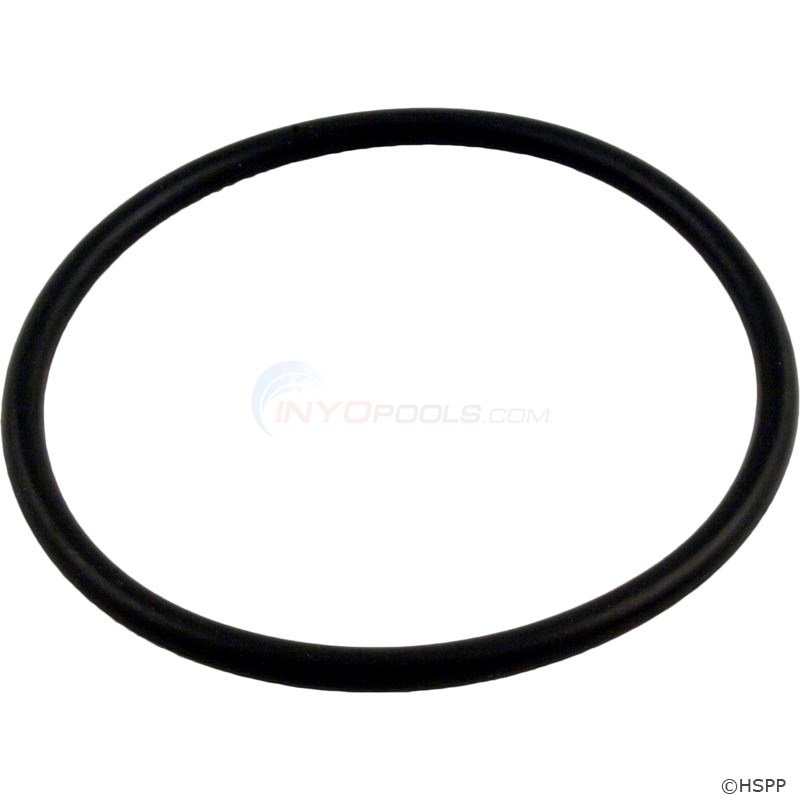

O-RING, LID 590

Part # 5000-2602 Mfg # 427

O-RING, LID 590

$5.96 IN STOCK

Qty:

O-RING, LID 700 (352600)

Part # 5064-03 Mfg # 434

O-RING, LID 700 (352600)

$18.43 IN STOCK

Qty:

SCREW, HEX CAP (3/8-16 X 1 1/4")

Part # 6903-0 Mfg # 070430

SCREW, HEX CAP (3/8-16 X 1 1/4")

$4.13 IN STOCK

Qty:

NUT, 3/8IN

Part # 6932-0 Mfg # 071403

NUT, 3/8IN

$8.27 IN STOCK

Qty:

KNOB, ROUND With PLASTIC TOP

Part # 5000-4280 Mfg # 354280

KNOB, ROUND With PLASTIC TOP

$18.21 IN STOCK

Qty:

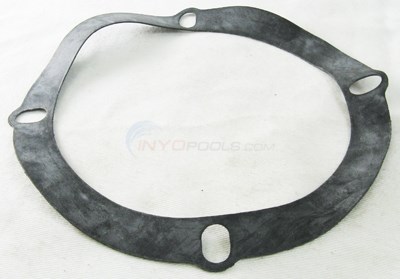

GASKET, SEAL PLATE

Part # 5000-2627 Mfg # G-192

GASKET, SEAL PLATE

$14.48 IN STOCK

Qty:

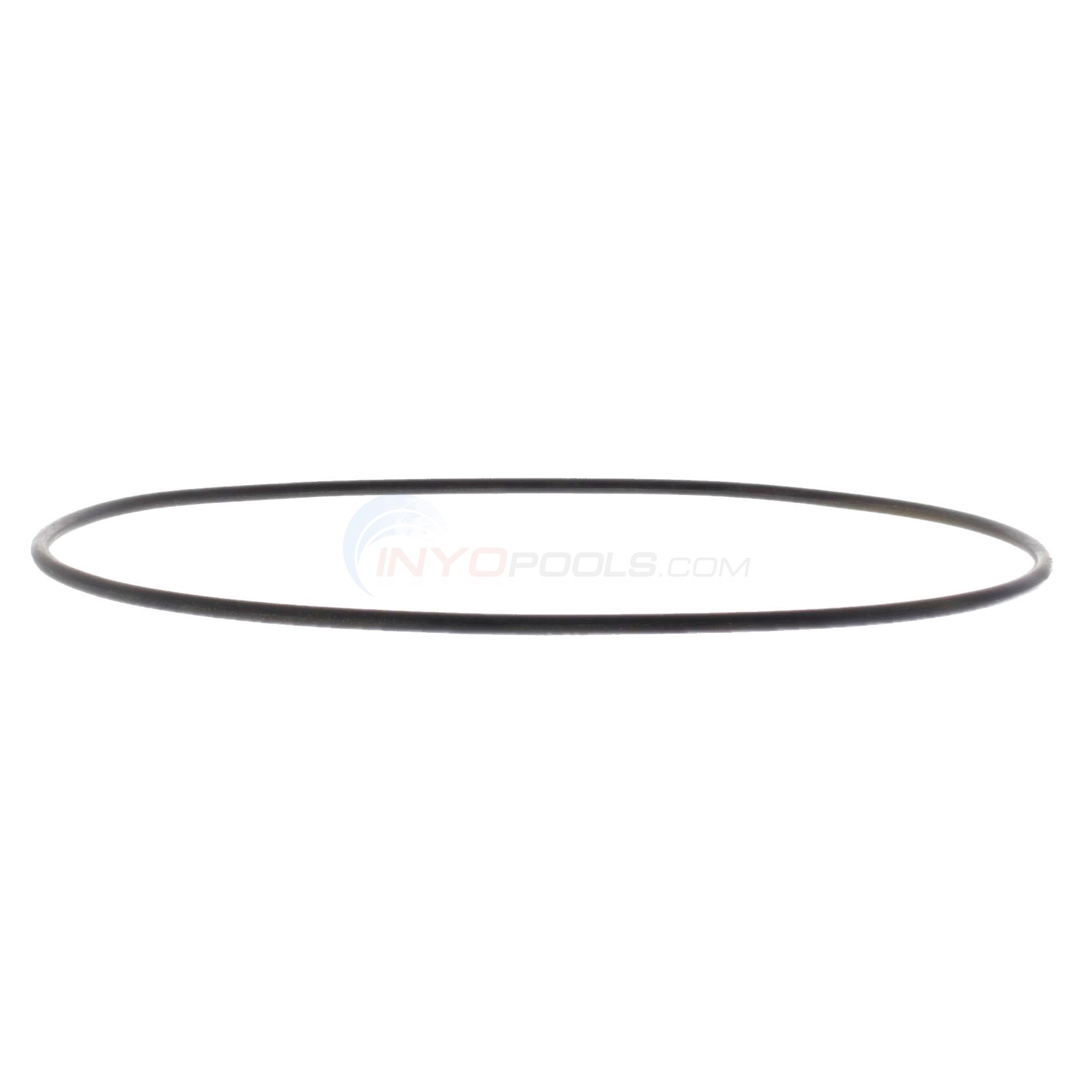

O-RING, SEAL PLATE

Part # 5000-2626 Mfg # 352626

O-RING, SEAL PLATE

$13.17 IN STOCK

Qty:

EXTENSION, SHAFT BRONZE

Part # 5000-3750 Mfg # V36-115

EXTENSION, SHAFT BRONZE

$66.77 IN STOCK

Qty:

SET SCREW, SINGLE

Part # 5050-03 Mfg # 99730000

SET SCREW, SINGLE

$8.68 IN STOCK

Qty:

PENTAIR SHAFT SEAL OEM (345001)

Part # 354001

PENTAIR SHAFT SEAL OEM (345001)

$16.55 IN STOCK

Qty:

GENERIC SHAFT SEAL PS-201

Part # 5250-102 Mfg # PS-201

GENERIC SHAFT SEAL PS-201

$7.76 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-235 Mfg # PS-3868

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$16.55 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.16 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.04 IN STOCK

Qty:

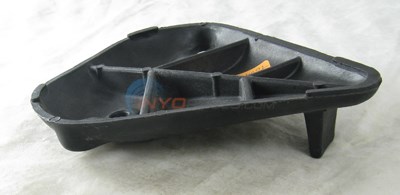

TRI-POD, FIBERGLASS PUMP

Part # 5000-4894 Mfg # 354894

TRI-POD, FIBERGLASS PUMP

$91.08

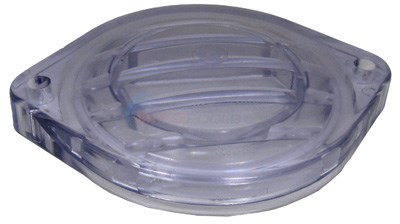

LID, CLEAR PLASTIC FOR 590

Part # 5000-3625 Mfg # 353625

LID, CLEAR PLASTIC FOR 590

$103.40 IN STOCK

Qty:

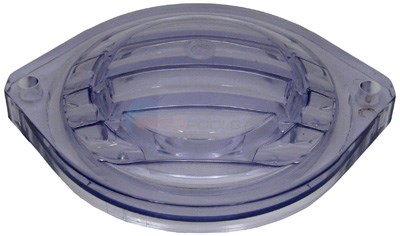

LID, CLEAR PLASTIC FOR 700

Part # 5000-3525 Mfg # 353525

LID, CLEAR PLASTIC FOR 700

$116.96 IN STOCK

Qty:

LID, BAQUACIL RESISTANT FOR 590

Part # 5000-4115 Mfg # 354115

LID, BAQUACIL RESISTANT FOR 590

$91.08

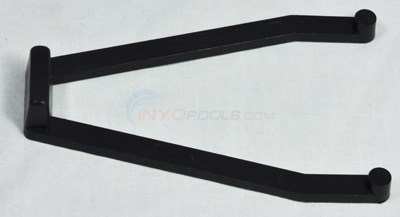

OUTRIGGER, MOTOR

Part # 5000-4909 Mfg # 154909

OUTRIGGER, MOTOR

$34.14

23

OBSOLETE SUPPORT

Mfg # 353450

OBSOLETE SUPPORT

NOT AVAILABLE

* IMPELLERS LISTED ARE FOR FULL RATED PUMP MODELS. FOR UPRATED VERSIONS USE NEXT SIZE UP. FOR EXAMPLE 1/2 H.P. FULL RATE IMPELLER IS THE SAME AS A 3/4 H.P. UPRATED IMPELLER. MODELS RPA590 & RPA700 ARE UPRATED VERSIONS. MODELS RPF590 & RPF700 ARE FULL RATED VERSIONS
**NOT SHOWN
*** O-RING/GASKET REPAIR KIT
**** NOT SHOWN
