Pentair Triton II Fiberglass Sand Filter Parts

SIDE MOUNT VALVE MODELS TR-40, 50, 60, 100, 100HD, 140

Pentair Triton II Fiberglass Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
*	PacFab TR Series O-ring Kit
40	Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream
1	BLEEDER, AIR/TEE ASSEMBLY
2	ADAPTER, TEE BRASS *
3A	GAUGE PRESS With INDICATOR REAR MOUNT
4	O-RING, BLEEDER ADAPTER
5	NUT, 3/8IN (SAMPLE N-2)
6A	Closure 6" Buttress Thread Lid (Filters Made After 11/1991)
6B	Closure 6" V Thread Lid, Tan (Filters Made Before 11/1991)
6C	Lid, Closure Kit V Thread 6in
7A	Closure O-ring for 6" Lid
8	STRAINER, AIR RELIEF (154578) For Filters Made Before 11/99
9	TUBE, AIR RELIEF

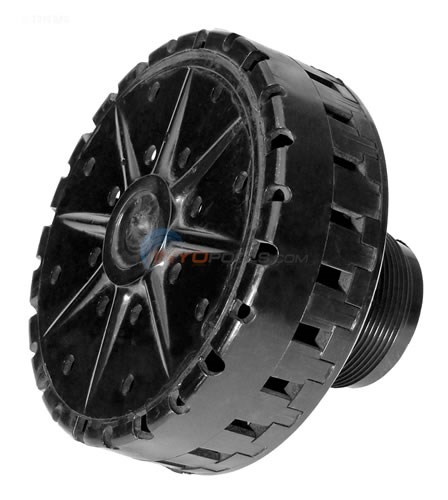

10	DIFFUSER ASSEMBLY (154598) For TR-40/50
11	PIPING ASSEMBLY, UPPER (154803) For TR-40
12	CONNECTOR, AIR RELIEF TUBE-THD

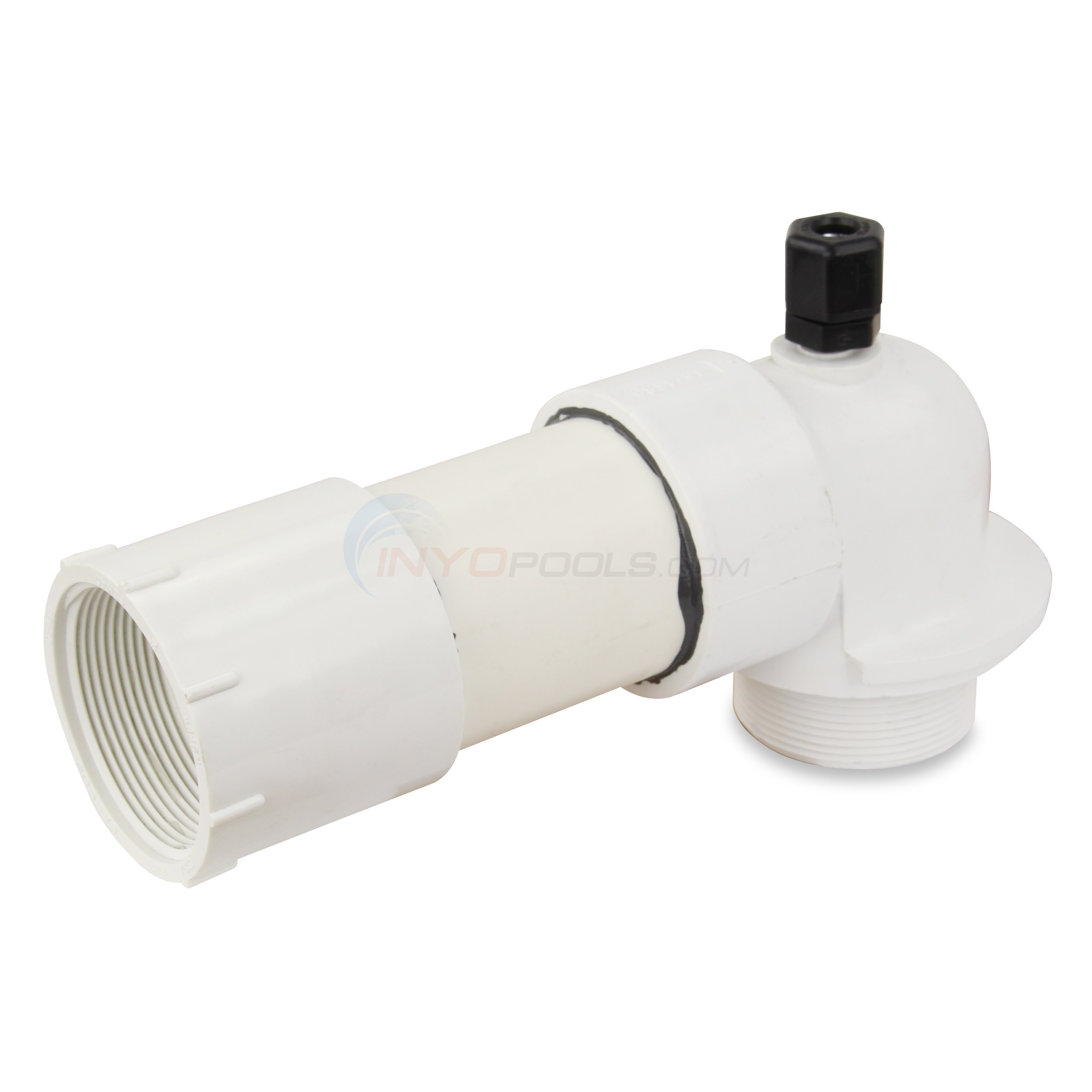

13	PIPING ASSEMBLY, LOWER (154801) For TR-40
13	Piping Assembly, Lower(TR-60)
15	Lateral, 6-11/16" (8 Required) For TR-40/50/60
16	HUB ASSEMBLY (154763) For TR-40/50/60
16	Hub Assembly (155753) For TR60 Built After 06/2007

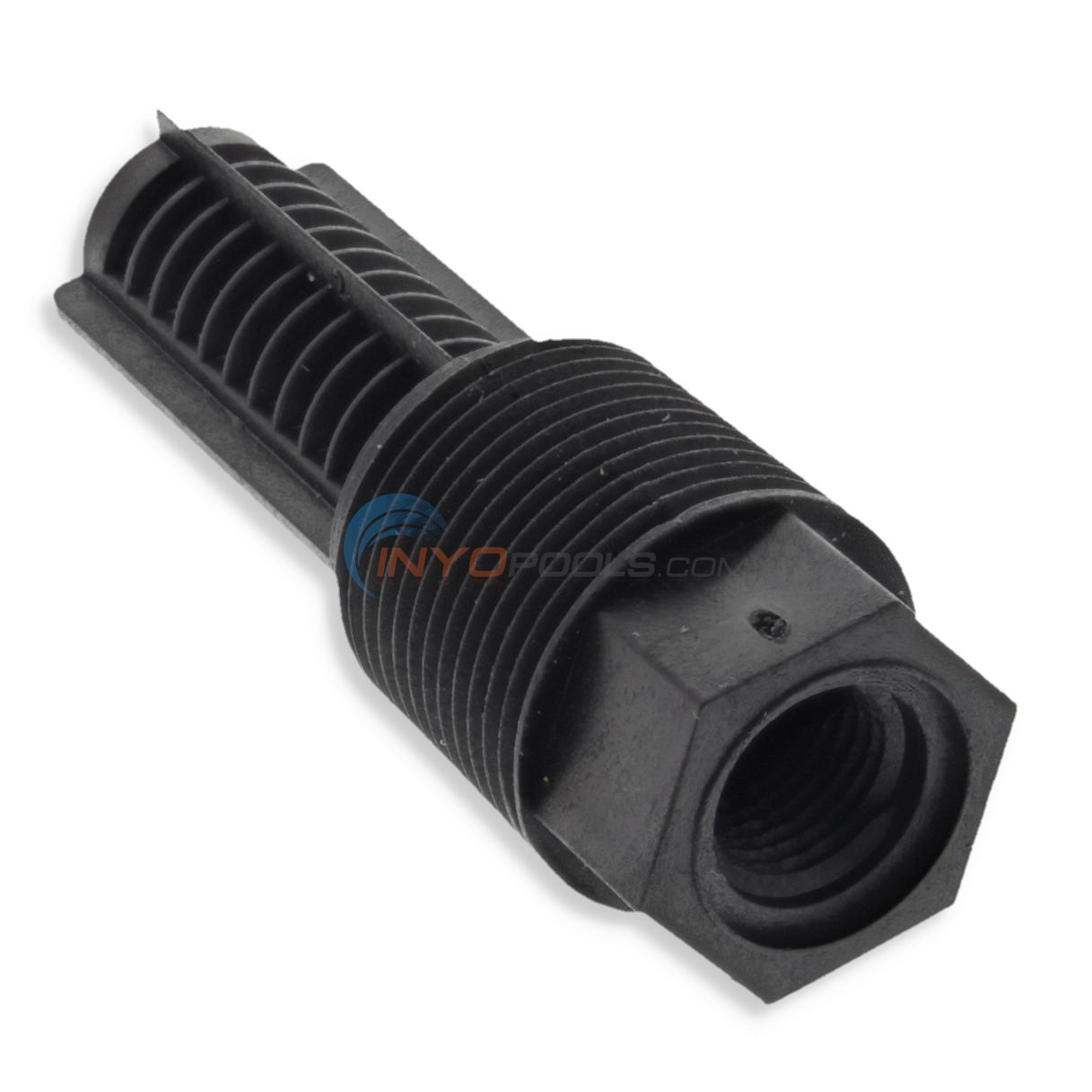

17A	Drain Assembly 3/4in (Used After 3/1983)
17B	Drain Assembly 1/2in
17C	Drain, 2" Sand (Used Before 3/1983)

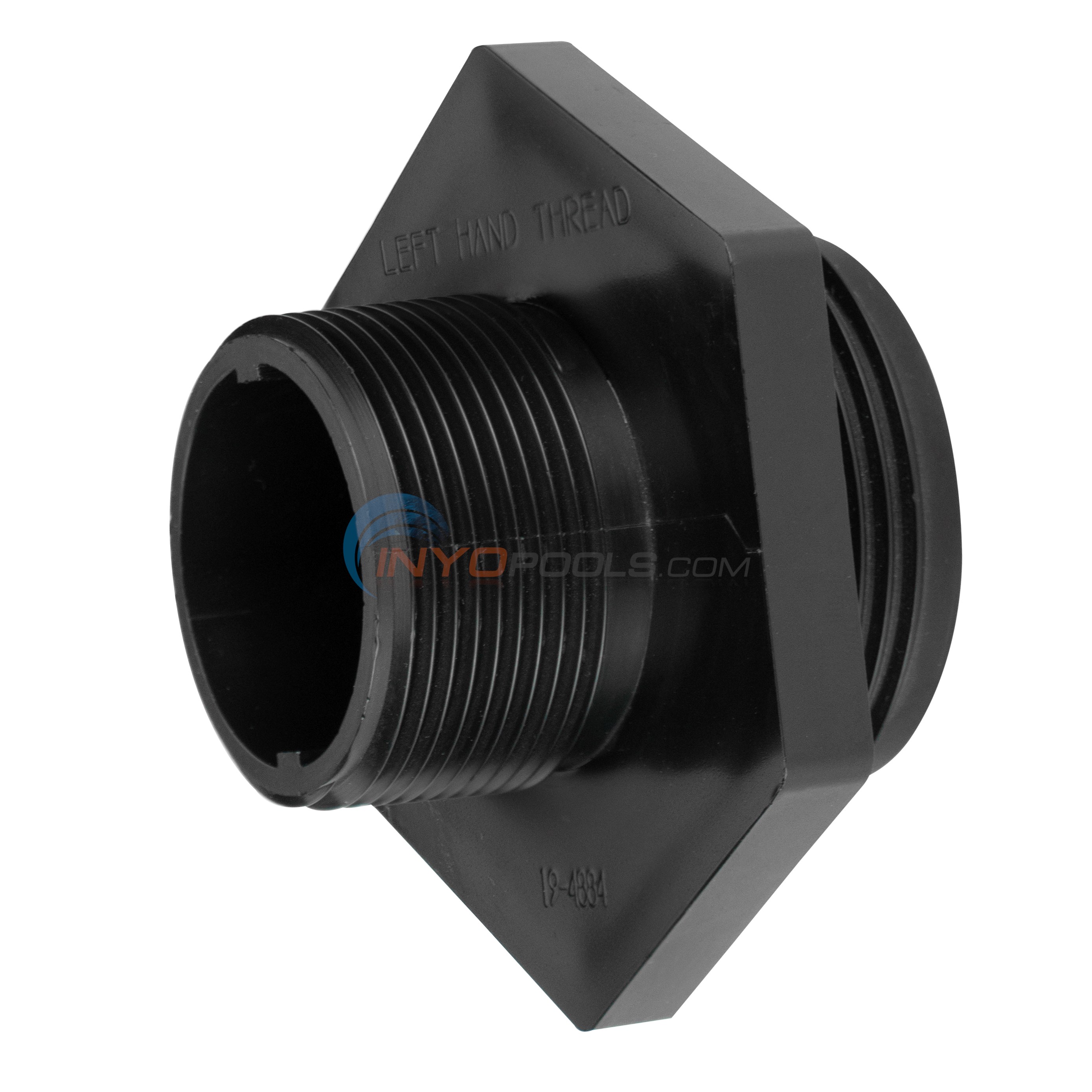

*	2" Sand Drain Body for TR100 & TR140
18	O-RING OD 11/16" (112) Used After 3/1983
19	Drain Plug 1/4" - 154699 Used After 3/1983
19	Drain Plug, Black
19	Cap, Threaded 1 1/2in (7131-) TR100 & TR140
20	LID WRENCH PLASTIC
21	LOCKNUT, INTERNAL 2IN

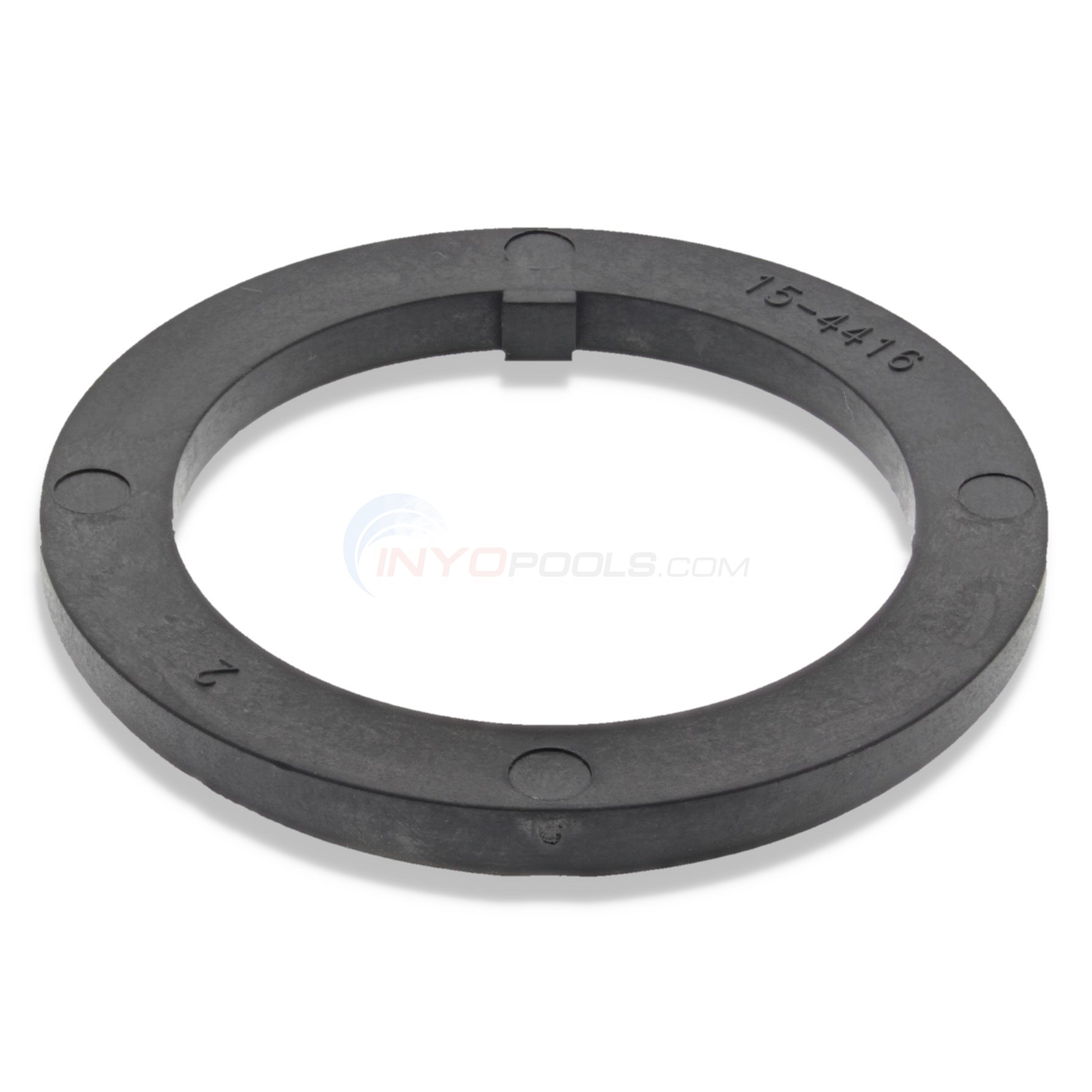

22	SPACER, INTERNAL 2IN
23	O-RING, BULKHEAD 2IN (334)
24	WASHER, EXTERNAL 2IN
25	GASKET, BULKHEAD 2IN

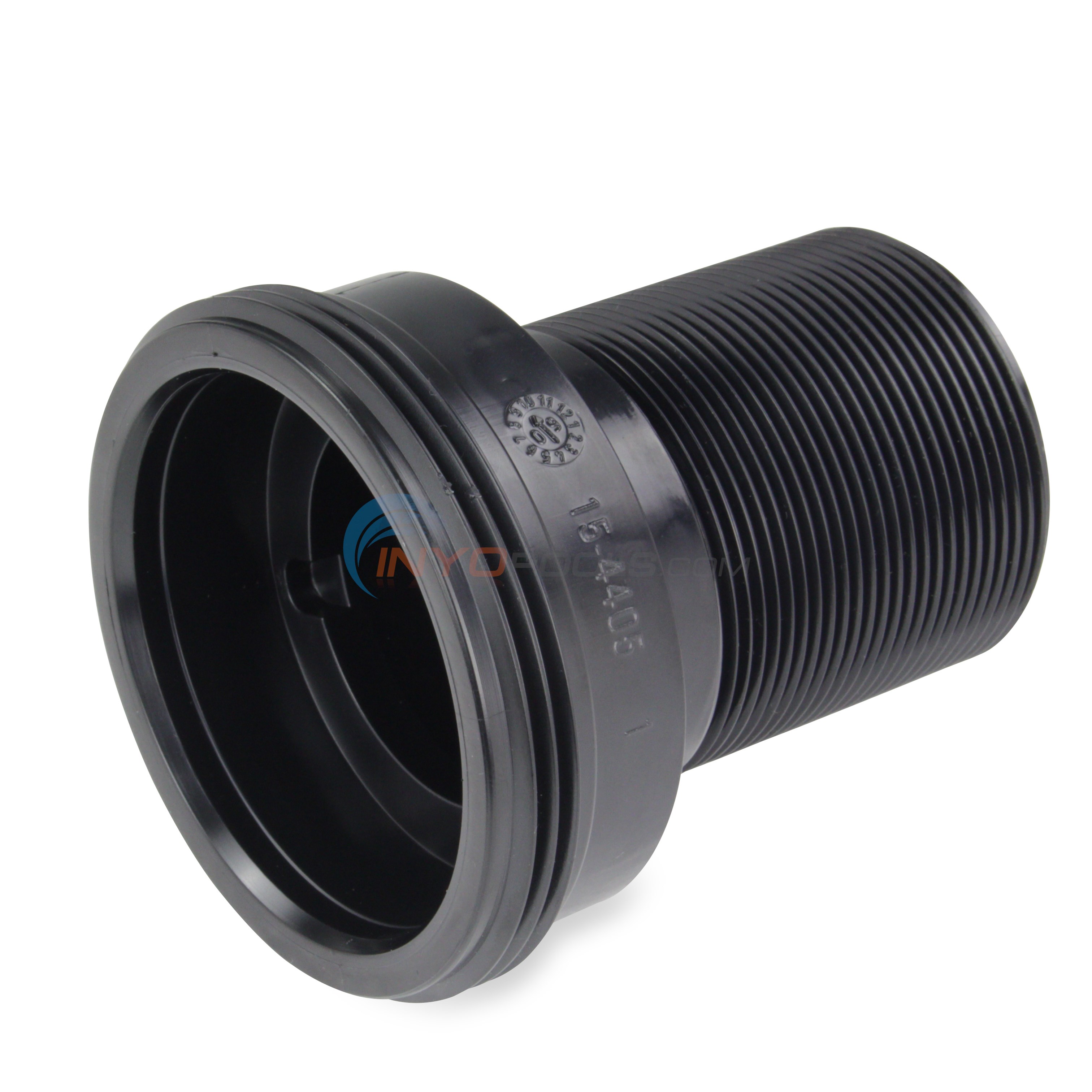

26	BULKHEAD, FITTING 2IN
27	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
28A	FOOT, TANK,TA35,40,50,60, AND D VERSION
29	O-RING, VALVE ADAPTER (4620-529)
30A	ADAPTOR KIT, 2" THREADED

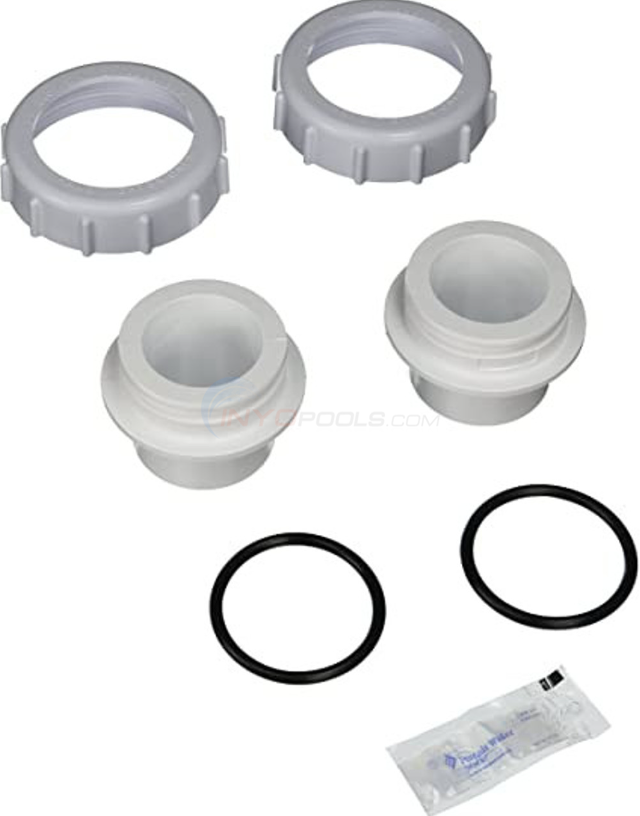

31A	ADAPTER, VALVE ASSY. 2" MPT (4600-01 = 2)
32	ADAPTOR KIT, 1 1/2"X2" SLIP
33	LID, CLOSURE KIT V THREAD 6IN
34	BLEEDER, AIR FITTING PACKAGE
35	BLEEDER, AIR WITH O-RING
36	DRAIN COCK, 1/4" NPT (09432-04)
37	VALVE, DRAIN COCK 1/8 IN MPT
38	No Longer Available ADAPTER Replace With 4600-4689
39	MULTIPORT VALVE KIT 1 1/2" GENERIC THREADED

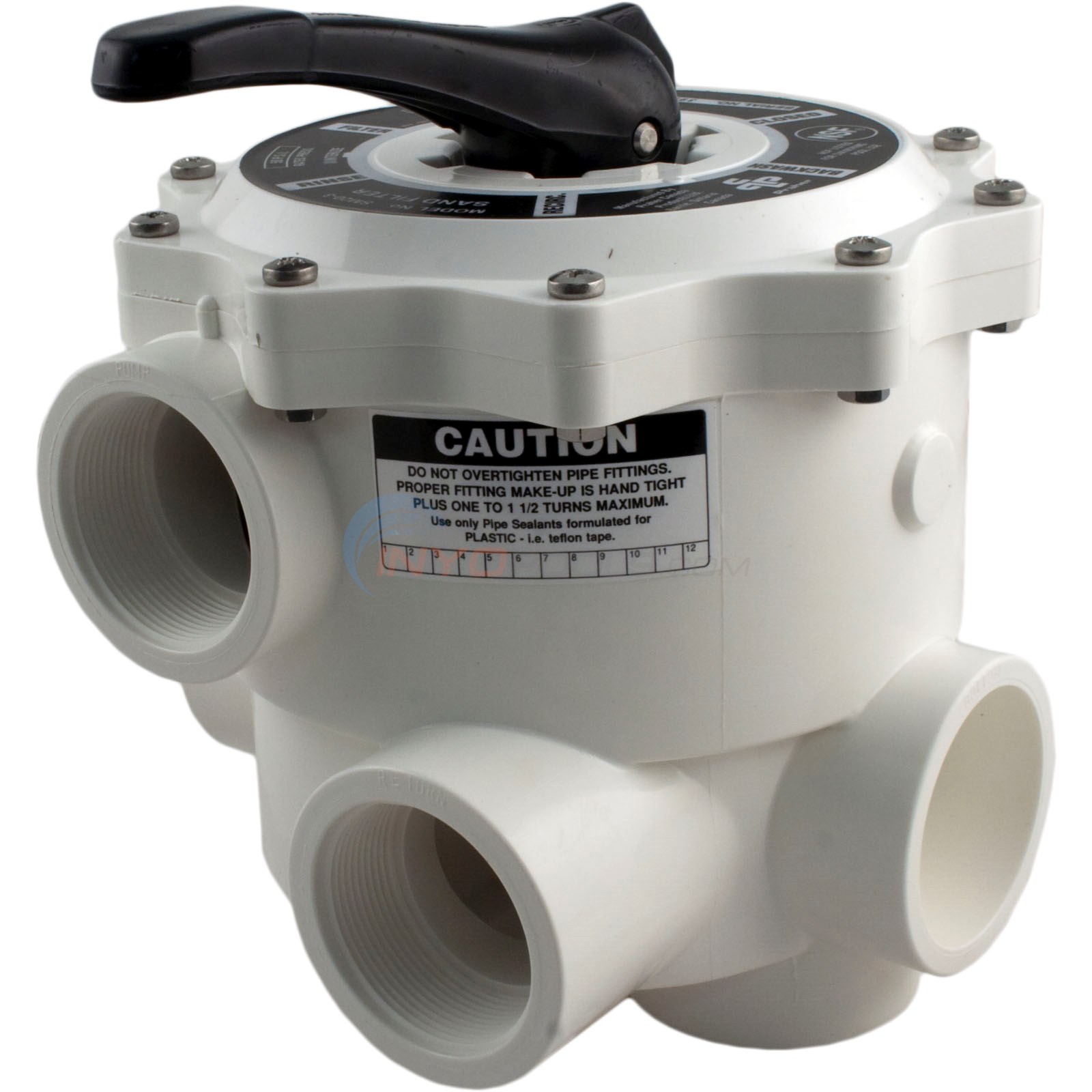

39	Praher Universal Multiport Valve 1-1/2" FPT (Sand) - SM-10-3
40	Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream
41	ADAPTER, VALVE THD. 1 1/2IN
42	NUT, VALVE ADAPTER
43	TEE, 1/4" BRASS FPT

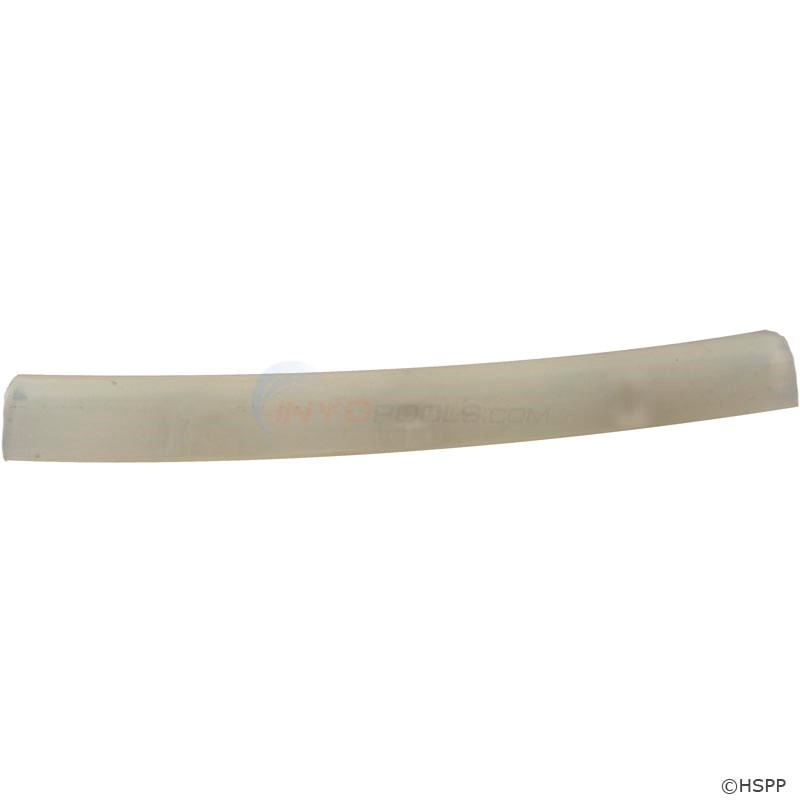

44	SPACER, AIR LINE (154611) ForTR-40
45	BULKHEAD ASSEMBLY 2

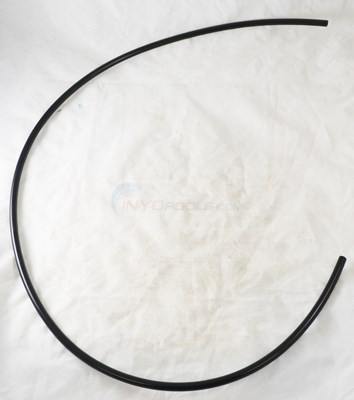

*	TUBING 1/4"X 3/8"
**	TAPE FOOT MOUNTING (3 Required) For TR-40/50/60

View Parts List

Diagram #	Part Title
*	PacFab TR Series O-ring Kit
40	Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream
1	BLEEDER, AIR/TEE ASSEMBLY
2	ADAPTER, TEE BRASS *
3A	GAUGE PRESS With INDICATOR REAR MOUNT
4	O-RING, BLEEDER ADAPTER
5	NUT, 3/8IN (SAMPLE N-2)
6A	Closure 6" Buttress Thread Lid (Filters Made After 11/1991)
6B	Closure 6" V Thread Lid, Tan (Filters Made Before 11/1991)
6C	Lid, Closure Kit V Thread 6in
7A	Closure O-ring for 6" Lid
8	STRAINER, AIR RELIEF (154578) For Filters Made Before 11/99
9	TUBE, AIR RELIEF
10	DIFFUSER ASSEMBLY (154598) For TR-40/50
11	PIPING ASSEMBLY, UPPER (154803) For TR-40
12	CONNECTOR, AIR RELIEF TUBE-THD
13	PIPING ASSEMBLY, LOWER (154801) For TR-40
13	Piping Assembly, Lower(TR-60)
15	Lateral, 6-11/16" (8 Required) For TR-40/50/60
16	HUB ASSEMBLY (154763) For TR-40/50/60
16	Hub Assembly (155753) For TR60 Built After 06/2007
17A	Drain Assembly 3/4in (Used After 3/1983)
17B	Drain Assembly 1/2in
17C	Drain, 2" Sand (Used Before 3/1983)
*	2" Sand Drain Body for TR100 & TR140
18	O-RING OD 11/16" (112) Used After 3/1983
19	Drain Plug 1/4" - 154699 Used After 3/1983
19	Drain Plug, Black
19	Cap, Threaded 1 1/2in (7131-) TR100 & TR140
20	LID WRENCH PLASTIC
21	LOCKNUT, INTERNAL 2IN
22	SPACER, INTERNAL 2IN
23	O-RING, BULKHEAD 2IN (334)
24	WASHER, EXTERNAL 2IN
25	GASKET, BULKHEAD 2IN
26	BULKHEAD, FITTING 2IN
27	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
28A	FOOT, TANK,TA35,40,50,60, AND D VERSION
29	O-RING, VALVE ADAPTER (4620-529)
30A	ADAPTOR KIT, 2" THREADED
31A	ADAPTER, VALVE ASSY. 2" MPT (4600-01 = 2)
32	ADAPTOR KIT, 1 1/2"X2" SLIP
33	LID, CLOSURE KIT V THREAD 6IN
34	BLEEDER, AIR FITTING PACKAGE
35	BLEEDER, AIR WITH O-RING
36	DRAIN COCK, 1/4" NPT (09432-04)
37	VALVE, DRAIN COCK 1/8 IN MPT
38	No Longer Available ADAPTER Replace With 4600-4689
39	MULTIPORT VALVE KIT 1 1/2" GENERIC THREADED
39	Praher Universal Multiport Valve 1-1/2" FPT (Sand) - SM-10-3
40	Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream
41	ADAPTER, VALVE THD. 1 1/2IN
42	NUT, VALVE ADAPTER
43	TEE, 1/4" BRASS FPT
44	SPACER, AIR LINE (154611) ForTR-40
45	BULKHEAD ASSEMBLY 2
*	TUBING 1/4"X 3/8"
**	TAPE FOOT MOUNTING (3 Required) For TR-40/50/60

Available Parts:

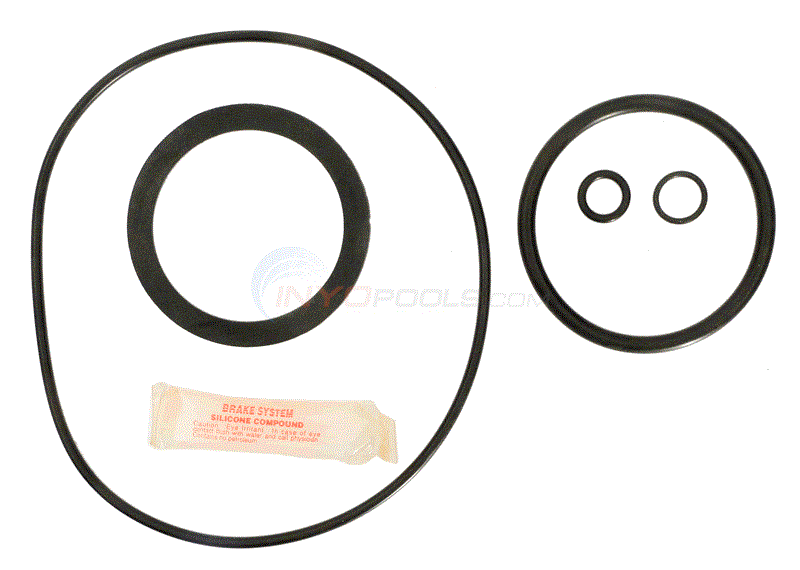

Part # APCK1139 Mfg # APCK1139

PacFab TR Series O-ring Kit

$28.24 IN STOCK

Qty:

ADD TO CART

Part # 25831-119-750 Mfg # 263064

Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream

$111.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4689 Mfg # 154689

BLEEDER, AIR/TEE ASSEMBLY

$37.79 IN STOCK

Qty:

ADD TO CART

Part # 4600-4700 Mfg # 154700

ADAPTER, TEE BRASS *

$12.80 IN STOCK

Qty:

ADD TO CART

Part # 4727-1 Mfg # 190059

GAUGE PRESS With INDICATOR REAR MOUNT

$54.02 IN STOCK

Qty:

ADD TO CART

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$14.85 IN STOCK

Qty:

ADD TO CART

Part # 4600-4661 Mfg # 111

O-RING, BLEEDER ADAPTER

$10.73 IN STOCK

Qty:

ADD TO CART

Part # 6932-0 Mfg # 071403

NUT, 3/8IN (SAMPLE N-2)

$7.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4570 Mfg # 154570

Closure 6" Buttress Thread Lid (Filters Made After 11/1991)

$135.39 IN STOCK

Mfg. Date After 11/1991

Qty:

ADD TO CART

Part # 4600-4678 Mfg # 154559

Closure 6" V Thread Lid, Tan (Filters Made Before 11/1991)

$49.26

VIEW DETAILS

Part # 4600-4697 Mfg # 154697

Lid, Closure Kit V Thread 6in

$199.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4493 Mfg # 071422

Closure O-ring for 6" Lid

$5.74 IN STOCK

Lid Size 6"

Qty:

ADD TO CART

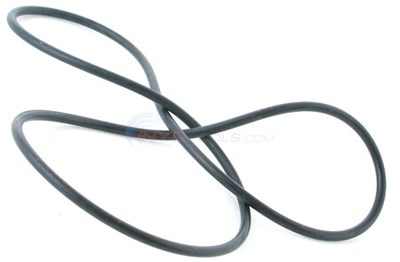

Part # 4620-145 Mfg # 267

Closure O-ring for 8-1/2" Lid

$13.71 IN STOCK

Lid Size 8-1/2"

Qty:

ADD TO CART

Part # 4600-4578 Mfg # 154578

STRAINER, AIR RELIEF (154578) For Filters Made Before 11/99

$14.99 IN STOCK

Used on Models Before 11/99

Qty:

ADD TO CART

Part # 4601-0035 Mfg # 150035

STRAINER AIR RELIEF (150035) For Filters Made After 11/01/99

$13.99 IN STOCK

Used on Models After 11/01/99

Qty:

ADD TO CART

Part # 4600-4435 Mfg # 154435

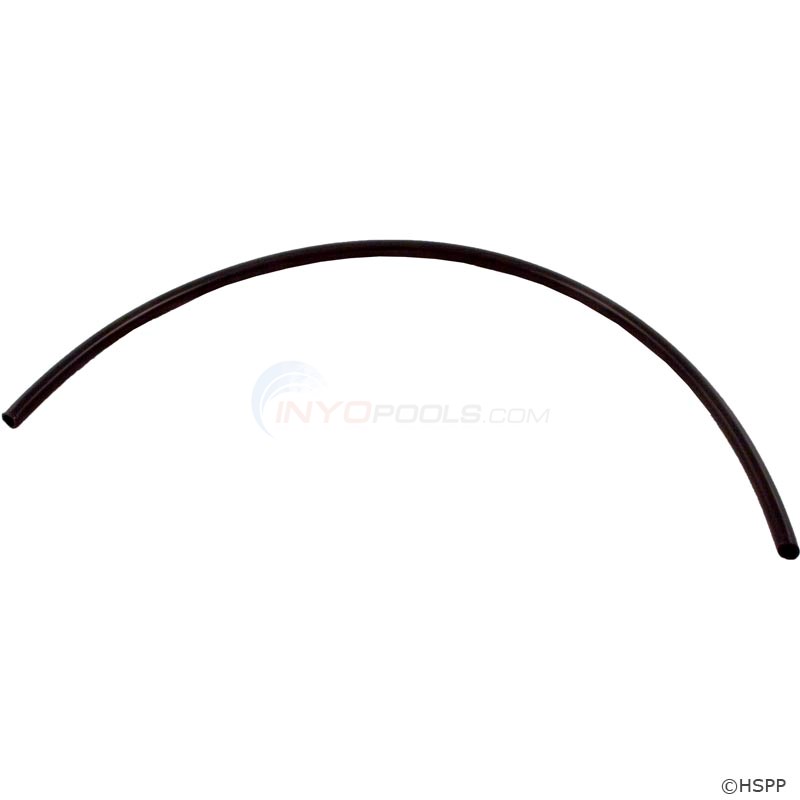

TUBE, AIR RELIEF

$35.99 IN STOCK

Used on Models TR-40 Before 11/99

Qty:

ADD TO CART

Part # 4600-0039 Mfg # 150039

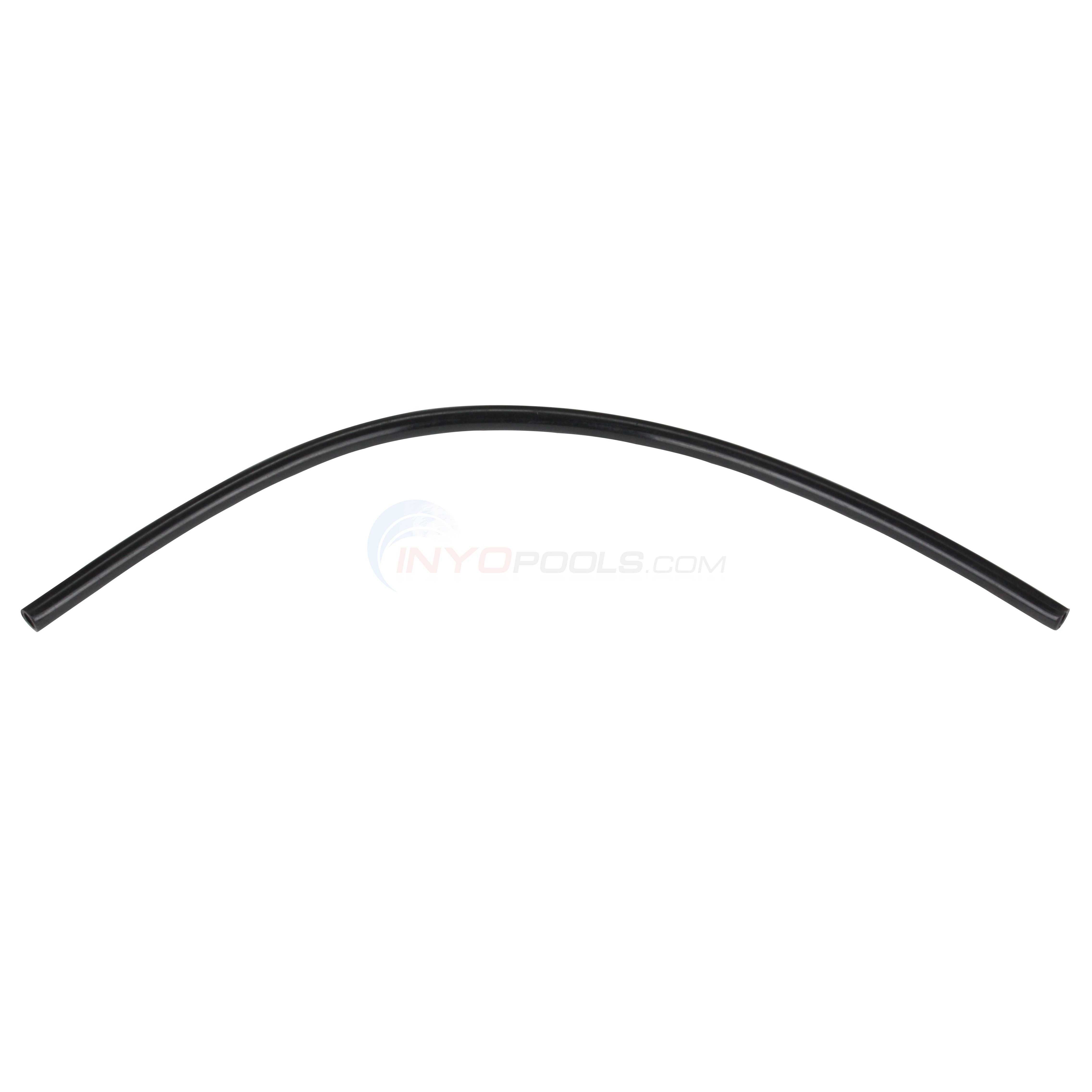

AIR RELIEF TUBE

$42.94 IN STOCK

Used on Models TR-40 After 11/01/99

Qty:

ADD TO CART

Part # 4600-4436 Mfg # 154436

TUBE, AIR RELIEF

$37.99 IN STOCK

Used on Models TR50/60 Before 11/99

Qty:

ADD TO CART

Part # 4600-0040 Mfg # 150040

TUBE AIR RELIEF

$42.94 IN STOCK

Used on Models TR50/60 After 11/01/99

Qty:

ADD TO CART

Part # 4600-4437 Mfg # 154437

TUBE, AIR RELIEF

$27.53 IN STOCK

Used on Models TR-100 Before 11/99

Qty:

ADD TO CART

Part # 4600-0041 Mfg # 150041

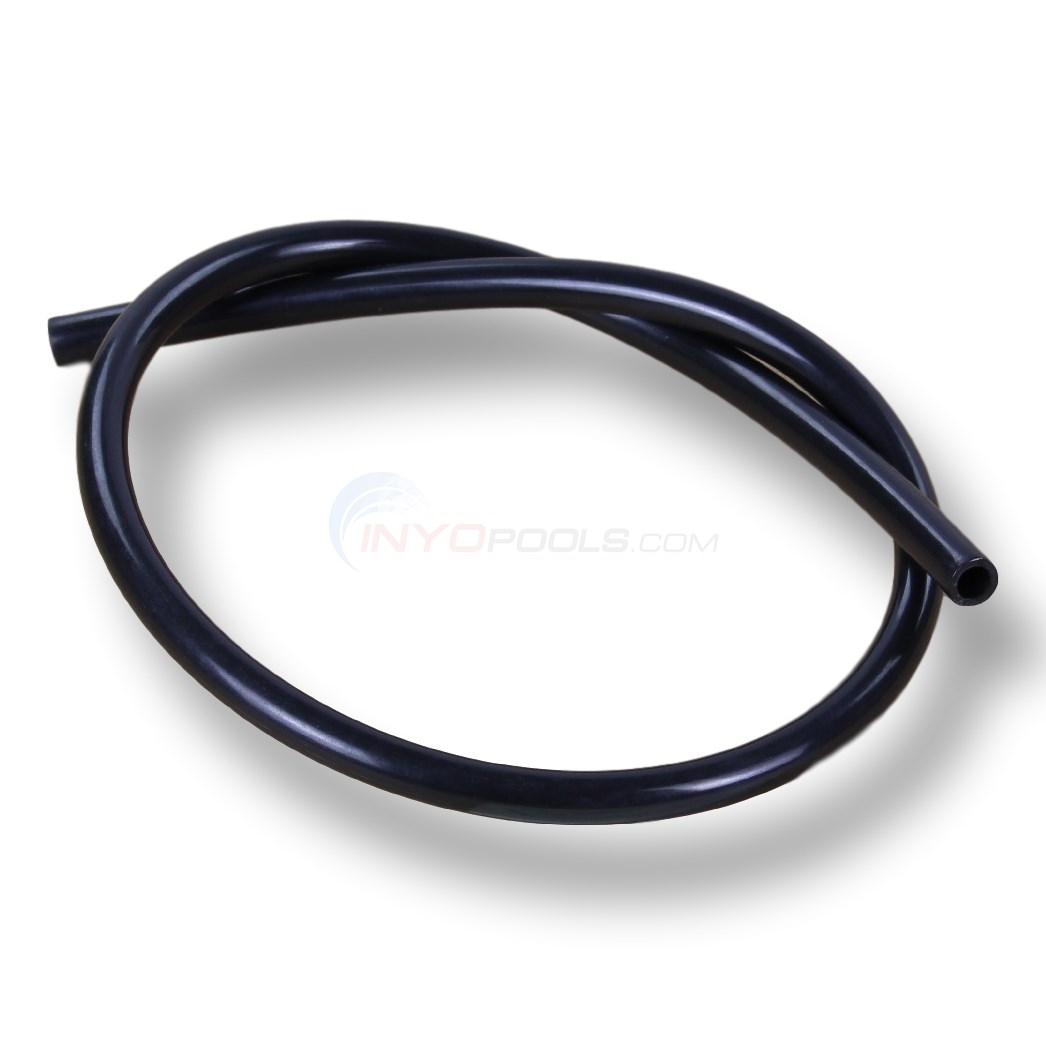

AIR RELIEF TUBE

$25.49 IN STOCK

Used on Models TR-100 After 11/01/99

Qty:

ADD TO CART

Part # 4600-4438 Mfg # 154438

TUBE, AIR RELIEF

$17.99 IN STOCK

Used on Models TR-140 Before 11/99

Qty:

ADD TO CART

Part # 4600-0042 Mfg # 150042

AIR RELIEF TUBE

$34.99 IN STOCK

Used on Models TR-140 After 11/01/99

Qty:

ADD TO CART

Part # 4600-4598 Mfg # 154598

DIFFUSER ASSEMBLY (154598) For TR-40/50

$75.99 IN STOCK

Used on Models TR-40/50

Qty:

ADD TO CART

Part # 4600-4599 Mfg # 154599

DIFFUSER ASSEMBLY (154599) For TR-60

$79.51 IN STOCK

Used on Models TR-60

Qty:

ADD TO CART

Part # 4600-4462 Mfg # 154462

DIFFUSER ASSEMBLY (154462) For TR-100

$79.51 IN STOCK

Used on Models TR-100

Qty:

ADD TO CART

Part # 4600-4906 Mfg # 154906

DIFFUSER ASSEMBLY (154906) For TR-140

$79.51 IN STOCK

Used on Models TR-140

Qty:

ADD TO CART

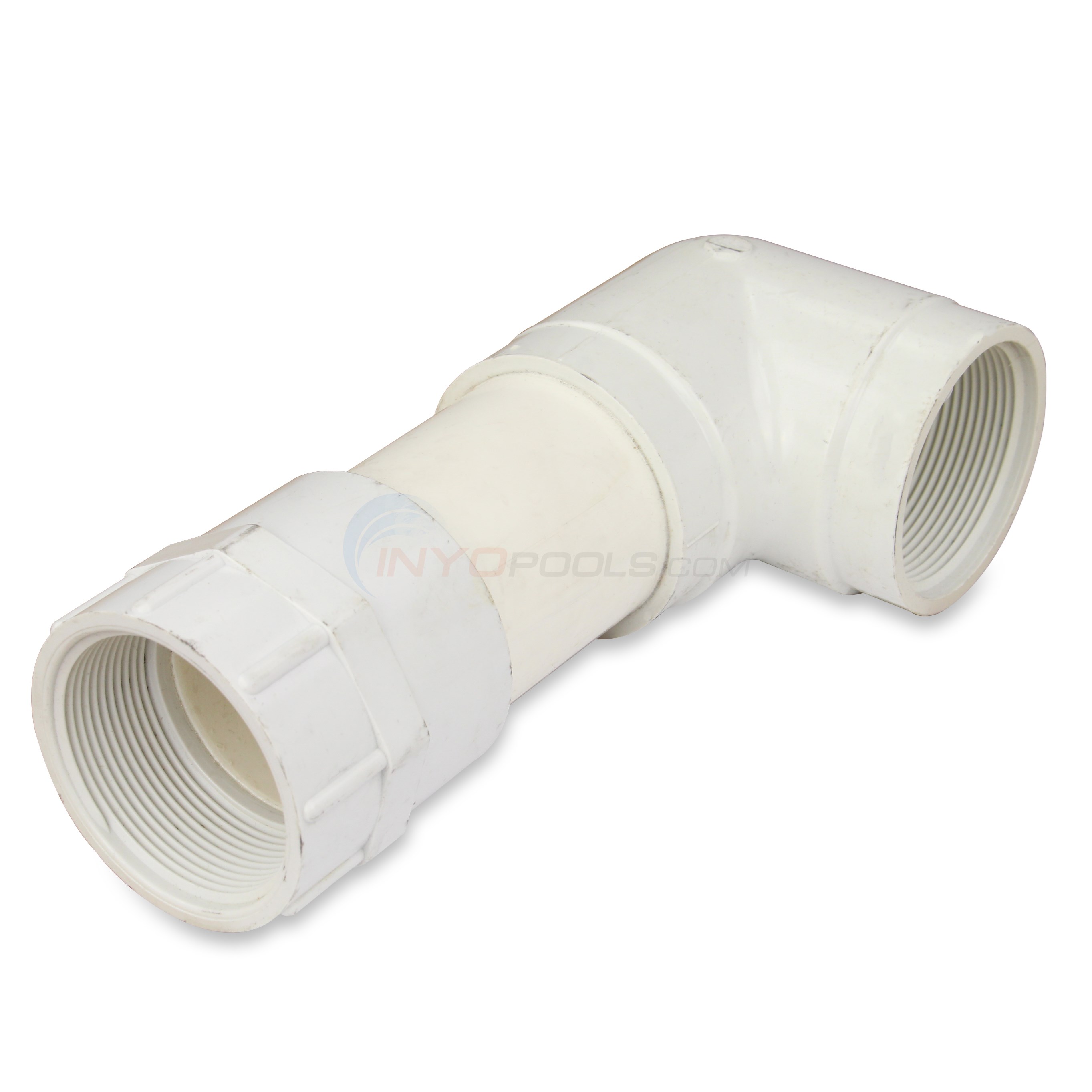

Part # 4600-4803 Mfg # 154803

PIPING ASSEMBLY, UPPER (154803) For TR-40

$86.99 IN STOCK

Used on Models TR-40

Qty:

ADD TO CART

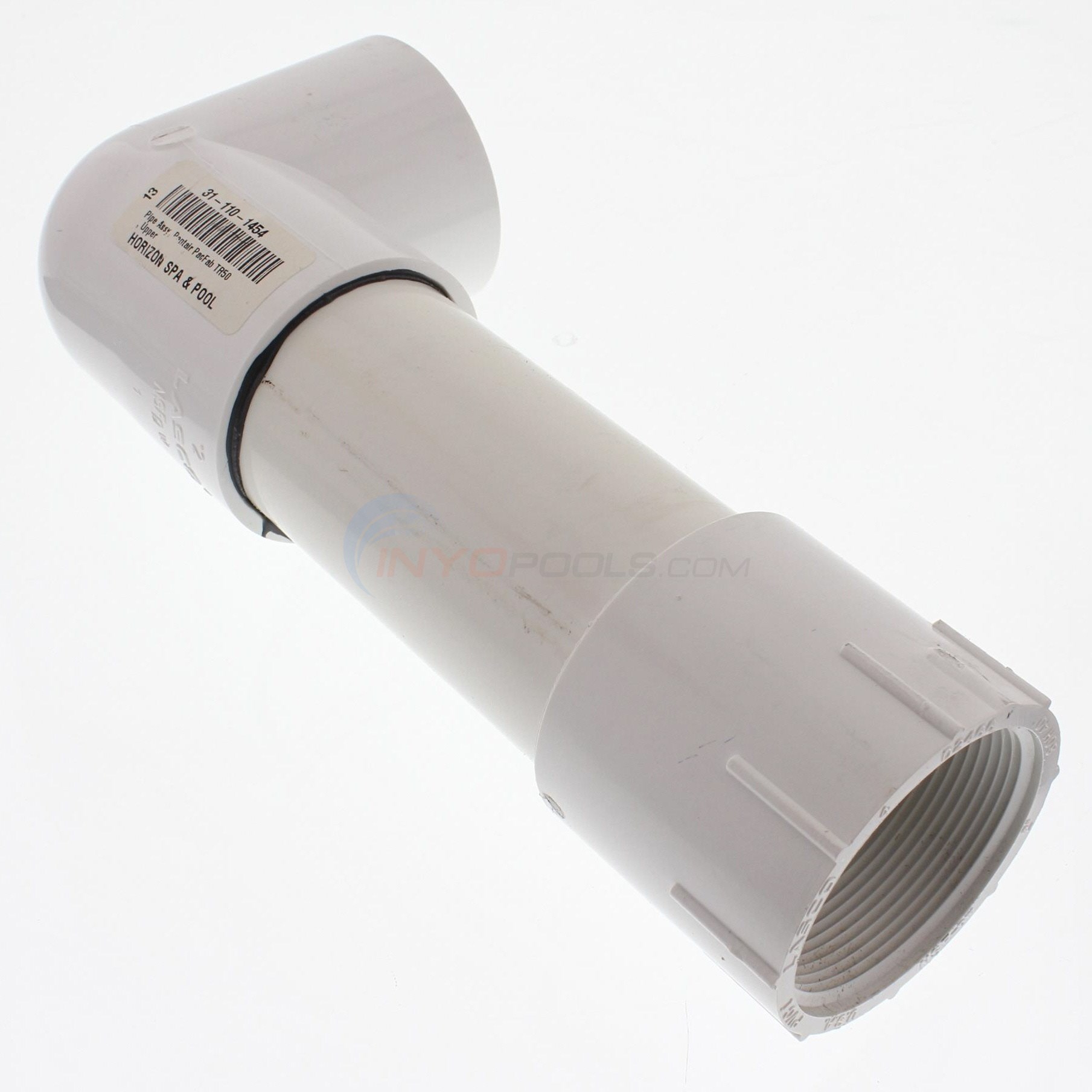

Part # 4600-6814 Mfg # 156814

PIPING ASSEMBLY, UPPER (156814) For TR-50

$70.99 IN STOCK

Used on Models TR-50

Qty:

ADD TO CART

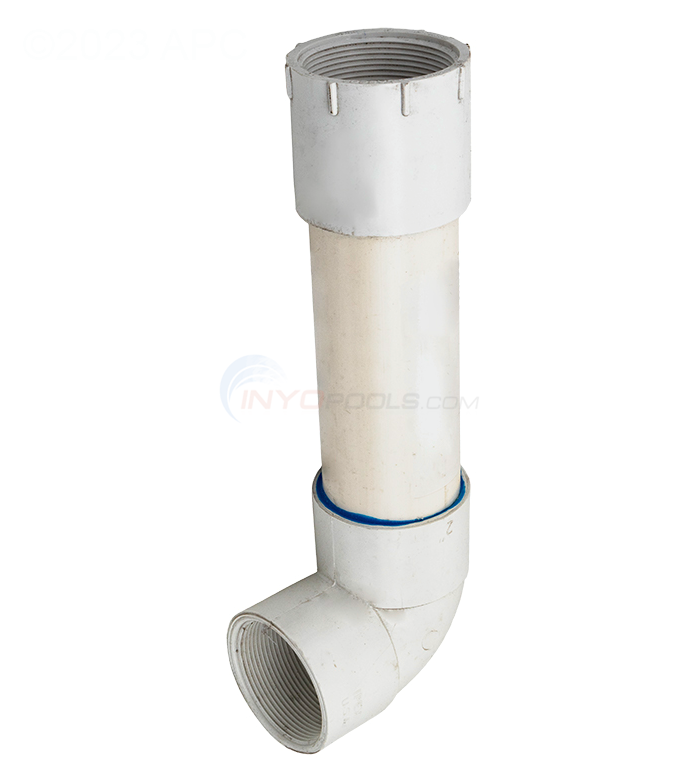

Part # 4600-4533 Mfg # 154533

PIPING ASSEMBLY, UPPER (154533) For TR-60

$60.99 IN STOCK

Used on Models TR-60

Qty:

ADD TO CART

Part # 4600-4426 Mfg # 154426

PIPING ASSEMBLY, UPPER (154426) For TR-100

$115.25 IN STOCK

Used on Models TR-100

Qty:

ADD TO CART

Part # 4600-4500 Mfg # 154500

PIPING ASSEMBLY, UPPER(154500) For TR-140

$64.99 IN STOCK

Used on Models TR-140

Qty:

ADD TO CART

Part # 4600-4440 Mfg # 154440

CONNECTOR, AIR RELIEF TUBE-THD

$33.99 IN STOCK

Qty:

ADD TO CART

Mfg # 155521

No Longer Available CONNECTOR 2/89 TO 11/99 SEE NOTE 2 (1/4" OD TUBING)

NOT AVAILABLE

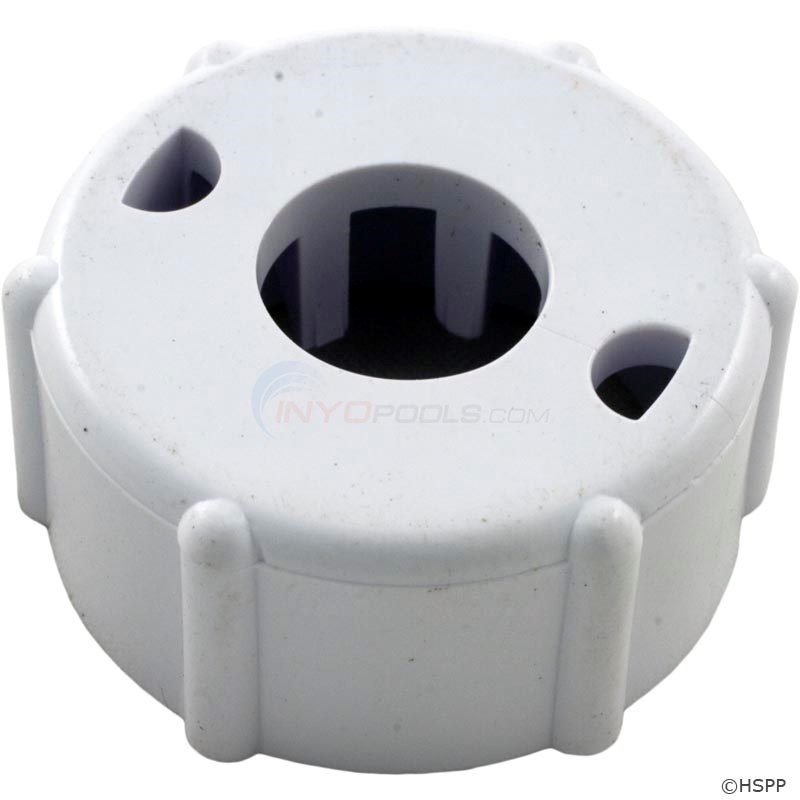

Part # 4601-0036 Mfg # 150036

RETAINER VENT TUBE 3/8"

$12.22 IN STOCK

Qty:

ADD TO CART

Part # 4600-4801 Mfg # 154801

PIPING ASSEMBLY, LOWER (154801) For TR-40

$108.99 IN STOCK

Used on Models TR-40

Qty:

ADD TO CART

Part # 4600-6816 Mfg # 156816

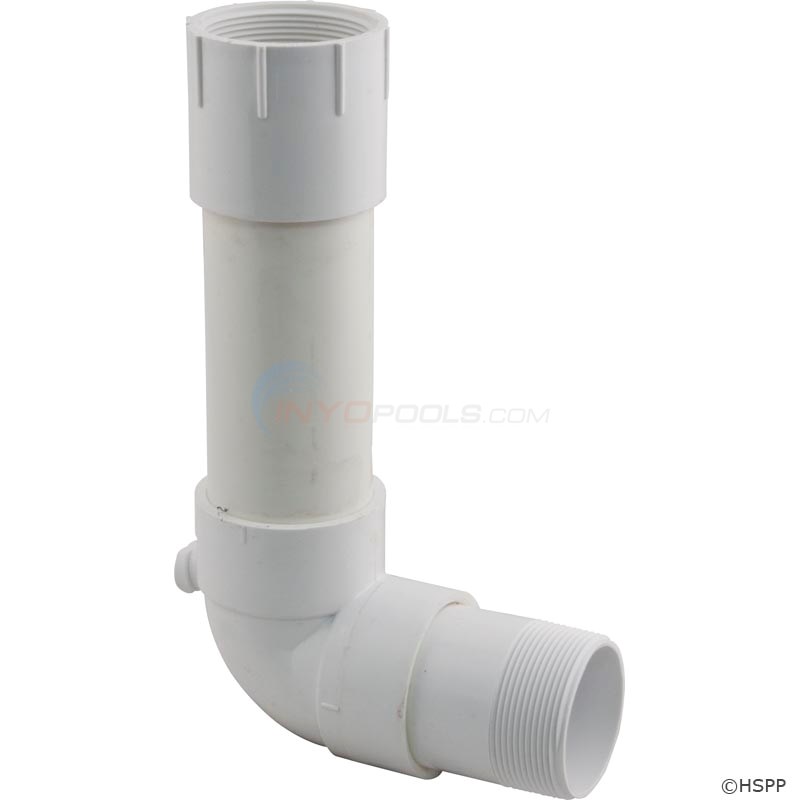

PIPING ASSEMBLY, LOWER (156816) For TR-50

$84.99 IN STOCK

Used on Models TR-50

Qty:

ADD TO CART

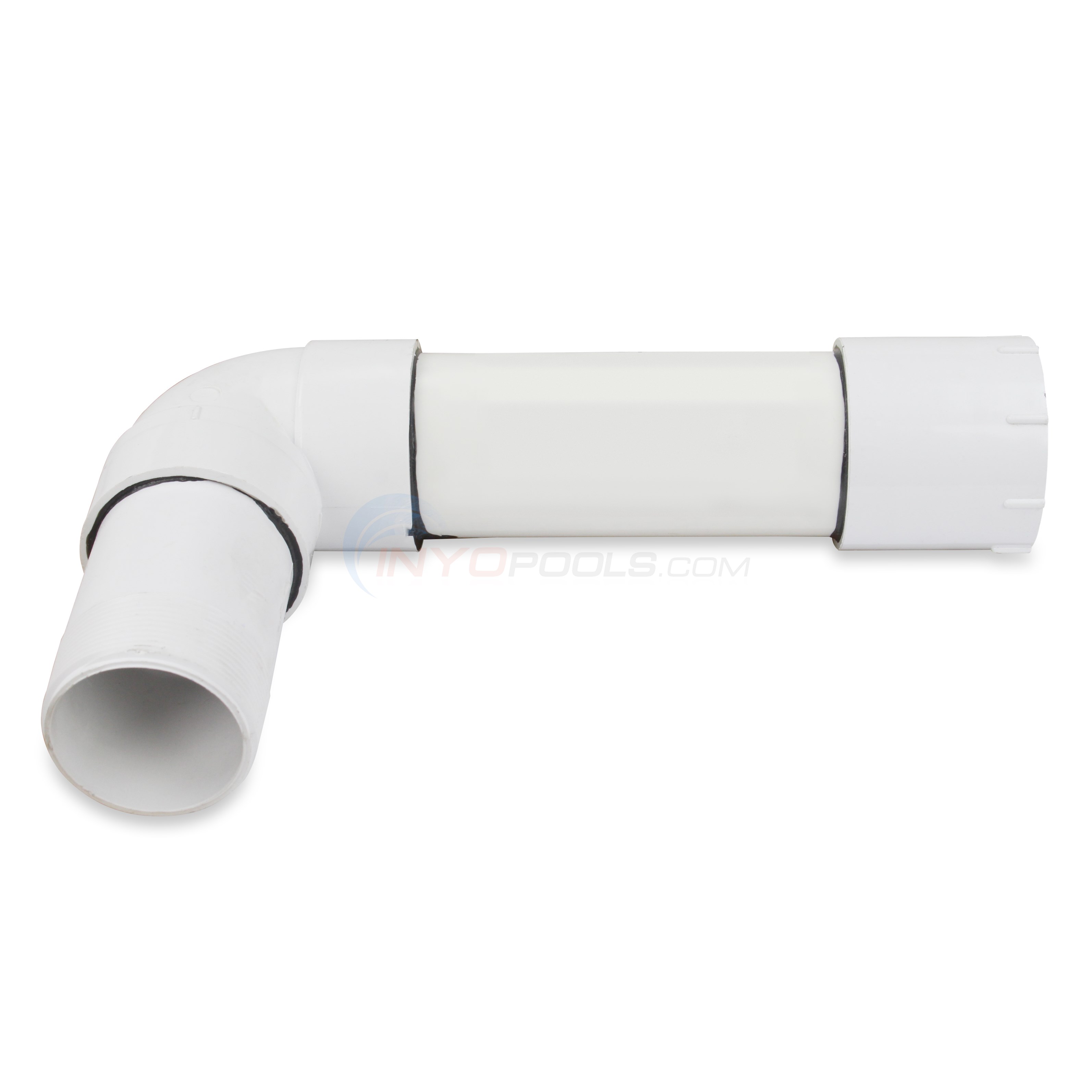

Part # 4600-4805 Mfg # 154805

PIPING ASSEMBLY, LOWER (154805) For TR-60

$67.70 IN STOCK

Used on Models TR-60

Qty:

ADD TO CART

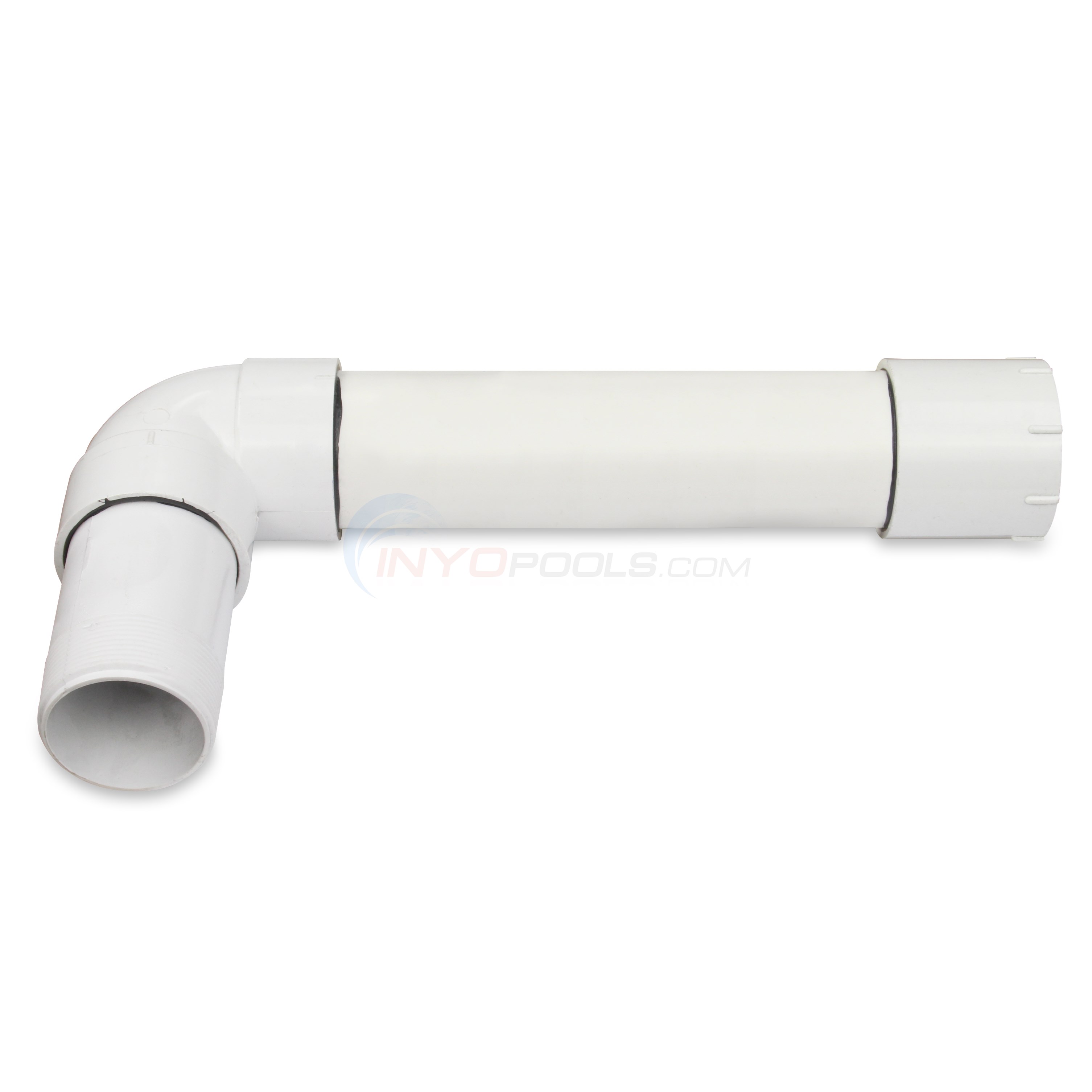

Part # 4600-4807 Mfg # 154807

PIPING ASSEMBLY, LOWER (154807) For TR-100

$63.99 IN STOCK

Used on Models TR-100

Qty:

ADD TO CART

Part # 4600-4489 Mfg # 154489

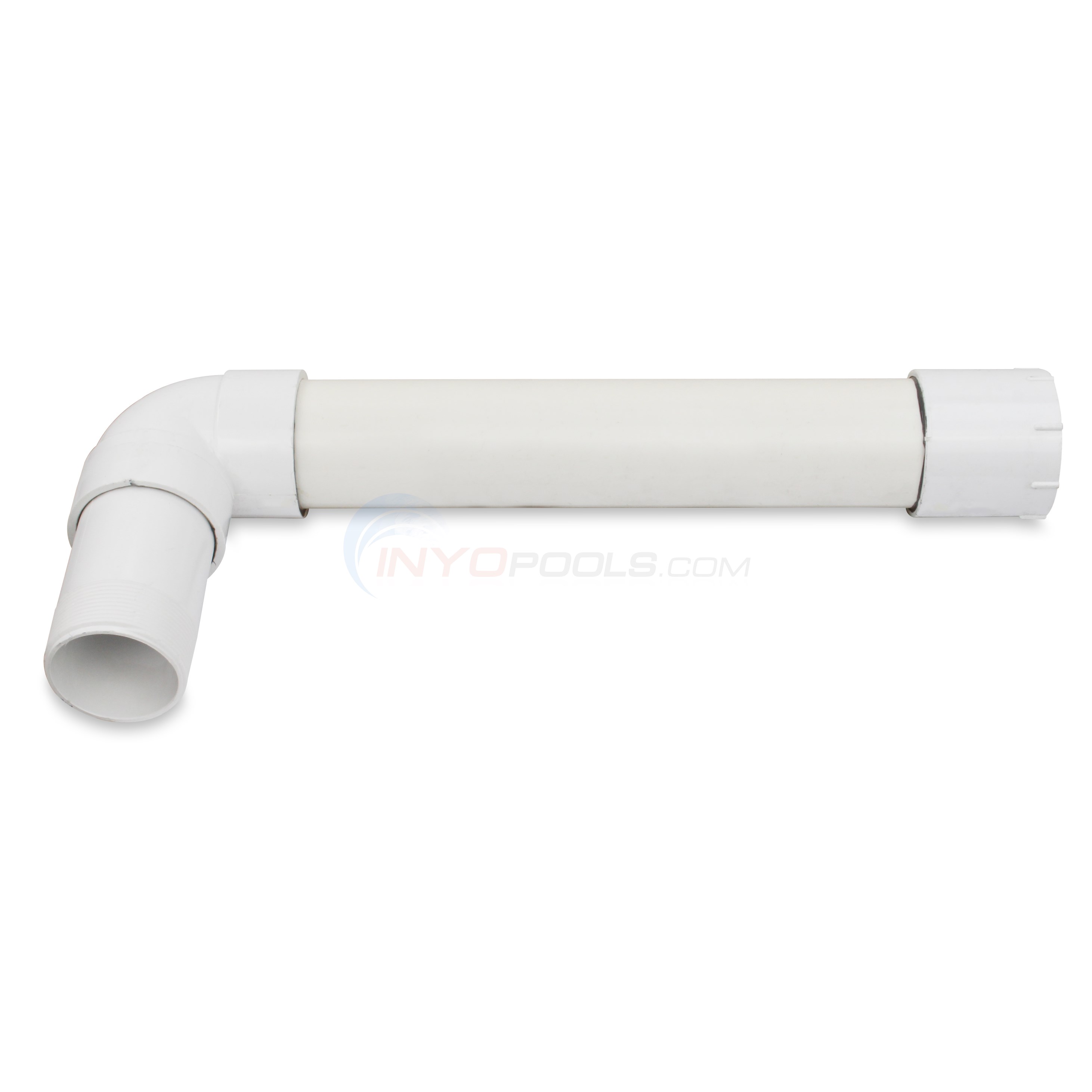

PIPING ASSEMBLY, LOWER (154489) For TR-140

$88.99 IN STOCK

Used on Models TR-140

Qty:

ADD TO CART

Part # 4600-4805 Mfg # 154805

Piping Assembly, Lower(TR-60)

$67.70 IN STOCK

Used on Models TR-60

Qty:

ADD TO CART

Part # 4600-5284 Mfg # 155284

Clearpro Lower Piping Assembly (155284) For TR-60 Models Built After 06/2007

$125.99 IN STOCK

Used on Models TR-60 Models Built After 06/2007

Qty:

ADD TO CART

Part # 4600-2290 Mfg # 152290

Lateral, 6-11/16" (8 Required) For TR-40/50/60

$10.49 IN STOCK

Used on Models TR-40/50/60 Required Amount 8

Qty:

ADD TO CART

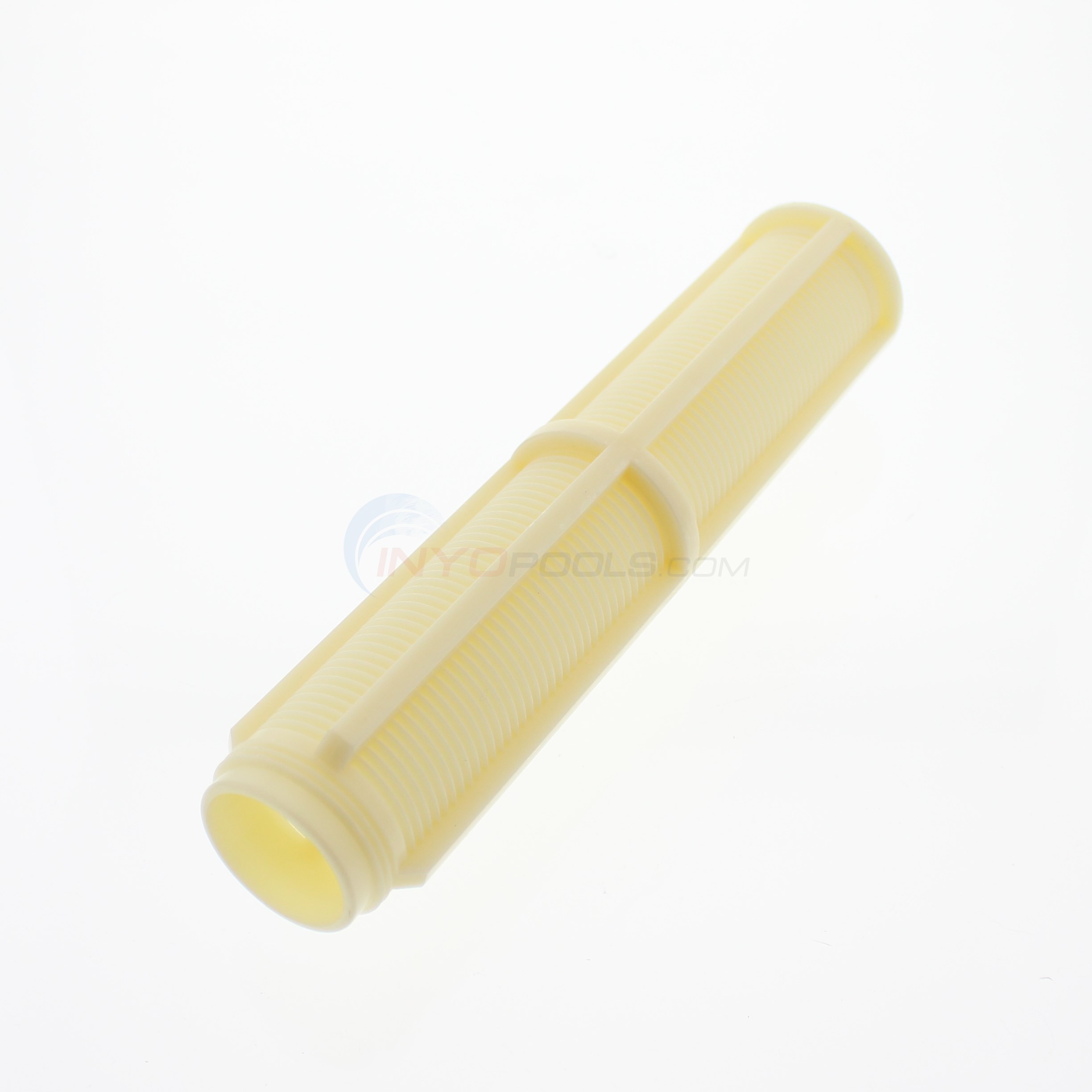

Part # 4600-2202 Mfg # 152202

Lateral, 9-1/8" (8 Required) For TR-100 after 05/85

$16.94 IN STOCK

Used on Models TR-100 after 05/85 Required Amount 8

Qty:

ADD TO CART

Part # 4600-0085 Mfg # 150085

Lateral, 6-1/2" (6 Required) For R-60 After 06/07

$15.24 IN STOCK

Used on Models TR-60 After 06/07 Required Amount 6

Qty:

ADD TO CART

Part # 4600-4540 Mfg # 154540

Lateral, 12" (8 Required) For TR140

$25.20 IN STOCK

Used on Models TR-140 Required Amount 8

Qty:

ADD TO CART

Part # 4600-4763 Mfg # 154763

HUB ASSEMBLY (154763) For TR-40/50/60

$31.99 IN STOCK

Used on Models TR-40/50/60

Qty:

ADD TO CART

Part # 4600-4453 Mfg # 154453

HUB ASSEMBLY (154453) For TR-100/140

$129.99 IN STOCK

Used on Models TR-100/140

Qty:

ADD TO CART

Part # 4600-5753 Mfg # 155753

Hub Assembly (155753) For TR60 Built After 06/2007

$71.53 IN STOCK

Used on Models TR60 Built After 06/2007

Qty:

ADD TO CART

17A

Part # 4600-4698 Mfg # 154698

Drain Assembly 3/4in (Used After 3/1983)

$28.19 IN STOCK

Mfg. Date After 3/1983

Qty:

ADD TO CART

17B

Part # 4600-4685 Mfg # 154685

Drain Assembly 1/2in

$20.99

Mfg. Date Before 3/1983

VIEW DETAILS

17C

Part # 4600-2220 Mfg # 152220

Drain, 2" Sand (Used Before 3/1983)

$47.73 IN STOCK

Models TR100 & TR140

Qty:

ADD TO CART

Part # 194884

2" Sand Drain Body for TR100 & TR140

$8.99

Models TR100 & TR140

VIEW DETAILS

Part # 3262-08 Mfg # 112

O-RING OD 11/16" (112) Used After 3/1983

$2.99 IN STOCK

Mfg. Date After 3/1983

Qty:

ADD TO CART

Part # 4600-4699 Mfg # 154699

Drain Plug 1/4" - 154699 Used After 3/1983

$9.34 IN STOCK

Mfg. Date After 3/1983

Qty:

ADD TO CART

Part # 4600-4481 Mfg # 154481

Drain Plug, Black

$12.59 IN STOCK

Mfg. Date Before 3/1983

Qty:

ADD TO CART

Part # 4600-4871 Mfg # 154871

Cap, Threaded 1 1/2in (7131-) TR100 & TR140

$24.99 IN STOCK

Models TR100 & TR140

Qty:

ADD TO CART

Part # 4600-4512 Mfg # 154512

LID WRENCH PLASTIC

$25.95 IN STOCK

Qty:

ADD TO CART

Part # 4600-4510 Mfg # 154510

WRENCH, LID ALUMINUM

$205.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4412 Mfg # 154412

LOCKNUT, INTERNAL 2IN

$10.50 IN STOCK

Qty:

ADD TO CART

Part # 4600-4416 Mfg # 154416

SPACER, INTERNAL 2IN

$23.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4492 Mfg # O-179

O-RING, BULKHEAD 2IN (334)

$8.31 IN STOCK

Qty:

ADD TO CART

Part # 4600-4408 Mfg # 154408

WASHER, EXTERNAL 2IN

$16.87 IN STOCK

Qty:

ADD TO CART

Part # 4600-4538 Mfg # PF15-4538

GASKET, BULKHEAD 2IN

$12.73 IN STOCK

Qty:

ADD TO CART

Part # 4600-4405 Mfg # 154405

BULKHEAD, FITTING 2IN

$79.52 IN STOCK

Qty:

ADD TO CART

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$2.99 IN STOCK

Qty:

ADD TO CART

28A

Part # 4600-4926 Mfg # 154926

FOOT, TANK,TA35,40,50,60, AND D VERSION

$125.99 IN STOCK

Qty:

ADD TO CART

28B

Part # 4600-4596 Mfg # 154596

FOOT F/TR100,100C,140,140C

$151.99

VIEW DETAILS

28C

Part # 4600-4520 Mfg # 154520

FOOT ONLY SD40/SD50,TR60

$138.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4494 Mfg # O-83

O-RING, VALVE ADAPTER (4620-529)

$6.31 IN STOCK

Qty:

ADD TO CART

30A

Part # 4600-01 Mfg # 271092

ADAPTOR KIT, 2" THREADED

$63.85 IN STOCK

Qty:

ADD TO CART

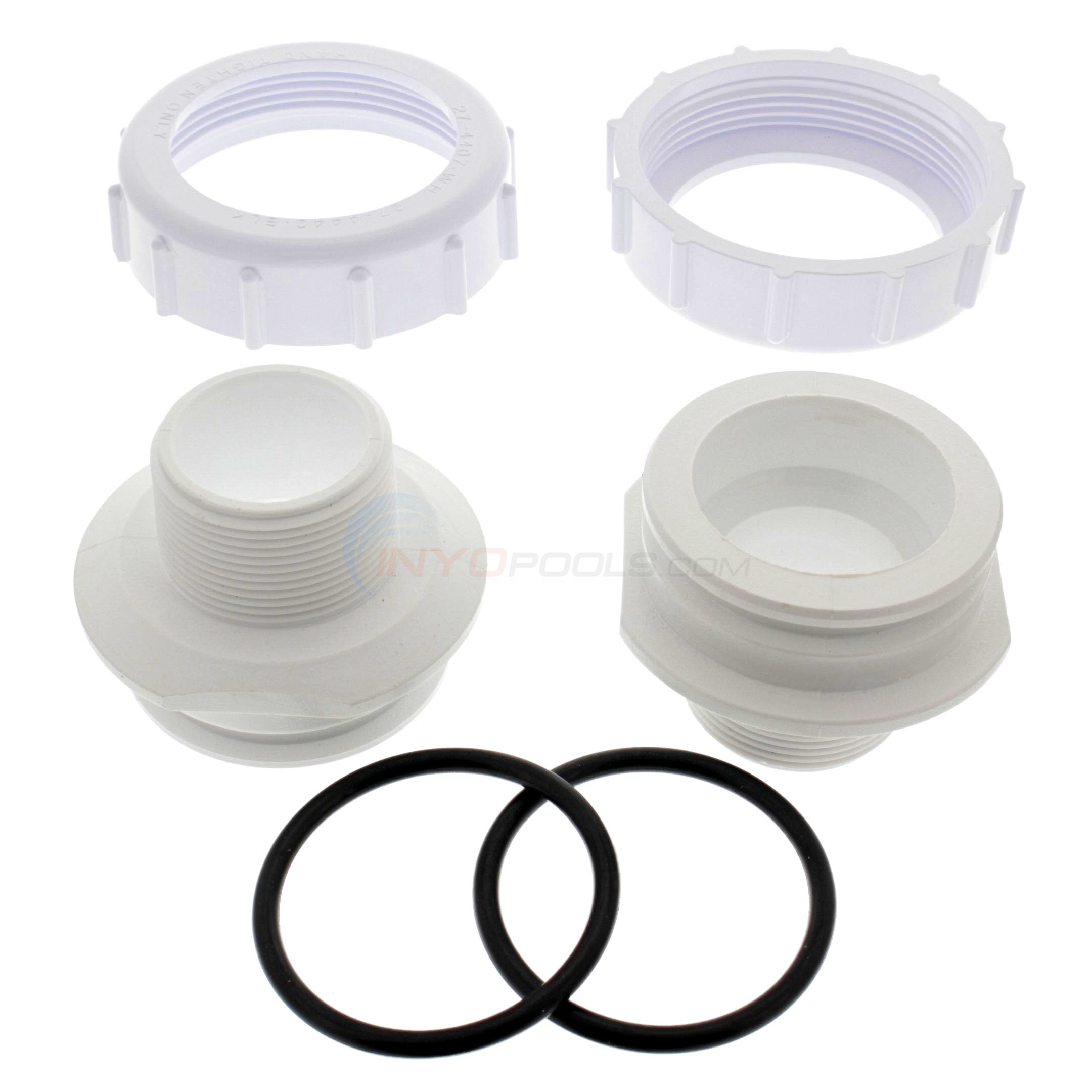

30B

Part # 4600-02 Mfg # 271094

ADAPTOR KIT, 1 1/2" THREADED

$76.99 IN STOCK

Qty:

ADD TO CART

31A

Part # 4600-1092 Mfg # 4600-01

ADAPTER, VALVE ASSY. 2" MPT (4600-01 = 2)

$86.99 IN STOCK

Qty:

ADD TO CART

31A

Part # 4600-1094 Mfg # 4600-02

ADAPTER, VALVE ASSY 1 1/2" MPT

$98.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-1096 Mfg # 4600-03

ADAPTER, VALVE ASSY 1 1/2IN+ 2IN (4600-03 = 2)

$98.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-03 Mfg # 271096

ADAPTOR KIT, 1 1/2"X2" SLIP

$74.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4697 Mfg # 154697

LID, CLOSURE KIT V THREAD 6IN

$199.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4641 Mfg # 154641

LID, CLOSURE KIT BUTTRESS THD.

$199.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4856 Mfg # 154856

Closure Kit 8 1/2" Buttress Thd - Black

$234.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4687 Mfg # 154687

BLEEDER, AIR FITTING PACKAGE

$44.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-2515 Mfg # 272515

BLEEDER, AIR WITH O-RING

$12.34 IN STOCK

Qty:

ADD TO CART

35A

Part # 4600-4693 Mfg # 201 N70

O-RING, KNOB BLEEDER TEE

$14.59 IN STOCK

Qty:

ADD TO CART

Part # 5054-10 Mfg # U212-68T

DRAIN COCK, 1/4" NPT (09432-04)

$9.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4669 Mfg # 09432-02

VALVE, DRAIN COCK 1/8 IN MPT

$21.83 IN STOCK

Qty:

ADD TO CART

No Longer Available ADAPTER Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352012978.htm">4600-4689</a>

Mfg # 154668

No Longer Available ADAPTER Replace With 4600-4689

NOT AVAILABLE

Part # 4611-0 Mfg # SM1-PP3

MULTIPORT VALVE KIT 1 1/2" GENERIC THREADED

$143.07 IN STOCK

Qty:

ADD TO CART

Part # 4612-0 Mfg # SM2-PP3

MULTIPORT VALVE KIT 2" GENERIC THREADED

$215.08 IN STOCK

Qty:

ADD TO CART

Part # 261055

MULTIPORT VALVE KIT 2" O.E.M THREADED

$274.99 IN STOCK

Qty:

ADD TO CART

Part # 261173

MULTIPORT VALVE KIT 1 1/2" O.E.M THREADED

$160.78 IN STOCK

Qty:

ADD TO CART

Part # 4614-0 Mfg # 261050

MULTIPORT VALVE HIGH FLOW 2" O.E.M THREADED

$246.99 IN STOCK

Qty:

ADD TO CART

Part # 27504-200-000

Generic Pentair 2" High Flow Multiport Valve w/ Plumbing

$188.99

VIEW DETAILS

Part # 27505-200-000

Generic 2" Side Mount Valve

$194.66 IN STOCK

Qty:

ADD TO CART

Part # 26-253-1205 Mfg # SM-10-3

Praher Universal Multiport Valve 1-1/2" FPT (Sand) - SM-10-3

$144.99 IN STOCK

Qty:

ADD TO CART

Part # 26-253-1220 Mfg # SM-20-3

Praher Universal Multiport Valve 2" FPT (Sand) - SM-20-3

$177.15 IN STOCK

Qty:

ADD TO CART

Part # 25831-119-750 Mfg # 263064

Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream

$111.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4651 Mfg # 274651

ADAPTER, VALVE THD. 1 1/2IN

$29.99 IN STOCK

Qty:

ADD TO CART

Part # 4600-4556 Mfg # 274556

ADAPTER, VALVE 2" THREADED

$38.74 IN STOCK

Qty:

ADD TO CART

Part # 4600-4404 Mfg # 274404

ADAPTER, BULKHEAD 1 1/2" X 2" SLIP

$26.47 IN STOCK

Qty:

ADD TO CART

Part # 4600-4407 Mfg # 274407

NUT, VALVE ADAPTER

$18.29 IN STOCK

Qty:

ADD TO CART

Part # 4600-4660 Mfg # 06101-04

TEE, 1/4" BRASS FPT

$33.49 IN STOCK

Qty:

ADD TO CART

Part # 4600-4611 Mfg # 154611

SPACER, AIR LINE (154611) ForTR-40

$20.99 IN STOCK

Used on Models TR-40

Qty:

ADD TO CART

Part # 4600-4612 Mfg # 154612

SPACER, AIR LINE (154612) For TR-50/60

$20.99 IN STOCK

Used on Models TR-50/60

Qty:

ADD TO CART

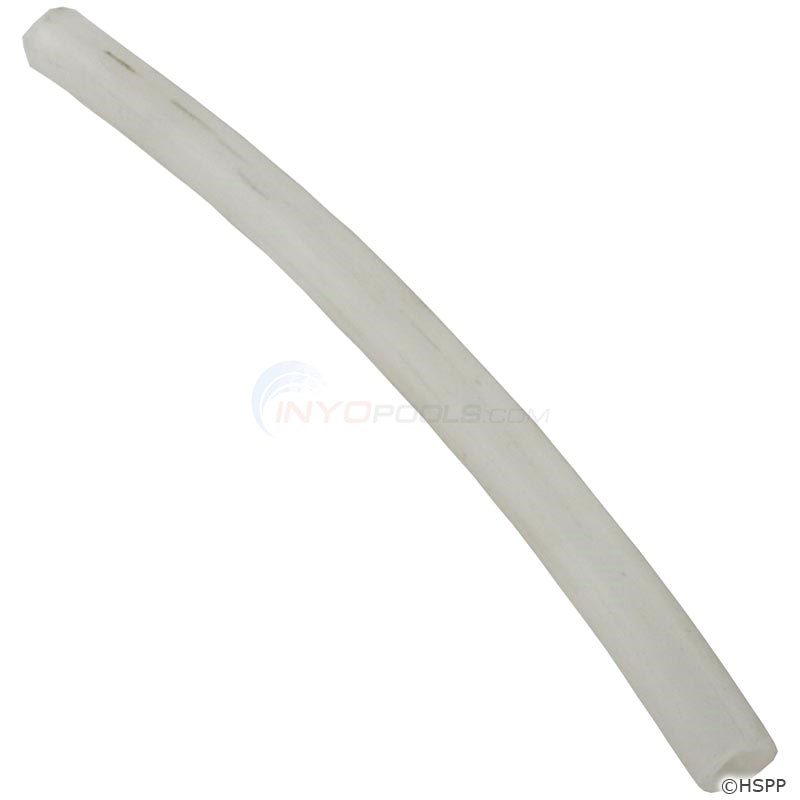

Part # 4600-4613 Mfg # 154613

SPACER, AIR LINE (154613) For TR-100

$20.99 IN STOCK

Used on Models TR-100

Qty:

ADD TO CART

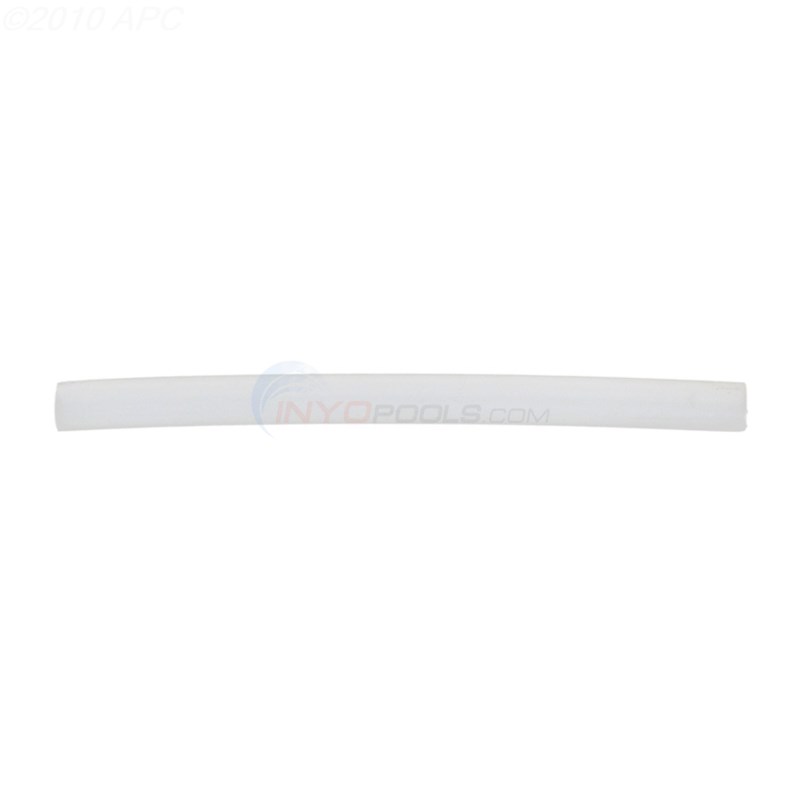

Part # 4600-4614 Mfg # 154614

SPACER, AIR LINE (154614) For TR-140

$20.99 IN STOCK

Used on Models TR-140

Qty:

ADD TO CART

Part # 4600-4714 Mfg # 154714

BULKHEAD ASSEMBLY 2

$142.57 IN STOCK

Qty:

ADD TO CART

Part # 4601-0034 Mfg # 150034

TUBING 1/4"X 3/8"

$10.22 IN STOCK

Qty:

ADD TO CART

Part # 154402 Mfg # 154402

TAPE FOOT MOUNTING (3 Required) For TR-40/50/60

NOT AVAILABLE

Used on Models TR-40/50/60 QTY Req'd 3

Part # 154407 Mfg # 154407

TAPE FOOT MOUNTING (3 Required) For TR-100/140

NOT AVAILABLE

Used on Models TR-100/140 QTY Req'd 3

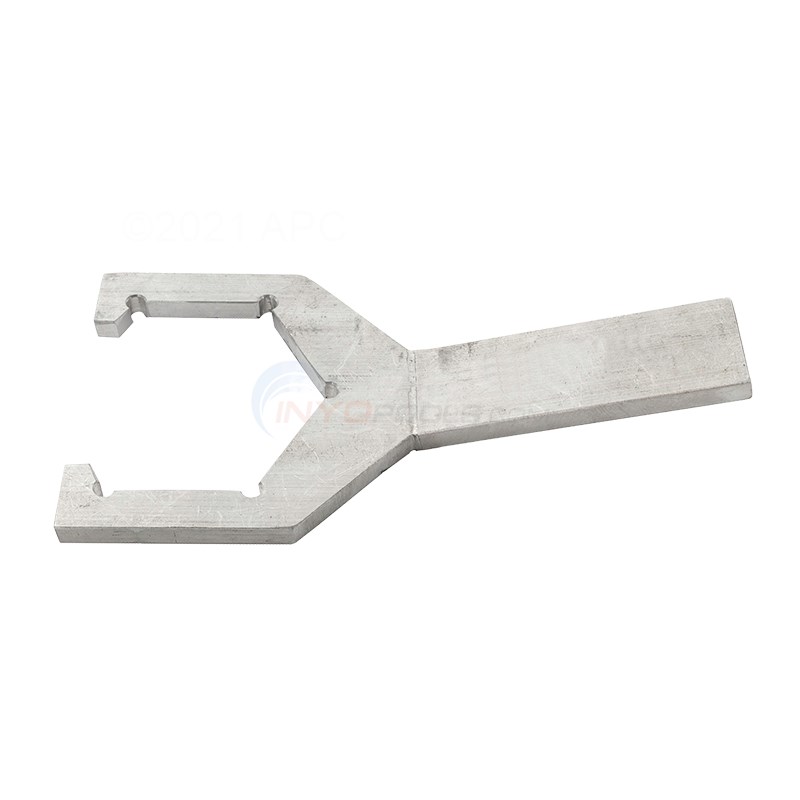

Part # 4600-1602 Mfg # 151602

BULKHEAD WRENCH, 2" (All Models)

$264.04 IN STOCK

Used on Models ALL QTY Req'd

Qty:

ADD TO CART

Part # 151092 Mfg # 151092

ALUMINUM WRENCH, 8-1/2" (All Models)

NOT AVAILABLE

Used on Models ALL QTY Req'd

SOLD AS TRITON PREVIOUSLY
Sold Under Various Brands including Purex SFSM, Heldor Pureflo, Fox, Poolquip Western Series.

NOTE 2 - THE TRITON II AIR RELIEF TUBING CHANGED FROM 1/4” OD TO 3/8” OD 11/99
BOTH CONNECTORS PUSH ON THE PIPING TABS & TWIST LOCK IN PLACE

CONNECTORS 12B & 12C ARE IDENTICAL EXCEPT FOR AIR TUBING HOLE SIZE
TO REPLACE KEY 12B ORDER 12C PLUS #4601-0034 TO ADAPT TO OLDER 1/4” TUBING
BEFORE NOV. '91
COLOR OF TANK
TURQUOISE OR BROWN

AFTER NOV. '91
COLOR OF TANK
BLACK
* O-RING/GASKET REPAIR KIT
