Raypak RP2100 R185A, R265A, R335A, R405A Heaters (11/01/93-11/01/98) Parts

1993-1998 - MILLIVOLT (MV) & ELECTRONIC (IID) MODELS

Raypak RP2100 R185A, R265A, R335A, R405A Heaters (11/01/93-11/01/98) Diagram

Click to zoom in

Diagram #	Part Title
1	BURNER TRAY With BURNERS 185
2	BURNER ONLY
3	ORIFICE, BURNER NAT (350080)
4	BURNER TRAY ONLY R185
5	HIGH LIMIT, 135 DEGREE
6	HIGH LIMIT, 140 DEGREE
7	T-STAT CONTROL, PC BOARD IID

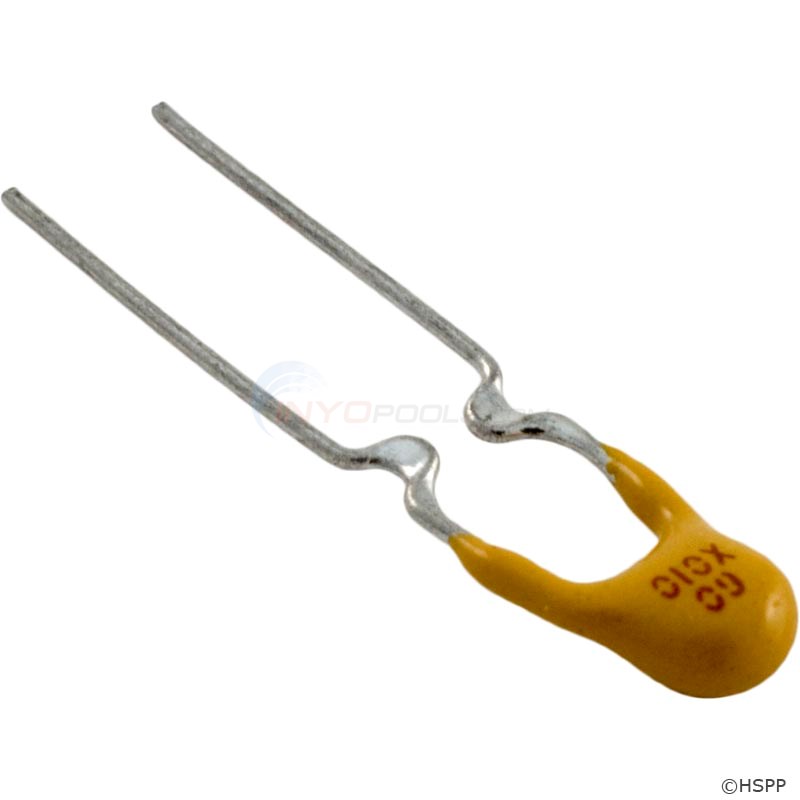

*	Kit-fuse Pc Board Rp2100
8	THERMOSTAT, MV-RAYPAK

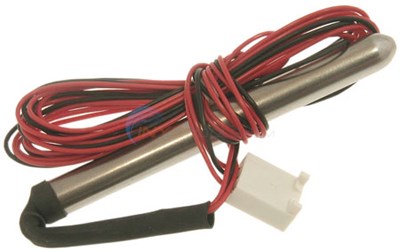

9	SENSOR, TEMP. IID (3 WIRES: 2 RED, ONE BLACK)
*	Thermostat, Mv Solid State
10	VALVE, GAS NAT. MV RAYPAK
11	HEADER, INLET/OUTLET CAST IRON 1 WELL
12	HEADER, RETURN CAST IRON

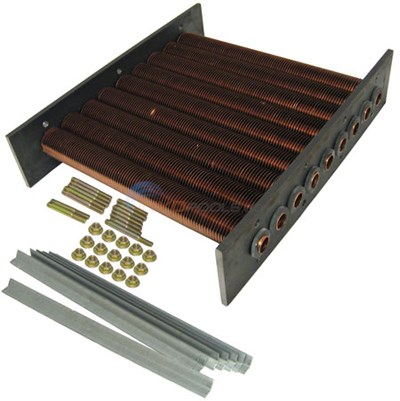

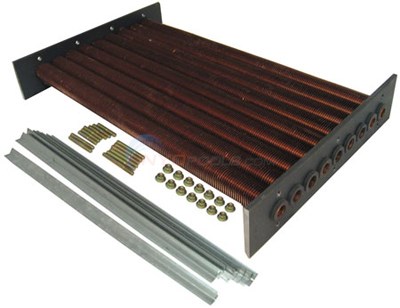

13	TUBE BUNDLE FOR R185
14	BAFFLE KIT (SET OF 8) R185
15	BOLT, HEAT EXCHANGER KIT (COMPLETE SET OF NUTS AND BOLTS FOR BOTH HEADERS)
16	GASKET, HEADER (SET OF 9)
17	GOVERNOR, UNITHERM
18	SPRING, RETAINER U.G.
19	VALVE, BYPASS
20	VALVE, BYPASS

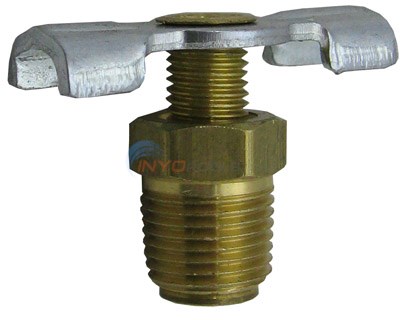

21	VALVE, DRAIN COCK 1/8 IN MPT
22	WELL SENSOR
23	CLIP, WELL RETAINING
24	FLANGE, INLET/OUTLET
25	GASKET, FLANGE 1 1/2IN (2 PER PKG)
26	REAR DRAIN PLUG AND COVER
27	CONTROL IGNITION, IID NAT.
28	No Longer Available TRANSFORMER Replace With 6234-99
29	No Longer Available ROCKER SWITCH Replace With 6234-31
30	ROCKER SWITCH
31	SWITCH, PRESSURE
32	PRESSURE SWITCH TUBE KIT - R185-R405
33	No Longer Available KNOB Replace With 6230-341
34	No Longer Available KNOBSTOP Replace With 6230-351
35	THERMAL FUSE
36	VALVE, PRESSURE RELIEF 125 PSI

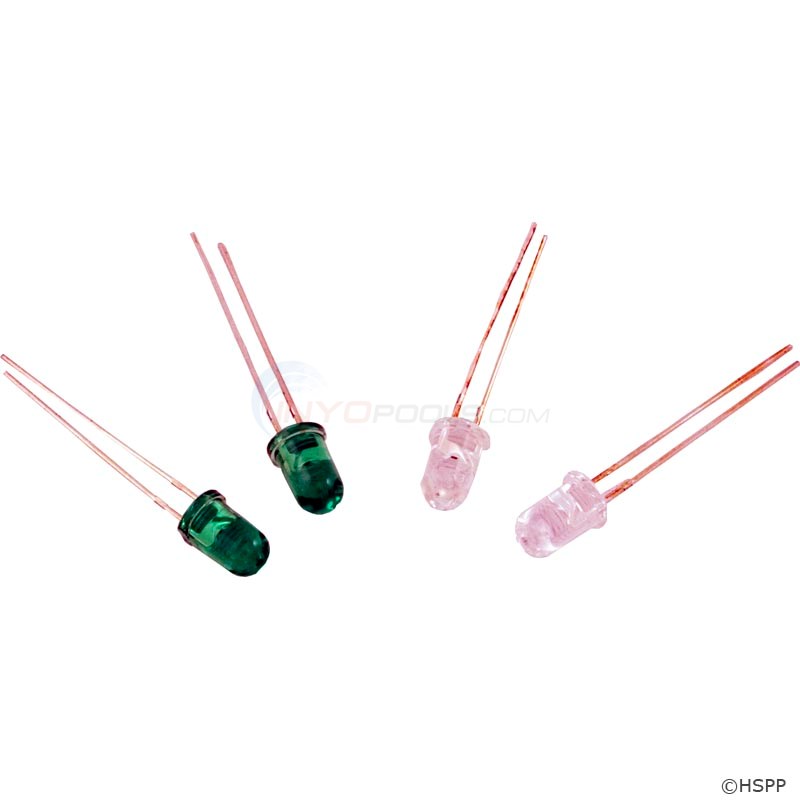

37	LIGHT KIT, INDICATOR (2GR, 2RD)
*	Wire/harness For Millivolt
38	CONTROL PANEL MV

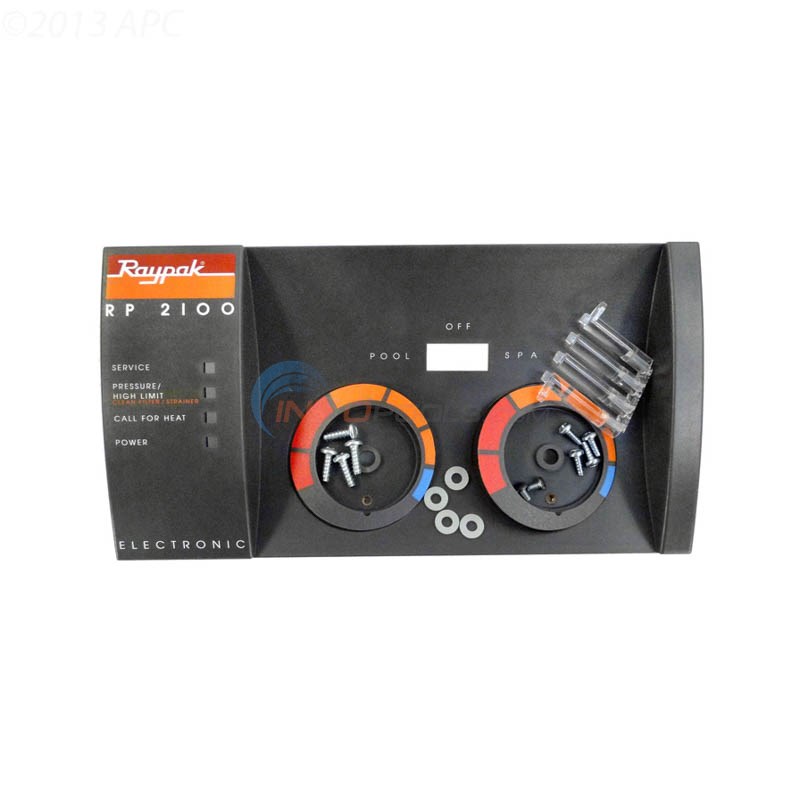

39	CONTROL PANEL IID
40	No Longer Available THERMOSTAT Replace With 6238-128

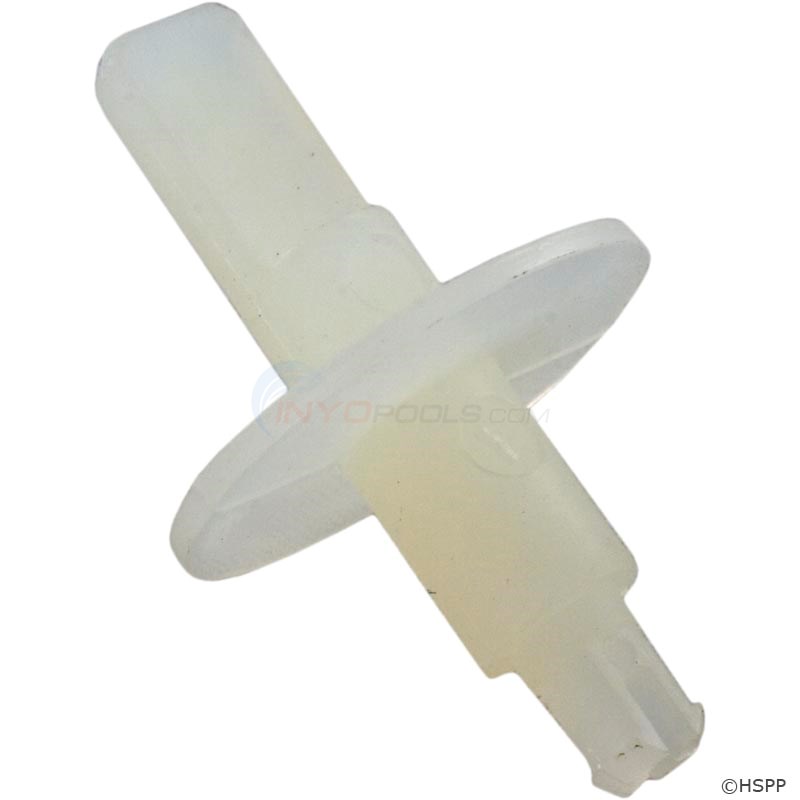

41	THERMOSTAT SHAFT IID
42	PILOT, NAT. MV RAYPAK
43	PILOT, NATURAL OR PROPANE, IID
44	ORIFICE, PILOT, NAT. MV
45	ORIFICE, PILOT, NAT. IID
46	GENERATOR, PILOT, MV,RAYPAK
47	BRACKET, PILOT MOUNTING, MV
48	BRACKET, PILOT MOUNTING, IID
49	LIGHTER TUBE (MV ONLY)
50	TUBE, PILOT
51	WIRE, HI TENSION, IID
52	REFRACTORY (LEFT & RIGHT)
53	REFRACTORY (FRONT & REAR) R185
54	REAR DRAIN PLUG AND COVER
55	VALVE, BYPASS
56	STACK KIT, INDOOR R185
*	CONVERSION KIT NAT TO LP 185- 265 (MILLIVOLT ONLY)

View Parts List

Diagram #	Part Title
1	BURNER TRAY With BURNERS 185
2	BURNER ONLY
3	ORIFICE, BURNER NAT (350080)
4	BURNER TRAY ONLY R185
5	HIGH LIMIT, 135 DEGREE
6	HIGH LIMIT, 140 DEGREE

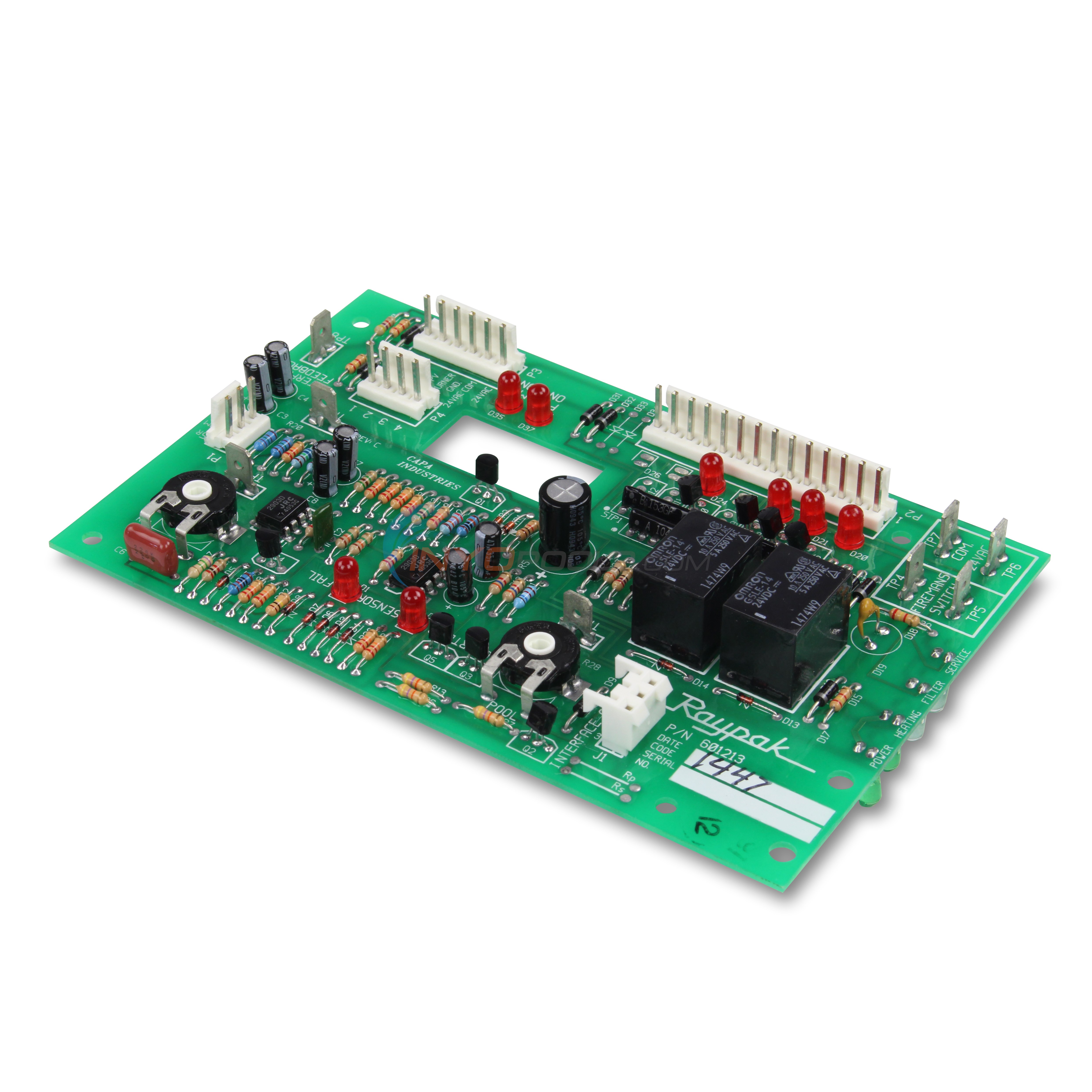

7	T-STAT CONTROL, PC BOARD IID
*	Kit-fuse Pc Board Rp2100
8	THERMOSTAT, MV-RAYPAK
9	SENSOR, TEMP. IID (3 WIRES: 2 RED, ONE BLACK)
*	Thermostat, Mv Solid State
10	VALVE, GAS NAT. MV RAYPAK

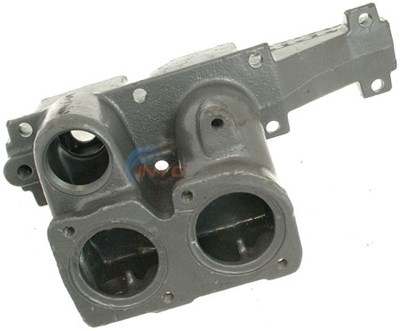

11	HEADER, INLET/OUTLET CAST IRON 1 WELL

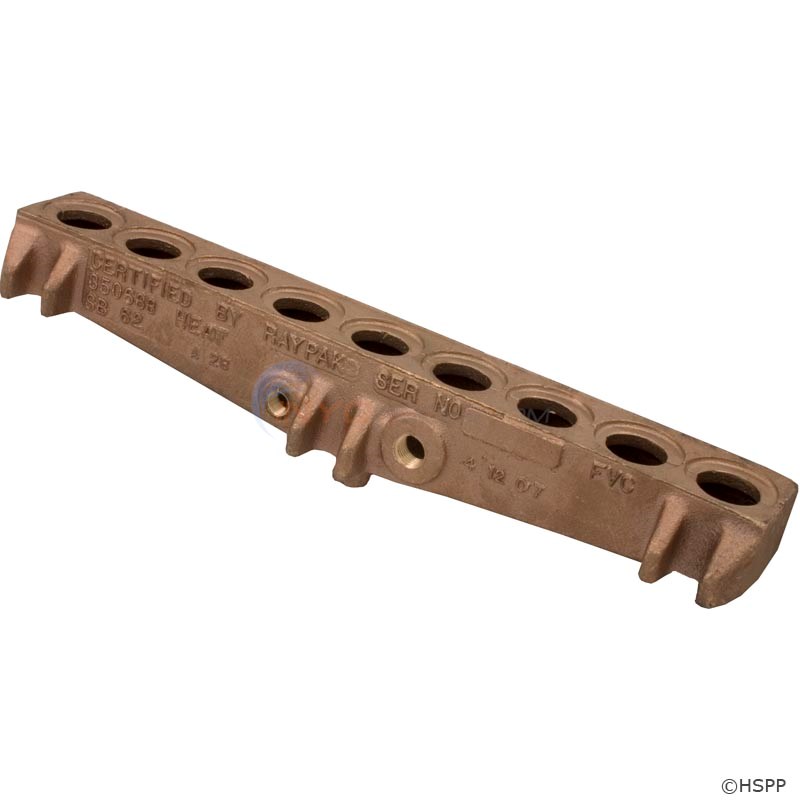

12	HEADER, RETURN CAST IRON

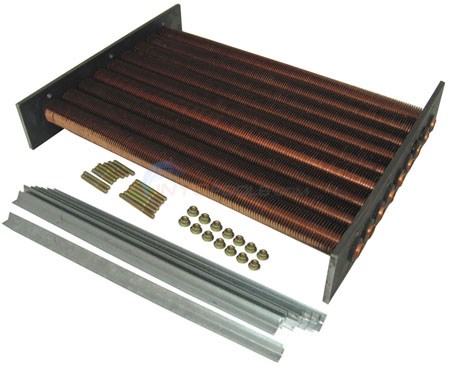

13	TUBE BUNDLE FOR R185
14	BAFFLE KIT (SET OF 8) R185

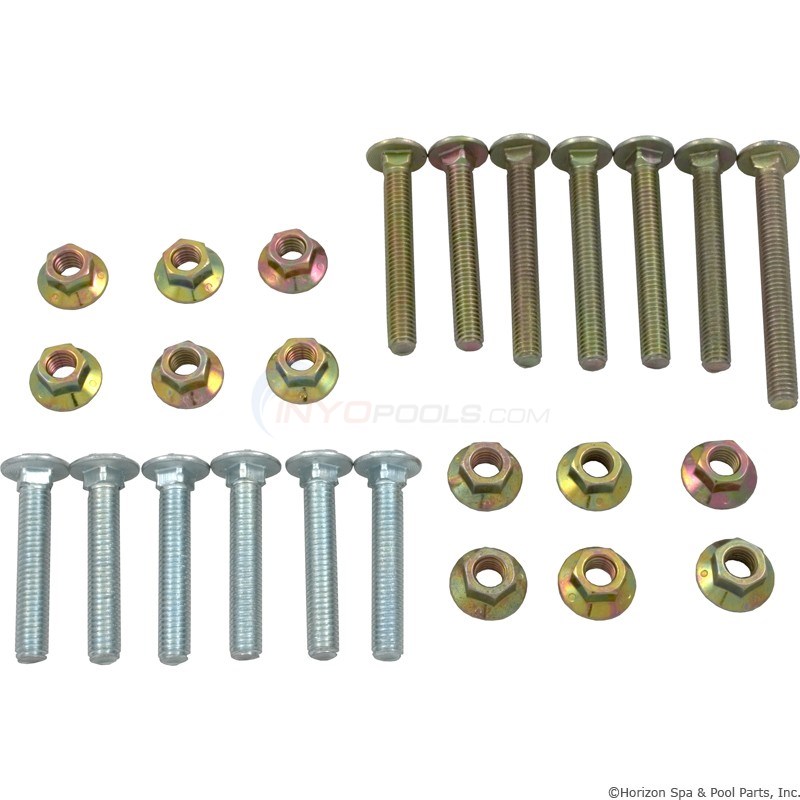

15	BOLT, HEAT EXCHANGER KIT (COMPLETE SET OF NUTS AND BOLTS FOR BOTH HEADERS)
16	GASKET, HEADER (SET OF 9)
17	GOVERNOR, UNITHERM
18	SPRING, RETAINER U.G.
19	VALVE, BYPASS
20	VALVE, BYPASS
21	VALVE, DRAIN COCK 1/8 IN MPT
22	WELL SENSOR
23	CLIP, WELL RETAINING
24	FLANGE, INLET/OUTLET
25	GASKET, FLANGE 1 1/2IN (2 PER PKG)
26	REAR DRAIN PLUG AND COVER
27	CONTROL IGNITION, IID NAT.
28	No Longer Available TRANSFORMER Replace With 6234-99
29	No Longer Available ROCKER SWITCH Replace With 6234-31
30	ROCKER SWITCH
31	SWITCH, PRESSURE
32	PRESSURE SWITCH TUBE KIT - R185-R405
33	No Longer Available KNOB Replace With 6230-341
34	No Longer Available KNOBSTOP Replace With 6230-351
35	THERMAL FUSE
36	VALVE, PRESSURE RELIEF 125 PSI
37	LIGHT KIT, INDICATOR (2GR, 2RD)
*	Wire/harness For Millivolt
38	CONTROL PANEL MV
39	CONTROL PANEL IID
40	No Longer Available THERMOSTAT Replace With 6238-128
41	THERMOSTAT SHAFT IID
42	PILOT, NAT. MV RAYPAK
43	PILOT, NATURAL OR PROPANE, IID
44	ORIFICE, PILOT, NAT. MV
45	ORIFICE, PILOT, NAT. IID
46	GENERATOR, PILOT, MV,RAYPAK
47	BRACKET, PILOT MOUNTING, MV
48	BRACKET, PILOT MOUNTING, IID
49	LIGHTER TUBE (MV ONLY)
50	TUBE, PILOT
51	WIRE, HI TENSION, IID
52	REFRACTORY (LEFT & RIGHT)
53	REFRACTORY (FRONT & REAR) R185
54	REAR DRAIN PLUG AND COVER
55	VALVE, BYPASS
56	STACK KIT, INDOOR R185
*	CONVERSION KIT NAT TO LP 185- 265 (MILLIVOLT ONLY)
