Sonfarrel Spa Master - Side Discharge Parts

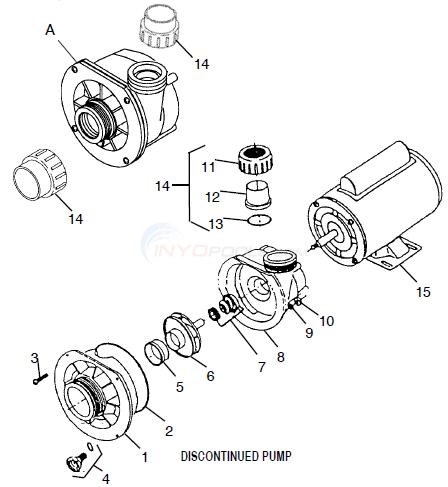

Sonfarrel Spa Master - Side Discharge Diagram

Click to zoom in

Diagram #	Part Title
1	OBSOLETE FACE PLATE
2	OBSOLETE FACE PLATE O-RING
3	OBSOLETE SCREW
4	PLUG, 1/4" With O-RING
5	OBSOLETE IMPELLER RING
6	OBSOLETE IMPELLER, 1/2 HP
7	SEAL, PUMP 1000 (PSR 1000)
8	VOLUTE, SIDE DISCHARGE
9	WASHER, LOCK #10
10	NUT, 10-32
11	NUT, UNION 1 1/2IN
12	UNION, MALE END 1 1/2" SLIP
13	O-RING (226)
14	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
15	1/2 HP 115V Thru Bolt Motor
A*	OBSOLETE WET END 3/4 HP

View Parts List

Diagram #	Part Title
1	OBSOLETE FACE PLATE
2	OBSOLETE FACE PLATE O-RING
3	OBSOLETE SCREW
4	PLUG, 1/4" With O-RING
5	OBSOLETE IMPELLER RING
6	OBSOLETE IMPELLER, 1/2 HP
7	SEAL, PUMP 1000 (PSR 1000)
8	VOLUTE, SIDE DISCHARGE
9	WASHER, LOCK #10
10	NUT, 10-32
11	NUT, UNION 1 1/2IN
12	UNION, MALE END 1 1/2" SLIP
13	O-RING (226)
14	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
15	1/2 HP 115V Thru Bolt Motor
A*	OBSOLETE WET END 3/4 HP

Available Parts:

1

OBSOLETE FACE PLATE

Mfg # 300003

OBSOLETE FACE PLATE

NOT AVAILABLE

2

OBSOLETE FACE PLATE O-RING

Mfg # 300004

OBSOLETE FACE PLATE O-RING

NOT AVAILABLE

3

OBSOLETE SCREW

Mfg # 300001

OBSOLETE SCREW

NOT AVAILABLE

PLUG, 1/4" With O-RING

Part # 5019-13 Mfg # 203006

PLUG, 1/4" With O-RING

$22.76

5

OBSOLETE IMPELLER RING

Mfg # 321128

OBSOLETE IMPELLER RING

NOT AVAILABLE

6

OBSOLETE IMPELLER, 1/2 HP

Mfg # 300005L

OBSOLETE IMPELLER, 1/2 HP

NOT AVAILABLE

6

OBSOLETE IMPELLER, 3/4 HP

Mfg # 300006L

OBSOLETE IMPELLER, 3/4 HP

NOT AVAILABLE

6

OBSOLETE IMPELLER, 1 HP

Mfg # 300007L

OBSOLETE IMPELLER, 1 HP

NOT AVAILABLE

6

OBSOLETE IMPELLER, 1 1/2 HP

Mfg # 300008L

OBSOLETE IMPELLER, 1 1/2 HP

NOT AVAILABLE

6

OBSOLETE IMPELLER, 2 HP

Mfg # 300099L

OBSOLETE IMPELLER, 2 HP

NOT AVAILABLE

SEAL, PUMP 1000 (PSR 1000)

Part # 5250-106 Mfg # PS-1000

SEAL, PUMP 1000 (PSR 1000)

$7.76 IN STOCK

Qty:

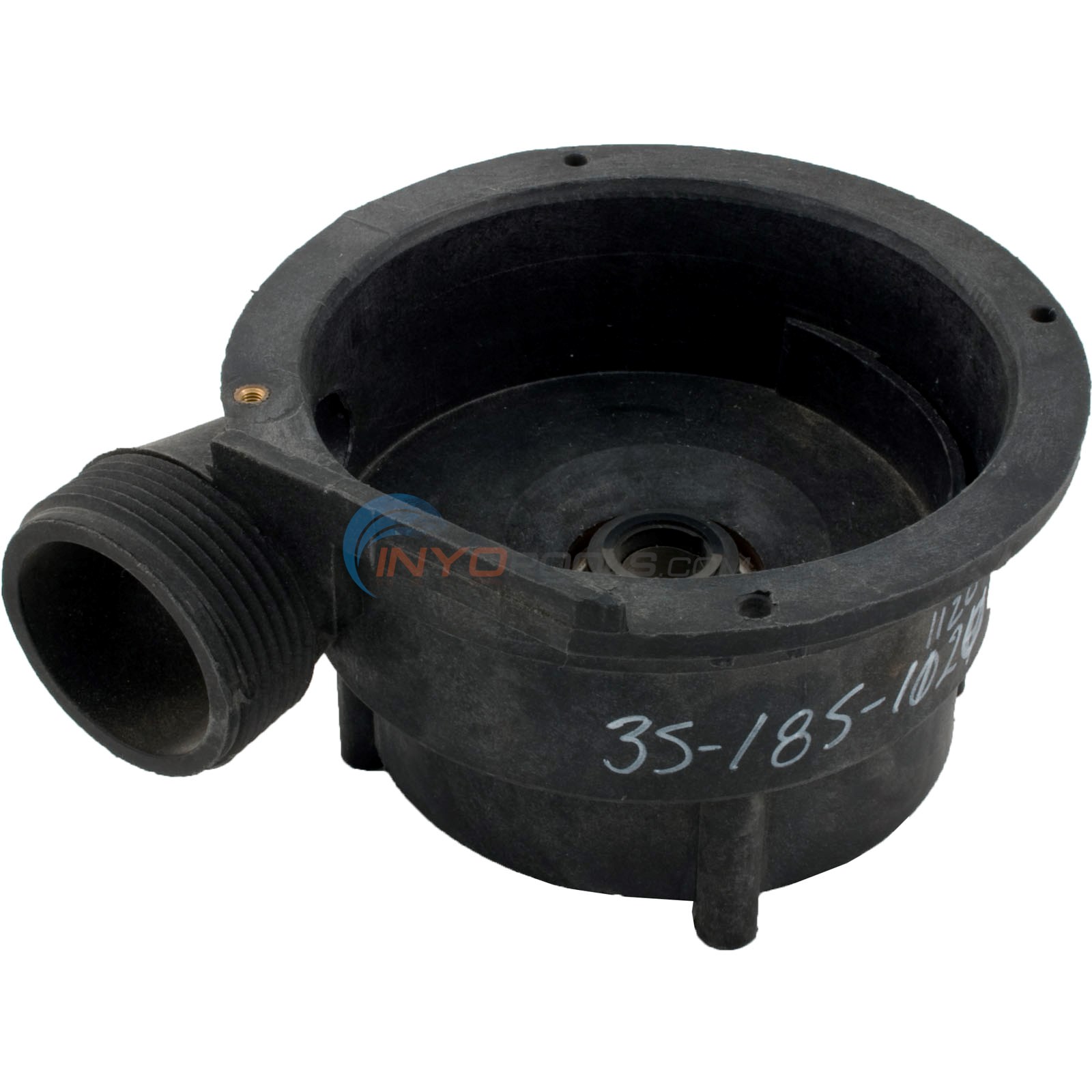

VOLUTE, SIDE DISCHARGE

Part # 5031-08 Mfg # 300010S

VOLUTE, SIDE DISCHARGE

$45.54

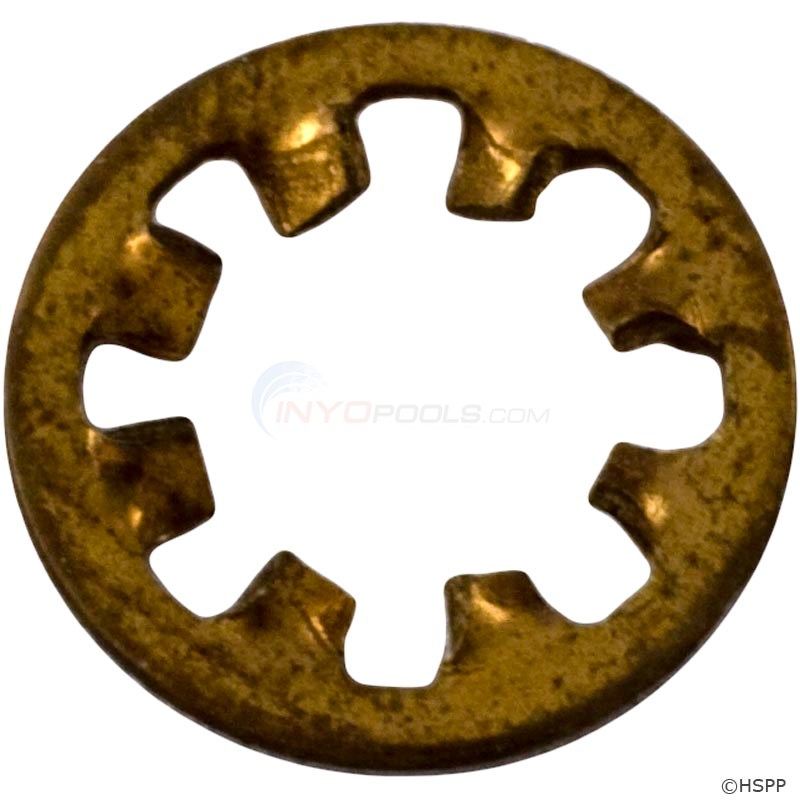

WASHER, LOCK #10

Part # 5019-20 Mfg # 300011

WASHER, LOCK #10

$11.37 IN STOCK

Qty:

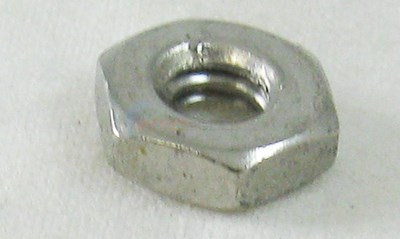

NUT, 10-32
