Hayward MaxFlo II SP2700X Series Parts

MODELS SP2705X7, SP2707X10/2, SP2710X15/2, SP2715X20/2

Hayward MaxFlo II SP2700X Series Diagram

Click to zoom in

Diagram #	Part Title
1A	STRAINER COVER KIT (INCLUDES COVER, LOCKRING & ORING)
2	STRAINER COVER ORING
3	STRAINER BASKET (SPX2700M HAY)
4	PUMP STRAINER HOUSING (COVER ASSEMBLY, BASKET & DRAIN PLUGS)
5	DRAIN PLUG WITH GASKET
6	HARDWARE PACK (4 HOUSING BOLTS, SEAL PLATE, SPACERS & SQUARE NUTS)
7	DIFFUSER SCREWS (3 PER PACK)
8	DIFFUSER O-RING
9	DIFFUSER
10	IMPELLER FOR 3/4 HP
11	HOUSING O-RING, ID 6-3/4", OD 7-1/8"
12	Shaft Seal, Hayward Max-Flo/Booster 6060, 5/8" Shaft, Buna
12	GENERIC FOR HAYWARD MAX FLO II SHAFT SEAL
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
13	SEAL PLATE (SPX2700E)
14	MOTOR BOLT (SPX3200Z5)
15	MOTOR SUPPORT
16	UNION CONNECTOR KIT
*	UNION GASKET
17	Max-Flo-II 3/4 HP Motor
**	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
1A	STRAINER COVER KIT (INCLUDES COVER, LOCKRING & ORING)
2	STRAINER COVER ORING
3	STRAINER BASKET (SPX2700M HAY)
4	PUMP STRAINER HOUSING (COVER ASSEMBLY, BASKET & DRAIN PLUGS)
5	DRAIN PLUG WITH GASKET
6	HARDWARE PACK (4 HOUSING BOLTS, SEAL PLATE, SPACERS & SQUARE NUTS)
7	DIFFUSER SCREWS (3 PER PACK)
8	DIFFUSER O-RING
9	DIFFUSER
10	IMPELLER FOR 3/4 HP
11	HOUSING O-RING, ID 6-3/4", OD 7-1/8"
12	Shaft Seal, Hayward Max-Flo/Booster 6060, 5/8" Shaft, Buna
12	GENERIC FOR HAYWARD MAX FLO II SHAFT SEAL
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
13	SEAL PLATE (SPX2700E)
14	MOTOR BOLT (SPX3200Z5)
15	MOTOR SUPPORT
16	UNION CONNECTOR KIT
*	UNION GASKET
17	Max-Flo-II 3/4 HP Motor
**	Protective Pool Motor Cover

Available Parts:

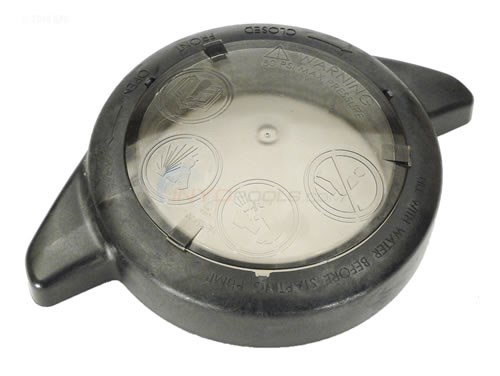

STRAINER COVER KIT (INCLUDES COVER, LOCKRING & ORING)

Part # 5110-75 Mfg # SPX2700DLS

STRAINER COVER KIT (INCLUDES COVER, LOCKRING & ORING)

$103.31 IN STOCK

Qty:

STRAINER COVER KIT, BIGUANIDE (INCLUDES COVER, LOCKRING & ORING)

Part # 5110-76 Mfg # SPX2700DLSB

STRAINER COVER KIT, BIGUANIDE (INCLUDES COVER, LOCKRING & ORING)

$120.96 IN STOCK

Qty:

STRAINER COVER ORING

Part # 5110-77 Mfg # SPX2700Z4

STRAINER COVER ORING

$21.26 IN STOCK

Qty:

STRAINER BASKET (SPX2700M HAY)

Part # 5110-78 Mfg # SPX2700M

STRAINER BASKET (SPX2700M HAY)

$30.66 IN STOCK

Qty:

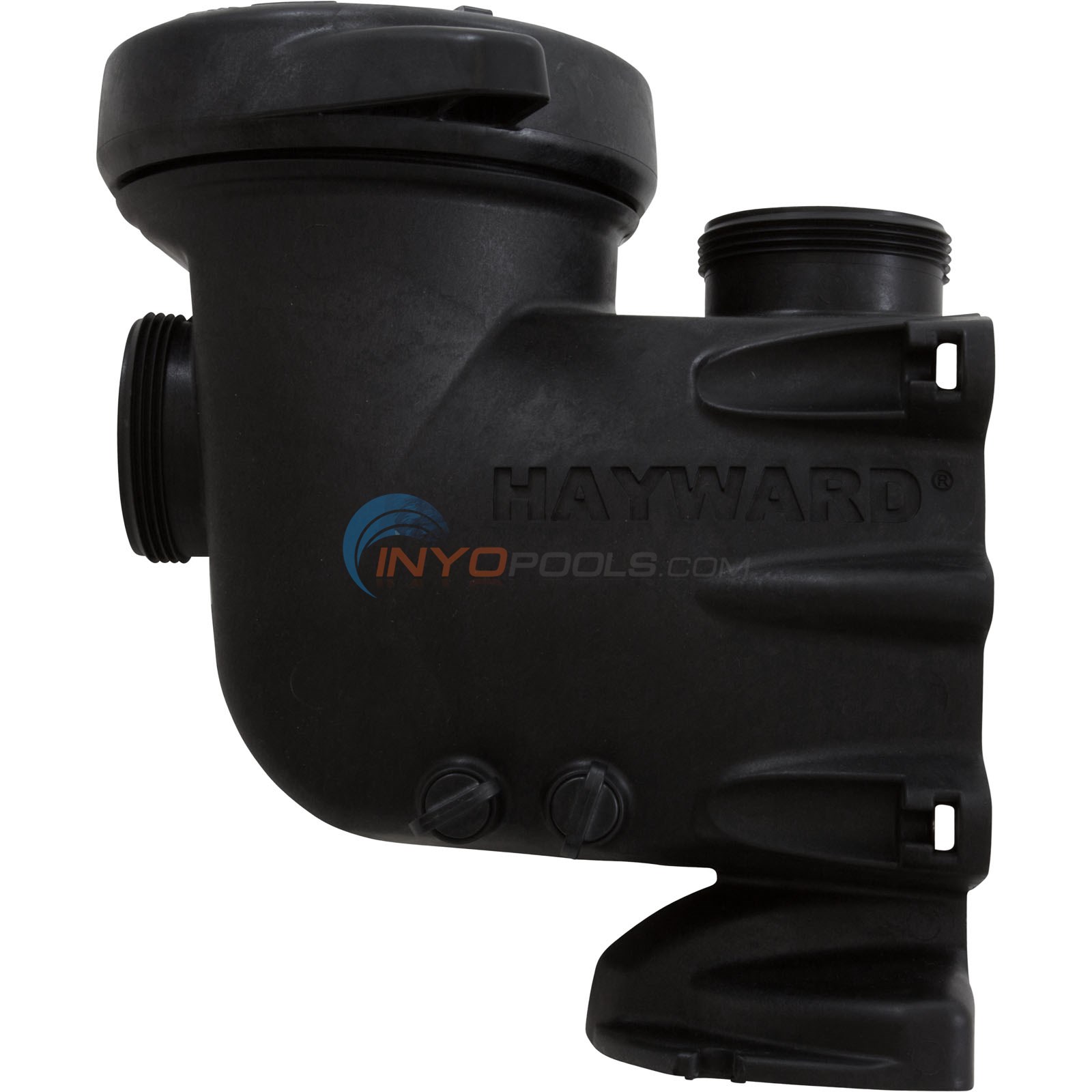

PUMP STRAINER HOUSING (COVER ASSEMBLY, BASKET & DRAIN PLUGS)

Part # 5110-79 Mfg # SPX2700AA

PUMP STRAINER HOUSING (COVER ASSEMBLY, BASKET & DRAIN PLUGS)

$378.48 IN STOCK

Qty:

DRAIN PLUG WITH GASKET

Part # 5112-008 Mfg # SPX4000FG

DRAIN PLUG WITH GASKET

$10.65 IN STOCK

Qty:

HARDWARE PACK (4 HOUSING BOLTS, SEAL PLATE, SPACERS & SQUARE NUTS)

Part # 5110-80 Mfg # SPX2700ZPAK

HARDWARE PACK (4 HOUSING BOLTS, SEAL PLATE, SPACERS & SQUARE NUTS)

$69.60

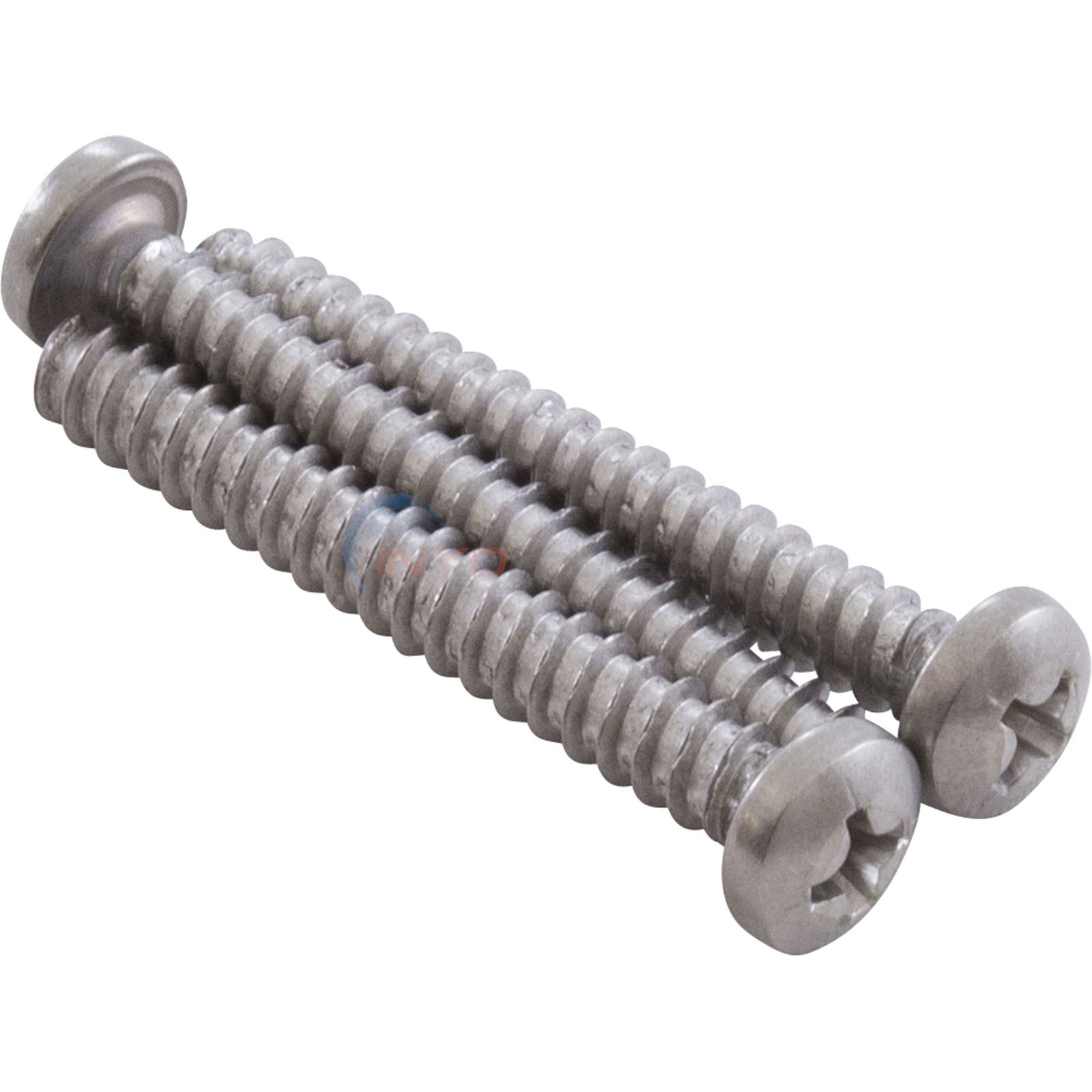

DIFFUSER SCREWS (3 PER PACK)

Part # 5110-81 Mfg # SPX2700Z3

DIFFUSER SCREWS (3 PER PACK)

$21.31

DIFFUSER O-RING

Part # 4811-46 Mfg # SX220Z2

DIFFUSER O-RING

$17.05 IN STOCK

Qty:

DIFFUSER

Part # 5110-82 Mfg # SPX2700B

DIFFUSER

$79.95

IMPELLER FOR 3/4 HP

Part # 5110-86 Mfg # SPX2700C

IMPELLER FOR 3/4 HP

$60.76 IN STOCK

Qty:

IMPELLER 1HP

Part # 5110-87 Mfg # SPX2707CM

IMPELLER 1HP

$42.59 IN STOCK

Qty:

IMPELLER 1 1/2 HP

Part # 5110-88 Mfg # SPX2710CM

IMPELLER 1 1/2 HP

$65.99 IN STOCK

Qty:

IMPELLER 2 HP

Part # 5110-89 Mfg # SPX2715CM

IMPELLER 2 HP

$76.08 IN STOCK

Qty:

HOUSING O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

HOUSING O-RING, ID 6-3/4", OD 7-1/8"

$11.48 IN STOCK

Qty:

Shaft Seal, Hayward Max-Flo/Booster 6060, 5/8" Shaft, Buna

Part # SPX2700SA

Shaft Seal, Hayward Max-Flo/Booster 6060, 5/8" Shaft, Buna

$34.16 IN STOCK

Qty:

GENERIC FOR HAYWARD MAX FLO II SHAFT SEAL

Part # 3260-105 Mfg # PSR200

GENERIC FOR HAYWARD MAX FLO II SHAFT SEAL

$11.19 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-210 Mfg # PS-3867

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$18.11 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.31 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97 IN STOCK

Qty:

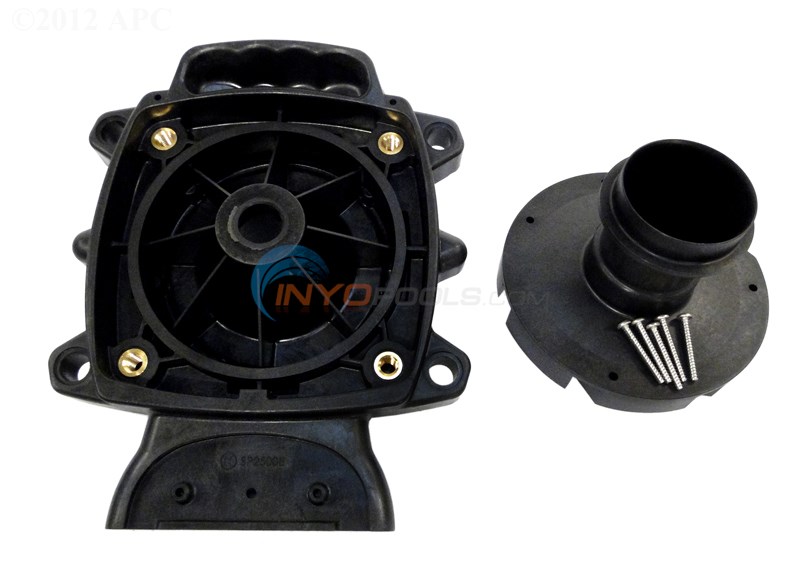

SEAL PLATE (SPX2700E)

Part # 5110-84 Mfg # SPX2700EKIT

SEAL PLATE (SPX2700E)

$125.02 IN STOCK

Qty:

MOTOR BOLT (SPX3200Z5)

Part # 5112-221 Mfg # SPX3200Z5PAK4

MOTOR BOLT (SPX3200Z5)

$26.64 IN STOCK

Qty:

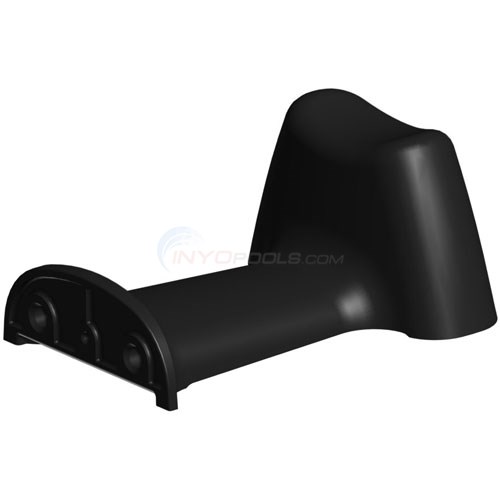

MOTOR SUPPORT
