Jacuzzi Top Mount, 2", 39-2587-02-R Threaded Parts

SANDTRAP 39-2587-02-R (THREADED); SANDSTORM 39-0006-09-R (CLAMP ON)

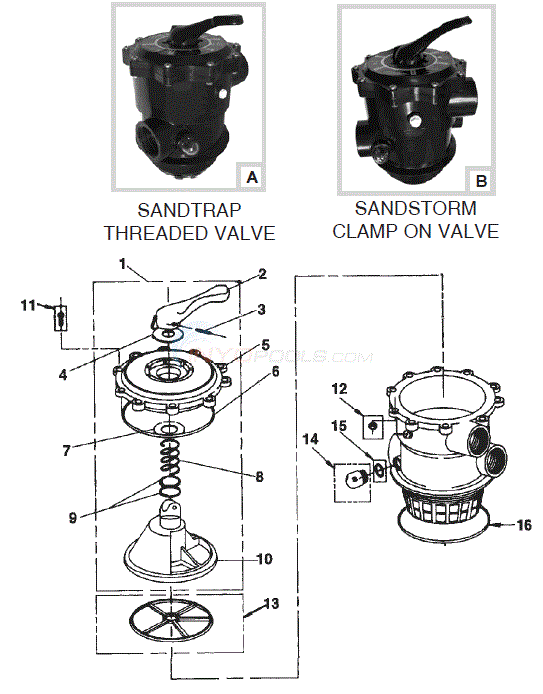

Jacuzzi Top Mount, 2", 39-2587-02-R Threaded Diagram

Click to zoom in

Diagram #	Part Title
A	Valve Top Mt. 7 1/16" Buttress
B	Topmount Valve Kit, 2" (39000609)
1	Top Assy., Valve 2" Black
2	Handle (e-1-s1 1 1/2")
3	Pin For Handle
4	Washer, Handle
5	Cover 2" - Black
*	Valve Cover Decal, 2" Top Mount (es-t2)
6	O-ring, Cover (e-7-s2 2")
7	Washer, Valve Spring
8	Spring
9	O-ring, Valve Stem
10	Diffuser, 2" Valve
11	Screw Top Valve (sample S-20)
12	Nut
13	Gasket, Diverter 2in 5-spoke (e-12-s 2") (271148)
14	Sight Glass
15	Gasket, Sight Glass (e-16-s1 F1 1/2&2")
16	O-ring

View Parts List

Diagram #	Part Title
A	Valve Top Mt. 7 1/16" Buttress
B	Topmount Valve Kit, 2" (39000609)
1	Top Assy., Valve 2" Black
2	Handle (e-1-s1 1 1/2")
3	Pin For Handle
4	Washer, Handle
5	Cover 2" - Black
*	Valve Cover Decal, 2" Top Mount (es-t2)
6	O-ring, Cover (e-7-s2 2")
7	Washer, Valve Spring
8	Spring
9	O-ring, Valve Stem
10	Diffuser, 2" Valve
11	Screw Top Valve (sample S-20)
12	Nut
13	Gasket, Diverter 2in 5-spoke (e-12-s 2") (271148)
14	Sight Glass
15	Gasket, Sight Glass (e-16-s1 F1 1/2&2")
16	O-ring

Available Parts:

Part # 4710-0 Mfg # TM-22-JAC

Valve Top Mt. 7 1/16" Buttress

$188.71 IN STOCK

Qty:
