Sta-Rite Dyna Pro/ Dyna Pro E Pump Parts

Sta-Rite Dyna Pro/ Dyna Pro E Pump Diagram

Click to zoom in

Diagram #	Part Title
1	V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130
1	A.O. Smith 1/2 H.P Square Flange Up Rate Motor
1	Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller
*	Protective Pool Motor Cover
2	SCREW, GROUND
3	GROUNDING LUG
4	SLINGER, WATER
5	SEAL PLATE
6	STA-RITE O-RING, SEAL PLATE (446)
7	SEAL, SHAFT (37400-0027S)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
8	IMPELLER, 3/4HP STA RITE
8A	GASKET, IMPELLER SCREW
8B	SCREW, IMPELLER 1 1/2 - 3 HP
9	DIFFUSER, 3/4HP STA RITE
10	STA RITE O-RING, DIFFUSER
11	TANK AND TRAP BODY ONLY
12	TRAP COVER ASSY
13	Pump Lid O-ring (35505-1440)
14	Pump Strainer Basket (C8-58P)
15A	DRAIN PLUG With O-RING
15B	SCREW, HI-LO
16	BASE
17	PAD, MOTOR
18	SCREW, CAP
19	LOCK WASHER
20	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
21	WASHER
22	NUT, 3/8IN (SAMPLE N-2)
23	SCREW, HEX CAP (3/8-16 X 1 1/4")
24	SCREW HEX HEAD (HEX HEAD SCREW)
25	ADAPTER KIT,UNION 2" SLIP WG

View Parts List

Diagram #	Part Title
1	V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130
1	A.O. Smith 1/2 H.P Square Flange Up Rate Motor
1	Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller
*	Protective Pool Motor Cover
2	SCREW, GROUND
3	GROUNDING LUG
4	SLINGER, WATER
5	SEAL PLATE
6	STA-RITE O-RING, SEAL PLATE (446)
7	SEAL, SHAFT (37400-0027S)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
8	IMPELLER, 3/4HP STA RITE
8A	GASKET, IMPELLER SCREW
8B	SCREW, IMPELLER 1 1/2 - 3 HP
9	DIFFUSER, 3/4HP STA RITE
10	STA RITE O-RING, DIFFUSER
11	TANK AND TRAP BODY ONLY
12	TRAP COVER ASSY
13	Pump Lid O-ring (35505-1440)
14	Pump Strainer Basket (C8-58P)
15A	DRAIN PLUG With O-RING
15B	SCREW, HI-LO
16	BASE
17	PAD, MOTOR
18	SCREW, CAP
19	LOCK WASHER
20	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
21	WASHER
22	NUT, 3/8IN (SAMPLE N-2)
23	SCREW, HEX CAP (3/8-16 X 1 1/4")
24	SCREW HEX HEAD (HEX HEAD SCREW)
25	ADAPTER KIT,UNION 2" SLIP WG

Available Parts:

V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130

Part # EVQ130 Mfg # EVQ130

V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130

$515.55 IN STOCK

Service Factor 1.00 Voltage 115/230 Frame 48Y

Service Factor 1.00 Voltage 115/230 Frame 48Y

Qty:

V-Green EVO 1.65 HP Square Flange 48Y Variable Speed Motor - EVQ165

Part # EVQ165 Mfg # EVQ165

V-Green EVO 1.65 HP Square Flange 48Y Variable Speed Motor - EVQ165

$600.99 IN STOCK

Service Factor 1.00 Voltage 115/230 Frame 48Y

Service Factor 1.00 Voltage 115/230 Frame 48Y

Qty:

V-Green EVO 2.25 HP Square Flange 48Y Variable Speed Motor - EVQ225

Part # EVQ225 Mfg # EVQ225

V-Green EVO 2.25 HP Square Flange 48Y Variable Speed Motor - EVQ225

$617.07 IN STOCK

Service Factor 1.00 Voltage 115/230 Frame 48Y

Service Factor 1.00 Voltage 115/230 Frame 48Y

Qty:

A.O. Smith 1/2 H.P Square Flange Up Rate Motor

Part # USQ1052 Mfg # USQ1052

A.O. Smith 1/2 H.P Square Flange Up Rate Motor

$205.58 IN STOCK

Qty:

Pureline 3/4 HP Pool Motor Square Flange 48Y

Part # PL2073

Pureline 3/4 HP Pool Motor Square Flange 48Y

$170.84 IN STOCK

Qty:

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

Part # USQ1152 Mfg # USQ1152

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

$270.35 IN STOCK

Qty:

A.O. Smith 2 H.P. Square Flange Up Rate Motor

Part # USQ1202 Mfg # USQ1202

A.O. Smith 2 H.P. Square Flange Up Rate Motor

$354.75 IN STOCK

Qty:

A.O. Smith 1/2 H.P Square Flange Full Rate Motor

Part # SQ1052 Mfg # SQ1052

A.O. Smith 1/2 H.P Square Flange Full Rate Motor

$254.13 IN STOCK

Qty:

A.O. Smith 3/4 H.P Square Flange Full Rate Motor

Part # SQ1072 Mfg # SQ1072

A.O. Smith 3/4 H.P Square Flange Full Rate Motor

$244.99 IN STOCK

Qty:

A.O. Smith 1 H.P Square Flange Full Rate Motor

Part # SQ1102 Mfg # SQ1102

A.O. Smith 1 H.P Square Flange Full Rate Motor

$271.34 IN STOCK

Qty:

A.O. Smith 1 1/2 H.P Square Flange Full Rate Motor

Part # SQ1152 Mfg # SQ1152

A.O. Smith 1 1/2 H.P Square Flange Full Rate Motor

$351.74 IN STOCK

Qty:

A.O. Smith 2 H.P Square Flange Full Rate Motor

Part # SQ1202 Mfg # SQ1202

A.O. Smith 2 H.P Square Flange Full Rate Motor

$416.06 IN STOCK

Qty:

A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor

Part # UQS1102R Mfg # UQS1102R

A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor

$330.63

A.O. Smith 1 1/2 H.P Square Flange Dual Speed Up Rate Motor

Part # UQS1152R Mfg # SQS1102R

A.O. Smith 1 1/2 H.P Square Flange Dual Speed Up Rate Motor

$424.10 IN STOCK

Qty:

A.O. Smith 2 H.P Square Flange Dual Speed Up Rate Motor

Part # UQS1202R Mfg # UQS1202R

A.O. Smith 2 H.P Square Flange Dual Speed Up Rate Motor

$575.53

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

Part # PL2103

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

$195.96 IN STOCK

Qty:

Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller

Part # B2981T Mfg # B2981T

Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller

$334.65

Service Factor 1.67 Voltage 115 Max Amps 12.4/2.2 Frame 56Y

Service Factor 1.67 Voltage 115 Max Amps 12.4/2.2 Frame 56Y

Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller

Part # B2980T Mfg # B2980T

Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller

$412.04

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Pool Motor Square Flange 1 HP Full Rate Dual Speed w/ Digital Controller

Part # B2982T Mfg # B2982T

Pool Motor Square Flange 1 HP Full Rate Dual Speed w/ Digital Controller

$369.83

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Pool Motor Square Flange 1.5 HP Full Rate Dual Speed w/ Digital Controller

Part # B2983T Mfg # B2983T

Pool Motor Square Flange 1.5 HP Full Rate Dual Speed w/ Digital Controller

$453.24

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Pool Motor Square Flange 2 HP Full Rate Dual Speed w/ Digital Controller

Part # B2984T Mfg # B2984T

Pool Motor Square Flange 2 HP Full Rate Dual Speed w/ Digital Controller

$458.27

Service Factor 1.3 Voltage 230 Max Amps 11.0/1.8 Frame 56Y

Service Factor 1.3 Voltage 230 Max Amps 11.0/1.8 Frame 56Y

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.89 IN STOCK

Qty:

SCREW, GROUND

Part # 5056-02 Mfg # U30-692SS

SCREW, GROUND

$23.10

GROUNDING LUG

Part # 5056-03 Mfg # U17-568

GROUNDING LUG

$29.13 IN STOCK

Qty:

SLINGER, WATER

Part # 5057-04 Mfg # 17351-0009

SLINGER, WATER

$14.75 IN STOCK

Qty:

5

SEAL PLATE

Part # 5057-051 Mfg # C3-184P9

SEAL PLATE

NOT AVAILABLE

STA-RITE O-RING, SEAL PLATE (446)

Part # 5057-06 Mfg # U9-373

STA-RITE O-RING, SEAL PLATE (446)

$15.72 IN STOCK

Qty:

SEAL, SHAFT (37400-0027S)

Part # 5057-07 Mfg # 37400-0027

SEAL, SHAFT (37400-0027S)

$43.20 IN STOCK

Qty:

Pump Seal 201

Part # 5250-102 Mfg # PS-201

Pump Seal 201

$7.53 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.01

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$30.14 IN STOCK

Qty:

IMPELLER, 3/4HP STA RITE

Part # 5057-08 Mfg # C105-236P

IMPELLER, 3/4HP STA RITE

$48.44 IN STOCK

Qty:

IMPELLER, 1HP STA RITE

Part # 5057-08A Mfg # C105-236PB

IMPELLER, 1HP STA RITE

$75.85 IN STOCK

Qty:

IMPELLER, 1.5HP STA RITE

Part # 5057-08B Mfg # C105-236PC

IMPELLER, 1.5HP STA RITE

$51.85 IN STOCK

Qty:

IMPELLER, 2HP

Part # 5057-08C Mfg # C105-236PDA

IMPELLER, 2HP

$60.70 IN STOCK

Qty:

IMPELLER, 2.5 HP

Part # 5057-08D Mfg # C105-236PEA

IMPELLER, 2.5 HP

$89.17 IN STOCK

Qty:

GASKET, IMPELLER SCREW

Part # 5057-28 Mfg # 33455-1047

GASKET, IMPELLER SCREW

$13.84 IN STOCK

Qty:

SCREW, IMPELLER 1 1/2 - 3 HP

Part # 5055-28 Mfg # 37337-6080

SCREW, IMPELLER 1 1/2 - 3 HP

$24.11 IN STOCK

Qty:

DIFFUSER, 3/4HP STA RITE

Part # 5057-09 Mfg # C1-270PB

DIFFUSER, 3/4HP STA RITE

$49.36 IN STOCK

Qty:

DIFFUSER, 1HP

Part # 5057-09A Mfg # C1-270PC

DIFFUSER, 1HP

$45.09 IN STOCK

Qty:

DIFFUSER, 1.5HP - 2.5HP STA RITE

Part # 5057-09B Mfg # C1-270P

DIFFUSER, 1.5HP - 2.5HP STA RITE

$50.36 IN STOCK

Qty:

STA RITE O-RING, DIFFUSER

Part # 5055-13 Mfg # 333

STA RITE O-RING, DIFFUSER

$6.04 IN STOCK

Qty:

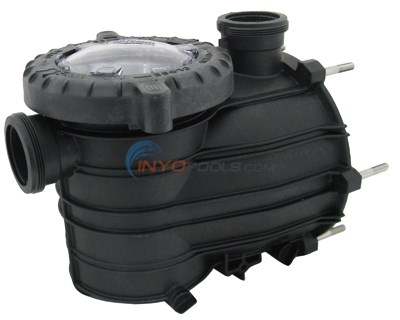

TANK AND TRAP BODY ONLY

Part # 5057-110 Mfg # C176-71P

TANK AND TRAP BODY ONLY

$362.05 IN STOCK

Qty:

TRAP COVER ASSY

Part # 5057-33 Mfg # 17307-0111S

TRAP COVER ASSY

$69.81 IN STOCK

Qty:

Pump Lid O-ring (35505-1440)

Part # 5066-C1 Mfg # O-12

Pump Lid O-ring (35505-1440)

$9.39 IN STOCK

Qty:

Pump Strainer Basket (C8-58P)

Part # 5400-B215 Mfg # B-215

Pump Strainer Basket (C8-58P)

$15.82 IN STOCK

Qty:

DRAIN PLUG With O-RING

Part # 5051-30 Mfg # U178-920P

DRAIN PLUG With O-RING

$5.01 IN STOCK

Qty:

SCREW, HI-LO

Part # 5057-15 Mfg # U30-919SS

SCREW, HI-LO

$17.07 IN STOCK

Qty:

BASE

Part # 5057-16 Mfg # C4-77P

BASE

$74.36

PAD, MOTOR

Part # 5057-17 Mfg # C35-45

PAD, MOTOR

$17.07 IN STOCK

Qty:

SCREW, CAP

Part # 5056-22 Mfg # SAMPLE S-3

SCREW, CAP

$4.36 IN STOCK

Qty:

LOCK WASHER

Part # 5056-23 Mfg # SAMPLE W-4

LOCK WASHER

$10.78 IN STOCK

Qty:

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.00 IN STOCK

Qty:

WASHER

Part # 5057-21 Mfg # U43-12SS

WASHER

$14.06 IN STOCK

Qty:

NUT, 3/8IN (SAMPLE N-2)

Part # 6932-0 Mfg # 071403

NUT, 3/8IN (SAMPLE N-2)

$8.03 IN STOCK

Qty:

SCREW, HEX CAP (3/8-16 X 1 1/4")

Part # 6903-0 Mfg # 070430

SCREW, HEX CAP (3/8-16 X 1 1/4")

$4.01 IN STOCK

Qty:

SCREW HEX HEAD (HEX HEAD SCREW)

Part # 6901-0 Mfg # 354290

SCREW HEX HEAD (HEX HEAD SCREW)

$6.65 IN STOCK

Qty:

ADAPTER KIT,UNION 2" SLIP WG

Part # 5057-29B Mfg # PKG 188

ADAPTER KIT,UNION 2" SLIP WG

$34.16 IN STOCK

Qty:

ADAPTER KIT, UNION 2" FPT

Part # 5057-29C Mfg # PKG 189

ADAPTER KIT, UNION 2" FPT

$68.66 IN STOCK

Qty:

*NOT SHOWN
