Sta-Rite System 3 D.E. Parts

FILTER MODELS S7D75 AND S8D110

Sta-Rite System 3 D.E. Diagram

Click to zoom in

Diagram #	Part Title
*	Sta-Rite System 3 S7D75 D.E. O-Ring Kit
1	Pressure Gauge, for Posi-Flo II Filter
2	Air Relief Assembly (wc212-120p)
3	Nipple
4	Adapter Bushing
5	O-Ring
6A	Upper Tank Shell Kit, S7D75
7A	S7D75 Grid Set
8	O-ring
9	Outlet Assembly
10A	Inlet Assembly, S7D75
11	O-ring For Cap
12	Drain Plug
13	NUT, BULKHEAD RETAINING
14	O-ring, Valve Adapter 2in
15	Drain Plug
16	Bulkhead Retaining Nut
17	Clamp Assembly
18	Clamp Bolt
19A	Lower Tank Shell, S7D75
20A	Cord Ring, S7D75
21	Valve And Gauge Assembly
*	Multiport Valve D.E. 2" (Sta-Rite)
*	Multiport Valve 2", w/StaRite Plumbing (Praher)
*	Valve, 2" Push-pull, 7.81" Center
*	CLAMP, RETAINING RING (24850-0006)
*	Brass Deluxe Air Bleed (optional
*	Sta-Rite Modular Media Cart. to DE conversion Kit
*	System3 DE Conversion Kit (Includes #8, 9, 10, 11, 16) - S8D110 - should also purchase item #7 separately

View Parts List

Diagram #	Part Title
*	Sta-Rite System 3 S7D75 D.E. O-Ring Kit
1	Pressure Gauge, for Posi-Flo II Filter
2	Air Relief Assembly (wc212-120p)
3	Nipple
4	Adapter Bushing
5	O-Ring
6A	Upper Tank Shell Kit, S7D75
7A	S7D75 Grid Set
8	O-ring
9	Outlet Assembly
10A	Inlet Assembly, S7D75
11	O-ring For Cap
12	Drain Plug
13	NUT, BULKHEAD RETAINING
14	O-ring, Valve Adapter 2in
15	Drain Plug
16	Bulkhead Retaining Nut
17	Clamp Assembly
18	Clamp Bolt
19A	Lower Tank Shell, S7D75
20A	Cord Ring, S7D75
21	Valve And Gauge Assembly
*	Multiport Valve D.E. 2" (Sta-Rite)
*	Multiport Valve 2", w/StaRite Plumbing (Praher)
*	Valve, 2" Push-pull, 7.81" Center
*	CLAMP, RETAINING RING (24850-0006)
*	Brass Deluxe Air Bleed (optional
*	Sta-Rite Modular Media Cart. to DE conversion Kit
*	System3 DE Conversion Kit (Includes #8, 9, 10, 11, 16) - S8D110 - should also purchase item #7 separately

Available Parts:

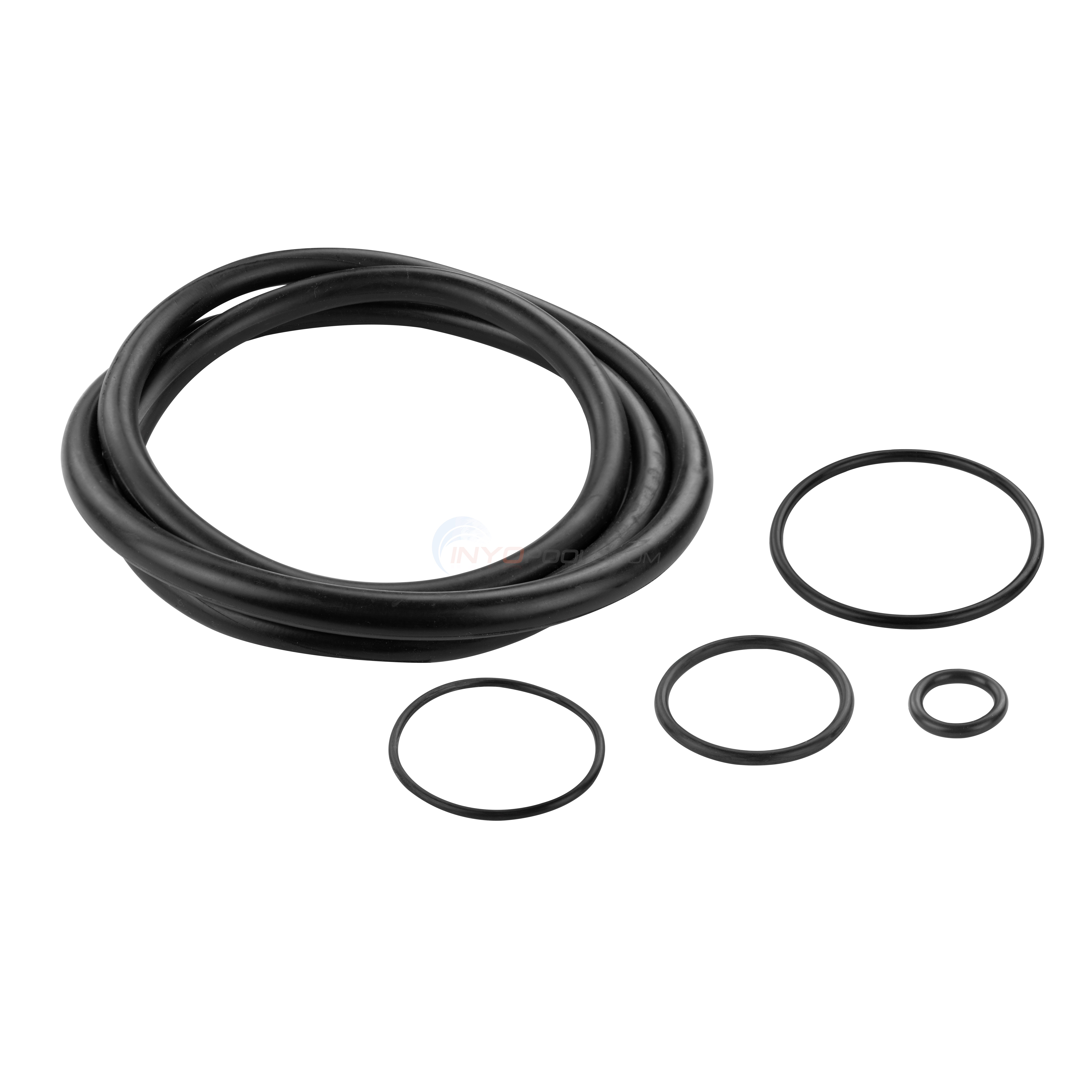

Sta-Rite System 3 S7D75 D.E. O-Ring Kit

Part # FK3-DE1

Sta-Rite System 3 S7D75 D.E. O-Ring Kit

$44.77

Model S7D75

Model S7D75

Sta-Rite System 3 S8D110 D.E. O-Ring Kit

Part # FK3-DE2

Sta-Rite System 3 S8D110 D.E. O-Ring Kit

$44.77

Model S8D110

Model S8D110

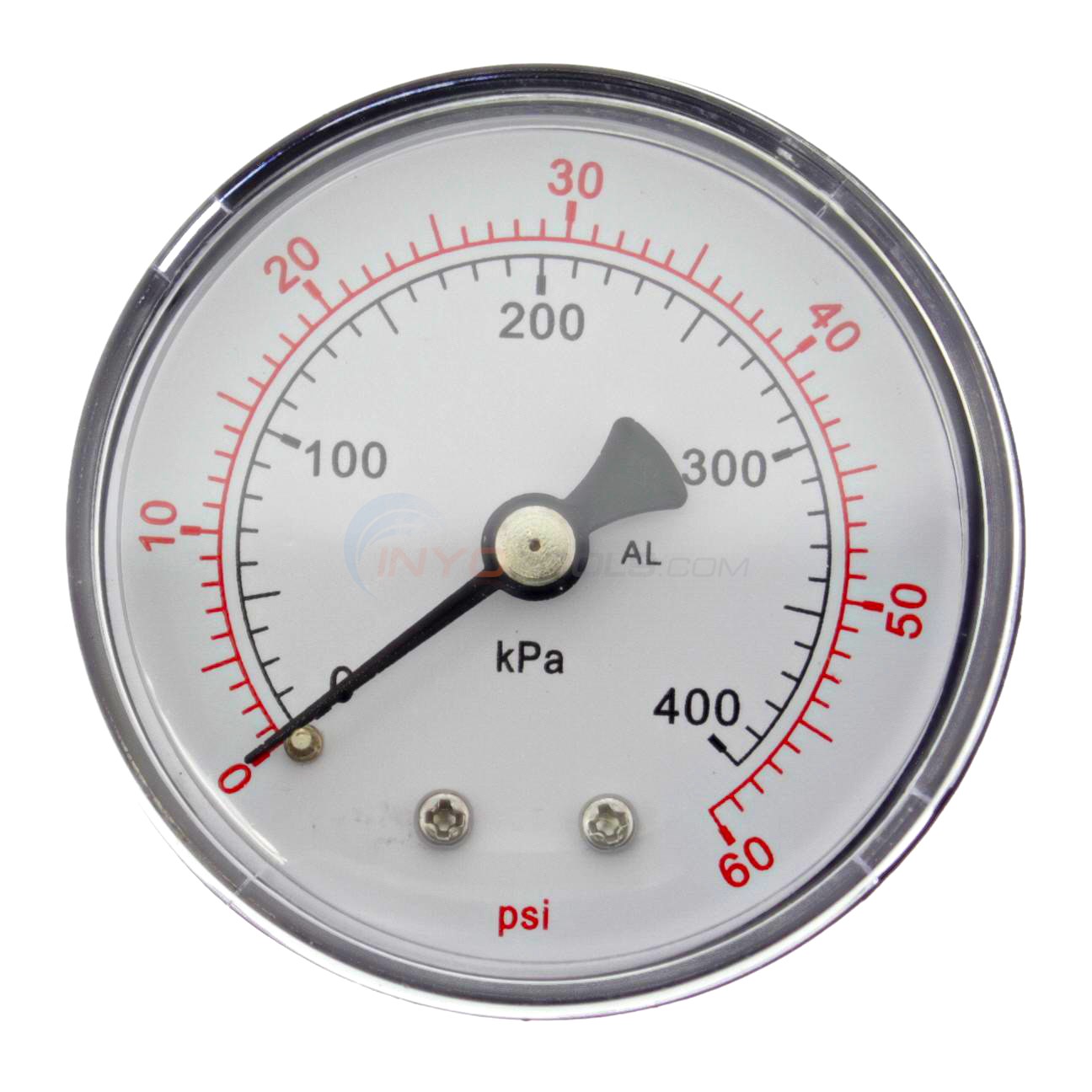

Pressure Gauge, for Posi-Flo II Filter

Part # 33600-0023T

Pressure Gauge, for Posi-Flo II Filter

$55.89

Air Relief Assembly (wc212-120p)

Part # 9239-02 Mfg # 154689Z

Air Relief Assembly (wc212-120p)

$29.10

Nipple

Part # 4680-02 Mfg # 35202-0959

Nipple

$28.99 IN STOCK

Qty:

Adapter Bushing

Part # 4682-01 Mfg # 24900-0504

Adapter Bushing

$27.87 IN STOCK

Qty:

5

O-Ring

Part # 35505-1423 Mfg # 35505-1423

O-Ring

NOT AVAILABLE

Upper Tank Shell Kit, S7D75

Part # 4683-10 Mfg # 24851-9000

Upper Tank Shell Kit, S7D75

$844.73 IN STOCK

Qty:

Upper Tank Shell Kit, S8D110

Part # 4683-10A Mfg # 24851-9001

Upper Tank Shell Kit, S8D110

$1078.00 IN STOCK

Qty:

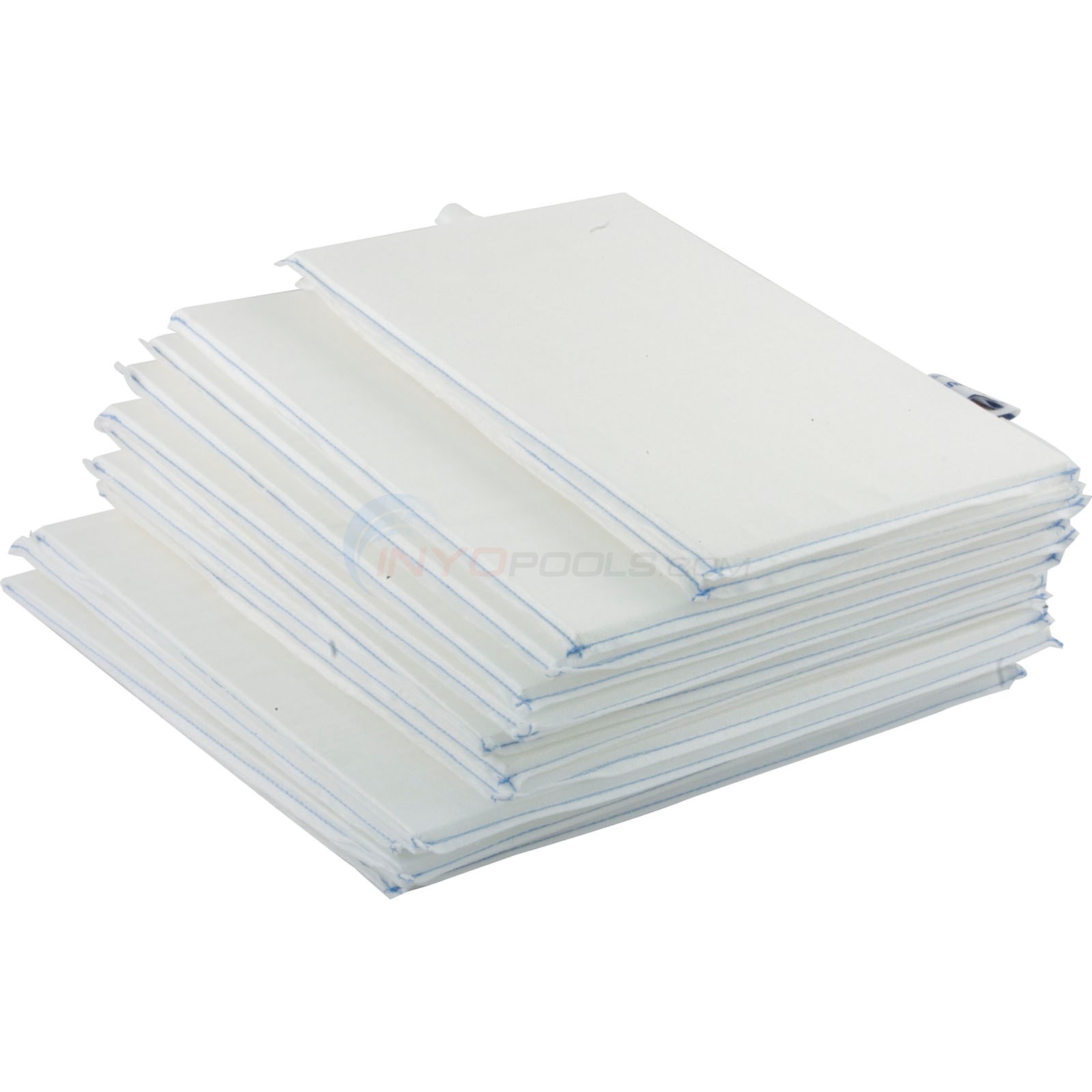

S7D75 Grid Set

Part # S7D75GRIDS

S7D75 Grid Set

$344.60

Filter Assembly (s8d110)

Part # 4684-01A Mfg # 23900-1221S

Filter Assembly (s8d110)

$1124.01 IN STOCK

Qty:

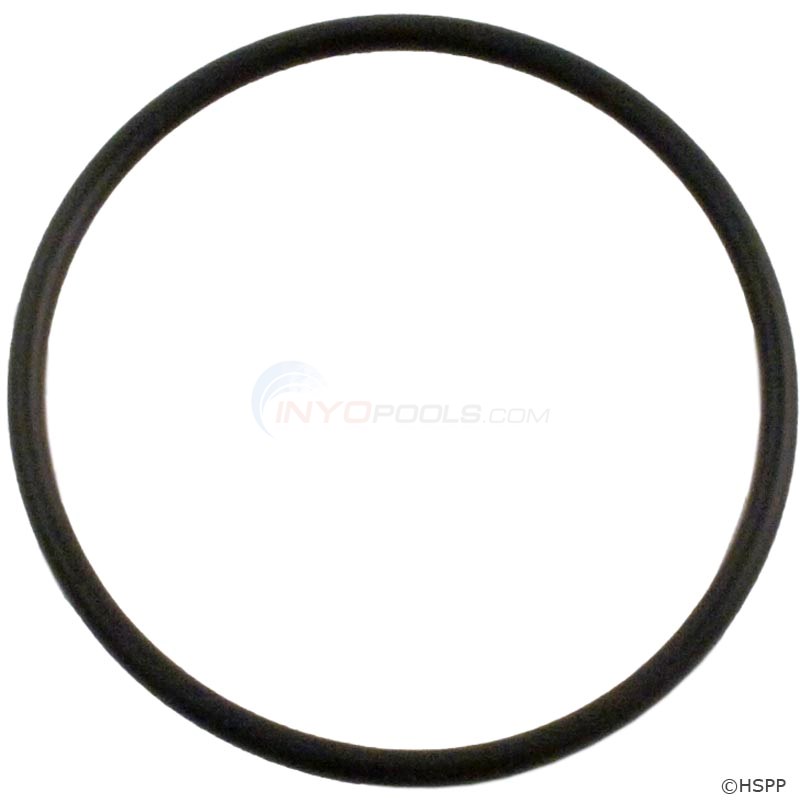

O-ring

Part # 5106-26 Mfg # 39006600

O-ring

$10.79 IN STOCK

Qty:

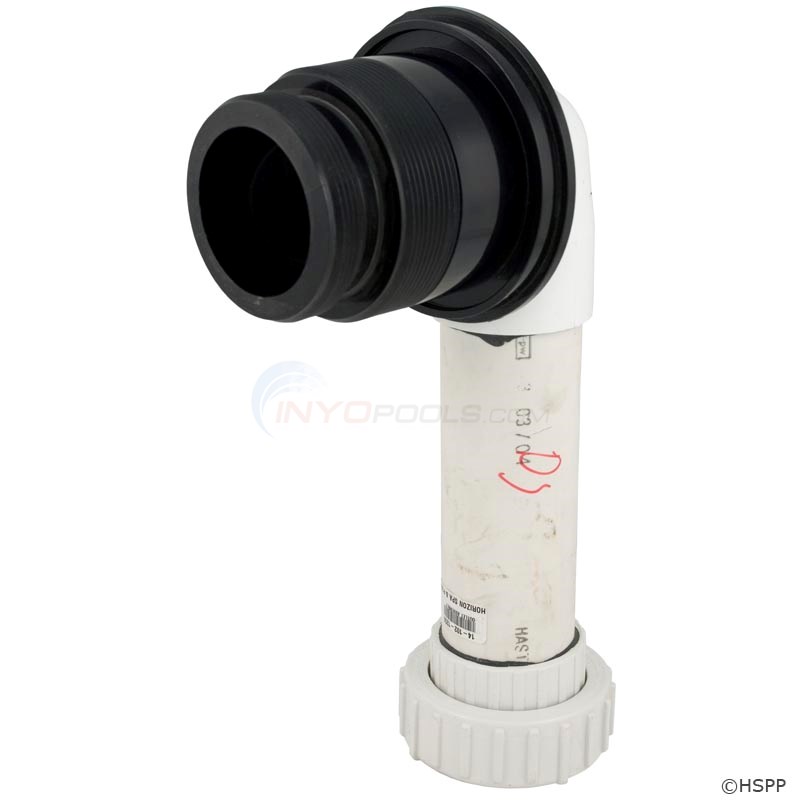

Outlet Assembly

Part # 4684-02 Mfg # 23911-0102

Outlet Assembly

$159.92 IN STOCK

Qty:

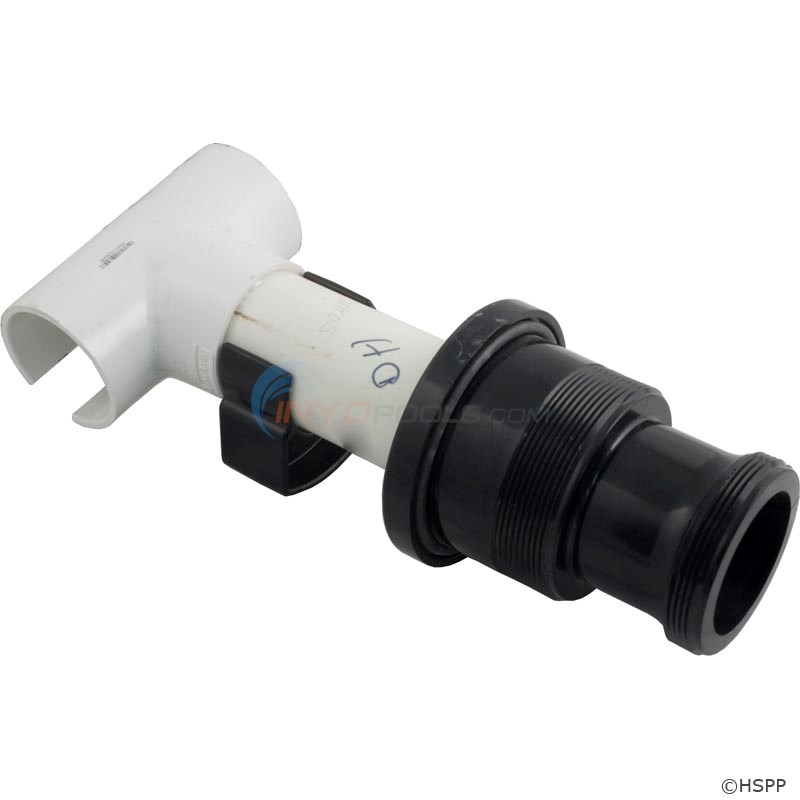

Inlet Assembly, S7D75

Part # 4684-03 Mfg # 23911-0100

Inlet Assembly, S7D75

$134.33 IN STOCK

Qty:

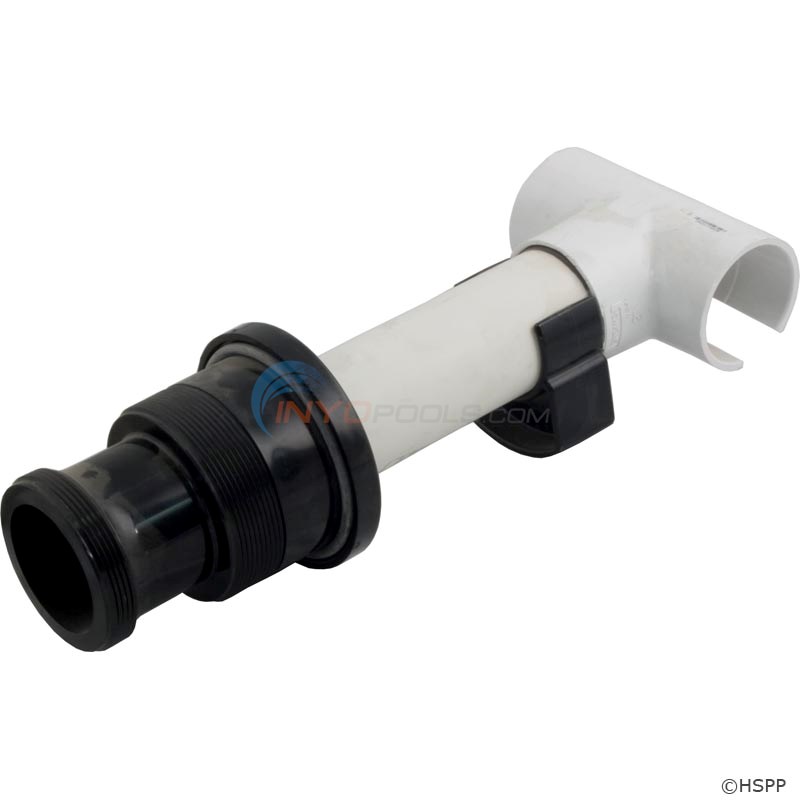

Inlet Assembly, S8D110

Part # 4684-03A Mfg # 23911-0101

Inlet Assembly, S8D110

$150.32 IN STOCK

Qty:

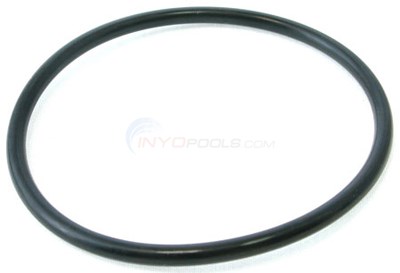

O-ring For Cap

Part # 2114-02000 Mfg # 343

O-ring For Cap

$11.71 IN STOCK

Qty:

Drain Plug

Part # 4682-20 Mfg # 27001-0022

Drain Plug

$4.26 IN STOCK

Qty:

NUT, BULKHEAD RETAINING

Part # 4683-09 Mfg # 24752-0050

NUT, BULKHEAD RETAINING

$46.91 IN STOCK

Qty:

O-ring, Valve Adapter 2in

Part # 4620-529 Mfg # 332

O-ring, Valve Adapter 2in

$11.43 IN STOCK

Qty:

Drain Plug

Part # 4682-10 Mfg # 24900-0503

Drain Plug

$32.65 IN STOCK

Qty:

Bulkhead Retaining Nut

Part # 4683-09 Mfg # 24752-0050

Bulkhead Retaining Nut

$46.91 IN STOCK

Qty:

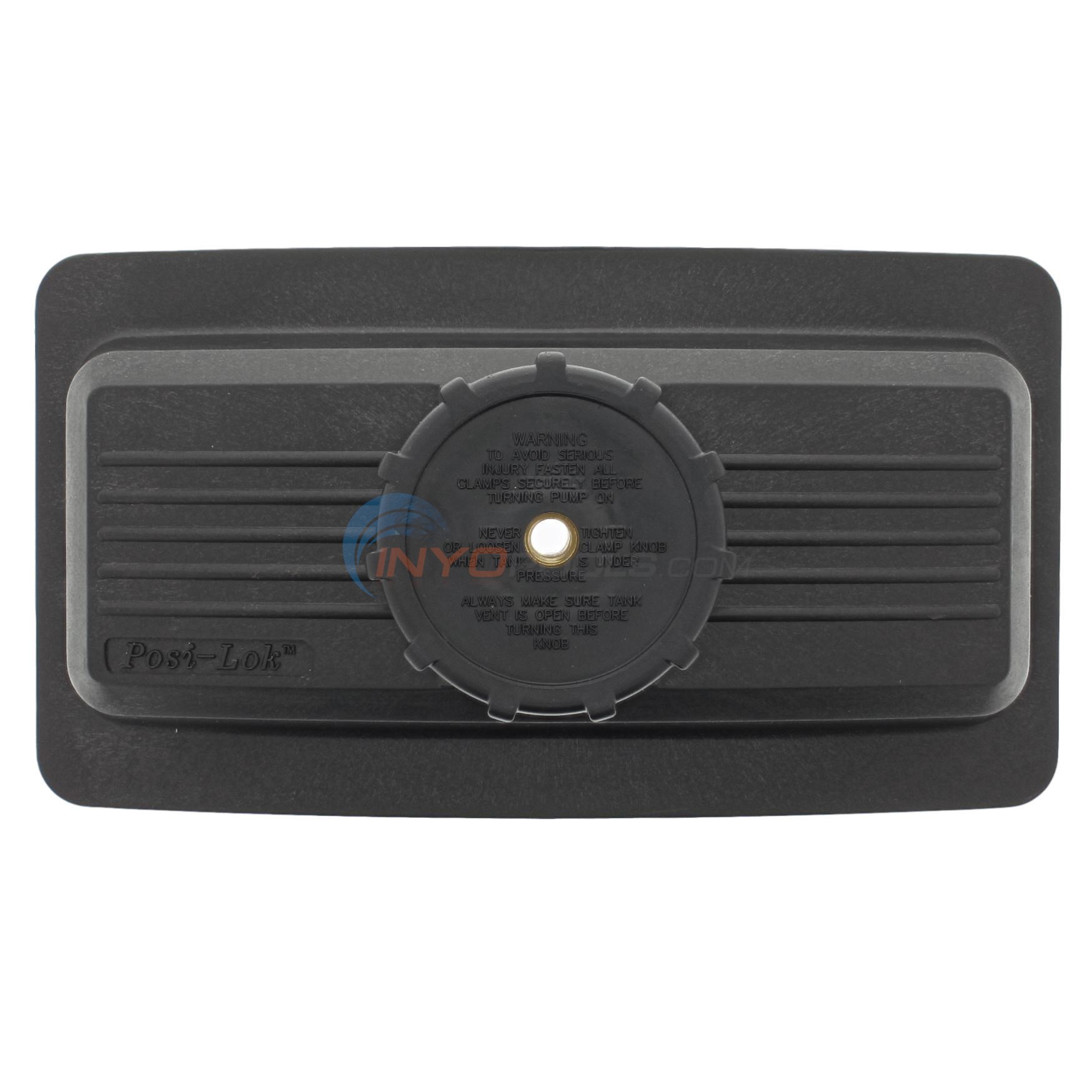

Clamp Assembly

Part # 4682-07 Mfg # 24850-0200

Clamp Assembly

$109.44 IN STOCK

Qty:

Clamp Bolt

Part # 4682-08 Mfg # 24850-0010

Clamp Bolt

$50.10 IN STOCK

Qty:

Lower Tank Shell, S7D75

Part # 4683-07 Mfg # 24850-0102S

Lower Tank Shell, S7D75

$941.03 IN STOCK

Qty:

Lower Tank Shell, S8D110

Part # 4683-07A Mfg # 24851-0103S

Lower Tank Shell, S8D110

$903.39 IN STOCK

Qty:

Cord Ring, S7D75

Part # 4682-06 Mfg # 24850-0008

Cord Ring, S7D75

$39.06 IN STOCK

Qty:

Cord Ring, S8D110

Part # 4682-06A Mfg # 24850-0009

Cord Ring, S8D110

$83.15 IN STOCK

Qty:

Cord Ring, S8D110 (Generic)

Part # O-486 Mfg # 24850-0009

Cord Ring, S8D110 (Generic)

$23.92 IN STOCK

Qty:

Valve And Gauge Assembly

Part # 4683-16 Mfg # 24850-0105

Valve And Gauge Assembly

$100.21 IN STOCK

Qty:

Multiport Valve D.E. 2" (Sta-Rite)

Part # 4685A Mfg # 18201-0200

Multiport Valve D.E. 2" (Sta-Rite)

$338.48 IN STOCK

Qty:

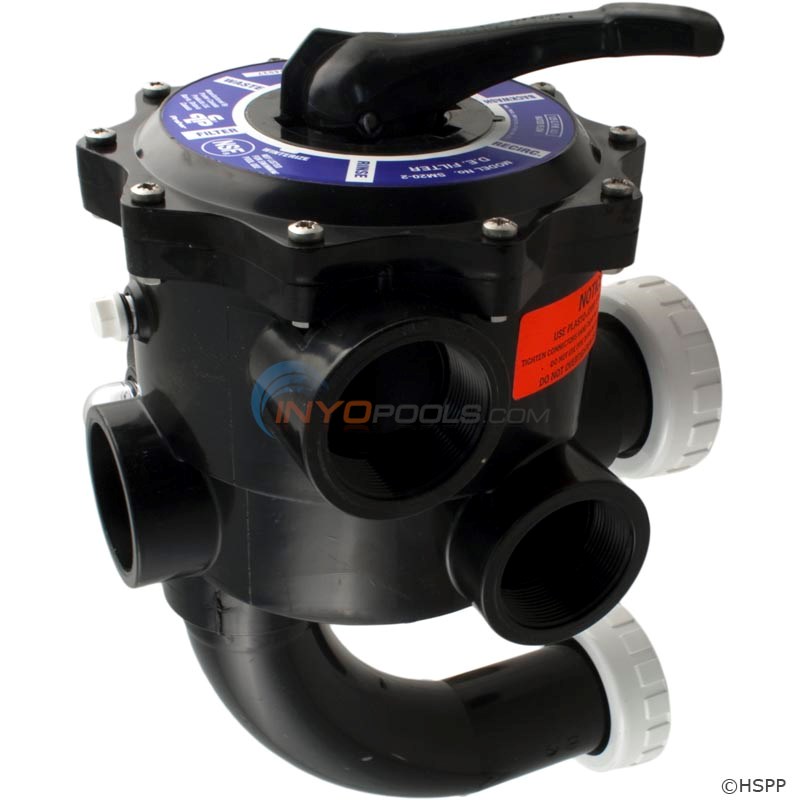

Multiport Valve 2", w/StaRite Plumbing (Praher)

Part # 4716-0 Mfg # SM2-SR2

Multiport Valve 2", w/StaRite Plumbing (Praher)

$254.42 IN STOCK

Qty:

Valve, 2" Push-pull, 7.81" Center

Part # 4685-1

Valve, 2" Push-pull, 7.81" Center

$184.49 IN STOCK

Qty:

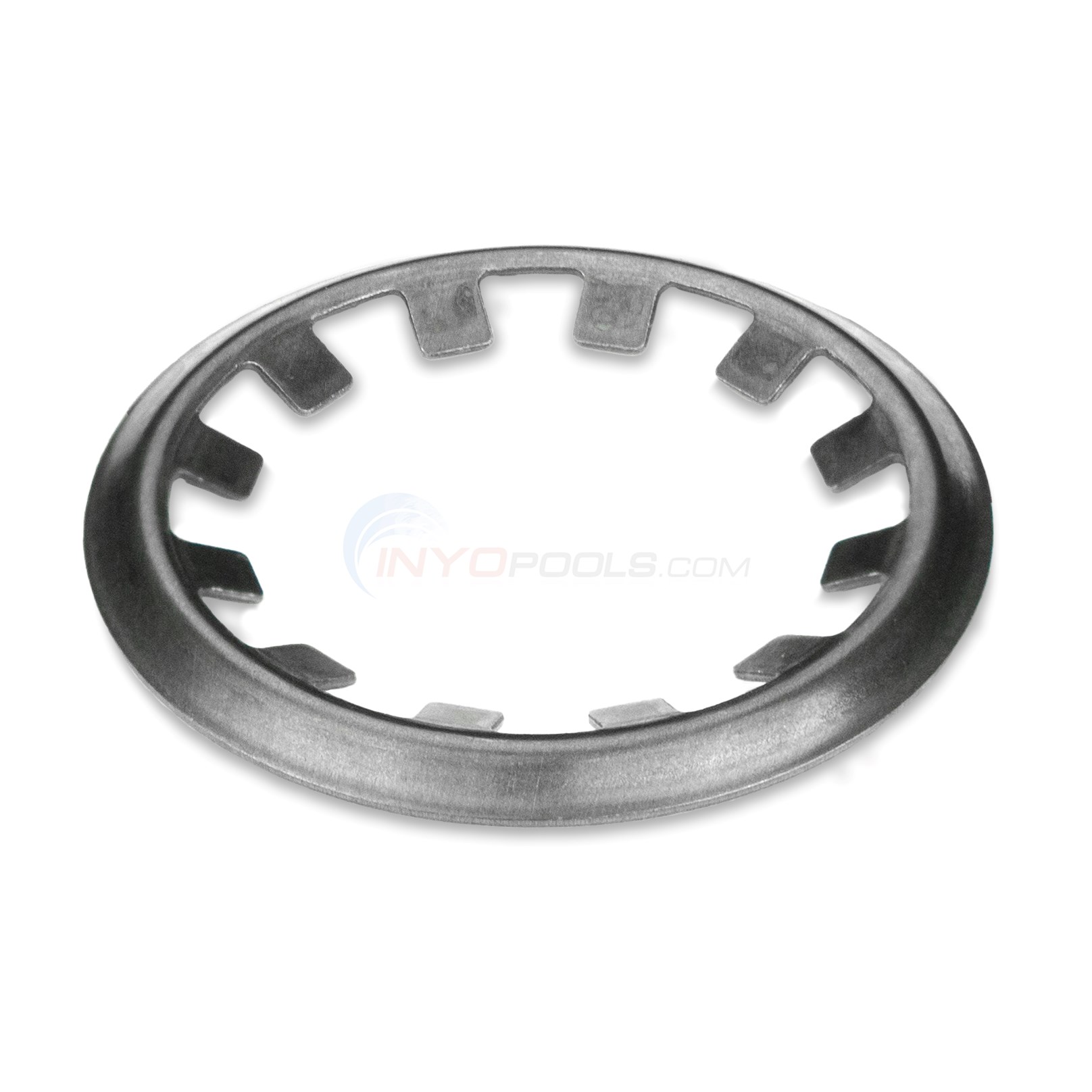

CLAMP, RETAINING RING (24850-0006)

Part # 4682-14 Mfg # 24850-0016

CLAMP, RETAINING RING (24850-0006)

$12.21 IN STOCK

Qty:

*

Brass Deluxe Air Bleed (optional

Part # U212-252DS Mfg # U212-252DS

Brass Deluxe Air Bleed (optional

NOT AVAILABLE

Sta-Rite Modular Media Cart. to DE conversion Kit

Part # 25021-1021

Sta-Rite Modular Media Cart. to DE conversion Kit

$187.92

*

System3 DE Conversion Kit (Includes #8, 9, 10, 11, 16) - S8D110 - should also purchase item #7 separately

Part # 25021-1025 Mfg # 25021-1025

System3 DE Conversion Kit (Includes #8, 9, 10, 11, 16) - S8D110 - should also purchase item #7 separately

NOT AVAILABLE

* NOT SHOWN
