Sta-Rite System 3 Sand S7S50 & S8S70 Parts

MOD MEDIA MODEL S7S50, S8S70

Sta-Rite System 3 Sand S7S50 & S8S70 Diagram

Click to zoom in

Diagram #	Part Title
*	Sta-Rite System 3 S7S50 Sand O-Ring Kit
1	AIR RELIEF ASSEMBLY
2	SCREEN
3	SR PRESSURE GAUGE
4	NIPPLE
5	ADAPTER BUSHING
6	O-RING
7	TANK KIT, UPPER HALF S7M120
8	COLLECTOR-MANIFOLD ASSEMBLY
9	FILTER, AIR BLEED
10	TUBE, VENT
11	ELBOW, COMPRESSION
12	O-RING S7S50
13	CLAMP ASSEMBLY
14	TANK, LOWER HALF S7M120
15	O-RING, VALVE ADAPTER 2IN
16	PLUG (SAND REMOVAL)
17	FITTING, DRAIN
18	O-RING
19	FITTING, TANK
20	FITTING, TANK
21	LATERAL S7S50
22	ADAPTER, LATERAL EXTENSION
23	PLUG, 1 1/2" MPT
24	BOLT, CLAMP
25	VALVE AND GAUGE ASSEMBLY
*	CLAMP, RETAINING RING (24850-0006)
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION
*	VALVE ASSY., MULTIPORT 2IN
*	No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1
*	No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

View Parts List

Diagram #	Part Title
*	Sta-Rite System 3 S7S50 Sand O-Ring Kit
1	AIR RELIEF ASSEMBLY
2	SCREEN
3	SR PRESSURE GAUGE
4	NIPPLE
5	ADAPTER BUSHING
6	O-RING
7	TANK KIT, UPPER HALF S7M120
8	COLLECTOR-MANIFOLD ASSEMBLY
9	FILTER, AIR BLEED
10	TUBE, VENT
11	ELBOW, COMPRESSION
12	O-RING S7S50
13	CLAMP ASSEMBLY
14	TANK, LOWER HALF S7M120
15	O-RING, VALVE ADAPTER 2IN
16	PLUG (SAND REMOVAL)
17	FITTING, DRAIN
18	O-RING
19	FITTING, TANK
20	FITTING, TANK
21	LATERAL S7S50
22	ADAPTER, LATERAL EXTENSION
23	PLUG, 1 1/2" MPT
24	BOLT, CLAMP
25	VALVE AND GAUGE ASSEMBLY
*	CLAMP, RETAINING RING (24850-0006)
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION
*	VALVE ASSY., MULTIPORT 2IN
*	No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1
*	No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

Available Parts:

Sta-Rite System 3 S7S50 Sand O-Ring Kit

Part # FK3-SAND1

Sta-Rite System 3 S7S50 Sand O-Ring Kit

$42.20 IN STOCK

Model S7S50

Model S7S50

Qty:

Sta-Rite System 3 S8S70 Sand O-Ring Kit

Part # FK3-SAND2

Sta-Rite System 3 S8S70 Sand O-Ring Kit

$42.20

Model S8S70

Model S8S70

AIR RELIEF ASSEMBLY

Part # 9239-02 Mfg # WC212-120P

AIR RELIEF ASSEMBLY

$27.43 IN STOCK

Qty:

SCREEN

Part # 9239-01A Mfg # WC8-72D

SCREEN

$13.61 IN STOCK

Qty:

SR PRESSURE GAUGE

Part # 4680-23T Mfg # 33600-0023T

SR PRESSURE GAUGE

$55.16 IN STOCK

Qty:

NIPPLE

Part # 4680-02 Mfg # 35202-0959

NIPPLE

$27.33 IN STOCK

Qty:

ADAPTER BUSHING

Part # 4682-01 Mfg # 24900-0504

ADAPTER BUSHING

$26.27 IN STOCK

Qty:

O-RING

Part # 4682-02 Mfg # 317

O-RING

$12.79 IN STOCK

Qty:

TANK KIT, UPPER HALF S7M120

Part # 4683-10 Mfg # 24851-9000

TANK KIT, UPPER HALF S7M120

$811.93 IN STOCK

Qty:

TANK KIT, UPPER HALF S8M150

Part # 4683-10A Mfg # 24851-9001

TANK KIT, UPPER HALF S8M150

$1036.14 IN STOCK

Qty:

COLLECTOR-MANIFOLD ASSEMBLY

Part # 4682-03 Mfg # 24900-0100S

COLLECTOR-MANIFOLD ASSEMBLY

$461.81 IN STOCK

Qty:

COLLECTOR, MANIFOLD ASSY FOR S8S70

Part # 4682-03A Mfg # 24901-0100S

COLLECTOR, MANIFOLD ASSY FOR S8S70

$526.61 IN STOCK

Qty:

FILTER, AIR BLEED

Part # 4681-01 Mfg # WC8-126

FILTER, AIR BLEED

$34.81 IN STOCK

Qty:

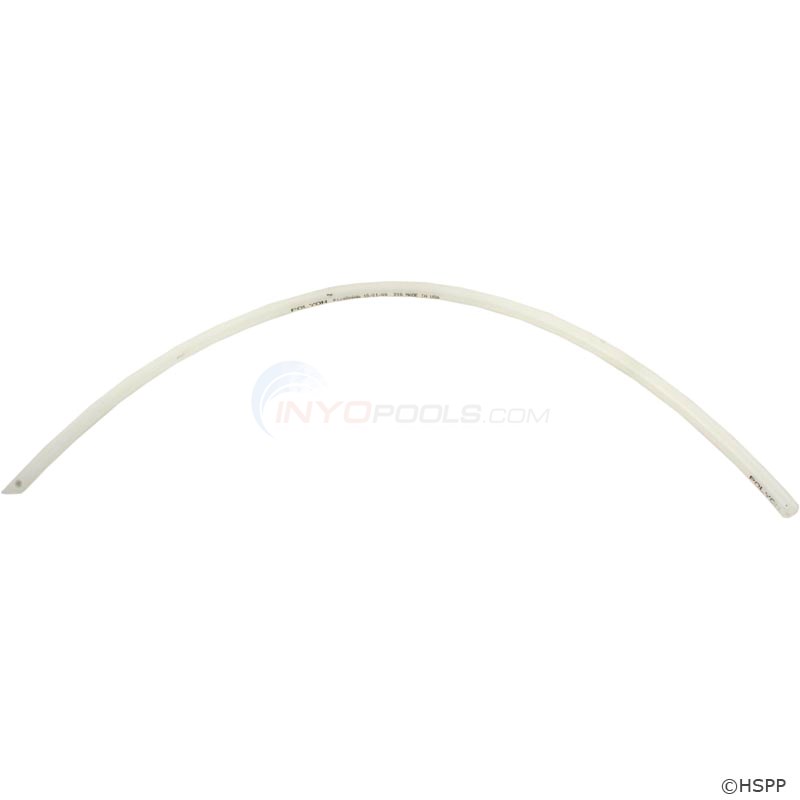

TUBE, VENT

Part # 4682-05 Mfg # WC37-386P

TUBE, VENT

$33.15 IN STOCK

Qty:

ELBOW, COMPRESSION

Part # 4681-03 Mfg # WC78-84P

ELBOW, COMPRESSION

$30.14 IN STOCK

Qty:

O-RING S7S50

Part # 4682-06 Mfg # 24850-0008

O-RING S7S50

$36.82 IN STOCK

Qty:

O-RING S8S70

Part # 4682-06A Mfg # 24850-0009

O-RING S8S70

$78.38 IN STOCK

Qty:

CLAMP ASSEMBLY

Part # 4682-07 Mfg # 24850-0200

CLAMP ASSEMBLY

$103.16 IN STOCK

Qty:

TANK, LOWER HALF S7M120

Part # 4683-07 Mfg # 24850-0102S

TANK, LOWER HALF S7M120

$904.49 IN STOCK

Qty:

TANK, LOWER HALF S8M150

Part # 4683-07A Mfg # 24851-0103S

TANK, LOWER HALF S8M150

$868.31 IN STOCK

Qty:

O-RING, VALVE ADAPTER 2IN

Part # 4620-529 Mfg # 332

O-RING, VALVE ADAPTER 2IN

$10.78 IN STOCK

Qty:

PLUG (SAND REMOVAL)

Part # 4682-10 Mfg # 24900-0503

PLUG (SAND REMOVAL)

$30.78 IN STOCK

Qty:

FITTING, DRAIN

Part # 4682-11 Mfg # 24900-0505

FITTING, DRAIN

$47.33 IN STOCK

Qty:

O-RING

Part # 2114-02 Mfg # O-283

O-RING

$8.82 IN STOCK

Qty:

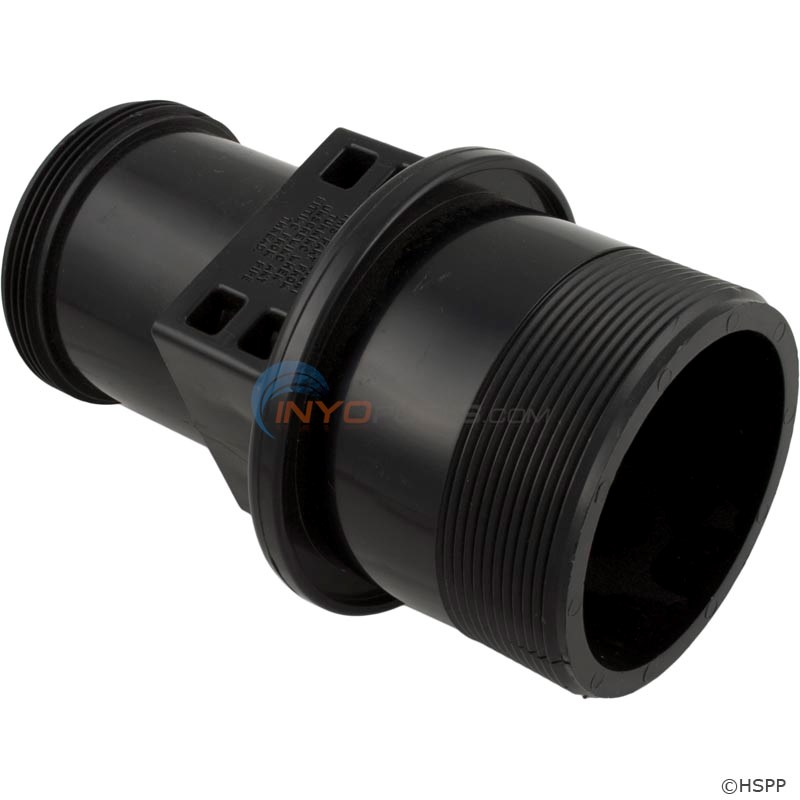

FITTING, TANK

Part # 4682-13 Mfg # 24900-0500

FITTING, TANK

$63.30 IN STOCK

Qty:

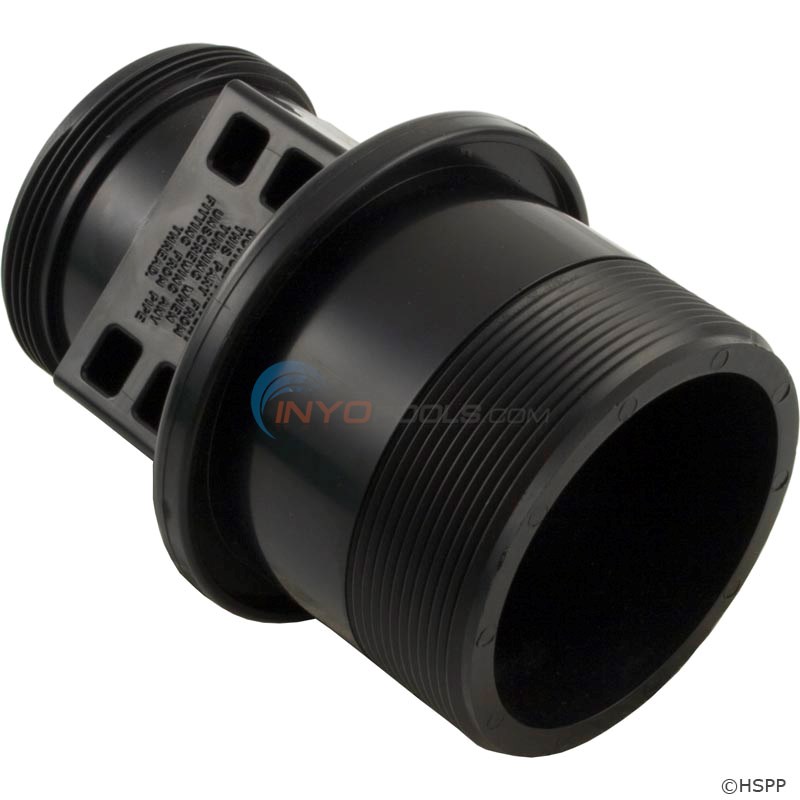

FITTING, TANK

Part # 4682-13A Mfg # 24900-0501

FITTING, TANK

$50.24 IN STOCK

Qty:

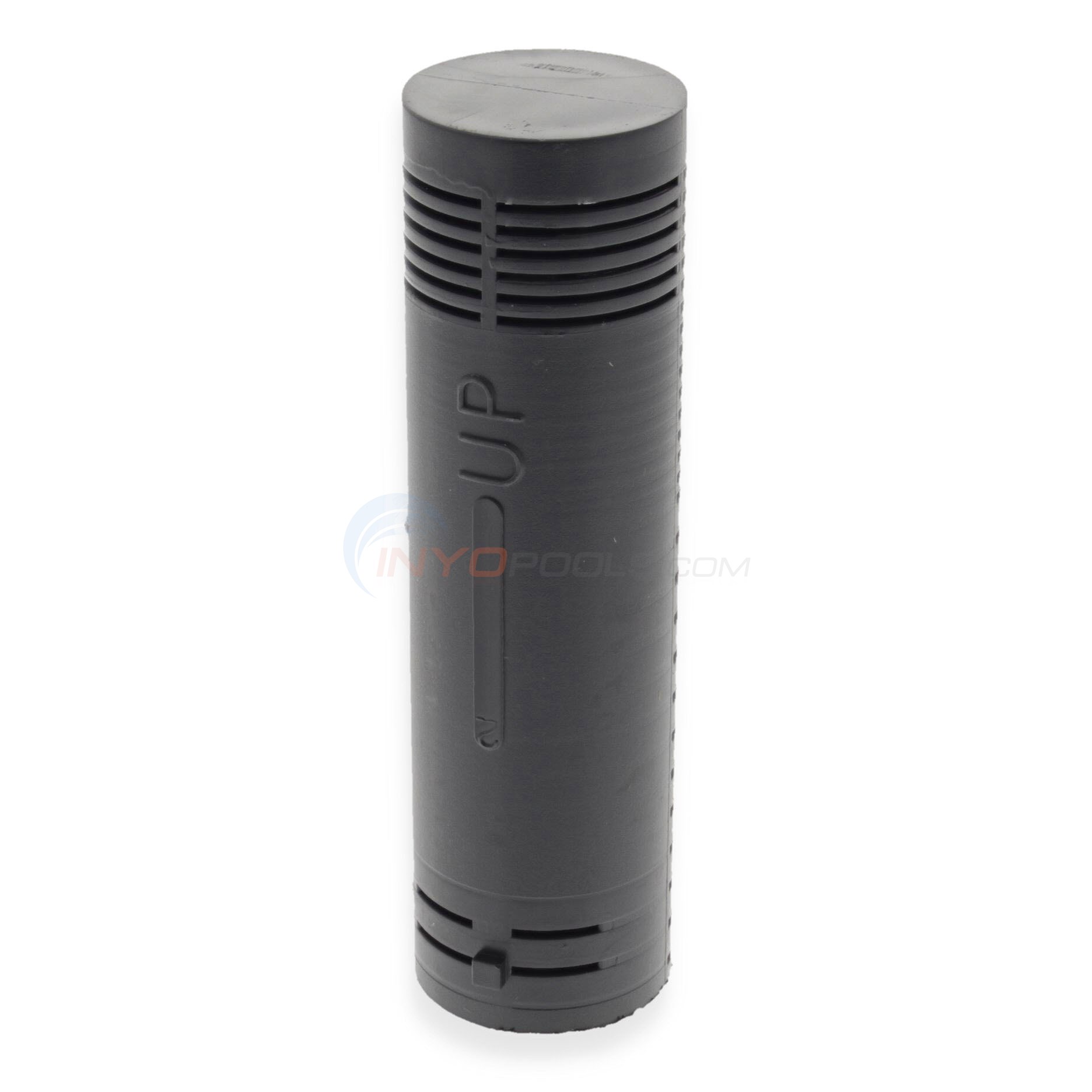

LATERAL S7S50

Part # 4682-04 Mfg # 24900-0002

LATERAL S7S50

$18.44 IN STOCK

Qty:

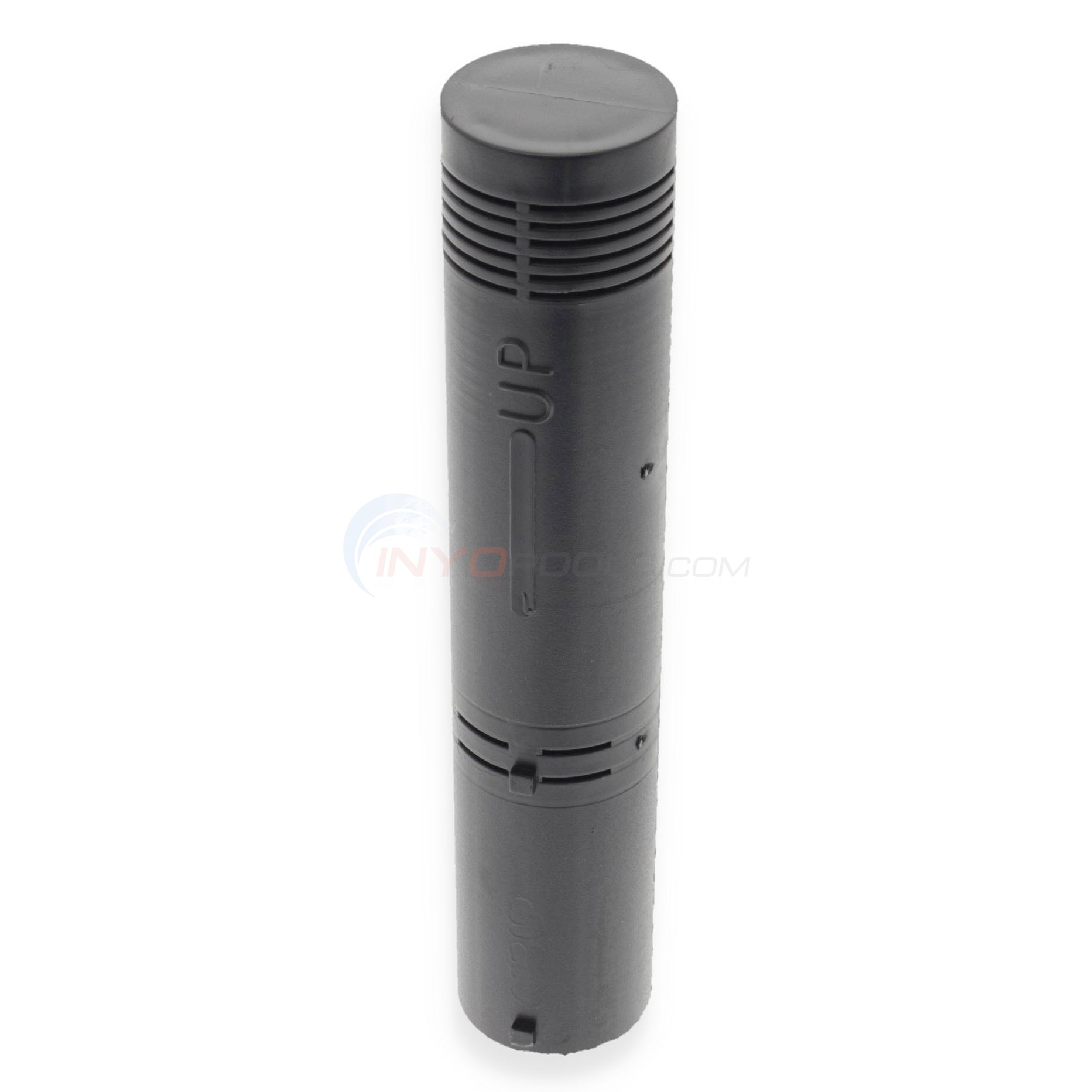

LATERAL S8S70

Part # 4682-04A Mfg # 24901-0003

LATERAL S8S70

$16.07 IN STOCK

Qty:

ADAPTER, LATERAL EXTENSION

Part # 4681-15 Mfg # 24700-0029

ADAPTER, LATERAL EXTENSION

$20.09 IN STOCK

Qty:

PLUG, 1 1/2" MPT

Part # 7136-0 Mfg # 450-015

PLUG, 1 1/2" MPT

$11.04 IN STOCK

Qty:

BOLT, CLAMP

Part # 4682-08 Mfg # 24850-0010

BOLT, CLAMP

$47.22 IN STOCK

Qty:

VALVE AND GAUGE ASSEMBLY

Part # 4683-16 Mfg # 24850-0105

VALVE AND GAUGE ASSEMBLY

$94.46 IN STOCK

Qty:

CLAMP, RETAINING RING (24850-0006)

Part # 4682-14 Mfg # 24850-0016

CLAMP, RETAINING RING (24850-0006)

$11.50 IN STOCK

Qty:

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

Part # 4685-0 Mfg # 18202-0150

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

$215.78 IN STOCK

Qty:

VALVE ASSY., MULTIPORT 2IN

Part # 4685A Mfg # 18201-0200

VALVE ASSY., MULTIPORT 2IN

$319.05 IN STOCK

Qty:

*

No Longer Available PUSH PULL VALVE, 2” Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028319.htm">4685-1</a>

Mfg # WC212-134P

No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

NOT AVAILABLE

*

No Longer Available PUSH PULL VALVE, 2” Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028319.htm">4685-1</a>

Mfg # WC212-134P

No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

NOT AVAILABLE

• SOLID BLACK COLOR

MODEL S7S50 USES 7 CLAMPS & BOLTS
MODEL S8S50 USES 8 CLAMPS & BOLTS

* NOT SHOWN
