Waterway 2" Side Mount, Crystal Water DE, WVD001, WD002 Parts

USED ON THE CRYSTAL WATER DE FILTER

Waterway 2" Side Mount, Crystal Water DE, WVD001, WD002 Diagram

Click to zoom in

Diagram #	Part Title
A	MULTIPORT VALVE, 2" FPT WITH UNIONS, DE

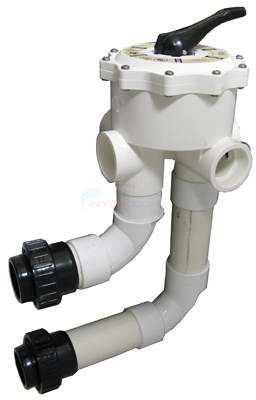

B	MULTIPORT VALVE, 2" SLIP WITH UNIONS, DE
1	TOP ASSY.VALVE 2"WHITE With DECAL
2	HANDLE (E-1-S1 1 1/2")
3	PIN FOR HANDLE
4	WASHER, HANDLE
5	COVER, 2" VALVE (E-6-S2 2")
*	COVER LABEL ONLY

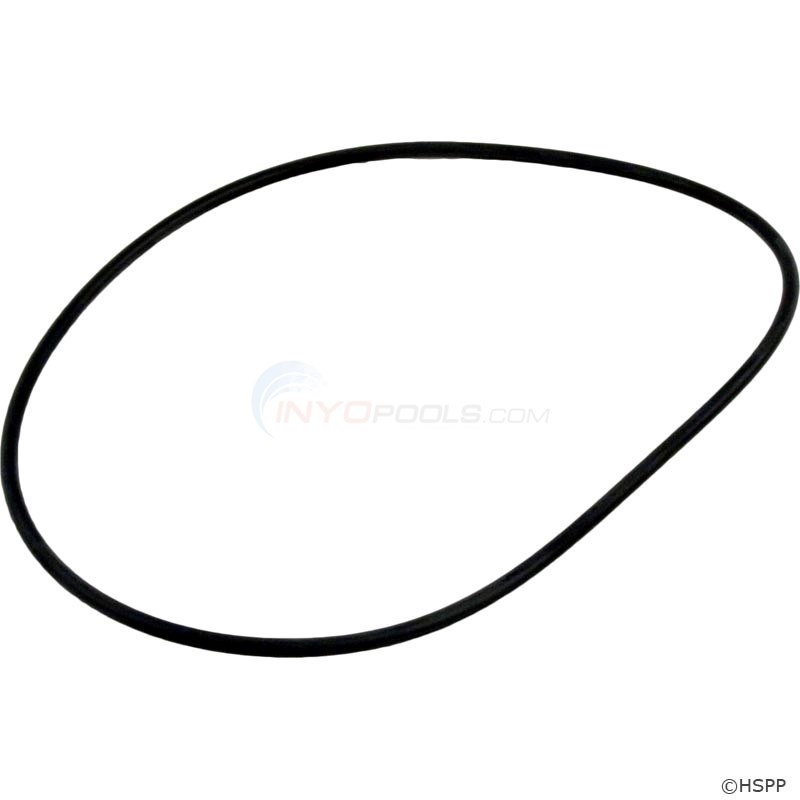

6	O-RING, LID
7	WASHER, VALVE SPRING
8	SPRING
9	O-RING, VALVE STEM
10	DIFFUSER, 2" VALVE
11	SCREW TOP VALVE (SAMPLE S-20)
12	NUT
13	GASKET, DIVERTER 2IN 5-SPOKE (E-12-S 2") (271148)
14	SIGHT GLASS
15	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")
*	1/4" PLUG WITH O-RING
*	1/4" PLUG WITH O-RING

View Parts List

Diagram #	Part Title
A	MULTIPORT VALVE, 2" FPT WITH UNIONS, DE
B	MULTIPORT VALVE, 2" SLIP WITH UNIONS, DE
1	TOP ASSY.VALVE 2"WHITE With DECAL
2	HANDLE (E-1-S1 1 1/2")
3	PIN FOR HANDLE
4	WASHER, HANDLE
5	COVER, 2" VALVE (E-6-S2 2")
*	COVER LABEL ONLY
6	O-RING, LID
7	WASHER, VALVE SPRING
8	SPRING
9	O-RING, VALVE STEM
10	DIFFUSER, 2" VALVE
11	SCREW TOP VALVE (SAMPLE S-20)
12	NUT
13	GASKET, DIVERTER 2IN 5-SPOKE (E-12-S 2") (271148)
14	SIGHT GLASS
15	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")
*	1/4" PLUG WITH O-RING
*	1/4" PLUG WITH O-RING

Available Parts:

Part # 4742-014 Mfg # WVD001

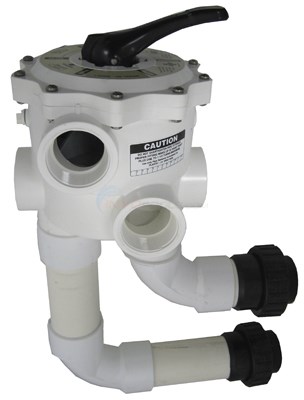

MULTIPORT VALVE, 2" FPT WITH UNIONS, DE

$161.90 IN STOCK

Qty:
