Vico Ultra Flow Pump Parts

Vico Ultra Flow Pump Parts Diagram

Click to zoom in

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
2	NUT 1/4-20 S.S. (4700-13N)
3A	ULTIMA VOLUTE BACK (PPULHSVB)
4A	GENERIC SHAFT SEAL
5	O-RING, ULTRA FLO (4654-19)
6A	IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)
7A	BOLT 1/4-20 X 1 3/4”
8A	ULTRA FLO VOLUTE FRONT/TOP DISCHARGE (PPUF5-7VFTD)
9	UNION TEE, 1 1/2" X 1" X 1" (UNUFTEE)
10	O-RING (226)
11A	OBSOLETE VOLUTE
12	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
13	WET END 1HP SELF DRAINING/TOP DISCHARGE (PKUF109WE)
14	No Longer Available 1 1/2" BUTTRESS X 1" SLIP SWEEP TEE

View Parts List

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
2	NUT 1/4-20 S.S. (4700-13N)
3A	ULTIMA VOLUTE BACK (PPULHSVB)
4A	GENERIC SHAFT SEAL
5	O-RING, ULTRA FLO (4654-19)
6A	IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)
7A	BOLT 1/4-20 X 1 3/4”
8A	ULTRA FLO VOLUTE FRONT/TOP DISCHARGE (PPUF5-7VFTD)
9	UNION TEE, 1 1/2" X 1" X 1" (UNUFTEE)
10	O-RING (226)
11A	OBSOLETE VOLUTE
12	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
13	WET END 1HP SELF DRAINING/TOP DISCHARGE (PKUF109WE)
14	No Longer Available 1 1/2" BUTTRESS X 1" SLIP SWEEP TEE

Available Parts:

1/2 HP 115V Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP 115V Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 7.2 Frame 48Y

Qty:

3/4 HP 115V Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP 115V Thru Bolt Motor

$177.83 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 12.0 Frame 48Y

Qty:

1.5 H.P 230/115V Thru Bolt Motor

Part # BN35V1 Mfg # BN35V1

1.5 H.P 230/115V Thru Bolt Motor

$230.13 IN STOCK

Service Factor 1.0 Voltage 230/115V Max Amps 8.0/16.0 Frame 48Y

Service Factor 1.0 Voltage 230/115V Max Amps 8.0/16.0 Frame 48Y

Qty:

1.5 H.P 115V Thru Bolt Motor

Part # BV35SS

1.5 H.P 115V Thru Bolt Motor

$246.21 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 17.0 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 17.0 Frame 48Y

Qty:

2 HP 230/115V Thru-Bolt Motor

Part # BN40SS Mfg # BN40SS

2 HP 230/115V Thru-Bolt Motor

$250.11 IN STOCK

Service Factor 1.0 Voltage 230/115V Max Amps 10.0/20.0 Frame 48Y

Service Factor 1.0 Voltage 230/115V Max Amps 10.0/20.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Thru Bolt Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Thru Bolt Motor

$209.03 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Thru Bolt Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Thru Bolt Motor

$287.76 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 16.4/4.4 Frame 48Y

Qty:

1 1/2 HP 2 Speed 230V Thru Bolt Motor

Part # BN34 Mfg # BN34V1

1 1/2 HP 2 Speed 230V Thru Bolt Motor

$290.43 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 8.0/2.6 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 8.0/2.6 Frame 48Y

Qty:

2 HP 2 Speed 230V Thru Bolt Motor

Part # BN51 Mfg # BN51

2 HP 2 Speed 230V Thru Bolt Motor

$331.64 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 10.5/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN38 Mfg # BN37V1

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

$262.00 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 10.3/3.1 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 10.3/3.1 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN60 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Low Amps Thru Bolt Motor

$296.24 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 13.8/3.8 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 13.8/3.8 Frame 48Y

Qty:

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN61 Mfg # BN61

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

$340.32 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 8.5/2.8 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 8.5/2.8 Frame 48Y

Qty:

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN62 Mfg # BN62

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

$361.79 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 12.0/3.5 Frame 48Y

Qty:

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN63 Mfg # BN63

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

$392.94

Service Factor 1.0 Voltage 208-230V Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 208-230V Max Amps 12.0/3.5 Frame 48Y

NUT 1/4-20 S.S. (4700-13N)

Part # 6930-0 Mfg # 14072508R

NUT 1/4-20 S.S. (4700-13N)

$11.21 IN STOCK

Qty:

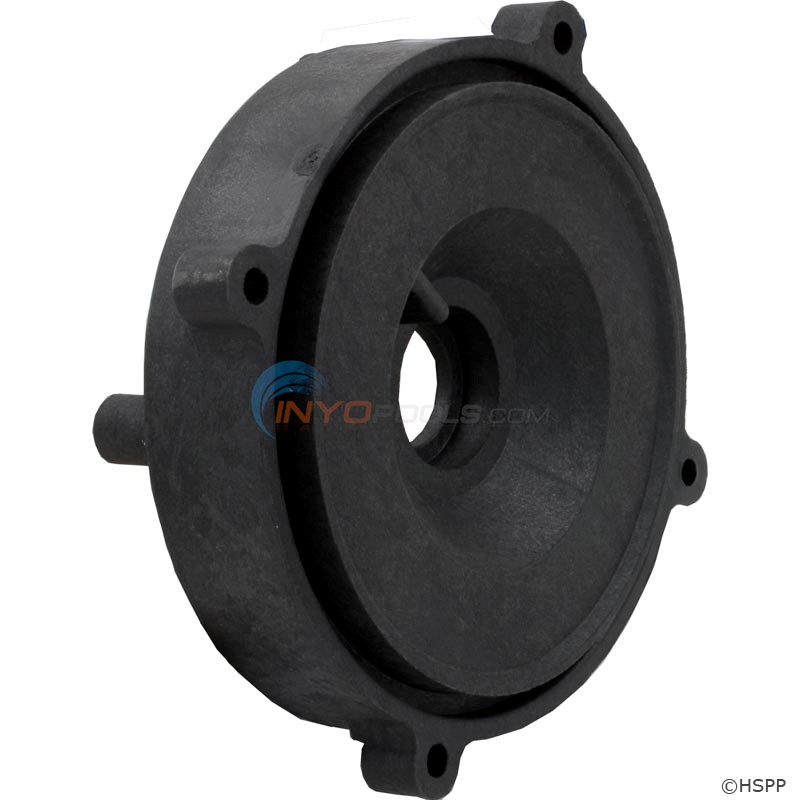

ULTIMA VOLUTE BACK (PPULHSVB)

Part # 5190-039 Mfg # 1211008

ULTIMA VOLUTE BACK (PPULHSVB)

$42.20

ULTIMA VOLUTE BACK - WIDE (PPULVBW)

Part # 5190-041 Mfg # 1211009

ULTIMA VOLUTE BACK - WIDE (PPULVBW)

$40.19 IN STOCK

Qty:

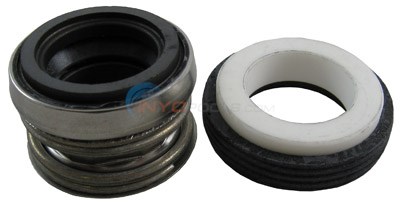

GENERIC SHAFT SEAL

Part # 5190-016 Mfg # 1213003

GENERIC SHAFT SEAL

$13.05 IN STOCK

Qty:

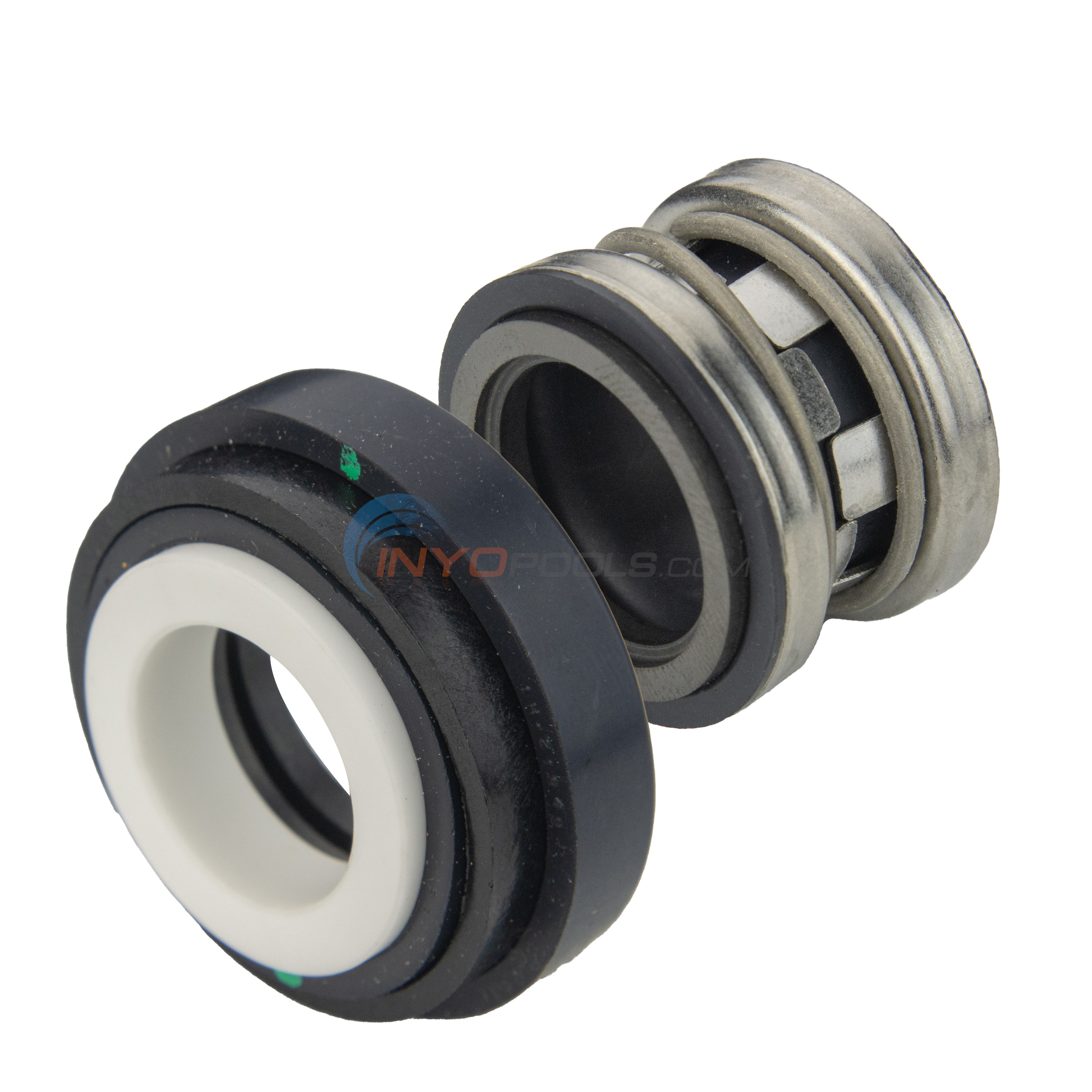

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-260 Mfg # PS-3870

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$15.06 IN STOCK

Qty:

4C

OBSOLETE RUBBER

Mfg # PPUFHSBOOTVITON

OBSOLETE RUBBER

NOT AVAILABLE

O-RING, ULTRA FLO (4654-19)

Part # 5190-033 Mfg # O-329

O-RING, ULTRA FLO (4654-19)

$11.04 IN STOCK

Qty:

IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)

Part # 5190-150 Mfg # 1212206

IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)

$36.17 IN STOCK

Qty:

IMPELLER, 3/4 HP, NO STRIPE (PPUF7IMP)

Part # 5190-151 Mfg # 1212207

IMPELLER, 3/4 HP, NO STRIPE (PPUF7IMP)

$37.17 IN STOCK

Qty:

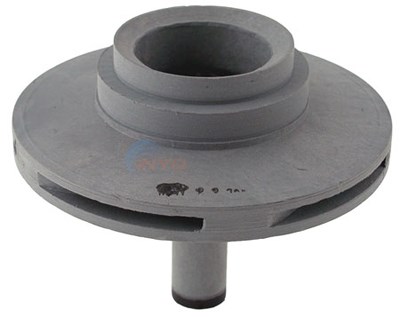

IMPELLER, 1 HP, BLACK STRIPE (PPUF1IMP)

Part # 5190-152 Mfg # 1212205

IMPELLER, 1 HP, BLACK STRIPE (PPUF1IMP)

$42.20 IN STOCK

Qty:

IMPELLER, 1.5 HP, RED, GREEN STRIPES (PPUL15IMP)

Part # 5190-035 Mfg # 1212215

IMPELLER, 1.5 HP, RED, GREEN STRIPES (PPUL15IMP)

$47.33 IN STOCK

Qty:

IMPELLER, 2 HP, RED STRIPE (PPUL20IMP)

Part # 5190-036 Mfg # 1212218

IMPELLER, 2 HP, RED STRIPE (PPUL20IMP)

$42.20

IMPELLER, 3 HP, RED, BLACK STRIPES (PPUL3IMP)

Part # 5190-037 Mfg # 1212225

IMPELLER, 3 HP, RED, BLACK STRIPES (PPUL3IMP)

$37.17 IN STOCK

Qty:

IMPELLER,4 HP, BLACK, GREEN, RED STRIPES (PPUL4IMP)

Part # 5190-038 Mfg # 1212221

IMPELLER,4 HP, BLACK, GREEN, RED STRIPES (PPUL4IMP)

$42.20

BOLT 1/4-20 X 1 3/4”

Part # 4800-08 Mfg # ECX1642215

BOLT 1/4-20 X 1 3/4”

$9.34 IN STOCK

Qty:

ULTIMA VOLUTE BOLT - LONG

Part # 5190-040 Mfg # PPULVBOLTL

ULTIMA VOLUTE BOLT - LONG

$20.09

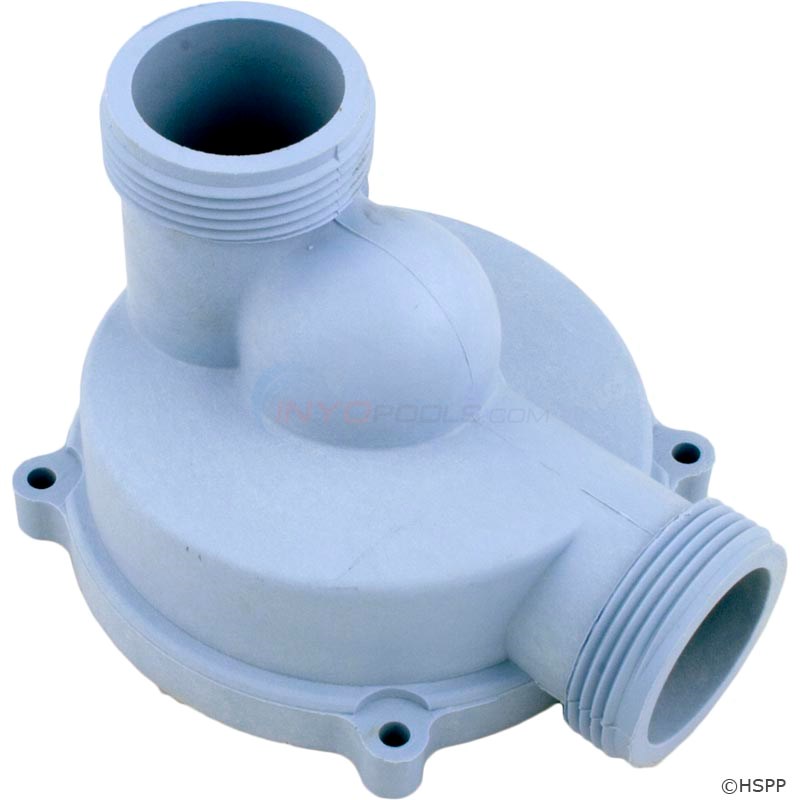

ULTRA FLO VOLUTE FRONT/TOP DISCHARGE (PPUF5-7VFTD)

Part # 5190-026 Mfg # 121006

ULTRA FLO VOLUTE FRONT/TOP DISCHARGE (PPUF5-7VFTD)

$66.32

8B

OBSOLETE VOLUTE

Mfg # PPVF1-15VFTD

OBSOLETE VOLUTE

NOT AVAILABLE

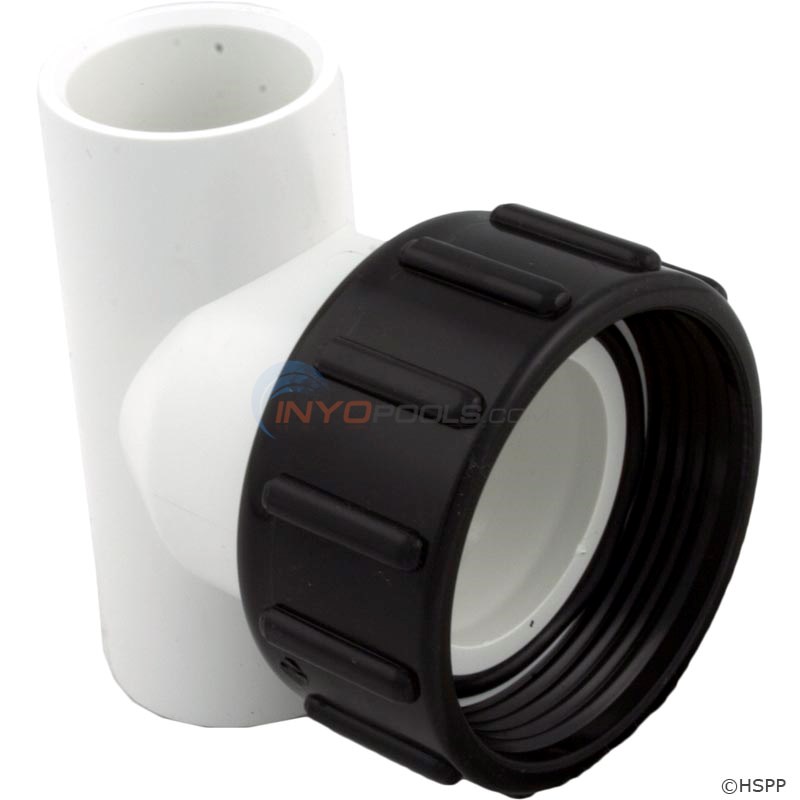

UNION TEE, 1 1/2" X 1" X 1" (UNUFTEE)

Part # 5190-109 Mfg # 3320601

UNION TEE, 1 1/2" X 1" X 1" (UNUFTEE)

$32.15

O-RING (226)

Part # 5056-11 Mfg # O-49

O-RING (226)

$8.82 IN STOCK

Qty:

11A

OBSOLETE VOLUTE

Mfg # PPVF5-7VFFD

OBSOLETE VOLUTE

NOT AVAILABLE

11B

OBSOLETE VOLUTE

Mfg # PPVF1-15VFFD

OBSOLETE VOLUTE

NOT AVAILABLE

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

Part # 9175-02 Mfg # 0602-15

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

$15.72 IN STOCK

Qty:

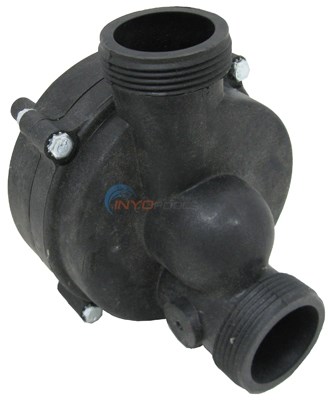

WET END 1HP SELF DRAINING/TOP DISCHARGE (PKUF109WE)

Part # 5190-280 Mfg # 1215108

WET END 1HP SELF DRAINING/TOP DISCHARGE (PKUF109WE)

$183.90

No Longer Available 1 1/2" BUTTRESS X 1" SLIP SWEEP TEE

Part # 9176-001 Mfg # 92020

No Longer Available 1 1/2" BUTTRESS X 1" SLIP SWEEP TEE

$36.17

TO ID THE CORRECT IMPELLER CHECK THE STRIPES ON THE SHAFT. STRIPES ARE LISTED STARTING AT THE MOTOR END
