I am wondering how thick (vertically) the gasket is ? last year I bought one somewhere on line ( lost my records) that fits horizontally but seems to be too thick. When the diverter is turned it is very tight and wrinkles the gasket ! The one I have is about 5/16 " thick.
Reply
Here are the dimensions : OUTSIDE DIAMETER: 5-3/16" CENTER HOLEINSIDE DIAMETER: 3/4"THICKNESS: 1/4" (TOP TO BOTTOM)SPOKE THICKNESS: 3/16" (SIDE TO SIDE)OUTSIDE RING THICKNESS: 3/16" (SIDE TO SIDE)
Reply
Need a replacement spider gasket for a Praher TM-12_L.
Does this get glued in when installed?
Reply
Yes this gasket here is the correct spider gasket for the TM-12L valve. You would glue the gasket into the valve and here we have a guide with Video on How to Replace Your Spider Gasket which goes into the gluing of the gasket.
Reply
does this spider gasket work on a Jacuzzi Splash filter? thanks.
Reply
Hi Debbi, The Diverter 1 1/2" (E-12-S1) Gasket will not work on a Jacuzzi Splash Filter. We would need to know the model valve that you on your Jacuzzi Splash Filter.
Reply

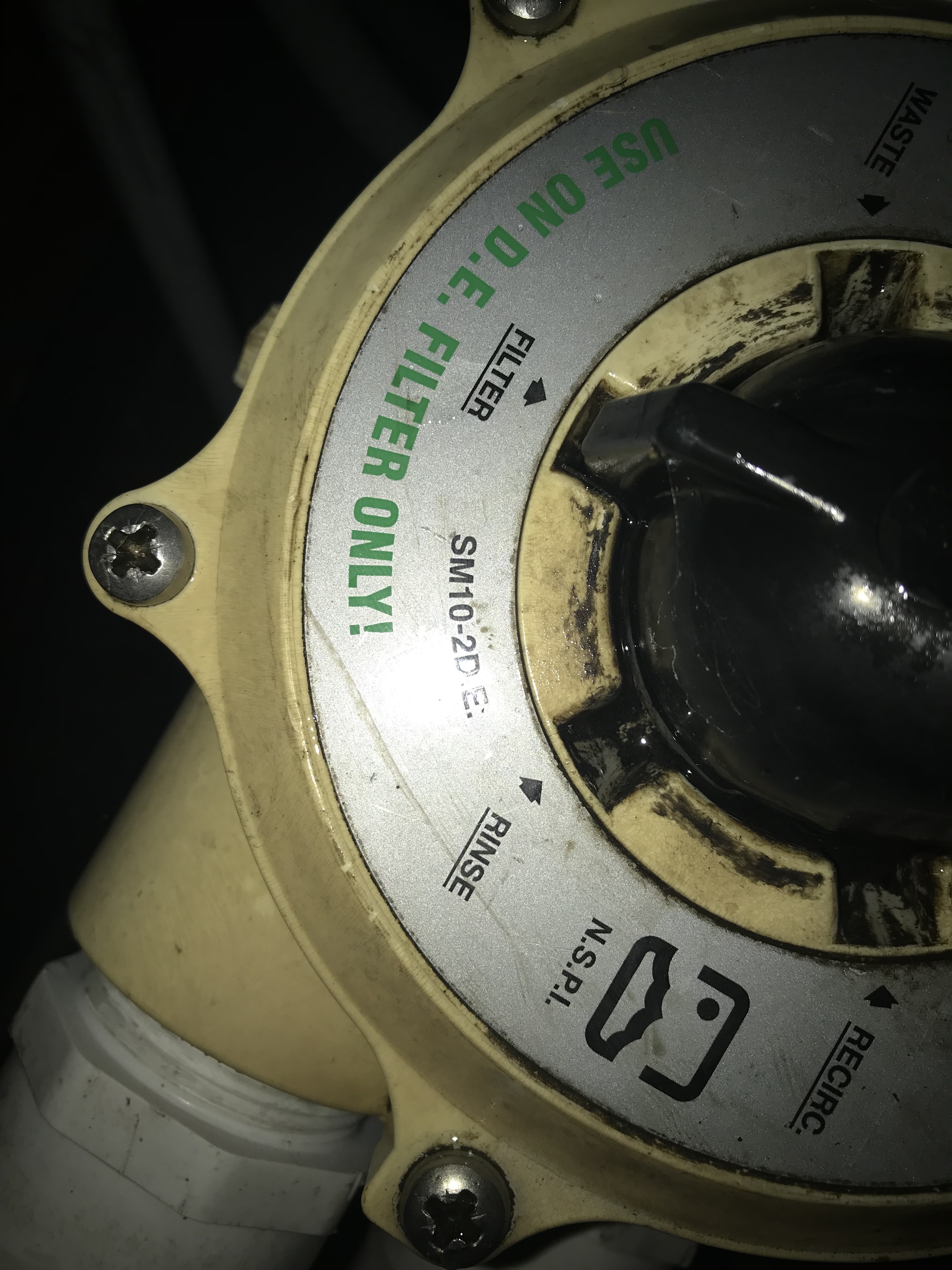

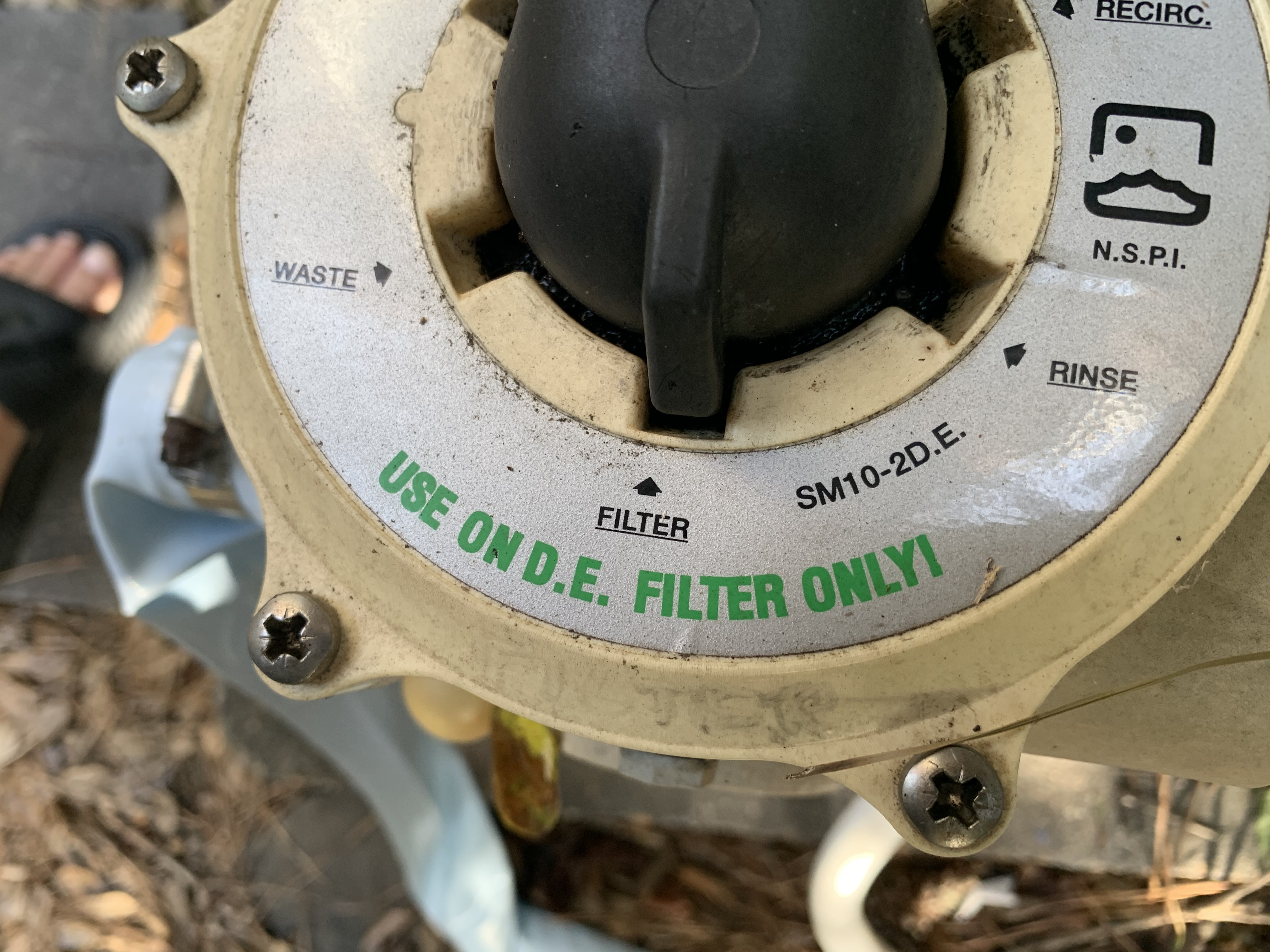

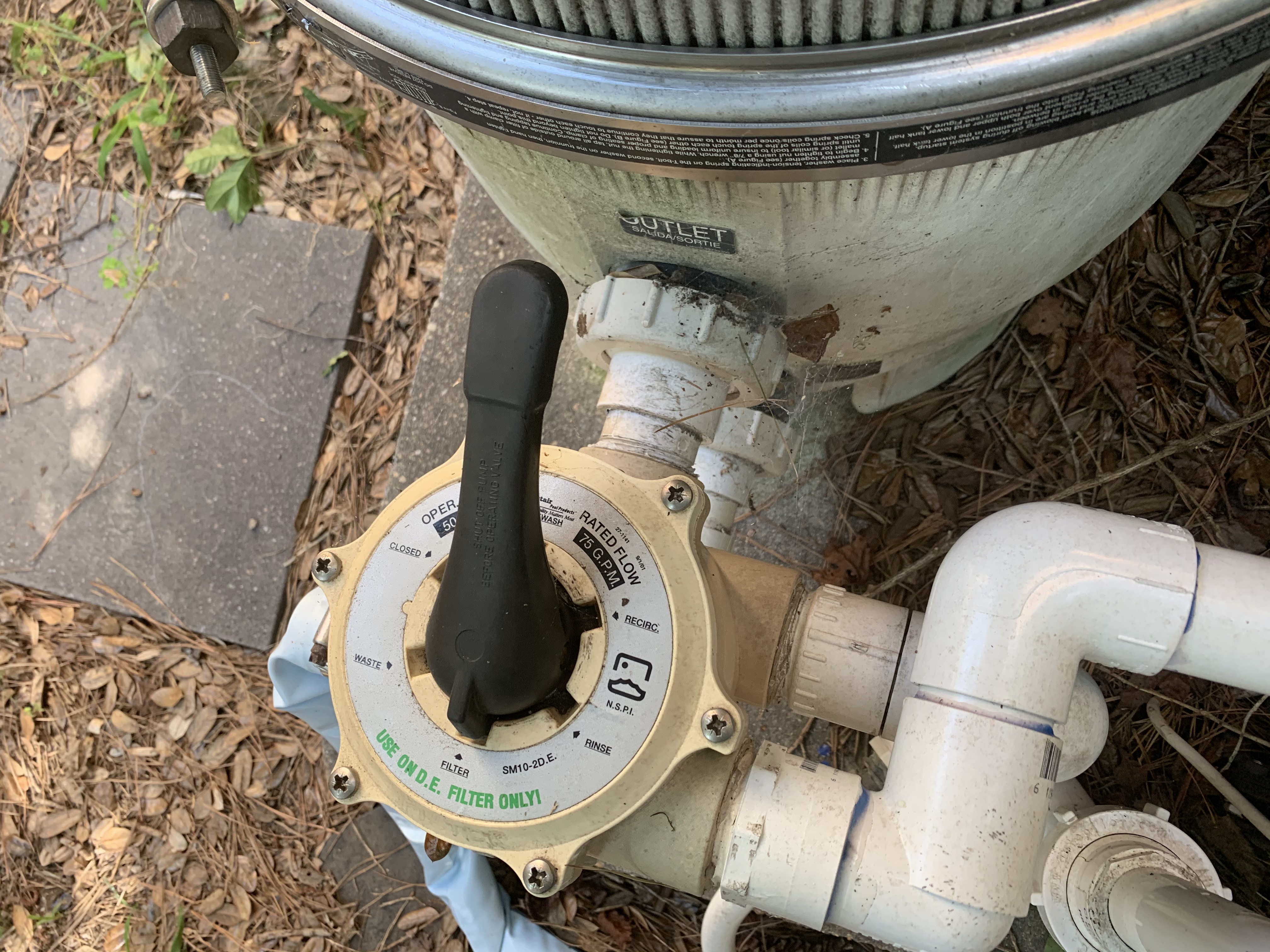

Does this work for a Pentair sm10-2DE? (27-1141) I ordered one that was said to work for it before but is much too large so would like to verify first. Thanks.
Reply
Hi Dan, This Diverter Gasket will work with the SM10 valve.
Reply
i have a tm-12 valve changed sand when i backwash the water comes out steady but after 20 seconds it slowes down to a small stream rinse works great filter runs 11 to15 lbs any sugestions thank you
Reply
Hi John, You can start by replacing the Diverter Gasket, but the issue sounds like it could be a pump issue. The pump could be losing prime.
Reply
Do i need to use a gasket adhesive with this?
Reply
Adhesive is not required but it is recommended to keep the gasket in place. Take a look at our how-to guide: How to Replace a Spider Gasket on a Multiport Valve.
Reply
Have Pool Co cp-712-E sand filter. Will this gasket fit?
Reply
Hi Rick, This gasket will fit if you have the TM12L valve. If you're not sure you can provide us with the model number of the valve to verify.
Reply
Is the adhesive included with the gasket? If not, what type of adhesive works best given the nature of this application?
Reply
Hello, Tom. The adhesive is sold separately, we recommend the use of Adhesive For Valve Seat Gasket (81731). You may also find the link How to Replace a Spider Gasket on a Multiport Valve helpful.
Reply
I have a Purex Triton SM10-3. Will this gasket fit? Thanks.
Reply
Hello, Ron. Yes, the Gasket, Diverter 1 1/2in (e-12-s1 1 1/2") - 271104 InyoPART # 4600-1104 is the replacement for the Pentair - Praher 1 1/2" TM12 & SM10 models. Don't forget the Adhesive For Valve Seat Gasket (81731) and our How to Replace a Spider Gasket on a Multiport Valve
Reply

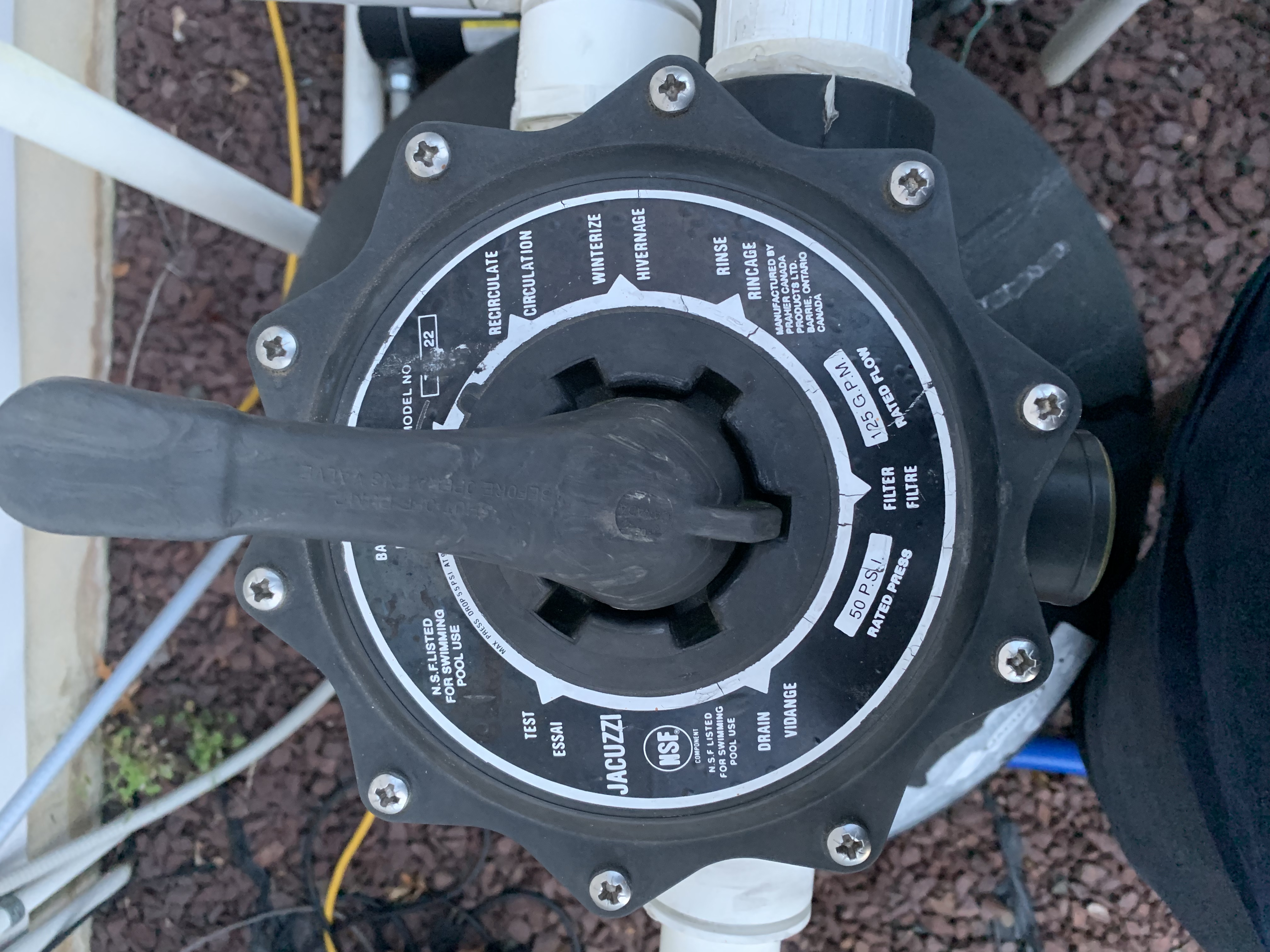

will the Praher diverter gasket work on a jacuzzi 190L laser sand filter divertor valve? Will the Praher Diverter valve repair kit work with the jacuzzi 190L laser sand filter? Thanks Jimmy
Reply
Hi, Jimmy. The Praher diverter parts will not work with the Jacuzzi valve, only if you have the Praher - TM12JL valve.
Reply
I have a pac fab ta40 and this gasket only last one season if that. What causes it to swell up and disfigure? Smell strong chlorine too.
Reply
Hi, Kurt. Improper installation of the gasket, operation of the valve and water chemistry all can lead to a diverter gasket failing.
Reply
Do you deliver to Spain and how long will it take to arrive thank you
Reply
Hello, Marie. We do ship orders international, excluding freight items, they will require being shipped to an export company of choice. You may contact our office either by email or phone with the Country and zip/postal code for the end destination. We will email a quote to you once we review for shipping.
Reply
will this diverter gasket fit an work with my hayward vari-flow xl sp714t if not which one will and do i need any other parts with it ie: washers,screws,adhesive ?
Reply
Will this fit a FloPro sand filter? Backwash hose is leaking. Other gaskets seem fine.
Hi. I'm unable to confirm without know the model of your valve or the existing gasket dimensions.
Reply
Hi, I purchased a spider gasket from a local supplier. After installing the spider gasket, the diffuser valve was level and the handle has no tension. Are there spider gaskets that have a different height or do the gasket wear in and lower the diffuser valve? I think the local pool parts supply have provided the wrong part but the package was discarded and I no longer have the part number. Is the part number on the gasket?
Thanks
Eric
Reply
Hi, Eric. They are different diverter gaskets which are used with different valve based on the make and model. Some manufacturer will emboss the part number of the item. You can go back to the store to get the gasket part number. We will also need to know the model of your valve.
Reply
Also, the gasket currently in the vavle looks like it came molded into the assembly. It's coming out only little bits at a time. Any help would be appreciated.
Will this work with my application?
Hello, This will be the correct diverter gasket you will need, http://www.inyopools.com/Products/07501352018089.htm
Reply
I have a Praher Sand Filter, Model #SM10-3, Serial # 3915053. I need to replace the spider gasket. WHich one is trhe correct one?
Reply
Hello,
I have a ranger Model RS-2515 with a W. Cooper Industries 6 way selector Valve Model TM-12-L IN 1.5" size. Will this gasket work for my valve? Thank you in advance.
Jerry
Reply
I need to replace the spider gasket - having a hard time figuring out which one I need for this port. Can you help?
how do I know if the spider gasket should be glued in
Reply
There should be a label on the side of your filter, could you supply us with the information from that label? Or there should be a part # listed on your valve label could you supply that?
Reply
I have a jacuzzi splash pak filter need a spider gasket for 39258509 the # I show is 13107602-r do you have this and if so does it need to be glued in.
Reply
The gasket on this page is not the correct gasket. We do carry your diverter gasket here Splash Pak Diverter Gasket
Reply
Hello I need to replace the spider gasket on my sand filter. I have a Pentair Tagelus TA 40D, 6 way valve. Which product do I need?
Reply
Hi Helen, could please provide the multiport valve model number or send us a few photos? One of the complete valve and one of the very top of it looking down at it? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Hi,
We have a sta-rite T-240BP-1 filter and need a spider gasket please.
What is the right part number.
Thank You, Mike
Reply
Hi Michael, The spider gasket is only sold glued into the diverter, so you will require this Diverter with Glued in Spider Gasket
Reply
I have a HaywardSP715XR50 Vari-flo. Which Diverter (spider)gasket do I need?
Reply
Hi Brian, You will require this O-322 Spider Gasket we also carry this SP0715XR50 Tune Up Kit which includes all of the o-rings and gaskets including the Spider Gasket.
Reply
I have a SP160 (Porpoise) sand filter with a Speck Pumps valve .I need a spider gasket for it. It has 4 spokes and is 4-3/8" in diameter with 9/16" center. The diverting valve has a number 2600141 on it
Reply
Hi John, could you send us a few photos of the filter label, complete filter, valve, and top valve label? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Can you please tell me if this diverter/spider gasket will fit a sta rite filter JSAL-180F? The multiport valve number I have is WC112-4148A.
Reply

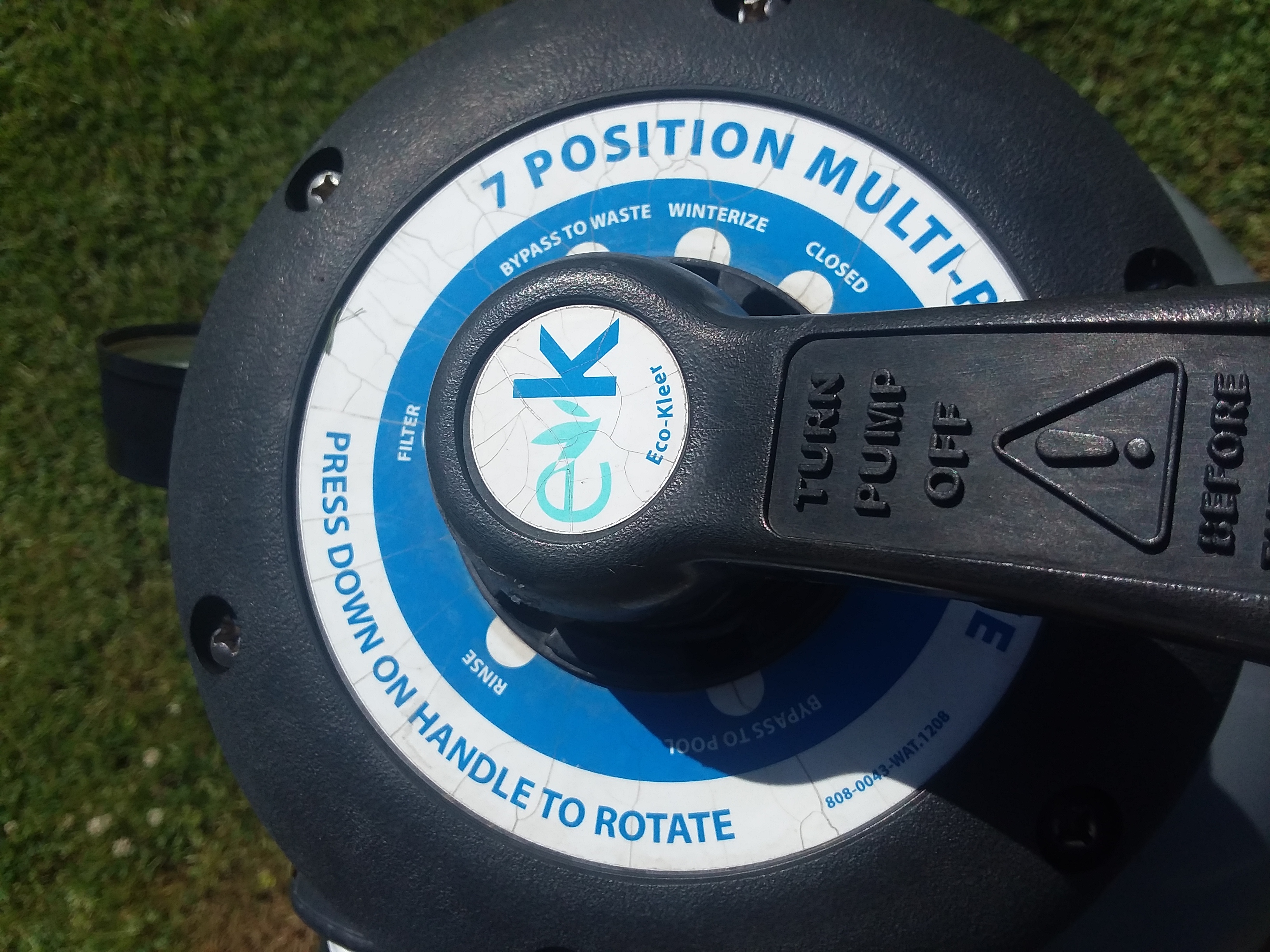

My sand filter is leaking from the backwash and wondering what gasket is the correct one for my filter? Also does my pool water need to be below the return before this can be changed out? Thank you!
-271104-9e651c00-b0e6-4e6f-86a8-498466f4366e.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-271104-9e651c00-b0e6-4e6f-86a8-498466f4366e.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Pool Multiport Valve Diverter Gasket, 1-1/2\" Port, G-416 - 271104")
Hi Joseph, Could you take a photo of where the valve attaches to the filter as we need to see if your valve uses an nut or a clamp to secure the valve to the filter, as this information will determine the parts you require. Simply click the reply link below to upload your photos.
Reply

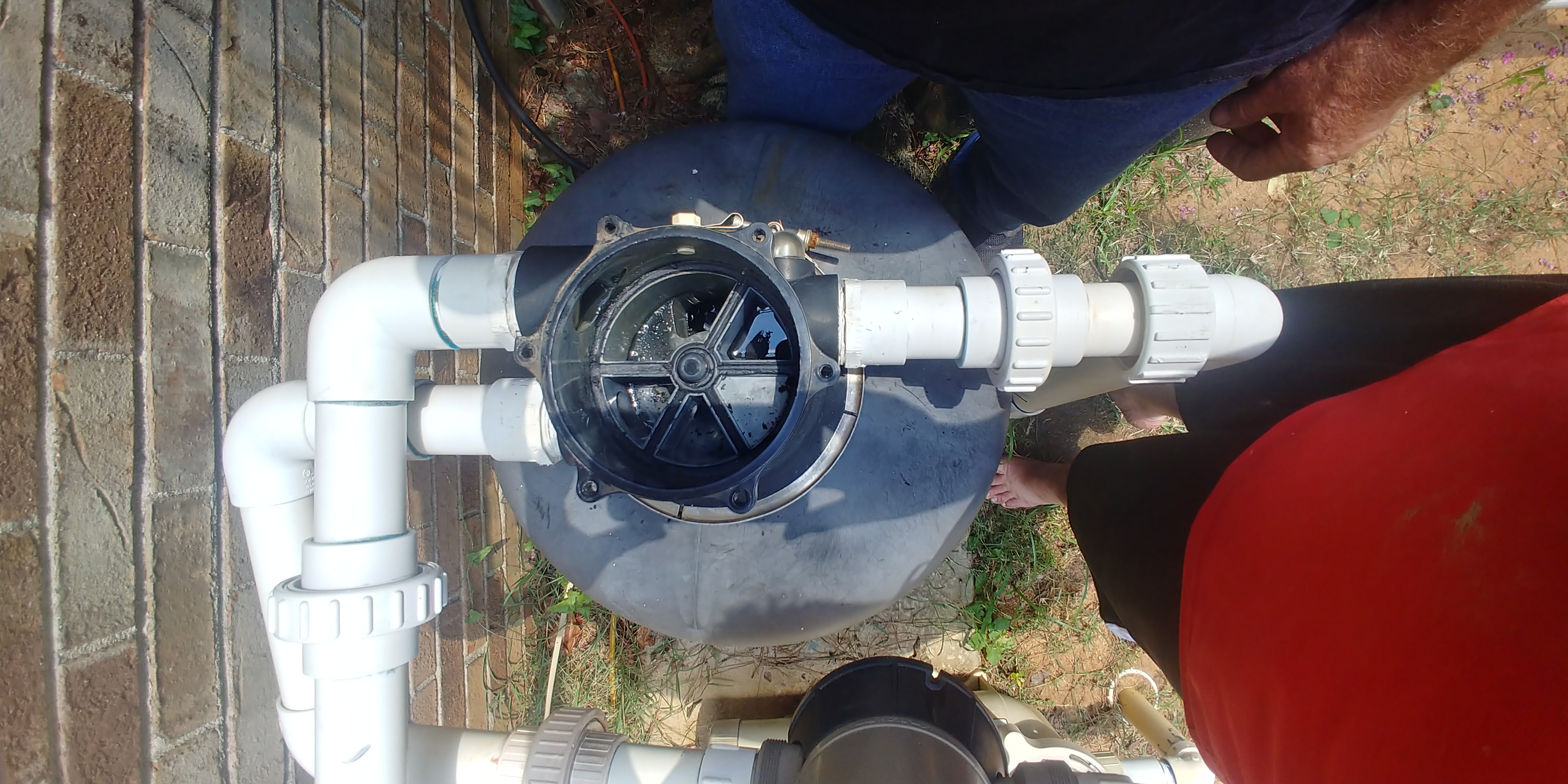

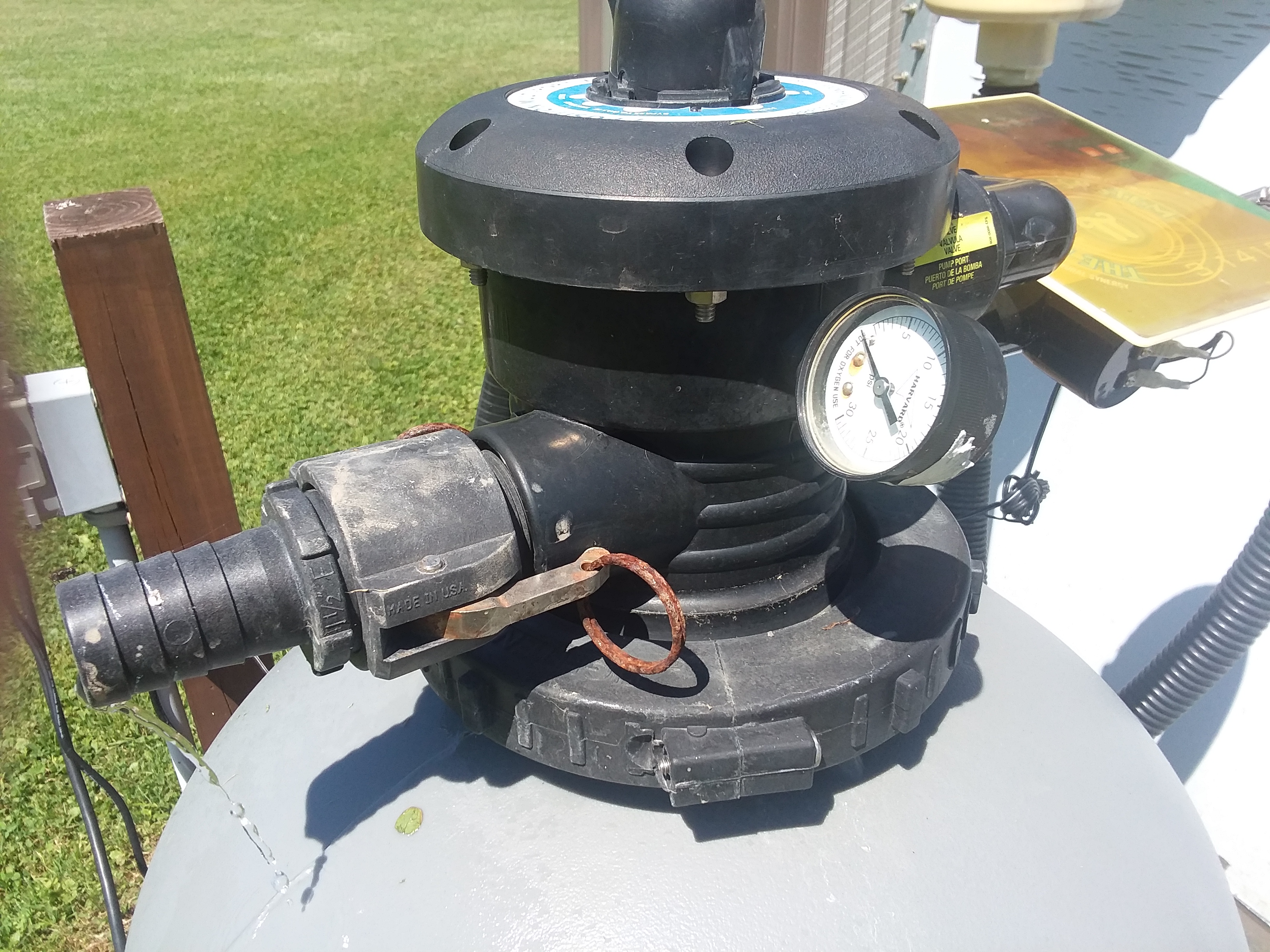

I hope this is what you needed. Thank you!
-271104-abcd2196-6144-4920-8cf4-208ac0506b8c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-271104-abcd2196-6144-4920-8cf4-208ac0506b8c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Pool Multiport Valve Diverter Gasket, 1-1/2\" Port, G-416 - 271104")
Hi Joseph, You will need to replace your spider gasket and for your WVS Waterway Valve the spider gasket is only sold glued into the diverter, so you will require this Waterway WVS Diverter with Spider Gasket Glued In. No your pool water will not need to be below your returns when you swap out this part.
Reply
Will this fit a Pentair 50181212?
Reply
Hi Bill, there are two spider gaskets compatible with the American Products multiport valve model 50181212. A 5 spoke and 6 spoke version. It is based on the year of manufacture. Please see this parts diagram to view both and also this RTV clear silicone that you will need to install. Here is a guide for installing a spider gasket that may assist as well.
Reply

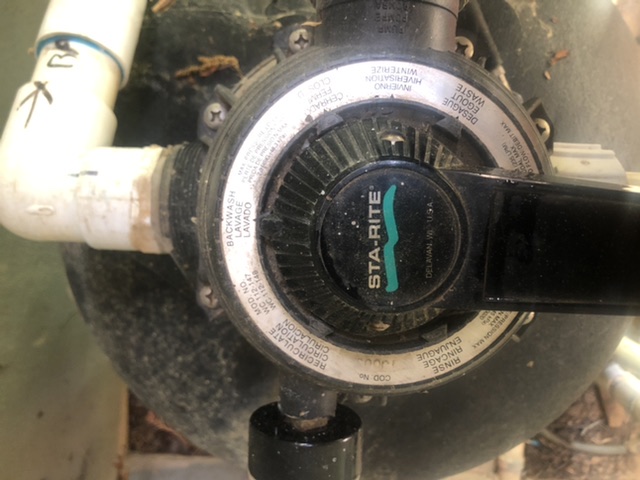

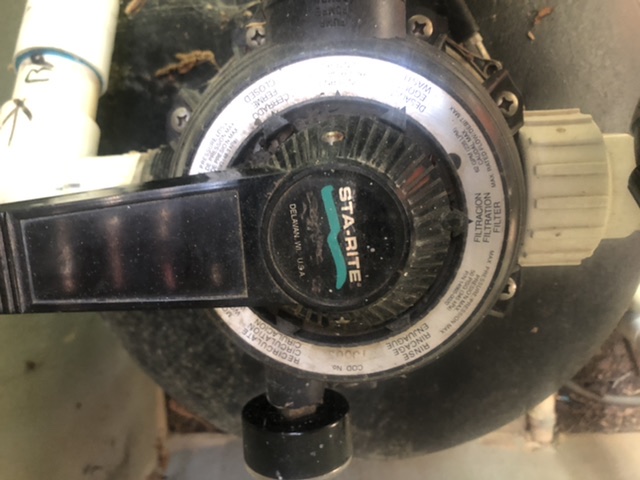

Is this the right gasket for my sta rite valve? Pics attached.
Hi, Geoff. The Rotor w/ Gasket - 14965-0028 is the correct part for your valve. The Gasket is NOT available separately.
Reply
Is this the correct gasket for a hayward S-166T valve? My valve is leaking from the waste port. Also, when i turn on the pump/filter, i am getting a brown cloud out of the return into the pool. It last for a few seconds and then flows clear. Is this a spider gasket problem as well? Thanks for any help
Reply
Hi Josh, could you send us a few photos of the complete multiport valve and the label on the top of it? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

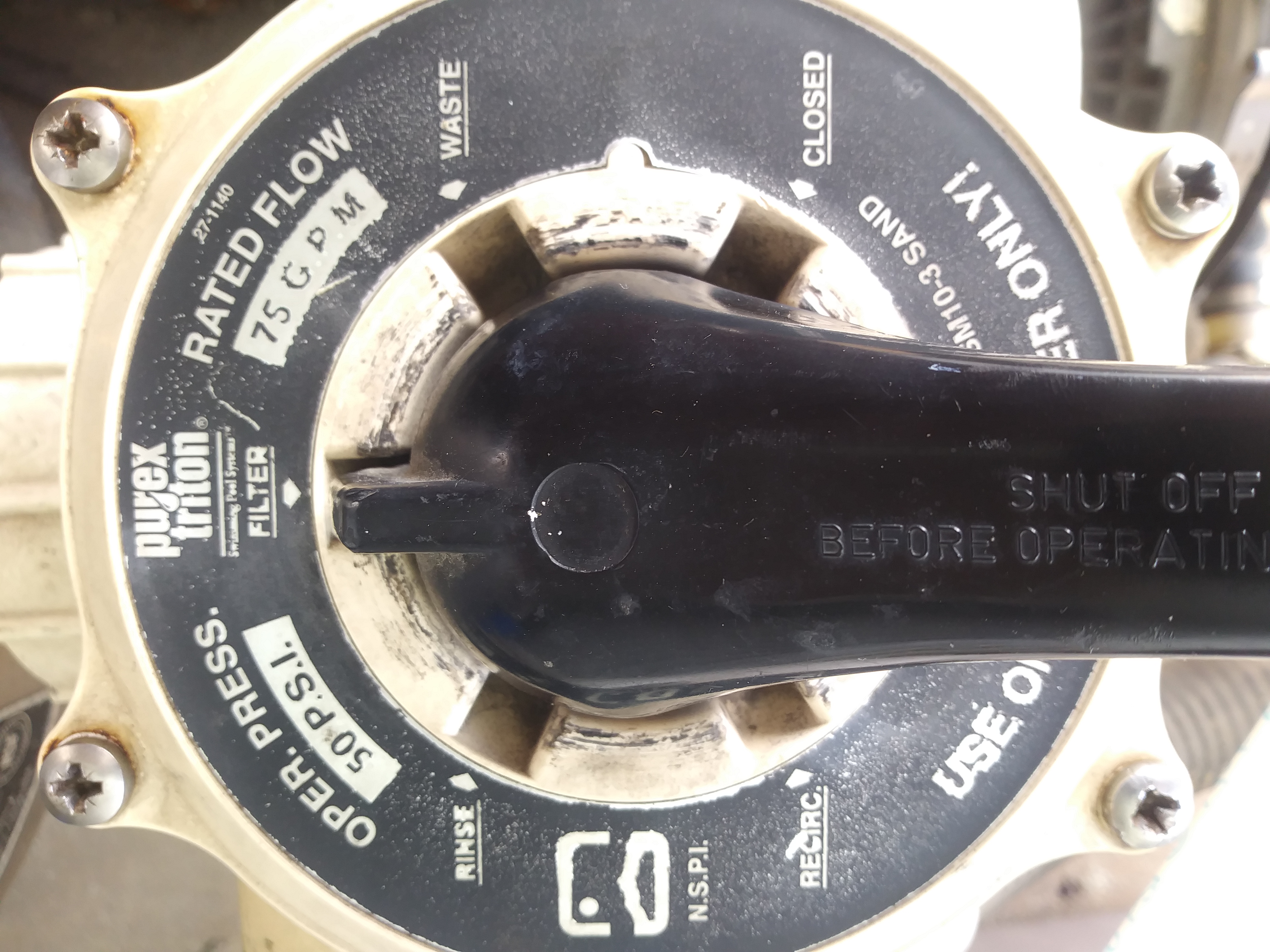

Hi, I have a Purex Triton valve model number 27 - 1140. I need the spider gasket for this model. It is a 5 spoke. Please advise. Thank you in advance
Hi Rick, this is the correct spider gasket for the valve model 261173/SM10 which uses your label part number 271140. Here is a guide that we put together for replacing a spider gasket that may further assist as well.
Reply

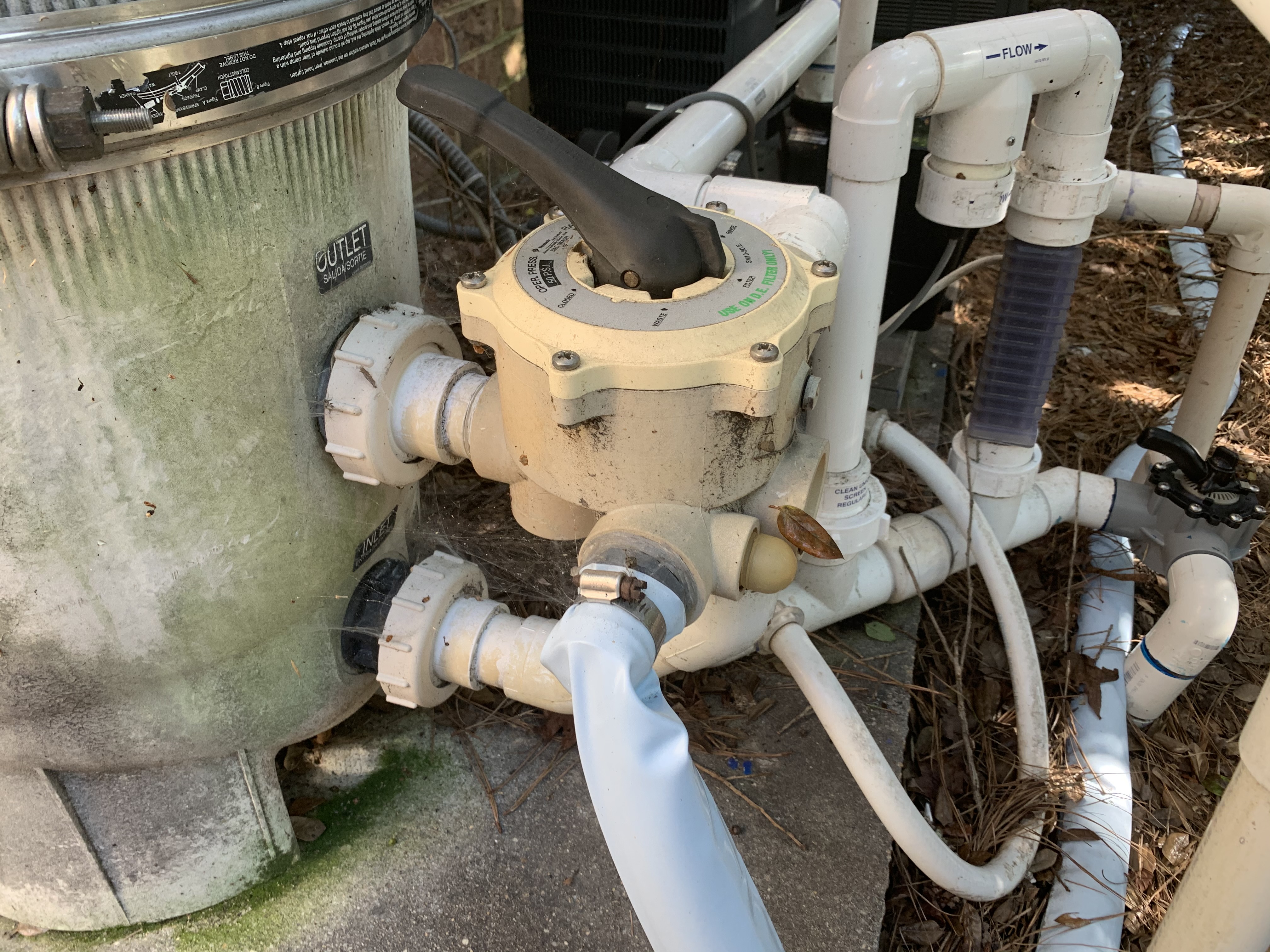

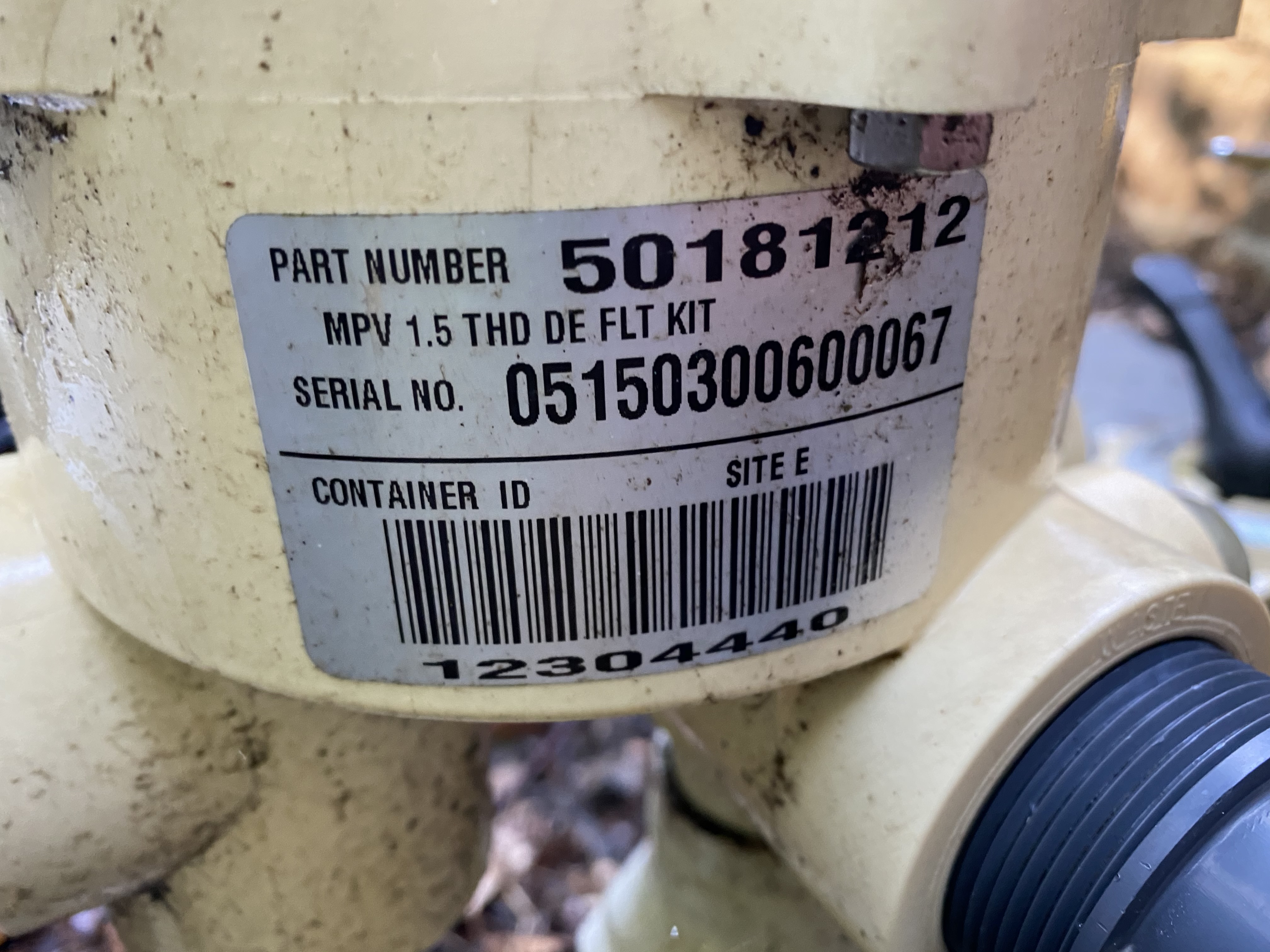

Does this spider gasket work on this valve (photo attached)?
-271104-4b1a567b-2906-4e09-8856-23e76a411c58.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-271104-4b1a567b-2906-4e09-8856-23e76a411c58.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Pool Multiport Valve Diverter Gasket, 1-1/2\" Port, G-416 - 271104")
Hi Vincent, there are two spider gaskets compatible with the American Products multiport valve model 50181212. A 5 spoke and 6 spoke version. It is based on the year of manufacture. Please see this parts diagram to view both and also this RTV clear silicone that you will need to install. Here is a guide for installing a spider gasket that may assist as well.
Reply

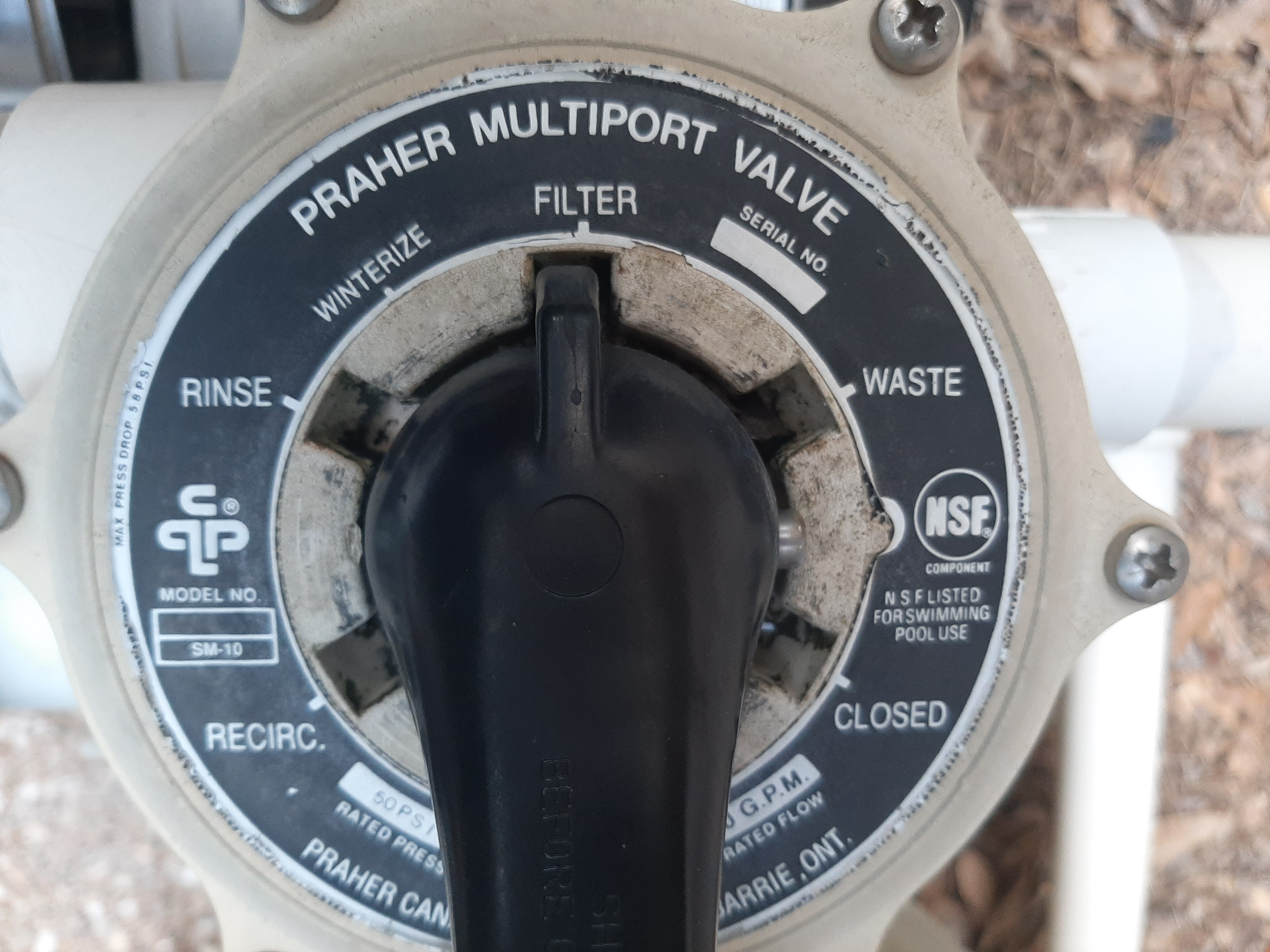

I have a leak to backflush line for normal filtering. I guess that I need to replace the spider gasket.
Is this the right gasket for my Praher multiport valve (model: SM-10).
Thank you for your help.
-271104-86a5bcaf-5efb-4ef5-a87f-26504662c4b9.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-271104-86a5bcaf-5efb-4ef5-a87f-26504662c4b9.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Pool Multiport Valve Diverter Gasket, 1-1/2\" Port, G-416 - 271104")
Hello, yes this is the correct spider gasket for the Pentair/ Praher multiport SM10 valve series. Here is a guide for replacing a spider gasket that also may assist.
Reply

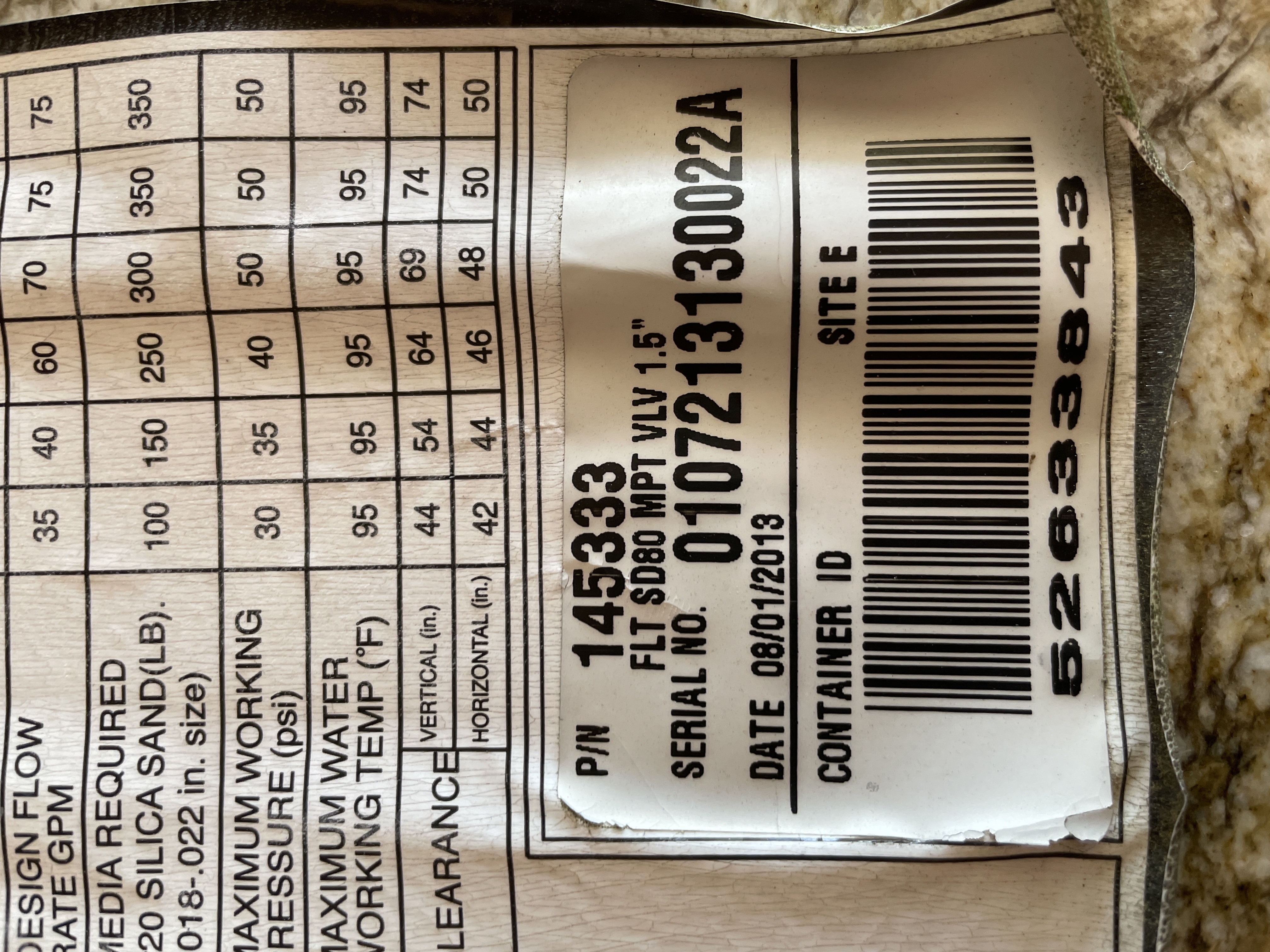

Hi, will this fit my Pentair sd80?
-271104-b96f12b8-19ad-4cea-b116-ebbbe577a32c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-271104-b96f12b8-19ad-4cea-b116-ebbbe577a32c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Pool Multiport Valve Diverter Gasket, 1-1/2\" Port, G-416 - 271104")
Hi Nancy, No this is not the correct spider gasket for your Sand Dollar SD80. For your filter the spider gasket is only sold glued into the diverter and you will require this Sand Dollar Diverter w/ Glued in Spider Gasket
Reply
I have a Pentair model 271141 six way valve. What is the part number for the correct spider gasket? Thank you!!
Reply
Hello David. The Diverter Gasket (Spider Gasket) part number for the Pentair - Praher Multiport Valve 1 1/2" & SM -10 is 271104. Diverter Gasket, 1-1/2" (G-416) - 271104. It is recommended that RTV Silicone be used to secure the Diverter Gasket in place during valve assembly. Clear Silicone RTV 3 Oz. (66br) - 80050 The cover 0-ring may also require replacing (recommended). Cover O-ring Attached please find an exploded parts diagram for the Multiport Valve. Pentair - Praher 1 1/2" TM-12 & SM-10 Part 271141, is the label only. (see page bottom)
Reply

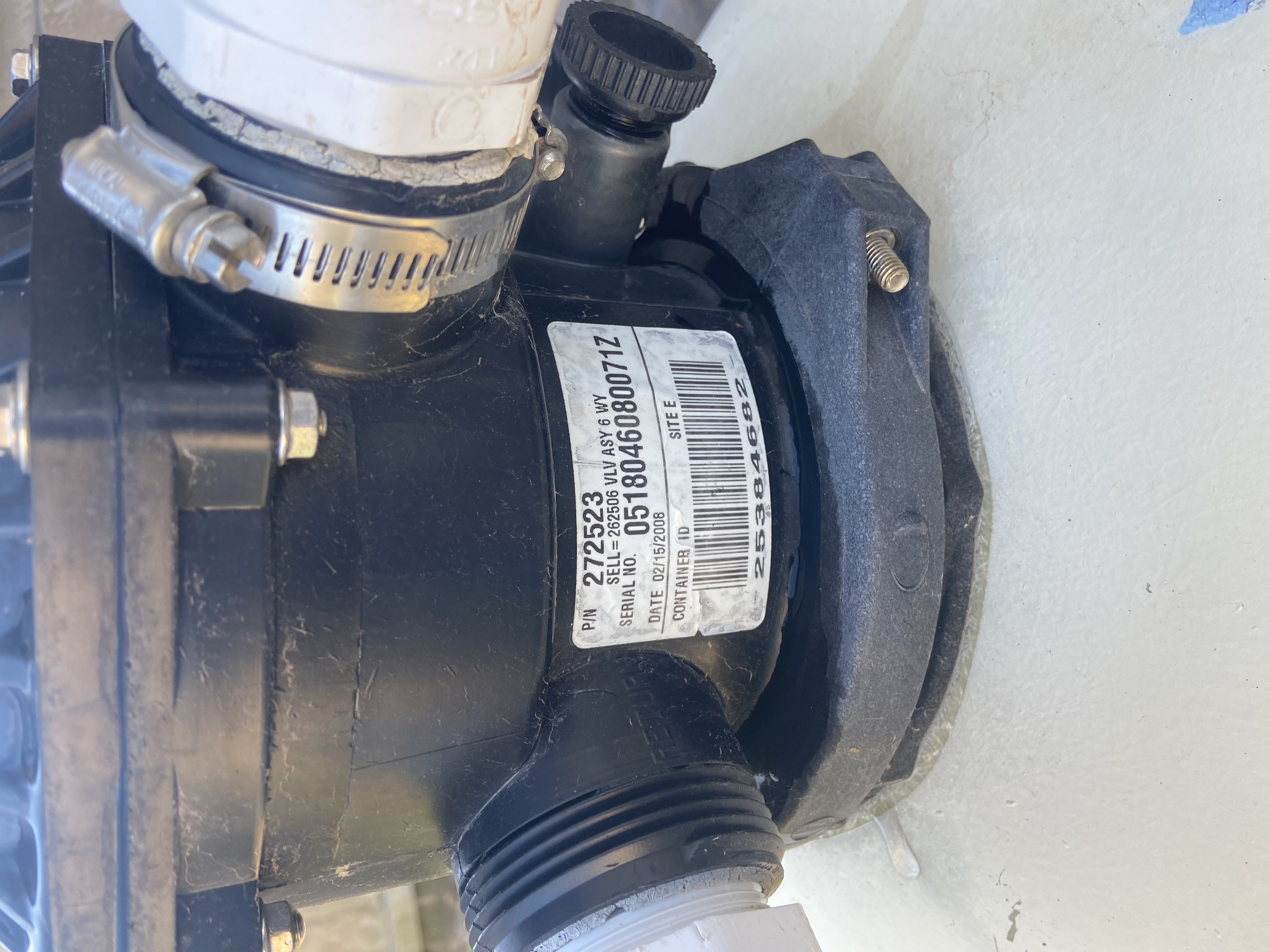

Will this fit my application? Thank you for your help! :-)
Hello Jordan. The Multiport Valve part number 272523 cross-references to a Pentair/Pac Fab Top Mount 1 1/2" Top Mount Multiport Valve. Pentair - Pac Fab Top Mount 1 1/2" The Diverter Gasket for the 272523 is not available as a separate item, it is factory attached to the Diverter. Replacement Valve Diverter w/ Spider Gasket for Pentair™ - PL0742 A drop-in replacement Key Assembly would eliminate the necessity to disassemble/re-assemble the Top valve Assembly. Replacement Top Valve Assembly For Pentair™ 272531 - PL0748
Reply
Will this fit my Praher multiport valve mod TM-12-L? Thank you !
Reply
Hi Carlos, yes, the Diverter Gasket, 1-1/2" (G-416) - 271104 will be perfect for your Model TM-12-L Multiport Valve. Check out our guide on How to Replace a Spider Gasket on a Multiport Valve for some helpful tips.
Reply

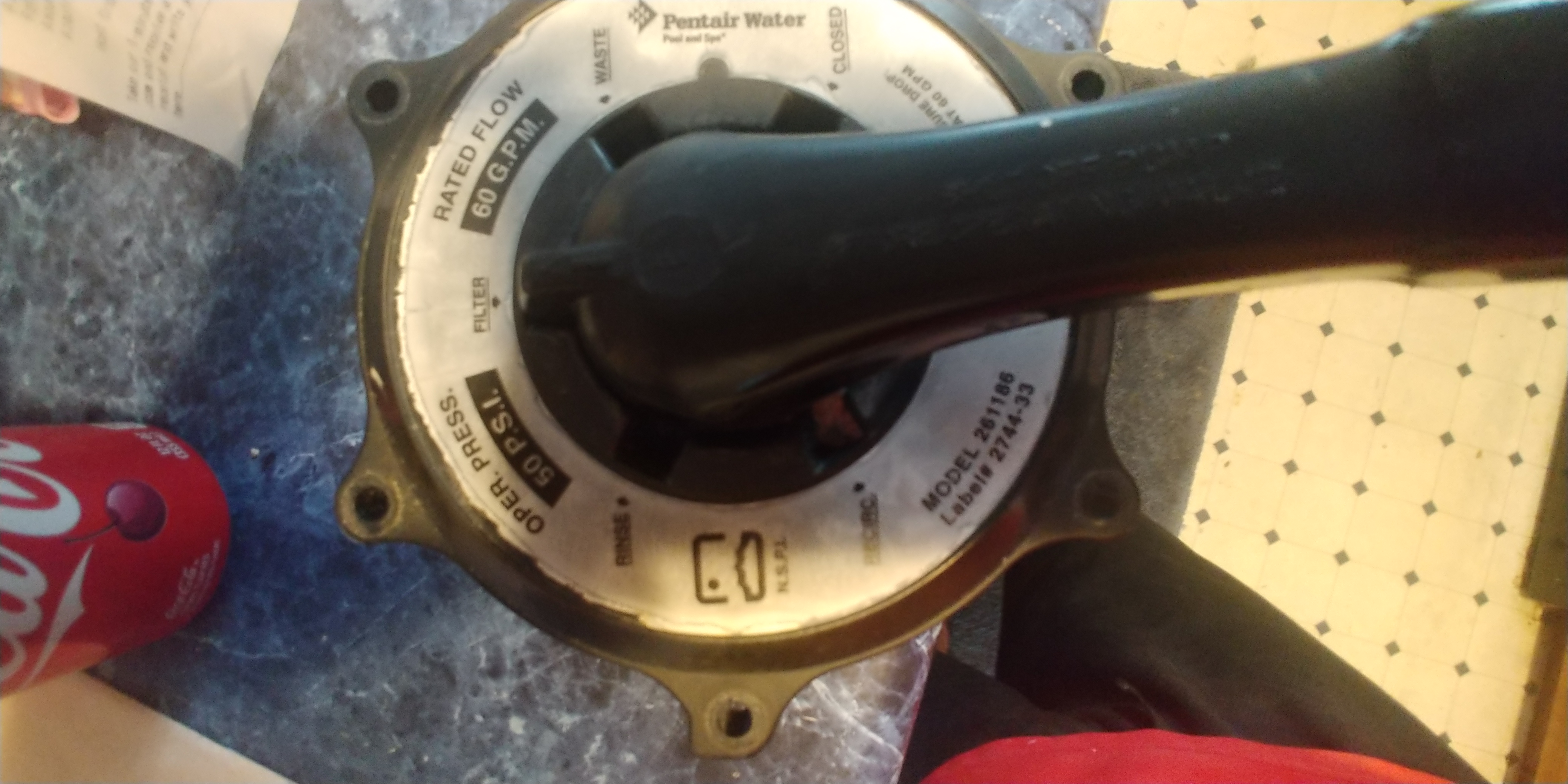

Will this work on a PENTAIR FILTER HEAD - MODEL# 261186?
Reply
Hi April, yes, the 271104 Diverter Gasket will be a perfect fit in your 261186 Pentair 1.5" Top Mount Valve.
Reply
