Pentair Clean & Clear Plus Cartridge Parts

Pentair Clean and Clear Plus Models
CCP 240 (160310), CCP 320 (160340), CCP 420 (160301), & CCP 520 (160332) SINCE 1998
Also sold as Aquatech

Pentair Clean & Clear Plus Cartridge Diagram
 Click to zoom in

Available Parts:

1 Pressure Gauge w/ Indicator(53003201)
Part # 4726-1 Mfg # 190058

Pressure Gauge w/ Indicator(53003201)

$53.30 IN STOCK
Qty:
ADD TO CART
1 Bottom Mount Pressure Gauge 0-60 1/4" NPT
Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$15.83 IN STOCK
Qty:
ADD TO CART
2 AIR RELIEF MANUAL VALVE ASSEMBLY (98209800)
Part # 4655-03D Mfg # 25357-982-00

AIR RELIEF MANUAL VALVE ASSEMBLY (98209800)

$33.03 IN STOCK
Qty:
ADD TO CART
3 OBSOLETE HOSE & RETAINER CLIPS
Mfg # 98201200

OBSOLETE HOSE & RETAINER CLIPS

NOT AVAILABLE

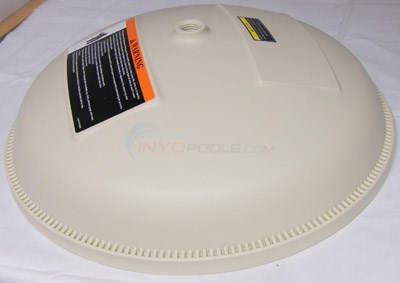

Tank Lid Assy., 240 Sq Ft
Part # 4654-77 Mfg # 170023

Tank Lid Assy., 240 Sq Ft

$266.54 IN STOCK
Qty:
ADD TO CART
Tank Lid Assy., 320 Sq Ft
Part # 4654-78 Mfg # 170024

Tank Lid Assy., 320 Sq Ft

$307.75 IN STOCK
Qty:
ADD TO CART
Tank Lid Assy., 420 (before 11/98) (178551)
Part # 4654-80

Tank Lid Assy., 420 (before 11/98) (178551)

$312.38
VIEW DETAILS
Tank Lid Assy., 420 (after 11/98)
Part # 4654-81 Mfg # 178581

Tank Lid Assy., 420 (after 11/98)

$309.19 IN STOCK
Qty:
ADD TO CART
Tank Lid Assy., 500 (before 11/98)
Part # 4654-82 Mfg # 178550

Tank Lid Assy., 500 (before 11/98)

$340.11
VIEW DETAILS
Tank Lid Assy., 520 (after 11/98)
Part # 4654-83 Mfg # 178582

Tank Lid Assy., 520 (after 11/98)

$363.50 IN STOCK
Qty:
ADD TO CART
4** SPRING, MANIFOLD (56636900) Manufactured Before 11/1998
Part # 4654-25 Mfg # 56636900

SPRING, MANIFOLD (56636900) Manufactured Before 11/1998

$65.02
VIEW DETAILS
4*** COMPRESSION SPRING (178616) Manufactured After 11/1998
Part # 4654-69 Mfg # 178616

COMPRESSION SPRING (178616) Manufactured After 11/1998

$11.71 IN STOCK
Qty:
ADD TO CART
5** OBSOLETE TOP MANIFOLD ASSY
Mfg # 59071000

OBSOLETE TOP MANIFOLD ASSY

NOT AVAILABLE
5*** MANIFOLD TOP ASSY F/240 SQ FT
Part # 4654-75 Mfg # 170026

MANIFOLD TOP ASSY F/240 SQ FT

$104.47 IN STOCK
Qty:
ADD TO CART

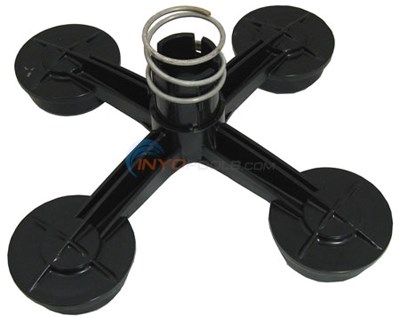

5*** MANIFOLD TOP ASSY F/320, 420 & 520 SQ FT
Part # 4654-76 Mfg # 170027

MANIFOLD TOP ASSY F/320, 420 & 520 SQ FT

$77.82 IN STOCK
Qty:
ADD TO CART
6 240 Replacement Cartridge 14-1/8" (R173572)
Part # PL0118 Mfg # R17856900

240 Replacement Cartridge 14-1/8" (R173572)

$50.00 IN STOCK
Qty:
ADD TO CART
6 320 Replacement Cartridge 20"
Part # PL0119 Mfg # R173573

320 Replacement Cartridge 20"

$67.99 IN STOCK
Qty:
ADD TO CART
6 Clean & Clear Plus 80 Replacement Cart. (PCC80) 4 Pack
Part # PL0119-4 Mfg # R173573

Clean & Clear Plus 80 Replacement Cart. (PCC80) 4 Pack

$188.74 IN STOCK
Qty:
ADD TO CART
6*** 420 Replacement Cartridge 26-1/16" (R173576) Manufactured After 11/1998
Part # PL0120 Mfg # R173576

420 Replacement Cartridge 26-1/16" (R173576) Manufactured After 11/1998

$89.99 IN STOCK
Qty:
ADD TO CART
6*** Clean & Clear Plus 105 Replacement Cartridge 4 Pack Manufactured After 11/1998
Part # PL0120-4 Mfg # R173576

Clean & Clear Plus 105 Replacement Cartridge 4 Pack Manufactured After 11/1998

$350.16 IN STOCK
Qty:
ADD TO CART
6** 520 Replacement Cartridge 26" (56627900) Manufactured Before 11/1998
Part # NFC0695

520 Replacement Cartridge 26" (56627900) Manufactured Before 11/1998

$101.43 IN STOCK
Qty:
ADD TO CART
6*** 520 Replacement Cartridge 32-1/16" (R173578) anufactured After 11/1998
Part # PL0121 Mfg # R173578

520 Replacement Cartridge 32-1/16" (R173578) anufactured After 11/1998

$65.99 IN STOCK
Qty:
ADD TO CART

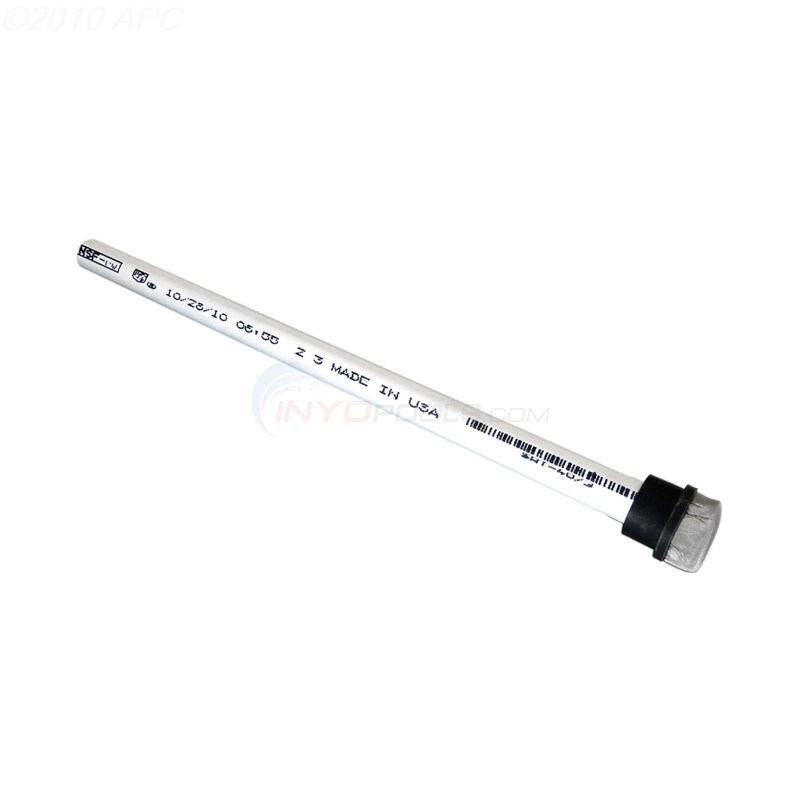

7 AIR BLEED TUBE ASSY F/240 SQ FT
Part # 4654-70 Mfg # 170030

AIR BLEED TUBE ASSY F/240 SQ FT

$73.94 IN STOCK
Qty:
ADD TO CART
7** AIR BLEED TUBE ASSY., 350/460 SQ.FT.
Part # 4654-46 Mfg # 55028500

AIR BLEED TUBE ASSY., 350/460 SQ.FT.

$78.89 IN STOCK
Qty:
ADD TO CART
7*** AIR BLEED TUBE ASSY F/320 SQ FT
Part # 4654-71 Mfg # 170029

AIR BLEED TUBE ASSY F/320 SQ FT

$76.08 IN STOCK
Qty:
ADD TO CART
7** AIR BLEED TUBE ASSY., 500 SQ.FT.
Part # 4654-46A Mfg # 55028400

AIR BLEED TUBE ASSY., 500 SQ.FT.

$111.94
VIEW DETAILS
7** AIR BLEED TUBE ASSY F/520 SQ FT
Part # 4654-73 Mfg # 178583

AIR BLEED TUBE ASSY F/520 SQ FT

$80.84 IN STOCK
Qty:
ADD TO CART

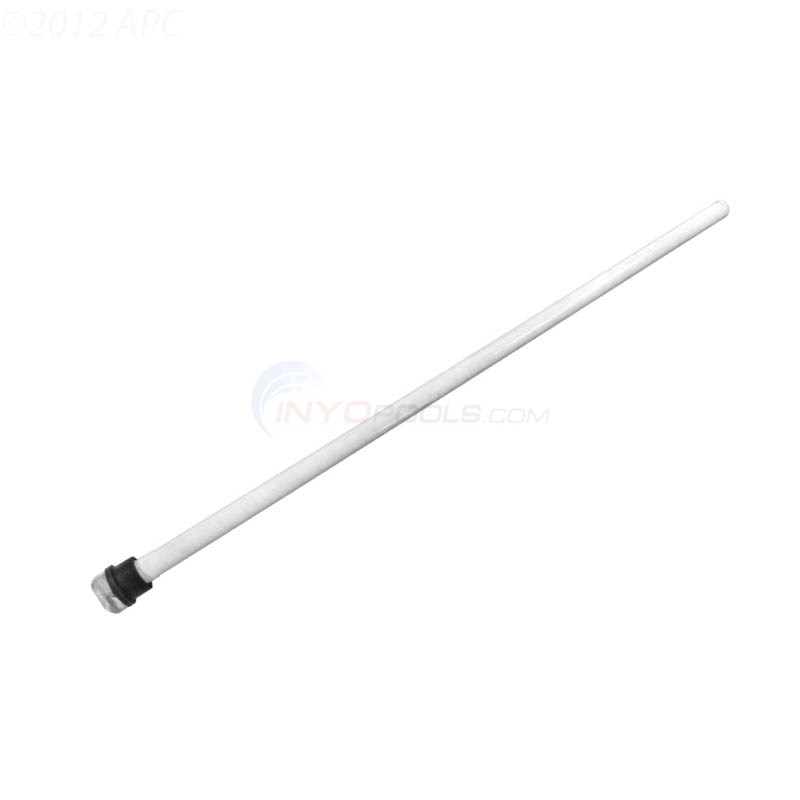

7*** Air Bleed Tube Assy F/420 Sq Ft
Part # 4654-72 Mfg # 170028

Air Bleed Tube Assy F/420 Sq Ft

$47.30 IN STOCK
Qty:
ADD TO CART
** Vent Tube Screen
Part # 190106Z

Vent Tube Screen

$24.59 IN STOCK
Qty:
ADD TO CART
8** Bottom Manifold Filters Manufactured Before 11/1998
Part # 4654-30 Mfg # V38-220

Bottom Manifold Filters Manufactured Before 11/1998

$175.38 IN STOCK
Qty:
ADD TO CART

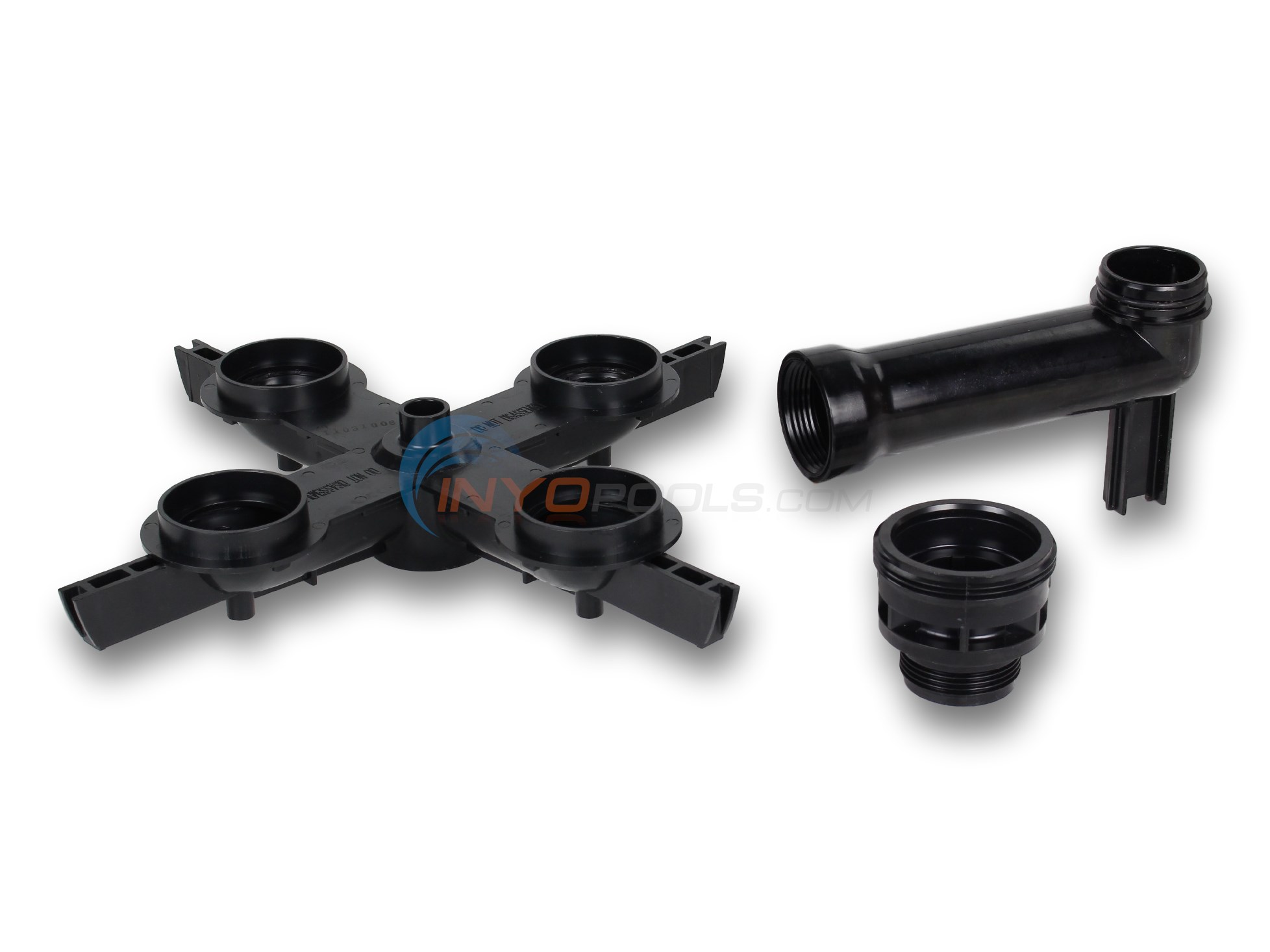

8*** Manifold, Bottom w/ Outlet Pipe (170035) Filters Manufactured Between 11/1998 & 12/2000
Part # 4654-74A Mfg # 170035

Manifold, Bottom w/ Outlet Pipe (170035) Filters Manufactured Between 11/1998 & 12/2000

$191.91 IN STOCK
Qty:
ADD TO CART
8*** Manifold, Bottom (170040) Filters Manufactured After 12/2000
Part # 4601-0040 Mfg # 170040

Manifold, Bottom (170040) Filters Manufactured After 12/2000

$87.84 IN STOCK
Qty:
ADD TO CART
9** GASKET, BOTTOM MANIFOLD
Part # 4654-23 Mfg # V38-221

GASKET, BOTTOM MANIFOLD

$163.11 IN STOCK
Qty:
ADD TO CART
10 Tank Body O-ring (39010200) All Except 3/03-7/03
Part # 4654-42 Mfg # 390102

Tank Body O-ring (39010200) All Except 3/03-7/03

$31.60 IN STOCK
Qty:
ADD TO CART
10 Tank Body O-ring (071439) Manufactured 3/2003 to 7/2003
Part # 4610-38 Mfg # O-333

Tank Body O-ring (071439) Manufactured 3/2003 to 7/2003

$28.99 IN STOCK
Qty:
ADD TO CART
11 CLAMP ASSEMBLY, PT5000/CLEAN & CLEAR
Part # 4600-1016 Mfg # 190003

CLAMP ASSEMBLY, PT5000/CLEAN & CLEAR

$290.00 IN STOCK
Qty:
ADD TO CART
12 WASHER, 18" CLAMP
Part # 4655-43A Mfg # 53006300

WASHER, 18" CLAMP

$14.44 IN STOCK
Qty:
ADD TO CART
12 WASHER, 1" OD, 5/16" ID, 1/8" THICK
Part # 4600-5610 Mfg # 195610

WASHER, 1" OD, 5/16" ID, 1/8" THICK

$30.05 IN STOCK
Qty:
ADD TO CART
13 SPRING BARREL NUT ASSY.
Part # 4654-33 Mfg # 53108900

SPRING BARREL NUT ASSY.

$52.14 IN STOCK
Qty:
ADD TO CART
14** BAFFLE, BULKHEAD ASSY., RPM
Part # 4654-44 Mfg # 55035000

BAFFLE, BULKHEAD ASSY., RPM

$91.68
VIEW DETAILS
14*** BAFFLE, BULKHEAD ASSY
Part # 4654-67 Mfg # 190039

BAFFLE, BULKHEAD ASSY

$139.14 IN STOCK
Qty:
ADD TO CART
15 O-RING (86006900)
Part # 4655-37A Mfg # O-180

O-RING (86006900)

$10.45 IN STOCK
Qty:
ADD TO CART
16** BULKHEAD UNION (SET OF 2) AFTER 1/90
Part # 4654-31 Mfg # 98960311

BULKHEAD UNION (SET OF 2) AFTER 1/90

$101.27 IN STOCK
Qty:
ADD TO CART
16*** ADAPTER KIT, 1 1/2"X2" SLIP
Part # 4600-03 Mfg # 271096

ADAPTER KIT, 1 1/2"X2" SLIP

$76.77 IN STOCK
Qty:
ADD TO CART
16*** BULKHEAD UNION, 1 1/2" X 2" (SET)-BLACK
Part # 4600-0004 Mfg # 270004

BULKHEAD UNION, 1 1/2" X 2" (SET)-BLACK

$82.08 IN STOCK
Qty:
ADD TO CART
16*** PVC ADAPTER KIT - 2" X 2 1/2" BLACK
Part # 4654-59 Mfg # 270100

PVC ADAPTER KIT - 2" X 2 1/2" BLACK

$83.15 IN STOCK
Qty:
ADD TO CART
17** No Longer Available PIPE ASSY Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352023541.htm">4657-33</a>
Mfg # 59019200

No Longer Available PIPE ASSY Replace With 4657-33

NOT AVAILABLE
17*** No Longer Available PIPE Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352021885.htm">4654-74A</a>
Mfg # 170025

No Longer Available PIPE Replace With 4654-74A

NOT AVAILABLE
17** PIPE, INLET ASSY.
Part # 4657-33 Mfg # 59019100

PIPE, INLET ASSY.

$119.41
VIEW DETAILS
17*** MANIFOLD, BOTTOM With OUTLET PIPE
Part # 4654-74A Mfg # 170035

MANIFOLD, BOTTOM With OUTLET PIPE

$191.91 IN STOCK
Qty:
ADD TO CART
18** GASKET, DRAIN CAP
Part # 4650-11 Mfg # 86300500

GASKET, DRAIN CAP

$9.58 IN STOCK
Qty:
ADD TO CART
18*** O-RING
Part # 4656-06 Mfg # 325

O-RING

$8.37 IN STOCK
Qty:
ADD TO CART
19** Drain Cap Assembly, Manufactured Before 11/1998
Part # 4650-14A Mfg # 51516200

Drain Cap Assembly, Manufactured Before 11/1998

$24.56 IN STOCK
Qty:
ADD TO CART
19*** Inspection Plug w/ O-ring, Manufactured After 11/1998
Part # 4650-08 Mfg # 86202000

Inspection Plug w/ O-ring, Manufactured After 11/1998

$21.31 IN STOCK
Qty:
ADD TO CART
* Drain Plug Wrench for 4650-08
Part # 4600-2019 Mfg # 192019

Drain Plug Wrench for 4650-08

$57.59 IN STOCK
Qty:
ADD TO CART
19 Drain Plug/Cap Assy. 1-1/2", Manufactured After 5/21/2005
Part # 4600-0030 Mfg # 190030

Drain Plug/Cap Assy. 1-1/2", Manufactured After 5/21/2005

$27.35 IN STOCK
Qty:
ADD TO CART
22*** Bulkhead O-ring Upper (192320) Manufactured After 11/1998
Part # 4600-2320 Mfg # O-409

Bulkhead O-ring Upper (192320) Manufactured After 11/1998

$8.86 IN STOCK
Qty:
ADD TO CART
22** Bulkhead O-ring Upper & Lower (86006900), Manufactured Before 11/1998 & After 10/2004
Part # 4655-37A Mfg # O-180

Bulkhead O-ring Upper & Lower (86006900), Manufactured Before 11/1998 & After 10/2004

$10.45 IN STOCK
Qty:
ADD TO CART
23 BULKHEAD, 2" WITH GROOVE
Part # 4601-4801 Mfg # 194801

BULKHEAD, 2" WITH GROOVE

$119.07 IN STOCK
Qty:
ADD TO CART
* SS BACK-UP RING
Part # 4600-5339 Mfg # 195339

SS BACK-UP RING

$112.73 IN STOCK
Qty:
ADD TO CART
* Tank Bottom Assy. (after 11/98)
Part # 4654-85 Mfg # 178578

Tank Bottom Assy. (after 11/98)

$506.43 IN STOCK
Qty:
ADD TO CART
* Tank Bottom Assy., (before 11/98)
Part # 4654-84 Mfg # 178559

Tank Bottom Assy., (before 11/98)

$507.50
VIEW DETAILS
* NOT SHOWN
** USED ON FILTERS MANUFACTURED BEFORE 11/98
*** USED ON FILTERS MANUFACTURED AFTER 11/98
