What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
Is this motor self priming?
Reply
Hello, The motor itself is not self-priming. This is an in-ground pool pump motor. The "self-priming" term refers to the pump as a whole as in ground pumps are designed to sit above the water level.
Reply
I have an AO SMITH Max-E-Glas II motorP4EA6G-152L (230A, 2HP, Single phase, CCWPE rotationl, 3450 RPM)
How does the impeller come off - pressed, threaded (LH or RH), etc.? I read the how to of holding the rear of the shaft to keep it from turning which makes me think it is threaded on, but I wanted to ask.
Also, do you have a distributor I can pick this motor up from in Dallas, Texas?
Thanks, Charles
Reply
Charles- The Max-E-Glas II has an impeller screw that has to be taken out, then you would have to unscrew the impeller, which you would have to rotate Counter Clockwise. We do not have any distributors, we are an online only retailer.
Reply
Do you offer/supply/recommend an outdoor timer that can be used to only run pump motors for certain times of day or certain periods of time? I understand you should only run the pump an hour for every 10 degrees above zero during peak periods or full time in freezing weather. Can you shed any light on this?
Thanks for the opportunity to ask questions.
Charles
Reply
Approx how long for delivery to NJ?
Will I need to replace the pool pump shaft seal with this motor?
If so, which one do I get & do you sell that too?
Reply
Will this motor replace a "Centurion for Pac-Fab" 2 hp square faced motor on a Challenger/Pac-Fab No 35-5460 pump?
Reply
Hi Bill, for your Pac-Fab Challenger pump I would suggest the Century B855 2 HP Motor along with a Pac-Fab Challenger Tune Up Kit.
Reply
My motor C48M2PA100 matches in every way except mine has no "capacitor hump" as shown in the photo. Is yours a match? I'd love to have a bad capacitor but I can't turn the impeller by hand so I think my bearings are bad.
Reply
I need to replace an electric motor for a Hayward Pool Pump.
OEM is AO Smith Model K48M2N111 Ser13609FM.
Please advise a pump replacement.
Thanks
Reply
Hi Peter, The replacement motor for your K48M2N111 would be the A.O. Smith 2 H.P Round Flange Up Rate Replacement Motor (UST1202).
Reply
I have a 2HP Pac Fab Challenger Pump with an AO Smith USQ1202. Can I go to a USQ1252 to give it more flow?
Reply
Jim- You most certainly can go up to the A.O. Smith 2 1/2 H.P Square Flange Up Rate Motor (USQ1252, C1284, B884) but you will have to change the impeller and diffuser on your current pump and you will also need to make sure your filter can handle the extra flow based on the GPM.
Reply
Question on a 56Y Square Flange 2 HP B855 Up-Rated A O Smith, 10A 230V
When replacing the motor I have a Black and a Red wire coming from the breaker at 230 volts and of course the green ground. The motor has the following terminals "B", "L1", "L2" which is already internally white wired, and "A" My question is does the black wire go to L1 and the red wire go to the terminal marked "A". I know where the green ground goes.
Thanks,
Doc
Reply
Hi Doc, When wiring the motor for 230 volts, the "black" wire would go "L1" and the "red" on "L2" or vice versa. Confirm that the motor is set for 230 volts. You can also watch our How To Wire A Pool Pump Video.
Reply
Hi I have a two pump spa- one of the pumps seized- it is an A O Smith model k48m2p105... 230 volts 2 speed and 2 1/3 HP 48Y frame. What is closest model to purchase to replace this model? Thanks much- I thought I found a replacement before but it was only 1 speed. Need to buy as soon as practical thanks!
Barry
Reply
Hi Barry, The A.O. Smith 2 HP Square Flange 2-Speed Up Rate Motor would be the correct replacement motor.
Reply
Will this motor match my Sta-Rite MAX-E-PRO 2 HP spa pump? Pump model P6E6G-208L. #'s from my motor are K48N2PA105.
Reply
Hi Steve, The A.O. Smith 2 H.P Square Flange Full Rate Motor (SQ1202) would be the correct replacement motor for the Sta-Rite Max-E-Pro P6E6G-208L. I would also recommend getting the Sta-Rite Max-E-Pro Tune Up Kit (GOKIT79).
Reply
I have to replace my Sta-Rite Max-E motor # P6RA6G-207L. Would this be the correct replacement? I did ask this twice, my email address was incorrect. Thanks.
Reply
Hi Ann, The A.O. Smith 2 H.P. Square Flange Up Rate Motor (USQ1202) would be the correct for the Sta-Rite P6RA6G-207L pump.
Reply
I have to replace a Marathon 5KCR39UUN6190X and believe I need a USQ1202, is that correct?
Reply
In theory yes you can use this motor as a replacement but it is only 230 volt and is a 48 frame. A better match would be the B859/B2859.
Reply
I have this motor but the start capacitor is in the base and not under an external hump. I replaced the capacitor about 6 months ago and it is starting to go bad again. The 220-250 volt cap @161-193 uF won't fit in the base. I installed the 115-125v before with the same uF rating. Is the 115-125v sufficient enough for this motor or is this why the cap went prematurely?
Thank you
Reply
Hi Guy, A 115-125 Volt capacitor would not be sufficient enough to replace a 220-250 Volt Capacitor.
Reply

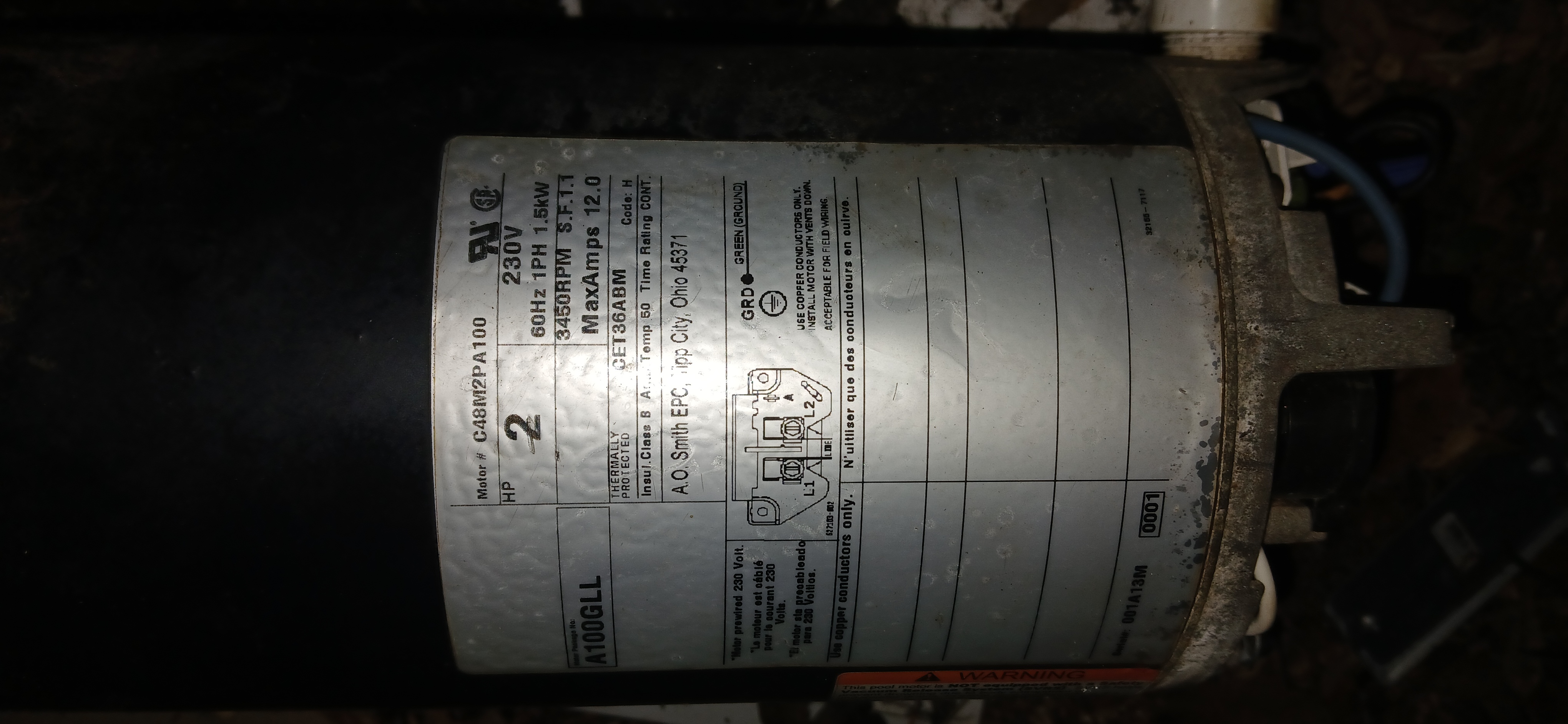

Hi, I currently have a dura-glas 2 model C48M2PA100. Would this be an appropriate replacement?
Reply
Hi Josh, The A.O. Smith 2 H.P. Square Flange Up Rate Motor (USQ1202) is the correct replacement motor for model # C48M2PA100.
Reply
after installing the pump I connected the wires turned the power back on but nothing happened. I was wondering if there is a guard that I should have removed to allow the pump motor to run
Reply
Hi, As long as the motor is wired to the correct voltage it will run, there is not a guard that you will have to remove. Please review our How To: Replace the Motor on Your Pool Pump and How To: Wire a Pool Pump for installation instructions.
Reply
ao smith/max glass ii 230v 2 hp run cap microferrids? under end cover not start cap
Reply
Hi Scott, This motor uses the 20 MFD 370 V Run Capacitor (RD-20-370).
Reply
Hi
I purchased A.O. Smith 2 H.P. Square Flange Up Rate Motor from you and all is good but forgot the shaft seal. So what is the part number for the shaft seal kit for the above pump please..
Reply
Hi Shane, We would need the manufacture and model number of the pump housing in order to locate the correct shaft seal. We can not determine by the motor.
Reply
What would be the deal kit for this pump P6RA6G-207L?
Reply
Hi Shane, The Sta-Rite Max-E-Pro Tune Up Kit (GOKIT79) is the correct Tune Up Kit.
Reply
This shows as a proper replacement motor for my current Marathon Electric motor, but the specs on the Marathon show 56Z as the frame size. What is the difference than 56Z and 48Y as this replacement motor shows? Thanks.
Reply
The diameter of the motor is wider on the 56 frame then the 48. This would mean that the 48 may not rest on the base/stand if there is currently one. You would need to locate a 56 frame version or adjust accordingly with a base/stand.
Reply
I need to replace a sta-rite K48M2PA105 pump. Our electric company prefers a variable speed pump replacement. What would it be? Is it a direct replacement or do modifications need to be made?
Reply
Purchased a rebuilt 2hp A.O. Smith motor. The tech put all the components on the motor, All I did was put it in the housing. Now there is a loud hum coming from the motor. The old one wasn't that loud. Don't know if he missed putting in a part. Thanks for your help.
Reply
Hi Pete normally a loud hum means a bad capacitor, I would have him double check the capacitor to make sure it is good.
Reply
Just bought our house need to buy motor/rebuild kit. Current motor is usq1152 & pump is AR207-L. Question - What seal kit/motor to buy? The 1152 is 1 1/2hp but the pump housing AR207 means 2hp motor, I think. We have the original build sheet and that says they had a 1hp motor installed when new. 1152 is alittle over 10yrs old. Pool has Polaris 5 port caretaker system and is around 25K gallons. Have no problem putting another 1152 on but wondering if I should upgrade to 2hp motor.
Reply
It'll depend on what you have for features, such as a waterfall or suction cleaner and what your filter size is if it'll be able to handle a 2HP motor. The replacement for a 1-1/2HP would be part number SQ1152 and the shaft seal is part number 5056-08. If you want to send me the above information along with the distance in feet from where your pump is to your main drain I can advise you in if you could go with a 2HP motor instead of a 1-1/2HP.
Reply
Hi
I have a STA-RITE MAX-E-PRO pump, model P6E6G-208L. From what I can tell this pump requires a 2 HP motor. In my case there is a 1.5 HP motor installed, Century Centurion 165200-06. I need to replace the motor due to the bearings. Should I order a 2 HP motor or another 1.5 HP motor for this pump model?
Thanks!
Reply
John,You will want to replace your motor with the same one that is currently on your pump. In your case, the part # 165200-06 cross references to a 1,5 full rated motor (B842), but the total horse power on the motor is 2.21. (To calculate your total horse power, you will multiply your horse power rating by your Service factor (SF). Hope this helps.
Reply
Hello, I have a USQ1202 2HP. When you replace the pump, is there other items that should be replaced? ie, gasket etc... My current pump is 7 years old, getting a bit louder and is very hot so time to replace.
Reply
When you replace this motor, we highly recommend that you replace the shaft/pump seal. You will need to identify the make and model of the pump to identify the correct seal that matches your pump. The motor information will not identify the pump and corresponding parts.
Reply
I need a replacement 2 HP motor for Sta-Rite pump model No. MPRA6G-155L with Motor No. C48M2PA100. Motor only. Also need a pump shaft seal. Can you give me price and availability?
Reply
Hello Larry, The motor you are looking for is A.O. Smith 2 H.P. Square Flange Up Rate Motor - USQ1202 and seal kit Tune Up Kit Sta Rite Dyn Glas & Dyna Max - GOKIT47 or Tune Up Kit Sta-Rite Flo Tech/AquaTools/Dyna-Glas - GOKIT44 depending on which model you have.
Reply
I need a replacement motor and seal for Sta-Rite 2 HP pump model No. MPRA6G-155L, Motor No. C48M2PA100. 230V. Can you give me price and delivery
Reply
Hi Larry. The USQ1202 motor is the correct replacement motor for the MPRA6G-155L pump. To view pricing click link UST1202, delivery can take about 3 business days. I will also recommend that you get the Sta-Rite DynGlas & DynaMax Tune Up Kit (GOKIT47).
Reply

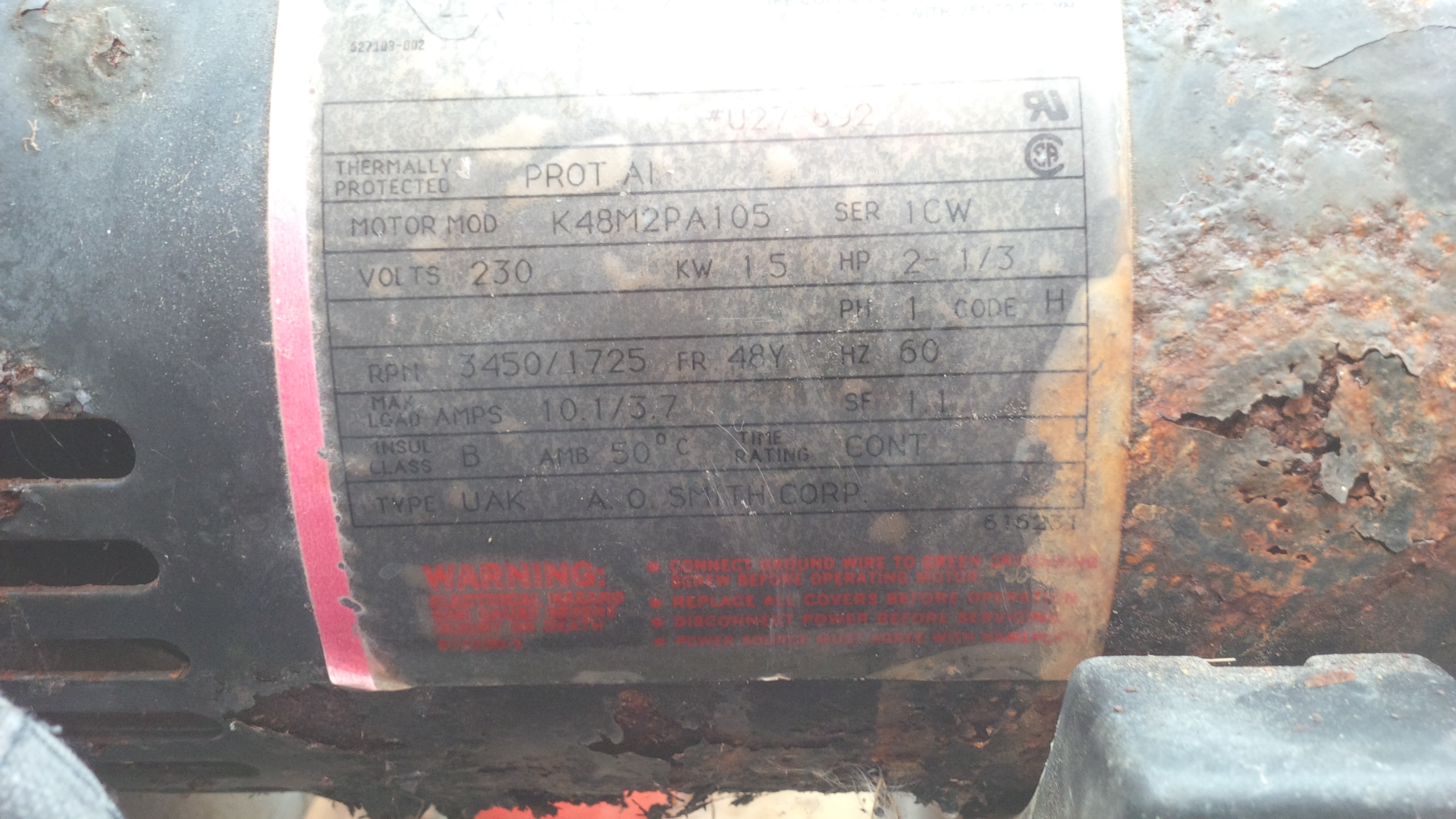

I have the Max E Pro 2hp motor model #K48M2PA105 pump model #P6EA6G-207L. It is going on 11 yrs old and it "sings" sometimes, sometimes not and it leaks slightly sometimes, sometimes not. The paint on the housing shows it runs hot, but it is still working. Should I go ahead and replace before the inevitable and if so, is this the correct motor?
Thanks!
Reply
I have a pentair whisperFlow WFE-28. 2HP 230volt and needing to know what run capacitor I need. Pump hums but won't turn. I can reach down and turn shaft and it will remain running.
Reply
Hello Chris, for USQ1202 the run capacitor is part number 17586320 and start capacitor is part number 610807-011.
Reply
I need a new capacitor on my A.O. Smith pool pump motor
The identification label on the old capacitor states:
CSC P10000 AFC PROTECTED
20UF +/- 6% 370VAC/B 50/60 Hz
40/070/21 P2 SH 0622 A 70 C
325P206H37M25N4X 628318-306
Thanks
Lou
Reply
Hello Lou, your capacitor is Capacitor, Run Rd 20-370 (rd-20-370) part number 5270-07.
Reply
My current motor has burned out and I have changed the capacitor in hopes that it would fix the issue, however it looks like I need a new motor now. I currently have the ST1202. Is there anything else that you suggest I purchase other than the motor? Gaskets, O-rings etc? Do you suggest replacing the impeller also? This is the first pool I have owned, of which came with our new house. It does not appear that the motor has ever been changed since 2003!
Reply
Hello Ryan, I would recommend you replace the seals whenever you change out the motor. You will need to identify the make and model of the pump in order to correctly match the parts you need.
Reply
I need bearings for a A O Smith motor #C48M2PA100. Thanks
Reply
Good afternoon Ron, You are looking for 203 bearing size. Bearing, 203 (62032rs) (Single)
Reply
The motor from my pool pump broke, it was a Franklin Electric model 1105170400 230 V 60 hz hp 2-1/4
RPM 3450 - 1725 what would be a suitable (affordable) replacement. It is 6" in diameter and has a round surface at the front where the four bolts are
Reply
The correct replacement motor is part number 5389X and if you have the pump model I can help you with the correct shaft seal that you will need for the motor installation as well. If you are not aware of that you can attach a picture of the complete pump and I can identify it for you.
Reply
My pump is a Max E Pro with a 2 HP K48M2PA105C3 motor. Which motor would I use as a replacement?
Reply
Hi, Terry S. The USQ1202 is the correct replacement for MOD # K48M2PA105C3. I would also recommend that you get the Sta-Rite Max-E-Pro Tune Up Kit - GOKIT79 which includes the pump shaft seal and all of the o-rings for the Max-E-Pro pump.
Reply
My pump's motor has seized (circuit breaker keeps tripping and motor was whining for several months). It's a STA-RITE "Dyna Glass" model C48M2PA100, it seems the part you sell USQ1202 is a compatible replacement, can you confirm? Haven't yet taken the old motor off but notice your picture the end of the shaft seems round/threaded - not sure how that is meant to connect to the pump mechanism (I was expecting to see some form of keyed shaft).
Reply
Presently have a AO Smith 1152 1.5 HP square faced 48Y pool pump motor on Pentair Pump will your 2 HP motor work the same??? or do I have to use same motor??
Thx Alec
Reply
Hello Alec- We would recommend using the same horsepower replacement motor. When considering increasing the horsepower, you would want to view the pool pump parts list specific to your pump. What you would need to know is if you would need to upgrade the impeller and//or diffuser sizes to accommodate the higher horsepower motor.
Reply
I have a Jandy PHPM2.0 Pump (post2006). It had a 2.0hp ao smith single speed pump, which I replaced with a two speed pump (digital controller onboard) from your store. I have gone through 3 of the 2speed pumps under failure under warranty due to moisture collection inside the digital controller. I want to replace with a 2hp single speed pump. What model# is compatible? I will also order a new seal R0479400. Please advise. Many thanks.
Reply
Hi I just bought a :A.O. Smith 2 H.P. Square Flange Up Rate Motor - USQ1202, I want to make sure that will replace a Pent air Challenger Motor number 196246
Thanks
Reply
Hello Jose- Can you verify the model of the pump? Based off the number you provided 196246 it pulls up an A.O. Smith 1.5 HP, 56Y Frame, Up-Rate Motor (b2854, 717721624).
Reply
Which seal kit is used for a K48m2pa105c5 replacement motor
Reply
Hello- Unfortunately, the seal kit is not determined by the motor, we would need to know the model of your pump to identify your shaft seal.
Reply
I just placed an order for Centurion motor # 7-168454-24. The representative suggested/ordered and the confirmation page says Item # USQ1202. Are they a direct replacement and will it work or do I need any other gasket with it?
Reply
Hi, AP. The USQ1202 motor can be used to replace p/n 7-168454-24. The frame size will be a little smaller but it will mount to your existing pump. We do recommend replacing the gaskets but we will need to know the pump model.
Reply
WHAT is the length of warranty on your pool pump motors I noticed on your website you don't show that? Please reply thank you you can reply to my email extreme clean OC at gmail.com
Reply
Hello, our motors have a one year warranty unless otherwise specified on the description/details.
Reply
I need a motor to hook up with Jandy Stealth pump SHPF2.0. I currently have A.O.Smith Century Centurion part 7-1939995-07. Will this piece replace that? What pump seal kit do I also need? Thanks!
Reply
The correct replacement motor is part number B843, as for the seal kit, for that particular pump I will need the serial number to find the correct shaft seal.
Reply
will this motor replace my whisperflo, pentair
Reply
Yes, that will attach to your Pentair Whisperflo. If you have a part or model number I can confirm that is the direct replacement motor that you need.
Reply
Is the SQ1202 the right pump for a Sta-Rite MAX-E-PRO (P6E6G-208L)?
Reply
Yes for the Max-E-Pro P6E6G-208L you will require the SQ1202 2 HP Full Rate Replacement Motor, when replacing your motor we always suggest a Sta-Rite Max-E-Pro Tune Up Kit. You may want to check out our Video on How to Replace a Pool Motor which you may find helpful during your motor swap out.
Reply
I have a AO Smith, Century Centurion, 170 hp, which is about 15 years old. It will not draw the water out of the pool...anymore. This is a waterfall pond and the pump is about 6 feet above the water level, and just won't create enough suck....to get the flow going. Do all AO Smith pumps of this style have the same connections, and can I get a bigger pump?
Reply
Hi, Bob. Unfortunately, not all motors are the same. I will need to know your pump's model and the motor Part, Cat or Mod number. If the motor shaft is rotating then the issue may not be the motor but another issue.
Reply
can i use this motor in replace of my Pentair wfds-28.
Reply
Hi, Scott. You can use this Century USQ1202 or the B855 motor as a single speed replacement. When replacing the motor it's recommended that you also replace the pump seal and o-rings, GOKIT32 or GOKIT32SALT.
Reply
My pool pump is "Franklin Electric" model 1103125403 which looks almost same as your USQ1202. Are they compatible for replacement? I can accept 230V only. All spec almost the same except frame size, mine is 56 instead of 48Y. Please reply as soon as possible. By the way, can you supply flange seal also?
Reply
Hi, Jack. In order to confirm that the USQ11202 is the correct replacement, I will need a picture of the motor label or the pump model number. The 56Y and 48Y frame motors are interchangeable. The pump seal is specific to the pump housing, not the motor.
Reply
which impeller do I use with dura-glas with this motor
Reply
Hi Keith, here is the 2 HP Dura Glas Impeller used with this pump. If you have a Dura Glas II you will require this Sta Rite Dura Glas II 2 HP Impeller.
Reply
Replacing a 1 1/2 HP Dayton 4RJ94 230 volt pool pump motor. A O Smith's name is on the name plate. This motor looks similar to my present pump. Will this motor replace the one I am using now? Thanks, Hugh
Reply
Hi, Hugh. If you can provide the motor's MOD or PART number we can confirm if this is the correct replacement motor.
Reply
I currently have a STA-RITE motor model C48M2PA100, H.P. 2.0, VOLTS 230, and pump Model No. P6RA6G-207L.
I need to replace and would like to know which ones I can replace with. This also runs a waterfall. I would like an energy efficient model. If I change to some other type, will the wiring be the same as this one. I plan on changing it myself. Also please recommend what other parts I will need. Thank You.
Reply
Hi, I am looking at replacing my current pool pump. This pump appears to be very similar except with the following:
My pump Motor Mod ends with a C4 not a C5
My pump Max Load Amps is 11.2 and the SF is 1.3. Mine was manufactured by A.O.Smith Corp. Everything else is exactly the same.
Will this USQ1202 be the proper replacement for my SQ1202?
Thank you, Tim
Reply
Is the SQ1202 the right pump for a Sta-Rite MAX-E-PRO (P6RA6G-207L)?
Reply
The USQ1202 is the proper replacement motor for the P6RA6G-207L Max E Pro Pump and not the SQ1202. The P6RA6G-207L is a 2 HP up rate pump which means the USQ1202 is the correct replacement motor.
Reply
I have a Sta - Rite pump, Model MSF 6MS1, 2 HP, 230 volts. Do you have a replacement motor for this pump?
Reply
Hi, Jerry. Unfortunately, we do not sell replacement motor for the Sta-Rite MSF pumps.
Reply
Will this motor work as a replacement on my Sta-Rite 2.5HP MPEA 6YG-207L?
Reply
Hi, Paul. This Century USQ1202 motor will work with the MPEA6YG-207L pump if you're still using the original Impeller - C105-236PDA which is for a 2HP pump.
Reply
My A.O. Smith k48m2n110b3 (?SER: 35507FM) motor has seized, but for the life of me, I can't find the appropriate replacement.
Reply
Hi. The replacement motor based on that model # is the Century ST1152 Motor.
Reply
I'm looking for a replacement pump for a Sta Rite Maxiglas II pump mod#P4E6G189L and accompanying O ring gasket kit. My diffuser has slits in it. I'm replacing the straining basket too. I was wondering which pump fits my needs. Thanks
Reply
Is the usq1202 the same as the sq1202 motor ? Everything is identical except your motor is like 10 amps where the one I have is 11.2 amps, is that a concern ?
Thank you...Ken
Reply
Ken, They are not the same motor. The USQ1202 is an up rated motor and the SQ1202 is a full rated motor. In short, the SQ1202 is a stronger motor. When trying to find a replacement motor, you must take the S.F (service factor) into consideration.
Reply
I have a TriStar Hayward Pump and the pool motor went bad. I am looking to replace it and the current Century pool pump has the following: FR: Y56Y; Type: CXCP; HP: 1.5/.19; SF: 1.23; Code K; RPM: 3450/1725; Volts: 208-230; HZ: 60; Insul Class: F; PH: 1; Encl: ODP; Amps: SF 8.5/1.5; Amb: 60 Degrees Celcius; Time: CONT; Form: KJM. The original Part #7-K56AA23A04-05; Serial#: 14413J2. It's a 2 speed. Do you know the exact replacement part and the salt water ring kit? Thank you.
Reply
Hi, Collin. The replacement motor is Part # SPX3210Z2MER and Pump Seal - PS-4280 based on the info provided.
Reply

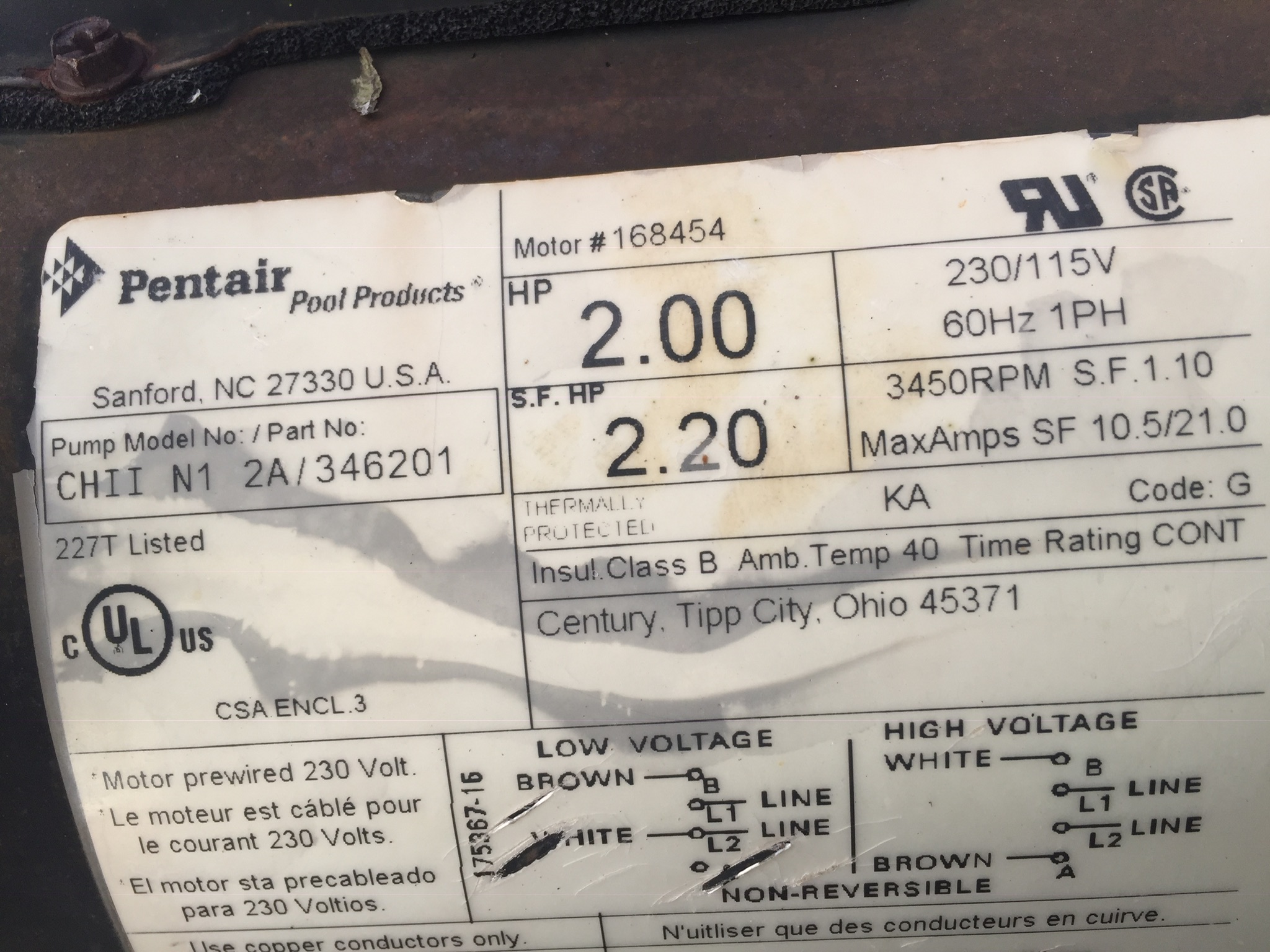

I have a Pentair Challenger (CHII N1 2A/346201). The AO Smith USQ1202 looks like it will fit. Can you confirm? Also, Can you recommend the appropriate seal kit?
Reply
Hi, Steve in Texas. The USQ1202 motor will fit the CHII N1 2A/346201 pump. You will also need the Challenger Pump (CH Series) Tune Up Kit - GOKIT5.
Reply
I need the replacement bearings for a USQ1202 motor. The pump is a Whisperflo WFE-28 2hp.
Reply
Hi, Mario. You can use this USQ1202 or the B859 motor as a replacement for the WFE-28 pump. You'll also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I have a Sta-Rite pump Model # P4RA6G-152L. The 2 HP motor (SF 1.1) needs to be replaced. Can you recommend the correct motor and Go-Kit for my application?
Reply
Hi, Tom. This USQ1202 motor is the correct replacement, you will also need the Sta-Rite P4E & P4EA Tune Up Kit - GOKIT38.
Reply
Is this motor USQ1202 the same as SQ1202? And are there rotation directions specific to these motors? Are they the same or do they opposite rotation?
Reply
Hi. This USQ1202 motor is the not the same as the SQ1202 motors but they have the same rotation. The total horsepower of the motor.are different.
Reply
Hello,
I have a Pentair Challenger high performance 2hp model 346201 I want to replace the motor on. I am looking for a single speed, HIGH EFFICIENCY motor. Would this motor work on my pump and do I have any other options?
Thank you.
Reply

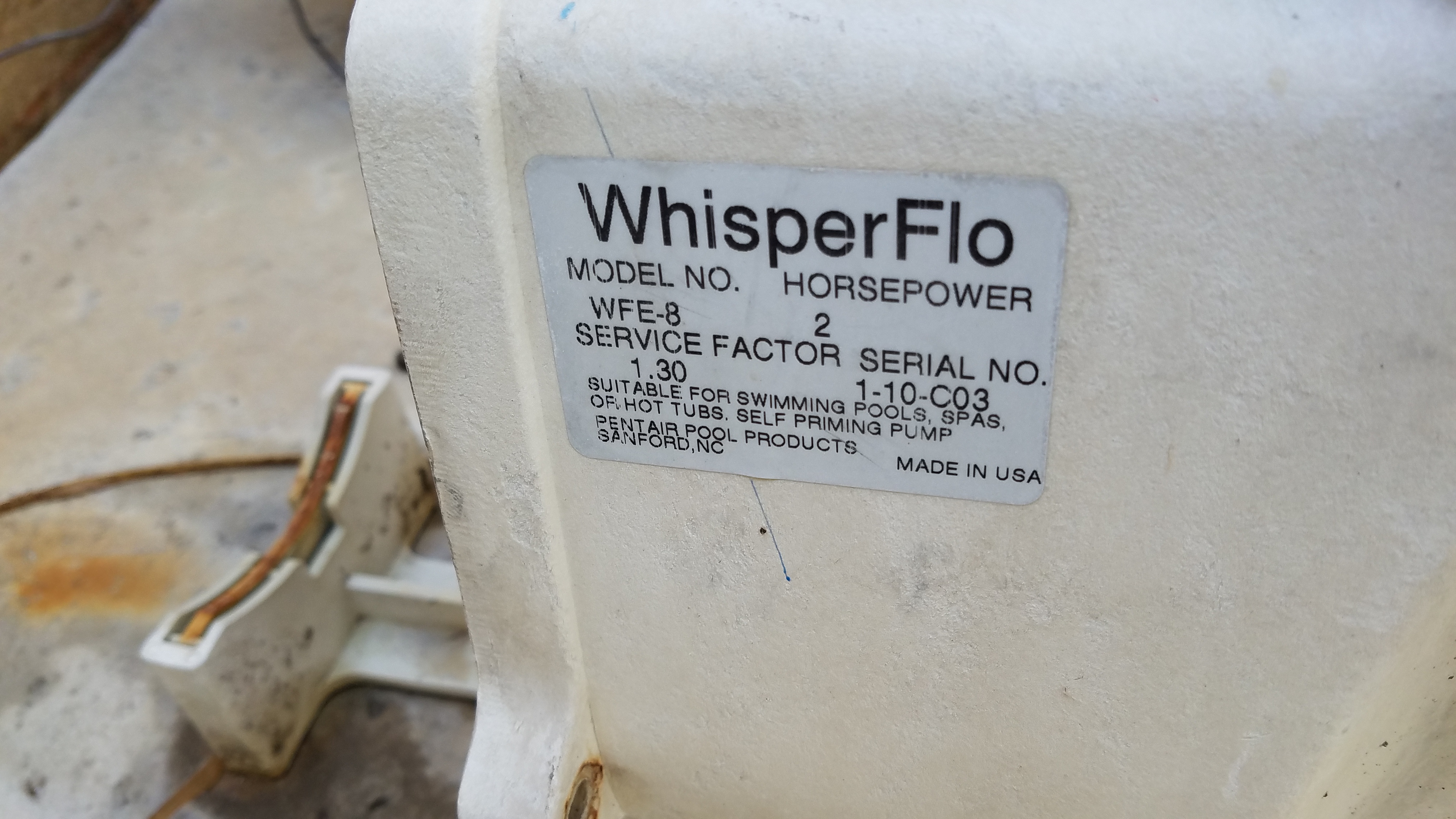

I need to replace the pump motor on a Pentair WFE-28 2 HP.
Is this the correct replacement: A.O. Smith 2 H.P. Square Flange Up Rate Motor - USQ1202
and tune-up kit: GOKIT32
Thank you for your help.
Reply
Hi, Bob. Yes, you can use this USQ1202 (48Y-FR) or the B859 (56Y-FR) with the Whisperflo - WF-28 along with GOKIT32 or GOKIT32SALT.
Reply

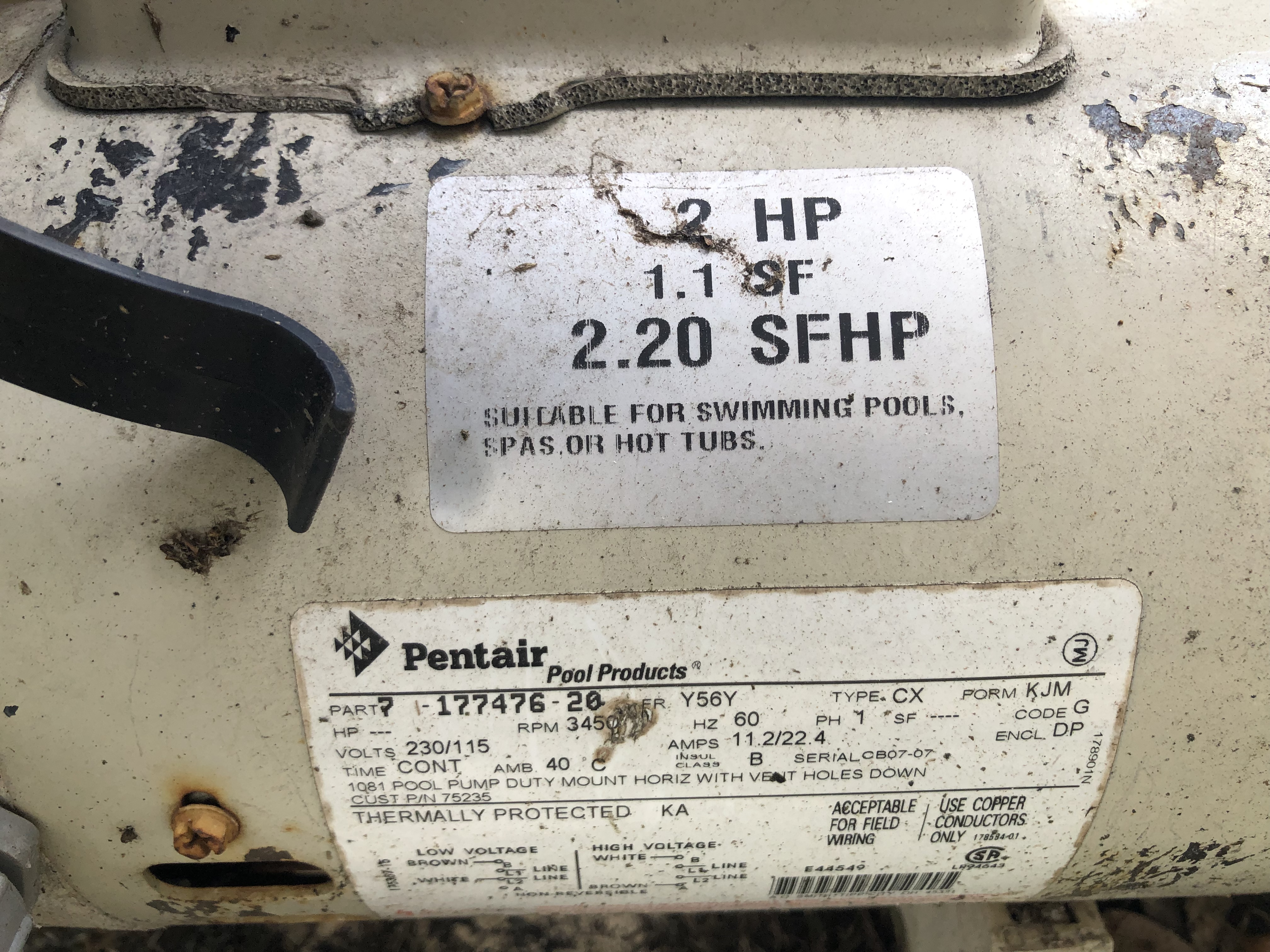

the motor that I am replacing says Type CX. Is this compatible?
Reply
Hi, Amando. This motor which is a Type UAK can be used to replace a motor that is a Type CX. You want to make use that the HP, SF and FR are a match.
Reply
What would be the part numbers for the impeller, plate, and diffuser for this motor
Reply
To find those parts Do you have information on the front half of your pump? I would need the manufacturer and model which is usually located on a sticker or plate on the plastic housing of the pump. https://www.inyopools.com/Blog/pool-parts-101-the-difference-between-a-pump-and-a-motor
Reply
Is this a high head pump or medium head? Thanks in advance.
Reply
Hi, Kyle. This is just a motor, the pump makes up the unit that the motor mounts to. The Pump Head type is based on the pump not the motor.
Reply
Does this USQ1202 motor come with the Water Slinger (part # 17351-0009)?
Reply
Hello Greg- Yes the A.O. Smith 2 H.P. Square Flange Up Rate Motor - USQ1202 does come with a water slinger.
Reply
Does this motor fit with model number SP3210Z1M
Reply
Hi. This USQ1202 motor can, however, the SPX3210Z1BER will be the direct replacement.
Reply
Will this motor fit my Hayward SP2715X20UN Pump?
Reply
Hi, Ken. Yes, this USQ1202 Motor will fit the Hayward SP2715X20UN Pump. You will also need to replace the pump shaft seal and o-rings, they are listed on the Hayward MaxFlo II Pump Parts Diagram.
Reply
Will the A.O. Smith 2 H.P. Square Flange Up Rate Motor - USQ1202 replace my broken Emerson CAT NO. ESQ1202 Model T55CXCJJ-1344 2HP Frame 48Y 230VAC motor? What seals or other parts should I get when replacing the motor?
Reply
The seals and gaskets are based on the pump housing model name or number that the motor bolts to. You can call in with that information or send us a few images of that housing to upload@inyopools.com so we can identify that for you.
Reply
My pump motor is A.O.Smith C48M2PA100. Amps 12.0 ,Code H,Class B,KW,1.5
Everything else about your motor is the same. Will this motor work for me?
Reply
Hi, would this motor fit my pentair challenger pump. My motor just died and am looking for a replacement that will fit.
Thanks
Zane
Reply
Hi, Zane. This style of motor is compatible with the Pentair Challenger pump. You will need to confirm the motor specifications to determine the correct replacement.
Reply
I am replacing a STA-RITE MAX-E PRO model # 196251 Pump Model No. P6RA6G-207L. is this AO smith compatible? The dimensions are off quite a bit.
Will this fasten directly to my existing pump? I'm unable to find any identification on the pump, but can send pictures.
What other gaskets etc will I need to make the change out go smoothly?
Reply
I purchased this motor to replace the one that runs my pool fountains. Everything fires right up and I can hear the motor running but nothing is coming out of the fountains. I've also replaced the impeller and all seals. When I look at the counter clockwise rotation of the impeller I feel that it may be backwards. Could that be the case and is there a way to reverse it on this motor?
Reply
Hi, Cory. If the motor is rotating counterclockwise from the impeller side, that is correct. Check out Inyo's How To Determine Why a Pool Pump Won't Prime, and How To Prime a Pool Pump guides to troubleshoot this issue.
Reply
Hi,
I have a Marathon C1247 that I am replacing. Was thinking about going to a 2 - speed motor. Would the Marathon C1313 be a good replacement or is there another you would recommend?
Reply
I am replacing AO Smith Part 7-177451-03 seial#BX7-29. type CX, FR: Y56Y volts 208-230 amps 9.6-8.8ENCL:DP form KJM. Is this the correct replacement part and will I need anything else?
Reply
Hi, Tom. This USQ1202 can be used as an alternate replacement, however, the B2842 is the correct and direct replacement. You will also need to replace the pump shaft seal, you can reference our How To Find The Correct Pool Pump Shaft Seal For Your Pool Blog for info.
Reply
I am replacing AO Smith Part 7-177451-03 seial#BX7-29. type CX, FR: Y56Y volts 208-230 amps 9.6-8.8ENCL:DP form KJM. Is this the correct replacement part and will I need anything else?
Reply
I have a STA-RITE motor #C48M2PA100 is this a correct motor replacement?
Also how long to ship I'm in Massachusetts ?
Thanks
Greg
Reply
Yes, that is the correct motor. Please do not forget the Pool Pump Shaft Seals If you need assistance with the seal, please call our office with the model number of the pump, not the motor. The motor should arrive in approximately, 1-3 business days. All orders received after 1:00pm Eastern will process the following business day (Monday-Friday).
Reply
Is this the right motor for a pentair superflow model number 177451
Serial 0340229120017z
Reply
Hi there,
I have K48N2PA102A2 which is SQ1202 in new numbering/catalog number you have. I need the plastic piece where the power is connected to the motor (line 1 and Line 2 come into the motor). Where do I get one? Can I buy one from you? Alternatively I am thinking to bypass that and connect the lines directly [the pump is old and that white plastic piece where the lines are connect is broken). Thanks.
Prompt response is appreciated.
Reply
Hi, Moh. That model motor can use either the Terminal Board w/ Voltage Selector - 628401-001 or Terminal Board - 626536-001.
Reply
Looking for a repalcement pool pump for my Jandy Stealth Model # SHPF2.0 Pump. It appears my existing one is dead. I replaced the capacitor about 7 months ago and now it will not start at all. No humming noice either. The break popped. I did reset it but still nothing.
Reply
Can I replace a Pentair Whisper Flo motor with the following specs with this AO Smith motor?
The Pentair specs are: 2 HP, Square Flange, Volts- 230/115, RPM 3450, Cust P/N 75235, Fr = Y56Y, Type CX, Form KJM,
Code G. Thanks
Reply
Hi, Dennis. Yes, you can use this USQ1202 (48Y) or B2859 (56Y) motors as a replacement for P/N 75235. The Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT is required.
Reply
Which shaft seals do I need for this motor? I am replacing a c48m2pa100 motor.
Reply
Hi, Brad. In order to locate the shaft seal, I will need to know the make and model of the pump housing that this motor operates. If you're unable to locate the housing model info, pictures of the housing will work.
Reply
I was wondering I have the model number 177476 wf-28 pentair motor 2hp, what other options do you have that would fit. Thanks Lisa Box
Reply
Hi, Lisa. You can use the B2859 or the B2855 motor as replacements. You will also need to get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
Will this pump be a direct replacement for mine. I have added 1 photo of the label on the pump and also a photo showing
what the pump is married to.
Thanks Jeff
Hi, Jeff. This is not the correct replacement motor, you will need the B2843 along with the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
My old motor matches everything here...except the SF on mine is 1.3 and this one is 1.1.
Is one with exactly my specs available?
My ORIGINAL Specs: Sta-Rite Max-E-glass ll, 2HP, 10.4 amp, SF 1.3, 230Volt, 48Y frame. Square flange
I also will need the O-ring kit and ceramic seal with spring for attachment to the pump.
Thanks. Your response is appreciated.
I presume my email will remain private
Reply
I just bought this usq1202 from you. The wiring from my box is red, blue, green. Does the red go to L1 and blue to L2?
Also I bought a gasket kit for you. I thought it had the square gasket thought goes on square pump motor side but it does not. My old 2hp century did not have a gasket so it one necessary here?
Reply
Hi, Jim. The wiring you suggested will work since the motor is only capable of being wired for 230 volts. As for the gasket, if one was not included in the kit, its not required for your model pump.
Reply
I have a Jandy SHPM2.0 filter pump with a USQ1202 motor and the motor just seized up recently. I took the motor apart and found the plastic fan melted and the front bearing seize. Since I'm going to replace the motor, I was curious if the USQ1202 is the best motor to use or if there is a better motor available that would be a direct replacement.
Reply
Hello I have an dyna tech c1320 2-horsepower up-rated round flange(3 year old) that needs to be replace, which other motor would you suggest
Reply
Hello, Can you please send a picture of the motor label?
Reply
Good evening. Will this motor fit a Jandy Stealth pump? Currently have a A.O. Smith M48AA66D58 mounted on the pump which is a variable. Wanting to get rid of it due to not impressed with the Jandy electronic junk. If this or comparable pump would work would be great. Thank you.
Reply
What is your return policy and how many business days is in ground shipping?
Thanks.
Reply
Hi, Albert. Use this link to view our Return Policy and motors are guaranteed by the 3rd business day. For more details view our Guaranteed Delivery in 3 Days Details.
Reply
Hello Mr. Smith! I believe I have a US Motors (model # T55CXCJJ-1344) - Old Cat. # ESQ1202 --- Is USQ1202 the replacement? Just wanna be sure before I purchase. Thanks!
Reply
Hello, This will be the motor replacement you will need for your pump.http://www.inyopools.com/Products/00200017003516.htm
Reply
I HAVE Sta Rite pool pump model #K48K2PA10501 HP/3/4 , AND I WANT TO REPLACE THE MOTOR WITH A 2 H/P MOTOR IS THERE ONE AVAILABLE THAT I COULD REPLACE IT WITH.
PLEASE ADVISE
Reply
Hi, Otto. You can replace your 3/4 HP K48K2PA105 motor with this USQ1202 2 HP motor. However, in order to increase your water flow, you will need to replace the impeller, diffuser and any other pump components required and make sure your filter is large enough.
Reply
Looking for replacement of
US Motors 2hp, 230v, cat ESQ1202, Model T55CXCJJ-1344
1081 pool motor
‘square’ flange, although a little rounded.
Reply
do you have the part number for the diffuser that fits model K48M2PA105C5
These diffusers are actually based on the model of the front pump housing that the motors are bolted to. Please either call us with that information and or you can email us a few images of the housing to upload@inyopools.com so we can assist you with that.
Reply
does this replacement part come with the seals and orings
Reply
These motors do not come with the seals and gaskets aside from the water slinger. If you can provide the model name or number of the front pump housing that the motor bolts to then we can locate those seals and gaskets for you. If you cannot locate that model information please email images of that housing to upload@inyopools.com so we can identify it for you.
Reply
does this replacement motor come with the seals and orings
Reply
It includes the water slinger, but no other parts as far as a shaft seal or o-ring kits. Please provide the model number of the pump, not the motor to identify proper seals.
Reply
We were told by our pool maintenance team to go from a 1 HP (C48K2PA105C5) to a 2 HP motor. This looks to be a good option for our new motor. Is that correct/ will this work?
Reply
This is a 2hp motor from what you currently have, but we would not be able to calculate and confirm if your system is compatible to double in strength. If you are already working with a pool contractor then we would advise to confirm all of your pool and system variables to make sure it can handle that increase.
Reply
My pump gums and then trips the breaker. I noticed an oily sheen on the casing and wonder if The motor has quit. What replacement motor can I use with a K48M2P104.
Hi. This USQ1202 motor is the correct replacement.
Reply
Will I require any additional supplies to unbolt the old motor and install the the new SQ model?
Reply
No special supplies are needed to unbolt the motor. We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
Will this 2.0 work with the Flotec AT251501. The motor is going out. Pump is good.
Reply
After 18 solid years of service, my A.O. Smith motor (K48M2PA105) is starting to overheat, causing it to run intermittently. Is this Century USQ1202 a direct replacement? Do I need to replace any other parts on the pump side when I swap the new motor for the old? Please see attached photos of the label and motor. Thanks. Bill
Hello,Thank you for contacting Inyo Pools. The motor you need is the USQ1202 and you will need the GOKIT38 for your Dura-glass II pump.
Reply
I want to replace my pool motor which is 1 hp with one that is 2 hp. Is the motor I have picked here the correct one to replace mine which is pictured below.
Hello, We recommend checking the Max gpm your filter can handle before going up in horsepower. You will also need to change the impeller to match the HP on the pump.
Reply
I need to replace a motor model K48M2PA105?? (can't tell for sure last two digits, maybe O6) can you supply that motor? Frame 48Y single phase
Reply
If the complete model number provided is right, the USQ1202 is the correct replacement motor. You may also try attempting to match the amps, Frame, RPMs, HP, and Service Factor to confirm the match.
Reply
Does this replace the 1 1/2 H.P. square flange Mod #C48L2N134C1 Ser.# 02508FM also an AO Smith Corp W/ 5 1/2" from center of hole across top & down side
Reply
Trying to pair up these motors. Is there something newer and compatible?
Hello, These will be the replacement motors you will need ,http://www.inyopools.com/Products/03000017039420.htmhttp://www.inyopools.com/Products/03000017039420.htm
Reply
I am trying to replace my Hayward motor (SP3214Z1M). Is this compatible?
Reply
Not sure what Hayward pump this is that number does not come up in our system, Photo? hayward.com 1-888-Hayward
Reply
That number is not a good number, do you have a picture of the rating plate on the motor?
Reply
I need to replace my Century Pool & Spa motor 1081 Pool Pump Duty put in by Hayward
2 speed
HP =1.95 Type: CXPM FR: X56J Volts 230. Amps: SF8 9/3.1
Part# 7-177062-05
Can you help me find the replacement motor?
Reply
I have a Pentair challenger w 1 1/2 ao smith motor. 20000 gall pool w hot tub. Any negatives to upgrade to a 2hp? 48y
Hard to read ser# but it looks like (k?)48m2pa104a2
I installed a Inyo AO Smith USQ1202 on my irrigation pump just August 2014. It seems to be bad already. Is that possible?
Reply
Unfortunately, it is possible. If a seal fails causing corrosion, power surges, insects or even weathering can cause a motor to fail earlier than expected.
Reply
Hello -- Trying to find replacement electric motor for 2HP Pentair DS3 Pump with electric motor p/n J218-883APKG.
I'm thinking USQ1202 might be a suitable choice to replace. Thank you.
Reply
Does this motor replace A100GHL STA RITE 2 HP ?
Reply
Will this work to replace this motor? Is it an issue to increase HP? Is there a 1HP option?
I have a Pentair 011774 and the motor has died. Can I use this replacement motor on this model? Thank you!
Reply
Hi, Yvette B. Yes, this USQ1202 motor or the B855 motor can be used as a replacement. You will also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I need a replacement Century 2hp motor for my Hayward pool pump (model # SPX3215X20Z1PE). I've attached the photo of the motor tag. I will also need the seal and gaskets go kit. Can you direct me to the correct replacement parts.
Thank you.
whats the difference in a 2 hp 48Y @ a 56Y square pool pump motor?
Reply
Hello Robert, Here is a blog that will help answer this question. What Does My Pump Motor’s Frame (FR) Rating Mean?
Reply
Hi, There! I am trying to find a motor to replace my K48M2PA105 motor for Sta-Rite Max-E-Pro Series Pump of my pool. Is this the right motor? Thank you!
Reply
Hi, is this the correct Motor replacement (USQ1202)? I can't read the Sta-Rite model number clearly, but could you recommend the correct tuneup kit? Thanks!
what is correct replacement motor for hayward maxflo11 193e self priming csa enclosure 3 nsf sp2700z1[d] set up on 220 volts
aosmith model k48a76a04 sm34910fm hp 2.0 tor cwle volt 115/208-230 rpm 3450 amp 17.2/9.4-8.6 hz60 sf 1.05 fr48y ph1 therm prof gb2egs3832 amb 50c encl odp type k duty cont code h insl b sp2715z1me ass mexico
Reply
Hi, Monty. This USQ1202 or the SPX2715Z1ME are replacement options.
Reply
what go kit for usq1202 to mate up with hayward max-flo 11 pump
Reply
Hi, Monty. There is not a kit available for your pump, the parts will have to be purchased individually. They're all listed on the Hayward MaxFlo II SP2700X Series Parts Diagram.
Reply
I’m looking for the most energy efficient replacement motor for my stay rite ultra flow pump. Any recommendations?
Hi, Jonathan. Here are your options based on your existing motor, B2843 (Single-Speed), B2984 (Dual-Speed) and ECM27SQU (Variable-Speed). You will also need the Ultra Flow Tune Up Kit - GOKIT20.
Reply
Hi. Those motors have a different mounting configuration than my current 48y. My stay rite pump has a black housing an impeller.
Hi Jonathan, If you take a look at this Parts Diagram for the Ultra Flo Pool Pump you can see that the mounting configuration of your motor is actually square. Key #1 called the seal plate removes from the motor and then you can see that the actual motor does have a square flange.
Reply
I have a 2hp Sta-Rite pump that needs a new motor can you tell me what I need? I've attached 2 pictures.
Hi Richard this USQ1202 motor is the proper replacement motor for your 2 HP Max E Pro Pump, you will also need this Max E Pro Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need to replace pump k48m2n111, frame number 56j, which appears to have a square flange, as shown in attached photo. what is replacement motor ? Thx
Hi Steve, the replacement motor for your motor model k48m2n111 is UST1202. It is actually a round flange because this motor is attached to a plastic flange which is square. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Can I get this motor, USQ1201, shipped to California if it is going to be used for a single purpose (sheer descent) use only?
Reply
Odis, Unfortunately, due to Title 20, this pump can't be shipped to California.
Reply
I am looking to replace my 2 HP motor on I believe my StaRite Max-E Pro (Model P6E6G-208L) on my spa. Is this the correct pump or can you tell me the correct one. See pictures attached
Hi Armando, This is NOT the correct replacement motor for the motor included in your photo. You will require this SQ1202 2 HP Replacement Motor You will also need this Sta-Rite Max E Pro Seal Kit. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I require a replacement motor and tube up kit for my Hayward super pump model#k48m2n111 square flange.
What are the proper parts?
Hi Michelle, You will require this UST1202 2 HP Replacement Motor for the motor included in your photo. You will also need a Hayward Super Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will Century 2.0 HP USQ1202 replace Century/Centurion 0-193995-07 Serial#22711CH
Hi Brent, the correct single speed replacement motor for your motor part number 193995 is the B2843. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply

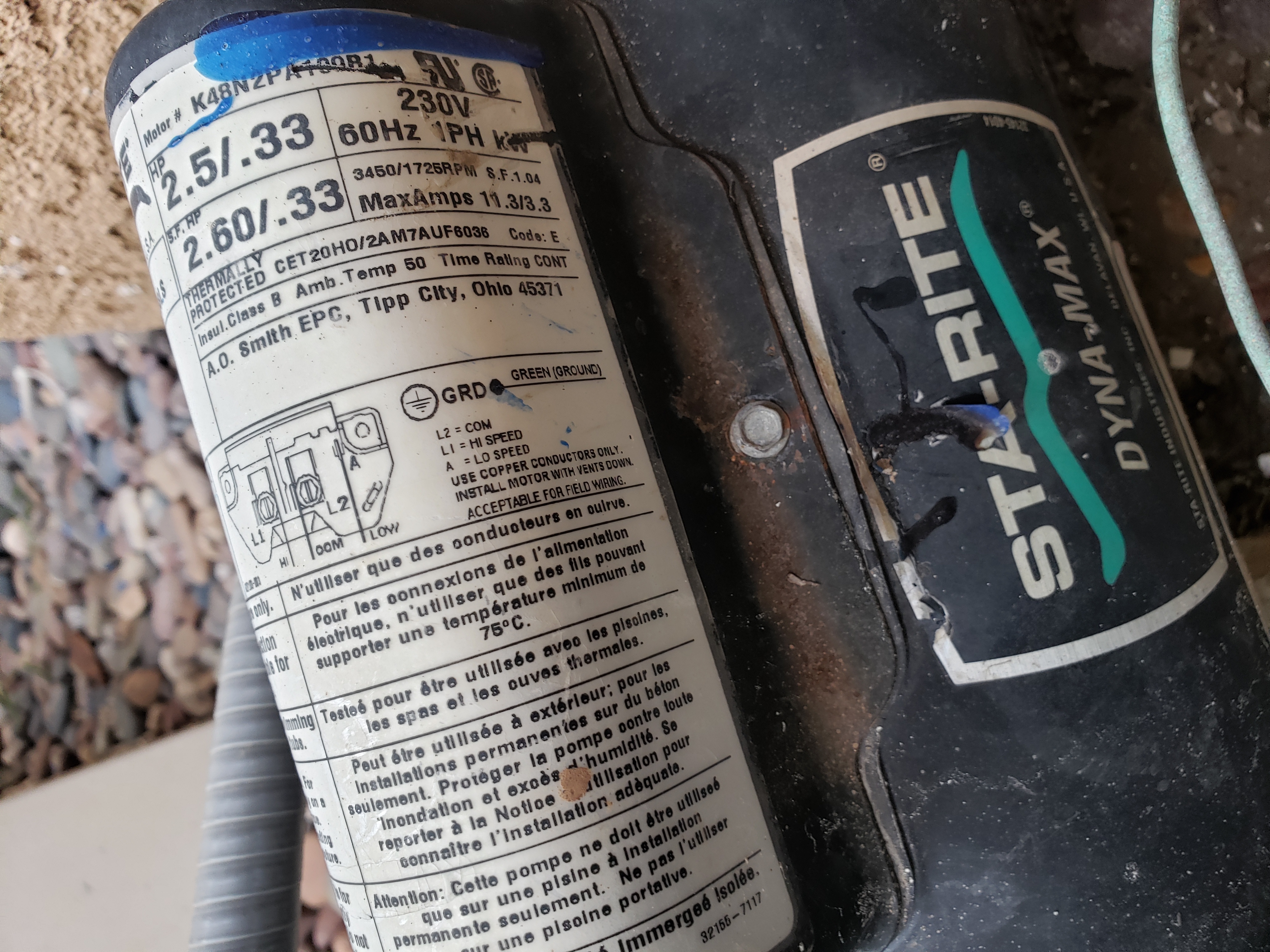

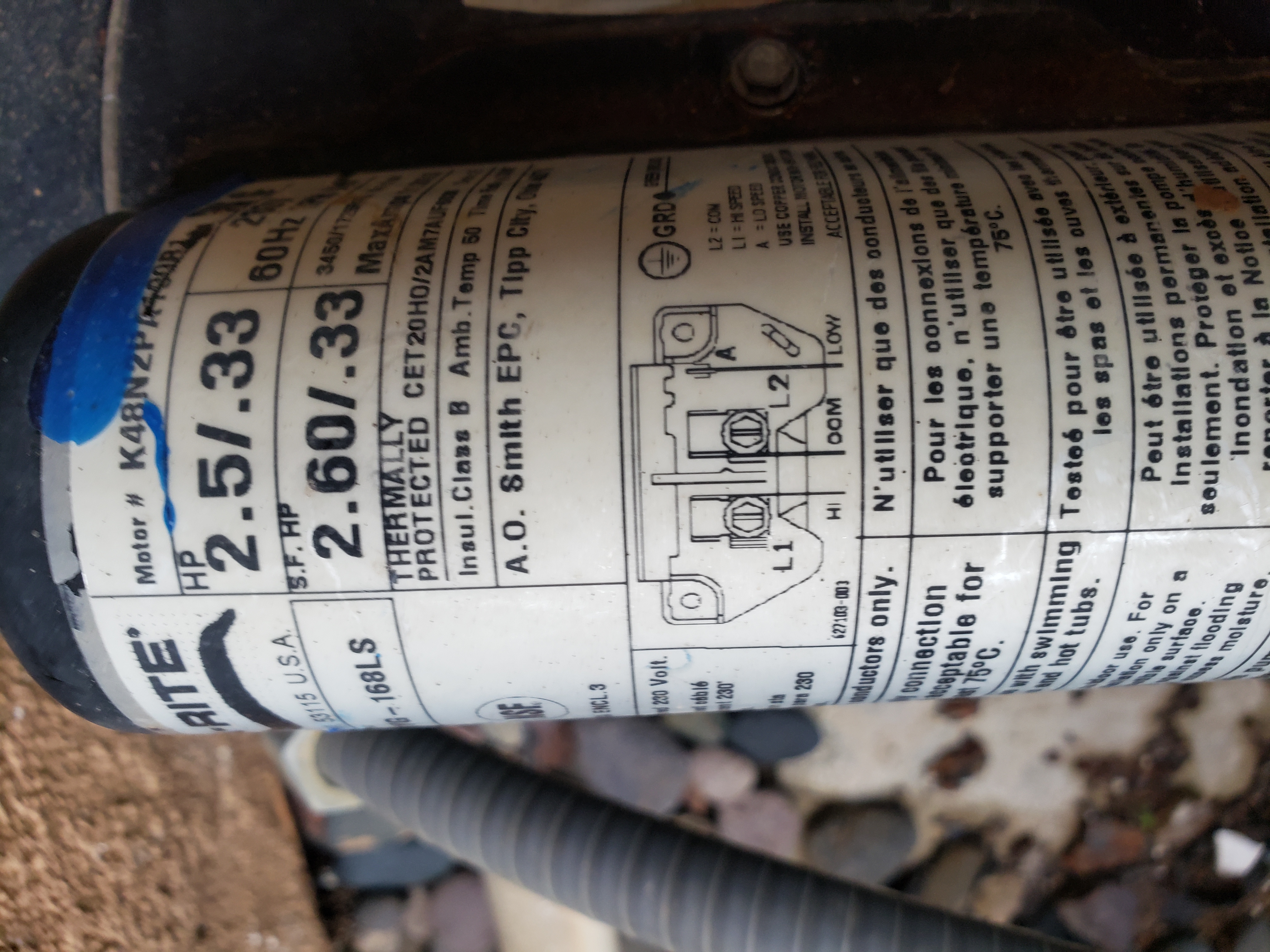

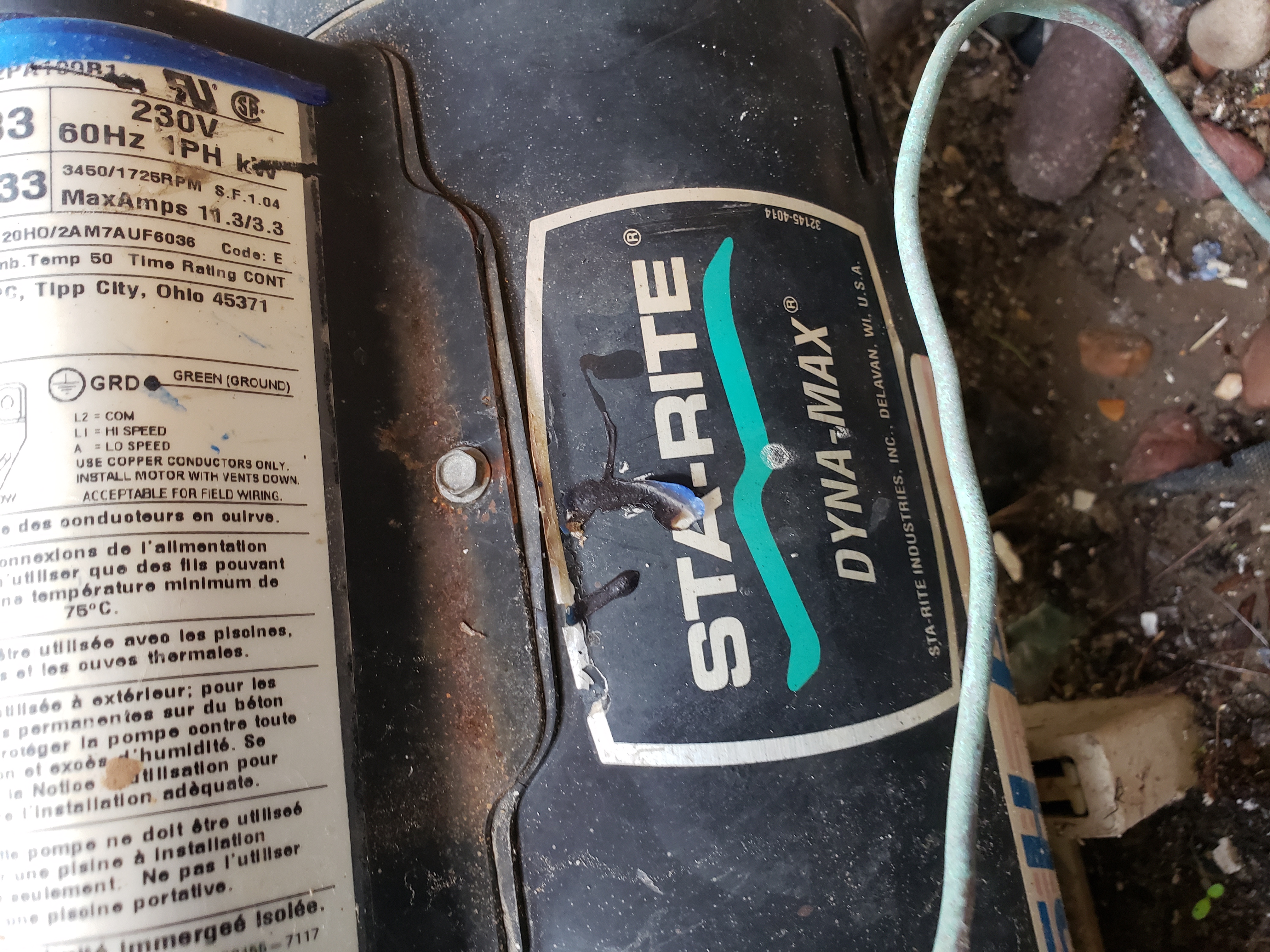

I bought a motor from you guys a few years back, going to install it Friday, I notice the #'s don't match, I need to know if this is going to be a problem! Old motor Model # k48n2pa105c4 new motor Model #k48m2pa105c5, please let me ASAP.
Thanks
Reply
Hi Joe, the k48n2pa105c4 is the SQ1202 and the k48m2pa105c5 is a different motor being this USQ1202. The first is a full rated and the second is an uprated model being not as strong. Here is a guide that we put together called "How To Understand True Pump Horsepower - Up Rated vs Full Rated" which explains the difference in more detail.
Reply
Is this the motor replaces USQ 1152 1 1/2 hp
if it is. I would like to order it along with the motor with the seal
and o-ring
Reply
Hi Jerry, the correct single sped replacement motor is the USQ1152. . When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply

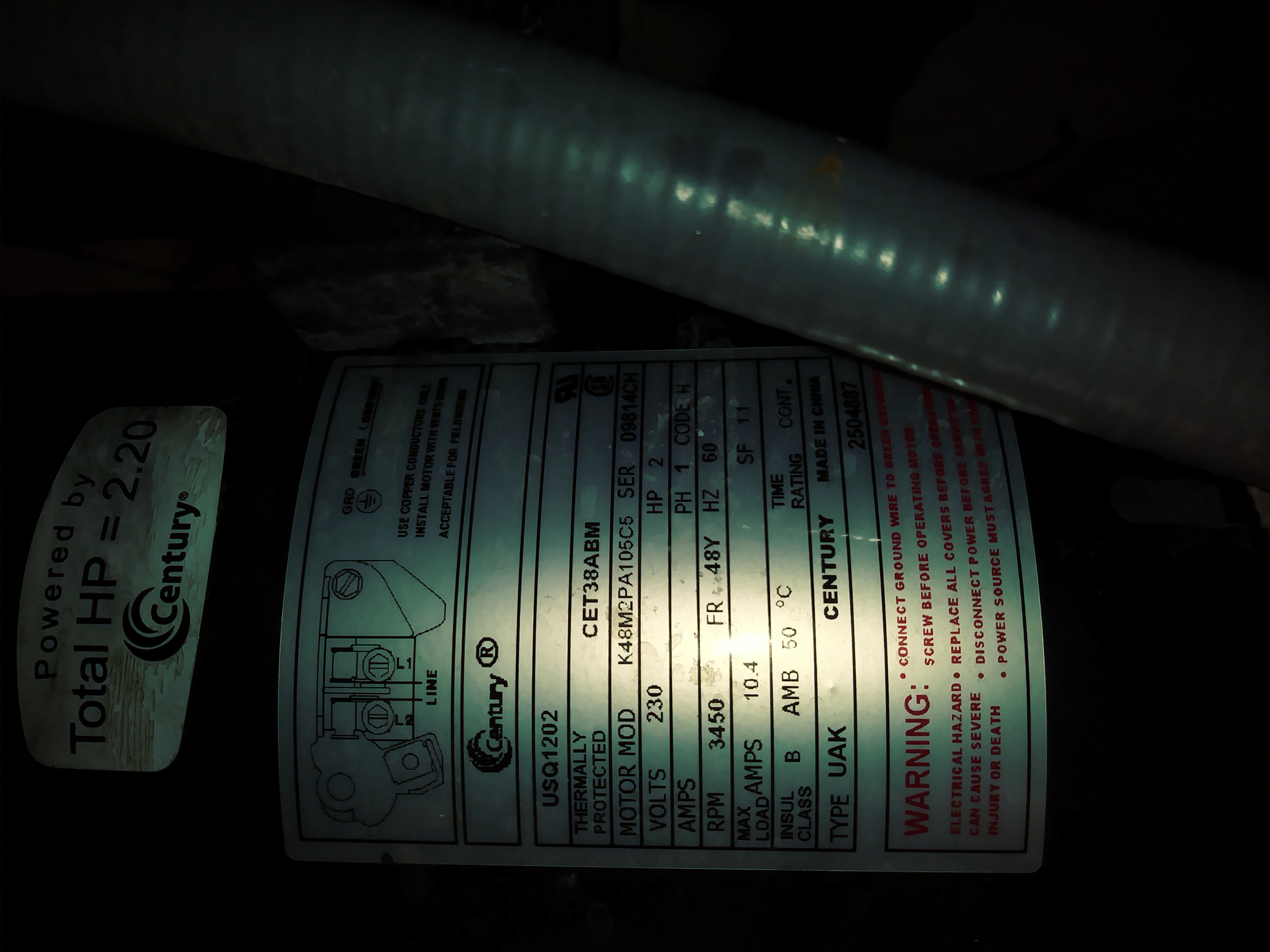

Hello. I have a Century 2.0 HP Square Flange 48Y Up Rate Motor - USQ1202. It’s making a loud buzzing/humming noise. I think maybe it could be the run capacitor. I’m not sure which one to get to replace. Thanks so much.
Hi Jack, Thanks for the photos yes we do carry your capacitor. You will require this USQ1202 Run Capacitor
Reply
I have a 2hp Pentair whierflow (sqaure flange). Will this be suitable? Do the Are the gaskets included?
Hi Kim, yes, this is the correct replacement motor for the motor included in your photo. You will also need a Pentair Whsiperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
- I have an A.O. Smith Centurian 2.0 horsepower pool pump that's about 8 years old. I think the model # is 1801 but not sure.
- Is this the pump I will need and do I need any extra parts. Or would it be wise to replace something?
- One other thing, does the pump come with all required seals/flanges?
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. The pump model label will assist for this series as well and if you cannot locate that label then getting the impeller or diffuser part number will also assist. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Here are the photos you requested.
Hi Bruce, so you do have a Pac Fab/Pentair Challenger series however, we will need the impeller and or diffuser part number in order to confirm whether you have the CH or CF series challenger.
Reply
I have a o smith motor part 7 182688-02 serial ca05-17 fr x48Y
Amps 10.0/20.0 volts 230/115 rpm 3450 with a century pool and spa decal on it. Will this motor replacement for it?
Thx
Jim
Hi Jim, This is not the correct motor. You will need this BN40 Replacement Motor and this XP2 Shaft Seal
Reply

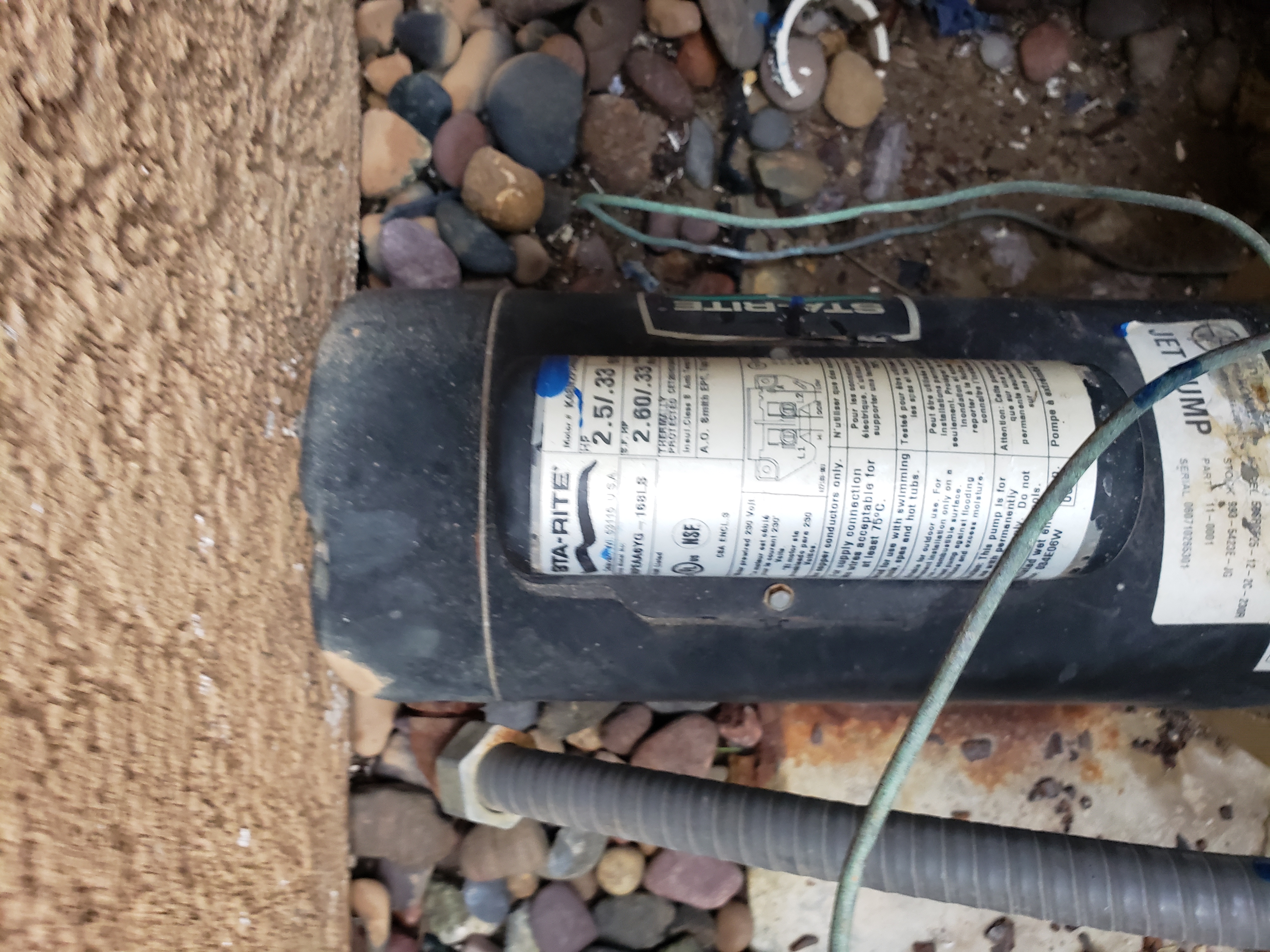

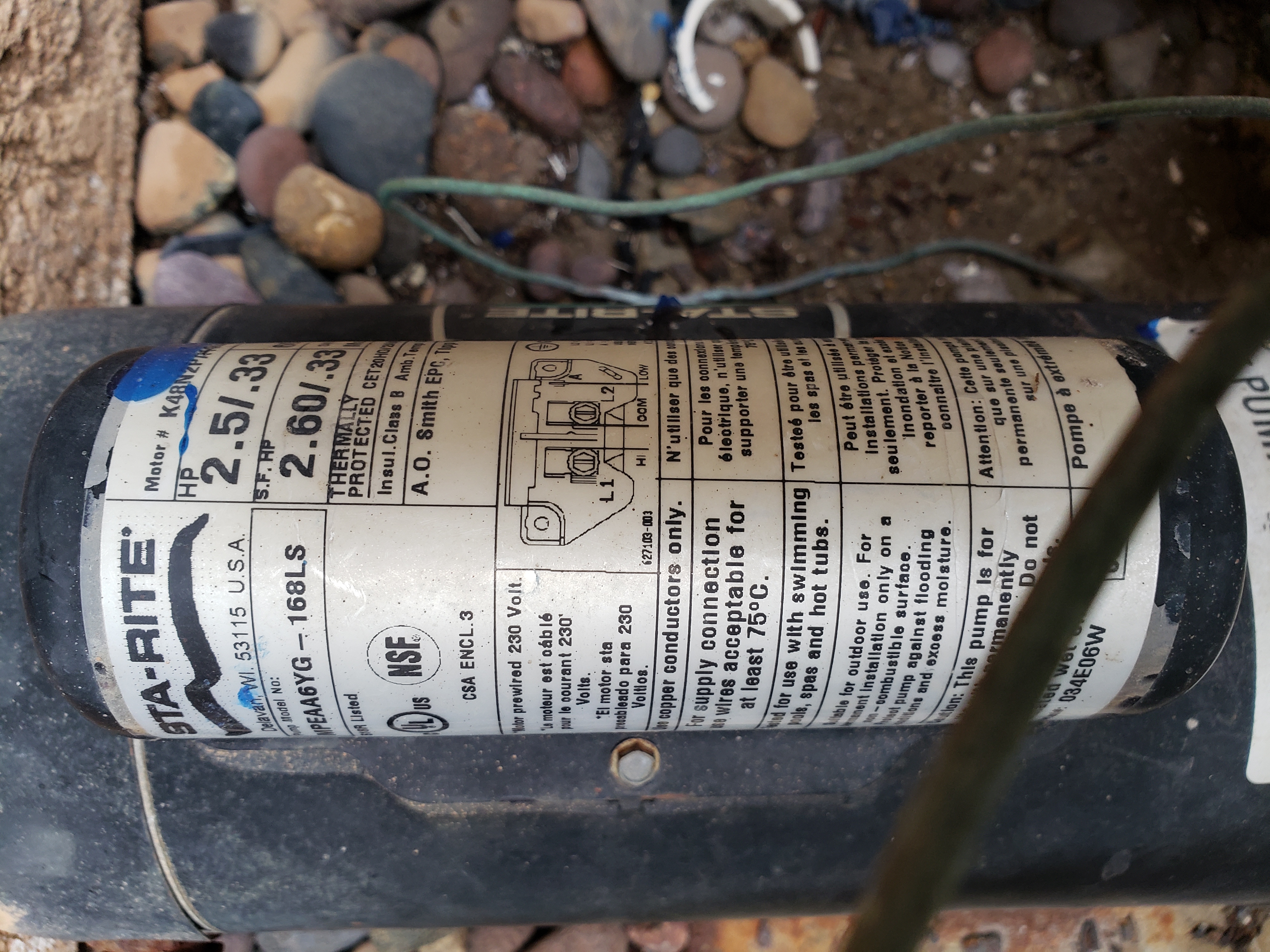

I bought the hot tub new this is a pic of the original motor that is bad how is it the wrong one thx.. Jim
Hi James, Since this question was asked on the USQ1202 motor I was meaning that the USQ1202 is the wrong replacement for the motor in your picture. The correct replacement motor is this BN40 Motor you will also need this XP2 Shaft Seal when you replace your motor.
Reply
I have a K48M2PA105 pool pump and need to replace the motor. Which motor would you recommend that I replace it with?
Reply
Hi, the correct single speed replacement motor for your motor model K48M2PA105 is the SQ1152. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this work for the hsq220 .do you sell extended warrantys
Reply
Yes, this would be the correct single speed replacement motor for your model hsq220 and unfortunately, we do not have extended warranty offers.
Reply
What motor do you recommend? A.O. Smith SQ1202 2 HP, 3450 RPM, 48Y Frame, Capacitor Start/Capacitor Run, ODP Enclosure, Square Flange Pool Motor
Reply

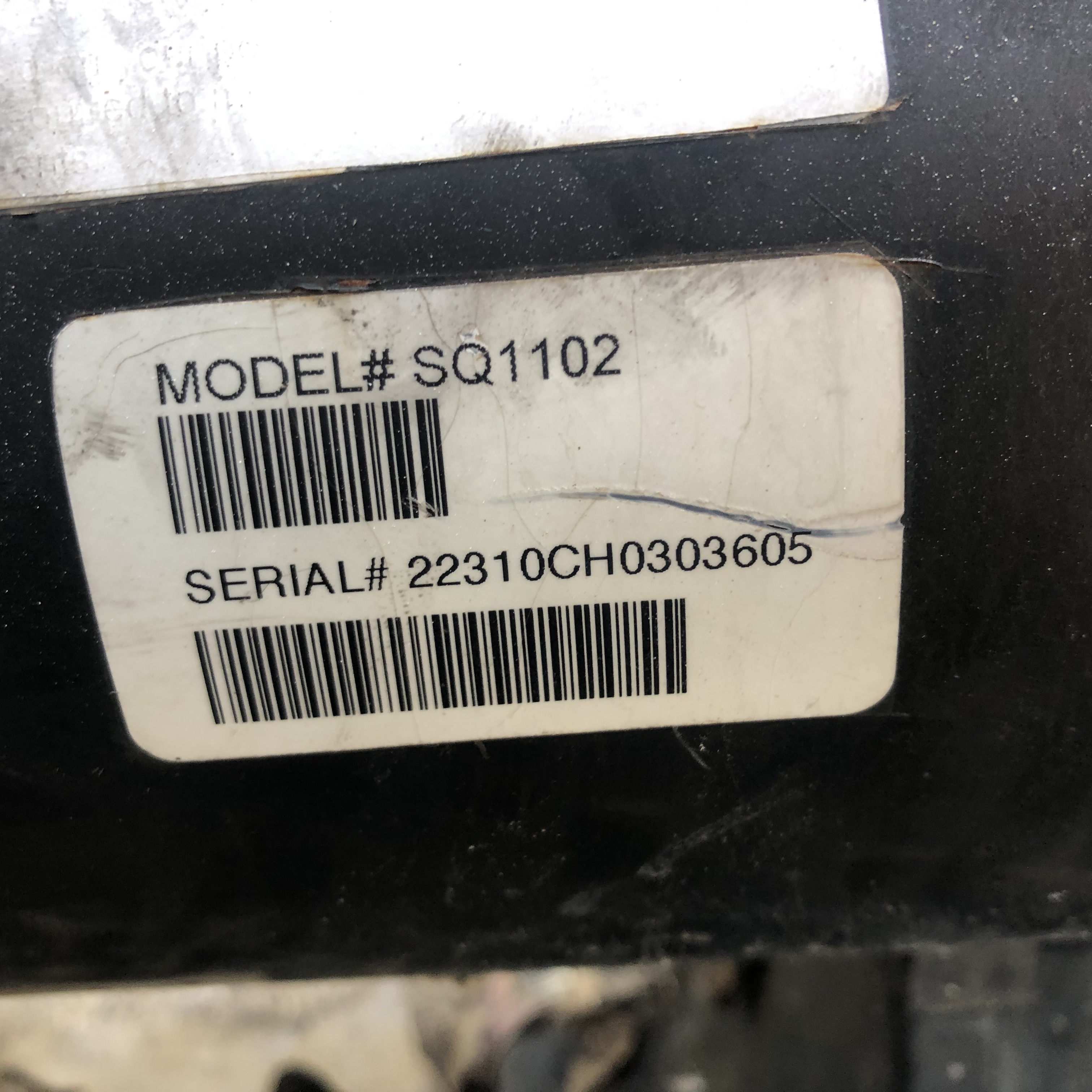

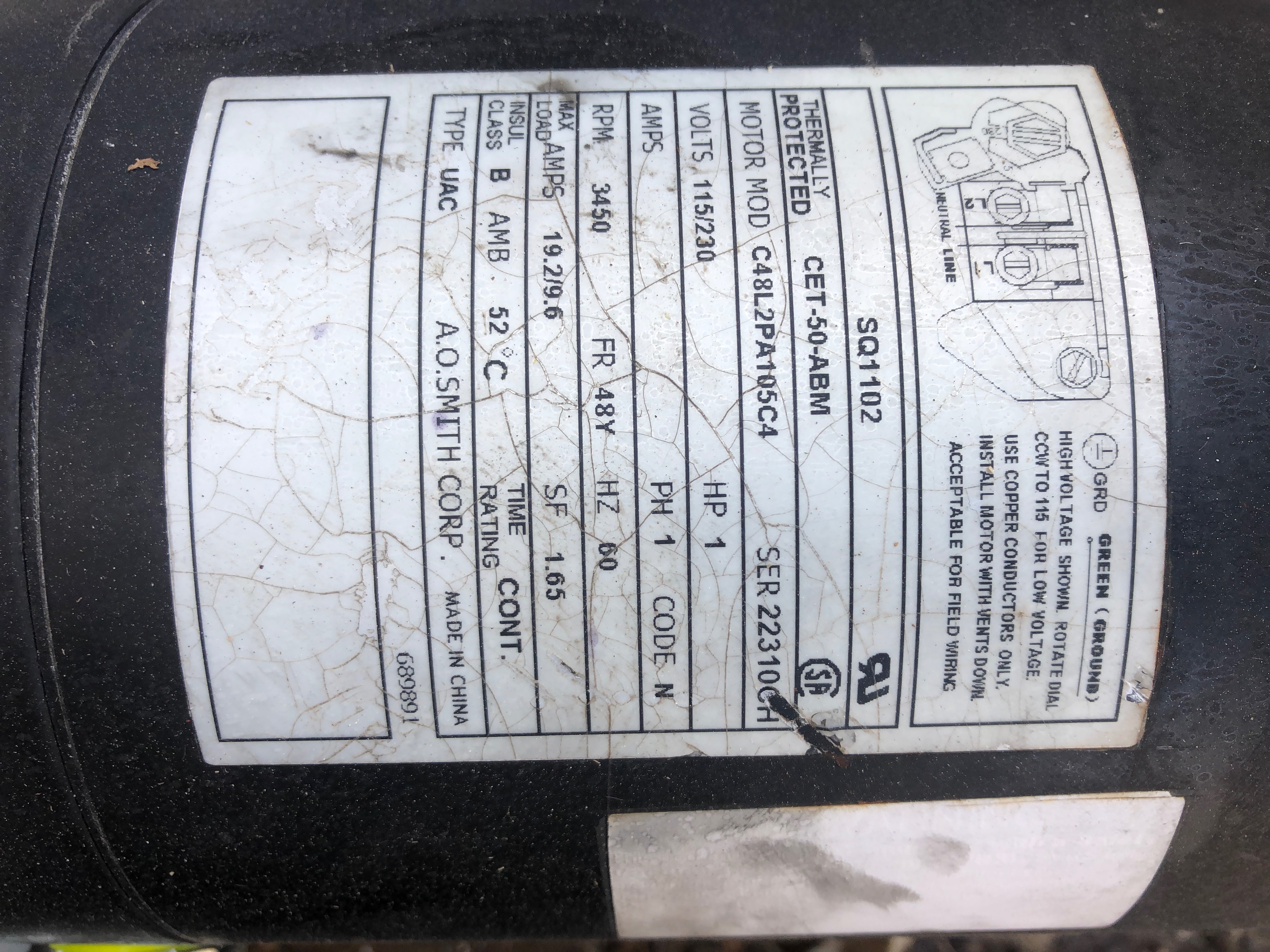

Hi Scott, your replacement motor is the SQ1102. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this the correct motor? A.O. Smith SQ1202 2 HP, 3450 RPM, 48Y Frame, Capacitor Start/Capacitor Run, ODP Enclosure, Square Flange Pool Motor
Reply
Hi Scott, if you have the SQ1202 motor then the correct single-speed replacement motor will actually be the SQ1202. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
What seal kit should I use with the motor USQ1202?
You will need a Sta-Rite Max E Pro seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this fit the Pentair 340040 SuperFlo High Performance Single Speed Pool Pump, 2 Horsepower, 115/230 Volt, 1 Phase/
Reply
Hi Nic, yes, this is a correct replacement motor for the Pentair Superflo model 340040 pool pump. You will also need a Pentair Superflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Max-E-Pro pump model # P6EAG-207L, with motor # K48M2PA105C3, that has gone to ground. Will this motor replace replace what I have?
Reply
Hi John, yes, this is the correct replacement motor for the motor model K48M2PA105C3. You will also need a Sta-Rite Max-E-Pro seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor work for my Dyna-glas pool pump?
How long will ground delivery take?
Two questions:
1. is this pump a compatible replacement for the one in the attached images.
2. Do you also carry all of the necessary gaskets and any other necessary parts (?) to attach to the Whisper Flow manifold (?) in the other image.
If the answer(s) are yes would you please include a list with prices of the parts.
Thank you.
The exact motor replacement needed for your WF-28 WhisperFlo is the B855. The USQ1202 is a compatible replacement with the WF-28, as well. The necessary gasket kit for the Pentair / Purex Whisperflo is the GOKIT32 or the GOKIT32SALT
Reply
I have a hayward SP2610x15 installed. I know my system was originally designed with a 2HP pump and motor installed. Will the Century 2HP bolt up to my current pump or will I need to change the entire unit to go back to 2HP?
Reply
Hi Randall, there are a number of variables to consider when sizing a pool pump. Here is a guide that we put together called "How to Size a Pool Pump for Your In-Ground Pool" that should assist.
Reply
Will this motor work as a replacement?
Hello Michael, The correct motor replacement for your SuperFlo 2 HP Single Speed Pump - 340040 is the Century 2.0 HP Square Flange 56Y Up Rate Motor - B855. I would also recommend purchasing the replacement gaskets and shaft seal found in the Tune Up Kit Pentair SuperFlo/Sta-Rite SuperMax - GOKIT78.
Reply
Hello, I would like to replace this motor with one with 1.1 / 2 or 2.0 HP, which would be your recommendation, thank you very much
Reply
Hello Paulo, we often recommend what has been already sized as appropriate from the initial pool builder/contractor however here is a guide that we put together called "How to Size a Pool Pump for Your In-Ground Pool" that may also assist.
Reply
Hi.
Is this the correct replacement motor for me? Seems like the labels are a match. Which seals/gaskets will I need?
Thank you
Hello Tim, yes the motor would be the correct replacement. For the housing, we would need a better photo of the front half of the pump.
Reply
Hopefully these are what you need. Thanks!
This a Pentair / Pac Fab Challenger pump they have two series, the CHII or the CFII. The shaft seals only vary for salt or chlorine pool, the O-rings/gaskets will be determined based on which series you own. The Pump Shaft Seal 5/8" - PSR-200 is for chlorine and the PS-3867 is the Pump Shaft Seal Heavy Duty (Saltwater Pools). You will need to remove the impeller and check for a molded part number on the front or back of it. This will help us confirm which series pump it is to suggest the correct o-rings or seal kit.
Reply
Thank you. On the impeller I see 35-5085 and 35-5086.
Will this motor replace what I currently have?
Hi Daniel, yes, this is a correct single replacement motor for the motor included in your photo however the direct replacement is the B859. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
what is the difference between the USQ1202 and the US1202?
Reply
Hello Yakoob, there is no US1202 but there is an SQ1202. The USQ1202 is an uprated model and the SQ1202 is the full rated model. The SQ1202 is actually stronger. Here is a guide that we put together called "How To Understand True Pump Horsepower - Up Rated vs Full Rated" that will better explain this.
Reply
is this the right replacement motor for a Pentair Whisper WFE -24? 115/208 230V?
Reply
Hi Joe, No this is NOT the correct replacement motor for the motor included in your photo. You will require this B2853 Whisperflo Replacement Motor You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor work with a pentair whisper flow pump dated 8/2009? Will the old impeller work okay, and do you sell it fitted with a new impeller? What seal kit do I need? Please include pricing and shipping information. Needed quickly if this is the right motor. The system has a 48 sq ft DE filter and 1.5 inch piping except 2 inches at the pump. Do you recommend anything different? Pentair thinks the USQ 1202 is probably a good choice, I think they said "uprated". Please advise
Hi Jim, You will actually need the B859 2 HP Up Rated Whisperflo Replacement Motor for the motor included in your photo. You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We would suggest replacing your impeller with this 2 HP UpRate Whisperflo Impeller we do not sell this pre-fitted to the motor but the replacement process is very easy. Estimated delivery is 3-5 business days after purchase, we will email over a quote with pricing and you can place an order directly through the emailed quote. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello, I currently have a Jandy Pump PlusHP with the HSQ220 Motor, 2.2HP. Will this work? If so, do I need any o-rings or gaskets? Thank you.
Yes, this is the correct replacement motor for the motor included in your photo. Could you supply the serial # off of the plastic pump housing of your Jandy Pump PlusHP as this will determine the seal you rquire. The serial # would be in this format P08FF0001 or if you know if the pump is from before or after 2005. Simply click reply to post any additional photos or answers.
Reply
Ser. 11318CH
Reply
Would it be possible to post a few photos of the pump to include the plumbing going in and out of the pump?
Reply
Hello, yes please see attached. Can you please let me know which motor shaft seal and other o-rings - kit that might be needed? Also, any good videos on how to replace this type of motor? Thank you. (prefer to not post it and just work with you directly, thanks).
Hi, Here is the Jandy Plus HP Shaft Seal you will require as well as this Back Plate O-Ring We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is there a kit that includes everything, including a motor shaft seal?
Reply
Unfortunately for your pump there is not a kit and parts are purchased individually. However the motor, shaft seal and back plate o-ring would be the standard items you would want to replace.
Reply
Ok. Can you provide which motor shaft seal it will need? Thanks.
Reply
Here is the link to the Jandy Plus HP Shaft Seal which you will require.
Reply
please detail the correct replacement motor for a Century USQ 1252 / U.L # 25022 , and the correct seal kit as well please , thankyou in advance
Hi Michael, Thank you for the photos! You will require this USQ1252 Replacement Pool Motor and not the USQ1202 listed on this page. You will also need a seal kit and we believe you will need this Pentair Whisperflo Seal Kit. However, since we cannot see the complete pump housing in your photo please double check against this Whisperflo Parts Diagram, or feel free to send us a few photos of the pump housing. Simply click the reply link below to submit additional photos. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
please tell me the correct replacement motor, and the correct seal kit? thank you in advance
The proper replacement motor for your Jandy Stealth pool pump is the 7-193634-06Century 2.0 HP Round Flange 56J Full Rate EE Motor - B130We do not have a kit for that Jandy Stealth pump. You can find the individual seals on the Jandy Stealth Parts Page.
Reply
please tell me the correct replacement motor, and the correct seal kit? thank you in advance
Reply
Hi Paul, Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Hello, My pump began making metallic noise, reduced flow and shuts itself off (I assume overheating). I can turn it back on, but after awhile it shuts off again. I think I need a new pump. I have used info from your site in the past to do other repairs, so I think I'll give this a try as well, but I want to make sure to use the correct replacement so that it mounts up correctly and I don't make my job tougher than it needs to be. - Peter
Hello. The metallic noise the pump is exhibiting is a bit of a mystery until you take it apart. The motor turning off while in use is typically a sign of overheating and should be replaced. The Century Motor USQ1202 is the direct replacement for your current motor. The GOKIT78 contains the motor shaft seal, gaskets, and o-rings required to complete the project. The metallic noise could be the result of an out-of-balance impeller in which case the impeller should be replaced. If that is true, the correct impeller would be part number 5002-05DA. Impeller, 35-5086 Pac Fab (355086) Attached please find an exploded parts diagram for the Pentair SuperFlo for reference. Pentair SuperFlo Pump
Reply
My pool motor has begun making a squealing sound and hot to touch. It comes on and functions but I know something is wrong. I currently have a 1hp motor. Would there be any benefit in upgrading to 2hp on this page? Here is my current pump 1HP Square Flange Motor EB853
I typically do not recommend increasing the HP of your pump. You will need to change out some of your internal pump parts (like the impeller). Also your filter is rated for your pool pump. So it might not be able to handle the new GPM of your pump. So you would most likely need to swap that out too.
Reply
Can you recommend a replacement pump or should I go with the sane model that’s currently in place?
Reply
It will be hard to recommend a pump based on the blank label on your pump. I would also need the GPM rating on your filter. The replacement motor for your 1HP EB853 is...Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853
Reply
Can a 56Y Flange motor be replaced by 48Y Flange motor? I bought 48Y instead of 56Y and am wondering if this will create any problems. Thanks
Reply
Hello LFM. A 56Y frame motor and a 48Y frame motor differ in motor diameter and overall length. The 56y frame having a larger diameter motor and a shorter overall length. Both motors have the exact same square flange dimensions and bolt to a pump's strainer housing, mounting bracket, or seal plate in the exact same locations. If your pump has a motor support bracket you will find that the back end of the 48Y frame does not rest on the bracket. The 48Y frame motor typically comes with a rubber spacer that can be fitted to the support bracket to provide support to the motor. There is no difference in the performance of a 48Y vs 56Y providing the other motor specifications are identical.
Reply
I have a SQ1202 and just recently it's started to make a very loud grinding noise. It's so loud it's turn off. What should I do?
Reply
Hello Manny. In most cases, a loud motor is the result of motor bearing failure. The Century Motor model USQ1202 requires one each of these bearings, Bearing, 203 (Single) - 62032RS and Bearing, 204 Ntn 6204-ll (6204-2rs). Attached please find 2 videos that you may find helpful. How To Replace the Bearings in a Pool Pump Motor - Part I How To Replace the Bearings in a Pool Pump Motor - Part II Another option is to replace the motor with Century Motors model USQ1202.
Reply
I have the Century 48Y 2 HP motor installed. It’s about 2.5 years old. It flows and sounds fine (not bearings) but overheated today and shut down. It restarted fine after cooling down but seems to be running very hot. What should I check? Capacitors? What’s the best way to do that? Thanks.
Hello David. Attached please find a brief tutorial addressing conditions that may exist causing the pool pump motor to overheat. Other considerations: be certain the wet end of the pump is fully primed - the motor is also cooled by the transfer of heat from the motor down the motor shaft to the water in the wet end. Be certain the valves on the suction and pressure sides of the pump are in the correct position to allow maximum water flow. Be certain the pool filter is clean and not restricting water flow (check filter pressure). The motor's thermal overload switch is malfunctioning (doesn't appear likely in this case). How To Troubleshoot a Pool Pump Motor - Motor Overheated Why Is My Motor Running Hot?
Reply
The attached photo is the model century motor I have for my pool. It’s in dire need of replacement because it’s begun making the loud grinding noise due to bad bearings (the existing model is from 2003). Will the square flange model I’m looking at purchasing work for my unit? Or will I require something else
Hello Christopher. The Century Motors 1.5 HP 56Y Full Rate EE Motor model B2842 more closely resembles your existing motor model 7-177451-03. The Century Motors 2.0 HP 48Y Up Rate Motor model USQ1202 is compatible with total horsepower but differs in motor dimensions 48Y vs 56Y. The square flange of both motors has identical dimensions but the motor barrels are not the same. The 48Y is smaller in diameter but longer in length. If there are space restrictions or if there is a rear motor support, the B2842 will fit the stand exactly as the old motor does.
Reply
I would need to replace a failing AO SMITH Motor K48N2PA102 (bearing making noise). Is this a perfect replacement?
Reply
Hello Laurent. The Century Motors 2.0 HP Up Rate Motor model USQ1202 is the correct replacement for the A.O.Smith Motor model K48N2PA102.
Reply
Is this motor compatible with the Sta
Rite Max E 2Hp 115 230 volt model no. K48N2PA105 and do you sell a Capacitor for this model i put on here?
Reply
Would this product match my motor my code frame is j
Hello Nizar. The Century Motors 2.0 HP Square Flange Up Rate Motor model USQ1202 is NOT a replacement for your Century Motors 2.0 HP Round Flange Up Rate Motor model T1202. The correct replacement motor is the Century motors 2.0 HP Round Flange Up Rate Motor model UST1202. Century 2.0 HP Round Flange 56J Up Rate Motor - UST1202
Reply
Would this be a replacement for my pump?
Thank you for contacting Inyo Pools. The USQ1202 would be a perfect replacement for your K48A76A04 motor as long as you have 220 volts running to it. Otherwise, you will need to replace it with the identical but dual voltage (110 and 220 volt) SPX2715Z1ME. The mfg recommends replacing at least your shaft seal whenever you replace your motor to prevent your motor from being damaged by water. If you provide the make and model of your pump, I can suggest the correct tune up kit for your pump.
Reply
This is for my pump I'm replacing. Can you recommended a tune up kit /shaft seal to replace it please? Thanks in advance
Thank you. The Pump Shaft Seal 5/8" - - SPX2700SA PSR-200 Seal Plate O-Ring gmx600f Diffuser O-Ring SX220Z2 and Lubricant 1CC Pillow Pack - LUBE-PP are the recommended seals when replacing the motor on the Hayward MaxFlo XL pump https://www.inyopools.com/parts_hayward_maxflo_xl-2.aspx
Reply
I have a Century pool motor HSQ220 what would be the replacement model number if i ordered a new one?
Reply
Hi Emory, this USQ1202 will be a great replacement for your HSQ220 motor. We recommend replacing the motor shaft seal when replacing the motor. Please feel free to reach out to us so we can recommend the proper seal for a leak-free installation.
Reply
I have a Hayward #SP2607x10 that went out, could you please recommend a replacement?
Reply
Hi Pam, you would need this 1.0 HP Round Flange Motor - UST1102 to get your Super Pump SP2607x10 back up and running. We would also recommend replacing the motor shaft seal and o-rings with the new ones in this Hayward Super Pump Tune-Up Kit - GOKIT3 when you replace the motor.
Reply
I know this is the right pump, but was it set to 115v or 230v? Can’t figure out the switch.
Hello Jason. Based on the photo provided, your current motor appears to be an A. O. Smith Motor model USQ1202. The voltage range for this motor is 208-230VAC, identified on the motor label. There is no 115VAC option. The operating AMPS - 10.4 would have a secondary listing if the motor had another voltage option (115VAC). There is no such listing. The replacement Century Motors 2.0 HP Up Rate Motor model USQ1202 operates at 230VAC only. Incoming power voltage can be clearly identified with the use of a Multimeter.
Reply
Hi,
Can this motor be wired for low voltage (115v)? If so please forward document. Thank you.
Reply
Hello Guillermo. The Century Motors 2.0 HP Up Rate Motor model USQ1202 can only be wired for 230VAC. The Century Motors 1.5 HP Full Rate Motor model B2858 can be wired for 230/115VAC. Century 1.5 HP Square Flange 56Y Full Rate Motor - B2858 These Century Motor models have similar total horsepower (THP) ratings. The USQ1202 - 2.2THP The B2858 - 2.25THP Please note: the USQ1202 has a 48Y frame, the B2858 has a 56Y frame. In most circumstances, the difference in motor frame size can be accommodated by the pump. What Does My Pump Motor’s Frame (FR) Rating Mean?
Reply
Is this motor an exact replica (size wise) as the Sta-Rite motor #196251
Reply
Hello Walter. The Century Motors Century 2.0 HP Up Rate Motor model USQ1202 is the exact replica (size wise) of the Sta-Rite motor 196251.
Reply

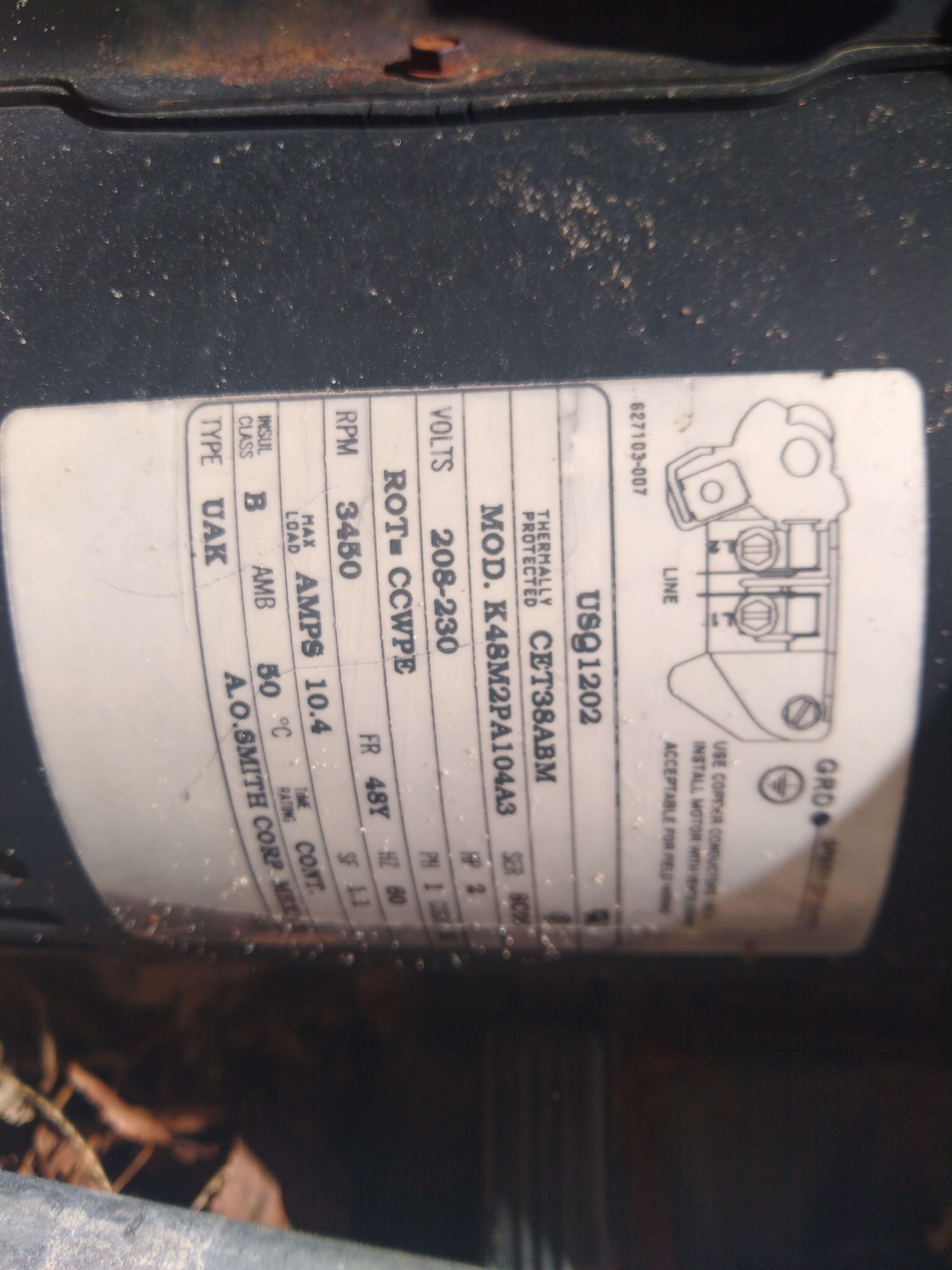

Hi I purchased and installed this pump.
It says 2 HP, 10.4 amps, 230 V. But then it says 1.47 kwh.
I'm trying to figure out energy usage. Is it actually 1.47 kwh? Because most 2 HP motors are closer to 2.5. 10.4 amps and 230 volts would be around 2.39, no?
Reply
Hello Matthew. Using the formula I (current in amps) = P (power in watts) / E (voltage), the Century Motors 2.0 HP motor model USQ1202 at 230V, 10.4 amps would have a Power rating of 2392 watts, 2.392 kW. To calculate the cost per kW-hr; Watts / 1000 X daily usage (motor on time in hours) X cost per kWh (from your electricity provider).
Reply
I have a Hayward Max-Flo II 2 HP 2-Speed Motor - SPX2715Z2M Does this have the same shaft size and hole dimensions to work I am looking at replacing the motor because it has gone bad, It starts but shuts down in both slow and fast speeds ,it will run for about 10 min in slow than shut off .I am replacing it with a Single speed because we never run it at the slow speed anyway because of low volume. what parts would you recommend? to rebuild since I will have it apart?
Thank You
Scott
Reply
Hello Scott. The Century 2.0 HP Square Flange 48Y Up Rate Motor - USQ1202 is a compatible replacement motor for the Hayward MaxFlo II 2HP Dual Speed SPX2715Z2M. The USQ1202 motor dimensions are identical to the SPX2715Z2M. The Pump Shaft Seal 5/8" - - SPX2700SA PSR-200 Housing O-ring and Diffuser O-ring should be replaced concurrent with the new motor. Attached please find the Hayward MaxFlo II SP2700X Series exploded parts diagram for reference.
Reply
Hello, I have a Jandy Pro Series Plus HP pool pump, Model #PHPM2.0, Serial # V16FJ1500, 2.0 HP Self Priming. I need to replace the motor. Can you confirm the correct replacement motor? Much appreciated!
Reply
Hello, the replacement motor for the original Jandy pump model PHPM20 is motor model B2859. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide which should assist you with that.
Reply
Could this century 2.0HP Square flange 48Y Up rate motor - USQ1202 pump be a close replacement for the broken pool pump pictured below ? I can use 2HP.
Also, if that pump is a match, what other parts would i need to install the new one ?
Thanks.
Hello. The Century 2.0 HP Square Flange 48Y Up Rate Motor - USQ1202 is a compatible single-speed replacement motor for the Century Motor K48A90A04 (SPX2715Z2M). The Century 2.0 HP Square Flange 56Y Dual Speed Full Rate Motor - B2984 is a compatible dual-speed replacement motor for the Century Motors K48A90A04 (SPX2715Z2M). The Pentair Challenger Pump Tune Up Kit (CHII Series) - GOKIT5 contains the necessary seals and gaskets to complete the new motor installation on the Pentair Challenger Pool Pump model 346204, CHII N1 1A. Attached please find the Pentair Challenger Pump exploded parts diagram for reference.
Reply
Will this replace a purex whisperflo wfe-8 2hp single speed motor?
Hello. The Century 2.0 HP Square Flange 56Y Full Rate Motor - B2748 is a more suitable replacement motor than the USQ1202. The MagneTek Century Centurion model 7-177452-03 has a total horsepower of 2.6, as does the B2748. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the parts necessary to complete the new motor installation. Attached please find the Pentair Whisperflo Pump exploded parts diagram for reference.
Reply
HI
I have a century centuion A.O. Smith 2 hp pump. see the photo.
I wanna know what kind replacement motor do you recommend and do you have it in stck.
thanks
Hi Norik, Based on your photo you have a B130 motor. We also recommend replacing the seals and gaskets when replacing a motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
I have a Century 2 hp motor, model K48M2P105A1, square flange. The high speed is toast, running on slow speed only now.
I need a new motor equivalent to this one. Ca. compliant. I don't have a phone that I can send picture. Frank
Reply
Hello Frank, the correct replacement motor for your motor model K48M2P105A1 is the SQS1152R. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
What is the warrenty
Reply
Hello Peter, please click here to view all of their manufacturer details regarding the warranty. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that we put together that should assist you with that.
Reply
Does this come with a flange gasket?
Reply
Hello John, these pump motors do not come with any pump seals or gaskets. Here is our "Finding the Tune-Up Kit for Your Pool Pump" that should assist you with locating that.
Reply
.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Century (A.O. Smith) 2.0 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1202")
