My Sand Filter is a Hayward S160T is the is the proper replacement valve the S160T filter?
Reply
No this is not the proper filter valve for the S160T. You may view the proper valves here >http://www.inyopools.com/pool_parts_hayward_s_160t_filter.aspx The 4707-0 is the Hayward Original valve and the 4707P is the generic replacement which will work as well.
Reply
How do I bleed air for a top mounted Hayward multiport valve? They have no air bleeder valve.
Reply
Hayward TOP mounted multiport valves do not require an air bleeder valve. They self purge air in the system through the return lines.
Reply
I have a Hayward S-180T model sand filter and my owner's manual states that a SP-711-13 is the proper vari-flo control valve. I do not see this item listed anymore. What do I replace it with?
Reply
The SP711-13 which was used on the Hayward S180T has been replaced by the SP0714T listed here on this page.
Reply

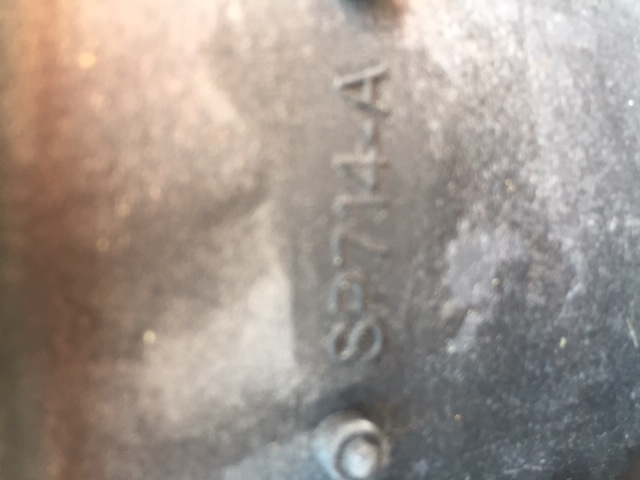

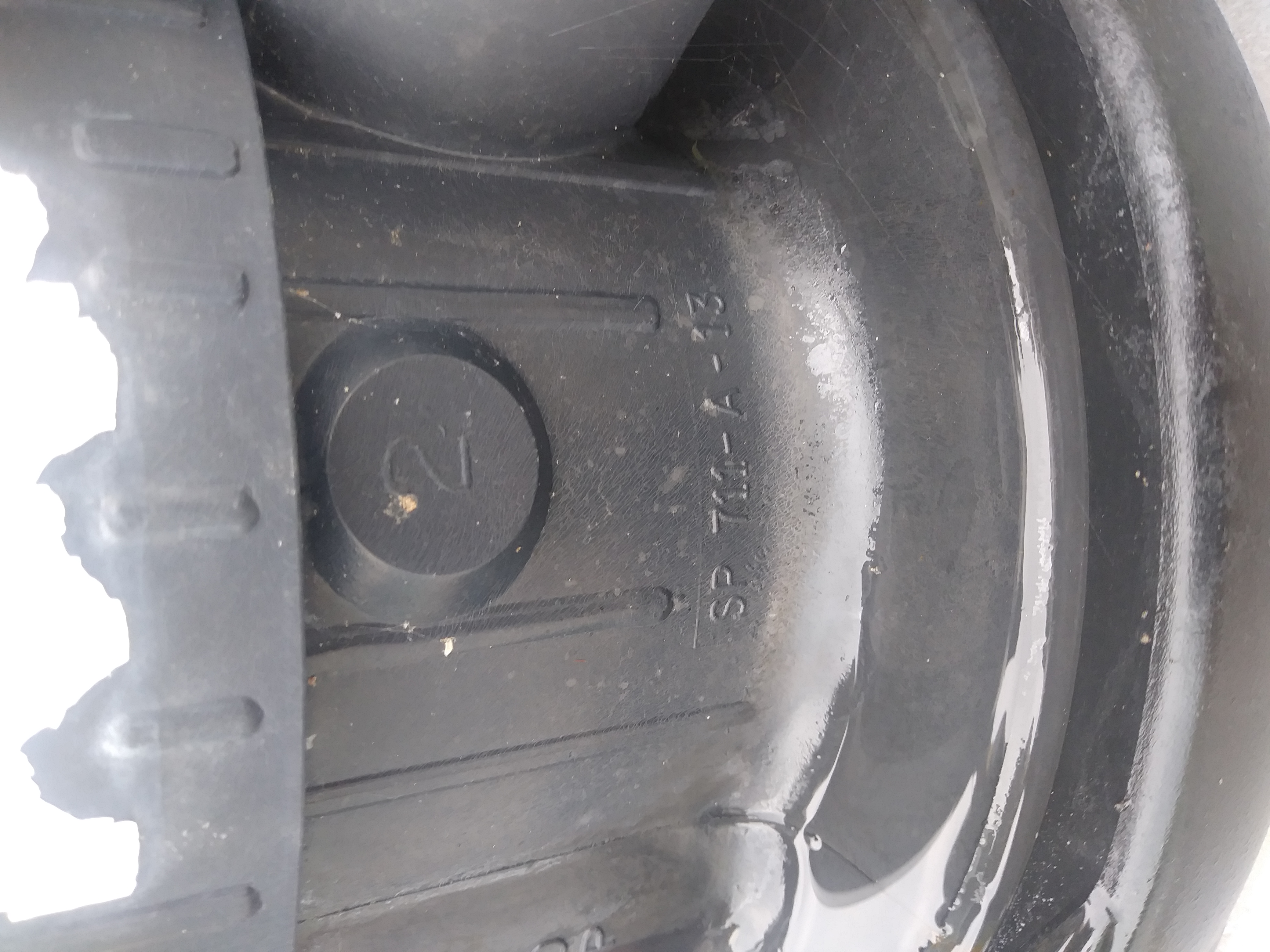

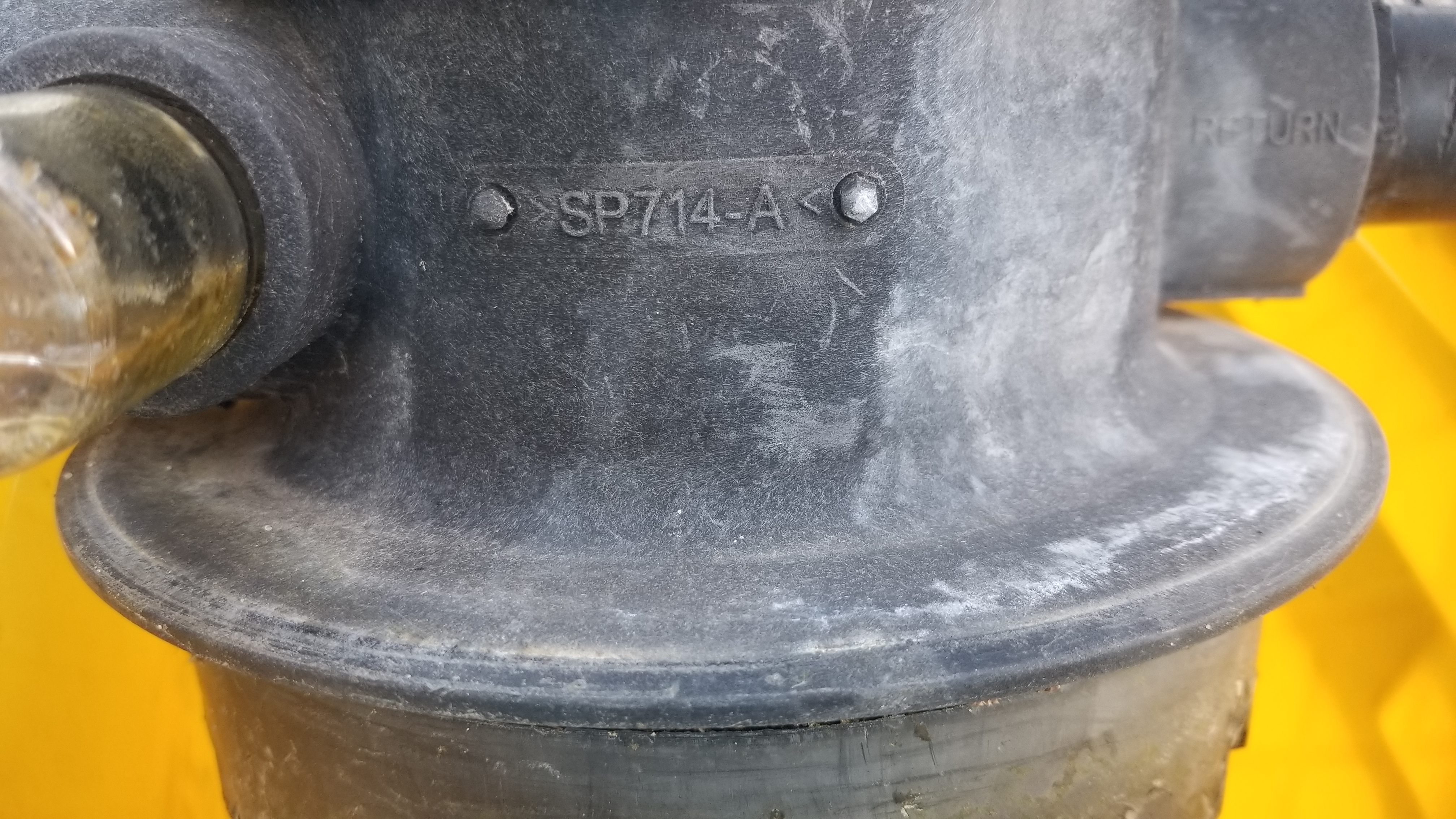

I have a leak in current multi valve near the sight glass, and want to replace it. The # on my valve is SP714A what is the direct replacement? Is it SP0714t?
Reply
Yes the direct replacement for your SP714A valve would be the SP0714T valve listed here
Reply
I am replacing a Hayward SP0704 valve with the SP0714T, will all the ports be in the same location?
Reply
The ports on the SP0714T are positioned differently than the ones on the SP0704 valve so will have to move the locations of the hoses.
Reply
My problem is that the pump is leaking at the backwash hole and now it appears that it does not do it if it is running only when it is off. I would like to see if you could help me fix it then replace it right now. Please help me attempt to fix it!
Reply
From what you've described, you will need the diverter assembly: http://www.inyopools.com/Products/07501352020282.htm
Reply
Is model SP0714T the replacement valve for the Hayward S190T? Mine has "split mounting rings" which bands to the filter housing. I noticed the complete value you offer doesn't show the split rings. Not sure if its relevant or if new ones were included in the kit. BTW what is included?
Reply
The Hayward SP0714T is the correct valve for the S190T. The valve does not include the split clamp. However, it does come with the tank o-ring and pressure gauge.
Reply
I have a Hayward S166T sand filter. I need to replace the vari flo valve assembly. Is this the correct assembly for my filter? Does it come complete or are there other parts I need (gaskets etc.)?
Reply
The SP0714T is the correct valve for the S166T. You will not need to purchase additional parts for the valve.
Reply
I have a SP711TXC filter valve. What would be the right replacement for this?
Reply
Frank, The Hayward SP0714T is the replacement valve for model SP711TXC.
Reply
Do u have the stricker on top of the value for replacement. Mine is faded and I can't read it.
Reply
Gail, The label for this valve is not sold separately, you'll have to replace the Key Cover And Handle Assembly in order to get a new label.
Reply
I have model number SP0714T, what adapter do I need that the hoses clamp onto, that screw into the 3 hose outlets? Do you sell them, and what size? What are they actually called?
Reply
Rebecca, They're called hose adapter. 1.5" Hose Adapter (White) 1.5 Hose Adapter (Black)
Reply
My valve is leaking when it is in the closed position.
Can I just replace the handle part or does the whole valve need to be replaced.
Thank you
Reply
Hello Robert, If your valve is leaking 9 times out of 10 its going to be the spider gasket. To find the correct gasket for your valve we would need the model number of the valve or filter.
Reply

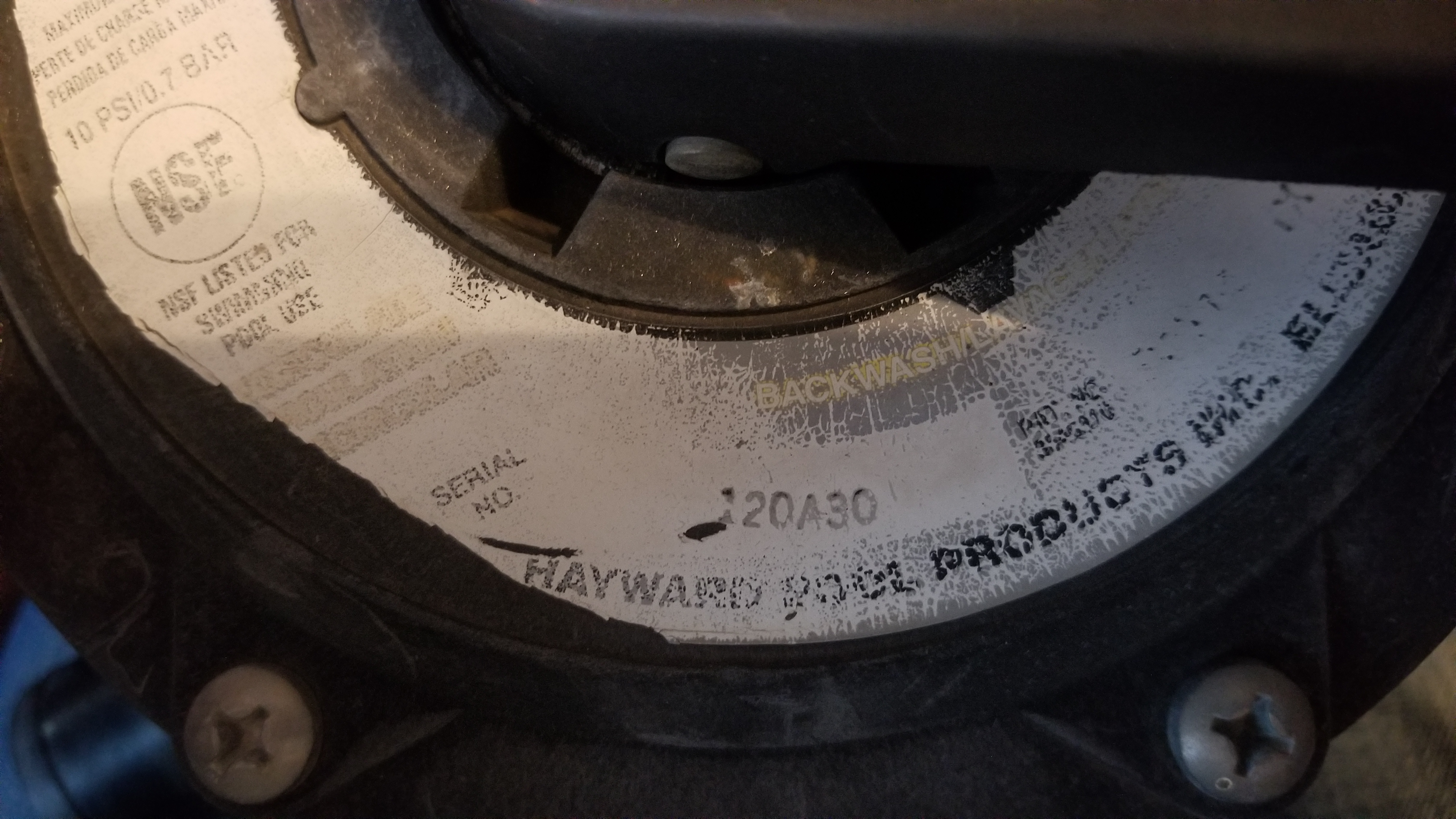

I have a Hayward ser# 120C30 model SP714TA part number SP0714d and it is cracked can i get a replacement part for this valve instead of having to buy the whole valve assembly? Thank you.
Reply
Hi Jessica, Yes we do carry all of the Replacement Parts For The Hayward SP0714T Sand Filter Valve here.
Reply
My sand fillter motor cracked over winter. can you tell me which one I can use for a 24ft above ground pool. I currently have a hayward s-166T model on motor says tm-12 but can't find that anywhere.
Reply

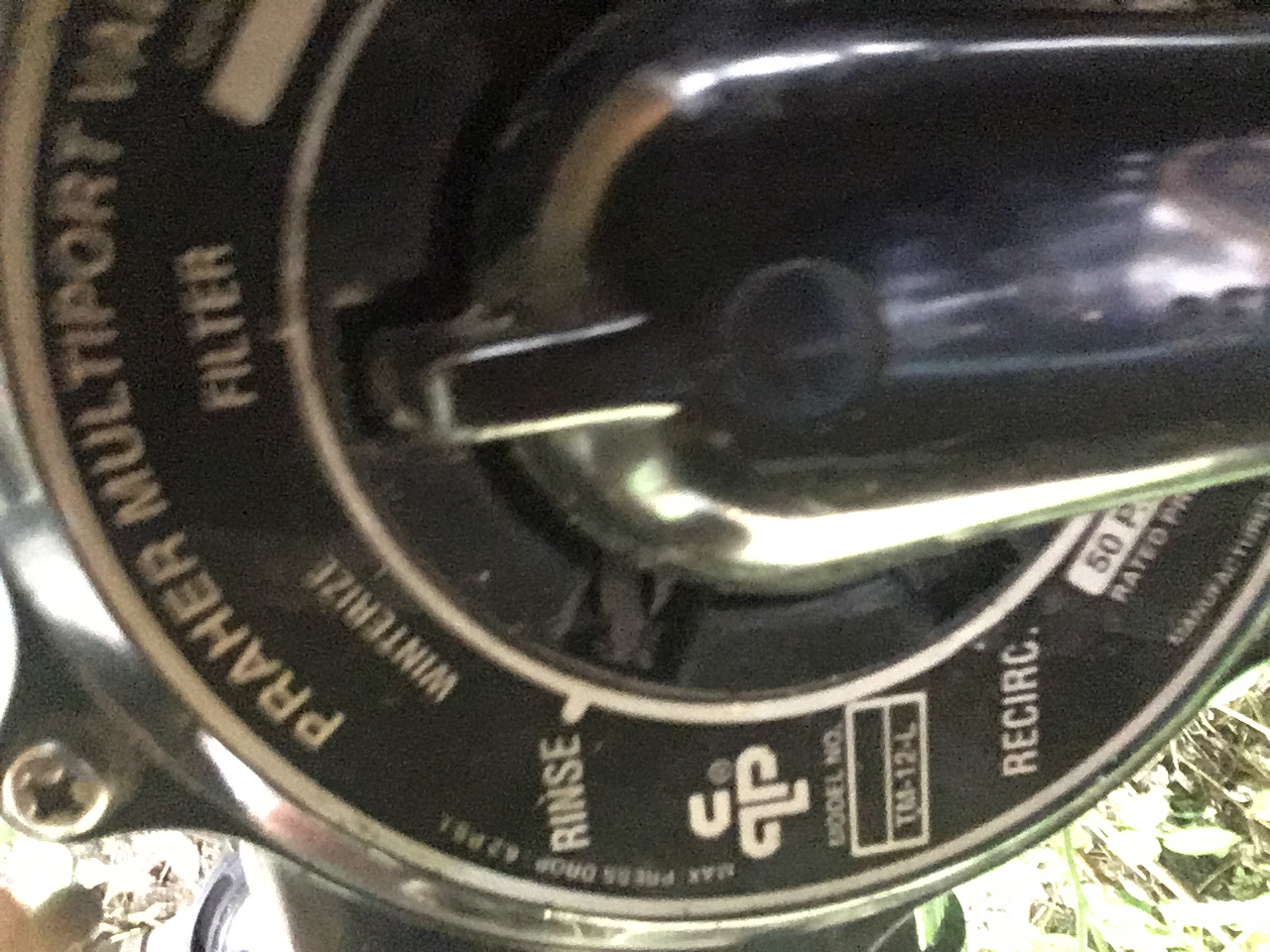

Hi Tinker, You would require the TM-12 Valve for the Hayward S166T Sand Filter The TM-12 valve is a generic valve used on the Hayward S166T filter. You may also use the SP0714T valve on this page for a Hayward S166T filter. The SP0714T valve is the OEM valve made by Hayward and the TM-12 valve is a generic valve made by Praher, both valves will work.
Reply
does valve assembly on hayward part Sp07141 fit Hayward model S-210T filter.
Reply
Hi Frank, Yes the SP0714T valve does fit the Hayward S210T Sand Filter.
Reply
Hi, I have a Vari-flo XL Valve, model SP714 that I need to replace because it won't turn. I'm wondering if the model "SP0714" is the same since it doesn't match exactly. Mine says it has rated pressure of 50 PSI/3.6 BAR, and Rated flow of 75 GPM/284 LPM. Is this the same model?
Thanks!!
Reply
Hi Jeannie, Great question we get this one a lot, yes the Hayward SP714 and SP0714T valve would be the exact same model.
Reply
I have a Hayward Top Mount Valve for Sand 1.5" (SP0714T). It is leaking from the waste and I think it's the spider gasket after researching the issue. I can't seem to find the gasket. Do you sell the gasket?
Reply
Hi Tara, On the Hayward SP0714T valve the spider gasket is only sold glued into the diverter assembly. We do carry the Hayward SP0714T Spider Gasket and Diverter Assembly here.
Reply
I have an older Hayward sand filter, model S170TSCP, and was wondering if this valve will work on it?
Reply
Hi Vickie, Yes this would be the correct valve for the Hayward Dreamline S170TSCP sand filter.
Reply
I have a new top mount sp0714t, when I installed it ,sand came through the input hose and into the pool, put it on backwash nothing came out,any idea's
Thanks J.C
Reply
Hello, You may have plumbed the valve incorrectly. Please double check that the ports are plumbed correctly.
Reply
I have a hayward s210t pro series. Where the pressure gauge screws in is leaking. Is the sp0714t the replacement top housing I need?
Reply
Hello Bryan - The SP0714T is the correct valve for the Hayward S210T.
Reply
I have a s166t when I open the pool it filters great then it rains a lot I put it to waist to lower it after I noticed that I am getting sand and what ever else in pool does this mean I need to replace the spider gasket as I already replaced the lateral assembly or would you suggest replacing the valve assembly ?
Reply
Hi Kevin, Yes i would recommend changing the gasket/ Key Assembly ot the entire unit to make sure that Valve is completely sealed with no chance of leak
Reply
Will this work on a Poolco Model # 246RT-XL150SDBH2?
Reply
Hi Joseph, Not this is not the correct valve for your Poolco filter. You will require the Poolco 246RT Valve shown as key #1 on our Poolco Filter Parts Breakdown.
Reply
My sand filter is model # S-166T. And my Vari Flo Valve says its model # SP071113. Would this be the replacement for it?
Reply
Hi Jennifer, Yes this valve is the direct replacement for the Hayward SP071113 valve.
Reply
Can this also be used with salt, instead of sand?
Reply
Jacie- The SP0714T Hayward Top Mount Valve 1.5" is meant to be used with sand filters. Sand is referring to the type of filter this is used with, Salt would be the sanitizer.
Reply
WILL THIS VALVE WORK ON SP-712 SERIES OR IS THIS ITS REPLACEMENT THANKS
Reply
We would suggest the Hayward SP07122 Valve as the replacement for the Hayward SP-712 valve.
Reply
I purchased a sp0714t valve not more than 2 years ago. It now leaks through the threads on the in and out ports. I replaced the plumbing and used Teflon tape. Is my value shot and might it be under warranty.
Reply
It does sound like you may have a crack somewhere in the valve unfortunately after 2 years the valve would no longer be under warranty.
Reply
Want to replace my harward vari-pro serial 120b28, modèle sp-711-txc, 50 p.s.i, 60 g.p.m.
Reply
Ghislain, The 1.5" Top Mount Valve for Sand Filter p/n SP0714T is the replacement for your old SP-711-TXC multiport valve.
Reply
I have a Haywood SP714T valve, can you tell me what the pressure gauge should read?
Reply
Yvette, The pressure reading on your valve varies. The HP of your pump, size of your filter, plumbing size all will determine what your pressure should be. Usually when the filter is first installed or when the sand is changed you can get your ideal pressure level.
Reply
i have a sp0714t the handle broke on the valve where pin fastens the handle to the valve on the valve side can you just replace that part if so how does it come apart it is not two weeks old
Reply
Hi Johnny, Can you email us a photo of the crack? If the crack is on the valve body then most like you will need to replace the entire valve. If it is just the Handle which is cracked then you would need the SP714T Valve Handle. You may also view all of the Hayward SP714T Valve Parts here.
Reply
I have the sp0714tx valve and is leaking when in filter position do I need to replace the whole assembly or is there a gasket/o ring I can replace?
Reply
Hi David, If your valve is leaking from the upper half of the valve, then I would suggest the SP0714T Handle and Cover Assembly. If your valve has a leak on the lower half of the valve then I would suggest replacing the entire valve with the SP0714T valve listed on this page.
Reply

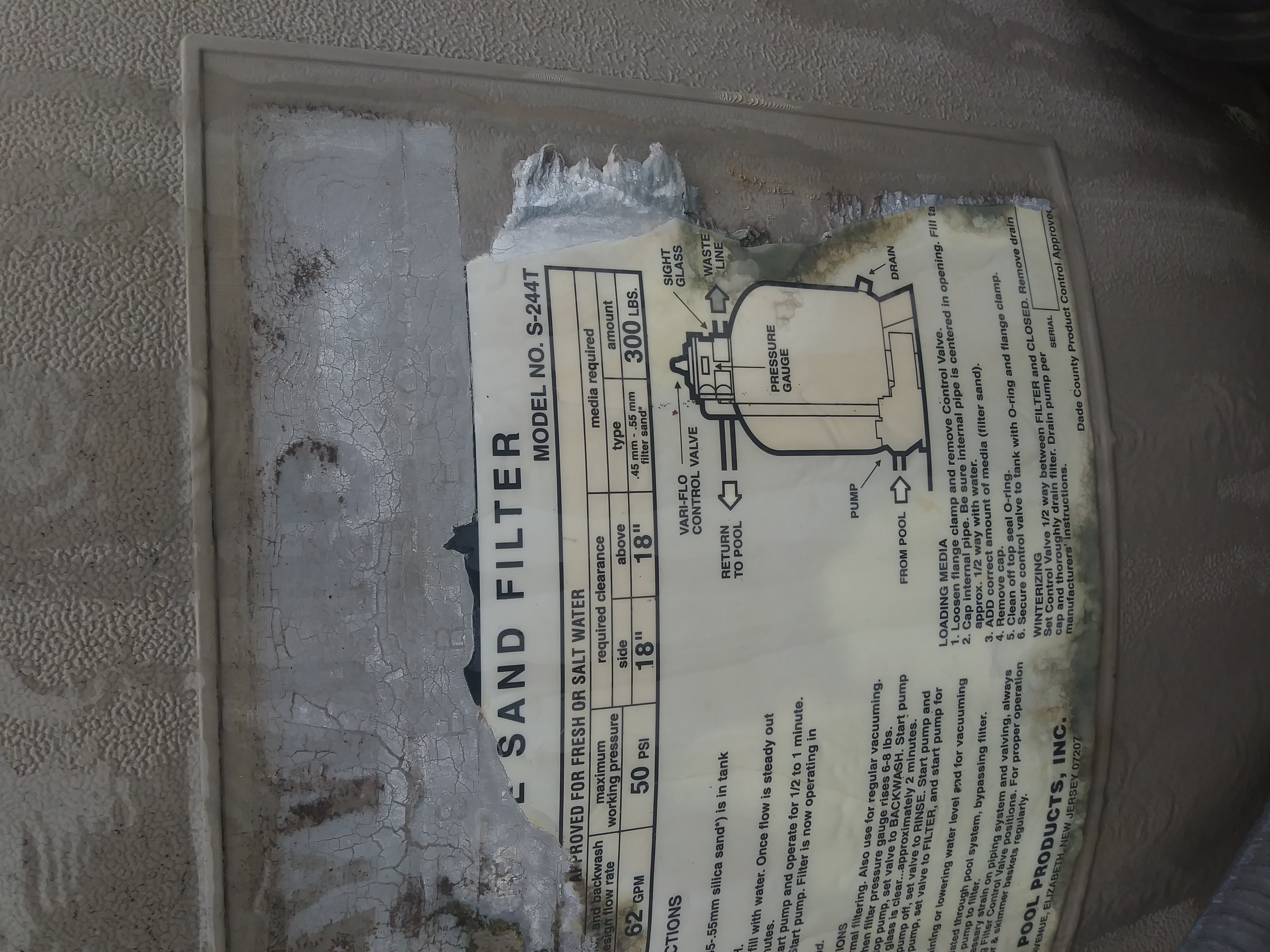

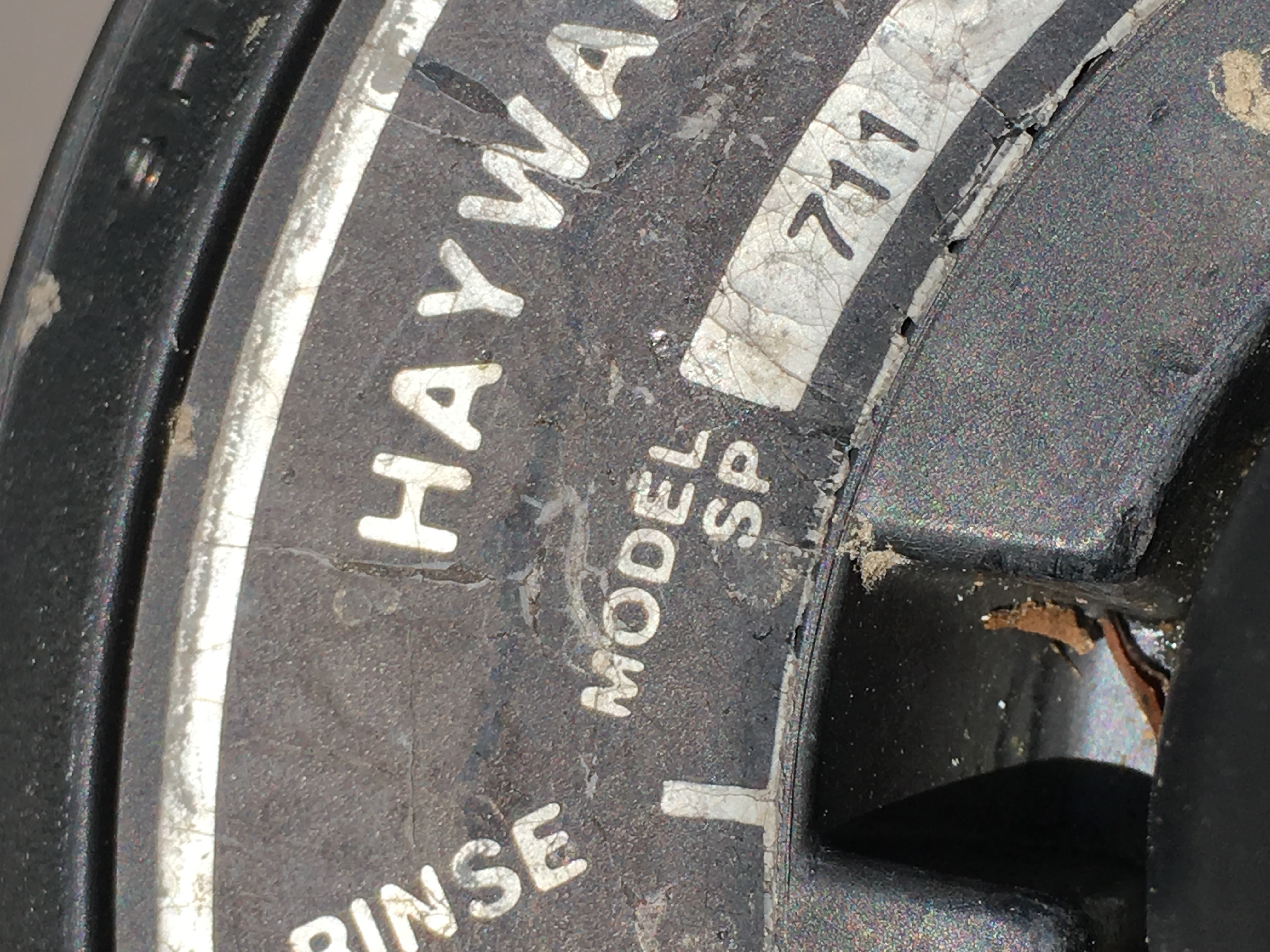

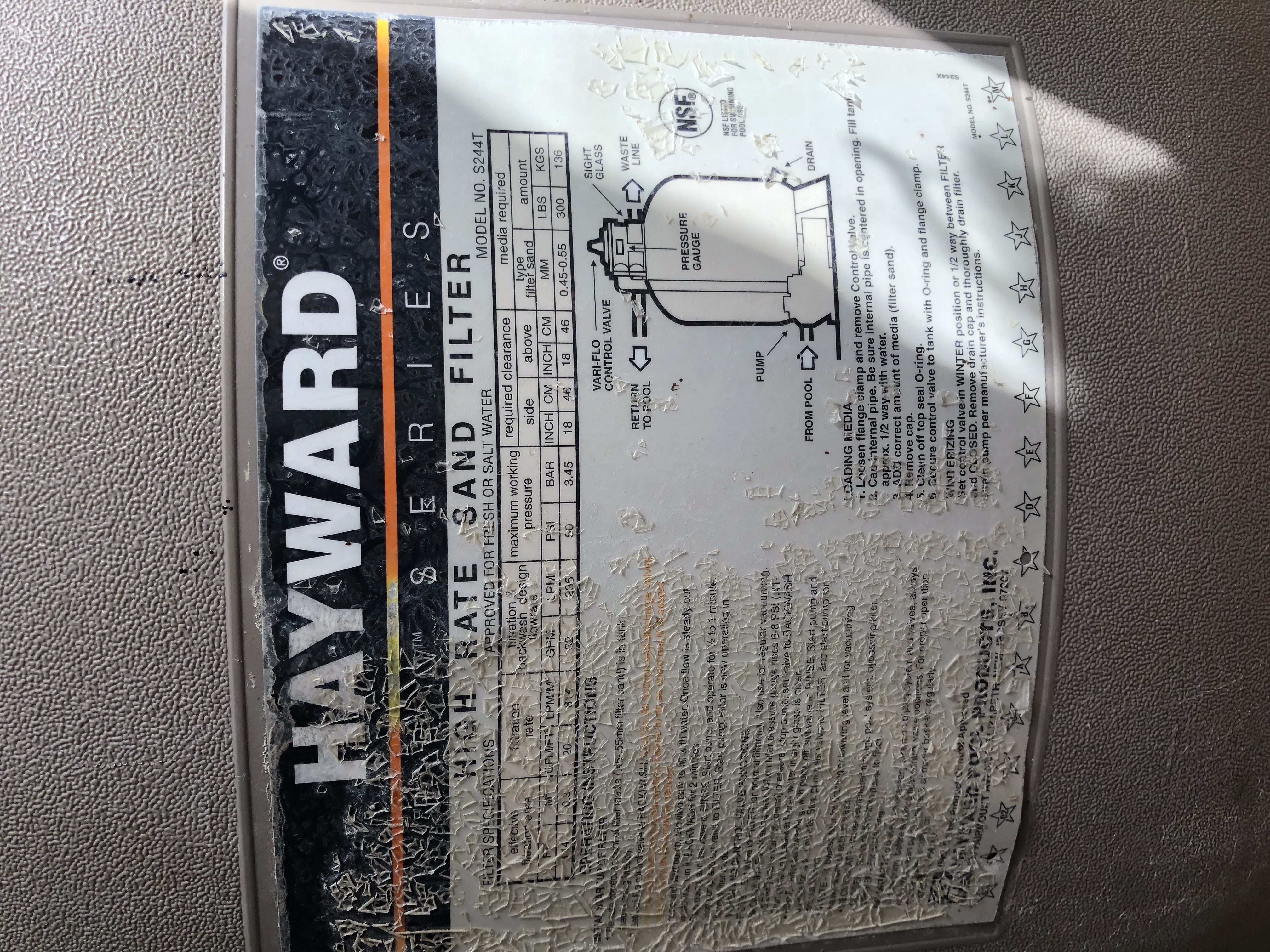

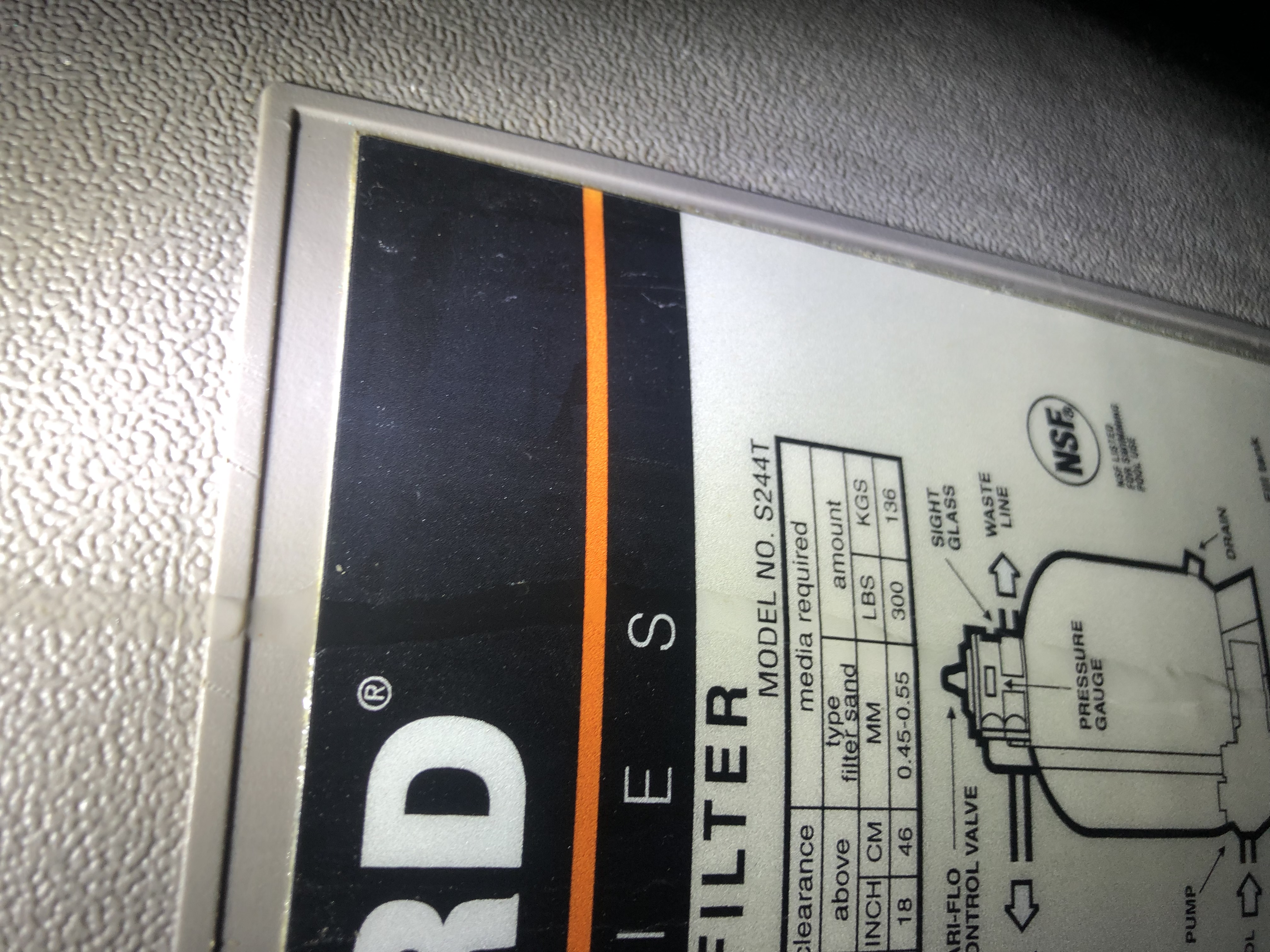

I have a Hayward SP711 Vari Flo Valve that sits on top of a S244T Sand Filter. I know the valve is old is there a newer model that replaces the SP711. I read somewhere that the SP0714T replaces the SP711. I'm just checking before I order a new one. Thanks for your time
Reply
Hi Doug, you are correct the SP0714T valve would be the replacement valve for the older SP711 valve.
Reply
I have an SP714 T1. When the filter is running, there is a fare amount of water running out the discharge hose. I took off the top part of the housing and it appears that the "gasket" material that separates the chambers have deteriorated to the point that it also appears that water could be bypassing each of the chambers. Can I get by with replacing the top half, or do I need to replace the whole valve housing etc.?
Reply
Hello David - The cost of the top assembly is as much as a complete valve. We would recommend replacing the entire valve. You could always use the top assembly from the new valve and save the bottom half.
Reply
I have a Hayward S180T sand filter. The current vari-flo valve is a SP711. Which model of vari-flo valve will I need to replace the SP711?
Reply
Bobbie, Top Mount 1.5" Valve for Sand SP0714T is the replacement for the Vari-flo SP711.
Reply
We have had our pool for years now. The Handle to the Filter on top of the pump broke, can we get a replacement handle for our SP714 filter system????
Reply
Jerry, Handle SPX0710XF is the replacement handle for the SP714 Multi-Port vale.
Reply
What should the normal circulating pressure be fire this valve? My father used to maintain the pool and passed away so this is all new to me...pool store says 20 yet on the side of my filter it looks to me like it says 35...just checking!
Reply
Hi Erica, All plumbing set ups are a little different so there is no "normal" operating pressure. What you would want to do is backwash your filter to clean the filter, once this is done note your clean filter PSI rating. Once your pressure reaches 6-10 PSI over your clean PSI reading then it is time to backwash the filter. Normally we see the clean PSI readings in the 10 - 15 PSI range. Most likely the 35 PSI you see on the label is the max PSI in which the tank can handle.
Reply
Does this model #SP714t replace the Hayword Vari-Flo XL Valve motor with model number SP714?
Reply
Hi David, Yes this valve would be the correct replacement for the Hayward Vari-Flo XL Valve with model number SP714.
Reply
i have a S-244T that just started leaking around the flange clamp, directly beneath both the waste line and pool return lines. It only does this in the filter position immediately after I back washed. Is it likely the o ring or does the entire valve assembly need to be replaced?
Reply
Hi Kevin, The most likely problem is a bad spider gasket and you would need to replace your SP714T Difusser & Spider Gasket here.
Reply
Does this valve replace Hayward SP-704 valve?. It will be going on a Hayward GM142-6 Sand Filter.
Reply
Hi Brad, Yes the SP0704 valve was discontinued and the SP0714T would be its correct replacement.
Reply
I have a Hayward pro series sand filter model S-180T, with a SP714 TC valve. Is the SP0714T the correct replacement?
Reply
Hi James, Yes the SP0714T would be the correct valve for your S180T Hayward Sand Filter.
Reply
The handle on my filter SP714T1 is not locking into place and my "filter" is also leaking water into my backwash hose and I am losing inches of water. The "ring" just inside the handle mechanism looks broken and does not lock tightly into place. Do I need to replace the entire Veri-flow XL Valve or is it a gasket replacement or something else?
Reply
Hi Marlo, Based on the situation you explained I would suggest replacing the complete SP0714T valve.
Reply
does this fit a S210T?
Reply
Yes, part number SP0714T will fit onto a SA210T. Please look at the parts explosion of the Hayward S210T for any other pieces you may be needing.
Reply
i use a self contained pool cleaner to clean my pool,but when i turn my filter on after cleaning im getting dirt on the floor of my pool, my filter has new clean sand, could my valve be bad. thanks.
Reply
Hi Kris, Yes this is a sign of a bad filter valve. We also have an Article on Getting Sand Back in Your Pool which lists other common culprits.
Reply
My valve isnt working . The spring is rusted and wont let the handle lock in the slot.
Reply
Is this the correct replacement valve for Hayward sand filter model S244S?
Reply
Hi Sandrad, the last digit of "S" on the S244S filter indicates a side mount filter and this valve is for a top mount filter. The S244S would require the SP0710X62 Valve if you have 1-1/2" plumbing and the SP0175X62 Valve if you have 2" plumbing.
Reply
Is there a replacement spider gasket for a Hayward Vari-Flo XL Valve bearing the ID code SP 0714 C on the underside of the valve assembly?
Reply
Hi Edward, the spider gasket is not sold seperately and is only available as part of the Hayward SP0714T Diverter.
Reply
The handle on our valve is not fitting into place when turning it to the different positions. After taking it apart we found the spring to be corroded and broken. We need to replace the spring...do you sell just that part?
Reply
Yes we do carry the Spring Only for the Hayward Multiport Valves.
Reply
is part #4700-14 still available ?
Reply
Yes the 4700-14 Hayward Valve Label is still available.
Reply
I need to replace the filter valve on my Hayward system. It's old and the model and serial number is no longer readable. Can you tell me any other ways to determine the replacement valve I need to purchase. The only identifying info i can find is Vari-Flow XL Valve.
Thanks
Reply
Hi Phil - If you have a Hayward Multiport Valve top Mounted on a Sand Filter with 1.5 " ports, it is most likely this MPV. It is a Variflo XL Valve and is the most common of these valves. Lool at the pictures in this link and compare them to your Valve in appearance and dimensions.
Reply
I have a SP0714T1 and I need a new gasket for the Valve up where you turn to different setting. How can I order one?
Reply
I have model sp0714t1 and when it's running on filter ihave water returning to the pool and at the same time water is flowing out the waste line. ihave to put the waste line in the pool so my pool doesn't empty. turning the selection lever has become more difficult. what do I need?
Reply
Jim, You will need to replace the Key/seal Assembly (Diffuser w/ Gasket Glued In) (SPX0714CA). I would also recommend replacing the Cover O-ring (SPX0714L). You can follow these step on How to repair a leaking Hayward backwash valve.
Reply
I have a Hayward S-166T high rate sand filter. When I have the valve in any position the water still goes out the wast line. what do I need? does it have a gasket or O ring in the top??
Reply
Hi Marnie, Sounds like you need a new spider gasket for your filter valve. The spider gasket is not sold seperately and is only available as part of the Hayward SP0714T Diverter. See our guide on "How to Replace a Spider Gasket on a Multiport Valve" for more information
Reply
my sp0714t filters and backwash at the same time while handle is in filter position the pressure shows 0-2 lbs help I replaced the top piece with handle, it eithers trickles out or some times is about half the flow out of the back wash pipe, no pressure but good floe to the pool line...help
Reply
Hi John, If you replaced the Key Cover And Handle Assembly (SPX0714BA) and still having the problem you may need to replace the complete 1.5" Top Mount Valve for Sand (SP0714T) because the rotor isn't sitting properly in the housing.
Reply
Hello,

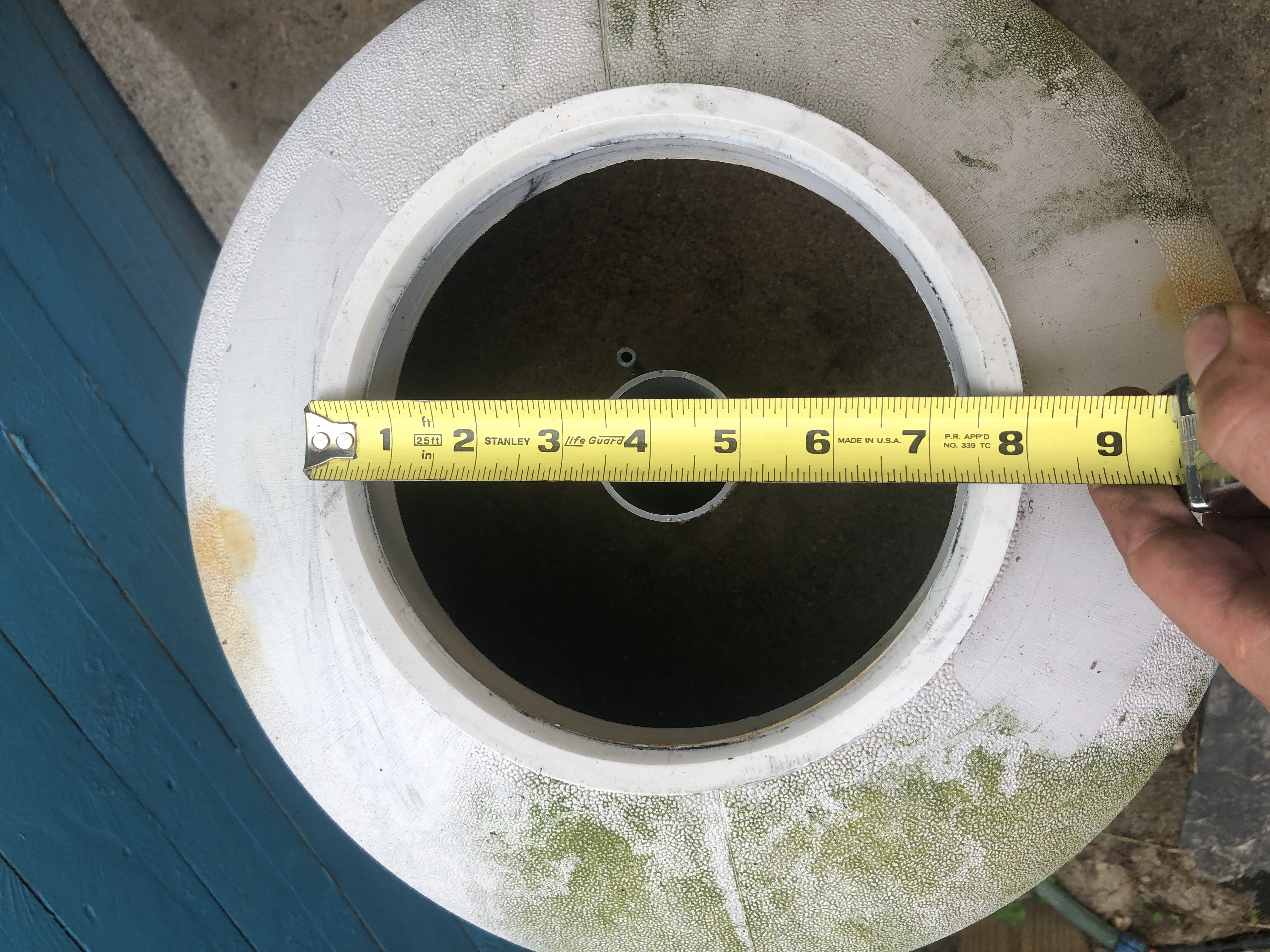

I have a very old Hayward top mount sand filter (22inch, 2.64 Sq Ft filter area) and the only P# still visible on the Vari-Flo valve is SP711 (50psi and 60gpm). Could you provide me with the modern replacement valve(s) P#'s.
Thank you in advance
Reply
Hi, The Top Mount Valve for Sand 1.5" (SP0714T) will be a modern replacement for your SP711 valve.
Reply
Looking for a replacement valve assembly for a 1.5hp sand filter model S230T. Can you help?
Reply
Hello, The Hayward SP0714T valve is the correct valve for the S230T filter. Please note that this is a 1.5" valve.
Reply
I have a Hayward GM245 filter with a SP711-13 valve. It looks like the SP0714T is the correct replacement but the ports are not one above the other like the old one. Is this the only valve available as a replacement?
Reply
Hi Betty, the SP0714T would be the proper replacement valve for the SP711-13 valve being used on your GM245 Filter. This would be the only replacement valve and you may have some slight re-plumbing due to the change in port location.
Reply

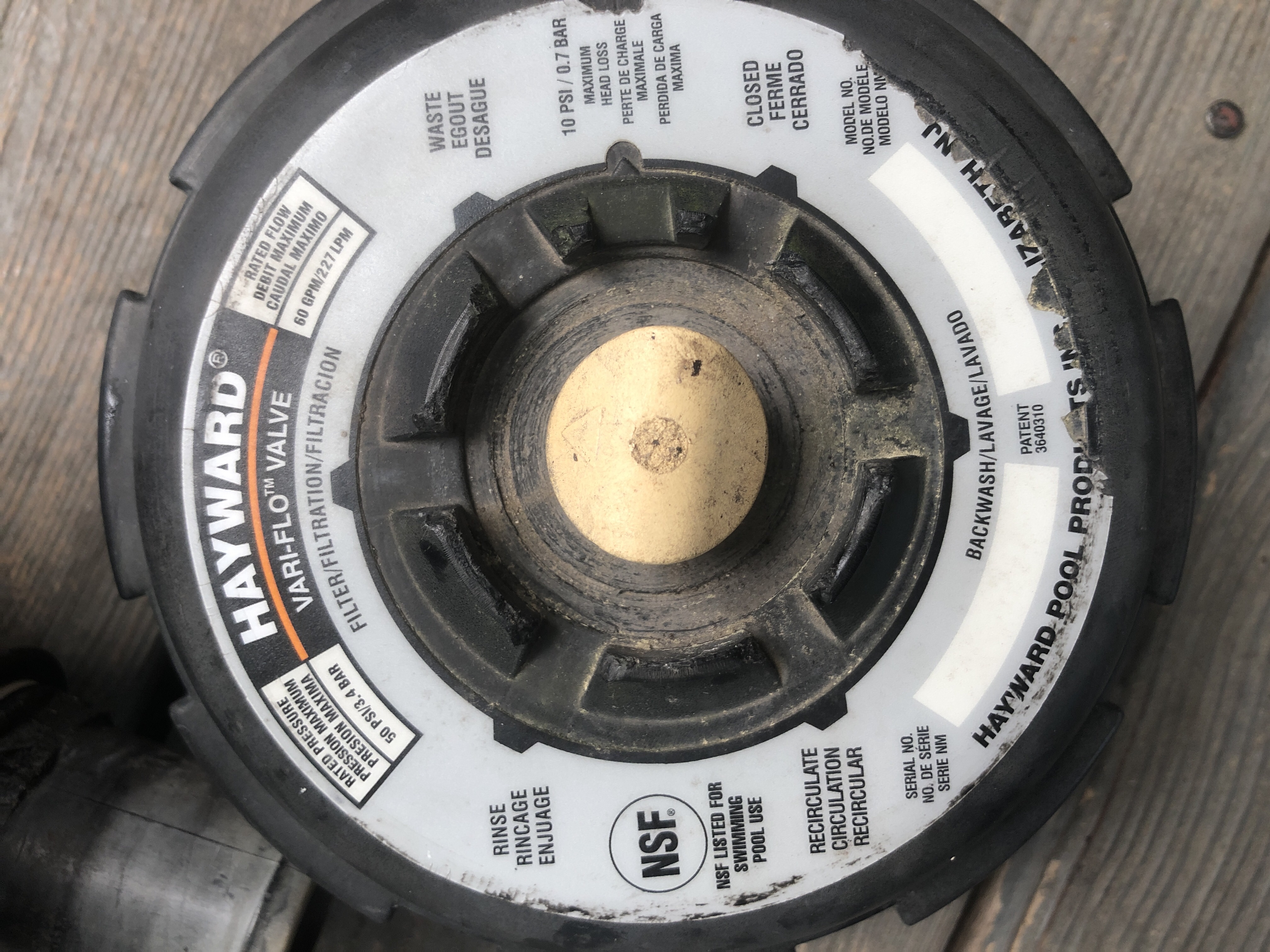

Hello I was looking at my valve . SP714 is all I can still read on . Can you tell me what valve parts will fit it
Reply
Hello Mark, parts for the Hayward SP714T valve can be found on the Hayward Multiport Variflo XL 1 1/2" SP714T Parts Page
Reply
I have a dream line S170TSCP sand filter, need replacement part for top mount valve? Thanks
Reply
Hi Nathan, The 1.5" Top Mount Valve (SP0714T) will be the correct replacement valve for your Dream Line S170TSCPE Sand Filter.
Reply
We have a S166T sand filter, however the valve position diagram has come off the unit. What diagram is compatible with that filter?
Reply
The SP0714t valve does not have a separate label. to replace the label you would have to buy the whole KEY,COVER AND HANDLE ASSEMBLY 4703-20. Looking at the pictures would be the only way to see the positions.
Reply
I have a S-244T sand filter. I have a slow leak from the waste line when the filter is running. What part do I need to replace to fix this leak? Also, is this something I can do myself if I can get the part? What would be the problems I could encounter replacing it myself?
Reply
Hi Cindy, You will need to replace the Key/seal Assembly (Diffuser w/ Gasket Glued In) (SPX0714CA). You can follow our How To Replace a Pool Multiport Valve Spring for step-by-step replacement instructions.
Reply
Hi Everyone,
I have sand im my pool. Is there something broken in the filter. Thank you for your response.
Reply
Guy- It sounds like there could be an issue with your laterals or your lateral hub assembly on the inside of the filter.
Reply
The vari-flo control valve on the Hayward S180T has slipped the bolt on the top and water leaks through the backwash hose. Can the bolt be reinserted to the proper position?
Reply
Hi, Our How To Replace a Pool Multiport Valve Spring guide can provide you with the correct information to properly position the cover for installation.
Reply

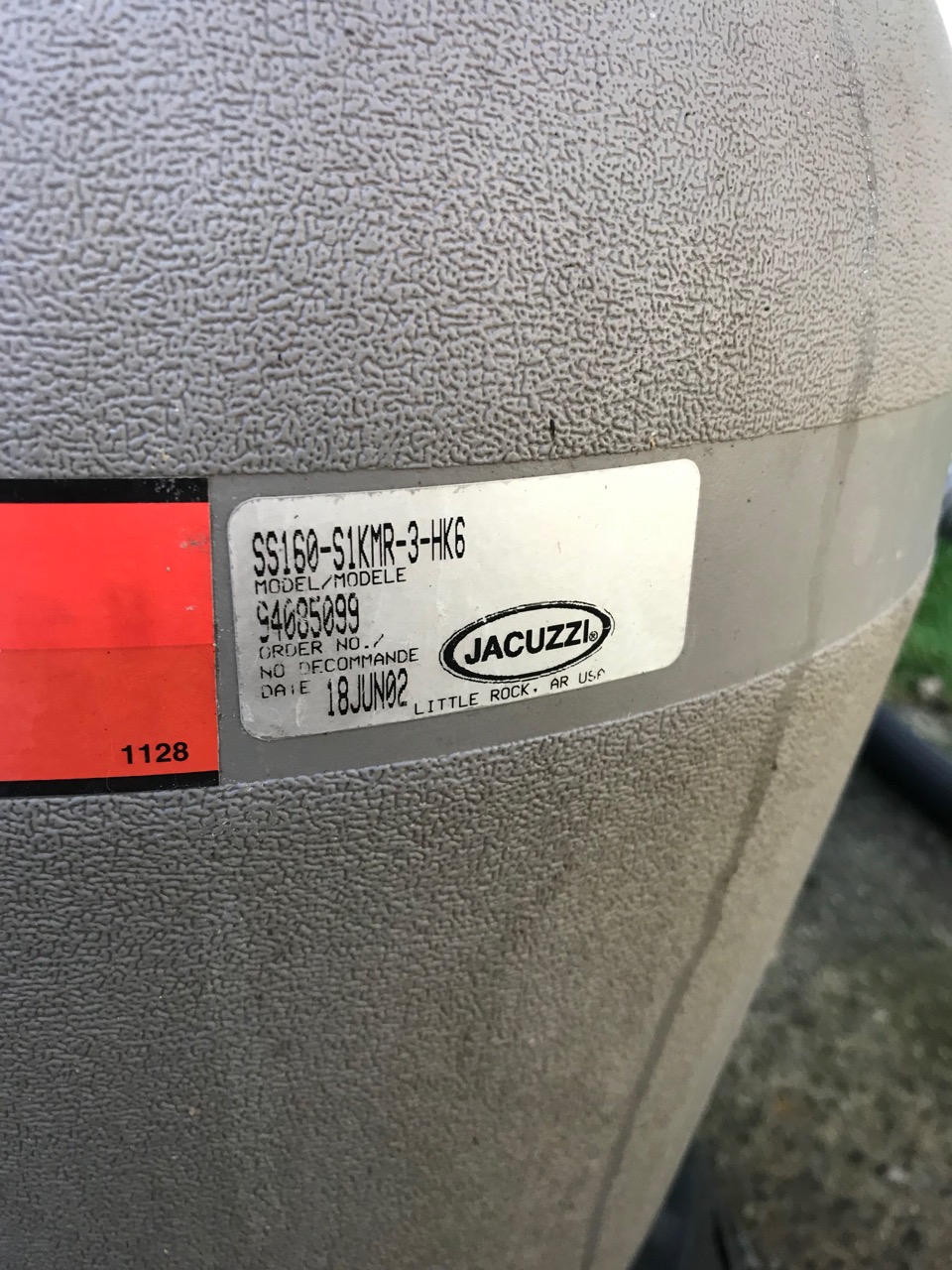

I have an I ground pool with a Jacuzzi sand filter. Model #is DV ASSY 7-POS 1-1/2 NPT. 2002 I need a new top mount valve. I think. It is sending water through to the outside ground when it is on filter. The pool place said the valve cost $60 but wanted $150. To put it in. Do you have what I need and how much?
Reply
Hi Myra, The replacement complete valve for the Jacuzzi Sand Filter varies depending on if you have a the Clamp-On Style or Bolt-On Style valve.
Reply
I would like a spider gasket for Hayward SP711-TXC. I believe this is a "NO GO" so will the whole head mentioned here bolt on to that filter?
Reply
I am looking for a spider gasket for an SP07614T valve on a Hayward S166T filter. Is it available, how much does it cost, and how long to ship to 08094 area code? Thank you
Reply
Hi Red, The Hayward S166T Filter uses a SP0714T valve which would require using the Key/Seal Assembly (Diffuser w/ Gasket Glued In) (SPX0714CA). I was not able to find a SP07614T model valve.
Reply
my serial number on my Hayward filter is s210t93s which valve do I need also I an leaking water out my waste could this just be spider gasket
Reply
Hi, The 1.5" Top Mount Valve (SP0714T) would be the correct complete valve. If you replace the complete valve you will not have to replace the Key/Seal Assembly (Diffuser w/ Gasket Glued In) (SPX0714CA) for the SP0714T valve.
Reply
my multiport valve part # SP714TI and serial #140G35.
the one I looking at is part #SPO714T . Are they the same
Reply
Hi Kenneth, The 1.5" Top Mount Valve for Sand (SP0714T) would be the correct replacement valve.
Reply
I have a S190tscp sand filter . Is this the correct replacement valve? Can I replace just the top piece?
Reply
I have a Hayward vari-flo xl tm valve you are showing the same valve but does not say tm picture looks identical. Is this the same valve.
Greg
Reply
Hi, This would be the same valve as the Hayward Vari-Flo XL TM valve.
Reply
Will this fit model sm 1915Z1?
Reply
Hi Steve, I was not able to cross reference model # SM1915Z1 to any specific filter manufacture, so I can confirm if this valve would work. If you can send more info to upload@inyopools.com we can look into it.
Reply
I have an SM1915shg filter system with a 1 1/2 hp pump. I need a multiport valve. Is the SP0714T the replacement I need?
Reply
Hi Lynn, The SP0714T Valve is the correct replacement valve you will need.
Reply
The model number on my control valve is not readable. The number on my sand filter is S-190-TSCP. In my manual, it says that I need part no SP-711-13, can I use the SP714T part for this part. Also, how long is the warranty on these parts. Do they come with an o-ring?
Thanks!
Reply
Hi Pam, This valve will work with you S-190-TSCP model filter and will also replace p/n SP-711-13.
Reply
Is part number SP714 still available?
Reply
Pam- The sp0714t Top Mount Valve for Sand 1.5" is the sp714 valve.
Reply
which value will work on a Sta-rite cristal-flo hi rate sand filter T-180wf??
Reply
Hi Tom, This valve with not fit the T-180WF filter, the Sta-Rite Multiport Valve (261186) will.
Reply
Does this valve fit a s196t filter?
Reply
Hello, The SP0714T Top Mount Valve for Sand Filter 1.5" is the replacement valve for the Hayward Swim Pro Series Sand Filters. I would also recommend you replace the O-ring, Id 6-3/4", Od 7-1/8" when replacing the top mount valve.
Reply
Will this valve work on a Hayward Swimpro S196T filter?
Reply
Michael- The Sp0714t Top Mount Valve for Sand 1.5" will work on your hayward swim pro filter.
Reply
Hi, The plastic port where my pressure gauge screws In has a crack. My filter is model SP714TC. Is this the correct part to replace it with?
Reply
Jenn- Yes, you would need to replace the entire valve, and the SP0714t Top Mount Valve for Sand 1.5" would be the correct valve.
Reply
I broke off the black handle ... Do I have to replace the whole unit
Reply
Hi Carmine, The Handle (SPX0710XF) is the replacement handle for this valve.
Reply
how much is a spider gasket and o rings for part #sp0714t
Reply
Here you may View Pricing on SP0714T Valve Parts
Reply
I have a Heyward Pro Series Model S144T...
I need to replace the entire valve assy...
I keep seeing model# Spo714 as the proper replacement...
The original was # Spo704...
Is that the right replacement, for model #SP0704TX?
I just want to make sure it fits the "Pro Series" Model S144T, before I
Gamble $100. on the difference between the "704", and the "714", in the model #`s...
Any help would be much appreciated, Thank You.
Reply
Yes originally the S144T used a SP0704T valve which was discontinued and the SP0714T is a direct replacement for the SP0704T valve so you should be all set with this valve.
Reply
I have a Dream Line Sand Filter Model #S190TSCPE and am needing the Filter Control Valve. Are these still available?
Reply
This valve here (SP0714T) would be the correct replacement valve for the Dream Line Sand Filter Model #S190TSCPE. This valve is in stock and ready to ship.
Reply
I have a Hayward pro series sand filter. I have the sp ;714 model valve on the top of it. When I switch from back flush to regular filtering, I still have water leaking from the backflush outlet. Do you have any answers on what might be causing this probalem?
Reply
I have a sp714 value and I am experiencing water leaking through the waste line when 'i have the setting on circulate. 'do 'i have to replace the entire value?
Reply
Hi Steve, the most common culprit for leaking out of the was port is a bad Spider Gasket & Diverter replacing this part should do the trick. The only other part that sometimes causes leaking out of the waste port is the Valve Spring.
Reply
Would this be the right replacement for the Hayward Vari-flo SP 710 multi-valve port? I don't see any other letters or numbers after 710 in the model label of my current valve.
Thanks,
Greg
Reply
Hi Greg, Could you let us know the make and model of your filter, there should be a label on the side of your filter that give this information or if you wanted to email us a photo showing the complete filter then that would help us determine the proper valve for you.
Reply
Will the key cover sp0710xba17 replace sp714a?
Reply
No the SP0710XBA17 is not a replacement for the SP714A the replacement for the SP714A is the SPX0714BA Key Cover
Reply
i need to replace the valve on my pool filter. it is a Hayward.Model SP 711 13. What is the part number for the replacement valve. Thanks is advance.
Reply
Hi Cy, The SP0714T valve will replace the SP711 valve.
Reply
I hooked up my valve backwards for a couple of days and now I'm getting sand in my pool do i need a new valve
Reply
Tim, You may/ may not need a new valve. Usually, if sand is shooting back into the pool, the lateral assembly may be damaged.
Reply
I have a Hayward vari flo valve sp711-A-13 which I am having trouble finding. Is there a compatible vari flo valve?
Reply
Hello , The SP0714T valve is a replacement valve for the sp711-A-13 Vari-flo Valve you currently have.
Reply
thank you for your help. If I order the Hayward vari flo valve today how long is the mailing time?
Reply
Hello, Due to the upcoming Holiday, orders will ship on Tuesday May 31st (the earliest) and will take 3-6 business days for delivery (not including weekends).
Reply
I have a pro series vari-flo control valve serial # 320, sp714, model h. is this your updated or substitute
Reply
Hi Bill, This Valve is the current replacement that will replace the SP714 valve for the Hayward Pro Series filter.
Reply
I have a SP711A13 will this SP0714T be a direct replacement and can I use the old collar to attatch it? And is the anthing else I need to get going.
Can you recommend a good oil or grease for the large O ring gaskets.
Reply
Al, The SP0714T will replace your existing valve. You should be able to re-use the existing clamp. I would recommend any non petroleum based lubricant to lubricate the gasket.
Reply
How do you replace the multi port valve(SP0714T)?
Reply
Hi, We do not have instruction for installing just the valve but our How To: Install a Pool Sand Filter guide will instruct you on how to install this valve.
Reply
whatever setting I have my multi port valve on I get water leaking from the waste line.Do I need a new valve or just a new gasket?
Reply
Hi Mark, In most cases this issue is due to a bad spider gasket. I would suggest replacing your Hayward SP714T Spider Gasket & Diverter (the gasket is only sold with the diverter).
Reply
Just installed a new hayward series var-flow XL and new pump and sand filter system. Love the system. Have one problem, when I switch it to back wash. nothing happens. The pump is running, you can see the water moving in skimmer basket, but no water is coming out the back wash port. Any suggestions to fix this?
Reply
Hi Jane, I would recommend making sure that you your hose connecting are in the correct port on the filter.
Reply
I have a spo714t Hayward sand filter and broke two of my lateral fingers. Is there a replacement for them? I have been searching but found nothing the looks like them
Reply
Hello. The part number you provided is for the multi-port valve used on a variety of Hayward sand filters including the Pro Series, Swim Pro, Sand Master and E-Series. To correctly identify the laterals or other parts needed you will need to identify a part number or model name/number off of the sand filter and search for replacement parts for that filter. If the part numbers are not available on the sticker of the filter, you may email us photos of the equipment via email to upload@inyopools.com.
Reply
Would you know what would be the correct replacement valve for a 19" Proline sand filter. The only numbers I could find on the valve is 718-1960
Reply
Hi Peter, You would require this Waterway ProLine Filter Valve The SP0714T would not be the correct valve.
Reply
I have a Hayward vari flo sand filter. SP711 TXC. The head is cracked and it is leaking under the gauge. Does the SP714 replace this?
Reply
Hi Dee, Yes the SP0714T valve would be the correct replacement valve for you.
Reply
sand is getting into my above ground pool, and i already replaced my and my whole lateral assembly and all the laterals. what could be the problem?
Reply
Hi Marianne, Here is a good article on How to Stop Sand from Returning to your Pool I think you will this article to be helpful.
Reply
I have a Vari-Flow 711, and see I need to acquire a 714 to replace it. But how do I determine if I have a 1.5 or 2"?
Reply
Hi Steve, If your valve says 711 then you would have the 1-1/2" model and the SP0714T is the correct valve for you.
Reply
The internal rubber gasket failed on my sand filter. Went to local store to buy a new one. Found that I could not just get the gasket, & had to buy the gasket & the plastic internal piece that it fits into. I had to remove the rod & spring mounted handle to replace the entire part. Very difficult to reassemble!! When I put it back together, it to leaks around the handle. Am I missing a gasket or do something wrong in putting back together. Is there a gasket above the spring I am missing.
Reply
Hi Alan, I would take a look at this guide on How to Replace a Mulitport Valve Spring as well as this Video on How to Replace a Multiport Spider Gasket These should help you determine if you missed anything in your re-assembly of the valve.
Reply

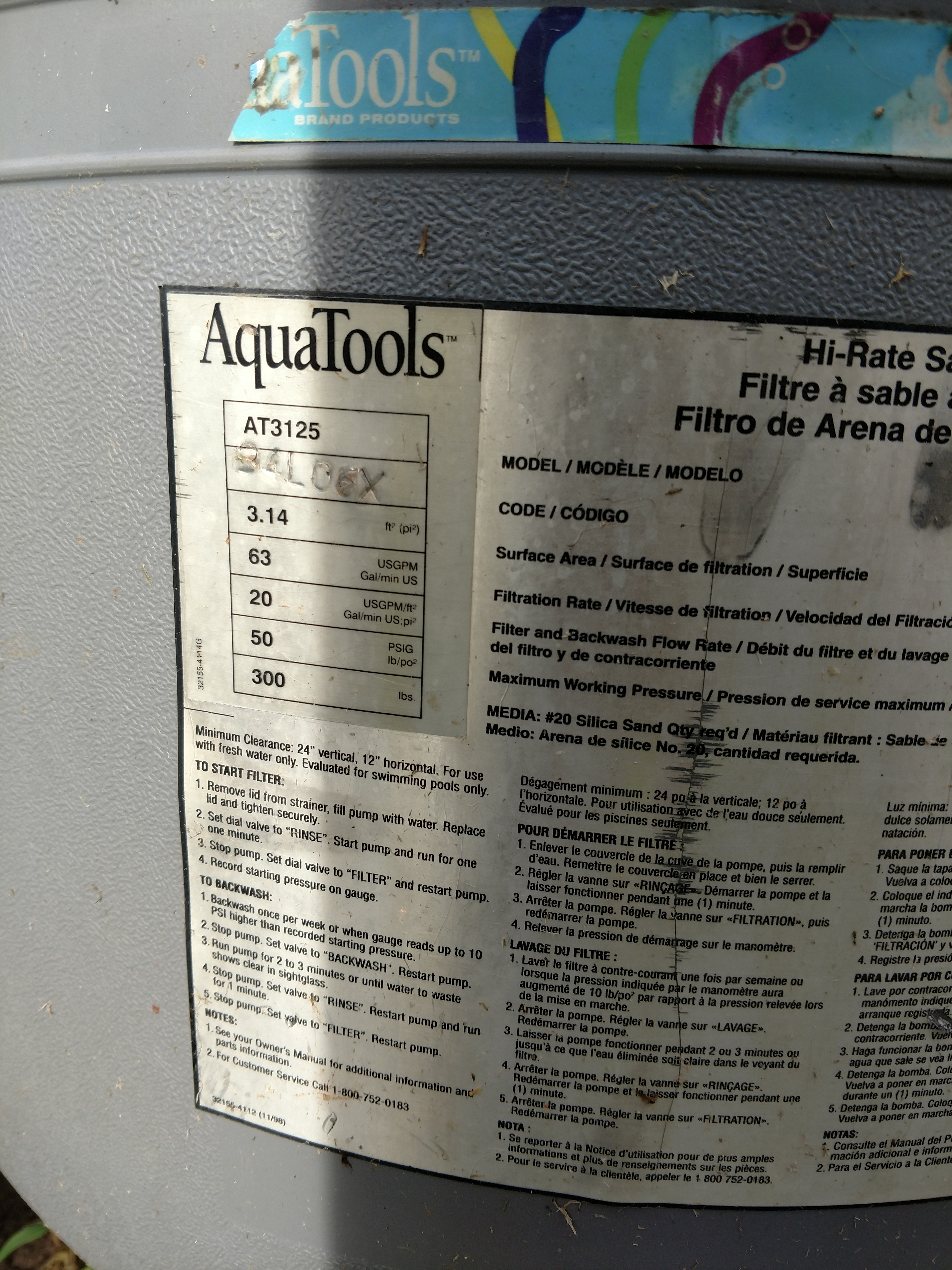

I have an Aqua Tools filter AT3125 and I was looking for the label ring on the multi port valve. The one that says rinse, waste, close, etc. Do you sell just the label and if so, what would I order? Thank you
Reply
Shannon, Unfortunately, we don't sell the label. You may be able to contact Pentair for a replacement label. You can reach them at 800-831-7133.
Reply

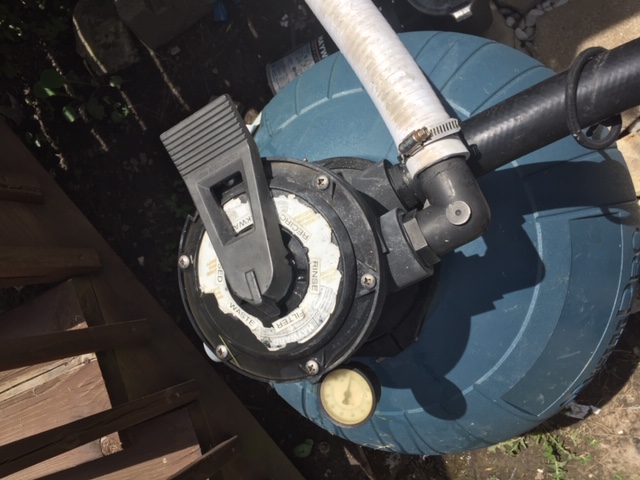

I have a 150 lb. sand filter with no name tag the diverter valve has a number 27-2599 which maybe a Pentair valve I want to know if this Hayward Pro Series valve SPQ714T would fit this filter which is 19 inches in diameter
Reply
Hello, Unfortunately, this will only fit Hayward filters. The only way to find the replacement valve would be with the valve model number or the filter model number.
Reply
I have a Hayward Pro Series High Rate Sand Filter S-220T and need to replace the gasket between the vari-flo control valve and the filter. Can I purchase just the gasket or is this whole unit what I need to purchase? Is this the correct unit for my model?
Reply
Hi Harold, If you just need the o-ring that goes between the valve and filter for your Hayward S-220T then you will need this Hayward S-220T Valve O-ring. If you did decide to replace your entire valve then the SP0714T valve is the correct replacement valve for your S-220T filter.
Reply
where can I get a replacement valve for my sand filter it is about 25 years old and american products 987109?
Reply
Hi Ron, Could you email us some photos of your filter, filter label, and valve? This would help us determine the correct valve for you.
Reply
the valve handle is very hard to switch positions on my sp 0714c valve, I took the valve top off and checked the gasket and it doesn't seem to be damaged...what might the problem be?
Reply
Al, If the handle is hard to turn, I would recommend lubricating the gasket with a non petroleum based lubricant to see if that helps.
Reply
I have a poolco filter of which the multi port valve needs to be replaced I can send a picture if need be What brand would I use poolco is out of business.
Reply
Hi Lori, Here is the Top Mount Poolco Valve you would require.
Reply
Hello Patrick I have a S166Tfilter i change the sand a few days ago when I turn the pump the pressure in the return is fine for about 12 minutes then it drops considerably I then back wash it runs well and after about 12 minutes the pressure drops again could you help please
Reply
Hi Bally, You may want to check and replace the seals on your pump, it sound like you have a suction leak.
Reply
I have the Hayward Pro series S210t filter assembly and the valve assembly marked sp0714a but after doing research on it I keep finding the sp 0714t is that the valve I need and are they interchangeable with my filter? They look exactly the same to me
Reply
Hi Darren, The SP0714T is the current replacement valve for the Hayward Pro series S210T filter.
Reply
Will this replace a waterway port. I cant find a model number on
the valve. When I keyed in the number on the split-nut, this came up.
Reply
Hi Cliff, no this valve does not replace a Waterway valve. Could you email us few photos as this will normally allow us to pinpoint what valve you need.
Reply
i have a hayward vara flo valve on my sand filter, the handle has become loose
i dont feel like it is locking in to position,my water is pulsating, do in need to repace it
???????????? thanks; sam
Reply
Sam, The valve shoudl not make the water pulsate. I would recommend checking the pump and filter.
Reply
i have a hayward sand filter , how often do i change the sand,and what kind of sand
? my water has starting to pulsate, i dont know if my pump is getting weak, or if
the problem is in the filter thanks;sam
Reply
The sand in your filter is recommended to be completely changed every 5 years with Pool Filter Sand.
Reply
Is Hayward model SP0714T the same as (on my Vari-Flo XL Valve's data plate) SP0714T1? Just checking to ensure order of correct parts. thank you.
Reply
Hi, The SP0714T valve will replace the SP0714T1.
Reply
Can the valve handle be lubricated? It is extremely hard to turn to the different positions.
Reply
Hi, The handle does not require any lubrication. The Non-Metallic Bearing (SPX0710Z16) that is located under the handle may need to be replaced.
Reply
I need a replacement valve for Hayward SP 0704, do you carry these?
Reply
Here is a link to the Hayward Multiport 4 Position 1 1/2" Vari-Flo Model SP704 Parts diagram. The handle Cycolac (spx0710xf) is showing in stock at this time.
Reply
bought used Hayward sand filter/pump. serial nr/model nr wore off filter. . Valve is vari flo xl 75gpm/284lpm sp0714t1. Pump is century 295c73m bn35ss 1.5hp part 186886 .o1. Hope this info will help. I need to know what size the filter is and how much sand it holds.
Reply
Hi Daniel, Unfortunately, the info provided in not enough to find out what size filter you have. If you can provide the width and height of the tank with the valve I can find out how much sand is required.
Reply
I have a SM1915SHG filter but the sticker shower where the back wash and everything are located is gone. Will it be the same as the labor on this one?
Reply
Hi Clayton, This Top Mount Valve (SP0714T) can be used with the SM1915SHG filter.
Reply
Do you think there is plenty in stock of this item I need to wait until Aug. 1st. to order this part, but don't want to lose out on this item.
Sincerely
Vicki Leo
Reply
We currently have a number of these available and I do not foresee you having an issue ordering one.
Reply
My pump seems to be working well, but I hear a "gurgling" sound inside the key cover and handle assembly (Hayward SPX714T). The pool heat pump will not turn on and it is indicating a FLO problem. Do I need to replace the key cover and handle assembly?
Reply
You have an air leak somewhere which is reducing your flow rate. Is anywhere on your pump leaking water? You will hear a gurgling sound in your filter if your pump is leaking as well. If your pump is leaking, I'd change the seals in it which is a cheap fix. Less expensive than changing the key assembly on your filter so that would be a place I'd start first.
Reply
The filter does not always work no matter what setting I put the control valve handle in, e.g. filter, backwash, rinse, etc.
If I play the handle back and forth a bit around a setting it will eventually work but that can take a long time to happen.
The control valve is very hard to move as well.
Reply
Hi John, Giving the issues that you're experiencing you'll be better off replacing the entire valve or the Cover and Handle Assembly (SPX0714BA) along with the Cover O-ring (SPX0714L).
Reply
Does the current sp0714T replace older SP0714T models? Does it include gauge, o ring and installation clamps?
Reply
The SP0714T is the same model Valve assembly. The valve assembly includes the pressure gauge and the o-ring. It does not include any clamps.
Reply
I have a Hayward filter sp 711 a13. After I backwash and put it back on filter it doesn't return to strictly filter. I am losing water still back washing. Any suggestions. Will this part work and fit?
Reply
Hi Rob, The SP0714T is the correct replacement for the SP711A13 valve which will resolve the problem that you're having.
Reply
WHAT IS DIFFERENCE BETWEEN A HAYWARD VALVE SP0710, SP07122 & SP0715
Reply
The SP0710 and the SP0715 are for DE filters and are almost identical except for one having 1.5" ports and the other 2" ports. The SP07122 is for sand filters.
Reply
Hello! I have a very old filter - SP0711-A13. The valve and lateral assembly is just now in need of replacement. I've read that the SP0714t valve is the correct model number, but I'm not sure about the lateral assembly. Would you happen to know what lateral assembly would fit this? Thanks!
Reply
Hi Brian, This SP0714T valve will replace the SP0711-A13 valve, but we will also need to know the model of the tank that in order to locate the lateral assembly.
Reply
i have a swimpro sand filter sw144T they say it is obsolite is there a replacement top mount valve i beleive it is a multi port 6 way control valve fits a tank holds 100 pounds sand
Reply
Hi, This Top Mount Valve (SP0714T) will fit the SW144T sand filter.
Reply
I have a s244t filter and water leaks thru waste line as pump is running
Reply
Hi, Roger. To resolve the issue of your leaking valve, you can replace the entire valve (PL0714) or the Diffuser w/ Gasket (SPX0714CA).
Reply
I have an American products 26" Eclipse TM high rate sand filter with a Praher TM-12 multiport valve. Will this work as a replacement valve??
Reply
I don't know much about my backwash valve. I know its a Hayward veri flow. The model so is 710/82. What is a replacement for tha? I have some pictures of it that I can email also
Reply
Hello Dustin- The SP710x82 is not a Hayward valve model, but the Vari Flo Multiport Valve 1.5 for S200 Sand Filter - SP0710X32 is similar to the part number you provided. Do you know the model of the filter and can you send pictures of the valve and filter please?
Reply
I believe my mult port Dirverter valve is a is a HAYEARD -SPO714T ( it has a winter position). I need only what I believe to be called a "KEY COVER and HANDLE ASSEMBLY REPLANEMENT. Can I buy just this part?
Reply
I have a Hayward pri series xl variable flow. The only number i can find forr what I call"filter head" us sp714 there is no other numbers. What do I need to replace tge unit that gies into the fikter and then yoy "collar" clamp it in?
Reply
Hi Nancy, This would be the correct valve for you. You will also need this Hayward Valve Clamp to secure the valve to the filter.
Reply
Are the spo714 and spo714T the same and will It fit a s200 series filter what are the diferrences
Reply
Will this work for a s180 hayward? or does it need to be 2" vs 1.5"?
Reply
Yes this does work on the S180T filter and the valve on that filter is a 1.5" valve, so this will be the valve you need.
Reply
Will this replace an astral top mount model 22358 ??? If so I am willing to order one...I need a quick response please tks
Reply
Hi Mike no this valve does not replace the Astral 22358 however we do carry the 22358 valve. You will need this Astral 22358 Multiport Valve.
Reply
I can not fine a Diffuse Assy with gasket for s300 where can i get that part or what subsutue part can i use will sp714t stop water from leaking when the pump is on.
Reply
Hi, Susan. The PL0714 valve will not replace the S300 valve. The Sand Filter Valve Diverter w/ Spider Gasket - 47304003080 will fit that valve and other replacement parts for the S300 valve are listed on the Above Ground Pool Sand Filter parts page.
Reply
I have a Hayward pool filter and my return lines have no pressure, could the sand filter head be bad and can I get the whole housing that sits on top of the sand filter, it is a sp714 a all i see is 714t
Reply
Mickey, When is the last time the sand was changed? If the valve was bad, it would typically leak out of the waste port or the by the handle. The SP714 and the SP714T are the same valve.
Reply
Will this fit a Hayward E Series model E100 sand filter. Also will it come with the plastic screw in connecters that the hoses connect to?
Reply
Yes this is the correct replacement valve for the Hayward E Series model E100 sand filter.
Reply
I need to buy the clamp for this filter. Do you sale it and how much is it?
Reply
You will need this Hayward Filter Valve Clamp which secures this Hayward Valve to a Hayward Pro Series Top Mount Sand Filter.
Reply
sp714on the collar is their a gasket or oring required
Reply
Hi Tom, If you have a Hayward top mount sand filter then yes there is a collar o-ring and you will need this Hayward Sand Filter Collar O-Ring
Reply
Why so many settings on the valve and how do each one work?
Reply
Hi Don, here are the valve functions and their different uses. 1. Filter - For normal filtering and regular vacuuming. 2. Backwash - For cleaning filter sand bed of accumulated debris. 3. Rinse - Use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste. 4. Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line. 5. Recirculate - Water is recirculated through the valve, by-passing the filter. 6. Closed - Shuts off the flow from the pump to the filter.
Reply
I need to replace my praher tm 12 multiport valve but I do not see it listed. What is the replacement number? I do not know what type of sand filter I have . cannot read the label on it anymore. It is a 2007 Ultima 15 foot round pool. The only number I got was off of the packing list for the purchase it is SPT 450 with filter. Can you help me please.
Reply
Hi Sue, There are a few different TM12 valves, could you supply us a few photos of your filter and valve as this would help us determine the proper valve for you. To send photos simply reply to this email with the photos or you may send to upload@inyopools.com
Reply
When I back washed my pool it worked fine but now it want stop no matter what setting it's on and my handle stays loose like the spring is not coming back updo you have any thoughts on what could be wrong
Reply
Brian, It sounds like it can be a bad spring or bad gasket. You will have to remove the key/handle assembly and inspect those parts.
Reply
Will a bad spring on the valve cause a decrease in the return water flow when it is set at filter
Reply
Hi, Laurie. A bad spring will not cause a reduction in water flow on the return side of your pool. Our How Do I Correct Low Water Pressure? Blog has useful info that you can use to help diagnose this issue.
Reply
I have a waterco model T600 sand filter.
what valve assembly replaces my valve assembly.
Thanks
Reply
Hi Ronald, If you have a clamp on valve then you will need this WC2280445P Valve and if you have the Thread On Style Valve then you will need this TM-12-PB Valve
Reply
Will the plo714 replace the model 715 Vari-Flo?
Reply
Hi, Mike. This PL0714 will not replace the 715 valve. You can select from these available Hayward Multiport Valve - SP715 options.
Reply
The # on valve on my pool filter says it is a sp714a, I am not coming up with any info on that number is the sp714t the same?
Reply
Hi Karen, Yes this valve will replace your valve that has the # SP714A listed on it.
Reply
My filter says SP714A..do you have this filter valve?
Reply
I have a Vari-Flo Control Valve 11/2 will this work on my Hayward pump . Part # SP0714T
Reply
I have a Hayward Vari-Flo XL pro series model# S166T and SP1515-2-1-ESC will this fit mine if not please tell me what will. Thank You Peggy
Reply
Hi Peggy, Yes this would be the correct replacement valve for your Hayward pro series model# S166T
Reply
Will this top mount valve work on my Hayward s21 sand filter, the incoming, return and waiste/backwash are all on different sides?
Reply
Jeff, This will work on a Hayward S210T filter. The pump and return ports are on one side and the waste port is on the opposite side .
Reply
Okay then, which is the right head for my tank
Reply
If you are referring to the valve at the top of the filter then you would need to know the model of the filter itself. If that information is no longer visible then you can always email us a picture of it at upload@inyopools.com so we can try and identify it for you.
Reply
I have a Hayward sand filter system model SP714T. It is leaking continually out the backwash pipe. I would like to know if I can replace a part to correct this problem or if I need to replace the entire unit. Do you have any advice?
Reply
I replaced my top mounted valve as well as the sand and the inner workings of the tank this afternoon. Everything went well, no leaks etc. however now my pump loses it prime. What did I do wrong or how do I fix this? It runs fine for about 30 minutes, then loses all compression. Please help.
Reply
Hi, Jim D. It sounds like you have a suction leak. To locate and correct the issue, you can use our How to Identify and Correct Air Leaks guide.
Reply
What is the difference between the 4627-23 & the PL0714? Will they both work on the SS185 Sand Filter?
Reply
Hi Buster, We are showing that the ports are in a slightly different location on each of these valves and our technical department has determined that the PL0714 is the best replacement for a SS185 Splash Pak Filter.
Reply
is this item the same as the SP0714T? and is it the correct replacement part for a SP711?
Reply
This is a direct replacement for the SP0714T and everything is set up exactly the same as the SP0714T. The SP0714T is made by Hayward and this valve is made by PureLine. This the correct replacement valve for a SP711 valve.
Reply
I have a old cascade SP-711,will this replace it and how many gpm is this.
Reply
Hi Bruce, As long as your Cascade SP-711 valve is mounted on the top of your filter and not the side of the filter then yes the PL0714 would be the proper replacement.
Reply
I have old sand pool filter Flo Pro ss240. It is almost 18 years old now backwash valve is leaking. Do you still have any parts to fix the problem Thank you.
Reply
Hi, Urszula. Replacing your entire valve with this PL0714 Valve will fix the problem.
Reply
I have a " high rate sand filter " with model # S310T2. I do not see a model # on the valve itself. Will the PLO714 work?
Reply
S180t1580 high rate sand filter. The part num I have is spx071113 will this fit ?
Reply
Hi, Sharon. Yes, this PL0714 will fit S180T Sand Filter.
Reply
thereis no s180t.there is 170 and a 190 but do not see anything here. They sure don't have the same input/output placement!
Reply
Brian. This Valve can be used on several Hayward sand filters past and present models.
Reply
Why cant you buy handle only for spo714tx sand filter?
Reply
The handle is available for the SP714T and here you may purchase the SP0714T Replacement Valve Handle
Reply
I have a Sp0714g11 and I can’t find this anywhere. The handle broke. Is there a replacement handle or do I replace the whole thing. If I have to replace I can’t find this model can you suggest a replacement model?
Reply
Hi, I. Replacement parts and valve for your model is available on the Hayward Multiport Variflo XL 1 1/2" SP714T Parts Diagram page.
Reply
how much sand does a SP0714T1 hold?
Reply
Hello, The valve does not hold any sand, the filter tank does. We will need to know the filter tank model number to determine the amount of sand you will need.
Reply
I have a dream line series s170tscp high rate sand filter and the control valve i need is the sp704 as the ports are vertically in line and not offset as in this picture. I dont doubt it will fit the filter but will not line up with my plumbing. If you have the correct valve this would save a hole lot of work!
Reply
Hi Brian, Unfortunately, the SP0704 complete was discontinued and the PL0714 is the replacement so you would have some re-plumbing if you need to replace your entire valve. If you don't want to re-plumb then you could go with the SP0704 Upper Handle Assembly with Spider Gasket
Reply
I have a Millennium Eliminator 2000 Series Sand Filter 230 LB 19" high rate filter from Astral pools. Any idea if this top would work?? Thanks!
Reply
Hi Colleen, The PL0714 is not the correct replacement valve for your Astral Millennium Eliminator 2000 Series Sand Filter 230 LB 19". The correct valve for you is this 22358 Astral Pool Sand Filter Valve
Reply
What valve clamp and o-ring fits this?
Reply
Hi. This valve can fit several different filter tank which uses a different style clamp. I will need to know you tank body model or name in order to locate the clamp assembly and o-ring.
Reply
Will this fit the Game SandPro 25 Sand filer system? It was discontinued but the company says that part # 4S1050 will fit my tank.
Thank you,
Reply
Hi. This valve will not fit the Game SandPro system. We do not currently have a replacement.
Reply
I have an older model jacuzzi filter and I want to repair the parts on it, Id say its over 1 yrs old. When i turn the valve on top, it is tight, and I am thinking that the gasket inside is worn. where can i find a model # on this so I can order some parts, or decide if its more economical to replace the filter head
thank you
Peter Martin
Reply
Hi Peter, There should be a label on the side of the sand filter. Could you take a photo of that and upload to this Q&A? Just click on the reply link below to upload the photo(s). Once we receive those photos then we can make the appropriate suggestion.
Reply
Will this fit the waterco t450. If not can tou tell me what will
Reply
Hi, Brandy. This valve will NOT fit the Waterco T450 model filter, you will need P/N WC2280445P.
Reply

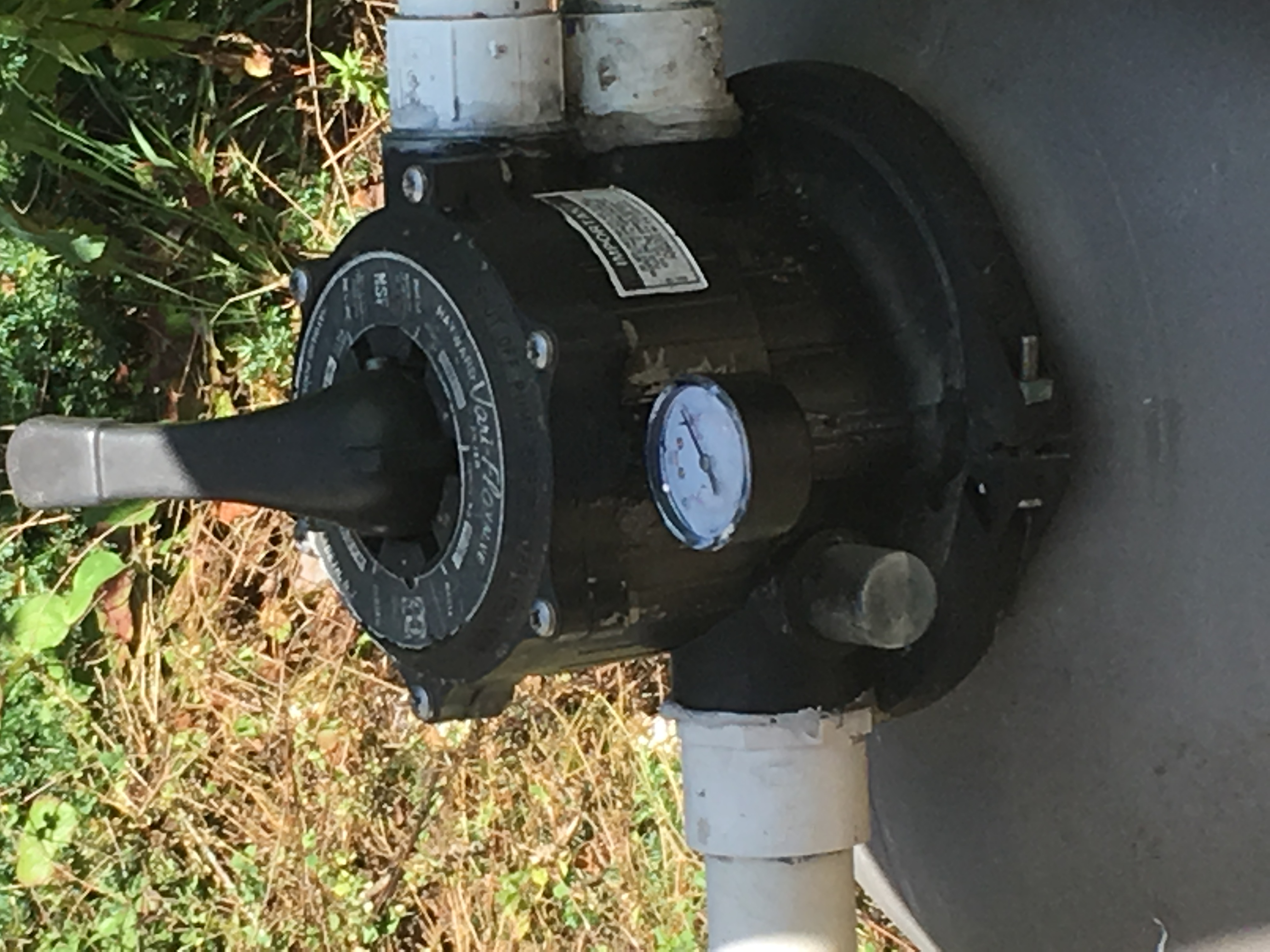

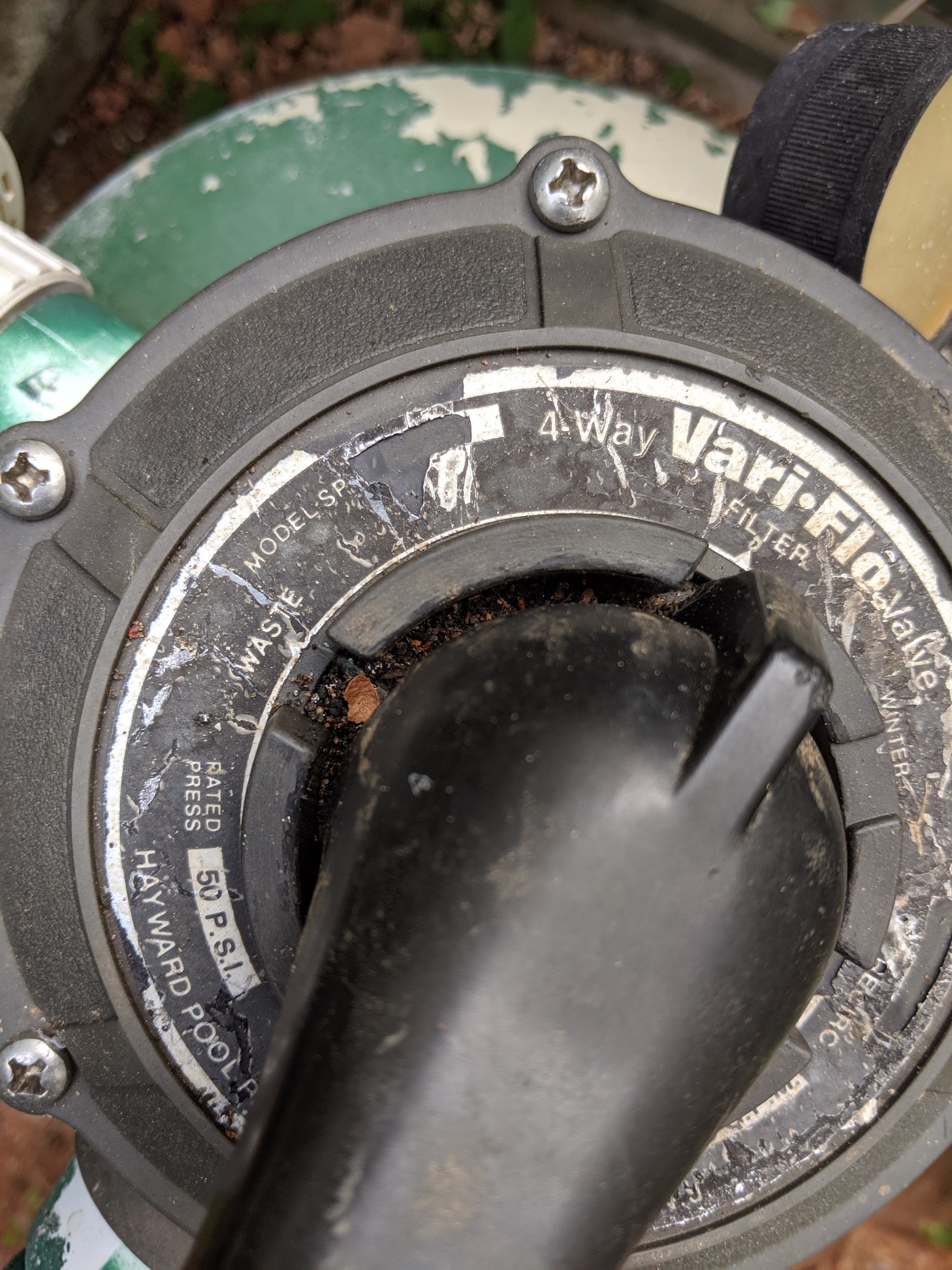

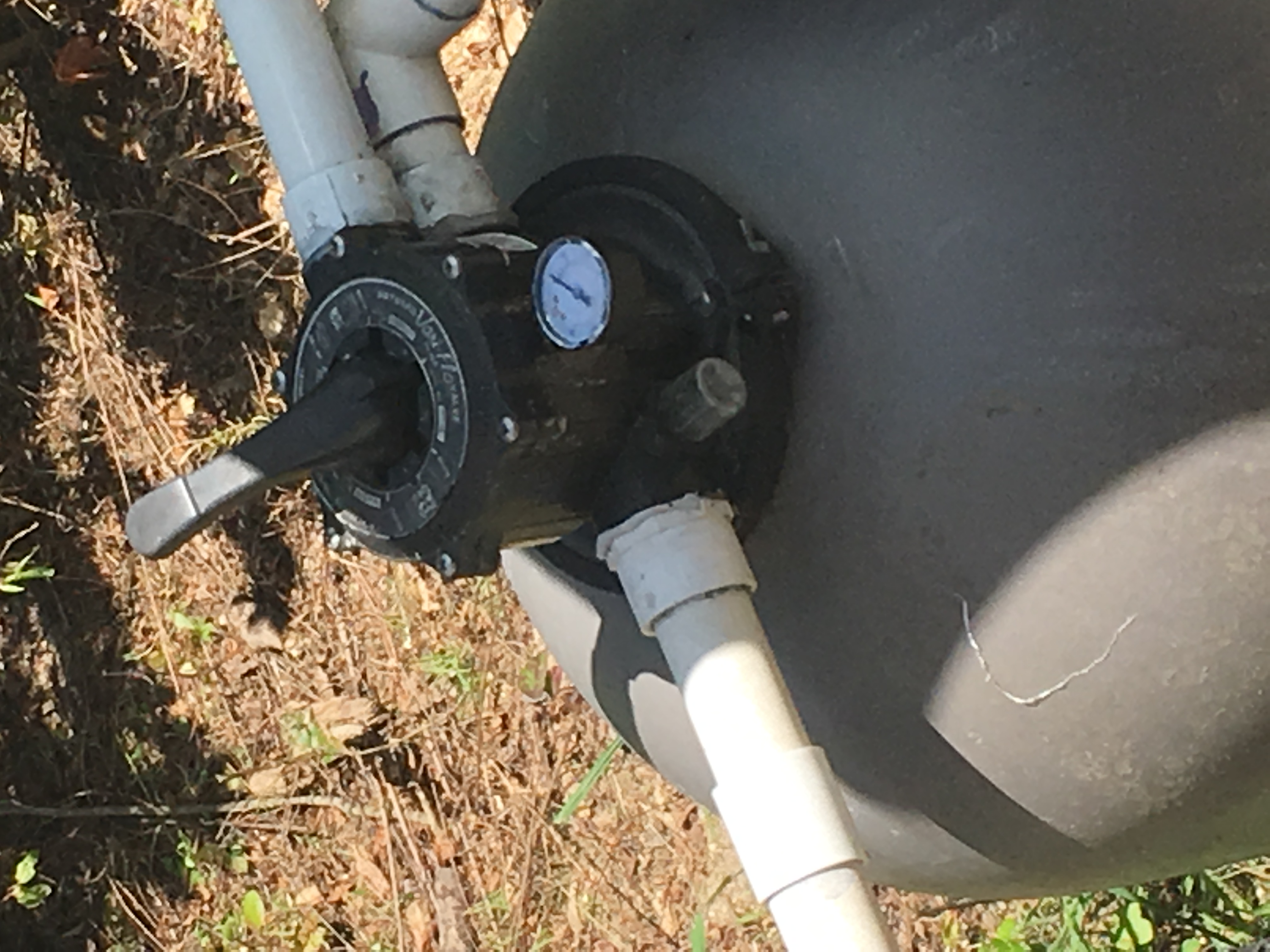

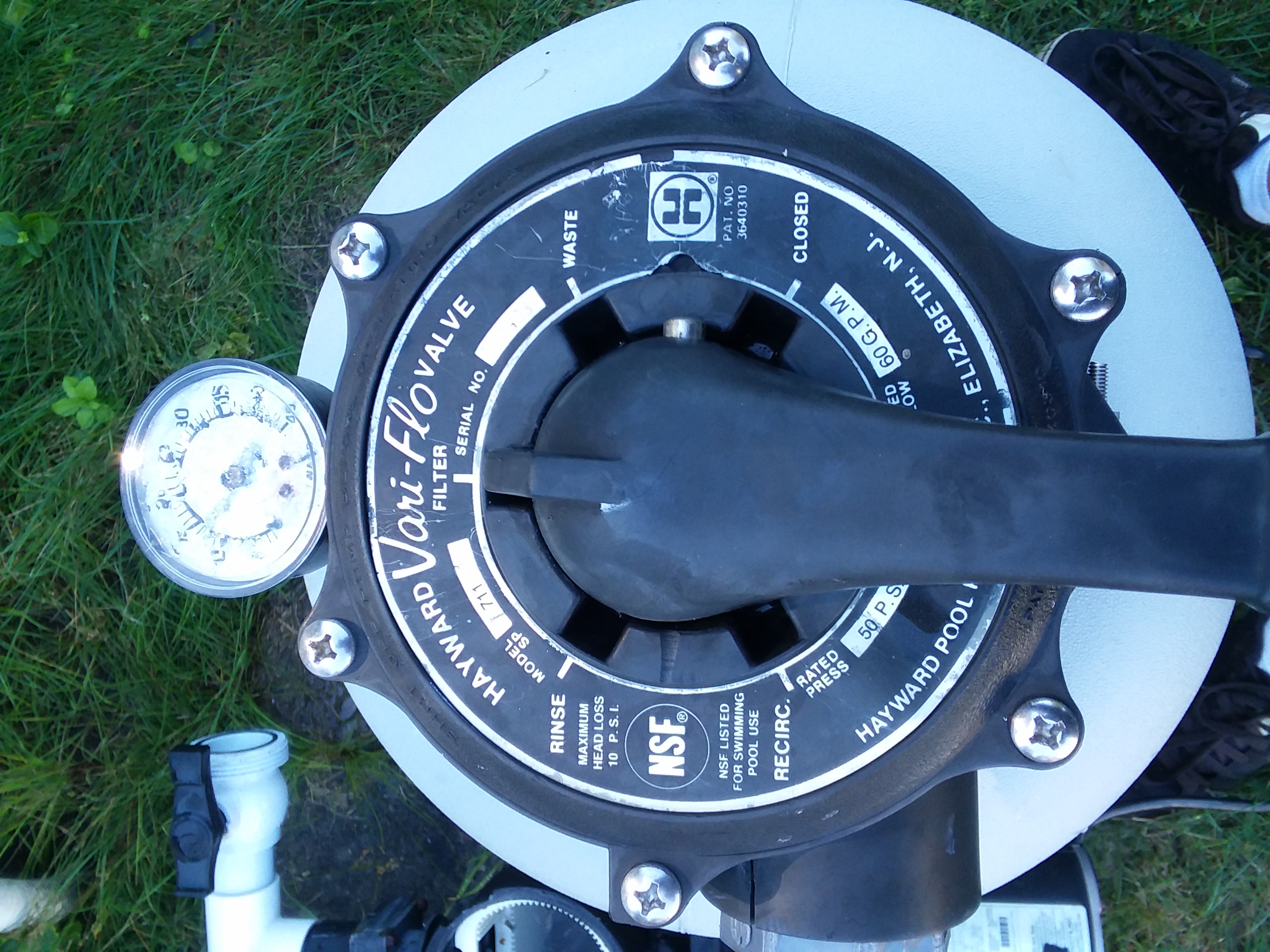

Unsure what my filter is but the valve is “Hayward vari-flow valve” 60 gpm 50 psi. The place where it mounts to bottom of filter is 8”
Hi Dan, There are only 2 Top Mount Valves for Hayward Sand Filters and the only difference between the two is the plumbing connections for your PVC pipe, one accepts 1.5" plumbing and the other accepts 2" plumbing. This valve is the 1.5" version and I would estimate that 95% of the valves on the market are the version that accepts the 1.5" plumbing. If you could provide us the model # off of the label on the side of your filter tank than we would know for sure. Common model #'s would be S166T, S180T, S244T, etc.. Simply click on the reply link below to supply that information. Thanks so much!
Reply
Is the size and location of plumbing ports of this valve identical to the Haywood SP14? I do not want to move any existing plumbing if I can help it.
Reply
Hi Lee, Yes the size and location of plumbing ports of the PL0714 valve are identical to the Hayward SP14 so you won't need to move any existing plumbing.
Reply
I have an advantage sand filter, the multiport valve has cracked on the threads of the intake, any idea of which replacement valve would work?
Is this the replacement part for the sand filter #4500GPH 19"
Item# 281127530257
Reply
Hi Joe, No this is not the proper replacement valve for your 4500GPH 19" Sand Filter Item# 281127530257. You will require this PL1541 PureLine 19" Sand Filter Valve
Reply
Is this a direct fit replacement for a sp-711, and does it come with all necessary gaskets and seals
Reply
Hi Scott, Yes this is a direct replacement for the SP-711 and comes with all the gaskets and accessories, minus the clamp that secures the valve to the filter and the o-ring which goes between the valve and filter tank.
Reply

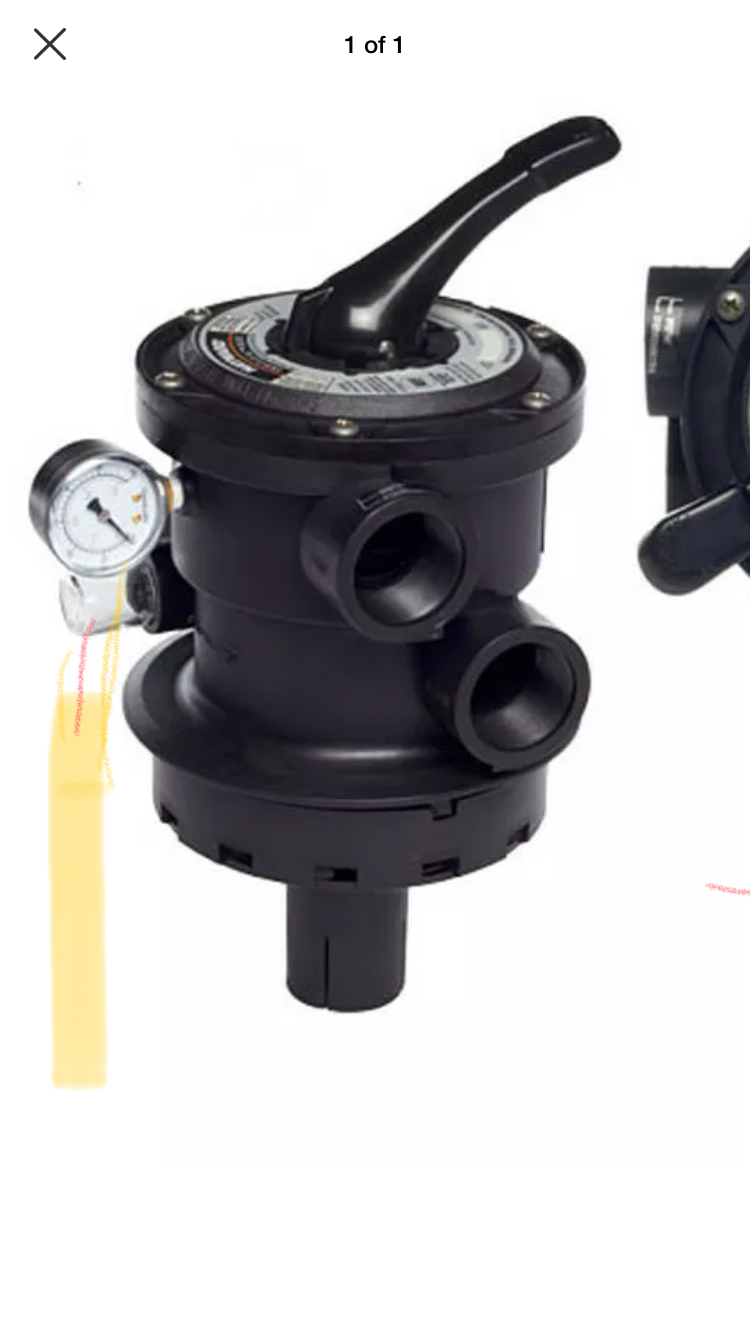

will the top mount valve for sand 1.5" work as replacement for the filter in the attached picture?
thanks.
Hi, Shaul. I'm unable to confirm using the picture provided. Please provide a better picture of the valve and or the filter tank label so that the replacement valve can be identified.
Reply
hello, I have an older Jacuzzi sand filter with a splash pro head high rate. beneath the handle that does filter, backwash, rinse etc there is a nylon washer that has broken, Can you tell me how I can get this part, the part number and the estimated cost of the washer. thank you
Peter M. Martin
Reply
Hi Peter, could you send us a few photos of the label on your filter as well as the valve? To send the photos click on the reply link below to upload your photos. Once we get these photos we can make the appropriate suggestions.
Reply
Will this replace my Haywood Valve SP0714G11? It's going on the S244T filter. Shippint time to NC?
Reply
Hi Dave, Yes this will replace your Hayward Valve SP0714G11 being used on a S244T filter. Shipping time to NC is 2-3 business days.
Reply
I have the SP0714 valve on a DPX10298 Dreamline 100# tank as part of Hayward’s now obsolete S170TSCP pump filter system and I need a direct replacement for the also obsolete DPX10298 100# tank ONLY. What tank works with this valve and pump that uses 100# of sand?? Thanks!!
Reply
Hi S., Yes this valve is a direct replacement for the Hayward SP0714 being used on a Hayward Dreamline S170TSCP Sand Filter.
Reply
Will this replace this hayward valve on an S180T sand filter?
thanks
Hi Michael, Yes the PL0714 is a direct replacement for the valve that is used on the Hayward S180T sand filter and pictured in your photo.
Reply
Why do they leak? Our filter has been leaking for years. I took the head/valve off. The sand looks good to me, but the newer pump has very little suction so I'm assuming its the sand. When I took the head off I found one broken clip. Can I make it work with a new oring? Or will I have to replace the valve? Please tell me I can get a new o-ring. Or at least give me instructions on how to get the sand changed. Also is the sand specific? Do I have to buy it at a cool store?
Reply
Normally leaking occurs due to a bad spider gasket. The spider gasket is available glued into the diverter by purchasing this part - Replacement Diverter w/ Glued in Spider Gasket For the sand specifications as long as it is a Silica Sand with a size between 20-40 you will be fine.
Reply
Will this work on a Hayward S160T Model. Sp1580x15 ? Thanks
Reply
This valve does not work on the S160T filter, you will need this S160T Sand Filter Valve Replacement
Reply
I have a s230t sand filter, the original multiport valve is a sp714-a. Will this valve work to replace my old one?
Reply
Yes, this valve would be a compatible replacement for the model S230T filter.
Reply
Will this replace my SW190TCPAKS valve?
Reply
Eric, yes, the PureLine Top Mount Valve for Sand 1.5" PL0714, will fit your SW190TCPAKS Hayward Sand Filter.
Reply
Hello, I bought a top mount multiport valve and did not receive the site glass, can you kindly send, i only need this part
Eder Romero
8 Myrtle St, Lodi, NJ
Tel. 201-214-6348
Thanks
Hi, Eder. I was unable to locate an order in our records for you. Therefore, we're unable to send you another. We will gladly send one out if you have placed the order with us.
Reply
I have a sand pro 50d & the tank valve is cracked. Will this work as a replacement?9
Hello, Unfortunately, this valve would not work with your filter. We would not carry any parts for that filter on our website.
Reply
I just got a TM-12-L valve from you my old valve has 50 psi and 75 G.P.M yours only has 60 G.P.M. will your valve be ok
Reply
Hello, As long as your pool pump is putting out more than 60 gpm, you will be fine with this valve.
Reply
Will this replace 6 way valve for pentair sd 40.
Unfortunately, no this valve is not compatible with the model Pentair SD40 filter.
Reply
I also have the Pentair SD40. Since this valve won't work with it, can you by any chance advise if you carry one that will work?
Reply
is this the standard layout (position} on the valve for backwash,filter settings. my labeling has worn off
Reply
If you have a Hayward SP0714T valve then yes this is the standard layout. We do sell the Hayward SP0714T Replacement Label which you may want to purchase.
Reply
Will the top part or the mechanical part of the sand filter stop the pool water from getting clear?
Reply
Hi Jimmy, could you expand a little more on this question so I make sure I answer it properly. The more detail you can give the better. Simply click the reply link below to add additional detail.
Reply
Hi I have a Titan Series sand filter (made by Zodiac) and the 6-position valve part # is AC 17256. Is this a replacement for that?
Reply
I'm sorry this valve does not fit Titan Series sand filter (made by Zodiac). It looks like that filter is specific to the Australian market.
Reply
We have a Hayward SP714 T1 valve. Just slightly different from your description. Is it the same ???
Port on the bottom is 2" I'd.
Reply
Hi John, Yes the PL0714 valve will replace the Hayward SP714 T1 valve.
Reply
I lost the instruction, please tell me when you use recirculation and rince and also do you put it on filter to clean
Reply
Hi Joan, This Article on How a Multiport Valve Works will explain each of those settings in detail.
Reply
Hi! I’m looking for a replacement for this. I had purchased a handle from you a few weeks ago and it leaks so I figure might as well buy the whole system. Can you please tell me what is compatible to my pictures. Thank you
Hi Viv, I'm sorry the handle did not fix your problem. Here is a link to valve you will need Waterway WVS Replacement Valve
Reply
Can you tell me what all seals and clamps dose this come with
Reply
Hi, James. The clamp is not included with this valve. All the internal o-rings and gasket along with the valve to tank o-ring is included.
Reply

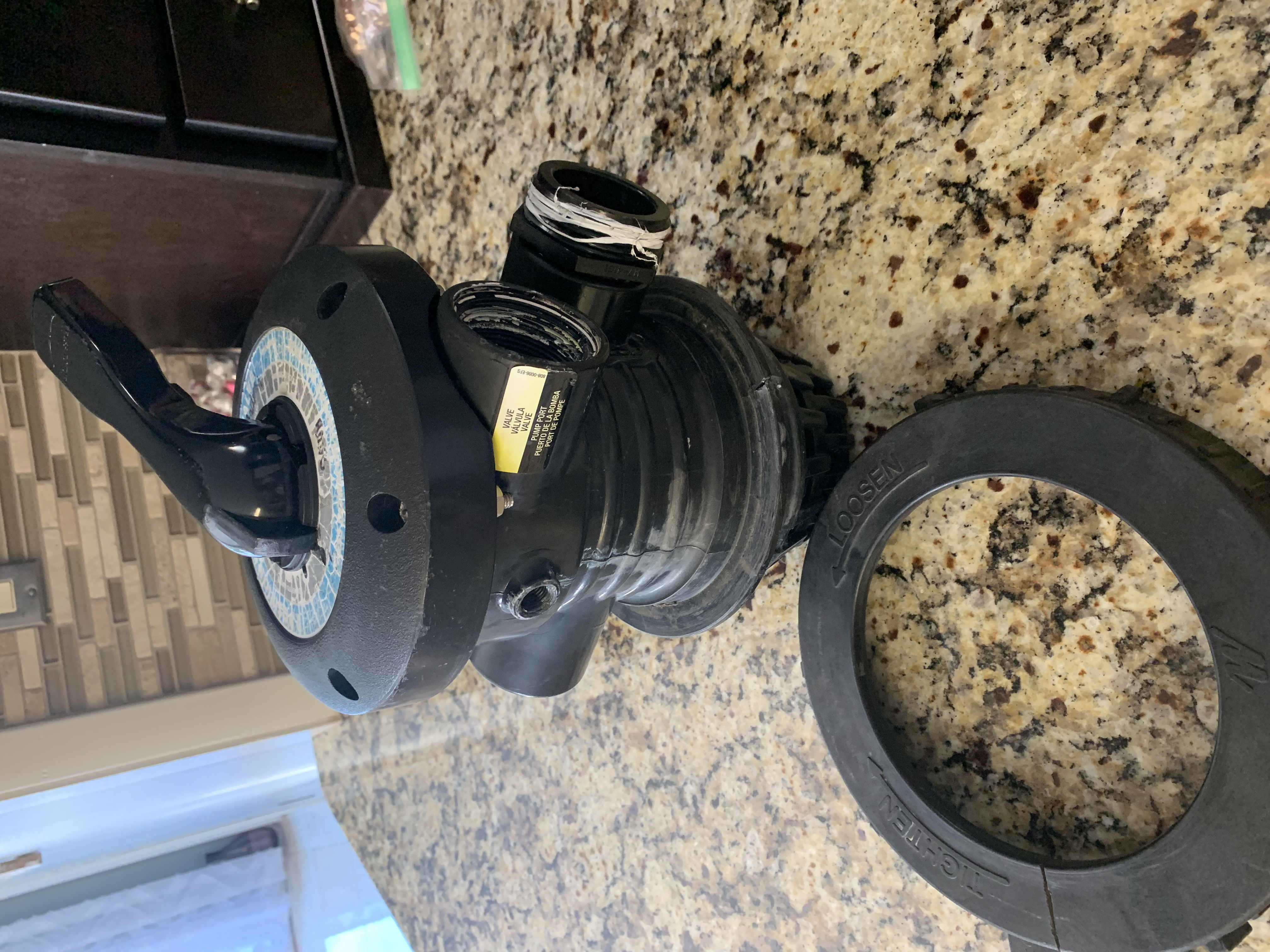

Also I am like 95% positive this is the right multi port for my filter. As the number on mine do not even match anything Hayward has. Possibly they updated this type of valve and gave it a different part number. But I do have a 300 lb Hayward sand filter with 1 1/2 inlets and outlets. Fed by a 1&1/2 hp motor
Reply
James, You can send us pictures of the valve so that we can confirm that this valve will fit your filter 100%.
Reply
I have a jandy st24-t sand filter . Would this work with it and if not do you have one that would ?
Reply
This valve is NOT the proper replacement valve for your Jandy ST24-T sand filter. You would require this 228042 Jandy ST24-T Replacement Valve
Reply

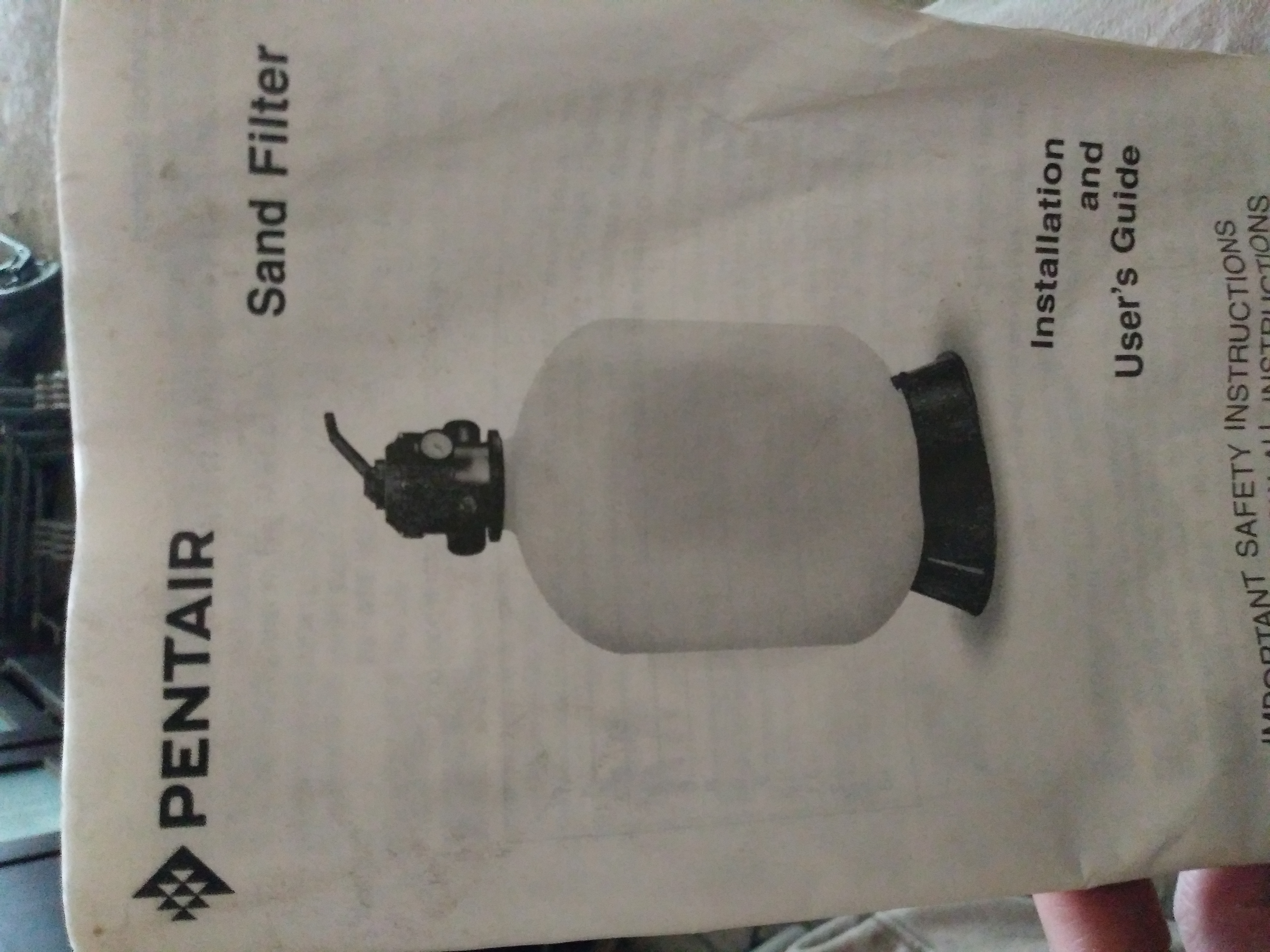

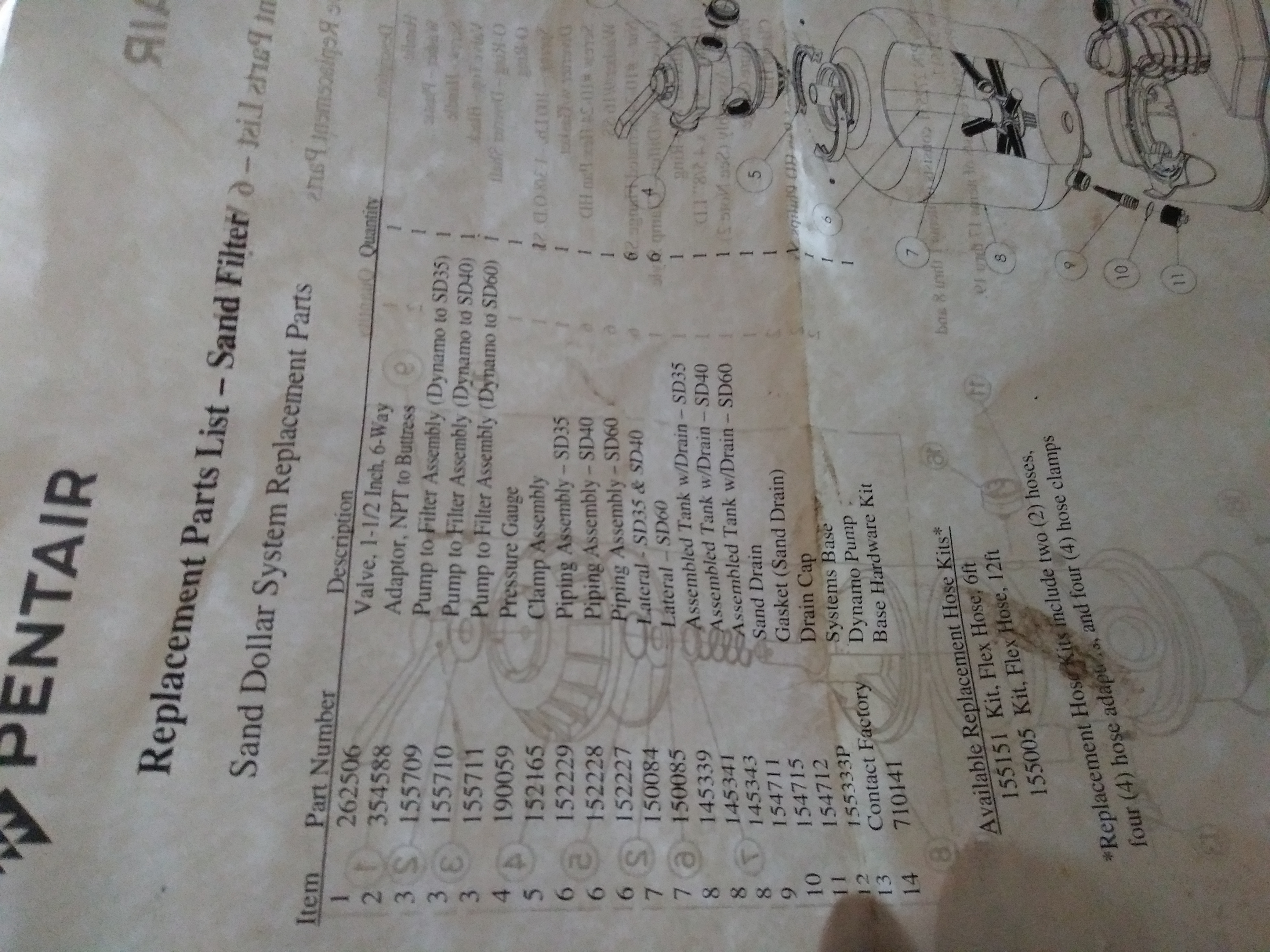

Is this a replacement for this pentair valve? They look identical.
Hi Jerry, No this valve is not the replacement for your Pentair Valve. Based on the photo we can only confirm the top valve assembly which will be this E-50-S1 Top Mount Valve Assembly normally if you have leaking out of the top of the valve or your getting leaking out of the filter or backwash ports then all you need is the top assembly. If you think you need the entire valve then please give us the filter label data which is on the side of the tank. Or if you can take a photo of that label and a wide shot showing the complete filter and post back to this thread.
Reply

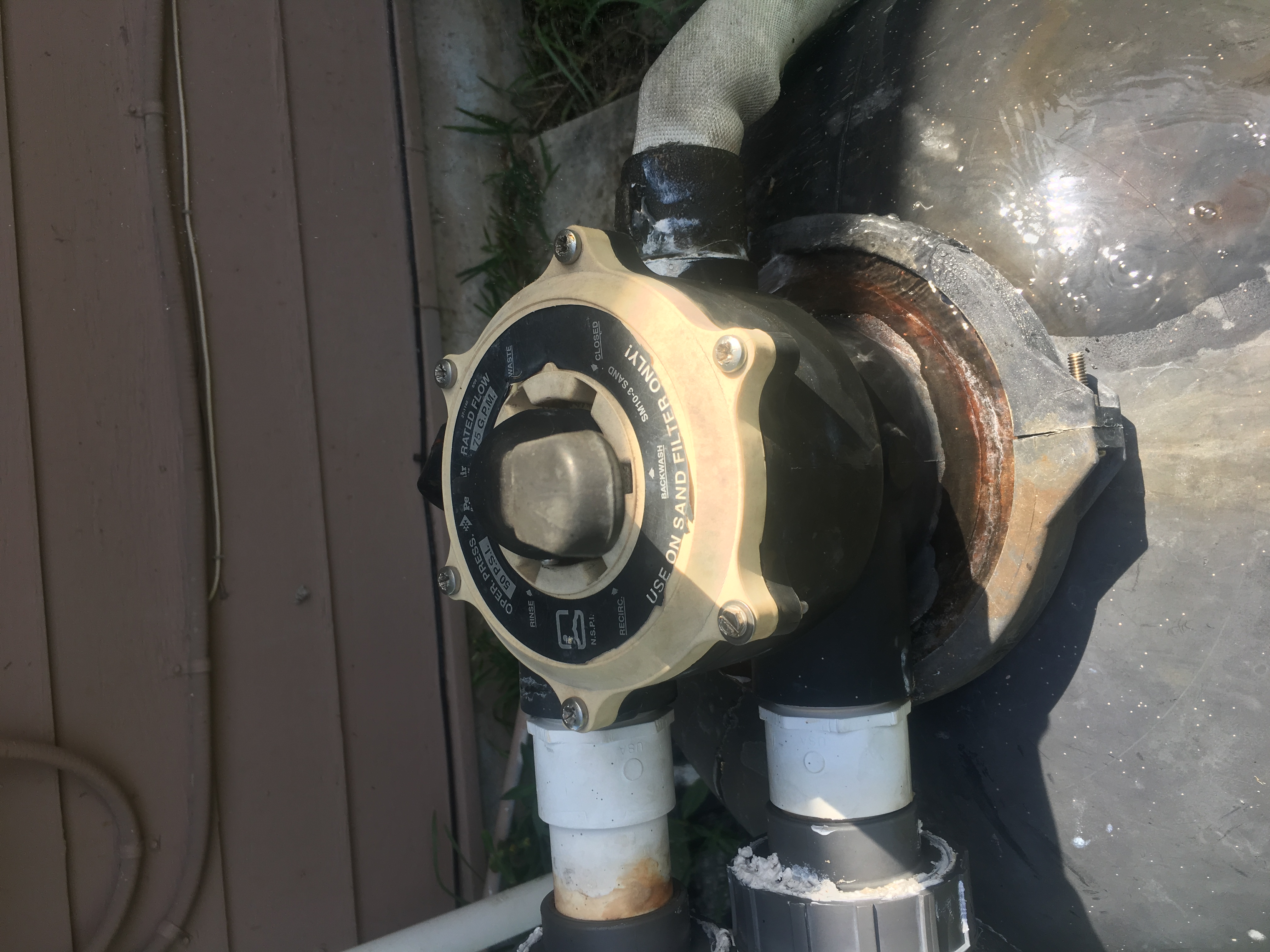

Hello, I was hoping to replace my hayward valve with yours but I am not sure if it will fit. I am not sure of the model number .
Hi Phil, thanks for the photos those are really helpful! Yes this PL0714 valve is the proper replacement valve for your Hayward S166T Sand Filter.
Reply
I have a Jacuzzi Splash Pak SS185-S15KMGT-3-HK6 sand filter and I am in need of the valve. This looks like mine, but I do not have the piece of pipe coming out of the bottom. Is this compatible with my filter? I don't see any model number on the valve unit. Please let me know if you need any more information.
Reply
Will PureLine PL0714 work as replacement for PureLine PL1541.
I have the PureLine 19" Above Ground Pool Sand Filter System. Don't like hoses and want to go back to PVC Pipe.
Reply
No, unfortunately this valve is not compatible with the model PL1541 valve.
Reply
Do you have a Video on changing this out?
My pool guy can’t come till after the weekend. Going to try do my self
Reply
Yes, we do: How to Replace a Hayward Multiport Valve
Reply
I have a hayward model S244T. Do you have a control valve or a repair kit for the current control valve? If so does it have O-rings included?Thanks
Reply
Hi, Rod. This PL0714, the SP0714T or TM-12-H8 valves can all be used with your model filter. As for to rebuild the valve you have, you can use P/N SPX0714BA.
Reply
Thank you for the help! Just ordered!!
Reply

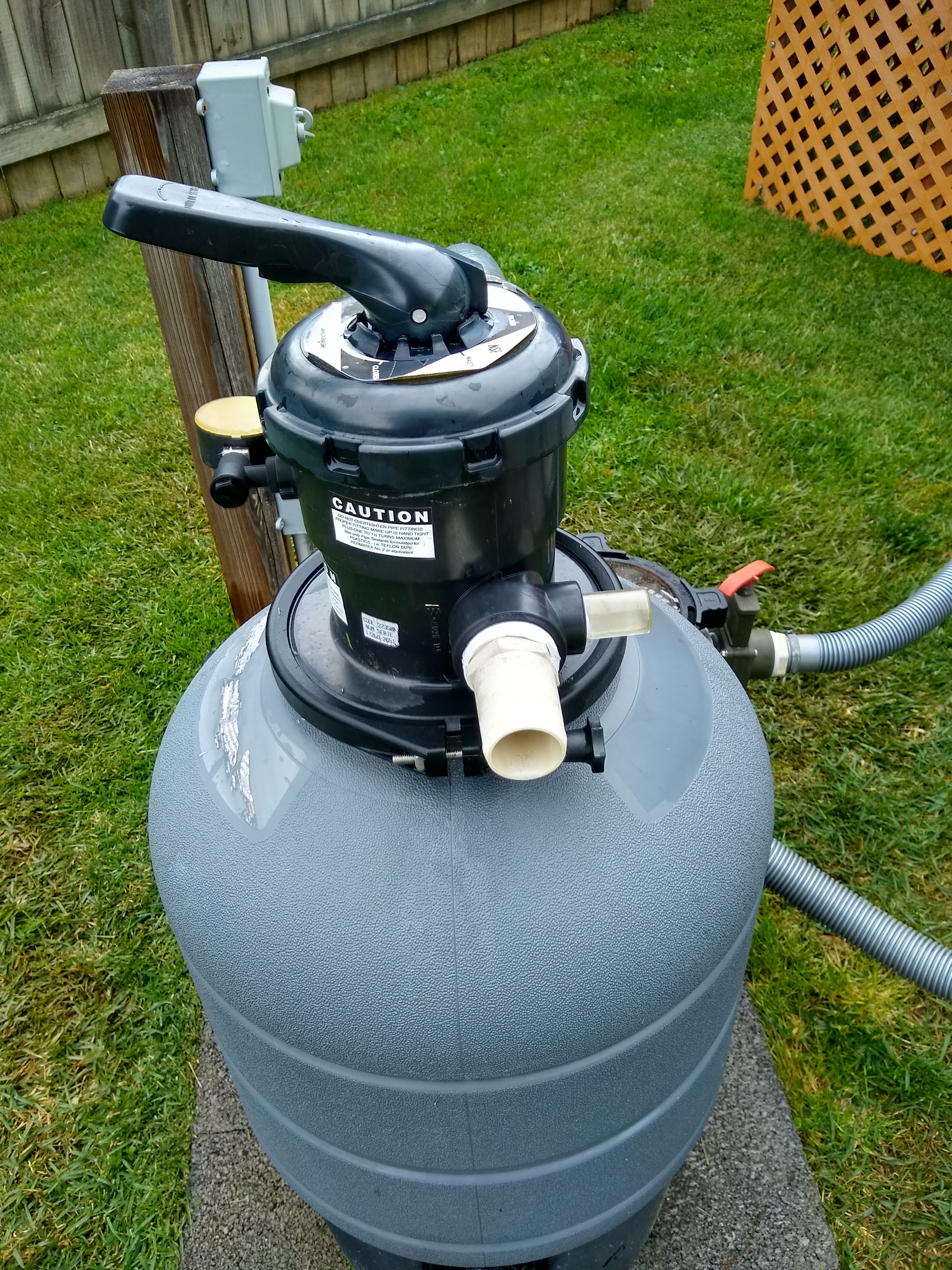

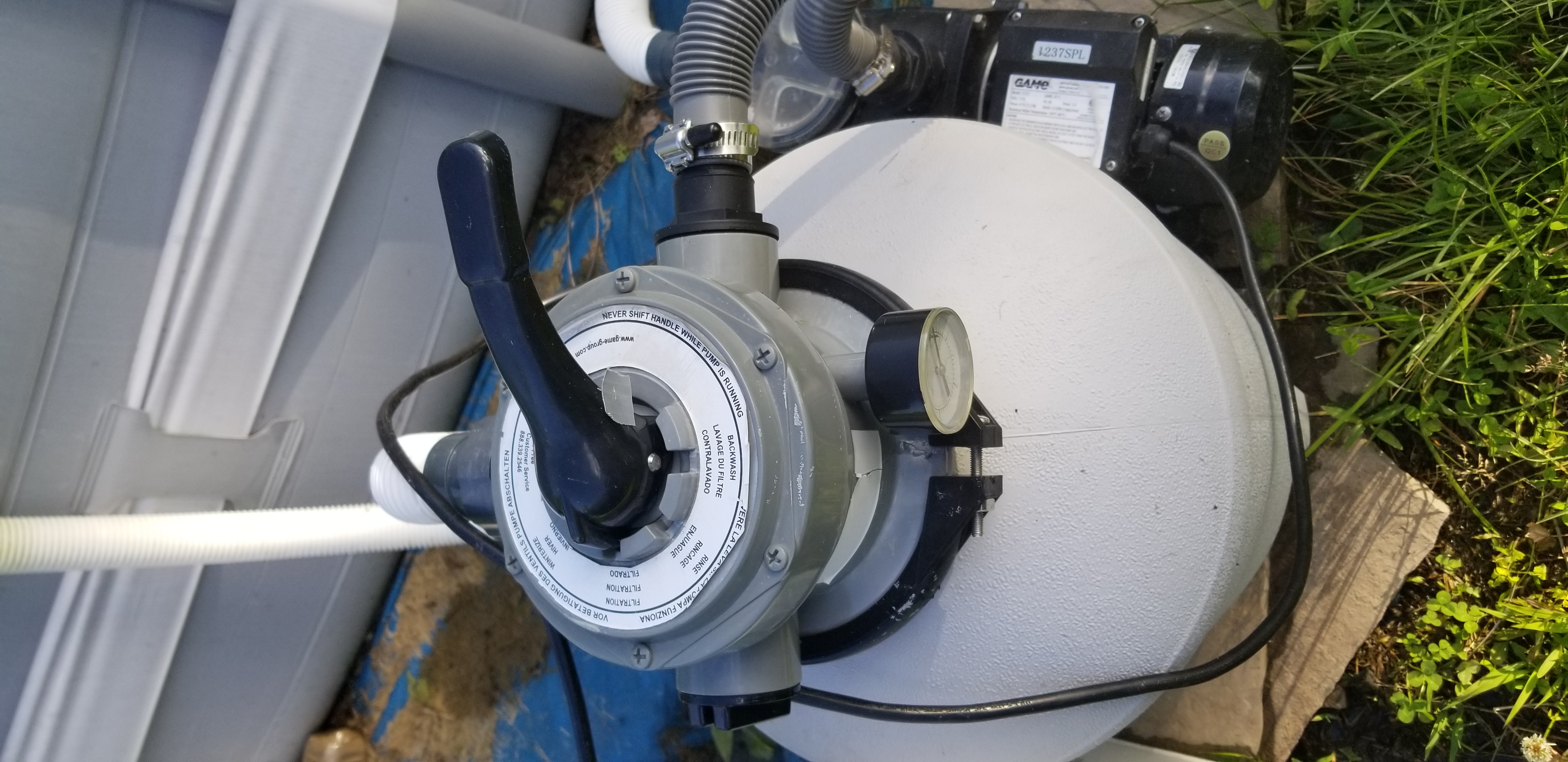

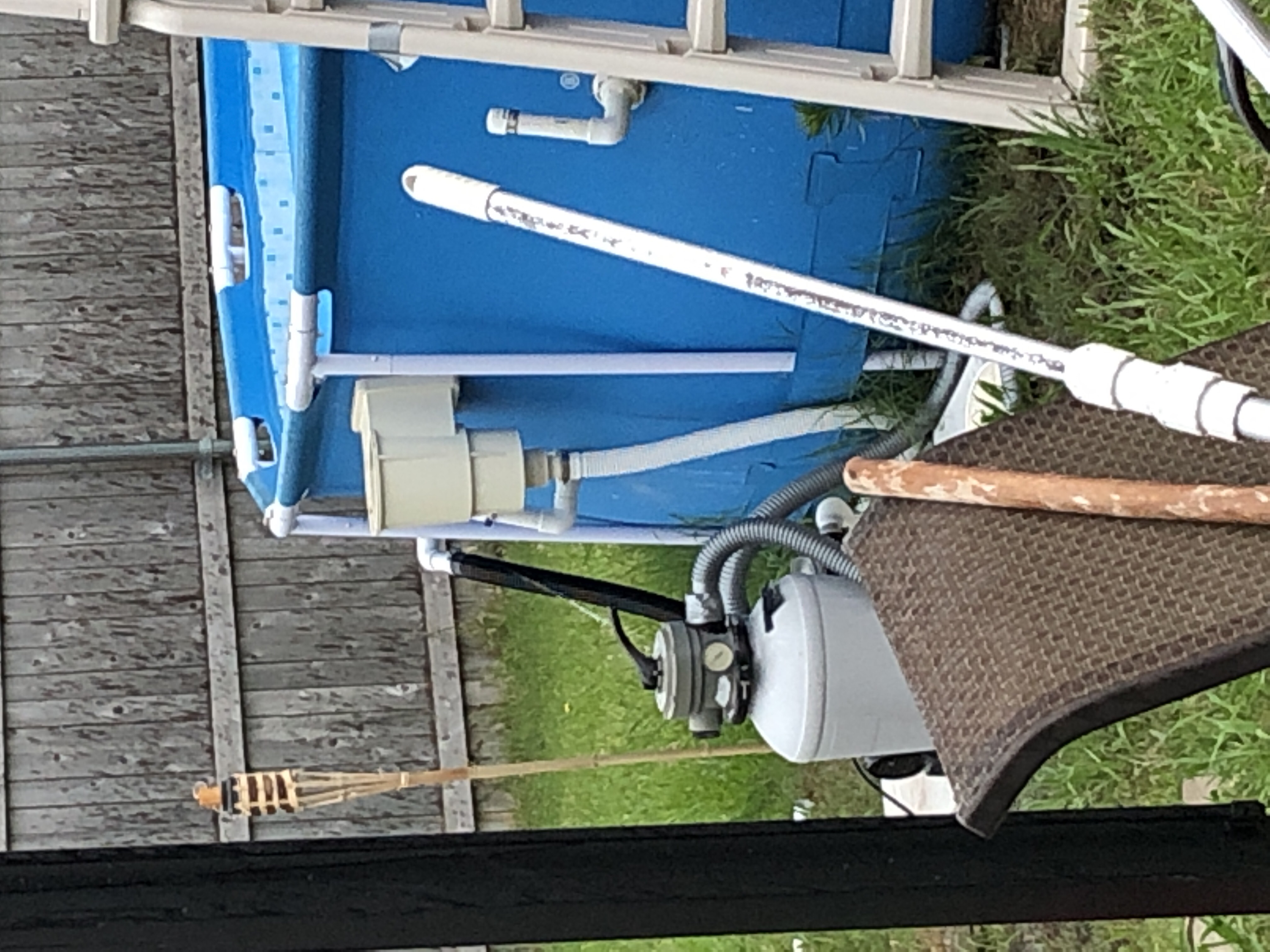

Will this work for my sand filter pictured?
Hello - The correct replacement valve for the Aqua Tools AT3125 sand filter is the Praher Top Mount Valve 6-Way - TM-12-L.
Reply
Thanks for your reply! I notice the one you recommended doesn't have a pressure gauge. Do I purchase it separately? Is there a spot for it on the new valve? I know my old gauge is not working. Thanks!
Reply
I need a new head for my sand filter, but I don't know what kind it is. the flange outside is 6.5" inside is 5.25" tank height is 25" width is 18".
Hi,
Well this replace my current filter head?
Sorry I don't have any kind of label on it.
Reply
Hi, Lisa. We're unable to confirm without the valve or tank model info. To provide with photo(s) simply click on the reply link below to upload your photos.
Reply
I have a leaking backwash valve and I'm looking to replace the spider gasket in hopes it will stop the leak however I'm not sure which top mount I have. Do you sell a spider gasket that will fit the below pictures or does it make sense to replace the entire mount? If so will this mount fit my filter?
Hi Chris, For your Jacuzzi Flo Pro SS160, you will need this Jacuzzi Flo Pro SS160 Spider Gasket which we have in stock and we can ship out right away. We also carry many of the other Parts for your Jacuzzi Flo Pro SS160 Valve.
Reply
Do you have a multi port valve replacement that would fit my filter?
Hi Susan, yes we do have your valve. You will require this TM-12-L Valve
Reply
Broke handle on my Hayward Multi port Valve for S210T, looking for a replacement valve with bleed air option, does this valve have that option? If not, can you recommend one? Thanks
Reply
The PL0714 valve does not have an air relief, neither does the OEM valve that comes with a new filter the SP714T. What is the model number of your current valve that has this option?
Reply
The filter doesn’t come with air relief valve, my pump is super hard to prime because it is located uphill from the pool... need to find a way to make it easier, thought a bleed air valve would help... it’s so difficult I’m to the point of replacing the filter if needed... I primed the skimmer twice in 2 hrs, but when I slowly opened the main, lost the prime. At wits end.
Reply
it sounds like you have an air leak on the main suction line. We have a guide that can help you find the source of the leak, give it a read: How to Identify and Correct Air Leaks
Reply
I have a swim pro 256t filter that needs a new valve. What are my options? Are they universal?
Thanks in advance!
Reply
I have a T210 WF Sta-Rite value that is eaking. Will this value above going to work on my filter?
Reply
OUR FILTER HANDLE SNAPPED OFF. HARD TO FIND NUMBERS ON FILTER SP714-A IS ON THE MAIN HOUSING. LOOKS LIKE 120A30 ON LABEL PLATE AND MODEL NUMBER ON SAND BALL PRO-SWIM SW256TPAKS. WILL THIS ONE WORK ON MY FILTER?
Is this a replacement for Hayward S210T ? Need to make sure the plumbing will match perfectly. Also does it include flange clamp ?
Reply
I have an old Hayward filter, can't read model number, but starts with SP. Here are pictures.
Looking for a replacement valve & key, like the one here. I noticed the piping is different in the one being sold here. It also appears the measurement of the key itself is slightly different, mine appears to be 6-3/4".
Please let me know what you have that might work in my situation.
Thanks
will this product be similar to the SPO710G11 variflow valve?
Reply
Hi, Ellis. Its NOT, you have the Hayward Multiport Vari-Flow 1-1/2" SP-710X Series.
Reply
i need a replacement handle assembly for a Hayward vari flow valve model SPO710G11.
It appears that the only Hayward valve model this is production is the SPO710XBA17 that might be similar to the SPO710G11 valve.
Are you able to assure that the two items are similar and the SPO710XBA17 assembly will fit?
Reply
Hi, Ellis. Based on your label number the Key, Cover, & Handle Assy. 1 1/2" Black - SP0710XBA17 is the correct part. This complete valve PL0714 will only replace the SP711 valve.
Reply
I am looking for a replacement multi port valve for a Hayward SP714. All I can find is for SP714T. Is there a difference?
Reply
Will this replacement work for this sand filter? The turn key has basically stopped turning. It’s very difficult. Is this the part I am looking for?
Reply
Hi, Ashley. In order to confirm, I will need to know the model of your filter tank.
Reply
The turn key basically stopped turning. Is this the part I am looking for...for this model?
Reply

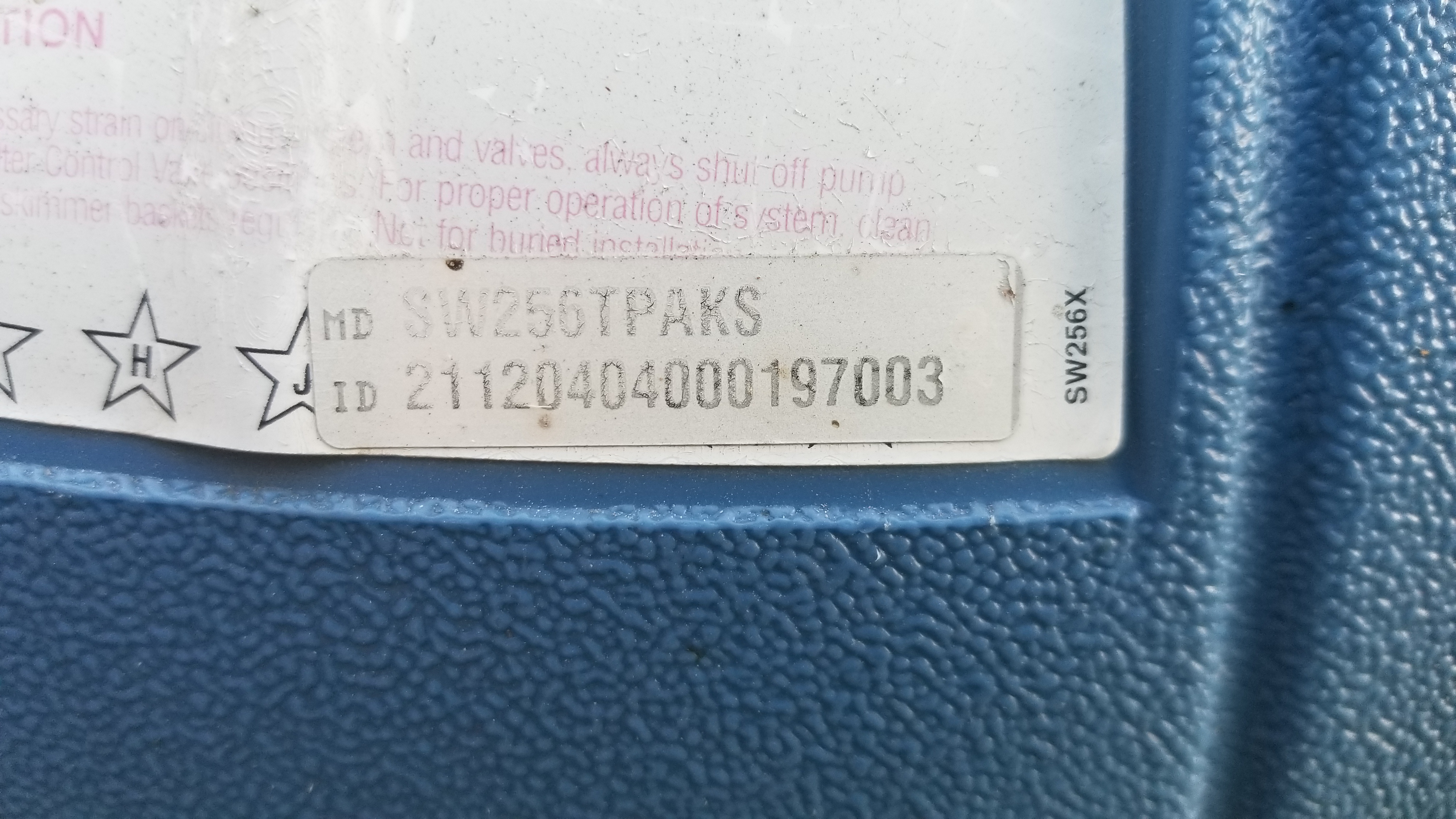

Will the Top mount valve PL0714 replace the SW256T model water keeps coming out the backwash waste when I turn my pump on to filter thank you
Reply

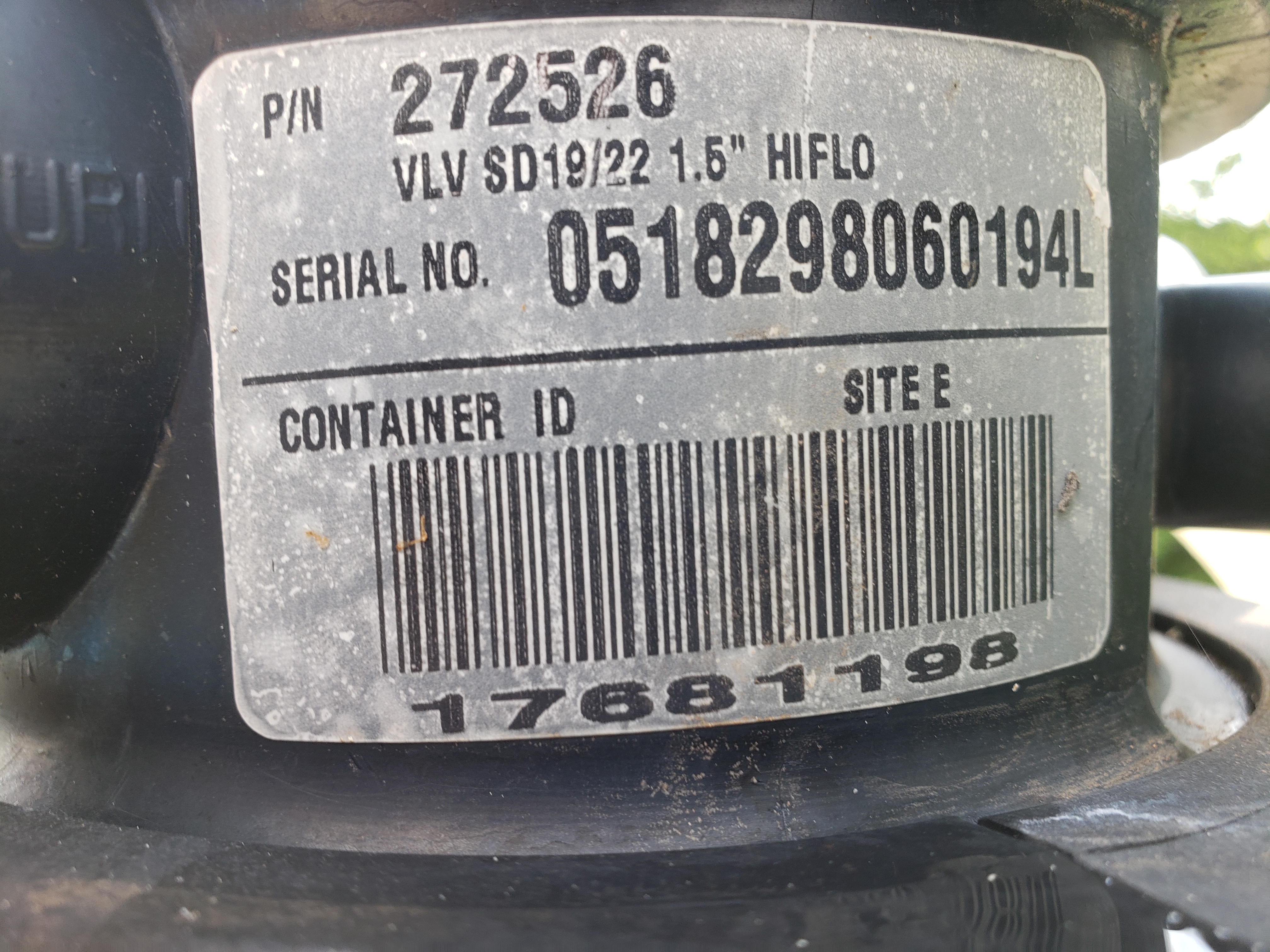

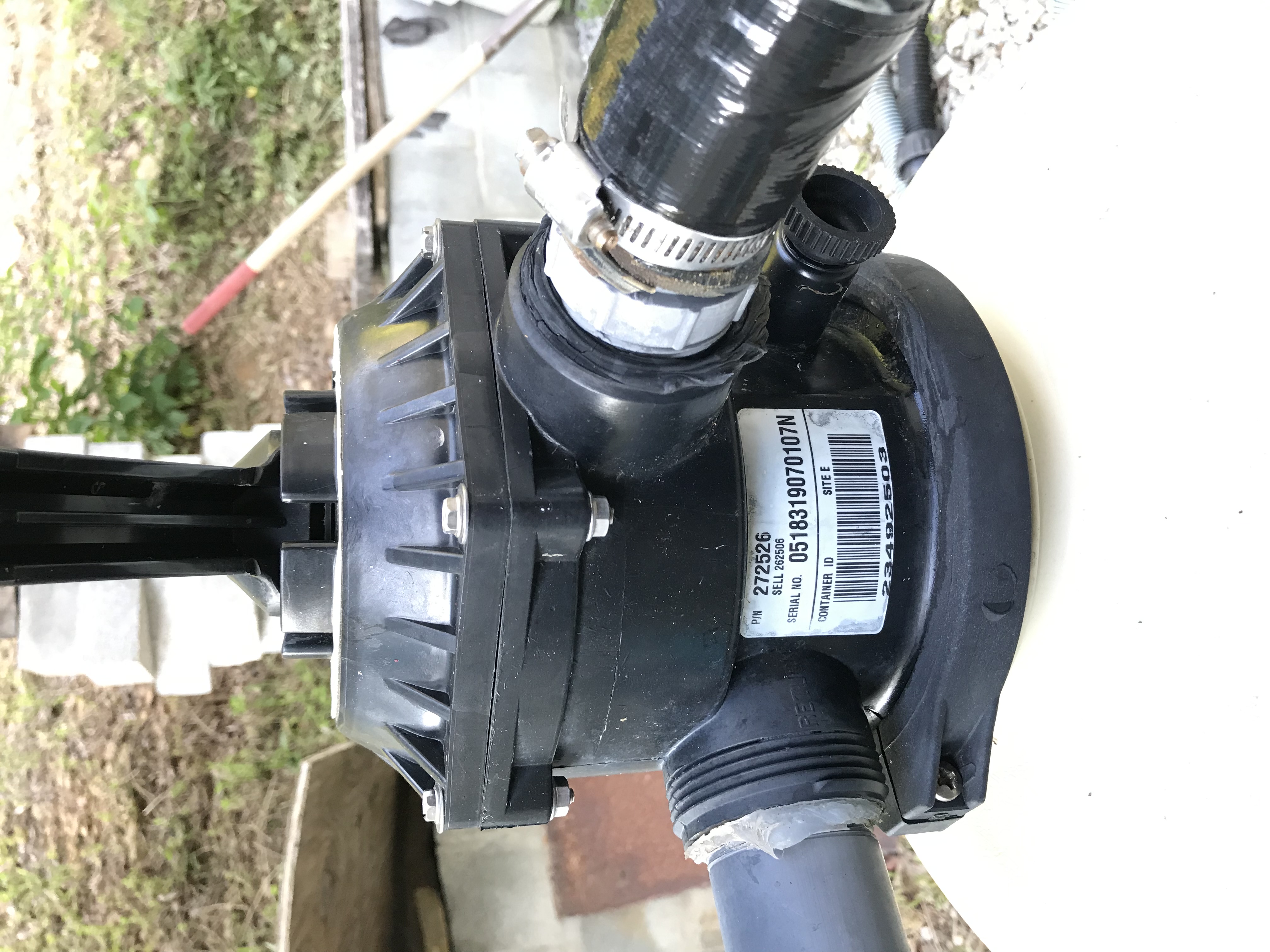

Will this work to replace a Pentair 272526 or 262506?
Reply
Unfortunately, This valve is not a replacement for that series valve. You would need to stay within that Pentair series of multiport valves for a replacement.
Reply
I have the ss160 sand filter will this replace the multiport valve i have
Reply
Yes, the Splash-Pak SS160 filter is compatible with the PL0714.
Reply
I have a Hayward S230T and need to replace the top mount valve. Which one will fit this model?
Reply

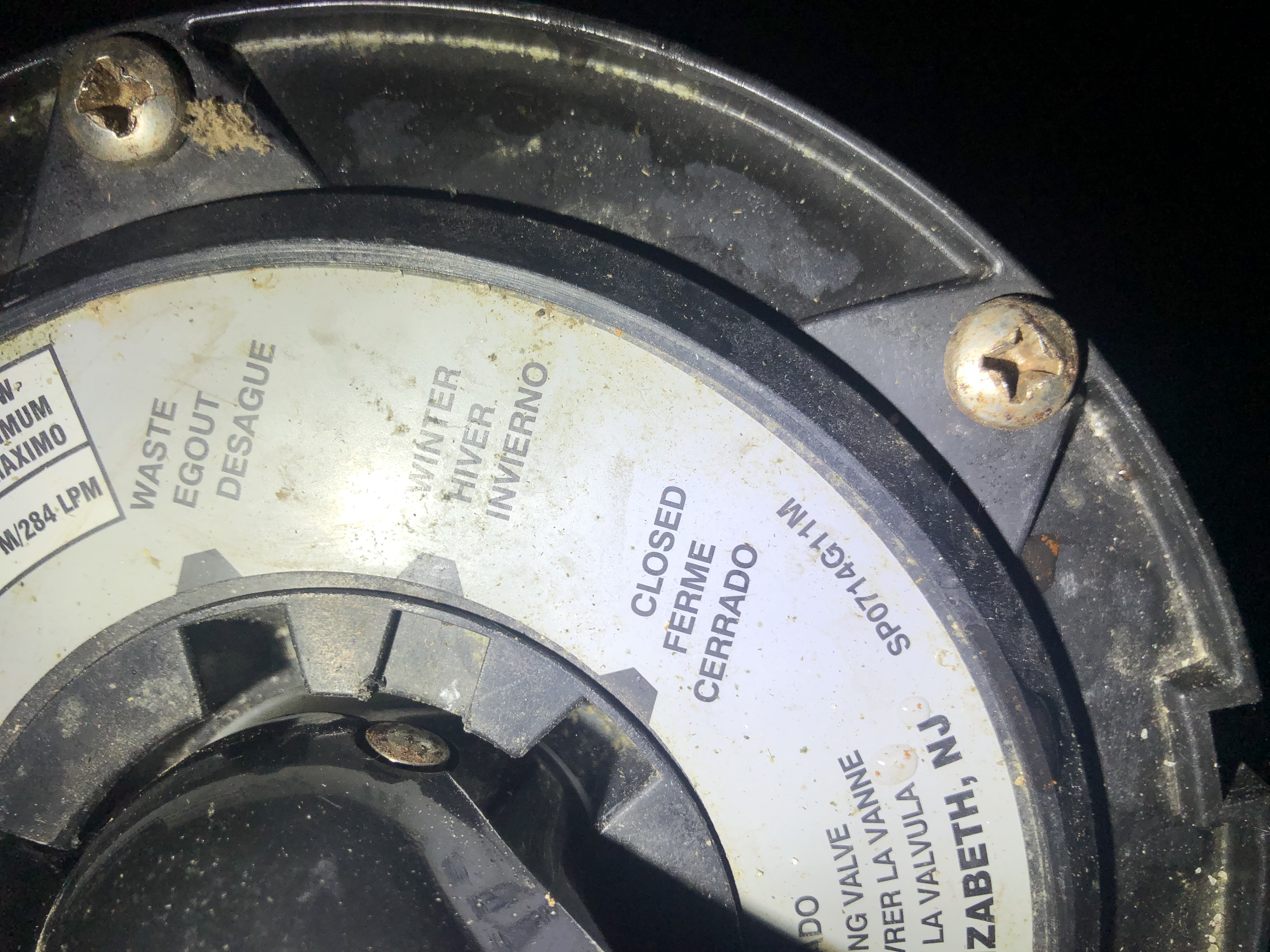

Will this for a Hayward S244T currently has a SP0714G11M Hayward Vari-Flo xl valve? It looks to have a crack above the pressure gauge and water is coming out.
Will this work for the Hayward sand filter s230xsc, do you also have the lateral assembly that fits with it and express delivery?
Reply
i have a hayward model sp714 what is the cross reference number
Reply
There are quite a few alternate part numbers for cross referencing this valve. In the details portion on this valve's page in the alternate part numbers section you can view all of the most commonly used cross reference part numbers.
Reply
The sticker on the side of my sand filter says model # S210T93S Will this work??? I just need a replacement multiport valve as ours has two pinhole leaks on the side
Reply
I have a TM-12-H8 Value when I go to backwash the pool water comes out clean but the pool it self is green when I vacuum it seems to just filter back into the pool
Reply
Filtering alone will not clear a green pool, you will need to Shock, Level, And Maintain a.k.a. SLAM. You need to begin shocking your pool. For a step by step process on how to get your pool clear again, give this a read: How to Clean a Green Pool?
Reply
I have a leaky Hayward Vari-Flo XL Valve: Model No SP714. Do you have a replacement valve? Thanks.
Reply
I have a Hayward Veriflo SP 711-A-13 sitting on an that has 2 cracks at the pressure gauge and is leaking badly. It is sitting on a S-244T Sand filter currently. Is this product a suitable replacement for that valve head? If not can you recommend one please?
Thank you
I have water leaking on top of the valve?
Reply
Hi. To resolve that issue, you can replace the entire valve or the Upper Handle Assy.
Reply
I have a cracked pipe and the p/n is 272526. Will this part work for me?
Hello Nancy - the PL0714 and your valve 272526 is not compatible. The replacement valve for your model is the Top Mount Valve 6 Pos 1-1/2" Flanged - 262506
Reply
I seem to be getting air in filter system and causing foam on top of pool. a week ago changed to new pump because old pump quit What could be causing problem with foam
Reply
Hi, Michael. Foaming in the pool is caused by a chemical reaction from skincare products being in the water. You can use a non-chlorine shock to reverse the foaming.
Reply
Can I purchase the key instead of the whole valve?
Reply
Hello, Yes, this will be the key cover handle assembly. http://www.inyopools.com/Products/07501352020279.htm
Reply
hello i have a swim pro sand filter model # SW256T which valve would i need to purchase to work with this unit the unit has a leak on one of the port,thank you for your help
Reply
Hello I have a Hayward s166t and I’m trying to make sure I get the right flow valve for it is this the correct one?
Reply
Yes, this would be a correct valve replacement for your model Hayward S166T filter.
Reply
I'm looking for a Multiport Valve Key Assembly Hayward SP0714T. Do you have it?
Reply
i need to replace my control valve. i have a SPO714T Series VARI-Flo. not sure of the mode #l. It's either SW196T, SW236T, or SW256T. can you please let me know what valve is the right one for me.
thanks
Also on the Part description list it references Part # SW711T
Reply
Hi! I have a Hayward Pro Series sand filter SP714-A. The white ring that is under the handle broke and we have been having trouble with changing the settings ever since and a small amount of water under the handle. I was looking to replace this entire part rather that just the broken piece. Is this is a compatible part? Is there a how to video on the replacement process? Also I was wondering if this part being leaky could contribute to air bubbles coming from my return jets.
Hi, Anna. This PL0714 Valve is the correct replacement by Pureline. The leak will NOT cause air bubbles at your return.
Reply
Is this okay Multi port valve for Sand Filter Hayward Port Model S244S?
Reply
Will this work on a sp711 hayward sand filter?
Reply
Hi Nick, could you send us a few photos of the entire multiport valve and the very top of it? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Will water leaking from the around the head and the backwash cause a loss in pool pressure ?
Reply
That should not cause a decrease in water pressure. Please click here to be directed to a guide called "How to identify and fix low water pressure" that we created that may assist.
Reply
i have the hayward 166t sand filter. i need the complete spider valve kit what is the part # number for this valve assembly. the ports coming off the valve head are 2 inch reduced to 1.5 by fittings.
Reply
Hi John, could you send us a few photos of the valve and the label on the top if it? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have the hayward s244t and nee the top valve which one fits - mine is leaking.
Reply
Hello James, yes this would be the replace as well as for other valves such as ALTERNATE PART #'S 27515-154-000, 39-2585-09-R, 39258509R, DVK-7, SP071113, SP0714T, TM12H8.
Reply
I have an old Pac Fab 8 -position multiport valve. What is a replacement valve for this since Pentair has bought out Pc Fab and I believe the valve I have is discontinued.
Reply
Could you please send us a model number and some pictures of the pool filter valve. PacFab has a lot of different model filters so we want to make sure we get you the correct part.
Reply

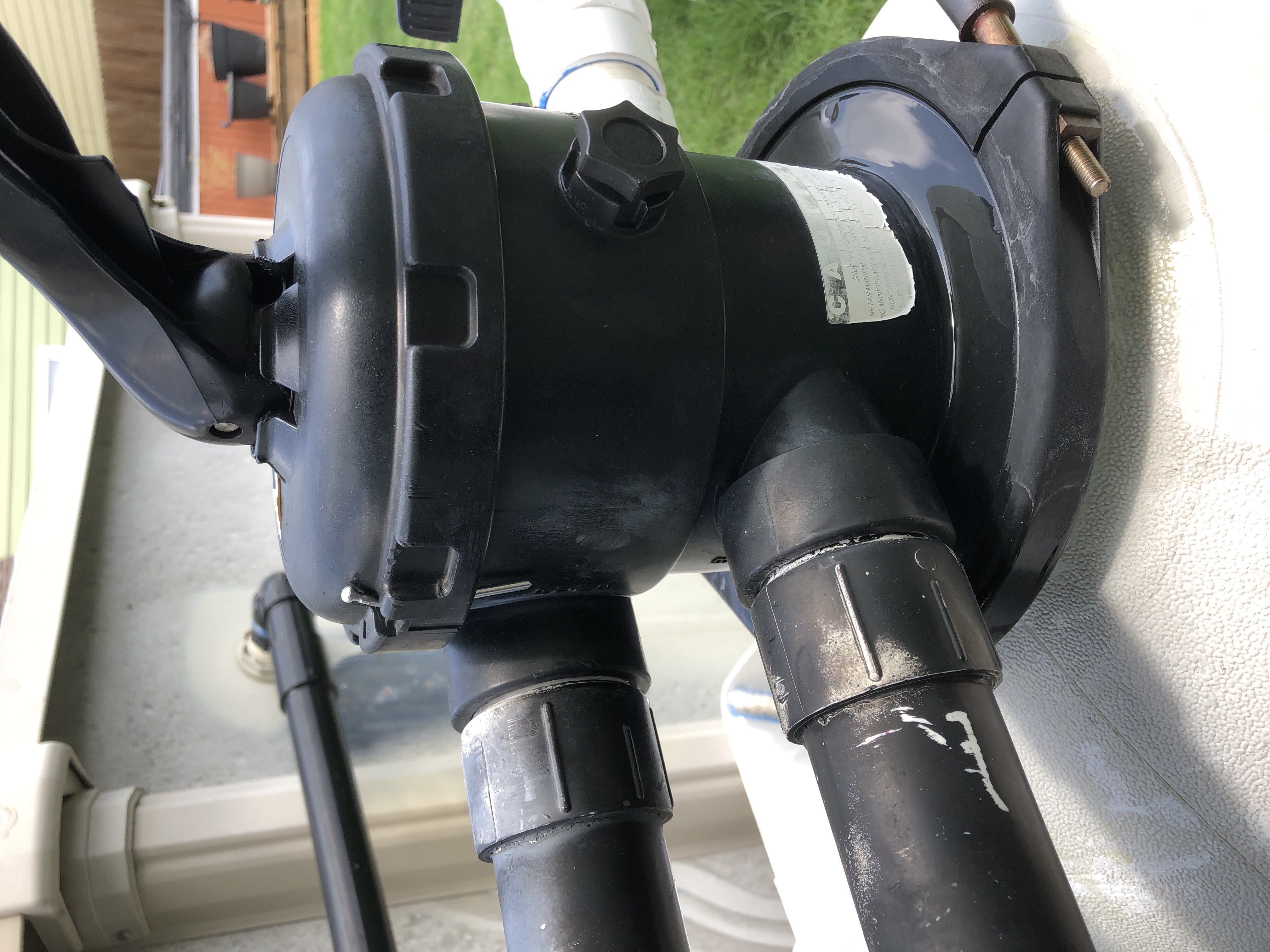

Hi, I have this filter from American products, (attached) will this head works for my filter . I really don't know model number of this filter as it came with the house I bought. Thank you
This valve does not fit the filter in your photo. The original valve on your filter is no longer available, however, this American Products Meteor Replacement Valve will work. Please note the ports on the valve are not in the exact location as your current valve so re-plumbing may be required.
Reply
Will this valve fit on s Splash Park Sand Filter model SS160?
Reply
The PL0714 can be used on the SS160 model. The port arrangement may be slightly different. This wouldn't matter if you are using flexible hoses. Rigid PVC will require some minor replumbing.
Reply
Is this easy to install?
Reply
We do offer How-to-Guides to help you with replacing pool filter valves. Here are a few of them...How to Guides - Valves
Reply
I have a Valterra Blue Devil 19 inch sand filter (https://www.valterra.com/product/sand-filter-19/) Will this head fit it?
Reply
Hi Mark, No this valve does not work on the Valterra Filter, the complete valve that is used on the Valterra is out of stock for the season. However, we do have this Upper Valve Assembly for Valterra Filter in stock, and 99% of the time if you have leaking from the valve then this Upper Valve Assembly will fix that issue.
Reply
I have a Hayward model S220T filter. Will this fit it? Also is this complete or do I need additional parts?
Reply
Hello David. The Custom Molded Products Top Mount Valve p/n PL0714 is a compatible replacement valve for the Hayward Sand Filter model S220T. The valve comes complete with o-ring, site glass, and pressure gauge. No other parts are necessary. Attached please find an exploded parts diagram for the Hayward Pro Top Mount Sand Filter S220T for reference. Hayward Pro Top Mount Sand Filter
Reply
will this fit a S244T
Reply
Hi Greg, yes, this will fit your Hayward S244T Sand Filter perfectly.
Reply
Will this fit a s144t. the whole piece that also goes into the sand tank
Reply
Hello Rose, yes this multiport valve model PL0714 is compatible with your Hayward Sand filter model S144T.
Reply
I Have a Dream Line Sand Filter The parts that I Nead to replace has this number on it SP0714B and SPO714C I this part the replacement for them (Replaces Vari-Flo XL SP0714T)
,
Reply
Yes, the PL0714 valve is the correct replacement for your Dream Line sand filter.
Reply
