What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
I am changing out a my b853 motor for a B2853 motor. Is there a difference in the connections?
Reply
This is the same motor there will be no difference in the connections. The B853 and B2853 are simply alternate part numbers for the same motor.
Reply
IS this a reversible motor. I bought it new, installed it to pump. primed the pump, but it still does not pull water. Checked all the seals, etc.
Reply
A single phase motor such as this will only spin in one direction. A three phase has the ability to be wired incorrectly and spin the wrong way. Please check to make sure the impeller is clear of any debris and the pump back lid is secured and the o-ring beneath is lubed properly. It sounds more like an air leak than a motor issue.
Reply
Is it OK to apply large holed screen over the vent holes on my Century 1 HP pool motor body? The lizards here in Florida always try to get inside.
Reply
Peter, We sell a pool motor cover. If you plan on making one, the vent holes would have to be large enough so that the motor would not over heat.
Reply
My pump amps are 7.1/14.2 insul class is B code j part #7-177215-04 serial # 344073m - fr-p56y - type-cx --hp-1 sf-1.25 I need to know if this pump will work please.. thanks, Dewey
Reply
Hello Dewey - The B853 motor would be the correct replacement.
Reply
What is part number for white and what gaskets do I need? Do I need any connectors?
Reply
Hi Gary - We only carry this motor in Black and not the almond color that comes with the original pump. Most likely you have the Pentair Whisperflo if so then we would suggest the Pentair Whisperflo Tune Up Kit which will include the shaft seal and all o-rings and gaskets needed for your motor replacement. As far as connectors go, I am assuming you are speaking of unions, these are quick disconnects which make the removal of your pump very easy and eliminates the need for cutting any pipe. If you do have the Pentair Whisperflo then I would suggest the Pentair Whisperflo Unions here.
Reply
In a previous post you said that the B853 and 2853 are the same motor but I beg to differ. The B2853 has I reverse thread 1/4 20 type bolt that threads in the end of the shaft to secure the impeller. The B853 does not. Why is that if they are supposed to be the same.
Reply
The B2853 is the direct replacement for the discontinued B853. They added the reverse female thread to the shaft because several pumps have an impeller screw.
Reply

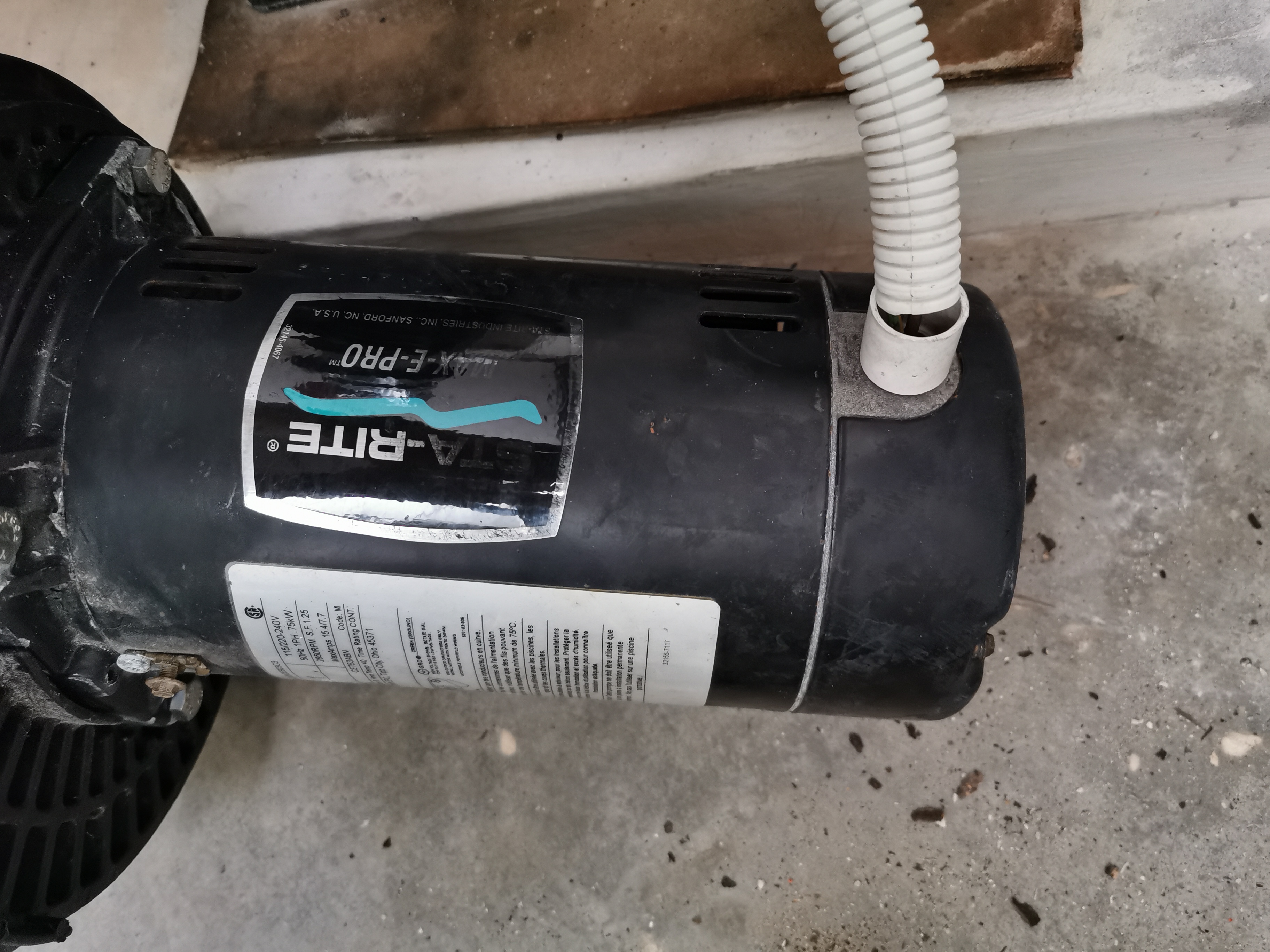

My old pool motor seized, (sta-rite supermax 1hp. PHK2RA6E-102L) when i asked for a quote from the pool co, I have been using for years to replace got quoted $1,468.00 I said no and found a replacement for $145.00 and will install myself, so my question is when installing my new motor (AO smith usq1102 type b) can I take the parts off my old pump, since the impeller and diffuser are in great condition?
Reply
That's great to hear that you were able to save so much money by doing the pool motor replacement yourself. Yes most definitely you could use your old impeller and difusser. We have a few great videos which I think should help you out quite a bit when you do this job. The first video I would suggest is the How to Replace a Pool Pump Motor Video the Second video would be the How to Replace a Pool Pump Impeller Video and the third would be the How to Wire a Pool Motor Video.
Reply

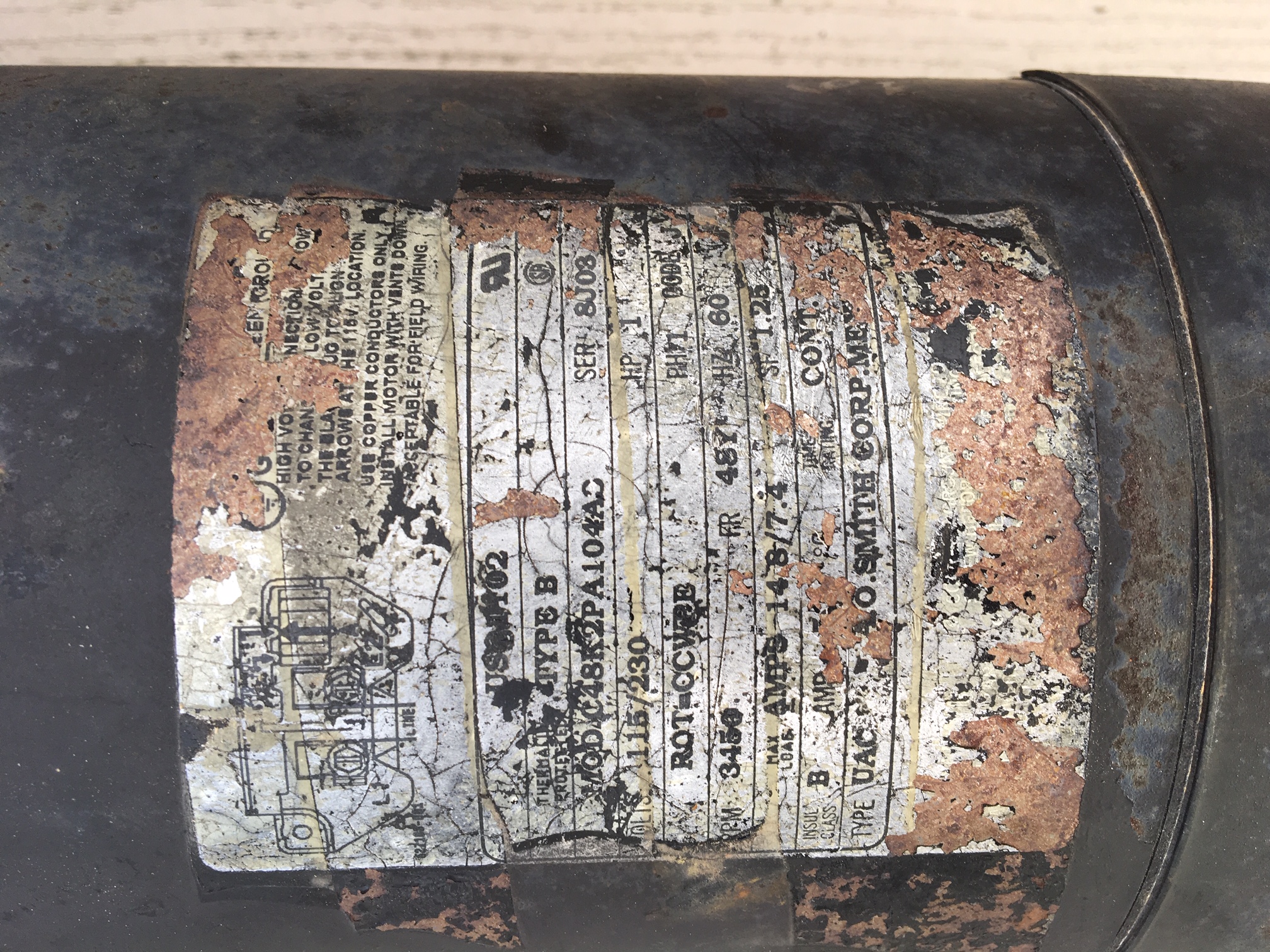

Question for patrick p.you mentioned that an AO smith USQ1102 type b motor can have the impeller and defuser put on the USQ1102 from a sta-rite PHK2RA6E-102L MOTOR my question is how for one the sta-rite shaft has a screw ended shaft to hold impellar on the AO doesnt two usq1102 is a 48y the sta-rite is 56 also was told the usq-1102 is an upgrade and is only 3/4hp is this true.these are my issues im having trying to use the usq1102 as a replacement motor for the sta-rite PHK2RA6E-102L
Reply
Hi there, The motors can be swapped with no problem. The difference between a 48Y frame motor and 56Y is that the 48Y has a smaller barrel (i.e. is smaller in diameter). You can put the smaller 48Y frame motor on the pump base. The 48Y frame motors come with a rubber spacer to make up for the smaller circumference. If I'm not mistaken, most of the Sta-Rite pumps should be 48Y frame motors. If you have a 56Y on there, you may want to check the pump base/bracket. Sometimes when going from a 48Y to a 56Y, the base has to be cut to fit the larger motor. As for the impeller screw, the newer motors don't need it. You can simply thread on the impeller and you do not need the impeller screw. As far as I know, only the OEM branded motors would come with the opening in the shaft for the impeller screw. Here is a good article on the topic Do I Need a Impeller Screw For My Pool Pump Motor.
Reply
I have been trying to find an impeller and diffuser for an AO smith USQ1102 motor, when i get directed to web page and asked for brand name i cant find AO smith anywhere. Can you help me?
Reply
We would need to know the make and model of your pump common manufacture names would be Hayward, Pentair, Sta-Rite, etc.. common model names would be Super Pump, Whisperflo, Dura-Glas II etc.. If you could supply us with this information along with your horsepower and service factor which are on your motor label then we can give you the correct impeller and difuser.
Reply
I have a hayward pump and the 1 hp motor went out. The pump is a EF1000 model and the old motor is a AO Smith part # 7-196336-20 with a Y56Y frame, type CP. The only replacement motor I can find has the frame listed as a P56Y, will this work with my pump housing?
Reply
Hi Aron, Here is the Proper Replacement Motor for Your 7-196336-20 Motor. A Y56Y frame and a P56Y frame would be the same thing, all you need to worry about is the 56Y portion.
Reply

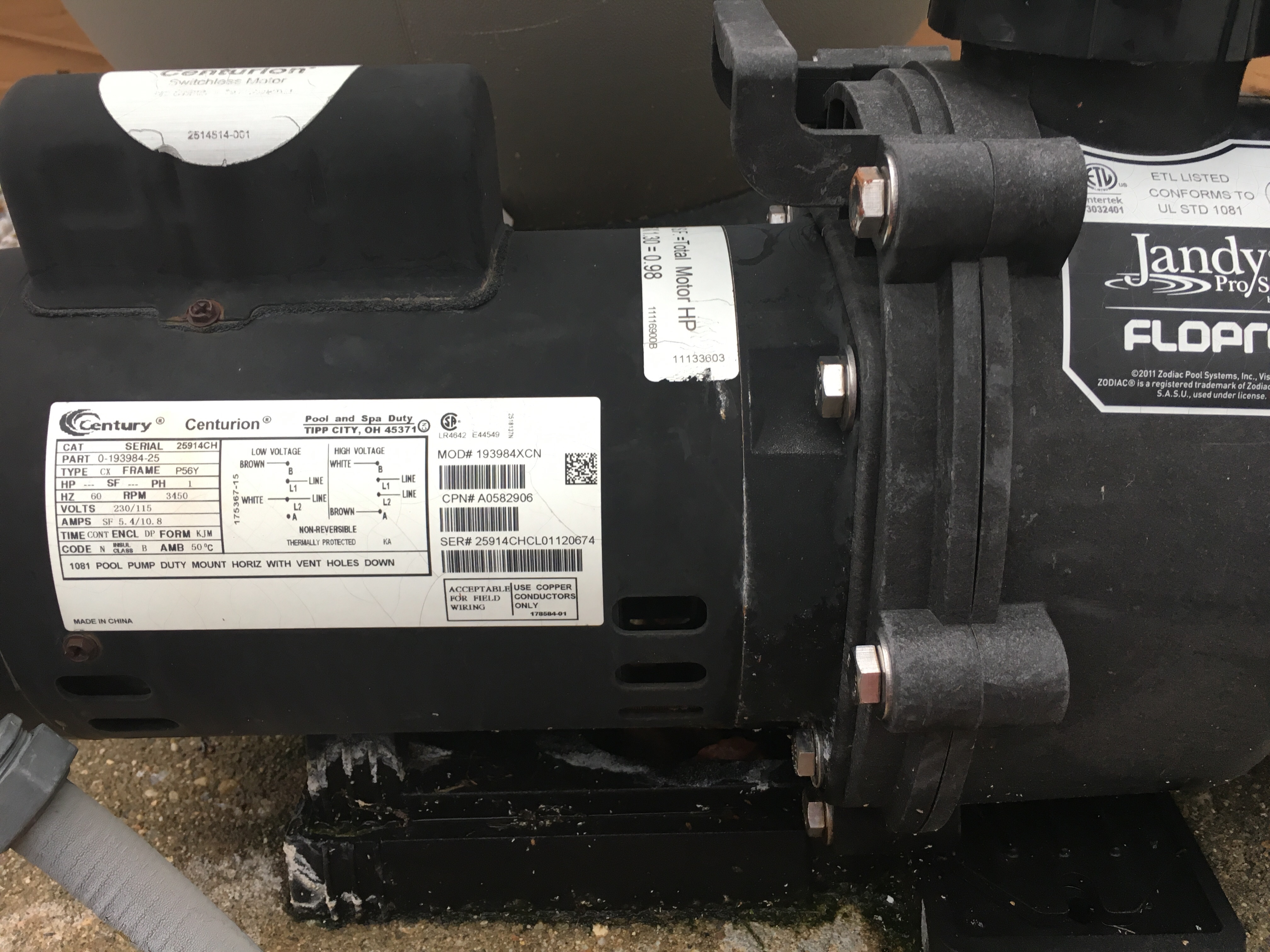

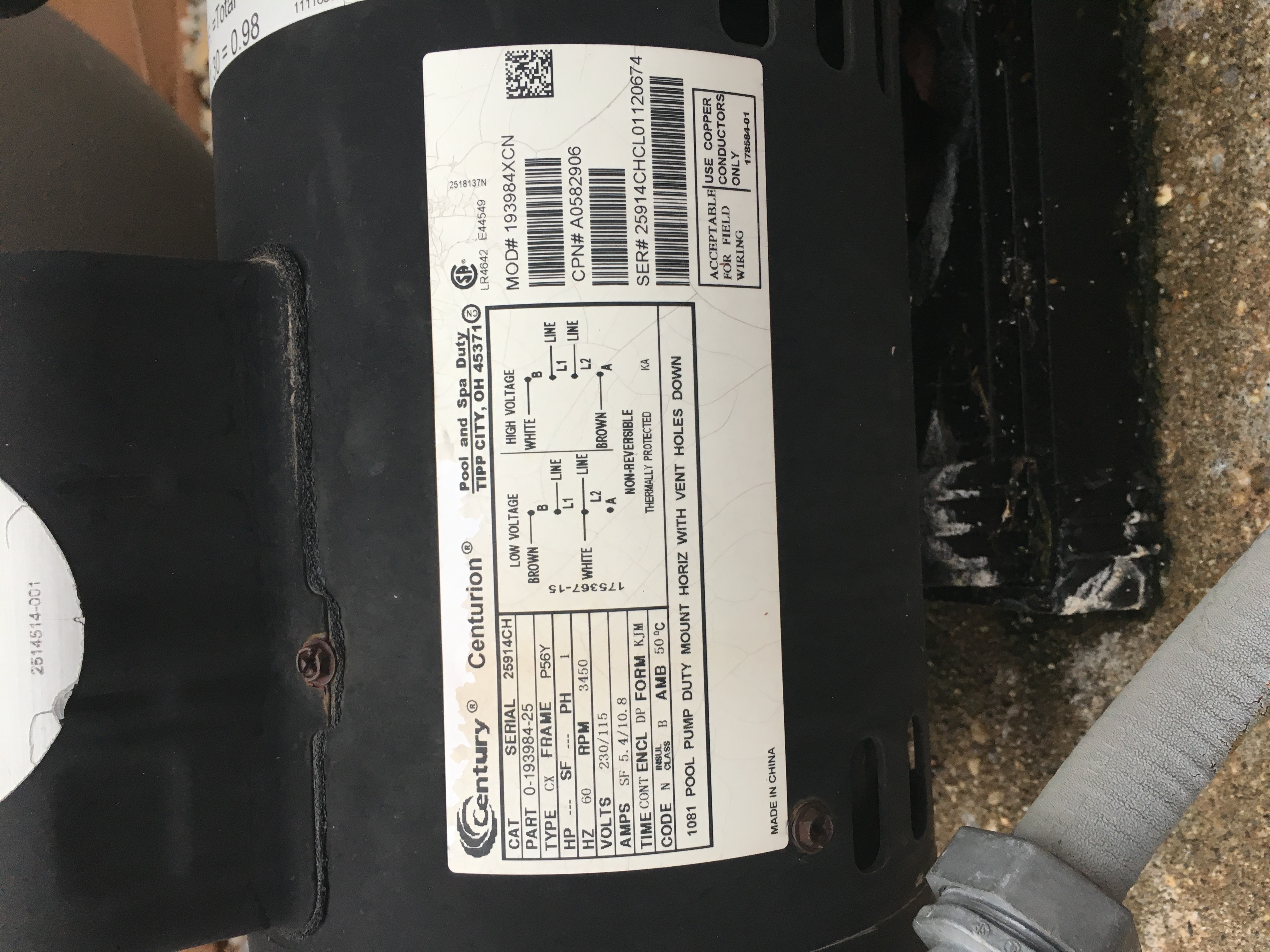

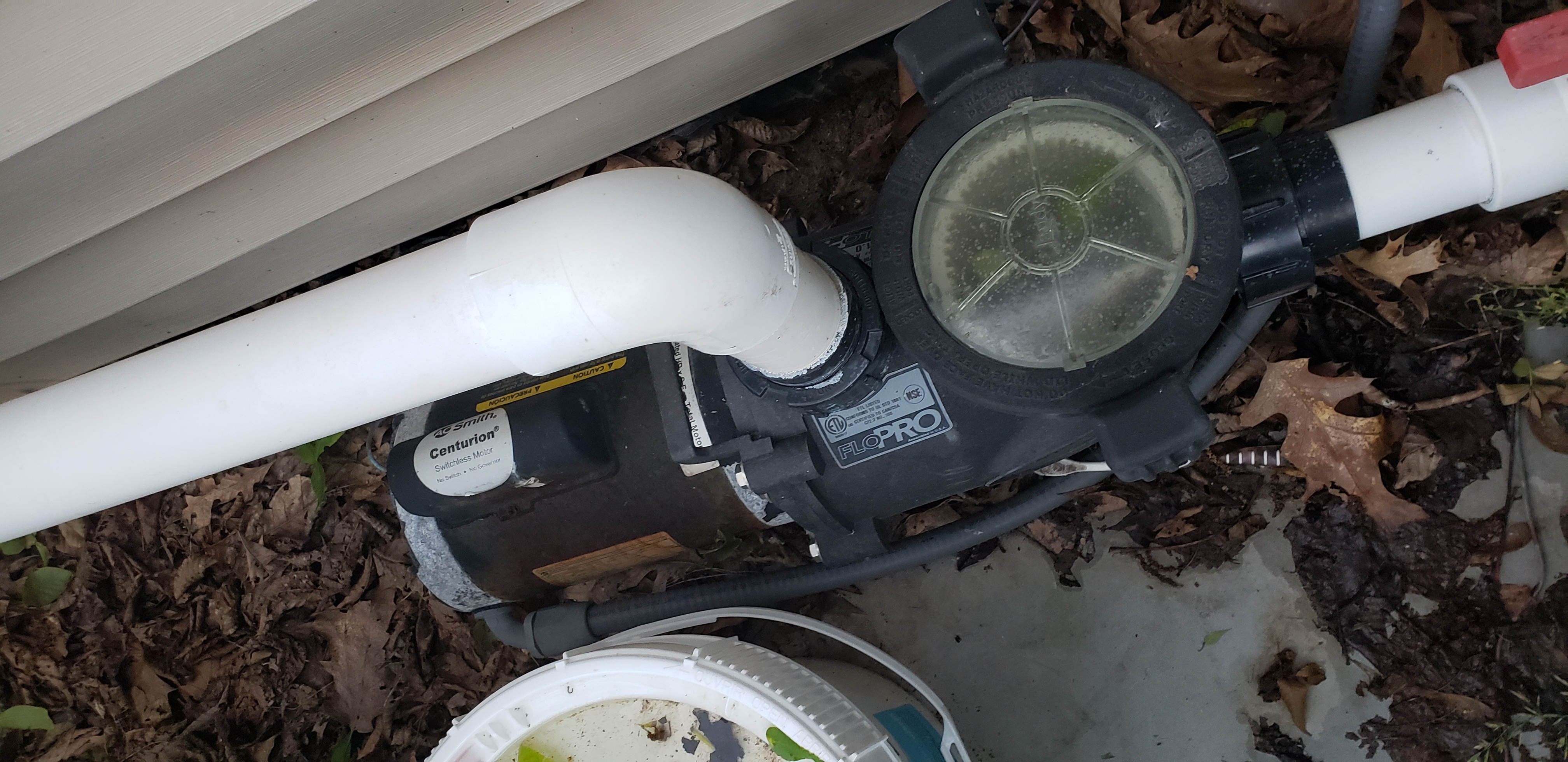

My pump is Jandy FloPro 1 HP model FHPM (single speed). The original motor model is R0479311. Is this the right replacement motor? Also, can you point to me the right kit to buy to replace the seals?
Reply
For your Jandy FloPro 1 HP Pump model number FHPM10, the replacement motor will be P/N B853. This pump do not have a kit with all the o-rings and shaft seal so you'll have to purchase the parts separately. Jandy Flo Pro Pump FHPM Parts
Reply
I need to replace my motor for my in ground pool. It's an AO smith P56Y 1 horsepower. Part number 7-193985-04?
Reply
Hello Jackie - The B853 is the correct 1HP motor replacement for the 7-193985-04.
Reply
What is the difference between the B2853/B853 and the USQ1102?
Reply
The difference between the two motor is the frame size. Motor p/n B2853/B853 frame size is 56Y and motor p/n USQ1102 frame size is 48Y.
Reply
I need to replace the motor on my Pentair WhisperFlo WF-24 pump. It is almond in color. The info from the label on the motor is as follows: Part # 7-177474-01.....Frame P56Y....Type CX....Form KJM....HP 1....SF 1.25....HZ 60....PH 1....Amps 7.1/14.2....RPM 3450....Time CONT....Encl DP....Code J.
Reply
I need a replacement motor for my Jandy Steath pump with a frame number of y56y its a 1Hp X 1.65 Sf with a serial #299093m. Is this the correct motor.
Thanks,
Mike
Reply
Hi Mike, If your Jandy Stealth Pump is from 2006 to current then you would require the 1 HP Jandy Stealth Full Rate Motor for models 2006 and Newer you would also require the Jandy Stealth 2006 & Newer Shaft Seal. If your pump is from before 2006 then you would require the 1 HP Jandy Stealth Full Rate Motor for models 2005 and Older you would also require the Jandy Stealth 2005 & Older Shaft Seal. Based on your service factor and frame type I believe you have the 2006 and newer version as both of your specifications match up to the motor used on the newer version of the pump.
Reply
I have a Magnatek Centurion 7-168451-24 motor on a Pac-Fab 3/4 Challenger pump. I'd like to replace the motor with a new 1HP motor.
Which motor will work?
Reply
Hi Scott, The 1 HP version of your motor would be the B841 Challenger 1 HP Full Rate Motor here. If you upgraded to the 1 HP you would also need to upgrade your impeller to the 1 HP Challenger Impeller, upgrade your diffuser to the 1 HP Challenger Diffuser, and you would need a Challenger Tune Up Kit.
Reply
I have a sta rite pump model # PHK2RAGE-102L, serial # 001G10V, motor # 168452, 1 HP. The motor is humming and won't start, I saw some smoke. I changed the capacitor, no luck. I believe I need a new motor.
I wonder if a.o. smith stock # B2853 is the right motor. Thanks.
Reply
Hi Pello, Yes you are correct the replacement motor for your sta-rite super max is motor number (B853).
Reply
Since this is uprated, is it actually 1 HP effective output? Also, I have an Intelliflo VF so what impeller would I need to replace the motor? Thanks!
Reply
If you would like to change your motor from the orginal variable speed to a single speed pump using the A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853), you will need to the Impeller 3/4 Hp Full 1 Hp Up (073127), Diffuser Assy., 3/4 - 2 1/2 Hp (072927) and a Tune Up Kit Pentair/Purex Whisperflo.
Reply

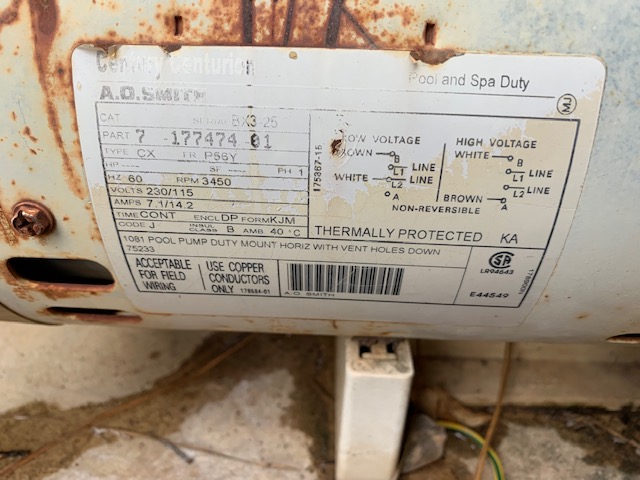

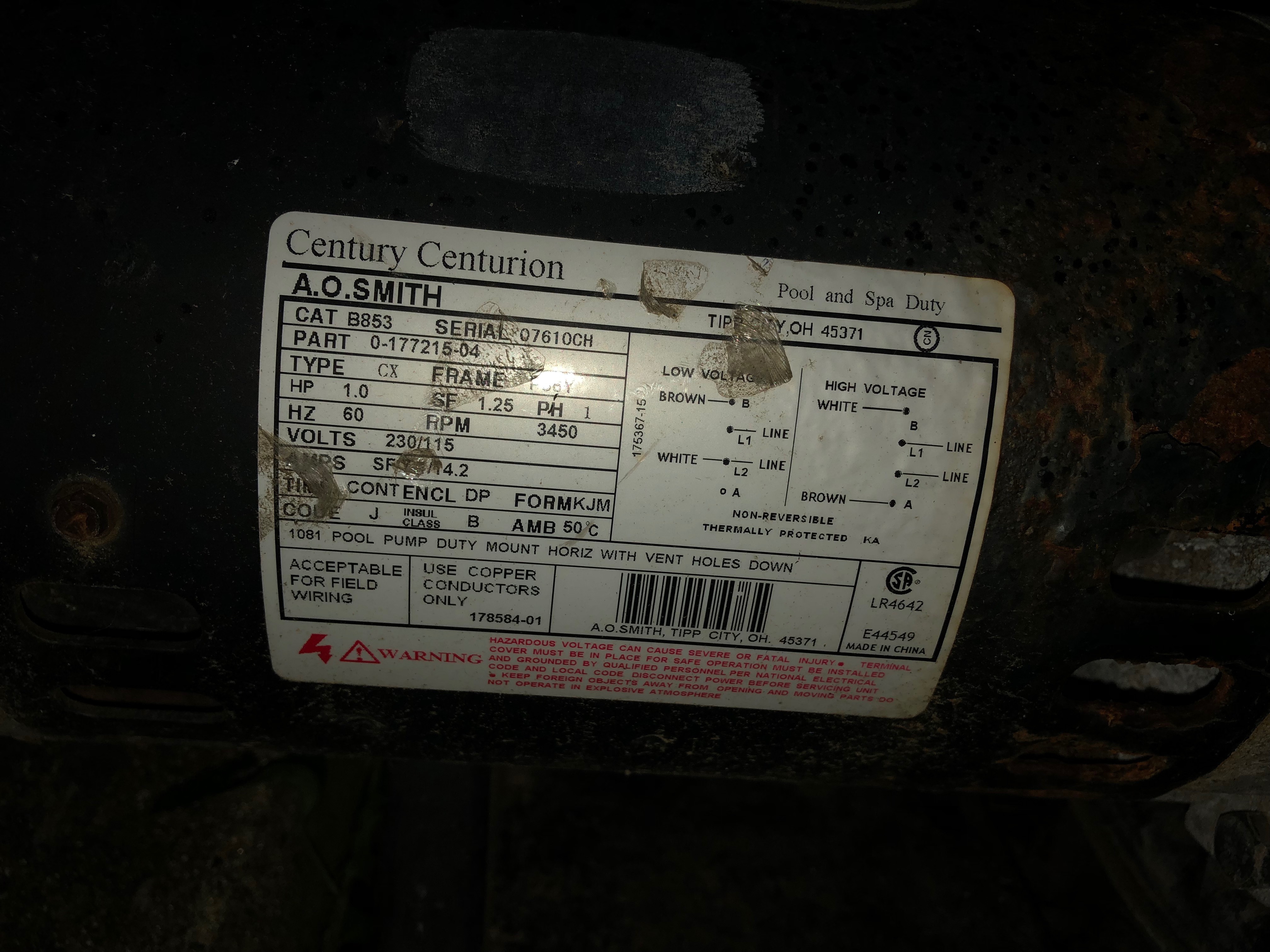

I have a A.O.Smith 0177215-04, 1HP , 1.25 S.F, Frame P56Y, , CAT: B853, Horizontal Mount, with Vertical Holes down motor on my swimming pool. I want to order a direct replacement. I have replaced the motors 3 times in 10 years. They only seem to last about 3-4 years. I have never had to change an impellor and should not have to on this round. Please confirm that I can get the exact replacement, without any surprises and I'll order one. Typically, it seems to be the Bearings that Go.
Reply
Hi Doug, The motor on this page (B853, B2853) would be the exact direct replacement for your motor.
Reply
My pool pump is a Pentair Whisperflo 011486 WFDS-4 with an A.O. Smith Century 1 HP 2 SP motor, SF 1.65. Motor broke. I want to replace with a single speed motor. Will the B2853 1 SP motor fit, be compatible, and work with the pump? Is there a better 1HP 1 SP motor for this pump?
Reply
Hi Larry, The 1 HP Motor EE - Full Rate (B2841) will be the correct replacement motor to convert your Pentair Whisperflo 011486 WFDS-4 to a single speed pump. I would also recommend getting a Pentair/Purex Whisperflo Tune Up Kit (GOKIT32).
Reply
If i want to switch to a more efficient motor, which do you suggest i need? I currently have a 1 speed 1hp.
Reply
The best option for a more efficient pool motor would be part number ECM16SQU . It is a 1.65HP Variable Speed Pool Pump Motor. You would never need to go that high, but this is the smallest HP variable speed motor they make currently.
Reply
Can you give a detailed description of the Capacitor that would go on the above motor. Is it a starter and/or a running capacitor. Part Number, the U.F. rating etc. Thanks,
Reply
Hi Charles, The A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) has a Start Capacitor 36-43 MFD 220-250 Volts and Run Capacitor 30 MFD 370 Volts according to Century.
Reply
i need to replace the motor on my pool pump. it is a challenger high flow 1hp.motor 7-168452-04. what do you recommend?
Reply
The direct single speed replacement motor is the B853. You can also use a dual speed model being the B2980T but needs to be wired at 230 volt only. Then ofcourse you can use a variable speed motor which would be the ECM16SQU. For that model though you may need to change the impeller and diffuser to use this model to it's fullest capacity.
Reply
I need to replace my pump and also the impeller. Do you sell that also?
Reply
Yes we can provide complete pumps, replacement motors and impellers. We would just need the part, model or part numbers of these items to efficeintly cross reference them for you.
Reply
I have a AO Smith E-Plus " Jandy" 1 HP x 1.65 SF 1 HP pool pump motor.
Is the the B2853?
Reply
Hi, The 1 HP Motor EE - Full Rate (B2841) will be the correct replacement motor.
Reply
I have Jandy Plus hp model # PHPM 1.0 with an AO Smith 7-193985-04. The pool is about 5 years old so I think the motor itself was a good one. Motor burned up, the pump came with the pool when I built the pool. I'm just wondering if it's to small, and we also have a water slide? It's about an 15,000 gallon pool with salt water system.
Reply
Hi Andy, I do not think the size motor you have is too small for your pool. You can watch our video on How To Size A Pool Pump to make sure you have the proper size pump for your pool.
Reply
I need a replacement pump motor for a Sta-rite motor model# 0-F56AA36A01-25 on a 56Y frame. I was told this was a 3/4 HP pump. when I put this in your search engine it comes up as a 1 HP motor. This is for my Spa. Will it be a problem for this HP difference?
Reply
HI James, The 3/4 HP Standard Motor - Full Rate (B847, B2847) and the A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) does have the same total HP just the B847 is a full rated motor and the B853 is a up rated motor. The difference between an up rated and full rated motor is the service factor (SF).
Reply
I have a 1 hp motor with a 1.25 SL at 1.2 5SF HP model number 177474 FR P56Y. how much bigger on the motor can I go can I go to a 2 hp
Reply
Hi Allen, I would recommend watching our How To: Size A Pool Pump video to see if you can increase the motor to 2 HP. If you can you will need to change the impeller and other parts to insure the motor will function as intended.
Reply
I need to replace a pump for my pool cleaner A.O. SMITH 7-173840-23 HP 3/4 SF 1.50. I am so afraid of buying the wrong replacement sz after reading about up rated and all the parts you will need etc. Can you tell me the replacement motor I need and all the pieces to go with it ? (seals washers etc) And cost efficient :-)
Reply
Taunia,Thank you for contacting Inyo Pools. Yes, the correct replacement motor for part # 7-173840-23 is B625. Don't forget to purchase a new shaft seal when you replace your motor.
Reply
My AO Smith motor does not have a catalogue #. It is Part # 0193993-05. Serial 35606CH, Type CX, Frame Y56Y, rpm 3450, Amps SF7.8-7.4/14.8. Which part here will fit - can you tell from this info?
Reply
Hi Bill, Based off of the p/n provided the A.O. Smith 1 HP EE - Full Rate Motor (B2841, B2841V1) would be the correct replacement motor.
Reply

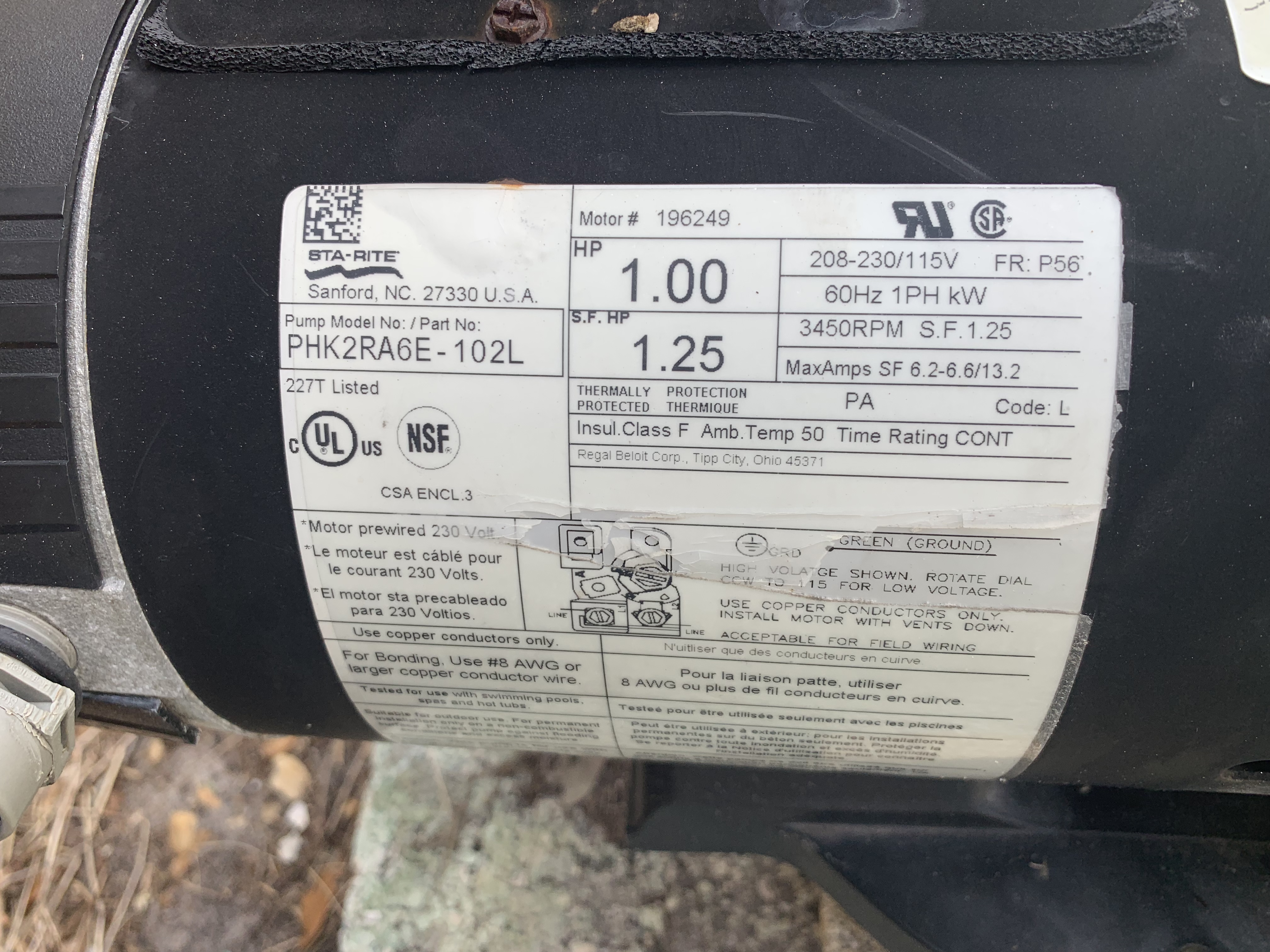

Looking for a replacement motor for an A.O. Smith PHK2RA6E-102L, motor# 168452. Also, any parts or kits needed when doing this project.
Reply
Hi, The A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) will be the correct replacement motor for the Sta-Rite PHK2RA6E-102L pump. There is not a Tune Up Kit available for this pump but we would recommend replacing the Shaft Seal # 22, Diffuser Gasket # 16, Housing O-ring # 14 and Strainer O-ring # 6 of the Sta-Rite Super Max Parts List.
Reply

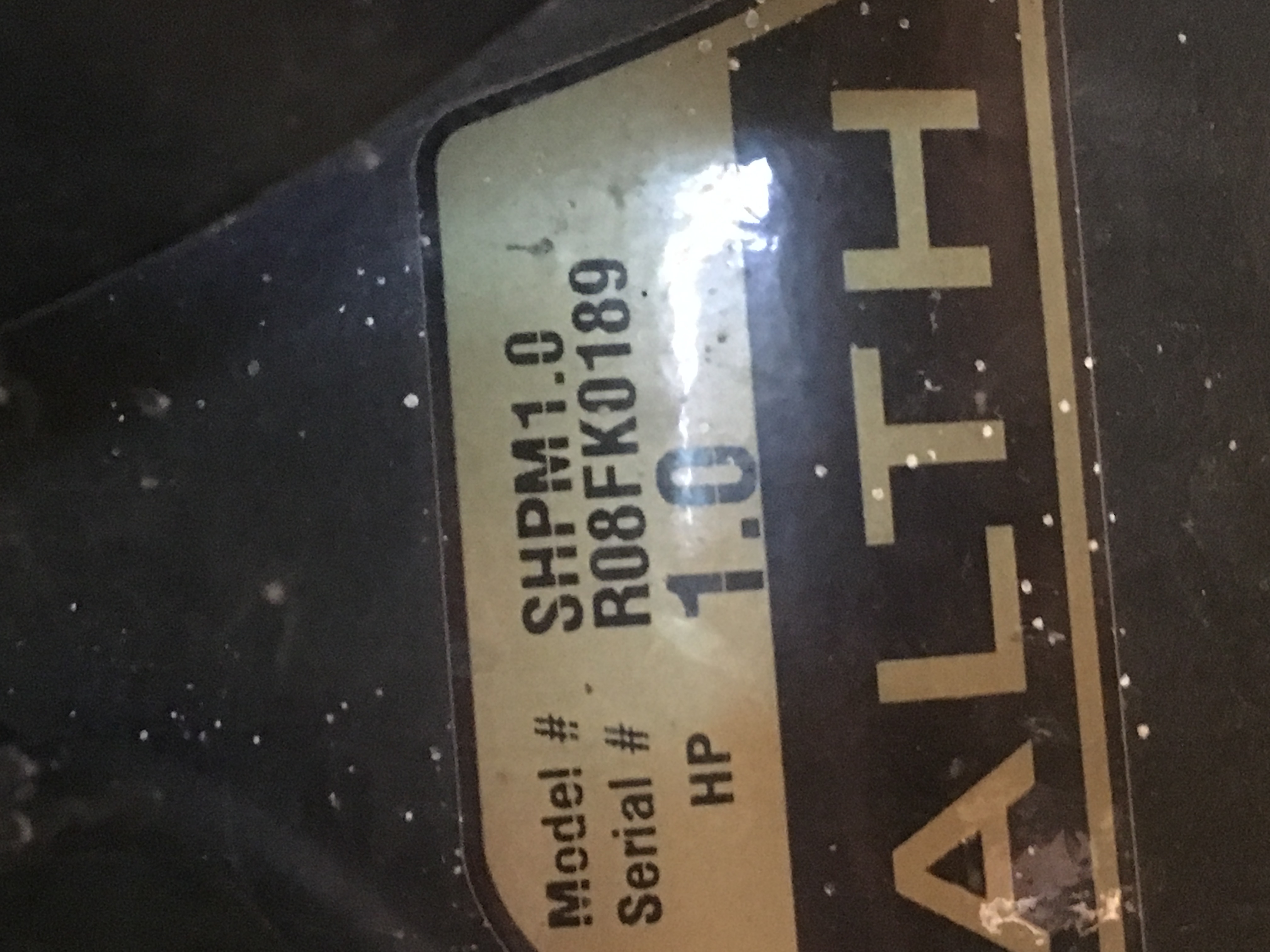

will this fit my Jandy stealth pump model# shmp 1.0? the motor I am replacing is AO smith centurion model # 7-193992-06 Thank you!
Reply
I have a Jandy Stealth SHPF 1.0 that was installed with my pool in 2007. I need a new motor and the data sheet on the motor has no CAT or model number. It is a A. O. Smith E-Plus Century Centurion part number 7-193993-05, serial number 106073 M, type CX, FR Y56Y, 1 phase, 3450 RPM, 208-230/115 volts, SF 7.8-7.4/14.8 AMPS, continuous time, DP end, KJM form, code J, input class B, and 50 degrees C ambient. is this the correct replacement motor?
Reply
Hi Tom, No the correct replacement for your 7-193993-05 motor on your Jandy SHPF 1.0 pump is the B848. We would also suggest the replacing the Shaft seal on your Jandy SHPF 1.0 pump as many times if you use your old shaft seal you will have leaking which will cause damage to the new motor. A leaking shaft seal will also void the motor's warranty.
Reply

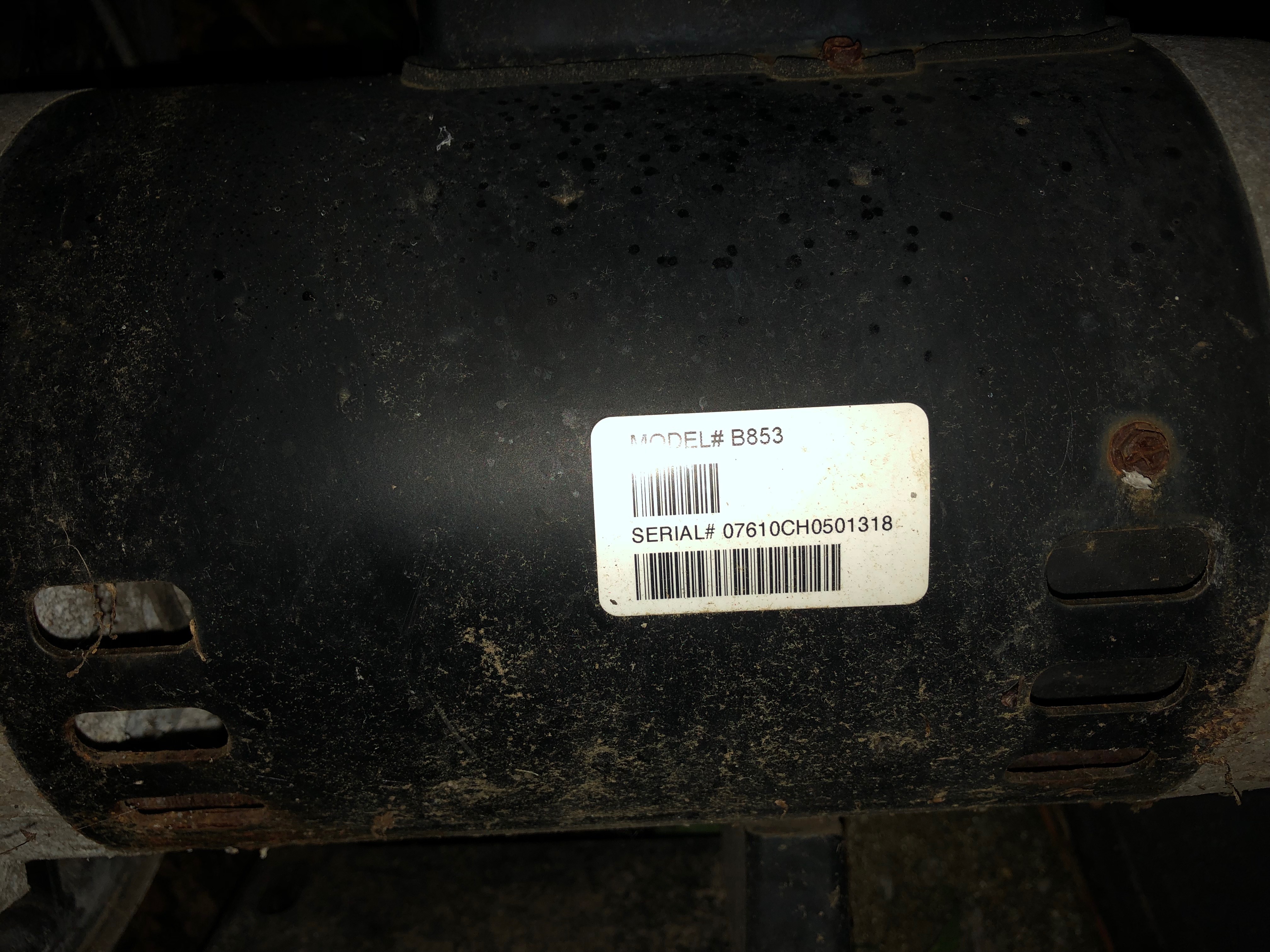

I need to replace my AO Smith Century Centurion Cat. B853 motor (Part 7-177215-04). The only info I have on the attached pump is "STA-RITE Model AR 206 L". Other than the motor itself, what parts will I need?
Reply
Hello Amy, the number you will need to replace will be the same B853. The other parts you will need will be 5056-08 Shaft seal, and 4610-37 body o-ring.
Reply
We have a AO Smith - 1 hp motor model number 7-177474-01.... type CX ...FR P56Y....serial BZ06-29. It connects to a Pentier Whisper Flo Pump 1 HP...WF24. What is the replacement motor and is there something energy efficient to replace with?
Reply
Hi Linda, The B2853/B853 will be the correct replacement motor, however the A.O. Smith 1 HP 56Y EE Motor (B863SE) would be the energy efficient single speed option.
Reply
I need to replace a pool pump motor with the following details: Franklin Electric pool motor model 1103016413, V 115/208-230, HP 1, RPM 3450, max amps 15.6/7.8, hz 60, FR 56, SF 1.25, max amb 40 deg c, time rate continuous, ENC DP, PH 1, INS B. Will this motor be a good replacement.
Reply
Hi Marco, Based on the info provided this motor can be a good replacement. To be certain we would need to know if the framer (FR) is 56Y or 56J. If you don't have that info you can provide the manufacture and model of the pump housing, we can confirm that way.
Reply
I have a Pentair O-177474-01, 1 HP, 1.21 SF, 1.24 SFHP, 56Y frame motor that's failing. I'm selling the house and don't mind spending a little more for a better product, but am looking for a recommendation or two that will retrofit without much fuss. Maybe a slightly more efficient single speed unless you have a better recommendation. Thanks in advance.
Reply
I just want to confirm that this would be a good replacement motor for my Pentair 1hp motor with part number 7-168452-04 (or 35-5339). I think my particular motor has been discontinued so I want to ensure I'm buying the appropriate replacement. Seems to be but I wanted to make sure before I place the order!
Reply
Ginger- The B853 A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) would be the correct replacement for the 7-168452-04 or 355339.
Reply
Are there any other parts that I should replace to go along with the motor. ? Such as gaskets or such?
Reply
We do also recommend the the tune up kit but we would need the model of the front pump housing that the motor is bolted to in order to cross reference that for you.
Reply
Will be replacing the B2853 motor, but will need any additional gaskets or seals to go with the Sta-Rite pump Model # P2RA5E-181L (1L996). Any recommendations?
Reply
Hi Dale, You will need the Sta-Rite Dura Glas & Max E Glas Pump Tune Up Kit. However there is a Pre-1998 (GOKIT6) and a 1998-Current (GOKIT54). The Pre-1998 has the Seal Insert and the 1998-Current does not, so you will have to inspect your seal plate to find out which kit you need.
Reply

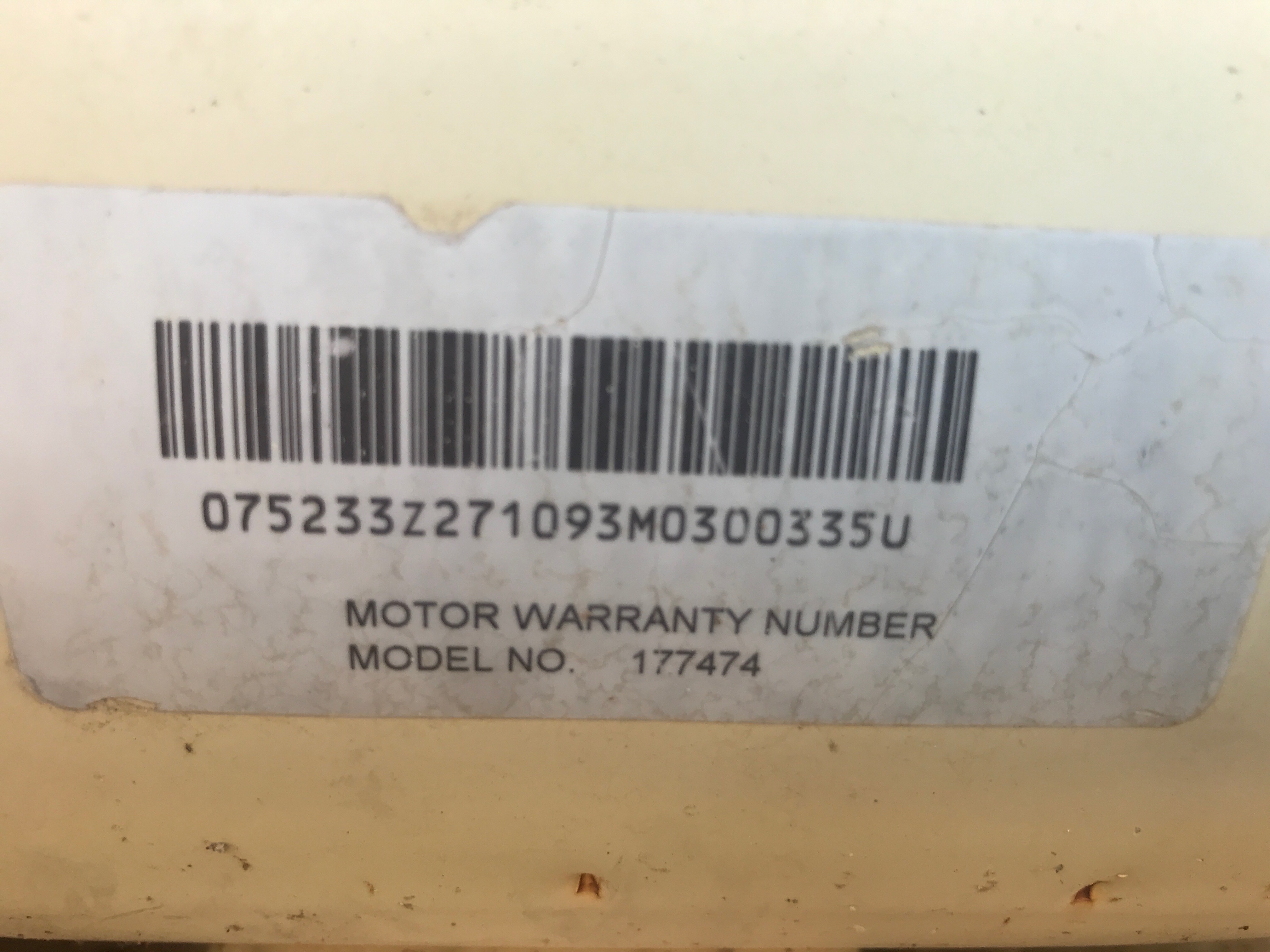

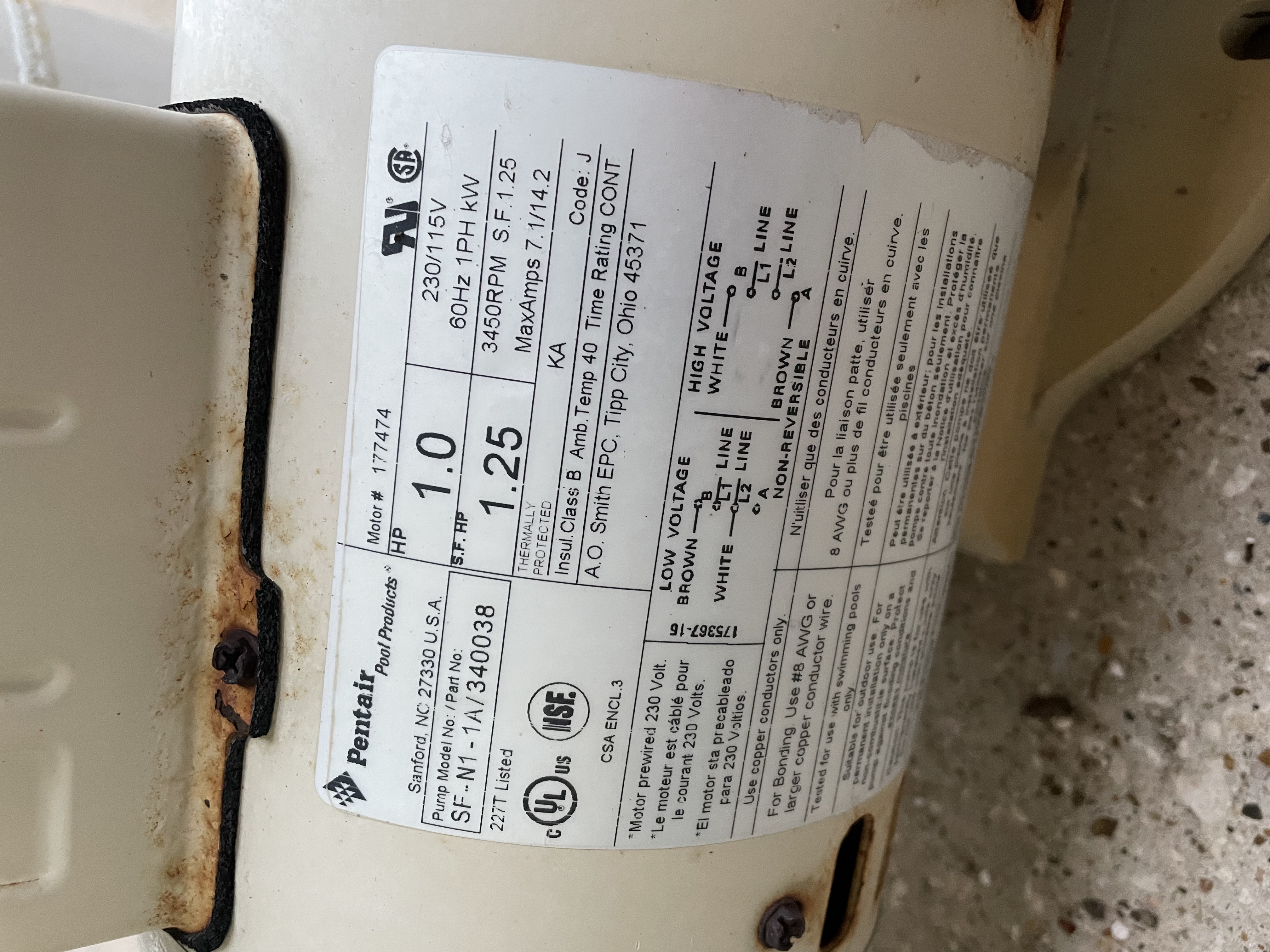

I have a Pentair Model SF-N1-1A. 1HP Motor#177474. I'm looking for a replacement motor and any seals that are needed.
Reply
Hi, This motor will be the correct replacement motor for the Pentair SF-N1-1A pump. I would also recommend that the Shaft Seal, Diffuser Gasket, and the Housing O-ring. All parts can be found via the Pentair Superflo Parts.
Reply
I have a 8-177449-03 that's completely fried. Looks like B661 is the direct replacement but am wondering if this B2853 can be a more economical replacement at a lower service factor/amperage rating. Thanks.
Reply
Hi Daryl, The B853 motor can be used in place of the B661 motor. It's cheaper that the B661, however, the B661 motors is a better-designed motor and uses fewer amps than the B853 motor.
Reply
Hello, I am purchasing this motor to replace my STA-Rite motor #168452. Is this the correct replacement? Also, do I need to purchase the tune up kit, or does the motor come with the gaskets?
Reply
Laura- the B853 A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) is just the motor. To get the right seals and o-rings we would need to know the model of the pump.
Reply

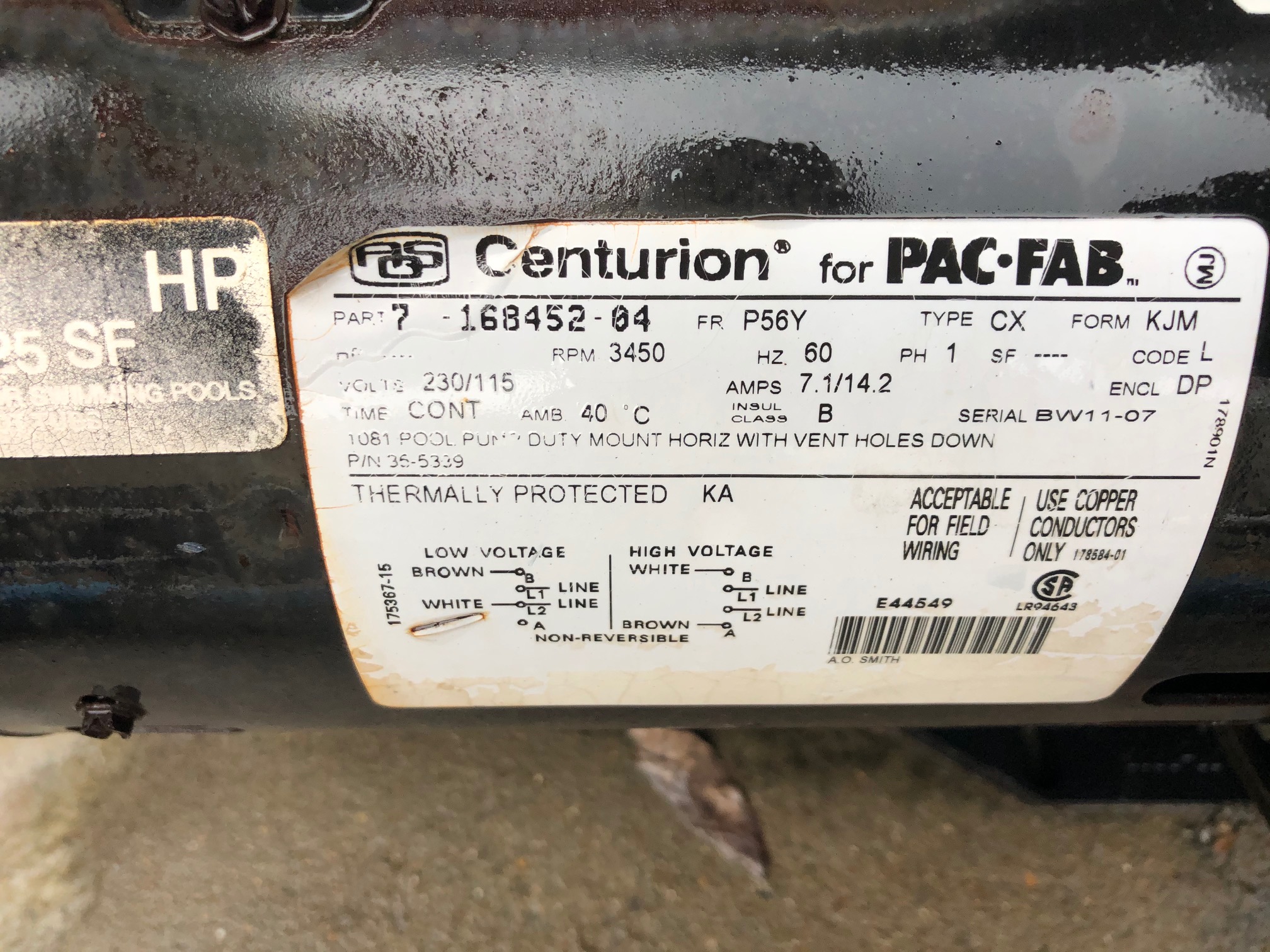

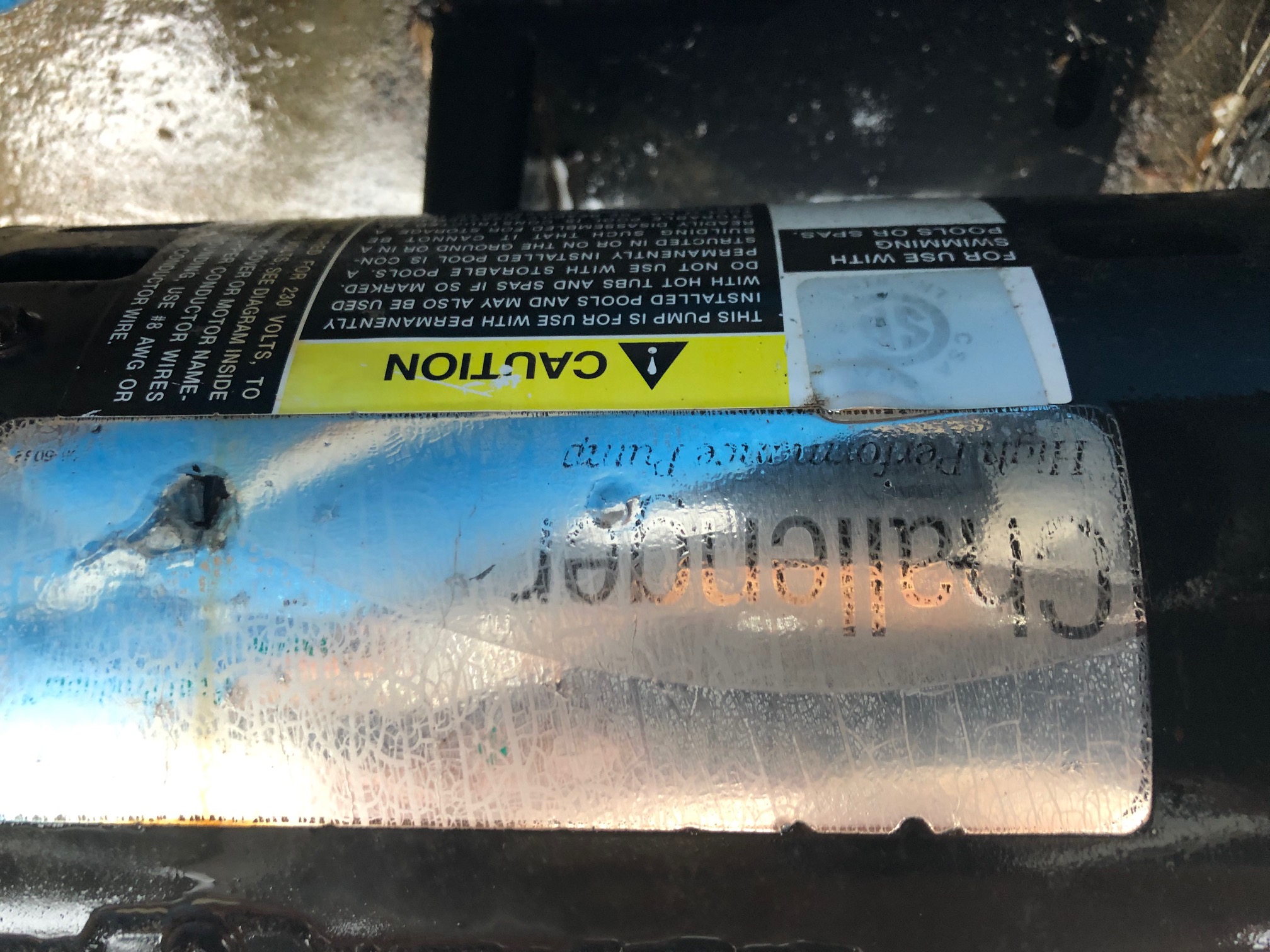

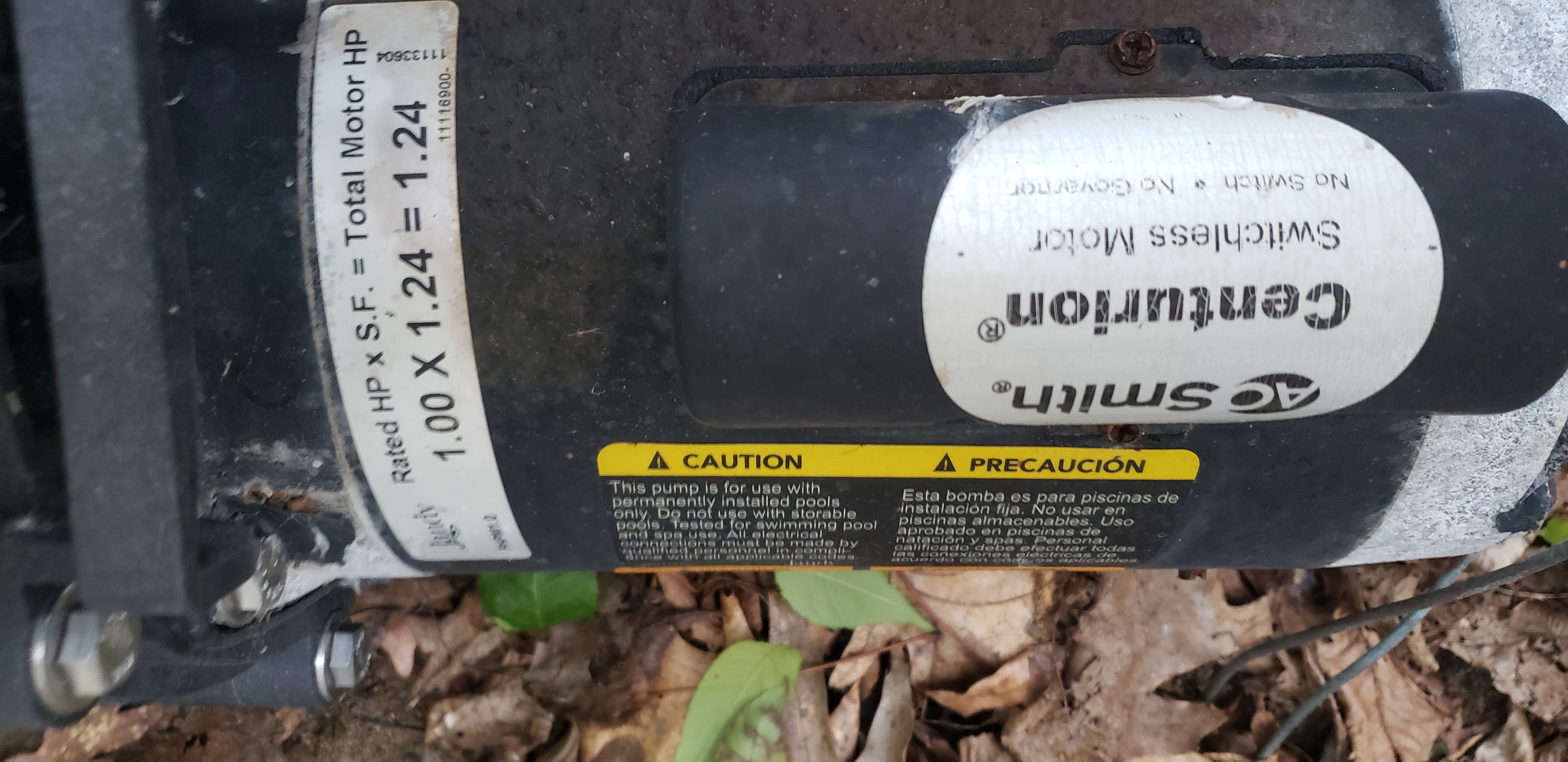

I have a Centurion Switchless motor, Challenger High Flow Pump. Pac-Fab Majestic 1.25 SF, 1 HP, P56Y, code L, Type CX, Form KJM, amps SF 7.1/14.2
Will this be a suitable replacement motor?
Reply
Going purely off those ratings, yes this is the correct motor replacement for your current Pentair Challenger motor.
Reply
I have a B2853 motor mated to a WhisperFlo pump. The pump label is so worn that I can't read a model number. Is it possible for you to recommend the right seal kit to do a rebuild, or do you need more info? Thanks!
Reply
Hi Adrian, We would be happy to.. you would would require the GOKIT32 Pentair Whisperflo Seal Kit.
Reply

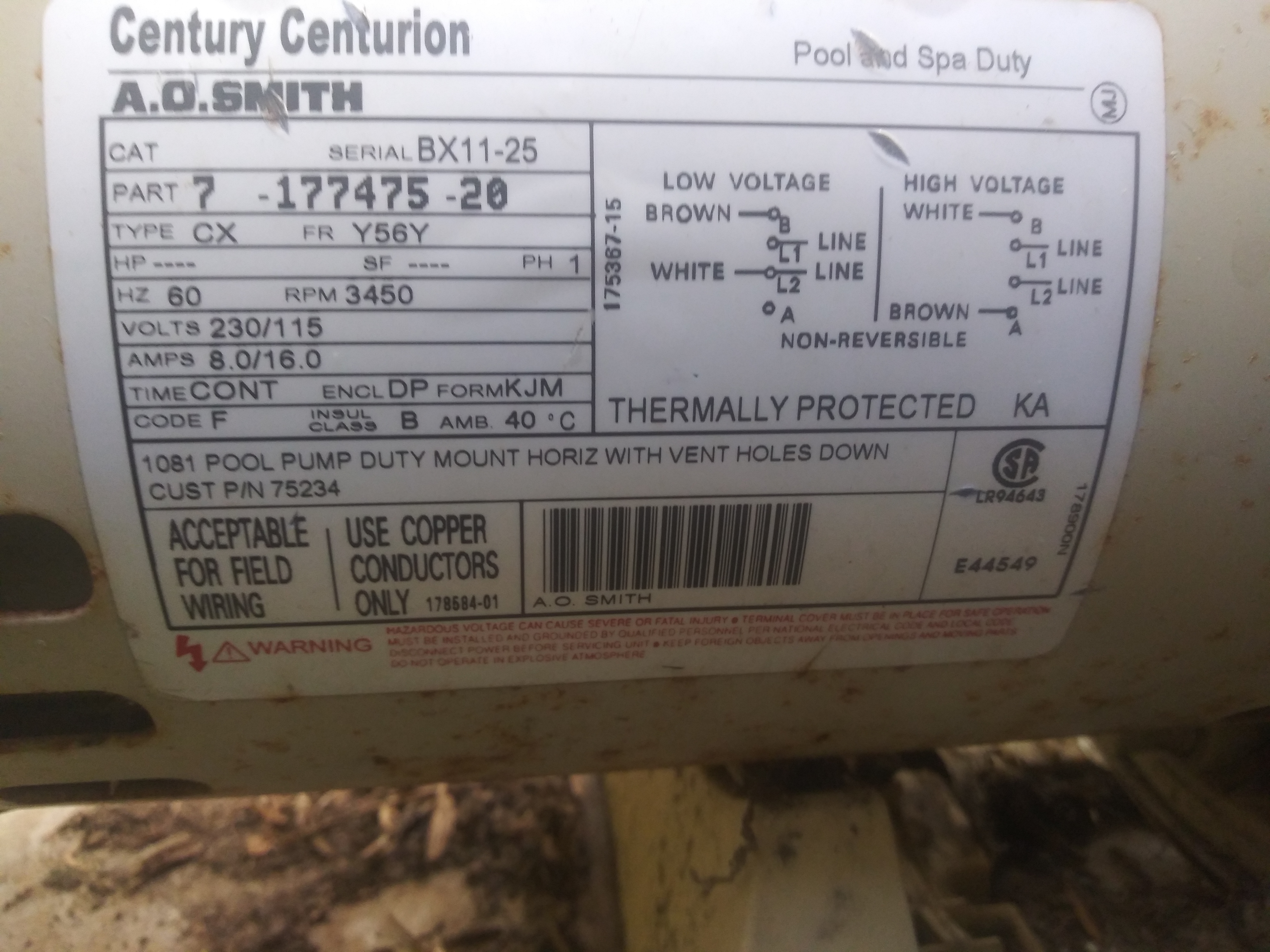

I have a Pentair part# 7-177475-20 will this motor replace it
Reply
If you have the 7-177475-20 then you would require the B2848 1 HP Full Rate Replacement Motor
Reply
I have an in ground pool, with AO Smith 0193993-05 , 680856-001, serial 25307 CH. It connects to a Jandy Stealth SHPF 1.0 pump.
Will your Magnetek AO Smith 1HP 56 Y frame part B853 replace my worn out motor? Do I need fresh seals or anything if it will fit and replace? Thank you. DBS
Reply
David, The SHPF10 is a full rated pump. You will need the B848 motor: http://www.inyopools.com/Products/00200017039447.htm Here is a breakdown of the pump: http://www.inyopools.com/parts_jandy_stealth_2008_current_shpf_shpm.aspx
Reply
Need a replacement motor and kit for Pinnacle Pump PART # 7177474-01.. FRAME = 56Y
THANX
Reply
We just purchased this motor. Our pump is Sta-rite cristal-flo. What tune up kit would we need? Thank you!
Reply
Hi Stacy, Cristal-flo would be the filter the pump would something like Dura-Glas, Max-E-Glas, Whisperflo, etc.. this should be on the pump near your strainer basket. Please reply back with this information so we can suggest the proper tune up kit.
Reply
Could a pump be named Jandy? I'm having trouble finding the name. Jandy is on the valve that turns. Need a tune up kit to go with this motor. Thank you!
Reply
Hi Stacey, Jandy is a manufacturer of pumps, most Jandy pump do not have Tune Up kits you will have to purchase the seals separately. We will need to know which Jandy pump you have in order to get you the correct seals.
Reply
I need a tune up kit to go with this new motor we purchased. Unfortunately the name is not on our pump but I found this number on lid C3-139P.
Reply
Hi Stacy, the part # of C3-139P did help to determine that you have a Sta-Rite Dura Glas or Max E Glas if your pump is from before 1998 then you need the Starite DuraGlas & Max E Glass Pre 1998 Tune Up Kit and if your pump is from 1998 to current then you need the Starite DuraGlas & Max E Glass 1998 to Current Tune Up Kit
Reply

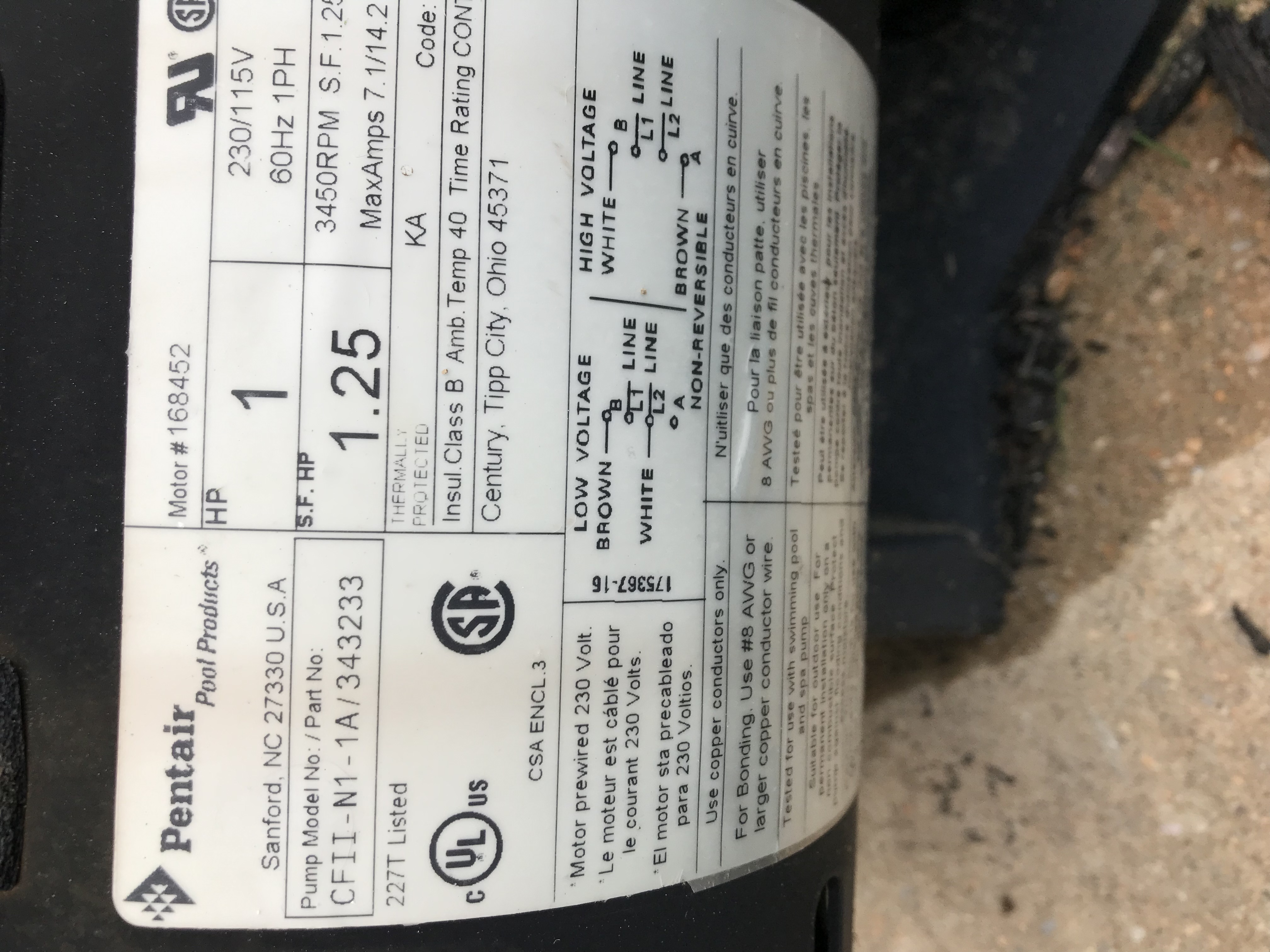

I have a Pentair Challenger, Motor # 168452. the bearings need replaced. Could you tell me which ones I need? Thank you.
Reply
Hi Renee, You would require two of the 6203 Bearings for your Pentair Challenger, Motor # 168452.
Reply
I purchased the same pool pump as I am going to again, the AO Smith just above. The one I got from you guys last year has locked up. Is there a warranty on the motor that might help me and how do I go about returning it? porterbobby11@gmail.com
Bobby Porter, thanks for your help
Thanks, Bobby Porter
Reply
Hi Bobby, This motor comes with a 1 year warranty. Please contact our office at 877.372.6038 for assistance.
Reply

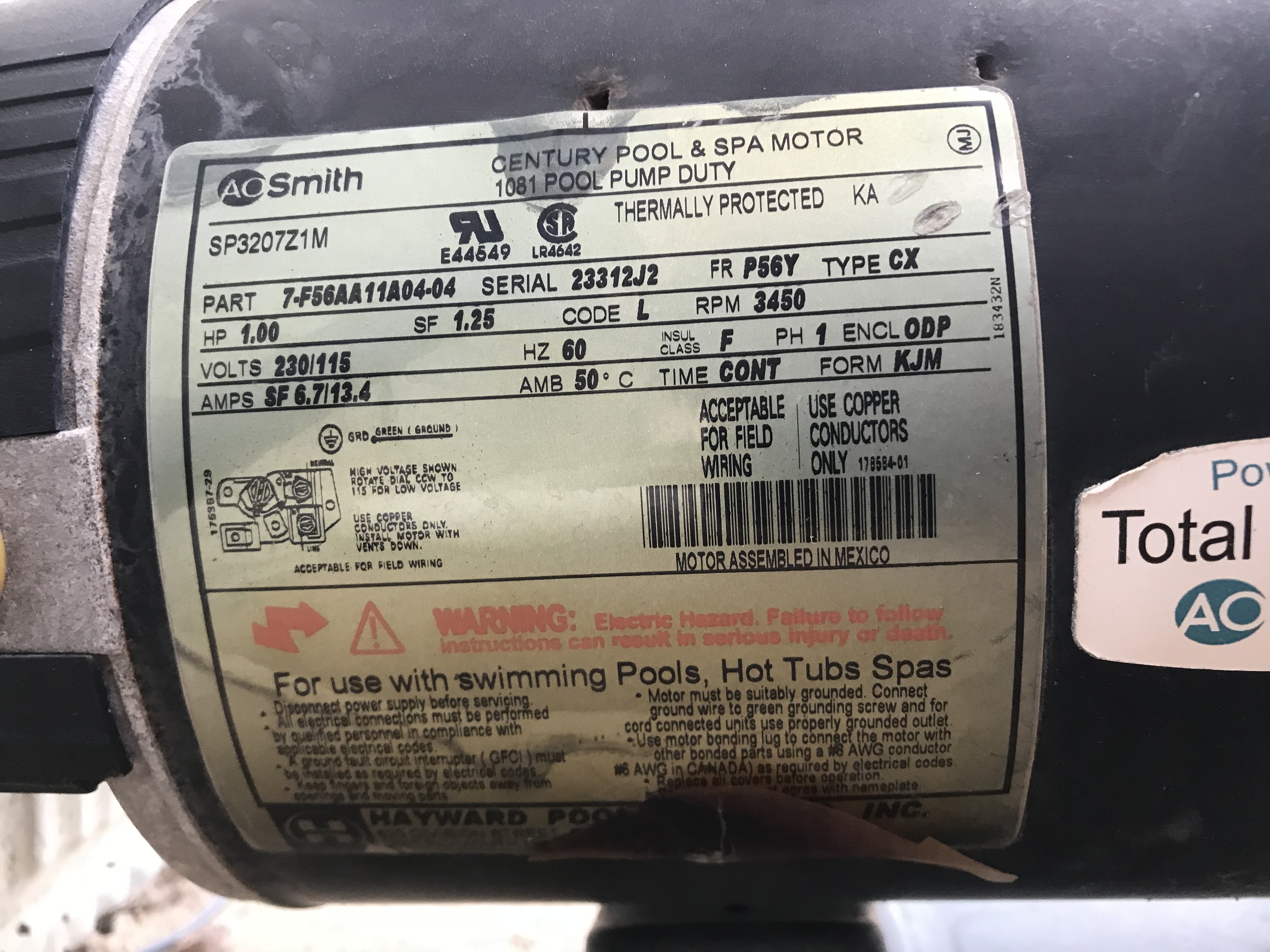

Currently have an A.O. Smith Century Pool Motor (SP3207Z1M) 1 HP. Label states the part # as 7-F56AA11A04-04, FR:P56Y, Type: CX, SF: 1.25, Code: L, the RPM is 3450, Volts: 230/115, HZ: 60, PH: 1, Class F, Enc: ODP, Amps: 6.7/13.4, AMB: 50 C, Time: Cont, Form: KJM. I need replacement motor info for this motor which is part of my Hayward Tristar Pool Pump and the bearings are starting to go. Can you please advise me what the replacement motor would be? Thank you. Glenn
Reply
Hi Glenn, This B2853 motor would be the correct replacement motor for the Hayward TriStar Pump with the details you listed.
Reply
Hi, I need a replacement motor and shaft seal for a Pentair Pinnacle pump. The label on motor has a part # O-177474-01. It is a 1 hp, F56Y frame, rpm 3450. Ph1, amps 7.1/14.2. Thanks for any help.
Reply
Hi Beth, This B2853 motor would be the correct motor for you and you would also require this Pinnacle Shaft Seal.
Reply
have a waterway svl56 pump with an AO Smith 7-177215-04 motor and my motor just died. Is the B2853 the motor I need? And do you carry the seal as well?
Reply
Yes the B2853 is the correct replacement motor and you would require this Waterway SVL56 Shaft Seal.
Reply

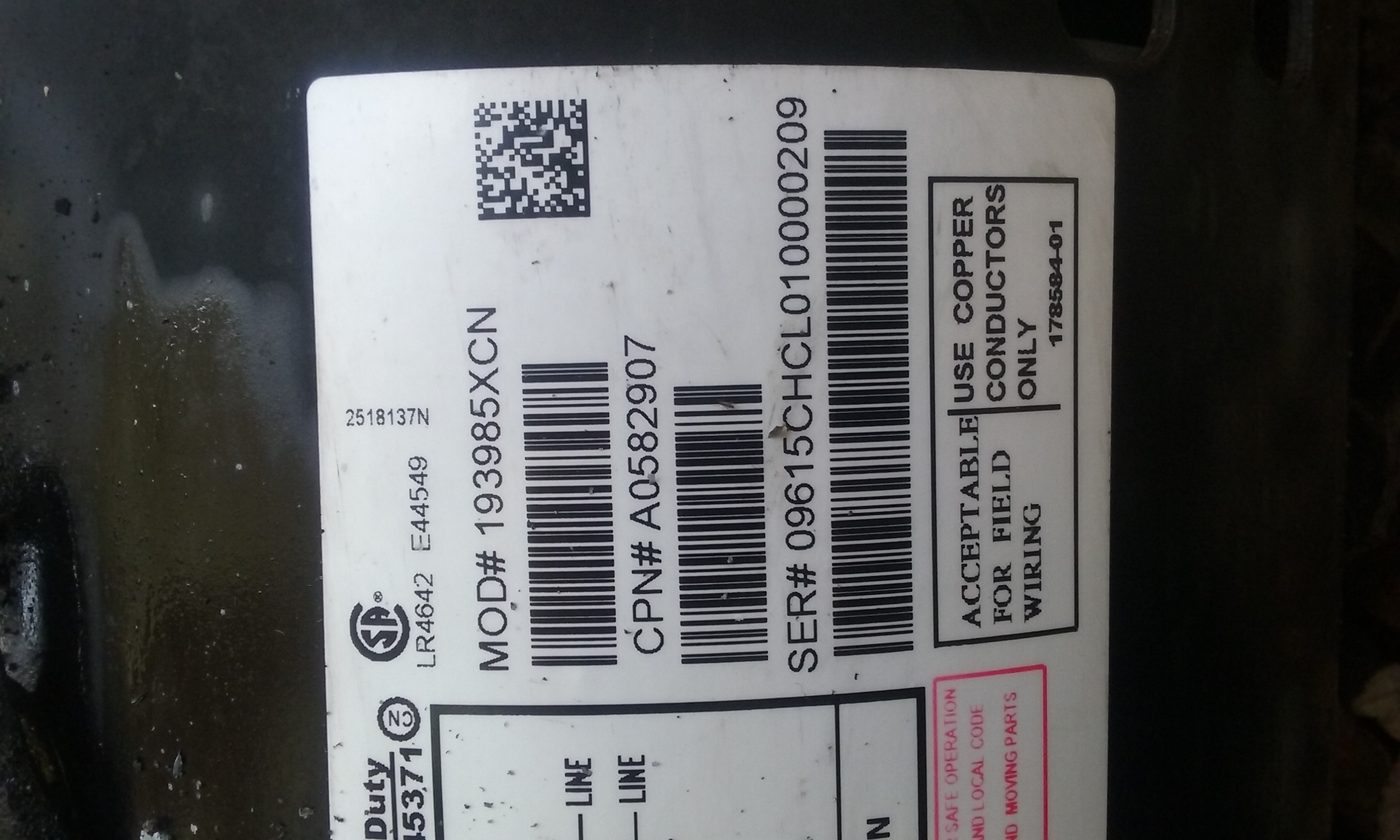

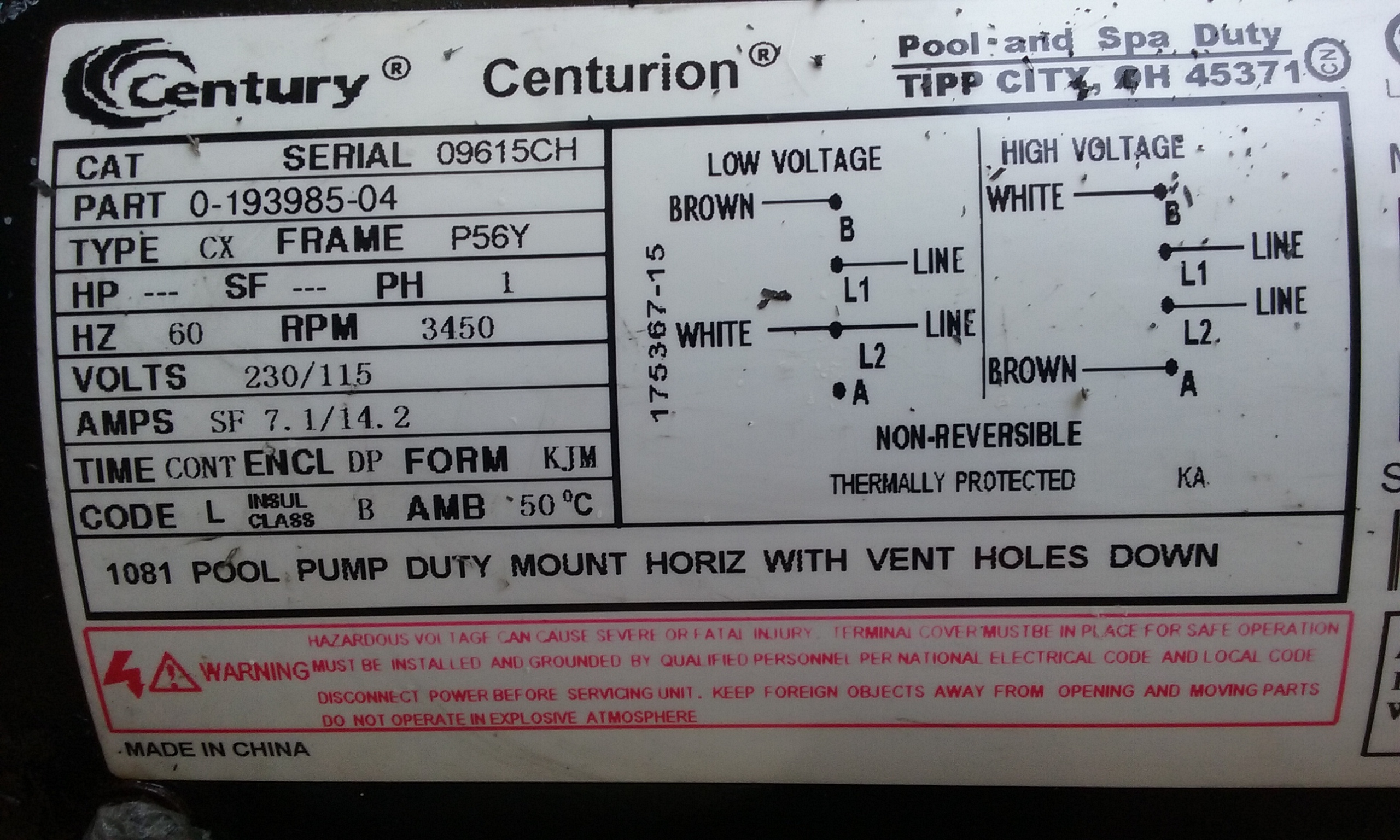

need replacement pump motor for ao smith 0-193985-04 and seals for fhpm1.0 pump
Reply
Hi Clif, This motor will replace the 0-193985-04 motor, you can find the replacement seal via the Jandy Flo Pro Pump FHPM Parts page.
Reply
Hello! I have a WhisperFlo WF-24 pump that uses a AO Smith 1HP/1.25 SF/1.25 SFHP 7.1/14.2 Amp FR P56Y motor (Part number 7-177474-01) that has just failed. Could you please confirm that the B2853 is indeed the correct motor I need to replace the one I have? Also could you please let me know which other parts I will need? Thank you so very much!
Reply
Steve, Yes, this would be the correct motor based on your specs. You will also need the Whisperflo tune up kit: http://www.inyopools.com/Products7/00500005003532.htm?Keywords=gokit32
Reply
I need to replace a Jandy pool pump Century Centurion by AOSmith
Part no 7-193992-06 TYPE CX. FR R56Y RPM 3450 Volts 208-230/115
Amps SF 6.0-5.6/11.2
What type of motor that you sell will be a replacement for this one? Thanks
Reply

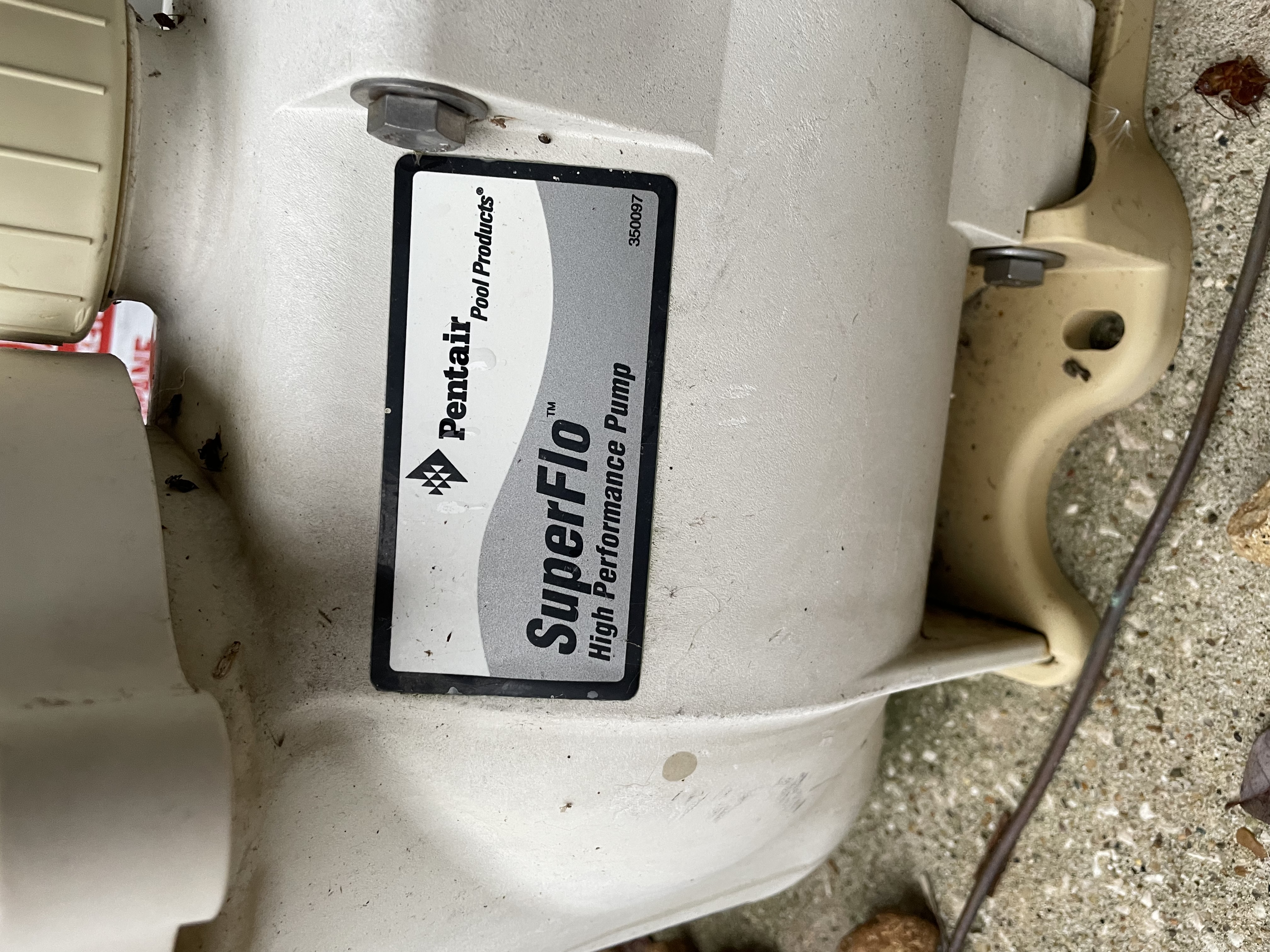

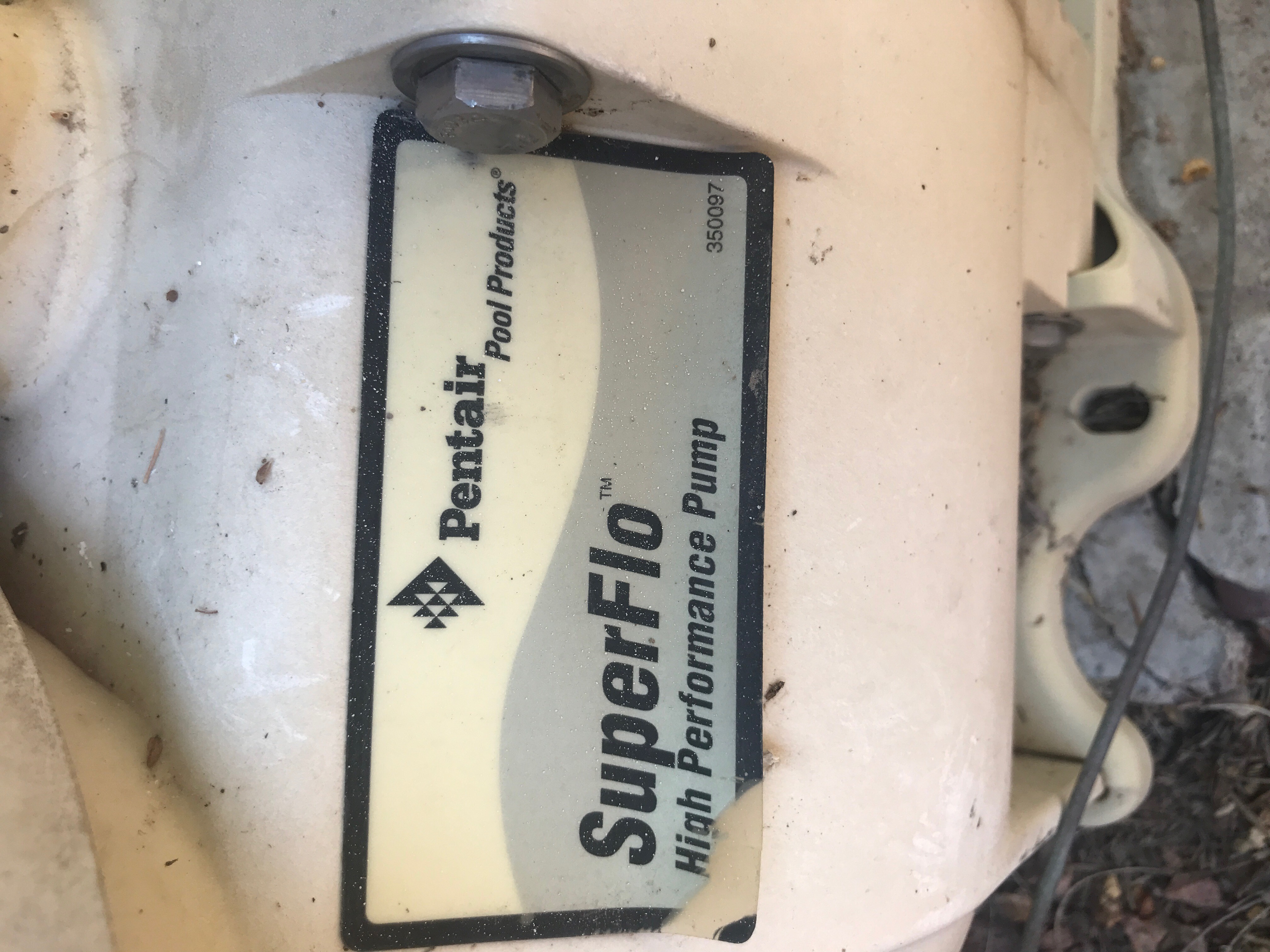

I have a Pentair SuperFlo Pump. The motor quit working and needs to be replaced. The pump # SF-N1-1A/340038. The motor # is 196238. HP 1.0 S.F 1.25 208-230/115V 3450RPM 6.2-6.6/13.2 Amps. What replacement and seals do I need. Thanks!!
Reply
Hi Jim, This B853 motor is the correct replacement motor for the Pentair Superflo SF-N1-1A/340038 pump. You will also need the replace the Shaft Seal, Diffuser Gasket, Housing O-ring and or Pump Cover O-ring which all can be found via the Pentair Superflo Parts page.
Reply
i have a Century Centurion AO Smith pump.... part number O-164303-23 serial OFO6 Frame M56J. all other specification look similar. will this pump be a suitable replacement pump ? thank!
Reply
I have a 3/4 hp centurion 7-168451-24 motor that the bearings are going out on. will this motor replace that one? marking of 1.27SF what ever that is and the pump unit is a challanger cfii-n1-3/4a 108b02/34-3232
Reply
Hi Dave, The Century B852 is the correct replacement motor. You will also need to replace the Diffuser Gasket (355030), Shaft Seal (354545S), Housing Gasket (355329) and Lid O-ring (350013).
Reply

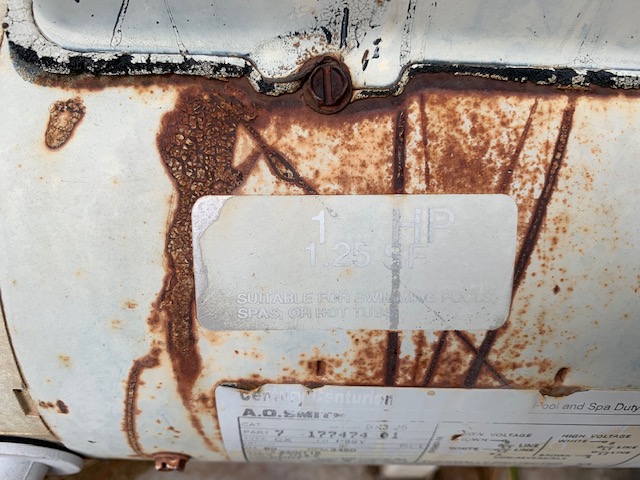

I have a Pentair 177474-01 motor. It is running but now it is loud and hot to the touch. I honestly don't know if it was always hot because I never had any need to touch it. Can I just buy this AO Smith 1 HP 56Y and connect it ? Do I need any additional parts or seals?
Thx,
Nelson
Reply
Hi Nelson, Yes, you can replace the motor you have with the Century B853 motor and connect it to your existing pump. We recommend replacing the pump shaft seal and o-ring but we will need to know the model of the pump which is what the motor is connected to.
Reply
One more question...are instructions included ? There is a breaker at the pump to shut off the electric. I thought of calling a pool repair company but decided to look for a motor first.
Nelson
Reply
Hi Nelson, When you purchase the motor only wiring instructions are included. You can view our How To: Replace a Pump Motor guide for run down of how it's done.
Reply
I need a replacement motor for a A.O. Smith 7-177452-03
Thank you
Reply
The correct replacement motor for model #7-177452-03 is the A.O. Smith 2 HP SQ FL - B2843.
Reply
I have Pinnacle High Performance Pump by Pentair. The motor part number is 7-177474-01, Frame P56Y, 230/115 Volts, 7.1/14.2 Amps, single speed motor. It is dead. What part number do I need to get as replacement for the motor and do I need to replace a mechanical seal when I replace the motor.
Reply
I am trying to replace this pump it is an AO SMITH cat. B128 serial Bx8-05
P/N 7-164303-23
HP 1 FRAME M56 J 1081 POOL PUMP horz.vent holes down
how do I remove the pump from the motor? it seems very hart to do. please advise .
Reply
Here is a great link on How To Replace the Motor on Your Pool Pump available in our How To Guide section on our website.
Reply
I have a Whisperflo WF-24 with an A.O.Smith 7-177474-01 single speed motor. The pump itself still works fine, so I don't want to replace the entire unit. I would just like to replace the motor, only with a 2-speed motor instead of the original single speed. Is this possible? Is there a tutorial and parts list for how to do this? Thank you!
Reply
A good dual speed replacement motor is part number B981. It's a .75 HP motor but because of the service factor brings the total horsepower to 1.25HP which is the same total horsepower of your current motor. The seal kit that would go along with that is GOKIT32 (chlorine), GOKIT32SALT (saltwater).
Reply
are this motor 2853 good replacement for 853 and are they new or rebillt
Reply
Hello, The B2853 and the B853 are the same replacement motor. The motor is new and not refurbished or rebuilt.
Reply
Is this a comparable replacement motor for Century centurion part # 8-177070-40? Y56 frame and 1hp. I also need the replacement shaft seal and impellar
Reply
Unfortunately, that model number did not return any results for motors. If you have any additional information on the pump you have, that may be more beneficial in identifying the correct replacement pump.
Reply
I need to replace an A. O Smith Century Centurion model 7-177474-01. What do you recommend?
Reply
I would recommend the 3/4 HP Standard Motor - Full Rate (B847, B2847) that is a direct replacement for model #7-177474-01.
Reply
Replacing an A.O. Smith Magnetek Centurion
CAT - B853; Part - 7-177215-04; HP - 1.0; Type - CX; Volts - 230/115; Amps - SF 7.1/14.2; Hz - 60; RPM - 3450; AMB - 50 C°; SF - 1.25; Time - CONT; Code - J; ENCL - DP; FR - P56Y; Form - KJM; Insul Class - B; PH - 1; Serial - BW1-08; 1081 Pool Pump Duty Mount Horizontal with vent holes down.
Which replacement motor do I require for a simple swap out? Please and thank you!
Reply
Hi Curtis, The B853 is the exact replacement to your motor based on the info provided.
Reply
I need to replace A.O. Smith B853 1 HP frame P56Y, with A.O. Smith B853 1 HP, frame P56Y, It looks to be an exact match, Is there a Seal Kit offered for replacing motor? and If so, do you have part #'s?
Thank you
Reply
Hello Jordan, That B853 is an exact match to the motor, for the seals needed we would need the model of the pump which is located on the side of you basket. (example sp2607x10) for a Hayward Super Pump
Reply
Hi, Is this a good replacement for a Jandy Zodiac R0479311 - 1HP Single-Speed Motor? I ask because the amps are different this is SF 6.6/13.2 where the Zodiac is SF 7.0/14.2.
Reply
The B853 would be a good replacement motor for your Jandy pump.
Reply
I need to replace a century centurion serial BW1-11.
What do you recommend ?
Reply
Hello- Unfortunately we are unable to look up motors by the serial numbers. Please provide the model and HP information and we will be more than happy to assist you.
Reply
I need to replace the Pentair pump motor on my Super Flo pump. The motor is labeled SF-N1-1A / 340038. There is also a motor # listed as 177474. The rating is 1HP with a 1.25 SF pre-wired for 230V. Additional info is the current rating is 7.1/14.2 amps, 3450RPM shaft speed and its thermally protected KA code J. On your website it looks like you can get me a OEM motor or substitute an AO Smith motor. How much would each of these options cost and exactly which part number would each be?
Reply
I have a Centurion for Pac Fab pump and motor. I cannot read the horsepower rating. The numbers on the motor appear to be 7-168452-64 with a R56Y frame. The pump housing is a Pentair 35-6002 (recently bought from INYO). Is the correct motor the B853?
Reply
Yes that is the correct replacement motor.
Reply
Can I swap out a Y48 single speed pool motor for a Y56 vaiable speed pool motor, without having to replace anything else on my pool pump?
Reply
Yes, you can do that, it just needs to have the same total horsepower as your current motor. If it is not, you will have to replace the impeller to match the motor.
Reply
I have a A.O. Smith part # 0-193993-05 1.0 hp 56Y 208-230/115 volts 60 Hz is this an exact replacement?
Reply
Good morning Jerry, This is not an exact replacement but it will work in replacing your current motor. Just remember when buying a replacement motor to purchase a tune-up kit that has the o-rings and the shaft seal.
Reply
Can I get just the base mount for this pool pump? I have the motor but I need to mount the motor
Reply
The motor mounting plate is a part to the PUMP. You would need to identify the pump make and model to find the correct replacement part.
Reply
Trying to replace a motor. There is a sticker on top that says it is 1.5 HP and a 1.1 Service factor. The actual part number looks like just a 1.0 HP motor, AO Smith 0-193993-05. Is there other information needed?
Reply
Good morning, can you recommend a pump seal kit when changing a pump motor for a Jandy MHPM 1.0 pump. Believe the correct replacement motor now is a AO smith B853. Thank you for your time
Reply
Good morning Bill, You are looking for a Shaft Seal (R0479400) OEM
Reply
Does a gasket come with this motor for the mating surface between the motor and pump?
If not, what does it cost for a new one?
Reply
Good afternoon Ken, There is no gasket there is a shaft seal. What pump is this motor going on and I can recommend the correct seals or seal kit.
Reply
WILL THIS REPLACE M56C FRAME; 208-230/115 volts; 6.4-5.9/11.8 amps
Reply
Hi, Jon. The 56Y frame motors will not replace the 56C. The 56C motors have a Keyed shaft, not a threaded shaft. If you can provide the horsepower (HP) and the service factor (SF) we can locate the correct motor for you.
Reply
i have a Century Centurion pump.... part number 10-165119-04 serial BT3-05 Frame M56C. all other specification look similar. will this pump be a suitable replacement pump ? thank!
Reply
Good afternoon, I need to replace a Sta-Rite pump model number PHK2RA6E-102L, Motor number 196249 and will need the seal kit. Couldn't match the numbers on your site. Thanks for your time. Bill
Reply
Please advise replacement motor for (and here are all numbers on my current 1HP AOSmith pool motor:
U27-880
K48L2PA105
1CW
CET38ABN
LR 47013
518R
and the cost
Thanks
Bill
Reply
Looking for Centurion 7-168452-04, P56 Y, TYPE CY, FORM KLM , 3/4 HP. RPM 3450 , for sheer descent
also looking for Magnetek 644549 2 speed l l/2 hp pond pump motor
Reply
I'm replacing a motor on a Pentair Challenger pump. The original motor was a 1 HP, SF 1.25 with a square flange (part no. 346204). Is this motor the corret replacement for the original motor?
Reply
Hi, I'm trying to replace a Centurion pump with part number 0-193984-25. It's a P56Y and appears to match the specs with the exception of amperage (SF 5.4/10/8). Will this pump work for me? Thanks.
Reply
I need to replace a Centurion Switchless Motor = Part # 7-168452-04, TYPE: CX FORM: KJM. What would you recommend?
Reply
I need to replace an A.O. Smith motor number 168452. It also says "motor package no" 355339S. This motor is coupled with a Pentair Whisperflo p/n 011772. Will this motor work as a replacement motor? Was also looking for a gasket packet for this install. Thanks.
Reply
Hi. To get you pump running again, you will need this B853 motor along with the Pentair/Purex Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
Will this fit my housing? This is my current pump:
Pentair CHII-N1-1A Challenger 1-13-D00 34-6204
Reply
Hello Richard, according to the parts diagram under Pentair / Pac Fab Challenger that matches with the 346204, the b853 motor does is the correct motor for your housing and I would highly recommend a Tune Up Kit Pentair Challenger Pump - GOKIT5 to replace your orings, gasket and pump seal.
Reply
Will this replace an Emerson 1081series? It has a 2.3" shaft length
Reply
Hi, Richard. Yes, the Century 1081 motors can be used to replace the Emerson 1081 motors. You can use the Emerson CAT or MODEL number to locate a cross reference match to the Century replacement.
Reply
I am looking to replace an A.O. Switchless 1hp motor that was connected to a Pentair Ultra Flow pump. Will this Motor work?
Reply
Hi, This motor can work if the specs, part or model number is a match to this motor. Once you locate the correct replacement motor, I would recommend getting The Ultra Flow Pump Tune Up Kit - GOKIT20.
Reply
I have a posiflow II Pump with a o smith pump. The model number is K48K2PA105C could you please tell me the replacement number for the motor.
Reply
Hello Peter- Posiflow II would be your filter not your pump, the motor replacement that you will need for your K48K2PA105C is A.O. Smith 3/4 HP E.E. Square Flange Full Rate Motor (QC1072).
Reply
Hello! I need to replace pump motor for pool's waterfall. The existing motor is A.O. Smith Serial BX3-11; Part 7 -177474-01, Type CX, FR P56Y, ph1, hz60, rpm3450, 230/115 volts, Amps 7.1/14.2, Time: cont, encl DP, form KJM, code J, insul class B, amb 40 c. Unfortunately, there are not numbers for HP and SF on the plate. I believe it might 1.5HP but not 100% sure. Can you help out regarding pump replacement and also recommend the proper seal kit please? Thank you.
Reply
The direct motor replacement is part number B847, to recommend the correct seal kit I will need your pump model. If you do not know, attach a picture of your complete pump and I can identify it for you.
Reply
I need to replace Part# 7-187400-20 Century Centurion AO Smith B668 and 0-F56AA37A01-04 B2853 Century Centurion. what other parts do I need to replace when I replace these pumps?
Reply
I am replacing a Pentair, part number 7-177474-81, 1 hp motor. Is this the correct replacement for my current motor?
Reply
Part number B847 will be the correct replacement motor. If you have your pump model I can help you with the correct shaft seal you need as well.
Reply
I need to replace my pool motor. My current pool motor is century centurion a.o. smith serial number 344073M, part 7-177215-04, amps 7.1/14.2, volts 230/115, type cx, frame P56Y, hp 1.0. Would this pump you have (B2853) work for me based upon the information I have provided? Thank you.
Reply
Yes, the B853 is the correct replacement motor according to the part number you provided.
Reply
i currently have the (B625) serial BY05-05 which is 3/4 hp can i use this motor as replacement?
Reply
Those motors have two different frames, one is square and one is round so no it will not serve as a replacement. I need to know your pump model to be able to determine if you would be able to go up to a 1HP without upgrading your impeller as well.
Reply
Hello, I have a pentair challenger pool pump in which the motor needs to be replaced.What would be the correct motor for the 1HP model number 345205. thanks for your help.
Reply
Hi Billy, you would require the B841 1 HP Energy Efficient Replacement Motor I would also suggest a GoKit5 Challenger Tune Up Kit when replacing your motor.
Reply
I have a waterfall pump: Century Centurion, p/n 10-193267-01, type: CX, FR: p56Y, form: KJM, rpm: 3450, 2.0 hp uprate. Is this an equivalent pump? The part numbers match, but the hp does not.
Reply
Does that motor happen to go to a Pentair Challenger?
Reply
I need to replace a centurion 7-168452-04 S/N BZ0F01, is this the correct replacement part?
Reply
Hi Janet, Yes the B853 motor would be the correct replacement motor for a 7-168452-04 Centurion Motor.
Reply
Looking for a replacement motor for a STA-RITE Pump model PHK2RA6E-102L is this the motor
Reply
I have a Pentair O-177474-01, Fr 56Y Type CX Form KJM 3450 RPM. 1 HP 1.25 SF. It is wired for 230V. It came off a Pentair Pinnacle P/N 342854. Can you advise the correct replacement motor and install kit (seals, orings, etc), Thanks.
Reply
Hi,
I have a Pentair Challenger #343233 (10 years old). I believe I need a new motor. Is this the best option (ratings/efficiency/etc)? Would you also recommend that I replace the impeller and diffuser while I'm at it? How about the correct tune-up (go) kit?
Thanks!
Chris
Reply
Hi, Chris. The Century B661 EE full rate motor is the best replacement motor option. Only if the impeller - 355067, diffuser - 355029 are in bad I would recommend replacing it. The Challenger - 343233 pump does not have a tune up kit available, the gaskets will have to be purchased separately. The parts all can be found on the Pentair / Pac Fab Challenger parts page.
Reply
Does this products have a warranty with it?
Reply
Yes these have a manufacturer 1 year warranty. Please see the warranty card.
Reply
i ordered the b2853 pump motor to replace the one i have now do i need anything else when replacing it.
Reply
Hi, David. I would recommend replacing the pump seal and o-rings. In order to locate the correct seal, we will need the model of the pump housing.
Reply
Hi, I'm looking for a replacement motor for a Jandy Plus HP model PHPM1.0 pump. The current motor is an A.O. Smith Century Centurion, with part # 7-193985-04, and listed amps of SF 7.1-14.2. Not sure if this motor is an equivalent replacement for what I have.
Reply
Yes, this an equivalent motor to replace what you have.
Reply
What is the equivalent for a pentair pump motor model # 196251.
Thanks.
Reply
Hi Nafisa, I'm showing you would need the USQ1202 2 HP Replacement Motor for a 196251 motor. Could you email back your HP, True HP, SF, FR, Amps and Volts? This will ensure we get you the proper replacement motor.
Reply
Hi, I have an AO Smith Century Centurion CAT B853, serial 105083M, part 7-177215-04, type CX, FR P56Y, HP 1.0 SF 1.25 PH 1, HZ 60, RPM 3450, volts 230/115, amps SF 7.1/14.2.
my question: the motor is working, but it was leaking - so I tightened the 6 bolts too tight and two of them pulled from the housing and now the leak is huge. what do I do now? can I buy the housing with the 6 screws that the motor attaches to? Thanks.
Reply
It maybe just seals and gaskets that need to be replaced so I recommend starting there. You can call and provide the model of the front pump housing model to locate the proper seal kit or if you are not sure you can email us some images of that housing to upload@inyopools.com so we can try and identify it. Also, be sure and inspect the housing for any cracks or warped plastic that could be causing the leak.
Reply
Hello, has anyone tightened the pump motor too tight that the screws came out of the housing? Can you buy just the housing? my pump/motor is working. I have an AO Smith B853, serial 105083M, Part 7-177215-04, HP 1.0, Volts 230/115. Thank you in advance for your help...
Reply
Hi, Paul. That has happened before. You can replace the mounting plate, we'll just need to know the pump housing model in order to locate a replacement.
Reply
I have a JANDY MHP series pump with a Century Centurion motor part # 10-193267-01 uprated to 2 HP (about 15 years old). Is this the correct replacement motor for my unit?
Thanks,
Wayne
Reply
Yes, this is the correct replacement motor for your model.
Reply
Hi, What's the replacement motor for a Pentair Motor # 196249?HP 1, S.F. HP 1.25, 208-230/115 V, FR P56, 60 HZ, 3450RPM, PA Code L, Class F
Thanks
Reply
Brian, based on the specs you provided, the B853 is the replacement motor you are looking for.
Reply
i have a hayward sp3210z1be 1.65 115/230 pump. we had a lightning strike close last nite and pool shut off n tripped the breaker. the timer appears ok. do i need to replace the whole motor or would the capacitor go first? tks
Reply
Hello Don, the sp3210z1be matches with Motor, 1hp Full Tristar 115/208-230v (spx3210z1ber, HSQ1102) with the capacitor we would need a picture to better assist you if you would just like to replace the capacitor.
Reply
I have a Marathon motor model 5kc38sn6084ax, FR 56Z.....My concern is, this one says FR 56Y..... will this match what I have,
Reply
Hello Pete, the part 5kc38sn6084ax matches with the motor 1 HP Square Flange Motor (C1245, B2853).
Reply
is this the correct replacement for: A.O. Smith Cat. B853 Serial BZ04-27, part 7-177215-04, type CX, FR P56Y, HP 1.0, SF 1.25, PH 1, HZ60, RPM 3450, volts 203/115, amps SF 7.1/14.2, time CONT, encl DP, Form KJM, Code J.
what seals do I need to put it on: Waterway Serial SV40601729 Model# SVL56S-11C
Reply
Yes, This would be the correct replacement motor.
Reply
I have a Franklin Electric 1081 Pool Motor
MOD 1103016413
V 115/208-130
HP 1
RPM 3450
Max Amps 15.6/7.8
FR 56
SF 1.25
MAX AMB 40*C
TIME RATE CONT
CAT 54003
Phase 1
What is the replacement motor that I will need?
Reply
Hi, Andy. This Century B853 Motor can be used as a replacement for the Franklin Electric Motor MOD # 1103016413.
Reply
Does the B853 come with a new shaft nut ? Is the B853 shaft left hand thread ? Can you still get a B2853 ? Is the B661 a more efficient motor replacement for the B2853 & does it come with a shaft nut ? Seal kit , do you need a model # of the system ?
Reply
Hi, John. The B853 motor does not come with a new shaft nut or seal. The motor shaft is left hand thread. The B853 motor is still available. The B661 motor is an energy efficient replacement option for the B853. The pump housing model is required in order to locate the correct seals and or kit.
Reply
If I order a new B2853 motor which will be attached to a Pentair Superflo pump, which GOKIT OR GOKITS should I order for motor & superflo????
Reply
can I use this motor to replace my old one which was A.O. Smith USQ1152 1.5 hp
Reply
Hi. Yes, you can. However, you will need to change the impeller and the diffuser of the pump housing to match the motor's horsepower.
Reply
I need to replace a pentair 1hp pool motor
Model# SF - N1 -1A/340038
Which is the correct replacement part.
Thanks
Reply
I have an A.O. Smith 1 hp motor model# SP3210Z1BE, 3450RPM, Y56Y frame, square flange and the part number is 7-196336-20. Is this a motor that you carry and is it the A O Smith up-rate Part# B853 by Magnetek for $153.00?
Reply
What tune up kit do I need to purchase for use with this motor that will be mating up to a Jandy Flo Pro pump?
Reply
Hi, Eric. There is not a tune up kit available for the Jandy Flo Pro pump. The parts will have to be purchased separately and are listed on the Jandy Flo Pro Pump FHPM Parts Diagram page.
Reply
I have a Pentair SuperFlo Pump (Part # 340038) with a 1 Hp Pentair Motor (177474, model # SF-N1-iA/340038). Is this the correct motor to replace the Pentair Motor? Also, do I need to buy any thing additional for the change out - flanges, bolts/nuts, impeller? Advise when convenient and thank you!
Rudy
Reply
My neighbor told me I needed a new motor and that he would install it. My current motor is C48K2PA105C5 and the pump is P2R-A5E-124L. Would the B2853 be the correct replacement? And should I get the GOKIT54 to go with it?
Reply
Hi, Linda. You can use any of the following motors as a replacement, the PL2853, B853 or the USQ1102 as a replacement for the C48K2PA105C5 motor. The Sta-Rite Dura-Glas & Max-E-Glas Tune Up Kit (After 1998) - GOKIT54 is the correct tune up kit depending on when the pump was manufactured or last serviced.
Reply
will this motor replace B2848, or a magnetek 7-177449-03
Reply
No, you can use either the B853(B2853) or the B661(B2661) as your replacement motor for the 7-177449-03.
Reply
Hello,
I want to replace my 3/5 hp, Pentair Challenger inground pool pump. The motor plate is stamped, CFII N1 75A343232, Motor # 196248, 208-230-115V...I hope this in enough infer to identify my replacement.
Thanks!
Jeff
Reply
Hi. You will need the B852 and seals which and be found on the Challenger Pump Parts Diagram.
Reply
Can I use this motor to replace my pentair 7-168452-04 1 HP, 1.25 SF? This runs the filter pump. Do I also need a kit to go along with it?
Reply
Yes, this is the correct motor replacement for you. In order to locate the correct seal kit, you will need to know the model name or number of the front pump housing in order to cross-reference that kit. If you do not know that you can send a picture of it to upload@inyopools.com
Reply
Will this replace part 7-F56AA11A04-04 on a Hayward pump?
Reply
Hi. Yes, this motor or the SPX3207Z1MR (OEM) can be used as a replacement for Part #7-F56AA11A04-04.
Reply
I have a Magnetek E plus 177215 04 1.0 hp. What is a direct replacement or can I safely upgrade to a 1.5 hp version? Thanks
Reply
Christopher, This motor would be the exact replacement. If you want to go to a 1.5 HP, you will also need to upgrade the impeller and possibly the diffuser.
Reply
what is the replacement motor for a Century A.O.Smith Part 7 193995-07 type CX fr Y56Y hz 60 rpm 3450 volts 280-230 amps SF11.0-10.0 serial #313093M. Is a tune up kit also required?
Reply
The correct motor replacement motor for you is the model B843 and it is recommended to replace the seals with gaskets. In order to confirm which seal kit that you need we would need to know the model name or number of the front pump housing that the motor bolts to. If you are not sure of what that is then you can always email us a few images of that housing to upload@inyopools.com so we can try and identify it for you.
Reply
I am looking for the direct replacement MOTOR for an: A.O. Smith CAT: B128 SERIAL: 0F06 PART: O-164303-23 TYPE: CX FRAME: M56J 1 HP. 3450 RPM 230/115 VOLT CODE:J FORM: KJM ENCLOSURE: DP SQUARE FLANGE from what I can tell.
If this is not it please send me the correct info the the replacement motor.
Thank you!
Ladd A. Howe
Reply
What seal kit goes with this motor
Reply
Hi. Seal kits are specific to the pump housing, not the motor. If you can provide the make and model of the pump housing or use our How To Find The Correct Pool Pump Shaft Seal For Your Pool Blog we can or you can locate the correct kit for your pump.
Reply
I have Jandy Model PHPM1.0. I believe the motor has gone out, the motor is a centurion 7-193985-04. I believe the replacement motor is B2853. What is the seal I need?
Reply
Yes, that is the correct motor replacement and you may need either the old style or new style shaft seal but is based on the serial number. You can view the two types listed on key 5 on the parts diagram here. You will need the serial number of the pump housing to confirm.
Reply
Please help. I can't seem to find the replacement motor for serial 307113m / part 7-196336-20. HP = 1. SF = 1.85. Thanks in advance for your help.
Reply
I am needing to replace a Century PN 193985. You suggested a B853. All the specifications seem to match up except the amps. The amp on the replacement is 6.6/13.2 and on my motor they are SF 7.1/14.2. Are there any issues with these being different? Also, what pump shaft seal do you recommend for a FLO PRO (Jandy Pro Series) Model FHPM1.0 SELF-PRIMING?
What else would you recommend I would need?
Thank you
Reply
Hi, Tyke. This B853 motor will be more energy efficient than your existing motor. You will need additional parts like the Pump Shaft Seal - R0479400 (OEM), PS-4280 (Heavy Duty), Diffuser/Impeller Hardware - R0480400, Backplate O-ring - R0480300 and or the Lid O-ring - R0480200.
Reply

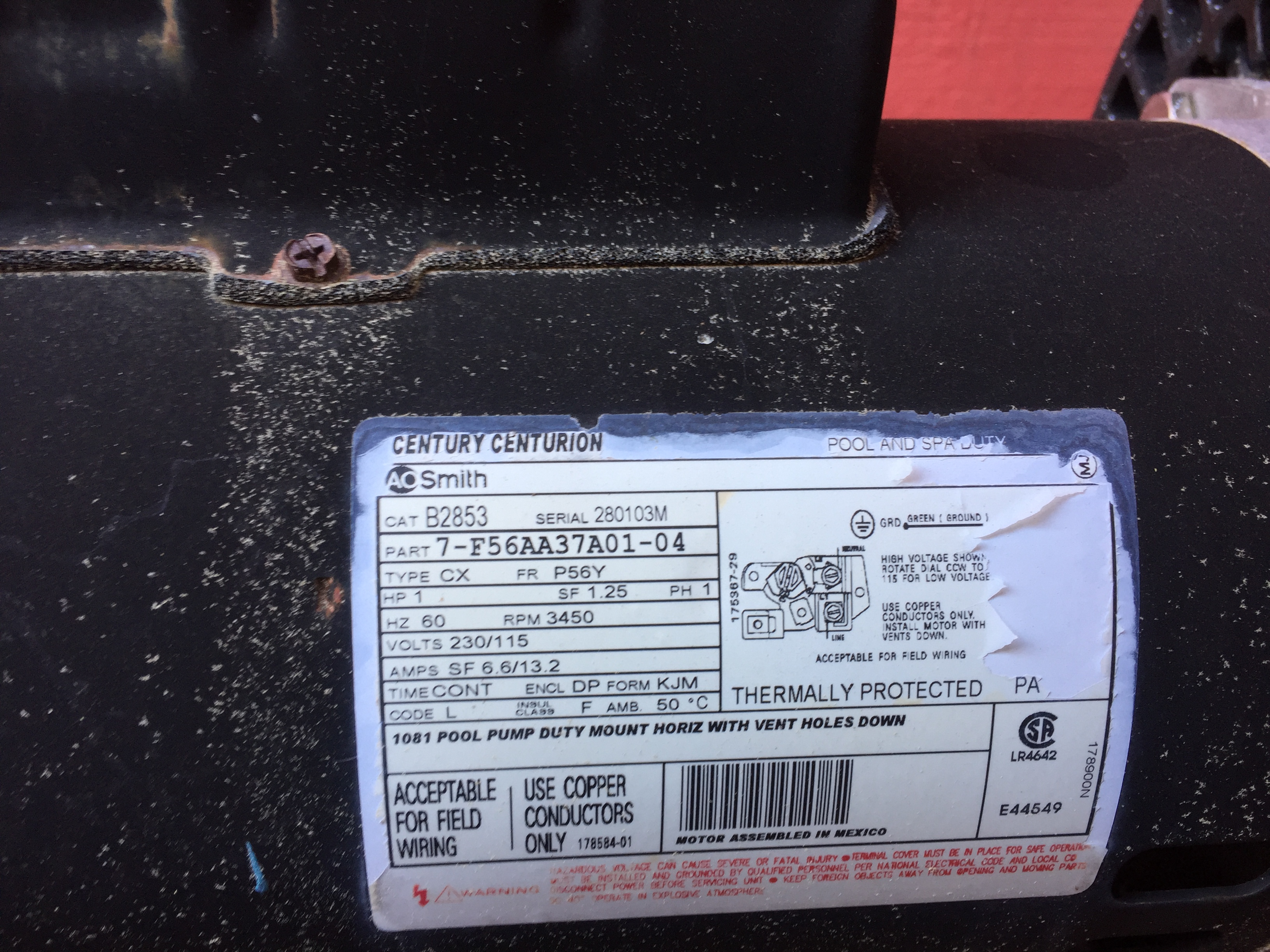

I currently have a Centry motor part number 0-F56AA37A01-04 that needs to be replaced. I seems like I need to replace it every other year. Is that the life expectancy or do I needed to change something? Possibly another brand?
Thanks,
Karen
Reply
Motors have an average life expectancy of 4-7 years or seasons. You may want to have your system inspected. Using a variable speed motor then utilizing the lower RPM'S could potentially gain the extra life. A replacement variable speed motor for your application would be the model ECM16SQU.
Reply
Hello. I have a Magnetek Century Centurion motor. The model number is 38448300 UR and the part number is 7-177474-01. It is 1.0 HP. The Service Factor is 1.0. Frame P56Y. Is this B2853 the correct replacement motor? The B2853 Service Factor is 1.24. Do I need to match the current motor Service Factor?
Reply
Yes, the B853/B2853 is the correct replacement motor.
Reply
Will this replace my Pentair WF-24, part # 011772 1 hp? Also, which gasket and seals do I need.
Reply
Hi, Marty. Yes, this B2853 motor and the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT are the parts you'll need for your pump.
Reply
I have a 9yr. old pump Part# 7 193221-02 what is the correct replacement motor. The volts are 208-230/115. The SF is 1.85
Reply
I need a replacement motor for a Hayward TriStar Max Rate pool pump. Its number is SP3207X10. The motor that is on it is a Century SP3207Z1M part number 7-F56AA11A04-04. I also need the the gaskets to replace the motor. I am unsure what is the correct motor for this pump.
Reply
Hi, Kim. You can use this B2853 or the SPX3207Z1MR OEM motor. You will will also need the TriStar Tune Up Kit - GOKIT81.
Reply
hi Ineed the engine for this pump
PUMP PHK2RA6E-102L
is this compatible do i need something else ?
Reply
does this fit a century e-plus pool pump 177449-03
serial no bn1-179?
Reply
I have a Pentair 1-hp, ser fac 1.25, 3450 rpm, p56y (Model 168452 04)
What is shaft dia? The reason I have a seal kit that is for 5/8" shaft. Will this work. Also kit has large "o" ring whish is round,
but why is it called square?
Reply
We will need the pump model number, not the motor to verify the correct shaft seal or tune-up kit needed. The motor(s) are able to interchange into many different manufacturer's pump housing, the seals are identified by the pump model, not the motor. The term "Square Flange" is referred to the shape of the flange of the motor. *Some gaskets/O-rings are squared but will make a shape of a circle.
Reply
Hi, will this replace a Franklin Electric MOD 1103016419, 1HP, RPM 3450, FM 56, SF 1.65?
I have Pentair superflo 340042 pump with a motor #196030. Do you have a direct replacement for the motor?
Reply
i have apart 7, 193995 -07. is this the replacement ? If so are there any other parts needed?
Reply
Good Afternoon- Unfortunately, this P/N 193995 -07 is not the replacement for you. You would need the 2 HP Motor EE - Full Rate (B843, B2843).
Reply
Motor is squealing loudly. I think a bearing is going out. I have attached pictures of my motor plate. Is this the model that would replace it? The Amps are different. Thank you.
Follow-up to Motor is squealing loudly. You suggested considering a variable speed motor. Can you tell me why please? This motor is for a fountain. Thank you.
Reply
There are a few options depending on where you live you may only be able to order a variable speed unit 5 Reasons To Get A Variable Speed Pool Pump Motor. California’s New Variable Speed Pool Pump Law.
Reply
The motor supporting the hi-flow pump for our pool waterfall stopped working. Is the B2853 the correct replacement motor for a Pentair 7-177474-01 1 HP, 1.24 FS unit? Your assistance is appreciated.
Reply
I have a Pentair 011772 WF-24 1hp 115/230V Pool Pump. Is this the correct motor replacement?
Reply
Hi, Phillip. Yes, you can use this B2853 or the PL2853 motor as a replacement. You will also need to get the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
I have pool motor Century Centurion Switchless Motor Mod #193985XCN, CPN #A0582907, SER 11016CHC2010300292 that was installed in 2017
The motor started squealing
The Pool Company that made installation sold the business
Please advise
Thank you,
Leonid
Reply
Hello, Can you please provide a picture of the motor label?
Reply
I have this motor on my pump now. It stopped working, I’m only getting a humming noise. The capacitor has been replaced and it tried to start but still doesn’t work. Wondering if I should rebuild or buy a replacement motor.
Reply
Hi. To determine whether to repair or replace the motor, you will have to compare the cost and age of the motor.
Reply
my ao smith part # 0-177215-04 1hp motor bearing are going out. what motor replaces it and is it cheaper to have bearings replaced.
Reply
This is the correct motor replacement and yes the bearings are cheaper but not always the best option. If the rest of the motor has significant corrosion or rust then the motor may fail soon after the bearings are replaced.
Reply
Can this motor power a Challenger Pac - Fab pump ?
Reply
i am replaceing a century centurion a.o. smith 1 1/2 hp pump motor part# 7-177450-03. will this motor work
Reply
Hello, This will be the motor replacement you will need for your pump.http://www.inyopools.com/Products/00200017039437.htm?Keywords=7-177450-03
Reply
Would this be a suitable replacement for motor part number 0-193985-04, the only difference I can see is the AMPS SF please see photos of labels attached
Hi, Mike. Yes, this B2853 motor is the correct replacement. It will perform the same using less energy. You will also need to replace the seals which are listed on the Jandy FloPro FHPM Series Pump (2008-Preset) Parts Diagram page.
Reply
Thanks for your quick response, I have a salt water pool, would seals part# 5250-250 be correct and the only seals I would need or are there others I've missed? Jandy Flopro#FHPM1.0 Self Priming
Reply
I have a PHK2RA6E - 102L will this be the suitable replacement model??
Hi Avinash, Yes this is the proper replacement motor for your Sta-Rite Super Max PHK2RA6E - 102L pump. When replacing your motor we would also suggest this Sta-Rite Super Max Tune Up Kit We also have this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Motor or pump?
Just started up pool for the spring. Motor did not turn..just hummed. I turned the shaft a bit and it took off, ok. After a couple days. a loud whine/screech is coming from either pump or motor. Is there a way to tell? Motor is Century Centurion, AO Smith, part #7-193993-05, type cx, fr y56y. The pump is Jandy Stealth Model 3hpf1.0 Ser# j06fh0886.
It has a 1081 pool pump mount, hjorizontal w/ vents down. Where do I start?
Reply
Hi, Will. The issue is with the motor, specifically the Run Capacitor. Before replacing the motor, test the capacitor using our How to Test a Pool Pump Capacitor guide.
Reply
I have a Century / Centurion in ground pool pump that is not working an tripped the circuit breakers.
CAT B2842
Serial 28511CH
Fram Y56Y
Volts 208-230
I would like to replace it with a pump that is compatible with what i already have.
Reply
I have an A.O. Smith motor on my pool pump. c48k2pa104ac, 115/230, AMP 14 8/7.4 SER 8J03. What motor will work? Is there anything I should be concern when replacing?
My pump just went out and the one wire on the back is exposed. But i need a pump asap
Hi Anthony, If you wanting to replace your motor then the proper replacement motor is the BN25 Century Replacement Motor If you go the route of replacing your motor you will also need a Tune Up Kit but we would need for you to send us a photo of your complete pump showing the basket and the plumbing ports to be able to suggest that tune up kit. The other option would be a completely new pump and we would suggest the PureLine PL1532 Pure Pro XL as a great replacement and the cost would actually be less than replacing the motor and tune-up kit. If you would like to supply us photos simply click on the reply link below and upload your photos.
Reply
Is this motor correct for a Pentair 343233 pool pump? The motor number is 168452.
Hi Bryan, Yes this is the correct replacement motor the motor included in your photo. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I NEED A REPLACEMENT MOTOR, plus whatever seals/ kits I might need to complete the new installation-This is the motor I need to replace:
Century centurion/ AO Smith
Part # 7-f56aa37a01-04
TYPE cx FRp56Y
hp 1 SF 1.25 PH 1
hz 60 rpm3450
VOLTS 230/115
AMPS SF 6.6/13.2
TIME CONT ENCL DP FORM kjm
CODE l CLASS f AMB 50 c
Reply
Hi Debbie, This is the correct replacement motor for the information you supplied. As far as the seal kit goes we will need your pump information... Could you give us your pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
I don’t see branding on anything except the motor. We are wondering if we should just replace the entire system?? If we did that what would we need?
It looks to me like you have a Sta-Rite Dura Glas pump This motor is the proper replacement for your pump. If you go with a new pump and basket then I would suggest the 1.5 HP PureLine Prime, the plumbing ports on the PureLine are not in the exact same spot as your current pump so you will have a little re-plumbing. If you decide to just replace the motor then you will need this Sta-Rite Dura Glas Seal Kit Pre 1998 or this Sta-Rite Dura Glas Seal Kit 1998 and after. If you don't know if your pump is from before or after 1998 then we have this Video on How to Determine if your Sta-Rite Pump is Before or After 1998
Reply
i have this pump i just need the housing for it. how do i go about ordering it??
Reply
Bradford, the Magnetek A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853 can fit on hundreds of different housings. In order to identify the replacement housing, we will first need to identify the pump or the model number off of the current housing. If you are unable to find this number, please send a photo of the housing to upload@inyopools.com so we can review it and identify.
Reply
I have a Sta-rite Super max pump. I need to replace the motor which is: Sta-rite Model No: PHK2RA6E-102L Motor # 168452 1 HP, S.F. 1.25 HP
What are my options for a replacement motor and what seals will I need to replace?
This is used with a Hayward Pro-Grid D.E. filter with a Hayward 1.5" multi-flow valve. I also need to replace the spider gasket in the valve and would like to know the part number for that as well. Thank you.
Reply
I believe this is the right motor for my Jandy Pro Series WFTR80 Pump.....correct? If so, also needing to know which seals and/or gaskets I need to replace when I replace the motor.
Thanks,
Curt
Reply
Yes, this is the correct replacement motor for the WFTR80 Jandy Water Feature Series Pump. You will also need this Jandy Water Feature Series Pump Shaft Seal when you replace the motor.
Reply
I just sent a question about this being the correct replacement for my Jandy WFTR80 Pump. I have another question. I thought I might replace the capacitor first, since I can start by hand turning the motor shaft on the back. The capacitor is Genteq 27L 1358. Which capacitor do you sell that would replace this one.
Reply
Here is the link for the Replacement Capacitor for the Genteq 27L 1358
Reply
My Pool motor suddenly have a grinding sound when its running. I suspect that it is the motor bearing. The Motor Model is Centurion/Century, B2853. Is/Are the bearing(s) replaceable? If so, what is the part number of the bearing? and how many bearings do i need to replace?
Reply
Hi Bon, Your motor will take two of these 6203 Pool Motor Bearings. We have put together a couple of videos on How to Replace Pool Motor bearings which you may find helpful when you tackle this project. Video on How to Replace Motor Bearings - Part 1 and Video on How to Replace Motor Bearings - Part 2
Reply
Is this the correct replacement motor for my handy pro series model FHPM and is so what shaft seals do I need?
Need correct motor and other parts for Jandy Stealth JHPU 1.0. Image is current motor.
Hello, This will be the seal kit you will need,http://www.inyopools.com/Products/00500017069476.htmThis will be the motor you will need.http://www.inyopools.com/Products/07501352022109.htm
Reply
I have a Viking Chesapeake pool. is this a good motor and motor size for it.
My current motor is pictured below. Is it the same?
Hi, Val. This B853 motor is the correct replacement. See the Jandy FloPro FHPM Series Pump (2008-Present) Parts Diagram to locate the the seals.
Reply
Does this motor have all the required threads at the end of the shaft? Exterior threads 1/2-20 UNF and interior has reverse threads for pump impeller?
Thanks.
Ron
Reply
Yes, it has all the required threads.
Reply
Hello, my motor is louder than usual. It would not start this year. I had to loosen the drive from behind. It then started up but now it is loud. I believe this is the right motor. It isn't original to the pump. I've added some pictures of the pump as well. Can you confirm that this is the correct motor? Do I need to order any additional kits to ensure the new motor fits well with the pump?
Yes, the B853 is the motor replacement for your pump is the B853. Going by the strainer basket the pump is a Pentair Challenger which will need either the GOKIT5 or GOKIT5SALT
Reply
What shaft seal and impeller do I need for this pump; A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853?
Reply
Hi, Neal. The parts that you're inquiring about are specific to the pump housing, not the motor. Check out our Replacing Parts For A Pump You Don’t Have A Model Number For guide for assistance.
Reply
Which is the correct seal replacement for this pump? I have been told it is Viton PSR Seal # PSR-100V.
Reply
The shaft seal and seals needed for replacing a motor depends on the model name and or number of the front pump housing that the motor actually attaches to. If you cannot locate that information you can always email us a few images of that pump housing to upload@inyopools.com so we can further assist.
Reply
Is this the right motor for Sta-Rite PHK2RA6E-102L MOTOR MODEL # 168452 1HP , SUPERMAX PUMP
Reply
Sorry, I thought your system pulled the info from the pump I was viewing at your website.
It is an older one...Century Centurion by A.O. Smith #1081. (looks exactly like the picture of the same on your website)
CAT: B2848, Serial # 147083M.
Part 7-196261-24, TYPE CX, 1 HP, HZ 80, RPM 3450
I have been replacing the Seal every 6 months when the pump starts leaking with the Viton PSR Seal #PSR-100V (box pictured in last question). I'm wondering if a Seal with a stronger spring is necessary?
Reply
What seals would I need to go with the motor. Thanks
Reply
Mark, The correct seal kit you will need to go with your Sta-Rite SuperMax PHK2RA6E-102L pump is the Tune Up Kit Pentair SuperFlo/Sta-Rite SuperMax - GOKIT78.
Reply
I have a motor that only says 177474, and the sump is Pentair SuperFlo 350097. Is this the correct motor to order? THX!!
We need to replace our motor for our inground pool. A picture of the label of the current pump is attached Is this the right replacement part?
Thank you!
Hi Matt, yes based on the 177474 the A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853 would be correct.
Reply
We need to replace our motor and need to know if this is the correct part. A picture of the current motor with the label is attached. I've sent a message through the Contact Us.
I sent this same question yesterday but did not get a response.
Matt, after looking over your photos I was able to pull part number 7-177474-01, based on that information the Magnetek A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853 is not the correct replacement motor. You would require the A.O. Smith 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1 to replace your part number 7-177474-01.
Reply
I was wondering if this pump would fit a Jandy stealth model SHPM 1.0. Photos are attached of various info. Thank you
Want to verify this is the correct replacement for my pentair pool pump SF-N1-1A/340038. I also need the Bearing part number.
Reply
I have a Jandy Flopro part #
0-193985-04 will this replace my existing motor. What about Seal kit to go along with it?
Reply
Eric, yes the A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853 is the correct replacement for your existing 0-193985-04. The PS-4280 is the correct shaft seal, you will also need the Diffuser O-ring - R0480400, and Backplate O-ring - R0480300.
Reply
I am trying to replace a motor for my cleaning system in my inground pool and want to make sure I am getting the right motor. I have attached photos of the nameplate and unit. I also need to know what seal kit I would need or if there is anything else I would need to purchase to get it back up and running.
Thank you
Hi, Craig. Pump (1) with motor P/N 7-168452-04 replacement motor is the B2847V1 pump (2) replacement motor is the B2859 motor. As for the seals, I will need to know if you have the CF or CH version of the Challenger Pump. Since it not on the pump, you will need to take the pump apart and get us the number embossed on the Diffuser.
Reply
Sorry, one more thing, on the motor I sent the nameplate on that had part # 7-168452-04, the motor you gave me (B2847V1) is a 3/4HP and mine was a 1HP. Did it change?
Reply
Okay thank you. Cold spell coming so may be a week or so before I can get the motor apart.
Reply
One more question, if I wanted to buy the whole assembly would it be your part # 343233
Reply
Craig, The CFII-N1-1A / 343233 is an option, FYI, there is a High Pressure version also CHII-N1-1-1/2A / 346206.
Reply
Dear sir,
I was replied to replace the motor by B2853, but I checked the documents that STA-RITE Max-E-Pro was not included and thus just to re confirmed B2853 is the right motor replacement.
I also required the recommended oil seal kit to purchase for MAX-E-PRO pump 1 HP.
What is the estimated
shipping time to Singapore?
Thank you.
Best regards
Daniel Ng
Singapore
Hi, Daniel. Unfortunately, this B2853 will not work because it is only for 60 Hz electrical, your existing motor is 50 Hz. We do not have a replacement motor that will work as a replacement.
Reply
I need to find a replacement motor for A.O.Smith Century Centurion, 1 HP, 1.25 SF, TYPE CX, FR P56Y, PH 1, HZ 60, RPM 3450, VOLTS 230/115, AMPS 7.1/14.2, TIME Cont, ENCL DP, FORM KJM, CODE J, INSUL CLASS B
Reply
First time replace a motor, could you please help confirm:
1) Will this motor replace P2RA5E-124L motor (currently 5KC38SN6084AX) - looking at the below comments, I believe Yes, but confirming.
2) For other parts needed, is this the correct kit for the Sta-rite P2RA5E-124L http://www.inyopools.com/Products/00500022000635.htm ?
3) Anything else i need? :)
Reply
I have a Sta-rite PHK2RA6E-102L Supermax. Is this the right motor to replace mine with?
Reply
My Pump is a Jandy FHPM 1.0HP with a Century 1.0 HP Motor - B2853.
I am ordering a replacement motor (with same B2853), and I also want to replace both bearings and the pump seal.
Are these the correct bearings and pump seal to use:
PART # 5270-31
MANUFACTURER CODE 6203
Bearing, 203 (Single) - 62032RS
(2 Each as the same is used in both locations?)
PART # 5250-250
MANUFACTURER CODE PS-4280
Pump Seal, Extra Heavy Duty
Reply
Hi, Hank. Yes, those are the correct parts for your pump and motor.
Reply
I have a pentair challenger 1Hp pump.
Will this motor work?
Reply
Hi, Michael. In order to confirm, I will need the motor's Part # or the Challenger Pump model number. They're different 1.0 HP motors.
Reply
see photo
Michael, This B2853 will work as a replacement along with the Challenger (CHII Series) Pump Tune Up Kit - GOKIT5 or GOKIT5SALT.
Reply
I have a Pentair Challenger CFII-N1-1FE 1.0HP single speed pump and am looking for the correct motor replacement options. I'm Also interested in the difference between regular motors and EE (Energy Efficient) motors and how much the EE may save on and electric bill per year? Also is there a gasket/O-ring replacement kit for the motor and pump assembly?
Hi, Dave. Your options are P/N B2848 (Standard) or B2841V1 (EE). The EE option could save approximately 10-20%. There is NOT a tune up kit available for your model pump. The gasket/O-ring are all listed on the Pentair Challenger CHII / CFII Series Parts Diagram.
Reply
Will this pump replace the pentair pump I currently have? Please see attached pictures.
Hi David, Yes this is the correct replacement motor the motor included in your photo. You will also need a Pentair Super Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Does this replace a Pentair SF-N1-1A/340038 motor?
Reply
Hi David, Yes this is the correct replacement motor the motor included in your photo. You will also need a Pentair Super Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
WHEN WILL I RECEIVE THIS IF I ORDER TONIGHT
Reply
If you ordered tonight it would ship out tomorrow from either FL or CT. If you do place the order please reply back to this email so we can make sure to keep an eye on the order and route to the closest warehouse to you.
Reply
Good afternoon. I was wondering if someone could point me in the right direction re if this is the correct model motor for my A.O. Smith Century Centurion Motor 7-193992. All of these units with similar numbers / cross model numbers look virtually identical, so any help would be appreciated. I have attached pictures. Thank you.
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

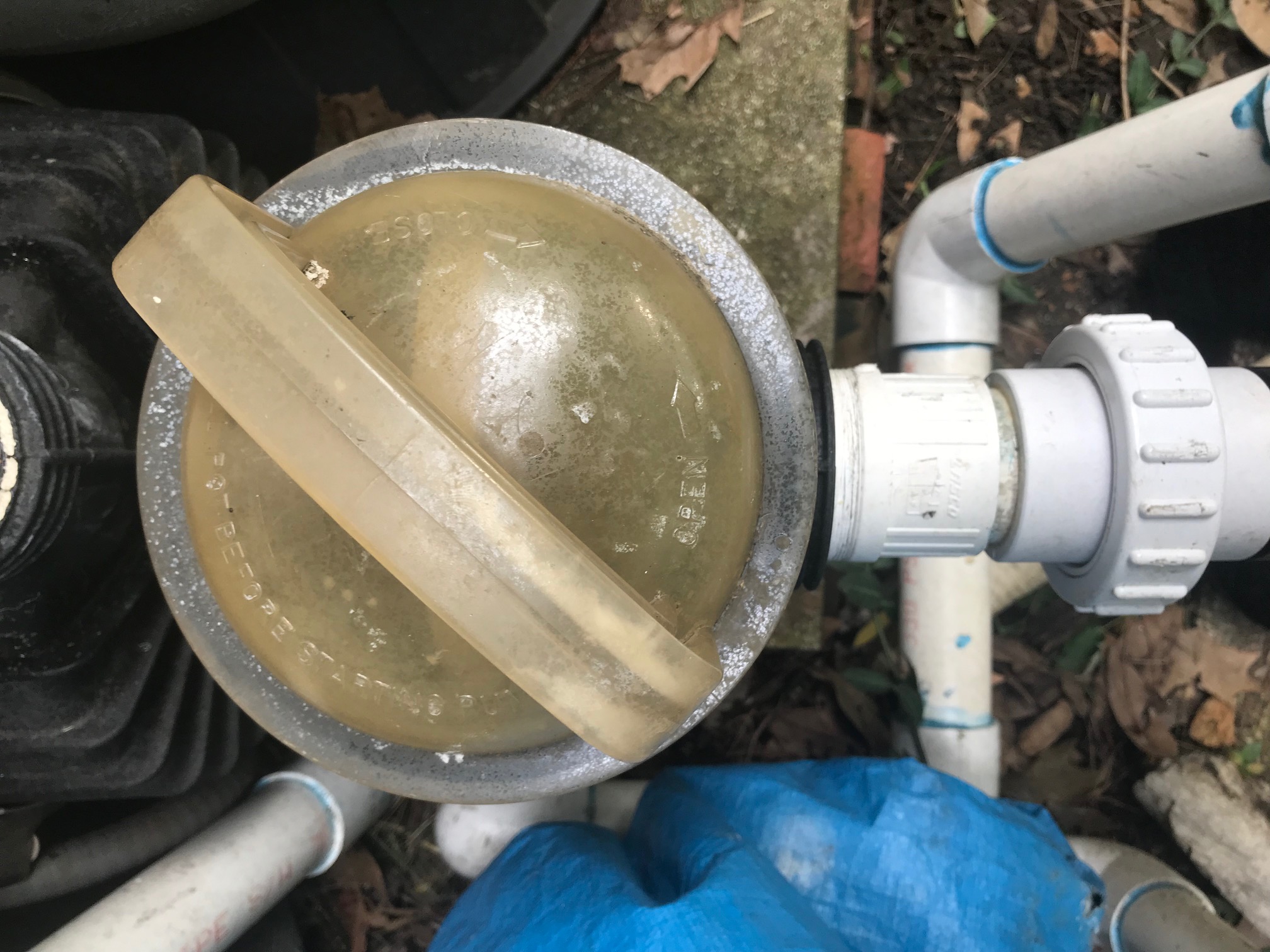

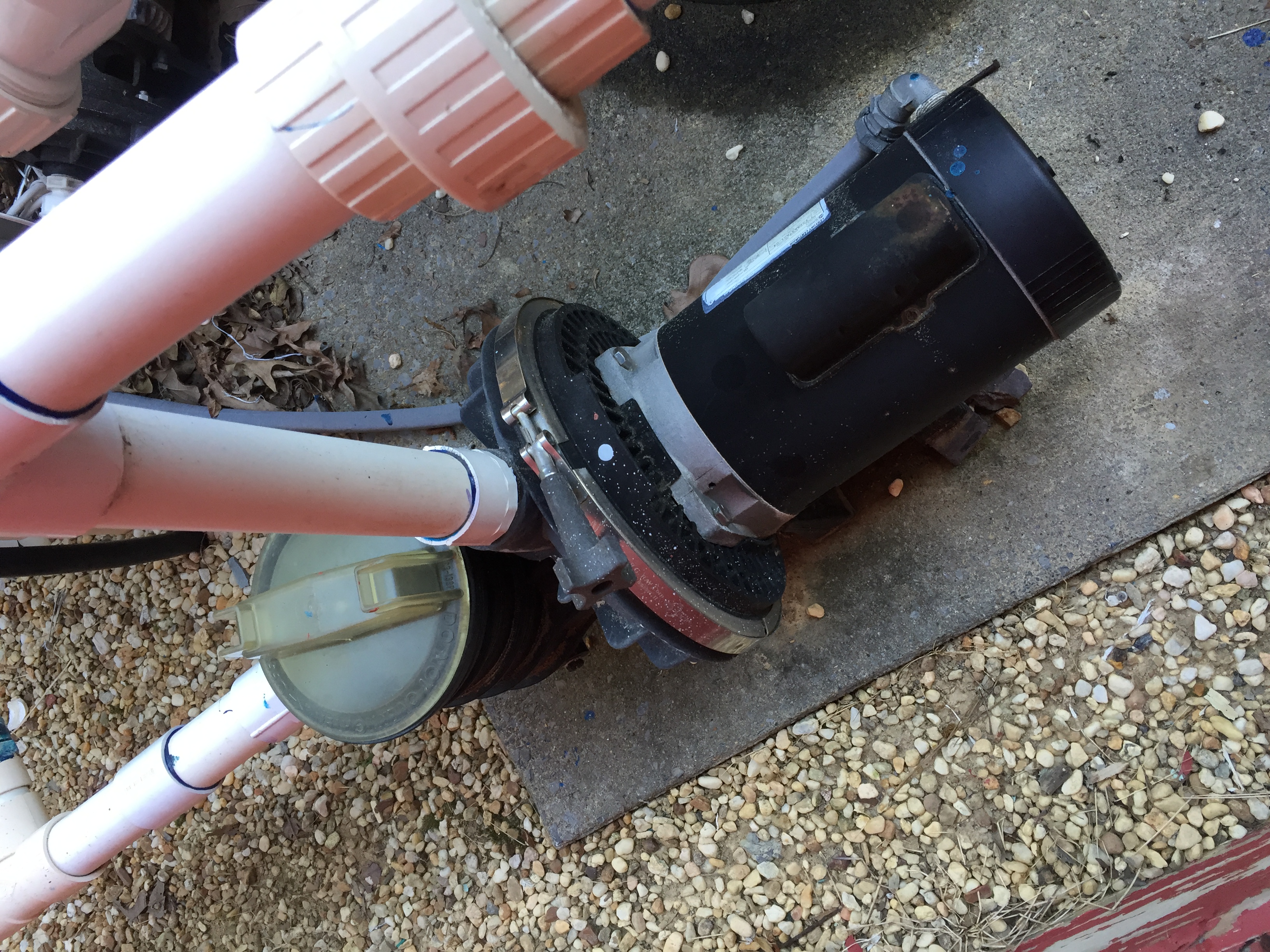

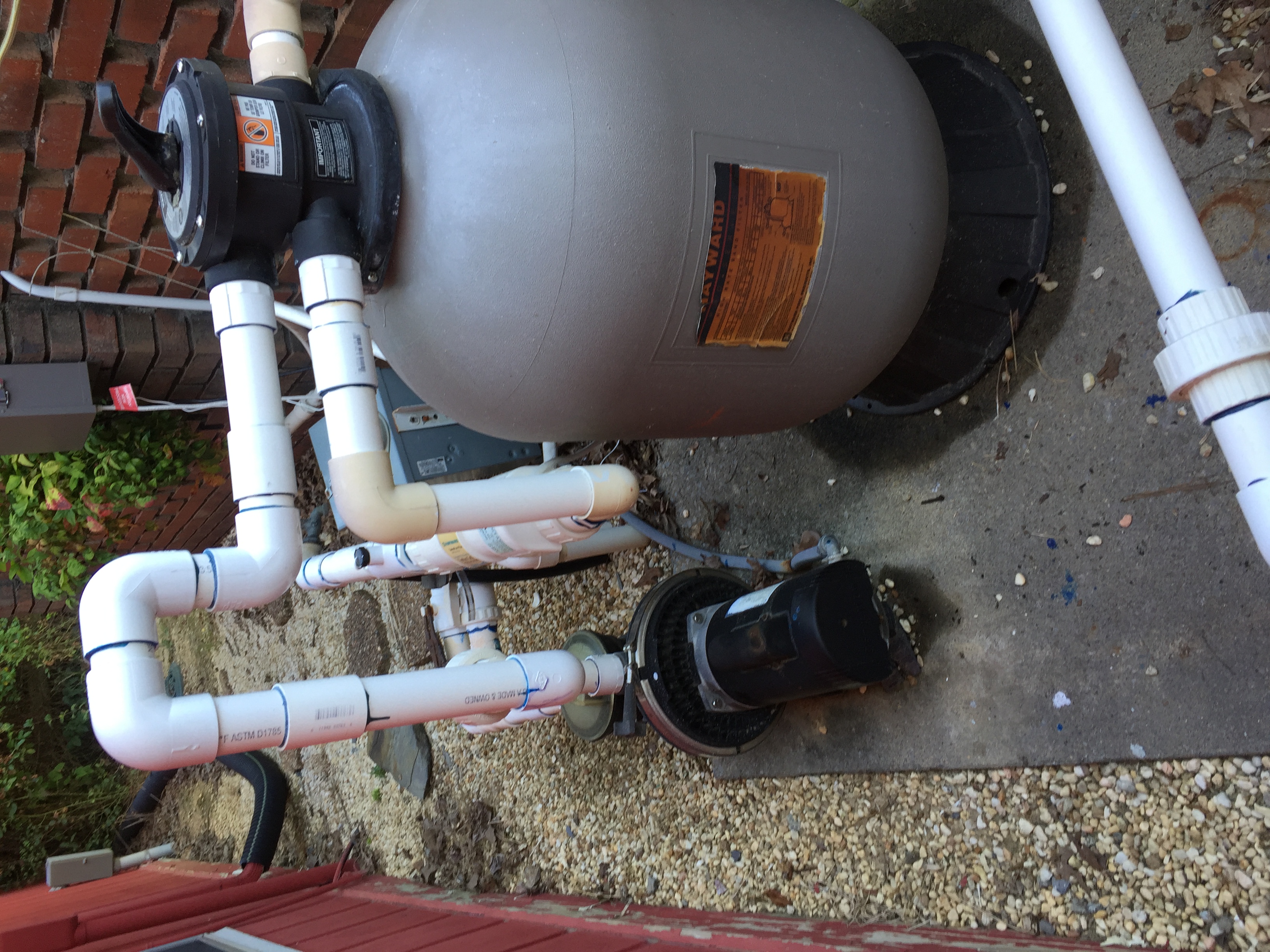

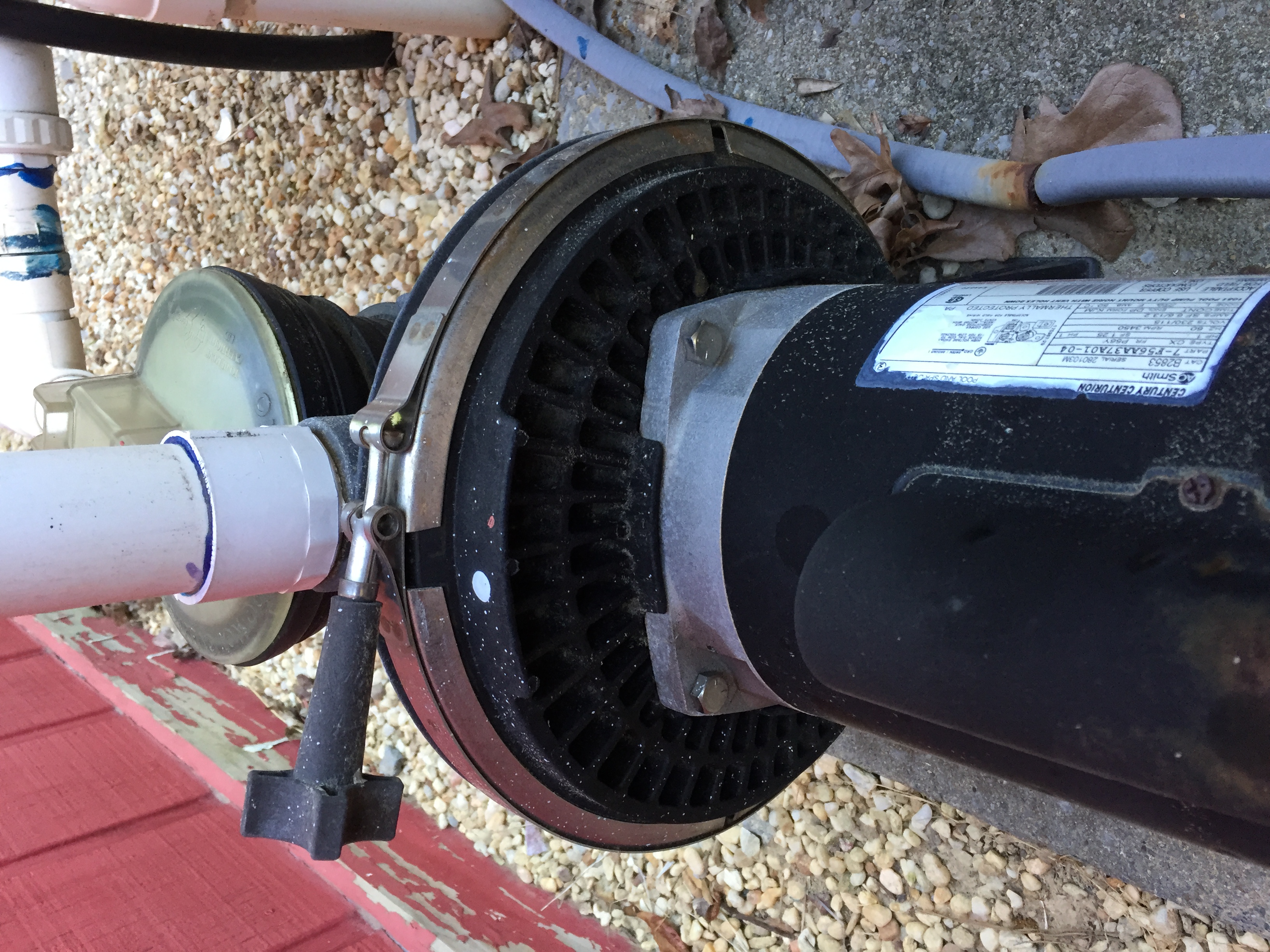

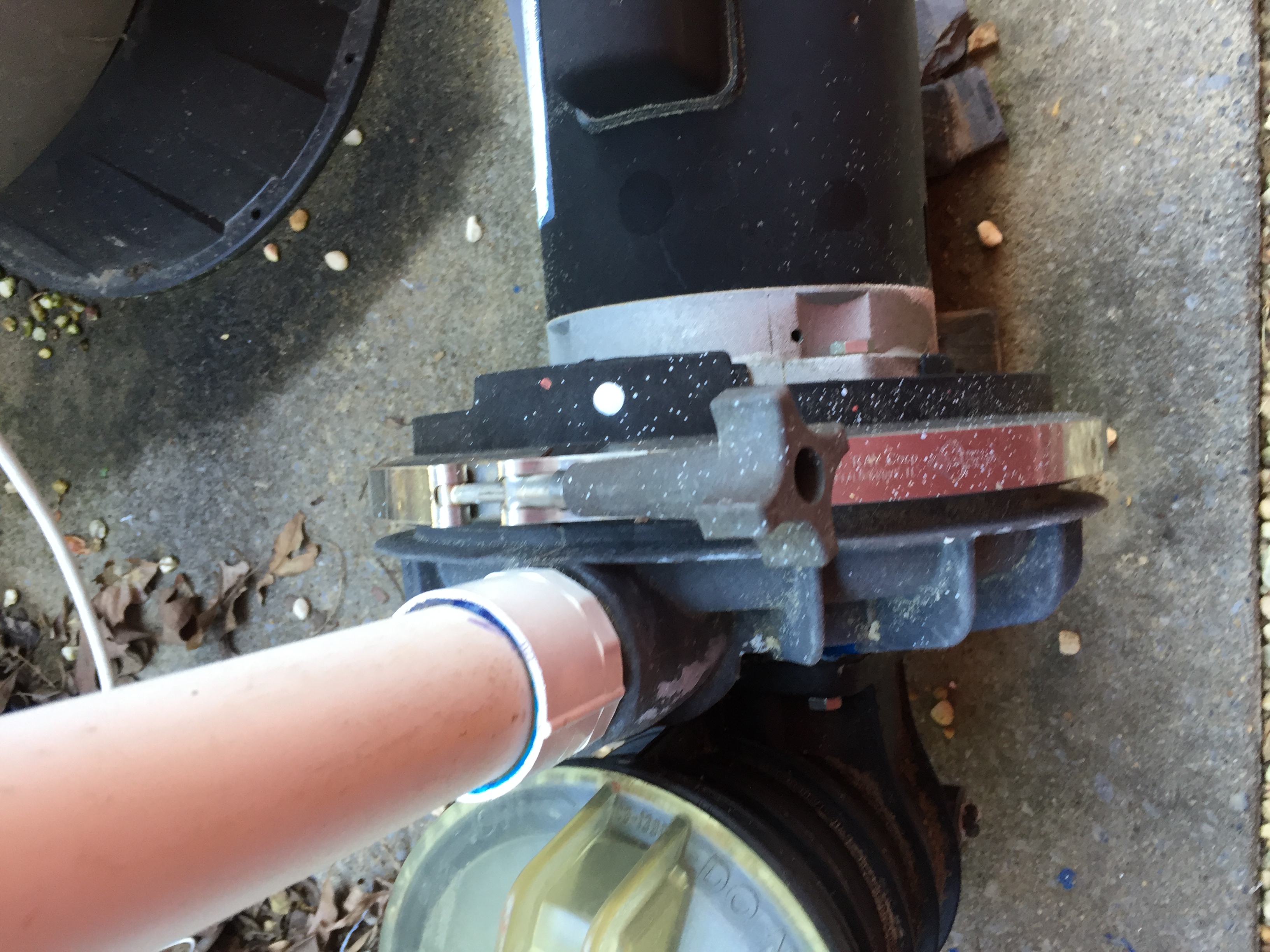

Here are some pics of the pump equipment and you guys mentioned the B2853 motor would be the right replacement. I was just curious if there was on O Ring or seal that may be beneficial to get as well. thanks and have a great day
Bob thanks for the additional photos! We would definitely suggest replacing your shaft seal and you will need this Jandy Stealth Shaft Seal we would also suggest this Back Plate O-Ring which is listed as Key 13 in this Jandy Stealth Parts Diagram
Reply
Thank you very much for verifying. Very helpful. In seeing some of the other reviews/ comments, are there any particular seals/ o rings that you would recommend that I get for when I replace the motor?
Reply
Will this be a good replacement for my pool pump? I
Yes this is the correct replacement motor for your 1103017463 or B1245 shown in your photo. The B2853 motor on this page is what you will need.
Reply
in need a replacement motor for a century 1.0 hp square flange part # 0-193985-04. is your B2853 a good replacement for this unit?
Reply
Yes, this would be the correct replacement single speed motor for your model 193985 motor.
Reply
See attached photos. Will this motor be a compatible replacement.
Hi Debbie, Yes this is the correct replacement motor for the C-193985-04 motor included in your photo. You will also need a Jandy FHPM Flo Pro Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I will this motor replace my current motor and do I need a "go kit" and
Pump Seal, Extra Heavy Duty PS4280 (Saltwater Pools).
We are running salt water in the pool.
Anything else needed?
Thanks
Hi Troy, Yes this B853 is the proper replacement motor for your 8-177474-01 motor in your photo. Could you send us a photo of a wide shot of the complete pump to include the pipes going in and out of the pump? This would allow us to suggest the proper seal kit. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

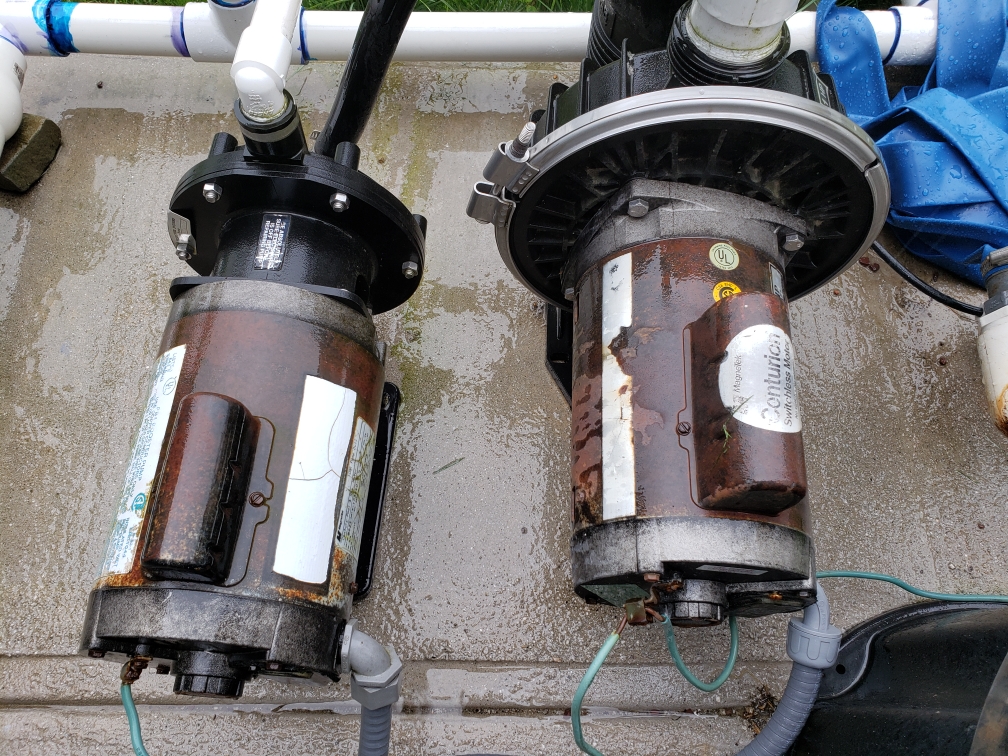

Here are the additional photos..... also what variable speed motor would work?> thank you.
Hi Troy thank you for the additional photos those were super helpful. You will require this Pentair Super Flo Seal Kit. If you want to go Variable Speed then you will need this 1.65 HP Variable Speed Motor If you go this route then I would suggest replacing your Impeller with this 1.5 HP Super Flo Impeller and this 1.5 HP Super Flo Diffuser so you can take advantage of the upper HP Range of the variable speed motor.
Reply
Wanting to confirm that this is appropriate replacement for old pump and any other parts I might need for replacement?
Hi, Anthony. This motor is the correct replacement for your Pentair / Pac Fab Challenger CHII / CFII Series Pump.
Reply
Hi, what is the ideal replacement for my Marathon motor, it is getting loud. I need a real quiet one due to being in close proximity to bedroom. Also GoKit as well. Are these really quiet?
This B853 motor is a compatible and quiet motor for your model and in order to locate the correct seal kit, we will need to know the model name or number of the front pump housing wet end that the motor attaches to.
Reply
Thank you for the quick reply. The motor attaches to a Challenger deffuser, not much of the labels are left other than the pictures I am attaching, does this provide enough information?
Thanks Oscar! You will need this Pac Fab Challenger Seal Kit
Reply
Is this the correct replacement motor for my Pentair Whisper Flo, Model No. 24C, 1 HP, pump? Will I need the tune-up kit also? Thanks for your help.
Reply
Hi Margaret, Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

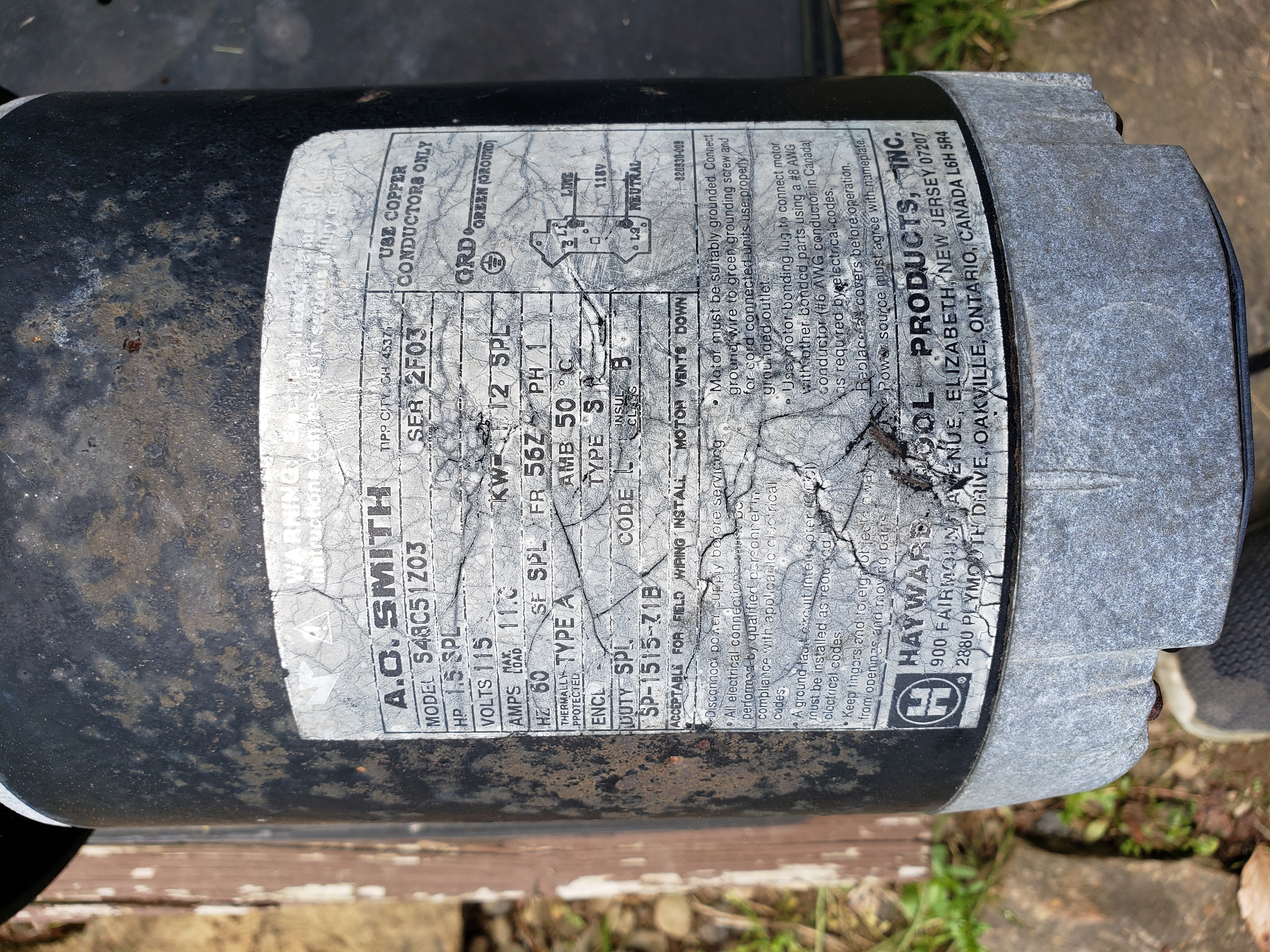

Pictures of pump motor.
Hi Margaret, Thank you for the photos those are super helpful. You actually have a full rate motor so you will need this 1 HP Whisper Flo Full Rate Motor and this Whisper Flo Seal Kit. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this the correct motor for my Sta Rite Max E Pro or at least that is what I think I have
Hi Armando, Yes this is the correct replacement motor the motor included in your photo. You will also need a Sta-Rite Max E Pro Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this motor compatible with Pentair whisperflo pool pump 1 HP sf 1.65
Reply
Hi Ted, the correct single speed replacement motor for the motor you are referring to is the B848. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this the proper replacement for my Hayward Tristar motor? (picture attached)
Hi Chris, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Hayward Tristar seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need to replace pool motor. I have attached a photo of current motor.
The Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1 http://www.inyopools.com/Products/00200017039437.htm Please refer to our How To Find The Correct Pool Pump Shaft Seal http://www.inyopools.com/Blog/how-to-find-the-correct-pool-pump-shaft-seal/ for the correct shaft seal needed.
Reply
Is this motor approved for salt water pools? We recently converted our pool to salt water and this pump motor is installed. I believe the motor just went out. When I flip the switch all I get is a buzzing noise.
Hi Ryan, Yes this motor is approved for saltwater pools and is the correct replacement motor the motor included in your photo. You will need a Pentair Whisperflo Salt Water Seal Kit when you replace your motor. The buzzing sound is a sign that your motor has gone bad. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project
Reply
May this motor be used to replace my current Century Centurion 8 - 177474 -01 pump motor? What other parts would I need to replace the motor. My motor has the loud screech which indicates worn bearing. I have attached an image of the motor's product description plate.
You will require this B2853 1 HP Motor when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Attached are the photos you requested. Please let me know which seal kit I should order along with the B2853 pump so I can make the order. Another Question: How soon could this pump and kit be shipped?
Brett, Thank you for the additional photos those were helpful! You have an Ultra Flo Pump and will require this Ultra Flo Seal Kit. If you order today before Noon EST then your order will ship out today or tomorrow. All items are in stock!
Reply
Thank you. I ordered the motor and the kit with order #1070738. Now, I discovered that the Seal Plate was permanently glued to the old pump. So, I need a matching Seal Plate. My old one is a Pentair Ultra-Flow Pump Seal Plate 357143 V38-131. Do you have this model or a replacement seal plate and kit that matches this - and that will fit the pump that I ordered?
Yes we do carry your seal plate and you may view or purchase this here Ultra Flo Seal Plate V38-131 we do have this in stock.
Reply
Same exact issue as the gentleman above. Seems like electrolysis has permanently bound the lower steel pins in the seal plate to the aluminum base plate of the old motor housing. Wound up cracking the old seal plate trying to get it loose. My old pump and intake basket housing look identical to the images above, but the part numbers are slightly different. The seal plate you recommended appears to be correct, but I'd just like to verify.
Hi Sean Thanks for the photos. Yes those would be the same parts for you. We do carry your seal plate and you may view or purchase this here Ultra Flo Seal Plate V38-131 we do have this in stock. You can view all of the parts for your pump here - American Products Ultra Flo Pool Pump Parts
Reply
Is this the correct pump to replace a century 0-193985-04? Will I need any other parts?
Hi Kenneth, yes this is the correct replacement motor for your motor part number 193985. When replacing a pool motor we do suggest a Seal Kit. Could you send us some info about your pump so we can suggest the proper seal kit? If so then please locate the specific Jandy FloPro model and serial number. To supply that to us simply click the reply link below or quickest using our live online chat feature. Once we get that information we can make the proper recommendation for your seal kit.
Reply
I need to replace my pool motor - Serial 12813CH. Is this a compatible replacement?
Hi Vincent, yes this is the correct single speed replacement motor for your motor included in your photo. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest provide them using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I need to replace my pool motor. I am sending two photos of motor and housing.
Hi Thomas, the correct single speed replacement motor for the motor included in your photo is the B841. You will also need a Jandy Stealth SHPF shaft seal when you replace your motor. You may also want to replace keys 13 and 15 also from this parts diagram.
Reply
I have a Century Centurion motor that needs replaced. part number is 0-193985-04. serial number 1381och. The bearings are just about shot. Will I need an impellor also? Thanks!
Reply
Hi Harry, This B853 motor is the correct replacement for your pump. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Here's the photo Thanks, Harry
Thanks Harry you will require this Flo Pro Shaft Seal
Reply
Is this the right replacement for this motor? Will I need a seal kit, as well?
Hi Danielle, Thank you for the photo! Yes this is the correct motor and you will also need this Whisperflo Seal Kit We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hey folks.
Is your 'Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853' an adequate replacement part for my rusty old MagneTek Century Centurion 7-177474-01 seen in the pics below?
And if so, a seal kit or anything else you can recommend to go along with it?
Thanks!
I have a pentair wisperflo pump. model # WFE 26. Is a B2853 the right replacement?
Reply
Hi Craig, this is NOT the correct replacement motor for the WFE-26 Pump. You will need this B2854 1.5 HP Replacement Motor You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this the correct replacement pump for what I have pictured?
Hi Bill, You have a 1 HP which looks like it is no longer available but this 1.5 HP Keyed Shaft Motor will work as a replacement for you.
Reply
I have a Hayward square flange pump (model and serial numbers illegible) to which the motor, (US Motors 1.0 hp, 56J frame, "1081 pool motor" (model # illegible) is attached, and I need to replace the motor, seal and gaskets and the black plastic part and bolts that mount onto the motor (existing one is damaged). Please advise what I need to buy. Thank you!
Hi Robert, so the seal kit options, the mounting plate, and both bolt types used on your Hayward Super Pump are listed on this Hayward Super Pump parts diagram. The seal kits are the first items listed, the mounting plate is key 14 and the bolts are listed at keys 15 and 16.
Reply
I asked questions yesterday. When can I expect an answer.? Thanks
Reply
Hi Robert, I could not track down you questions, could you please post them here on this thread. Simply click reply below and I will answer any questions you have.
Reply
What replacement motor(s) are available for the Pentair SF-N1–1A/340038, motor #196238, 1.0 HP? Thx
Hello, the correct single speed replacement motor for the motor part number 196238 is the B848 or the B854. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I am looking to replace my hayward inground pump will this model work.
Reply
Good morning Tom, thank you for choosing inyo pools. In order for us to find the correct motor, we need to know the make and model of the pump housing your motor is attached to. Please send in a picture or this info to upload@inyopools.com so we can further assist you with the correct motor.
Reply
What are your GPM flow rates on Century models B2854 and B2853?
Reply
In order to calculate flow rates, you will need to know the model of the front pump housing wet end that the motor attaches to and also the total feet of head. Once that is confirmed yo can then locate a pump curve for that particular model pump to see the flow rates.
Reply
We have a Hayward super pump part#SP1607-Z-1-M 1 HP at first just made
a humming sound and now does not run. Do you have a replacement motor for this?
Reply
Hi Steve, the correct single speed replacement motor for the motor model SP1607Z1M is the UST1102. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Hayward Century Centurion super pump that made some odd noises and stop running
Is this B2853 a good replacement- will the shaft line up properly - Or do you suggest a different model
My pump is done. Need a replacement. Is this the replacement motor i need? What seal kit also do I need?
Look to replace a motor for a pentair pump. Is this the proper replacement motor? Please recommend a seal kit as well.
Yes, this will be a correct single speed replacement motor for your part number 177474 motor.
Reply
Need this exact motor and anything else to replace my pump.
Hi Blanca, yes this is the correct replacement motor for your motor included in your photo. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Hello,
Is this the correct replacement for my motor?
Hello Arbi, actually the replacement single speed motor for your model k48l2n104 is the CT1102. We also recommend replacing the seals as well and in order to locate the correct seal kit, we will need the front pump housing wet end model name or number that the motor attaches to, to confirm that for you.
Reply
Is this motor the correct replacement for Sta-Rite Max-E-Glas II? If so, what is the O-Ring Rebuild Repair Kit ?
Hi John, the correct replacement motor for the motor included in your photo is the QC1102. You will also need a Sta-Rite Max E Glass II/ Dura Glas II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I just purchased this motor, but now need a compatible pump. I'm not sure what to look for. What do you recommend?
Reply
Hi Nancy, so there are many pumps that can be used with this motor. For us to suggest the proper pump/parts could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation.
Reply
I need to replace a century B2853 1hp motor 230/115. It went bad after only 4 months. Do i need a tune up kit for shaft seal ect? please refer me to correct one if so.
Thanks!
Reply
Hi, Could you send us a few photos of your pump? Ideally, a wide shot showing the complete pump, including where the pipe goes in and out of the pump and second close up photo of the motor label. This would help us determine the proper replacement.
Reply
My existing motor is Serial 33813ch, CAT B128, Century Centurion 1 HP Frame M56J. Is this the correct replacement motor?
Reply
Hi William, the correct replacement motor for your motor is the B128. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Looking to replace a motor for a pentair pump. Is this the proper replacement motor? Please recommend a seal kit & go kit as well.
Hi Tamela, yes, this is a suitable single speed replacement motor for the motor included in your photo. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this a direct replacement for a PHK2RA6E-102L
Reply
Hello, yes, this is the correct single speed replacement motor for the original motor on the Sta-Rite Supermax model PHK2RA6E-102L pool pump. You will also need a Sta-Rite Supermax seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Our motor is going out and think this is the correct replacement. Also what seal kit do I need for a Whisper Flow pump?
Hi John, this B853 is the correct single speed replacement motor for your original Pentair Whisperflo pump model 011772. It also recommended to replace the seals when replacing a motor. The seal kit for a chlorine swimming pool is the GOKIT32 and for a saltwater pool is the GOKIT32SALT.
Reply
Can you please tell me the Seal Kit for the pump pictured. The lid # is C3-139P
I need to replace my pump motor: AO Smith Model # K48L2N104 SN 8A04 1hp. What do you recommend?
Reply
Hi Gerardo, the correct single speed replacement motor for your motor model K48L2N104 is the CT1102. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this the correct motor replacement for my old motor? It burnt out today - 17years old.
Hi Melinda, yes this is the correct replacement motor for your motor included in the photo. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? Essentially we need to know if you have the Challenger CH or CF series pool pump. If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
What seal kit or other accessories do I need to go with this motor. See photo for what I’m replacing. Thanks.
We will need to verify what model Challenger this is, it is either the CFII or CHII series, it should confirm with a model number starting with numbers, CFII, or CHII.
Reply
I am ordering this motor from you but I don't know if I need the Tune Up kit for Challenger CFII or a different GoKit 5 or 9?
current pump: 1hp Challenger pac fab pn355458
Please check or provide a closer image of the label. There should be a model number near Challenger starting with CHII or CFII or starting with Numbers
Reply
Pump sounds like it is about to fail and appears to be leaking. Looks like they used a 1 hp motor with a 1 1/2 hp challenger. Please let me know what parts are needed to replace pump and if I need to replace with a 1 1/2 hp pump or if I can stick with the current 1 hp. Pool is not very large. Thanks!
Hi Kevin, it may be that the original contractor oversized the pump needed but that doesn't happen too often as they are licensed to calculate all variables needed. Or it may be that some equipment has been changed. Here is a guide that we put together called "How to Size a Pool Pump for Your In-Ground Pool" that will assist in calculating this.
Reply
Would this replace what I have? The amps are the only difference I see in specs....
Hi, yes this is the correct replacement motor for your motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this the pump motor I need? And what other parts or seals? Thanks!
Yes, this is the correct replacement motor for the motor included in your photo. You will also need this Jandy SHPM Shaft Seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
1) my old pump motor MOD: 5KC38SN6084AX, HP:1; V: 115/230; FR 56Z;..
your site suggest: Century 1.0 HP Square Flange 56Y,...
would 56Y fits 56Z
2) my pump model number: P2RA5E-181L of STA-RITE Industries Inc. your site show two possible GOKIT: GOKIT6, or GOKIT54. Please help pick one for me.
Reply
Hi Kevin, You will require the USQ1152 Pool Replacement Motor If you decide to replace the motor then you will need this Sta-Rite Dura Glas Seal Kit Pre 1998 or this Sta-Rite Dura Glas Seal Kit 1998 and after. If you don't know if your pump is from before or after 1998 then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998.
Reply
is the b2853 the motor I should use to replace the current motor I have. pictures attached. Also is there anything else I need to replace when replacing the motor
The correct replacement motor for your Pentair Challenger 1 HP is the B847. Here is a link to that motor... Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1We recommend getting a Go-kit that will have the recommended tune up for your pump. Here is the link to that...Tune Up Kit Pentair Challenger Pump (CHII Series) - GOKIT5
Reply
I need a pool pump motor, B2853, frame P56Y what seal kit do I need also? pictures included
The B2853 is the replacement motor for your pool pump motor in the picture.I think you have a Pentair Pinnacle 1 HP? Which if that is the case you will need GoKit24. Here is the link to that go kit...Tune Up Kit Pentair/Pacfab Pinnacle - GOKIT24
Reply
Is this the motor I need to replace the motor in my photo? Thank you, Jeff
Hello Jeff. The Magnetek Century 1.0 HP Motor, model B2853 is the correct replacement for the Magnetek Century B853.
Reply
Can you please provide me the link to the correct go kit for this pump?
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Changed the correct capacitor, but still no water flow.
Can your motor replace my existing motor? Do I need to purchase an impeller for your motor separately?
My existing pump is a "Magentek Century Centurion", model: B848, 1 HP, Switchless Motor pool and spa duty, with the following specs:
Im replacing my motor with a B2853. My pump is a Jandy PHPM1.0. Do I need anything else to make the switch. I could not find the GoKit for my pump that is mentioned on several other posts.
Reply
Hello Kerry. When replacing the motor on your Jandy PlusHP pool pump it is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced as well. These parts are available individually, there is not a GOKIT (pre-packaged tune-up kit) available for this Jandy pump. Attached please find several links that will assist in obtaining these parts for your project. Jandy Pump Shaft Seal 5/8" - R0479400 Backplate O-Ring, Generic - R0446300 9-1/2" ID, 3/16" Cross Section O-521 Diffuser/Impeller Hardware - R0446500
Reply
Thanks for your reply.
Questions:
1) Do you have the pool motor pump "Magentek Century Centurion", model: B848, 1 HP, Switchless Motor pool and spa duty?
2) Do you have its impeller, and the price?
Reply
Hello Chris. Century Centurion 1HP motor model B848 has been replaced by the Century Motors 1HP motor model B2848. The Century Motors 1HP motor model B2853 is NOT the correct replacement. The correct impeller is dependant upon the manufacturer/model of the pool pump, not the motor. If you provide that information. a recommendation can be made. Century 1.0 HP Square Flange 56Y Full Rate Motor - B2848
Reply
Please let me know what options do I have to replace my existing system, as described in the added picture.
Hello Chris. The Century Motors 1.0HP Full Rated Motor (THP 1.65) model B2848 is the direct replacement for the Century Centurion 1HP Full Rated Motor (THP 1.65) model B848. The Magnetek 1.5HP Up Rated Motor (THP 1.65) model B2854 is a compatible replacement for the Century Centurion 1HP Full Rated Motor model B848. The Century Motors V-Green THP 1.65HP Variable Speed motor is a compatible replacement for the Century Centurion 1HP Full Rated Motor model B848. Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU
Reply
Hello, I have a Marathon electric motor MOD:5KC38SN6084AX CAT: C1245. is this the correct replacement for that motor? Thank you!
Reply
Yes, this is the proper replacement for the C1245 motor.
Reply
Thank you, if I have a sta-rite MPFA6E-146L pump, which seals will I need please?
Reply
Thanks Dave, for the MPFA6E-146L pump you will require this Sta-Rite Seal Kit.
Reply
Is this the correct replacement motor for Pentair Superflow model sf-n1-1a?
Reply
Hi David, Yes this is the correct replacement motor for the Pentair Super Flo SF-N1-1A. You will also need a Pentair Super Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
From an earlier similar question this pump appears to be an exact replacement for a Pentair Superflo 1 HP with this motor (see picture) currently in place?
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Pentair Super Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Do you phone # I can call to talk live thank
Reply
Hello Richard. To communicate with an INYO Pools representative in real-time, please visit the INYO Pools website and click on the "Need Help" pop-up to open a conversation. Chat With Us
Reply
Would the B2853 be the replacement for my 1hp Centurion? Which sealing kit would I need? Thanks!
Here is the correct replacement motor for your 7-177474-01 motor is the...Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1The correct tune-up kit is the...Tune Up Kit Pentair/Pacfab Pinnacle - GOKIT24Here is the complete parts breakdown for your Pinnacle Pump...Pentair / Pac Fab Pinnacle
Reply
Where is it being shipped from ?
Reply
Motors are our priority. We want to get it out to you so your pool does not start turning Green. We typically have about a 3 business day turnaround.We have warehouses located around the country. So it will depend on where you are located. Some of the locations we have this motor in stock in are Florida, Arizona, Michigan, and Connecticut.
Reply
Is this the correct replacement motor for a Pentair Pump P/N 340038, Motor P/N 7-177474-01, Frame P56Y, 3450 RPM, 115/230V, 227T? If so do I need any other kits to replace the motor?
Hi Michael, thanks for the photos! Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Pentair Super Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello, will this replace a 1HP Pac-fab Challenger CHII? The pump motor is very old and the label isn't legible but hopefully the pictures can help.
Hello Brittani. The Magnetek Century 1.0 HP Up Rate Motor model B2853 is a compatible replacement for your Pac-Fab Challenger CHII model. Concurrent with the motor replacement, it is recommended that the motor shaft seal, seal plate gasket, and diffuser O-ring be replaced. The GOKIT5 contains these parts, the GOKIT5SALT would be recommended if you have a salt pool. Please note: the new motor should be installed with the air circulation vents pointed down (bottom side down) to help prevent water intrusion into the motor. The picture you provided of the pump shows the motor installed sideways. It should be rotated 90 degrees so that the open gap in the square flange faces down. Tune Up Kit Pentair Challenger Pump (CHII Series) - GOKIT5
Reply
DO i need anything else to put on this motor.
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Hi I have a Jandy Pro Series Flo Pro Model FHPM1.0 with a Centurion 1HP motor, Model #193985XCN. The motor seems to have burned up so I think that's all I need to replace. Is this the correct replacement motor? What else do I need? Thank you!
Yes Susan,This is the correct replacement motor for your 0-193985-04 motor. I would also recommend changing the shaft seal for your pump. The shaft seal for the Jandy FloPro is...Pump Seal, Extra Heavy Duty PS4280 (Saltwater Pools) - PS-4280
Reply
Will this fit Pentair Pinnacle 1hp?
Hello Thomas. The Magnetek Century 1.0 HP Up Rate Motor model B2853 is a compatible replacement for the Pentair Pinnacle Pump installed with the Century Centurion Motor model 177474. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. The GOKIT24 contains the necessary parts to complete this project. Tune Up Kit Pentair/Pacfab Pinnacle - GOKIT24
Reply
Is this the correct motor to replace a Centurion 168452-04 and does it come with the wiring? Also what seals would be required to complete the change.
Hello Vandy. The Magnetek Century 1.0 HP 56Y Up Rate Motor is a compatible replacement for the Centurion 168452-04. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. These parts are specific to the pump manufacturer/model and not the motor. Please provide pump manufacturer/model information and a recommendation can be made.
Reply
Is this the correct motor to Pentair SF-N2-1A/340042 (Superflo 2 speed)?
Hello Bigee. The Pentair Superflo Pool Pump Dual Speed model 340042 is rated at 1.25THP (total horsepower). The Century Motors 3/4 Full Rate (1.25THP) Dual Speed Motor model B2981 is a compatible replacement. Century 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981 The Century Motors 1.0 HP Full Rate (1.65THP) Dual Speed Motor model B2982 is also a compatible replacement. Century 1.0 HP Square Flange 56Y Dual Speed Full Rate Motor - B2982 You may wish to consider the B2982 as the better selection. It is recommended that the motor shaft seal, seal plate gasket, and diffuser gasket be replaced. The GOKIT78 contains these parts. Tune Up Kit Pentair SuperFlo/Sta-Rite SuperMax - GOKIT78
Reply
Will this motor replace pentair wf-24 pn #011772
Reply
Hello Ron. The Magnetek Century Up Rate Motor model B2853 is the direct replacement for the Pentair motor model 011772. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT32 contains the necessary parts to complete this project. Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
Will this motor replace Century 7-F56AA11A04-04?
Hello Brent. The Century Motors 1.0 Hp Up Rate Motor model B2853 is a compatible replacement motor for the Century Motor model 7-F56AA11A04-04.
Reply
Will this replace Pentair Model No: / Part No CFII-N1-1A/343233?
Thank you for contacting Inyo Pools, Yes motor Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is the correct replacement.
Reply
looking for a 1hp pump to replace the one i have this one is not at exact Part# and Flange # match will it work?
Part# F56AC20A01 Frame# Y56Y
Regards
Tony
Reply
Hello Tony. The Century Motors 1.0 HP Full Rate Motor model B2848 more closely adheres to the specification of the motor model F56AC20A01. Century 1.0 HP Square Flange 56Y Full Rate Motor - B2848 The Magnetek Century Motor model B2853 technically will fit (square flange) but the motor total horsepower is less than the F56AC20A01 which, in the long term, can be problematic. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. These parts are specific to the pump model. Please provide pump model information and a recommendation can be made.
Reply
My Pentair whisperflow (almond color) 1 hp that has been discontinued. New number is 001513,disc. , new new # 011527. disc. , new new new # 355010s. Tadaah!
This 355010s 1 hp /1.65 . Single speed is out of stock. Just the motor needs replaced.
QUESTION - will this motor work ?
Reply
Hello Mike. The Century Motors 1.0 HP Full Rate Motor model B2848 is the better replacement option for your Pentair Whisperflo Pool Pump. The total horsepower of the B2848 is 1.65 HP, matching that of the lineage 001513-255010s. Century 1.0 HP Square Flange 56Y Full Rate Motor - B2848 It is recommended that the motor shaft seal, seal plate gasket and diffuser o-ring be replaced concurrent with the new motor. The GOKIT32 contains the parts necessary to complete this project. GOKIT32
Reply
I have a Pentair spa pump that has a century B2853 motor that has a short in it. Reading some of your answers causes me to wonder if the B2848 wouldn’t be a better motor, however I do not have any information about the pump rating other than what i see on the motor (just bought house, no existing files available). It is only used to circulate the spa and is roughly 10 years old.
Hello Stephen. The Spa Pump in the photo is a Pentair Whisperflo. Attached please find an exploded parts diagram for the Whisperflo. Pentair Whisperflo Pump The Century Motors B2853 is a 1.0 HP Up Rate Motor, THP 1.25 HP. The Century Motors B2854 is a 1.5 HP Up Rate Motor, THP 1.65HP. The 0.40 increase in THP may improve the motor lifespan - do not change the pump's impeller. The increase in THP will result in an increase in electricity consumption, 16.0 amps vs 11.4 amps @ 230V. The GOKIT32 contains the necessary parts to complete the motor change. GOKIT32 Either motor will serve the purpose.
Reply
i HAVE A PENTAIR Pentair 340038 SuperFlo High Performance Single Speed Pool Pump, 1 Horsepower, 115/230 Volt, 1 Phase THAT I AM TRYING TO REPLACE THE MOTOR ON, WILL THIS WORK? THEIR OTHER REPLACEMENT MOTOR IS A
355010S - BOTH ARE SQUARE FLANGE 230V.... ALSO NEED THE REPLACEMENT SEAL KIT.
Reply
Hello. The Pentair SuperFlo Pool Pump model 340038 was manufactured with a 1.0 HP motor with a Service factor (SF) of 1.25, for a total horsepower (THP) of 1.25 HP = Up Rate. The Century Motors 1.0 Up Rate Motor model B2853 is the direct replacement. The Century Motors 1.0 HP Full Rate motor model B2848 (3550105) is a compatible replacement with a THP of 1.65 HP. Technically the B2848 with a 0.4 HP increase is a replacement option. The B2848 will not increase water flow (unless the impeller is changed). The GOKIT78 contains the necessary parts to complete the motor replacement. GOKIT78
Reply
Will this work with Jandy FloPRO 1hp pump?
Hi Rick, the Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 will be perfect for your Jandy FloPro pump. We recommend ordering a new Jandy Pump Shaft Seal 5/8" - R0479400 when replacing the motor.
Reply
What variable speed pump would you recommend to replace this pump? I've attached pictures of my set up.
Hello Brad. The PureLine Prime VS variable speed pool pump 1.65 THP (total horsepower) model PL2705 would be an excellent replacement for your Pentair Dura-Glas 1.25 THP single speed pump. PureLine Prime VS - Variable Speed Pool Pump 1.65 HP - PL2705 Plumbing Unions are included to facilitate any required plumbing modifications.
Reply
I have a pentair motor 177474 also another number is 075252
will this part B2853 REPLACE THAT MOTOR
Reply
Hello Ronnie. The Century Motors Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is a compatible replacement motor for the Pentair Motor 177474.
Reply
I have a Pentair Whisperflo manufactured in 2010 with a WFDS-24 1 HP motor that has failed and needs to be replaced. I don't think I need the dual speed motor since I rarely used the lower speed. Can you verify the correct replacement motor for this? My current motor does have a left hand screw that threads into the inside of the motor shaft that secures the impeller. Can you verify the motor choices? I do not think I need a Pentair brand motor, just one that fits.
Hello Tim. The Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 or the Century 1.0 HP Square Flange Up Rate EE Motor - B863SE would be compatible single-speed motor replacements for the Pentair Whisperflo WFDS-24. The Energy Efficient B863SE $15.00 cost differential is recouped in roughly 90 days, and operational savings are realized thereafter. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the seals and gaskets necessary to complete the motor change.
Reply
I NEED A POOL MOTOR
I have a OS SMITH B2853 Right now in the pool
Would this brand Century work in place of the Century
Reply
Hello Robert. The Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is a compatible replacement for the A. O. Smith B2853. Regal Rexnord, the parent company of Century Motors/A.O. Smith, continues to market motors under those names as well as Centurion, Magnetek, and Marathon due to their individual brand name recognition.
Reply
Is this the correct motor for Jandy FHPM1.0? Motor P/N 0-193985-04, Serial 11418CH
Reply
Hello Brooks. The Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is the correct motor replacement for the motor model 0-193985-04, Jandy FloPro FHPM Series Pump. The Jandy Pump Shaft Seal Backplate O-ring Diffuser O-ring should be replaced concurrent with the new motor. Attached please find the Jandy FloPro FHPM Series Pump (2008-Present) exploded parts diagram for reference.
Reply
Is this motor a direct replacement for a Pentair 346204? Please also see attached photo. If so is the GOKIT5 the correct seal kit required?
Hello. The Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is a compatible replacement for the Pentair Motor 196249 on the Pentair Challenger Pool Pump model CHII-N1-1A/346204. The Pentair Challenger Pump Tune Up Kit (CHII Series) - GOKIT5 contains the necessary part to complete the motor replacement on the Challenger CHII-N1-1A.
Reply
My pool pump is a Magnetek WFE-24C . It is 1 HP. It is original at 22 years old and went out this morning. What is the direct replacement for this motor with new seal kit? Thanks!
Reply
Hello Kurt. The Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is a compatible motor replacement for the Pentair WhisperFlo model WFE-24C. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the seals and gaskets necessary for the new motor installation. Attached please find the Pentair Whisperflo Pump exploded parts diagram for reference.
Reply
Is this compatable with what we have the WF24 part number 011772 and what do we need to go with it? Thank you!
Reply
Hello Lisa. The Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 is a compatible replacement motor for the Pentair WhisperFlo Pool Pump Model WF24, 011772. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the necessary parts to complete the new motor installation. Attached please find the Pentair Whisperflo Pump exploded parts diagram for additional reference.
Reply
Hi, I have a Marathon Motor (MOD 5KC38SN6084AX) connected to a Sta-Rite Pump (Model#: P4RA6F-187L). Will this motor work as a direct replacement for it and if so, what is the correct seal kit # for the pump? Thank you.
Reply
I am needing to replace the attached motor. Is this motor compatible, along with necessary parts to complete job?
Hello Kent, yes this is the correct replacement motor for your motor model. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "How To Replace A Pentair Whisperflo Pump Motor" general guide that should assist with that. Your complete pump seal kit is the GOKIT78.
Reply
I need to replace my motor, I can used this.
Hi Benito, the correct motor replacement for your motor model sp3210z1be is the 5112-254. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
I have a 1.25 hp power motor for my jacuzzi. Can the Century 1.0 hp square flange up rate motor---B2853 be a gooed replacement?
Reply
Hello Victor, so this will actually depend on the specific motor model or part number that you currently have. Here is our "How To Choose The Right Replacement Pool Pump Motor" guide that should assist you with that.
Reply
can i use this motor to replace the PL2853 motor that is backordered?
Reply
Hello Tony, yes you can use this model motor as an option to replace the PL2853. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with locating those.
Reply
