I have a Hayward Supper II single speed 1 1/2 HP pump. What do I need to consider to replace the single speed motor with a dual speed motor?
Reply

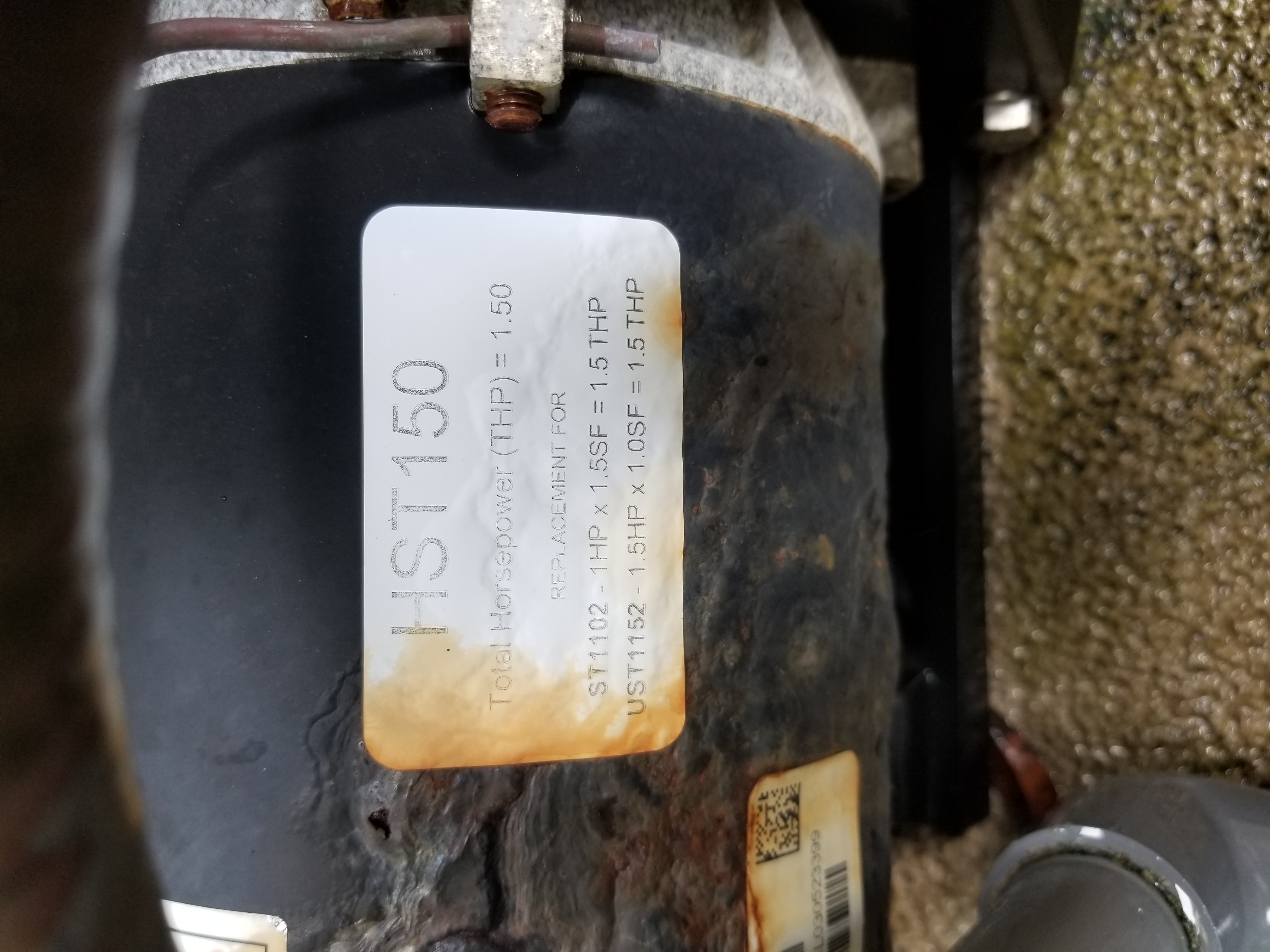

Check the SF on the old and new motor. The product of the SF and HP has to match. If your old motor has a SF of 1.0, its actual HP is 1.5 (1.5 HP x 1.0 SF). If that's true you should replace it with 1 HP dual speed motor (STS1102). With a SF of 1.5, its actual HP is 1.5 (1.0 HP x 1.5 SF). Also be aware that you will have to buy a hi/lo switch. It is not provided with the motor.
Reply
My pool pump motor makes a humming noise when I try to start it. Will replacing the motor fix my problem?
Reply
Will the AO Smith UCT1152 cost less to run than the UST1152?
Reply
Yes, the UCT1152 will cost less to operate compared to the standard UST1152. Depending on how the motor is cared for, it should last several years. When replacing the motor, I would recommend buying a tune up kit based on your pump model and age.
Reply
Trying to replace Emmerson pool pump motor EUST1152, what motor should I purchase to replace this 1.5 hp motor?
Reply
I would sugget this Ao Smith / Century brand motor here which is a direct replacement for the Emerson EUST1152 motor.
Reply
I want to upgrade my Hayward Super Pump motor from 1 hp to 1 1/2 hp. Will the UST1152 replacement motor fit the SP2607X10 1hp pool pump?
Reply
Yes, the UST1152 would be the correct 1.5HP motor for the Super Pump. If you upgrade the motor, you will need to upgrade the impeller. Part number SPX2610C (5110-10DA) would be the correct impeller for the 1.5HP Super Pump.
Reply
My current motor is a 1.5 hp model K48m2n123. Can I use this(C48L2N134) or do I need to replace it with UST1202. Also do I need any additional parts?
Reply
Hello Joe - You would not want to use the C48L2N134. Your current impeller is too heavy for the C48L2N134. The UST1202 would be the correct replacement motor. We would recommend replacing the shaft seal and o-rings. The UST1202 is used on several pumps. You will need to determine the make and model of your pump. Once you have determined the make and model you can find the replacement parts on our Pump Parts page.
Reply
Will this pump be the replacement for a C48L2N134B3? I see it listed below but want to make sure. If so what is the deal with the different numbers?
Reply
Yes that is correct. This motor UST1152 is the replacement for the C48L2N134B3 you had mentioned.
Reply
My pump was leaking so I replaced all the seals but it still leaks. The shaft was pitted from the corrosion would that be the cause of the continued leaking? If it is then does the motor have to be replaced?
Reply
MIke - A severely pitted shaft could cause the motor to leak. If it's not the seals or seal plate, it could be the damaged motor shaft.
Reply
Is a new pump seal included with the motor?
Reply
I see that this is the replacement motor for my C48L2N134B1. Now, I just read an entry where a gent asked if the replace motor came with a replace "seal" and the answer was "no". For my motor, does you replace come with one or is a seal even necessary, I don't know? Is it highly recommended? Or is it a Must. And if not included in your Motor, and needed, the Part # and do you carry, is it in stock, and your price? Thanks!
Reply
Seals do not come with any replacement motors. Replacing the shaft seal is highly recommended. Lastly we would need the model of the rest of the front plastic model of the pump that the motor mounts to in order to locate the part number and price of the seal.
Reply

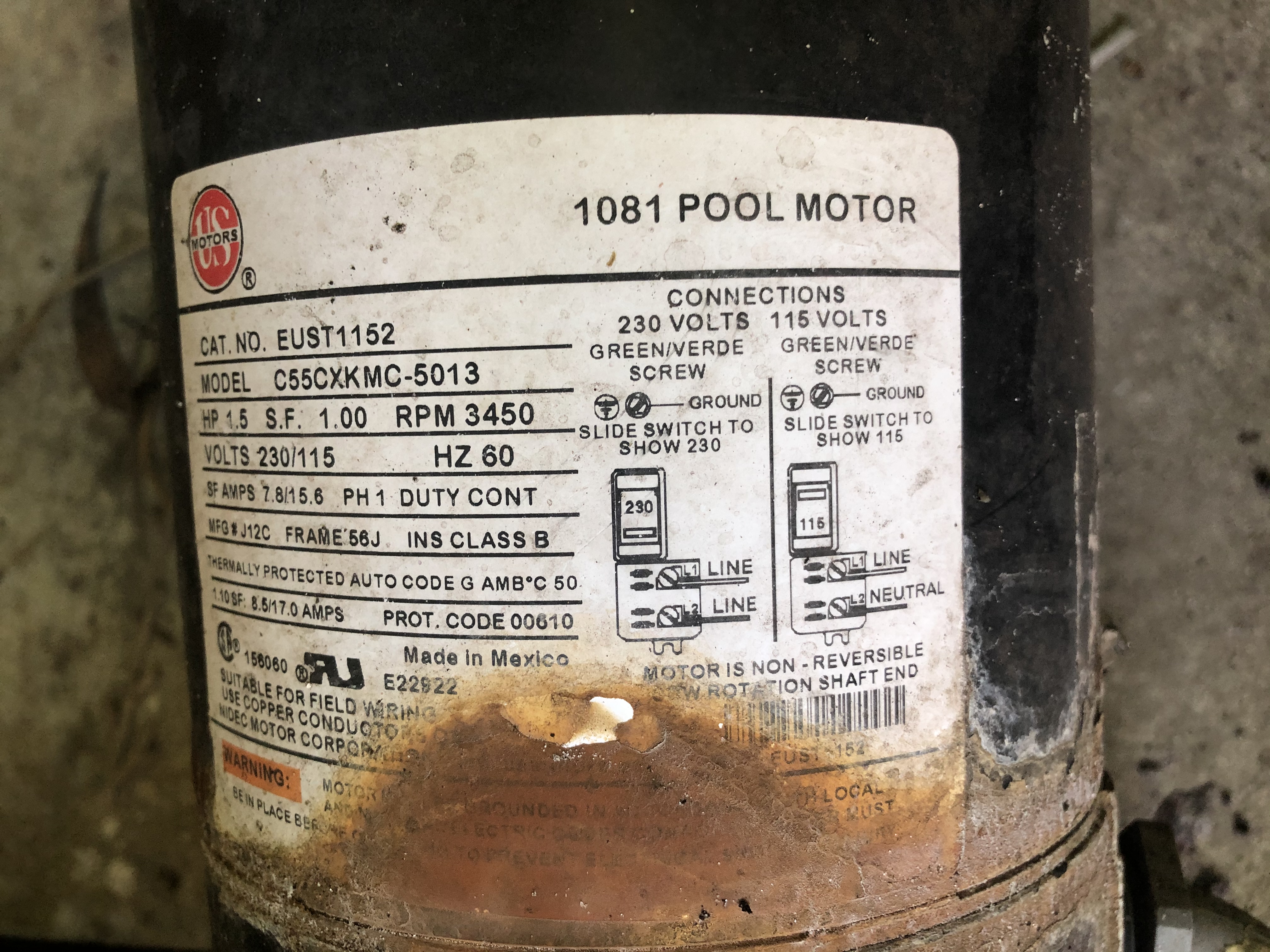

I currently have the following motor--- Catalog Number: EUST1152 Model: C055KMC5013013J is the supper pump compatible? do you also have the seal kit.(tune up kit}
Reply
Hi Tim, Yes this would be the direct replacement for the EUST1152. We do carry the seals but we would need to know the model of your pump to let you know which seal you need. The most popular pump that this motor goes onto is the Hayward Super Pump.
Reply
I installed a new 1 1/2 hp pump over the weekend.
Yesterday evening the pump stopped pumping water but the motor was still running just fine.
I believe the impeller must have fallen off. Is there a tightening spec for how tight to screw on the impeller?
Reply
Steven, The impeller is threaded onto the shaft. The impeller should be threaded on hand tight. Overtightening will cause damage to the motor and impeller.
Reply

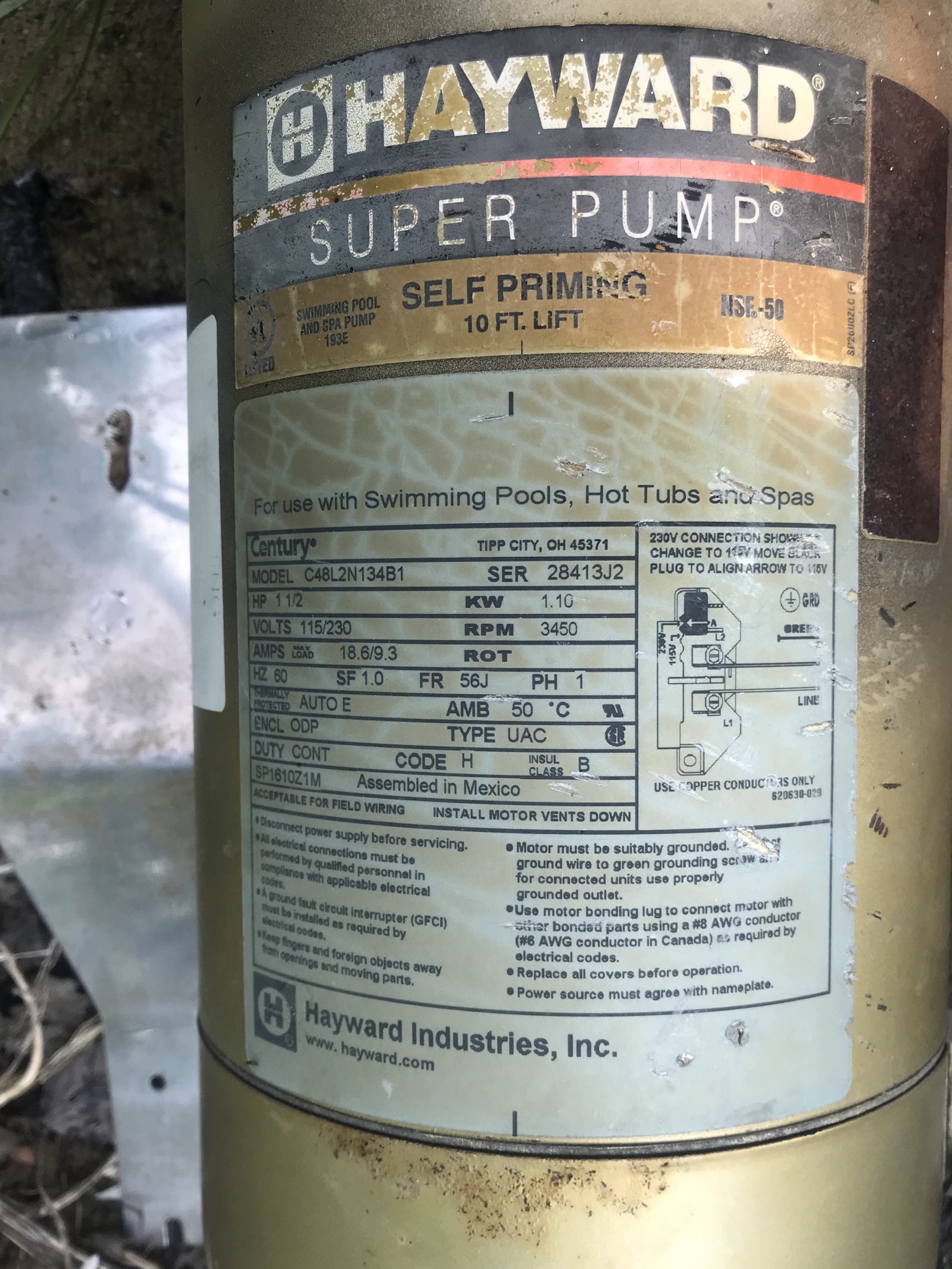

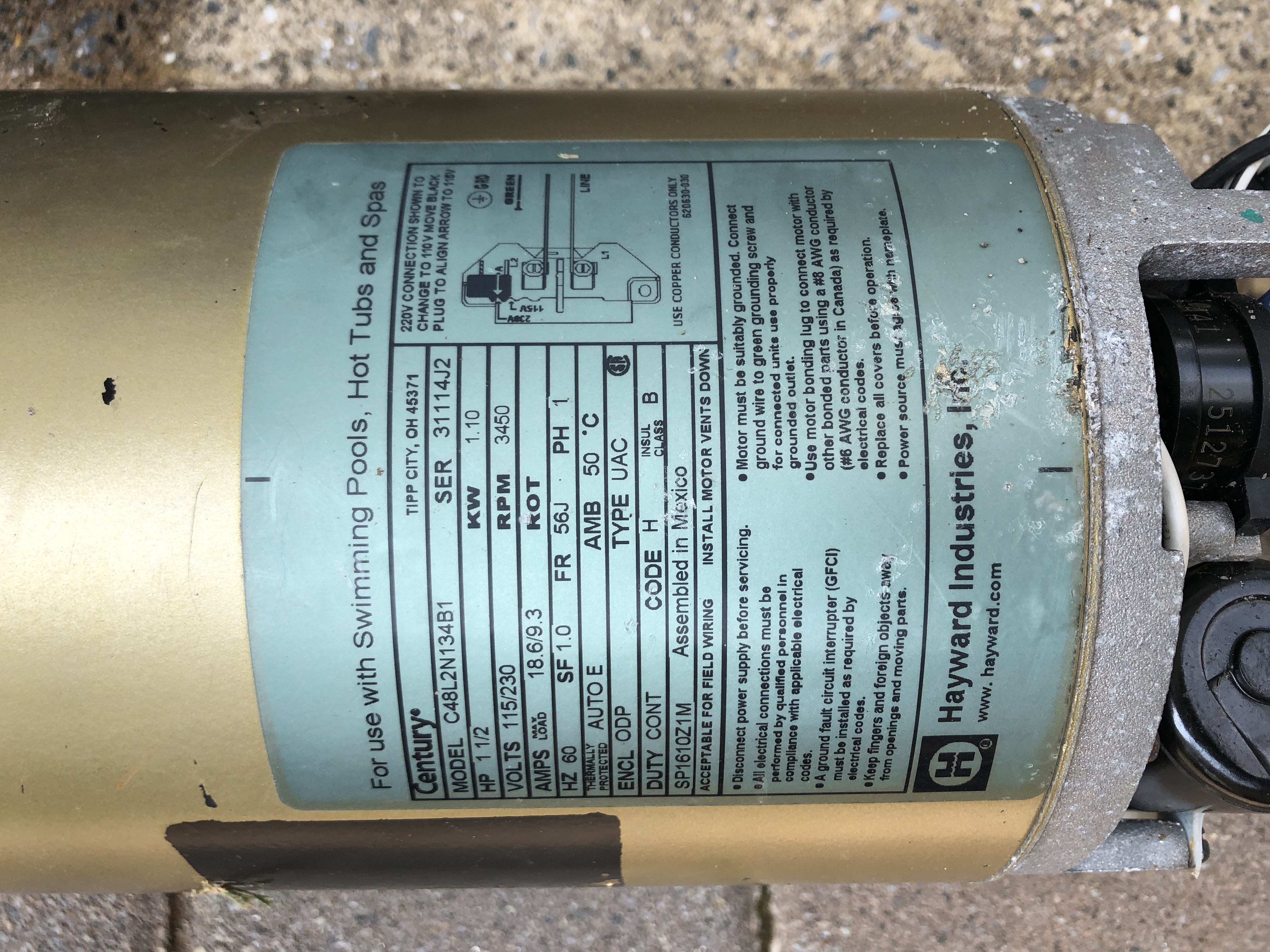

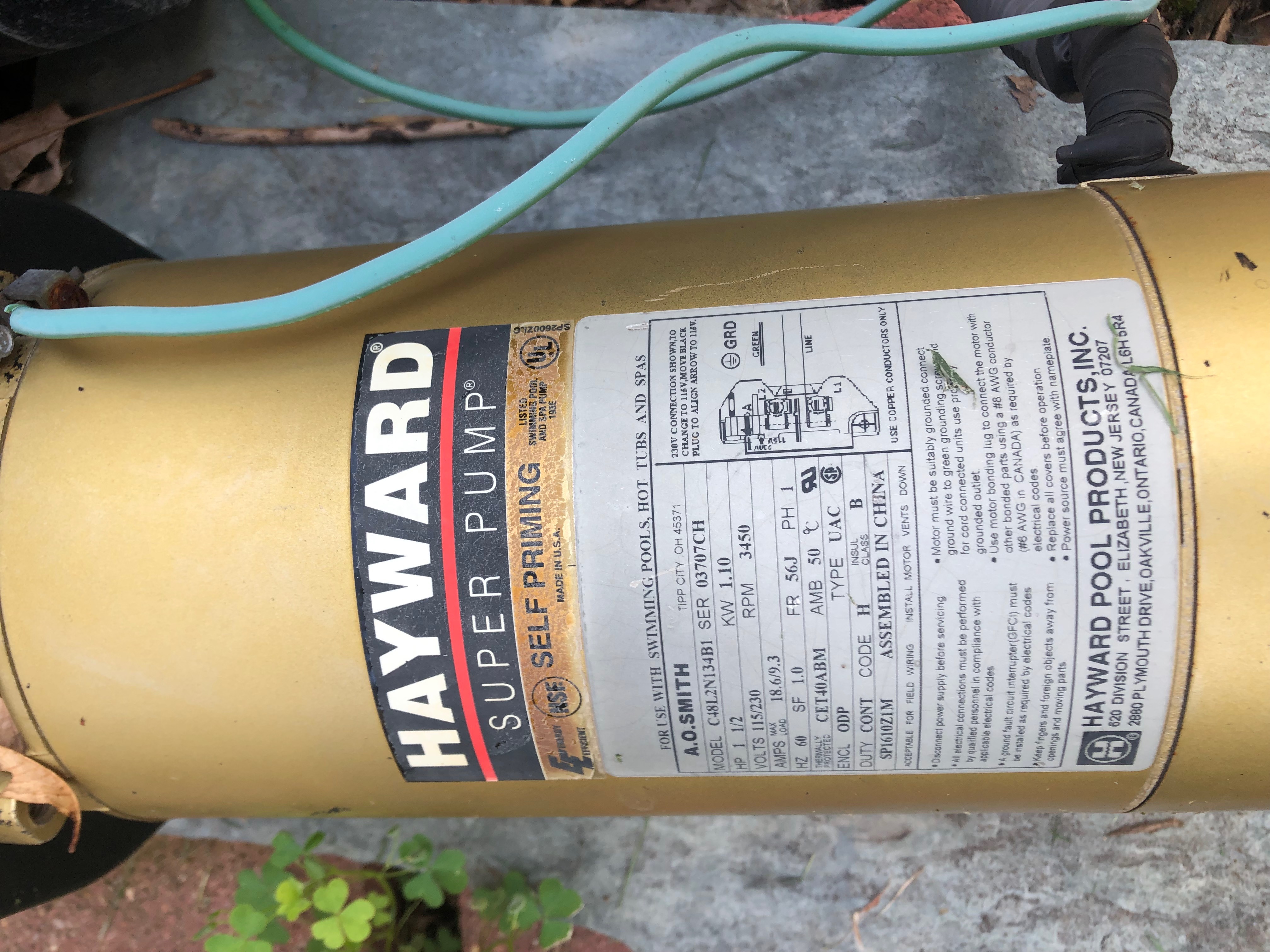

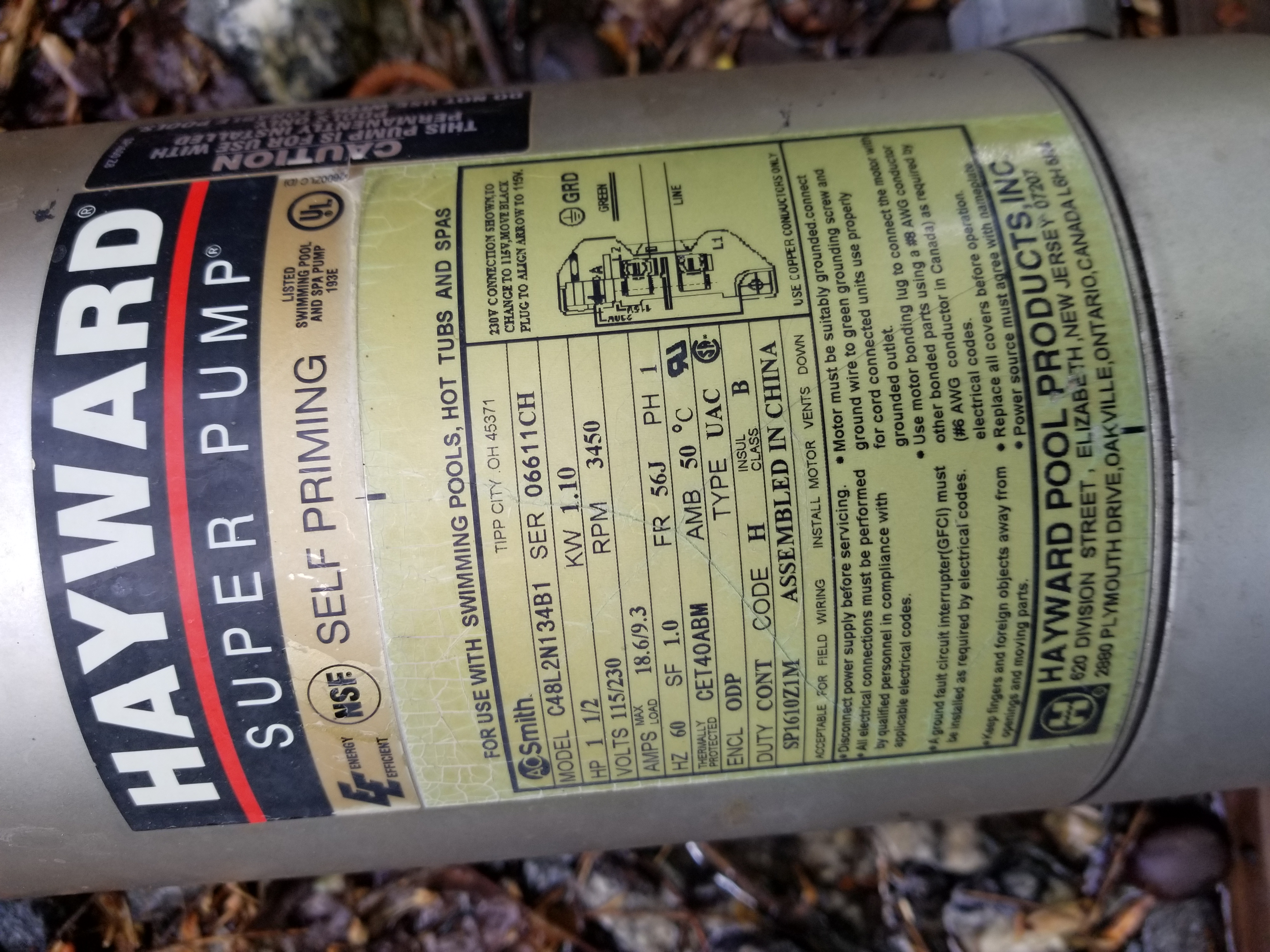

I have a Hayward super pump sp1610z1m model C48L2N134B1 1.5 Horsepower
Ser 19611CH I need the motor replaced but can not find the exact one. Do you have it.
Reply
Phillip, The correct replacement motor for your Hayward Super Pump would be the UST1152. Tune Up Kit Hayward Super Pump
Reply
When you buy a motor do you get new seals?
Reply
Hello Wally - The seals are not included with the motor. The reason for this is that the motor is used on several pumps and each pump takes different seals. You can go to our Pool Pump Parts page to find the correct seals.
Reply

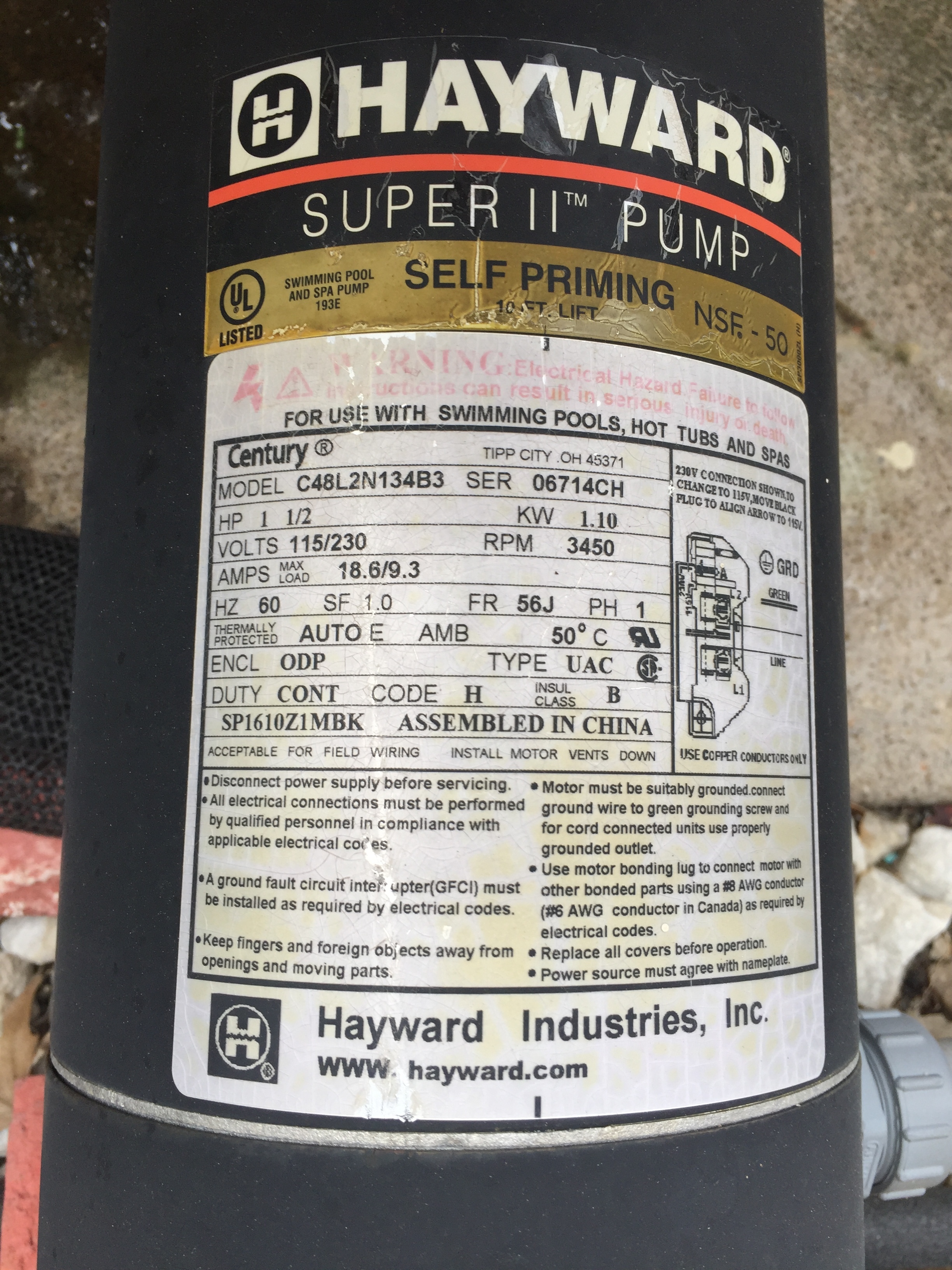

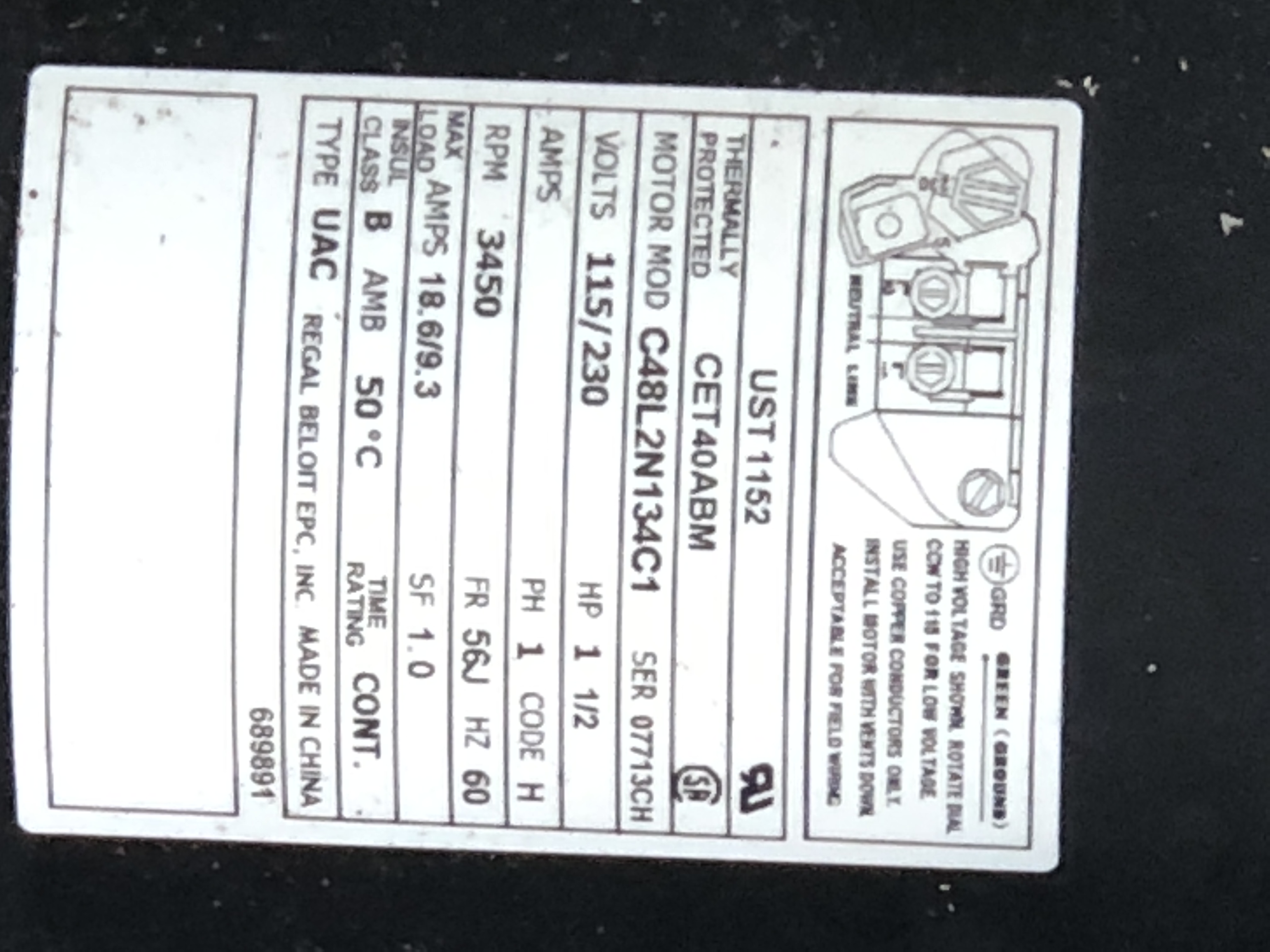

My pump has a amp rating of 18.6 Model #C48L2N134B1 Hayward Super Pump. Do you have a more energy efficient motor? If yes provide model number.
Reply
I need a replacement motor for (Leslie's) Hayward HYDRAMAX II with motor part number 10.182261,04 Fr P56J voltage of 208-230/115. Is it this one?
Reply
Tim, The replacement motor for the Hayward HYDRAMAX II with p/n 10-182261-04 is B796 and the shaft seal.
Reply

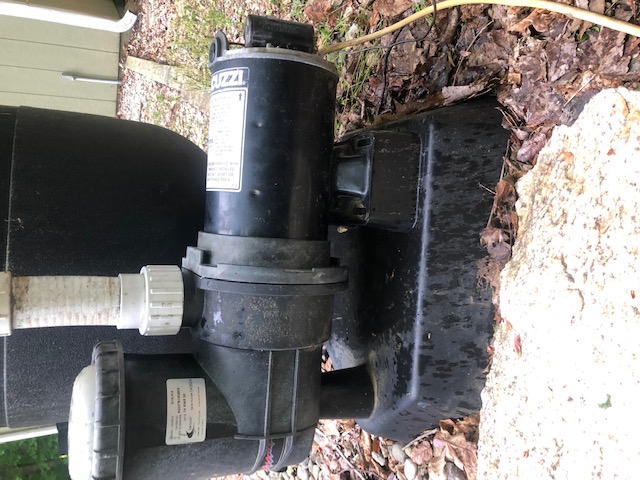

Looking for a NEW motor for my Magnum Plus Jacuzzi Pump, 1-1/2 hp. Are your motors new.
Would also want to replace impeller, diffuser, and what ever else you suggest.
Reply
Hi Rich, Yes our motors are new and I would suggest a Jacuzzi Magnum Tune Up Kit if you there are no visible signs of damage on your impeller or diffuser then these parts would not need to be replaced. If you do need to replace these parts then you can view our Jacuzzi Magnum Impeller and Diffuser Guide to help you determine the proper replacements for your pump, or you may view the Jacuzzi Magnume Exploded Parts Diagram.
Reply
Are the bearings serviceable?
Reply
Yes the bearings on this motor can be replaced. The UST1152 motor uses Two of The 6203 Bearings.
Reply
I need the wiring diagram as soon as possible for this pump motor my electrician is unfamiliar and does not want to make a mistake and wiring the pumpThe three wires coming out of my pool or black green and white please answer the question referring to only the black and white wires which terminals would he connect them to thank you David Bendik email ocean 6534@aol.com
Reply
David, Here's a video on How To Wire A Pool Pump.
Reply
will this pump replace a 1 HP Hayward SP1607 Z 1 M?
Reply
The A.O. Smith 1.5 HP Round Flange Up Rate Motor can replace your 1HP Hayward SP1607Z1M motor. You will need to change the impeller and recommend getting a Tune Up Kit. Reply with the model number of your pump housing and I can get you the correct impeller and tune up kit.
Reply
I want to replace my Haywood Super Pump motor, Model C48L2N134B1, UST1152. If I've never done this before, but good at fixing things, would you recommend attempting to do it? Also, if my motor runs but does not draw water into filter, when shutting down there's hum noise, is this a motor issue, or a impeller issue? Not sure what I actually need?
Reply
Hi Susan, It will be best to take off the motor and inspect the impeller. There could be a cracked impeller or a clog on that unit. If the motor is humming they it could also be on the way out. We have some how to's to help you trouble shoot this issues. Troubleshoot Motor Install motor
Reply
I have a Hayward Pump (SP2615X20) with a Emerson motor (EB796), Cover (SP2600B), Impeller (unknown P/N), Seal plate (SP 2600E5), Motor Plate ( (SP1600F3). I need a new motor (UST 1152), seal and impeller - what parts do I need? What about if I step up to a 2 HP motor (UST 1202)?
Reply
Hi Doug, Your Emerson EB796 motor is a 1-1/2 HP Full Rate Motor which is equivalent to the Up Rated 2 HP UST1202 Motor so you would need the UST1202 2 HP motor. The part # of SP2615X20 indicates that your pump is a 2 HP uprated pump so at some point your motor must have been replaced with a 1-1/2 HP full rate motor which is not a big deal since it is the exact same as a 2 HP uprate motor. For your motor replacement I would suggest the Hayward Super Pump Tune Up Kit which includes all the seals and gaskets for your pump. I would also suggest the 2 HP Up Rated Hayward Super Pump Impeller. The ordering of the Motor, Tune Up Kit and Impeller should get you all squared away.
Reply
Hi. I have a Hayward Super Pump (self priming with an A.O. Smith 1&1/2hp). The motor appears to be dead - it's model # is C48L2N134B1 (and it's only 3 years old). The one in your ad for $164.99 has almost the same #, but ends in C1, instead of B1. Is it the same unit? If not, what is the difference? Also, are your units new or rebuilt? Thanks.
Reply
Hi Mario, yes this is the correct replacement for your C48L2N134B1 motor. When replacing your motor we would suggest a Hayward Super Pump Tune Up Kit. This motor is new and not rebuilt.
Reply
I currently have a magnum jacuzzi 1 1/2 HP model c4822n134c1 that needs to be replaced. What pump do you recommend or do you have one?
Reply
Hi Mark, If you are wanting to replace your entire pump then I would suggest the 1-1/2 HP Jacuzzi Magnum Pump. Another option would be to replace the motor on your current pump. If you went this route then you would need the motor listed on this page as well as a Jacuzzi Magnum Tune-Up Kit.
Reply
I have a salt pool and a Hayward pump model SP2607X10 with a 1 HP motor. The motor will not turn and I would like to replace it with this motor. Will it fit the pump and what else do I need to complete the installation? (Seals, gaskets, etc.)
Reply
John- The sp2607x10 is a 1 HP pump which would require a UST1102 . If you decide to go up in horsepower you would need to change your impeller to a SPX2610C (5110-10a). I would also recommend changing the shaft seal which is part SPX1600Z2 or getting the tuneup kit GOKIT3.
Reply
Looking for a replacement motor. The tag on my motor reads c48l2n136. What would be a good energy efficient motor for this? Thanks
Reply
Hi Dennis, This would be the correct replacment motor for your c48l2n136 motor.
Reply
my pump is jacuzzi magnum 1.5hp: 8-184949-22 cx. screws (4) are on an approximate distance of 15cm (~5.9") across from each other. shaft length is approx 65mm (~2.5") w thread length of 18mm, shaft diameter about 16mm. it is connected to 230v ac, 1.5 hp speed 3450. is this a good replacement? if yes, does it come with 4 big screws or could you provide them for me (will have to cut of existing to release pump bracket). thanks
Reply
Based off of the p/n 8-184949-22 you have a 1hp Full Rated EE Thrd Motor B654, the mounting plate Bolt (3/8-16X 7/8 SS) is what you'll need.
Reply
so, would it be a problem if i replace 1.5hp motor with 1hp b654? thx
Reply
This would not be a problem but you would also need to replace your impeller to a 1 HP impeller. If you email us your pump information then we could suggest the correct parts for you.
Reply
Will the A.O.Smith 1.5H P Part UST1152 Fit my Hayward Superpump HP1 Model- SP2607X10
Reply
Hi Bill the UST1152 would not work on your pump, you would need the A.O Smith 1 HP UST1102 Motor.
Reply
how do you remove the old motor from the pump
Reply
Hi Guy, Our Video on How to Replace a Pool Motor goes into detail on how to remove the old motor from your pool pump. The video should cover everything you need but if not then please let us know.
Reply
Do I need anything to use this pump in a saltwater pool? Do I need anything to install to my existing super pump base? Thank you
Reply
Rick, I would recommend replacing the shaft seal and o-rings when replacing the motor, you can find all the items needed in the Hayward Super Pump Tune Up Kit.
Reply
I have a 2 to 4 year old 1 1/2 Hayward Super Pump with an A. O. Smith motor model C48L2N134131 . I need both bearings for that motor. One is bad and I don't know which, so I need both. I don't want to tear it down yet and can use it for short times. Another code # on the motor is SP1610Z1M
Reply
Hi Jerry, The part number for both the front and back bearings for a UST1152 motor is 604005-001.
Reply
I have this pump and need to replace the start capacitor. It has been replaced once before but I think the replacement capacitor was the wrong one. Do you have the mfd rating for the original capacitor?
Reply
Hi John,We show 610807-002 for the start capacitor on UST1152.
Reply
I have a C48L2N134B1 1.5HP and I was told I need to replce the capacitor because the motor is smoking. Is there more than one and what would be the part #?
Reply
There is just one capacitor on this motor which is the 610807-002 Start Capacitor.
Reply
My C48l2N134B1 1.5 HP pump is operating on 230VAC. The replacement capacitor listed for it is a 161-193 (BC-161) 110-125VAC. Is this the correct capacitor with the difference between the motor operating voltage and the listed capacitor voltage?
Reply
The 161-193MFD 110-125VAC Start Capacitor (BC-161) would be the correct capacitor for the A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134).
Reply
I just bought this motor and I notice it's very hot. Why is it getting too hot? The ventilation ports are no obstructed at all
Reply
Ramon, You may want to check the wiring, make sure that you have the correct voltage and make sure that the wires aren't in contact with each other.
Reply
I would like to replace the motor (only) on a Hayward Super Pump. The current motor is 1hp. Can I use the A.O. Smith 1.5 hp motor as a replacement. Thanks in advance.
Reply
Yes you can use a 1.5 hp motor but would need to change the impeller if you have a 1 hp uprated model. You also would need to confirm that the filter model that you have is compatible to accept the extra water pressure.
Reply
I have a C48L2N134B1 1-1/2 HP Hayward motor what motor replaces this ? One that comes up is a C1, what's the difference?
Reply
Hi Tony, this would be the correct motor for you as there is no difference between C48L2N134B1 and C48L2N134C1 I bleive the B1 and C1 references the lot the motor was manufactured in. So this UST1152 motor on this page is the correct motor for you.
Reply
I have a A.O Smith pool pump motor model # S48C51Z03. I am looking for one that water floes out the side and connects to a cartridge filter. All the ones I am seeing water come out the top. I have a shut off valve that fits right between the motor and the cartridge tank.
Reply
Jerry, The p/n S48C51Z03 is for the replacement motor which can be used n several different pumps. You can use the Jacuzzi SLR9 1 HP Pump Above Ground Horizontal Discharge (94022430) or the Hayward Matrix Pool Pump 1 HP which has the capability to rotate the discharge.
Reply
My Hayward Super Pump 1 1/2 hp just stopped working over the weekend. It was running and just stopped. Upon investigation the breaker was tripped, hoping it was just the storms that were in the area a reset it, unfortunately it tripped again almost immediately. I checked to see if the motor had seized up, I was able to turn it with my fingers, so it's not seized up. Any ideas? Capacitor? If you think it's the capacitor do you sell that? I didn't see it listed on the part break down.
Reply
Scott - It may well be the start capacitor especially if you can hear it humming while it is attempting to start. Or it may have failed all together. The start capacitor for the UST1152 motor is 5270-14. Please note that capacitors store an electric charge and should be handled with the utmost caution and care. See our guide on "How To Replace a Pool Pump Capacitor" for more information.
Reply
Have a Proline pool pump SK P711-15H 1.5hp model# PE71-II-H I'm looking for replacement motor. Would this one work
Reply
Hi Sonnie, The replacement motor for you PE71-II-H would be the 1 H.P 115V Thru Bolt Motor (BN25). I would also recommend replace the Shaft Seal Assy (2920060603), you can find other replacement part for you pump via the Speck Model E-71 Pump Parts Diagram.
Reply
do you know the difference between the Hayward SPX3015C and 3016C 1-1/2-Horsepower Impeller Replacement for Hayward Super II Pump? Thanks, John
Reply
The SPX3015C is the impeller for the 1.5 hp full rate models manufactured after 1988 or the 2 hp uprate models manufactured between 1988-1989. The SPX3016C is the impeller for the 1.5 hp full rate models after 1990 or the 2 hp uprate models after 1990.
Reply
I would like to replace this motor with a variable speed motor. Can I just swap them out or will I need to change the pump? Also do you have a model number for the variable speed motor I would need to replace this?
Reply
Can I replace the AO Smith 2hp motor with a 1.5 on a hayward super pump?
Reply
This will depend on whether you have a square or round flange, the total horse power of the two, and the diffuser/impeller models. You would need to gather the specific motor models and part numbers to confirm compatibility.
Reply
My A.O. Smith sprinkler pump motor is model C48L2EC11..What is the
capacitor required. My capacitor is black, 1.5 in. diam. and 2.75 high.
Identification label is essentially gone.
Reply
The capacitor you will need is the Capacitor, MFD 161-193 (BC-161) 110-125VAC PART#5270-14
Reply
I want to change my motor 5KCR39SN2823AX Marathon electric but on your website i can see that it is unavailable. My question is what other motor would be compatible that I can purchase since the one i need is avaiable?
Reply
I need to replace a Hayward Super Pump (A.O. Smith), SP1610Z1M, 1.5HP, frame 56J, and use a salt water chlorinator. What pump motor and seal kit do I need? Are your seal kits manufactured by Hayward?
Reply
HI Hal, You would need the Hayward Super Pump Saltwater Tune Up Kit (GOKIT3SALT). The seal kit is not manufactured by Hayward.
Reply
I have this Hayward super pump (A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134b1)). I need a new starting capacitor for it. I'd rather not take it apart again to look at the capacitor to get a new one if I don't have to. Do you know what capacitor is used in this motor? Thank you very much for your help.
Reply
The correct capacitor replacement for the UST1152 motor is a BC-161 with an MFD rating of 161-193. For help on replacing a pool pump motor capacitor read our guide: How To Replace a Pool Pump Capacitor
Reply
I need to replace a Hayward Super Pump motor (A.O. Smith), SP1610Z1M, 1.5HP, frame 56J. Is this the correct pump motor?
Reply
Hi Hal, The A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) will be the correct motor based on the part number you provided for your Hayward Super Pump. I would also recommend getting the Hayward Super Pump Tune Up Kit (GOKIT3).
Reply
Does this motor replace mine I have a sp1610z1m & does it work on 230 amps.
Reply
Hi Mark, The A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) will replace your SP1610Z1M motor and it can be wired for 230 volts.
Reply
I need to replace a Hayward Super Pump (A. O. Smith) 1 1/2 HP pool motor. Model # C48L2N134B1; 115/230 volts; FR 56J. Is this the motor I need? And how can I tell if the motor I'm replacing has a round or square flange? Will I need to replace any seals or gaskets? I have a salt water chlorinator on my pool.
Reply
Your motor is indeed a round flange and the seal kit recommended to use is a gokit3salt.
Reply
I have a Pro line SKP712-2V model # PE71 111 V Pump and need a new motor, What motor should I get and will I need a new seal
Reply
Hi Pat, The 1.5 H.P 230/115V Thru Bolt Motor (BN35, BN35SS, BN35V1) would be the correct replacement motor for your PE71-III Pump. You would need to replace the shaft seal and o-rings which can be found via the Speck Model E-71 Pump Parts.
Reply
Can I replace a 1.0 hp motor for the jacuzzi magnum with a 1.5 hp motor
Replace UST1102 with the UST1152?
Reply
Yes you would able to. However please make sure you have 05380209R stamped on your impeller, on your housing seal 02139301r000, and 06015705r000 on your Diffuser.
Reply
I have Hayward Pool Pump Model No SP3010X154Z. Which Motor should I buy? The existing A.O Smith motor model is P48L2N134B3. It is 1.5 HP motor. It has stopped working.
Reply
Hi Bala, I was not able to locate a Hayward pool pump with the model # SP3010X154Z but there is a SP3010X15AZ which would used the A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) motor. You will also need the Hayward Super II Tune Up Kit.
Reply
WHICH MOTOR WILL REPLACE SP-1540-Z-1B
Reply
Hi Jesus, The 1 H.P 115V Thru Bolt Motor (BN25) would be the replacement for the SP-1540-Z-1B motor.
Reply

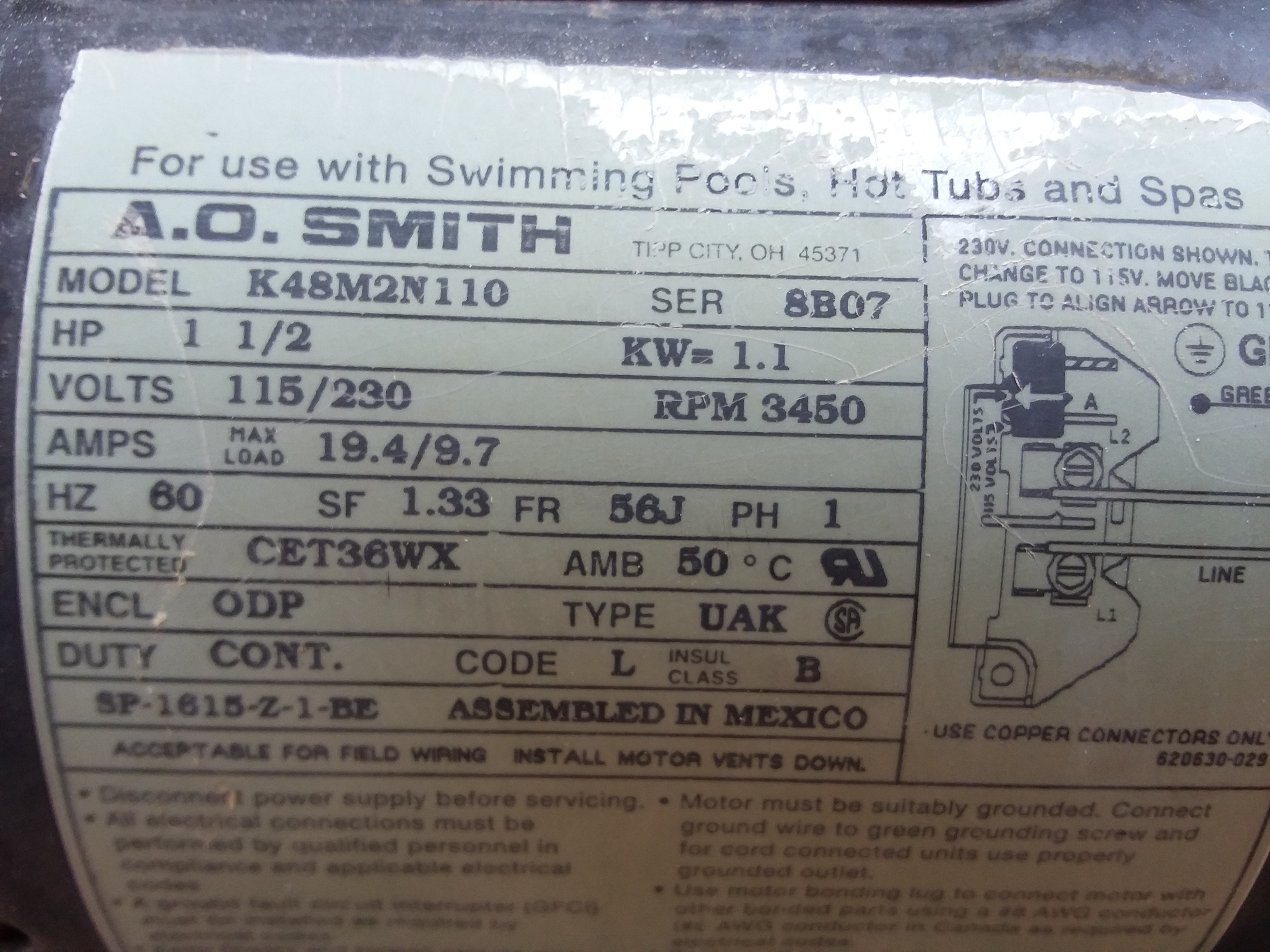

I have a Hayward Super II, model K48M2N123 (SP-1615-Z1-BEE), and it runs well but recently gets very hot and shuts down or trips the breaker after about 2 hours. Is that a capacitor problem or do I need a motor? Thanks
Reply
Here is a How To Troubleshoot a Pool Pump Motor - Motor Shuts Down
Reply
My pump was turned off 24hrs I started it back up and it. Sounded locked up then trip circuit breaker let sit 15 mins try agian trips breaker Is there a internal or external reset ?
Reply
Hi Ron, There is not a internal or external reset, it sounds like the motor needs to be replaced.
Reply
I have a rs1000, is it possible to change to 1 1/2 hp motor and what all will I have to replace to make the change?
Reply
Hi Scott, The RS1000 pump you have is what is called a Full Rated pump. It have a motor that is rated at 1 HP but have a Total HP of 1.5 due to the service factor of the motor. So you do actually have a 1.5 HP motor.
Reply
Is the the same replacement motor for Model # C48L2N134B1?
Reply
HI David, The A.O. Smith 1.5 HP Round Flange Up Rate Motor (UST1152) would be the correct replacement motor for model # C48L2N134B1.
Reply
HI,IT LOOKS LIKE THIS MOTOR IS A DIRECT REPLACEMENT FOR MY HAYWARD 1 1/2 HP MOTOR.I HAVE 2 QUESTIONS. 1-IS THIS A 110 OR 220 MOTOR.AND 2 -WILL THE PUMP HOUSING ASSY FROM MY FILTER FIT ON THIS REPLACEMENT MOTOR.THANKS FOR YOU TIME.
Reply
Hi, The UST1152 Motor can be wired for 110 or 220 volts and will mount onto your existing pump housing.
Reply
Will this motor replace my northstar USN1152? It looks different! Thanks!
Reply
Your listing shows that this motor will replace # SP1610Z1M, but can you please confirm that this pump is a suitable replacement with Hayward # SP1610Z1MBK. Thank you!
Reply
Matt,Yes, part # UST1152 is the replacement motor for part # SP1610Z1MBK, which is compatible with the Hayward Super Pump.
Reply

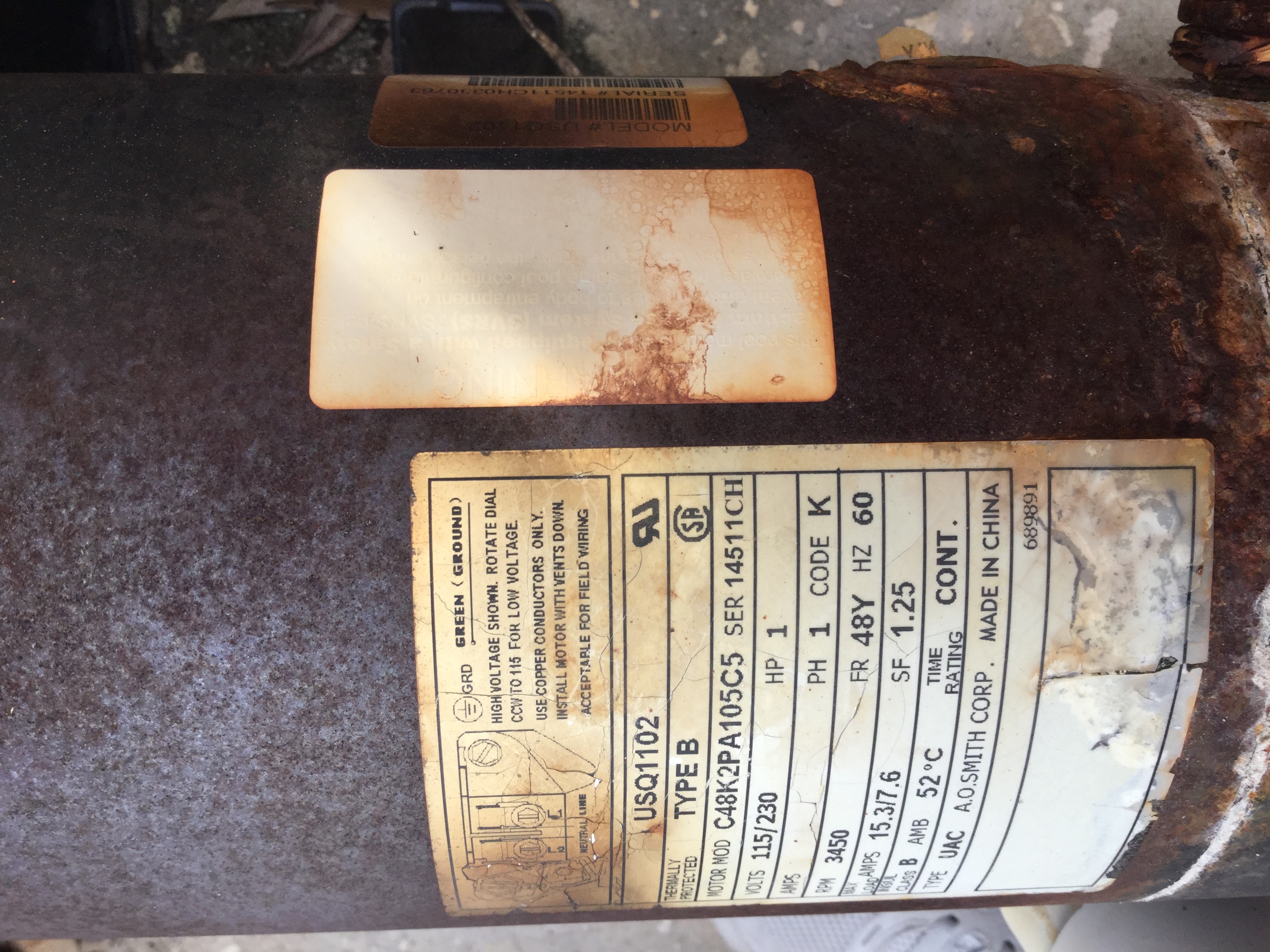

i currently have a 1 hp pool pump motor UST1102. Can I replace that with the 1 1/2 hp motor 1152? do the have same diameter to bolt up to the pool pump ? Thanks
Reply
Mike,You can always increase or decrease your motor size, however, keep in mind if you do so, the sizes of your impeller and diffuser must also match to avoid the motor overheating. Please read out blog, "Biggest Mistakes when Replacing A Motor" for recommendations on increasing your motor size.
Reply
Good afternoon, I'm ready to order this from your website but I would like to double check that this is the same motor as: A.O. Smith 1.5 HP motor (model C48L2N134B3) Can you please confirm? Thanks so much!
-Allison
Reply
Hi Alison, The A.O. Smith 1.5 HP Round Flange Up Rate Motor (UST1152) will be the correct replacement motor.
Reply
I have a Hayward Northstar pump SP1615-Z-1-BNS 1.5 HP motor for the pool waterfall. I believe it is a 56J frame. Is this the correct motor to replace?
Reply
I have a emerson 1081 pool motor EB977 Model R63CXDMR-189 1.5/.18 , dual speed, on a RS 2002 pump. The motor is making ticking noises when running, doesn't sound good. would like to replace motor with an AO equivalent, can you help? thanks in advance very helpful site from reading the many questions
Reply
Hello Greg- The correct replacement A.O. Smith motor for your EB977 is the 5388x Motor 56j Thrd Full 2sp 1.5 Hp (B2977, b977, 817706205).
Reply
Hi, we have a Hayward Super Pump (SP-1600 Series) and a Gould Century motor with a part number of 8-152560-2D. Is this A.O. Smith motor a suitable replacement?
Reply
Hi Steve, I was not able to cross reference p/n 8-152560-2D to this particular motor or any other replacement motor. If you can provide for information off of the motor label we can find the correct replacement motor.
Reply
Responding to your request for more info. The label is in bad shape, so can't see everything clearly. 1st row: GOULD. 2nd row: Century 1081 Pool Pump Duty. 3rd row: Part: 8-152560-20 | L56J | CS. 4th row: HP: 1. 5th row: Amps: 7.5 / 15.0 | Cont. 6th row: 1.00 | KJB (or KJ8) | B. And finally, in the lower right corner, under "Made in USA" is the number 154479. I hope this will solve the mystery. Thanks for your help!
Reply
Hello Steve, The UST1152 A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) is the correct motor for your super pump.
Reply
I have a US motors pump cat # EUST1152. Model # c55cxkmc-5013. Water has been leaking from where the motor connects with the rest of the "plumbing". I thought I had a worn gasket but When I removed the motor I didn't find a gasket. Does this model use a gasket and if yes what type/number/size?
Reply
Hi Dan, It sounds the your shaft seal needs to be replace, If you can provided the manufacture and model of the pump housing we can locate the correct shaft seal.
Reply
Can I use a Variable Frequency Drive with his product in order to change the speed of the motor by changing the frequency?
Reply
Is this motor returnable? I am confident it is the right replacement motor for my pool, but I am not confident I can install it. I have watched your video and am willing to try, but in case I fail, can this motor be returned?
Reply
If I have water coming out of the front part of the motor housing do I need a new pump?
Reply
Hi Greg, It's possible that you can fix the leak by replacing the seals. If the pump is close or over 10 years old I will recommend that you replace the complete pump.
Reply
AO smith super pump motor 1.5 hp Model # C48L2n134b1. what bearings numbers do i needed ? And how meny ? And seal number thank you
Reply
Hi Ron, You will need (2) 203 Bearing for this motor, one on either end. Base off of the info provided that is all the info I can provide. If you need the seal I will need to know the manufacturer and model of the pump housing.
Reply
I have a Hayward max-flo pump model sp2810V15. I have ordered a seal kit for it and need to order a motor -- is this the right one (looks like it is right model number)and do I need a motor shaft seal also?
The pump looks in good shape but I saw your comment about replacing the pump if it is ten years old? I don't know how old the pump is?
Reply
Hi Danny, This motor, the UST1152 and the Shaft Seal (SPX1600Z2) will be the correct parts for the Max-Flo SP2810X15 pump. If the housing in still in good shape you can replace the necessary parts to get the pump running again.
Reply
Is the replacement motors new or rebuilt. Is it pretty easy to put a new motor onto your pump. I have no current leaks will I need a shaft seal when I swap motors?
Reply
These motors are new. We always recommend a seal kit be purchased when replacing the motor. We would need the model of the front pump housing that the motor is bolted to in order to cross reference the kit.
Reply
How do you dismantle the A.O. smith motor C48L2N134B1 from the Haywood pump impeller.
Reply
Hi Tony, You can watch out video on How To: Replace the Motor on Your Pool Pump for instructions.
Reply
can i simply upgrade from a 1hp to a 1.5 using the same hook up?
Reply
Hi Jeff, You can upgrade to a 1.5 hp motor is your system can handle the additional water flow using the same housing. You will also need to replace the pump impeller and seals.
Reply
NEED STRAINER GASGET SPX1600S AND JACK'S 327
Reply
Ron, You can find the Hayward Super Pump Lid gasket Part # SPX1600S if you click here, we do not sell Jack's 327 but we do sell Magic Lube O-ring Lubricant 1 Oz. Teflon Part # 630.
Reply
Hi, Looking to replace Model B229SE. Everything matches on the label except for the AMPS. Is this the correct motor? Our label is gone from the actual Hayward Pool Pump section. What else do you recommended purchasing with the replacement motor? Our bearings have gone bad and we do not know how old the actual pump is. Thank you
Reply
I have an AO Smith ST1152, 3450 RPM 1.5 HP motor. I replaced the capacitor on it a couple of days ago to start it. It is extremely noisy now and I suspect bearings. My motor has the external capacitor on it like the A.O. Smith Round Flange 1 1/2 HP Full Rate Motor. Will the this motor replace the one with external cap? The nomenclature plate seems to have the same specs. I am a commercial HVAC tech and may just replace bearings and seals if available.
Reply
Dan- The UST1152 A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) will not replace the ST1152 A.O. Smith Round Flange 1 1/2 HP Full Rate Motor (C1101, ST1152). The ST1152 is full rated and has a higher total horsepower than the UST1152. The Serive Factor on the UST1152 is 1 the Service Factor in the ST1152 is 1.5.
Reply
can youre A.O smith 1.5 HP round Flange up Rate Motor (c48L2N134) does that motor work on mine madelo c48L2Ec11 volts it has 115/230 HP1 RPM 3450 AMPs 19.2/9.6 im just looking for just the motor I got rest hope to hear from you soon
Reply
Javier- No the UST1152 A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) will not work, the motor that replaces the C48L2EC11 is the SQ1102 A.O. Smith 1 HP Square Flange Full Rate Motor.
Reply
I need a replacement motor will this one work for me?I have a Hayward pool motor: Model No. C48L2N134B3 Serial No. 07512CH
HP 1.5 Volts 115/230 RPM 3450 AMPS 18.6/9.3 Hz 60 SF 1.0 FR 56J
PH 1 ENCL ODP
Reply
Hello Kenneth, Yes this is the correct replacement motor for the C48L2N134B31 model number you provided.
Reply

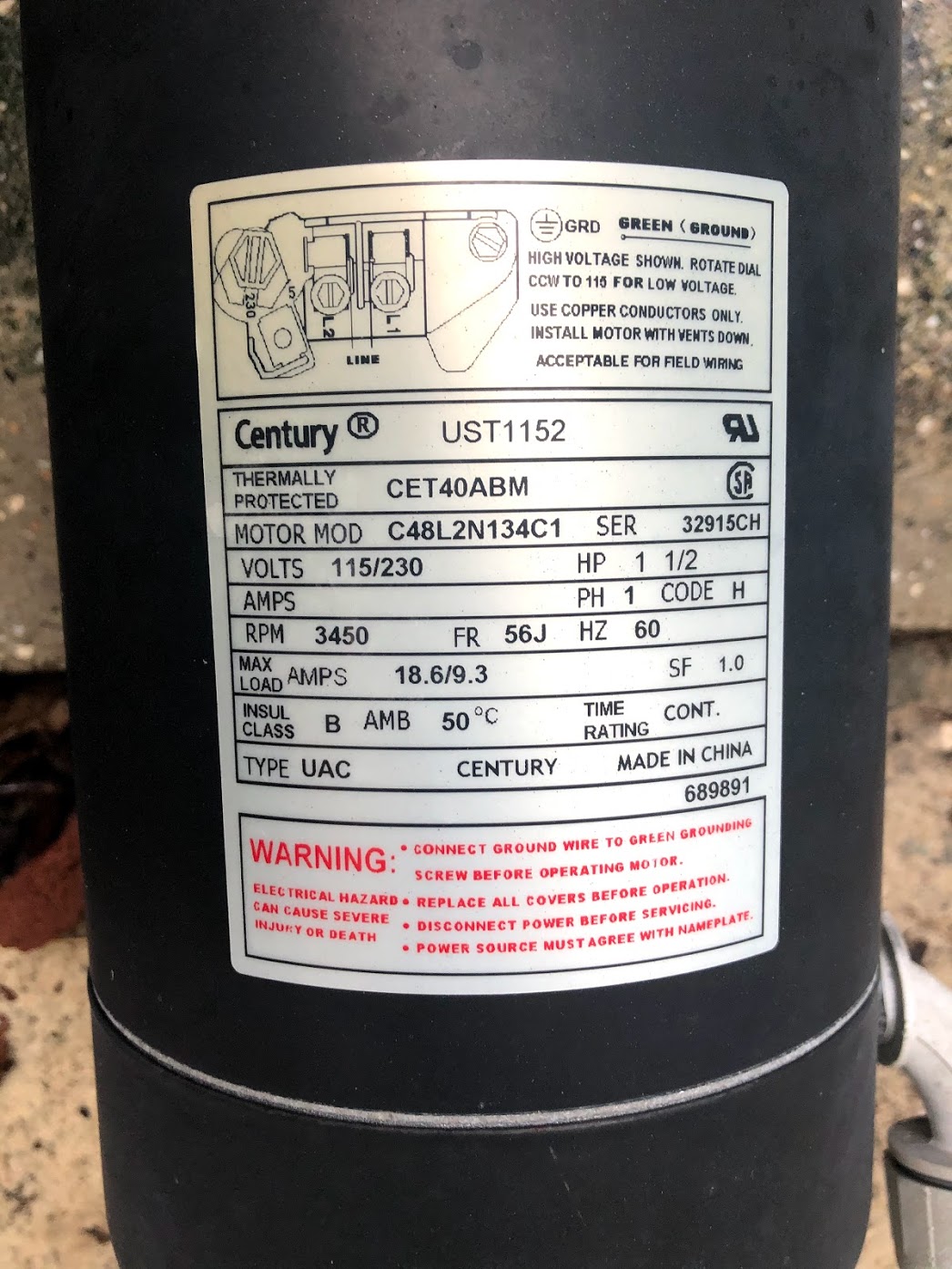

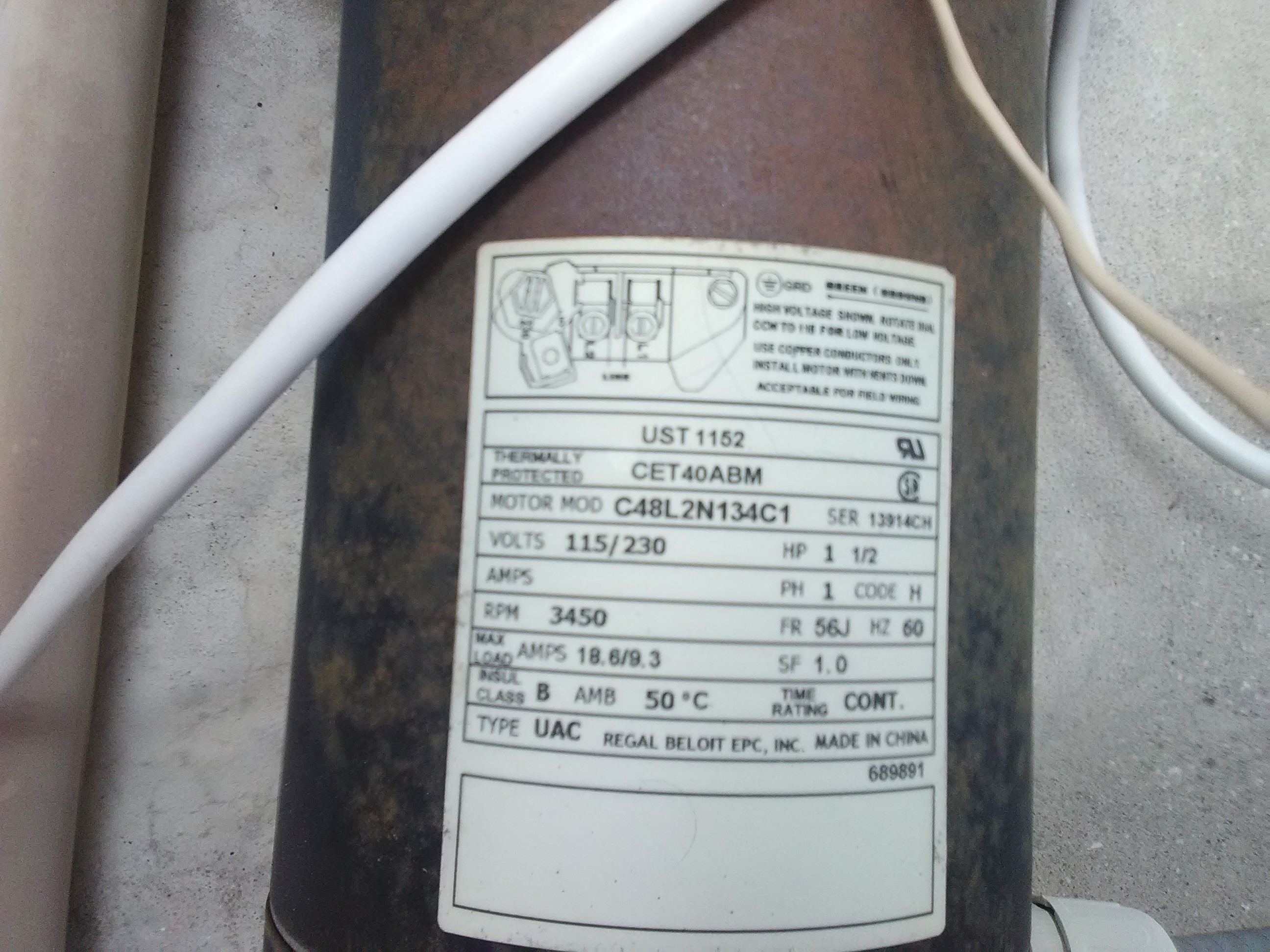

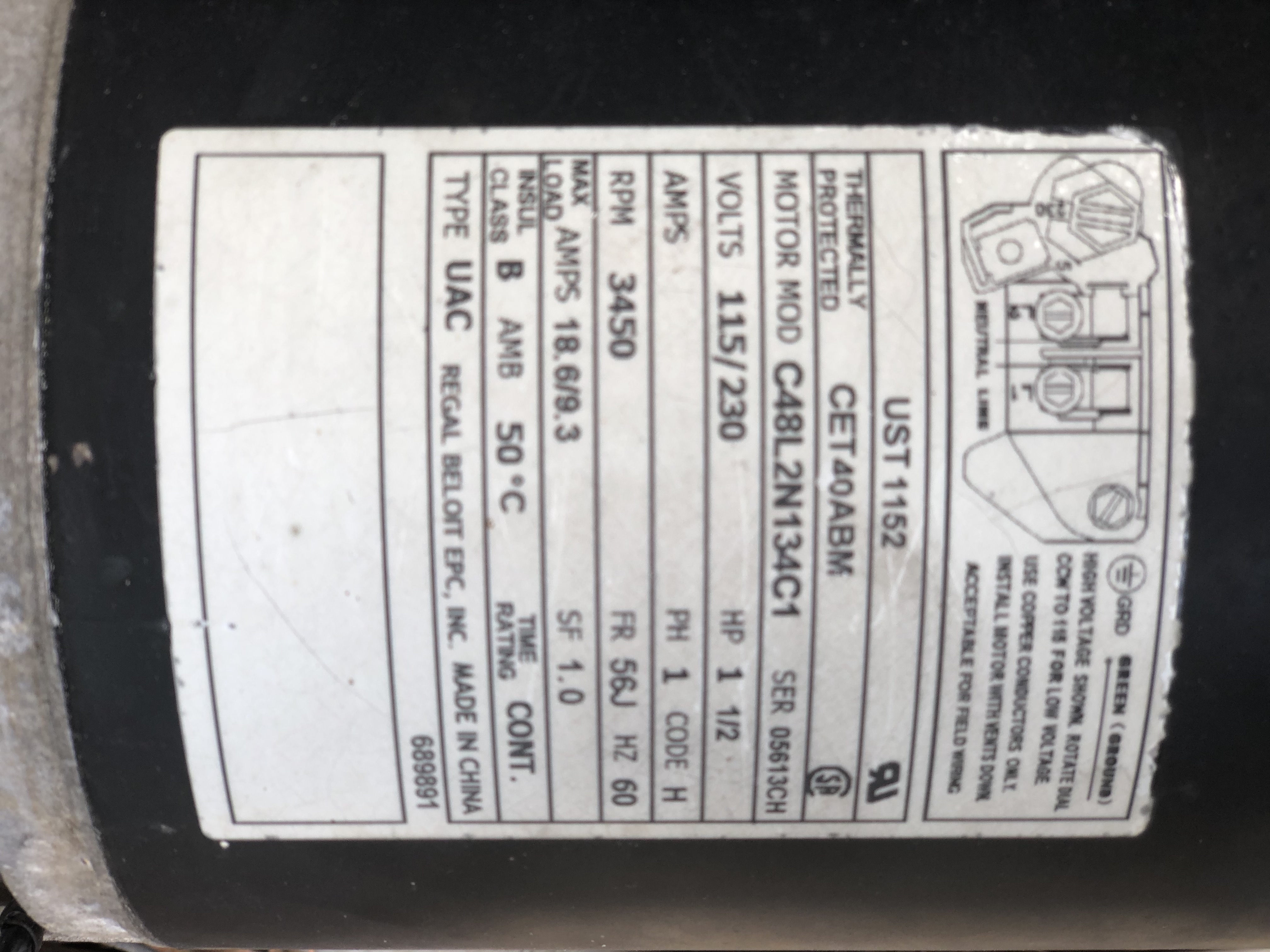

I have the A O Smith ust 1152, C48L2N134C1, 1.5 horsepower, 3450 rpm. It's there a repair kit with gasket or o rings?
Reply
Hi Lisa, the gasket kit would be based the manufacture and model of your pump. The most common pumps this motor works on is the Hayward Super Pump and the Hayward Super II Pump. Here is the Tune Up Kit for the Hayward Super Pump and here is the Tune Up Kit for the Hayward Super II Pump. If you have a different pump then please email back and we can supply you with the correct repair kit.
Reply
will this work for c48l2n134b1
Reply
Yes the UST1152 Replacement Motor is a direct replacement for your c48l2n134b1 motor
Reply
Test Question
Reply
Yes the UST1152 Replacement Motor is a direct replacement for your c48l2n134b1 motor
Reply
Is this pump the correct replacement? Current part # is 184982-23 Type-CX
Reply
Hi Rob you would actually need the 1.5 HP B229SE Replacement Motor for your 184982-23
Reply
I currently have a dual-speed Super II. The model number on the pump housing is SP3010x152s. The motor itself is A.O. Smith model SP1610Z2MSC7. Would this motor be compatible with my pump body? I have a short pool season so am not worried about the electricity savings of a dual-speed. Thanks
Reply
How do I know this is the correct pump for my pool. I currently have an a.o smith pump SP1515Z1ESC is the number on it, serial no. 085073M. 1.5 hp for an above ground pool 30 feet around
Reply
Hi Lea, The BN35V1 Motor would be the correct replacement for your SP1515Z1ESC
Reply
Do you sell this motor in its casing with the impeller all in one piece so all I have to do is connect the electric and the 4 bolts to housing strainer?
Reply
Hi Bob, No unfortunately there is not an assembly that is sold this way. Do you know which pump you have? The motor is most commonly used with the Hayward Super Pump and you may find the Hayward Super Pump Impeller here.
Reply
I received an email saying you answered my question, but I cannot see an answer. I asked "Do you sell A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) motor in its casing with impeller all in one piece so all I have to do is connect the electricity and the 4 bolts to the housing strainer? If so what is the price ?
Reply
Bob, Unfortunately they do not come pre-assembled. You would need to order the motor and additional parts separately.
Reply
Can I buy a seal kit for this motor
Reply
Hi, The seal kits are specifically for the pump, not the motor. If you can provide us with the manufacturer and model of the pump we can locate the correct kit or seals.
Reply

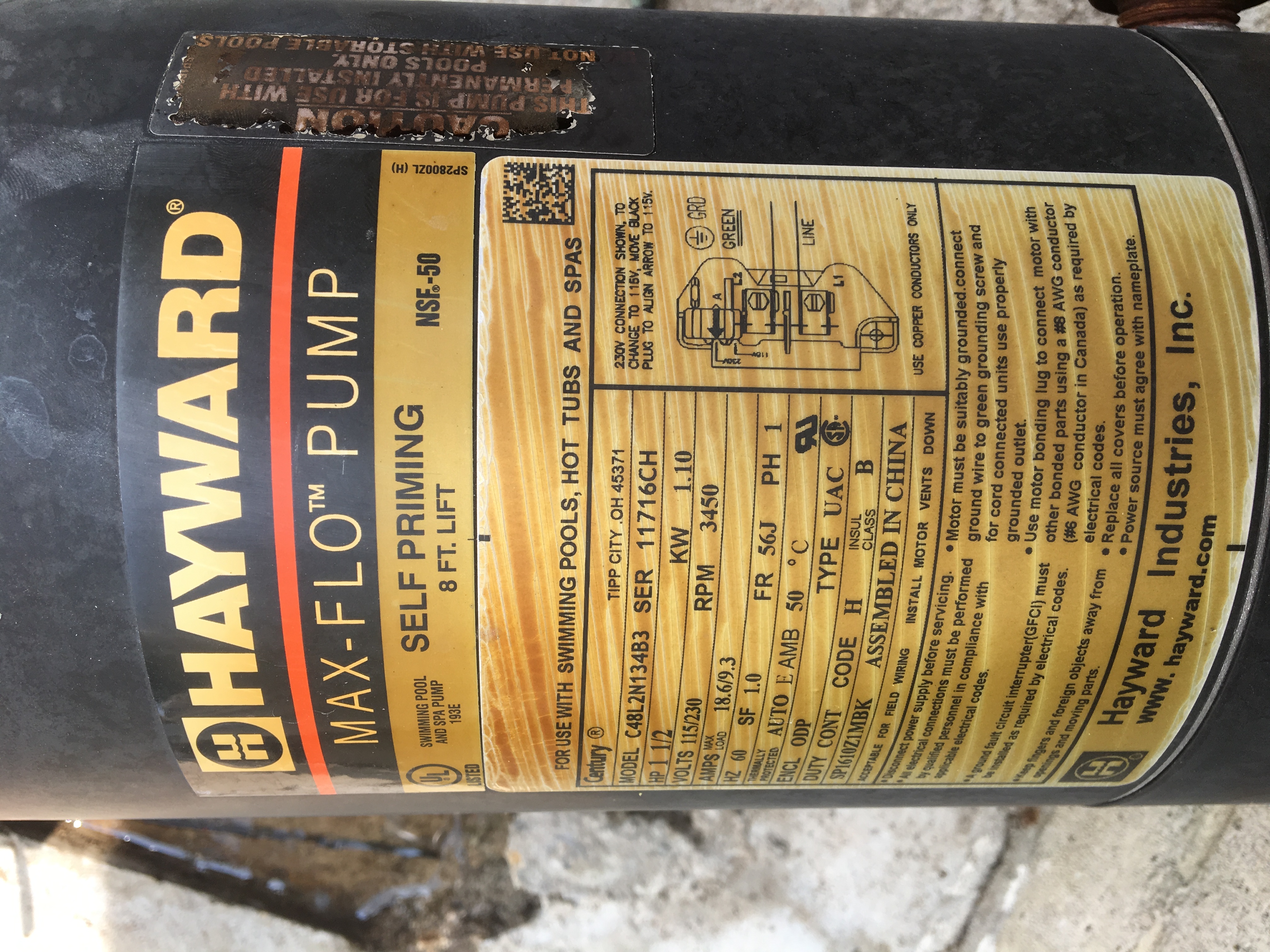

What replacement motor do I need for a Hayward Max Flo II, model number C48D43A04?
Reply
The correct motor replacement for your C48D43A04 is the Hayward Max-Flo II 1.5 HP Replacement Motor.
Reply
Will this work for model number SP3210Z1M? (1.5 HP) My pool is only about 4-5 years old and the motor has become a lot louder than usual. Should I attempt replacing the bearings or swap the motor.. Or any other suggestions, thanks!
Reply
Hi Shane, This motor will not replace the SP3210Z1M motor. The SPX3210Z1MR is the correct replacement OEM motor for the Hayward Tristar Pump.
Reply
I have an in graund pool pump motor that went bad. It's made by A.O. smith and it's a jacuzzi brand. serial number BY07-14. 1.5 horse power8.0 / 16 .0 amp 230/ 115 volt rpm 3450. let me know with pump motor to get. thank you
Reply
Hi Andi, This motor can be used on a Jacuzzi Magnum pump. However, if you can send up more info and or photos we can confirm.
Reply
I have a hayward super pump & just ordered a new motor from your site. c48k2n143c1c. What would be the best seal kit to order for this new motor?
Reply
Hi Greg, If you have a salt pool we would suggest GOKIT3SALT and if it is a non-salt pool then go with GOKIT3
Reply

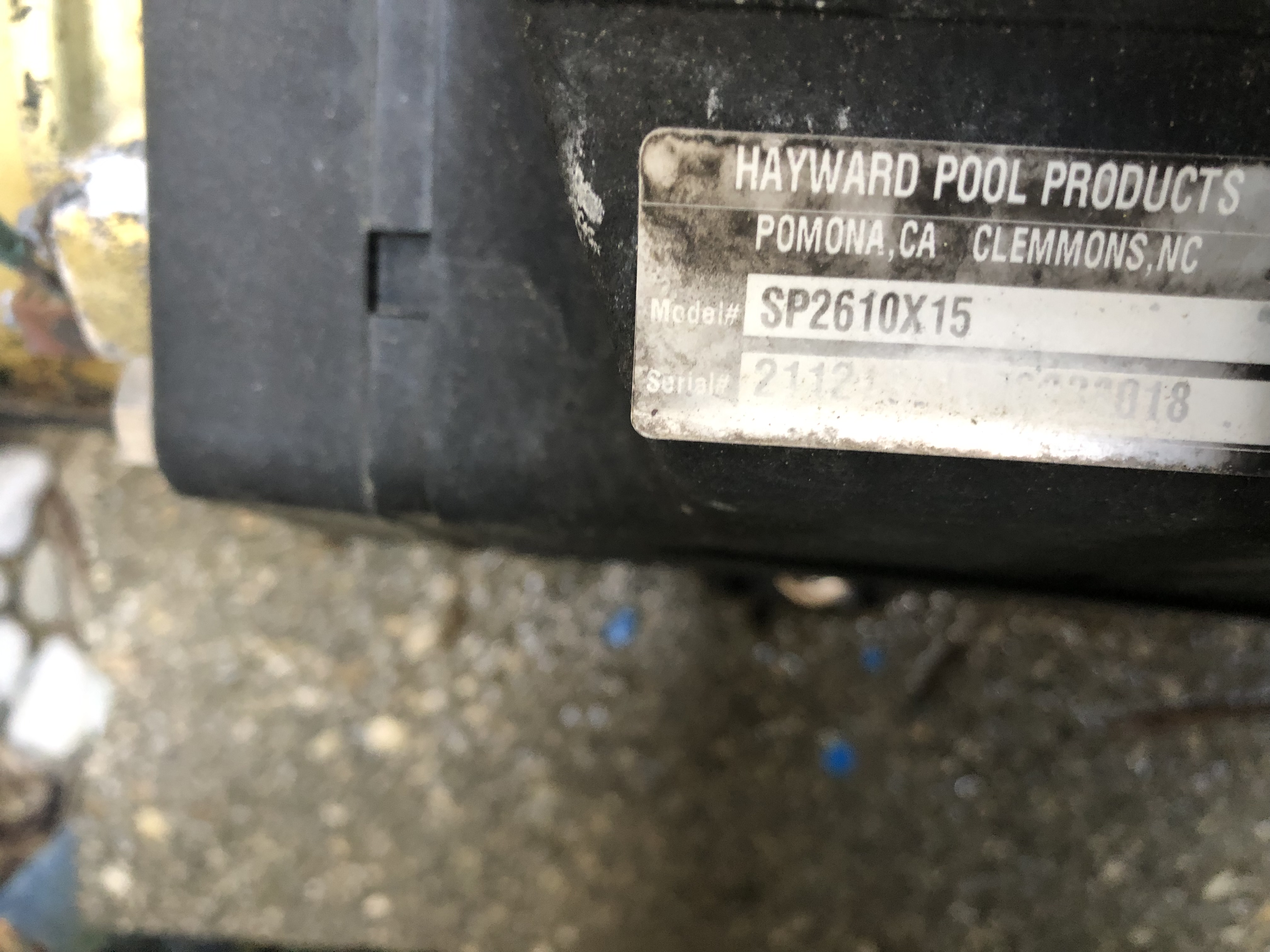

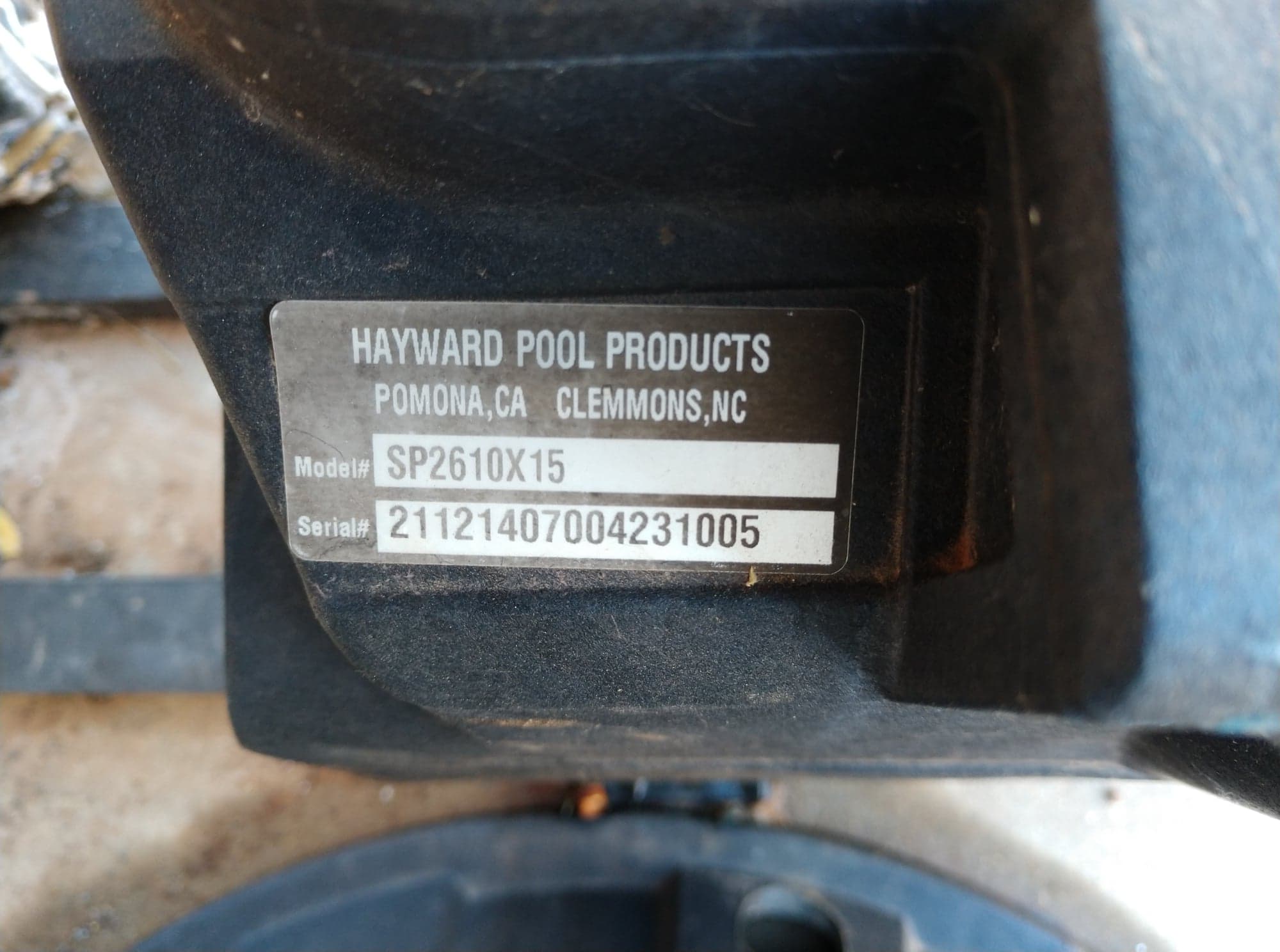

Our Hayward SP2610X15 motor has gone bad and I'm unsure which motor to order.
I've read that http://www.inyopools.com/Products/00200017001331.htm is the direct replacement but its only 1 HP
Or
Is
A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) the direct replacement?
Also which seal will be needed?
Reply
Hi DK, The UST1152 motor is a direct replacement for the Hayward SP2610x15 pump, you will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Hello, I have a motor with model number C48L2N134B1, 1.5 HP, 115/230 Volts, 18 6/9.3 Amps and 3450 RPMs what would be the greatest replacement for this?
Thank you!
Reply
Hello Chelsea, The correct replacement motor for the model C48L2N134B1 will be the UST1152 A.O. Smith 1.5 HP Round Flange Up Rate Motor.
Reply
I was told that a SF 1.3 was more energy efficient than an SF 1.0. Is that true?
Reply
The SF (or service factor) when multiplied by the HP (or horsepower) will determine the true HP of your motor, but has no bearing on efficiency per say. For example, if you have a 1.5HP motor with a 1.0SF, you have a true 1.5HP motor. If you have a 1.5HP motor with a 1.1SF, you have a true 1.65 motor.
Reply
Looking for replacement motor for a Hayward RS1000, 1.5hp, 3450 rpm, 56J, 115/230 v. Which models are replacements for this?
Reply
Hi Don, The UST1152 or the ST1102 motors will work on this pump. The Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT will also work with the RS Series pump.
Reply
I am looking for item # SPX1610Z1M motor for a 1-1/2HP Hayward Super Pump. Can you help me find this?
Reply
The correct replacement motor will be the UST1152 A.O. Smith 1.5 HP Round Flange Up Rate Motor.
Reply
I need the shaft seals
Reply
To find the correct shaft seal, we need to know the model number or make and model of your pump's housing. This motor can be mounted on several pump housing, and each one can use a different shaft seal.
Reply
I purchased the UST 1152 as a replacement for C48L2N134. After a week of use, the Impeller broke. Is the Impeller SPX2610C compatible with the UST 1152? Should I also purchase the Hayward SPX1600Z2 Seal Assembly? Thanks.
Reply
Hi Keith, The UST1152 Motor is compatible with the SPX2610C impeller. These are all parts of the Hayward Super Pump so you are a match there. I would absolutely recommend replacing the HAYWARD SHAFT SEAL whenever you change out the motor. You can also get the Tune Up Kit Hayward Super Pump which includes the shaft seal and all of the o-rings for the Super Pump.
Reply
I need a new motor for a Hayward Super pump, since I run my pump most times just to run salt generator. Should I purchase a 2 speed motor to run salt generator and save on electric?
Reply
This is going to depend on your foot of head and size of pool. Some salt systems require a minimum flow rate for it to generate chlorine.
Reply
I need a replacement motor for my Hayward Super Pump model number is C48L2N134B1 SELF PRIMING SERIAL NUMBER IS 11514J2, ALSO DOES THE REPLEACEMENT MOTOR COME WITH THE IMPELLER, DIFFUSER, SEAL PLATE AND MOTOR MOUNTING PLATE AND ALL ASSOCIATED PARTS? I basically need everything from the impeller back to the motor if you look at the Hayward diagram.
Reply
Hi Bill, yes this is the correct replacement motor for your Hayward C48L2N134B1 motor. This motor does come with the associated parts. We do carry all of these parts which can be viewed or purchased from our Hayward Super Pump Parts Page.
Reply
MOTOR SCREECHING, PROBABLY NEED A NEW BEARING, CENTURY MODEL NO. C48L2N134B3. PUMP ALSO HAS TROUBLE PRIMING WHAT ELSE DO I NEED. HAYWARD MODEL SP2610X15A
Reply
That would be the correct replacement motor. As far as it not priming, it's probably not putting out enough power if it's going bad. When replacing the motor, make sure you replace the shaft seal as well. The part number for that is spx1600z2 and if it's a saltwater pool the part number is 5250-235.
Reply
Hi..I am needing to replace Super Pump Motor (UST1102) Model (C48K2N117A9) which is a 1 hp. Wondering if it would be beneficial to purchase a slightly more powerful motor (i.e. 1.5 HP)? Would a more powerful motor damage my filter or other equipment? What would be the benefits (if any)?
THANKS
Reply
Hi Jeff, You will first have to determine if you system can handle the additional water flow. Then you will replace the UST1102 with the UST1152 along with the Impeller SPX2610C and the Hayward Super Pump Tune Up Kit GOKIT3 or GOKIT3SALT.
Reply
Great website! Very informative and helpful. I'm looking to replace my Hayward pump. #C48L2N134C1 1/12 HP. What would be the correct replacement? The one I thought was $148. However, when I tried your shipping charge calculator, it didn't seem to work. Either that or the shipping was included because it kept coming up $0.00. My zip is 16001. Can you give me an idea of the shipping or is it included? Thanks again.
Reply
The correct replacement motor is the UST1152 A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134). Shipping on the motor is free. The normal delivery time is three days.
Reply
Hello,
I currently have a SP1607-Z-1-BNS Hayward A.O.Smith Pool Pump. I'm looking to upgrade to a variable speed one to reduce my utility bills, do you have any recommendations or advice on which one I should get?
Thanks
Reply
what is the return policy just in case i ordered the wrong item
Reply
Hi, Please review the Inyo's Return Policy. If you can provide us with the motor's part, cat or mod # we can locate the correct replacement motor.
Reply
Will this bolt up to a pentair 340039?
Reply
This motor will not fit the Pentair Pump 340039. I would recommend the 1.5 HP Standard Motor - Full Rate (B2858) as a suitable replacement.
Reply
I have a hayward 1 hp pool pump, Only lasted 3 years Mod C48K2N143B1. Would it be beneficial to go to a 1.5 hp.? Same frame 56J.
Reply
Hi Joe, If your system can handle the additional water flow of a 1.5 HP then you can replace the UST1102 with the UST1152 motor. You will also need to change the impeller. It might not be beneficial if the 1 hp motor is sufficient for your pool.
Reply
I have model # K48M2n110 Hayward self priming super 2 pump. What is the direct replacement motor for this ?
Reply
The replacement motor for the model #K48M2n110 is the A.O. Smith Round Flange 1 1/2 HP Full Rate Motor (C1101, ST1152). I wuld also recommend replacing the shaft seal with Tune Up Kit Hayward Super II.
Reply
I have a hayward super pump with motor number c48l2n134b1. What would the recommended pump and replacement parts be?.
Reply
Hi John, The UST1152 motor is the correct replacement for MOD # C48L2N134B1.
Reply
my original pump ( sp2610x15 ) lasted many many years . When it failed I replaced it with a sp2607x10 as advised by my local pool supply store saying the 2610 was wasting my money and electricity with no gain (I think they just sold me what they had I stock) Never was happy with it and has failed at 4 years. If I purchase a motor and impeller for the 2610 will it fit my 2607 housing and it now be a 2610?
Did not know about salt seal may explain short life.
Reply
Hi Keith, Yes, if you purchase the UST1152 motor, Impeller SP2610C, along with the Hayward Super Pump Saltwater Tune Up Kit it will fit the 2607 housing and provide you with better protect with the saltwater shaft seal.
Reply
does this model motor fit on a hayward super pump model c48L2n134B1
Reply
The A.O. Smith 1.5 HP Round Flange Up Rate Motor (C48L2N134) is compatible with the Hayward Super Pump. I would also recommend replacing your seals with the Go Kit 3 Tune Up Kit for the Hayward Super Pump.
Reply
is this motor self priming
Reply
Hi, This motor can be used on self-priming pumps but by itself if not considered self-priming. It all depends on the type of pump that this motor is connected too.
Reply
Wiring diagram for low voltage
Reply
Hi James, Instruction can be found in our How To: Wire a Pool Pump guide. Which will call for the motor being switch from 230 volt to 115 volt. Then connecting the 115-volt wire to the L1 terminal and the neutral wire to L2 and the green to the ground terminal.
Reply
Needing a motor for a jacuzzi pump. Present motor is AO Smith part 7-184949-22 type CX. It is a 1'5 hp rating with frame P56j Motor also states it is for 1081pool pump duty. Is this the correct replacement? Thank you
Reply
Yes, that would be an acceptable replacement for your jacuzzi pump.
Reply
What is the 2 speed version of this? I have a Hayward Super Pump. Also, what is the capacitor for this model ( I'm deciding between a full replacement or just the cap)
Thanks
Reply
What impeller do I use with this motor
Reply
The correct impeller is determined by the Pump you have AND the motor you have. I would recommend obtaining the information on which pump you have and we can assist in finding the parts list associated with your pump to locate the correct impeller.
Reply
I have a Hayward II super pump self priming 1.5 hp, volts 208-230/115, threaded shaft, for my bubbler and rock fountain. The frame is 56J. Will this work?
Reply
Hi, Yes, this motor will work if the motor you currently have has a service factor (SF) of 1.0. We will also recommend that you get the Hayward Super II Pump Tune Up Kit (GOKIT2).
Reply
Can I use this motor to replace motor model # K48M2N110 with Impellar P/N SPX3016C? I know it is not the most energy efficient but will this work the same minus the extra cost in electricity ?
Reply
will this fit my current pump, a Hayward Super Pump model C48L2N134B1?
Reply
Hi Evelyn, This is the correct replacement for the C48L2N134B1 motor. When replacing the motor we recommend that you also get the Hayward Super Pump Tune Up Kit p/n GOKIT3 or GOKIT3SALT.
Reply
I am replacing my pool pump motor. Old one is Hayward Super II pump 1.5 HP please tell me correct motor to order.
Reply
am replacing my pool pump motor. Old one is model Hayward Super II pump 1 1/2 HP please tell me correct motor to order.
Reply
Hello, The correct replacement motor would be the Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152. I would also recommend replacing the seals when changing out your motor. Your tune up kit will be the Tune Up Kit Hayward Super II - GOKIT2.
Reply
1.50 hp 3450rpm S.F.1.1 60 hz 1 ph 115/230v 1.1 KW cet50abm maxamp 19.2/9.6 A.O. SMITH EPC MODEL C48L2PA105C3 ELECTRIC MOTOR NEED FOR SPRINKLER SYSTEM HOME
Reply
I'm replacing a Hayward 1-1/2 HP super pump motor. It lasted about 6 yrs. Is this normal life space?
Any recommendations on how to prolong this? I've read about having some type of cover over the motor to protect it from elements. Might not do any good, however, as I think salt water from the pool caused the failure. Thanks.
Reply
That would be the correct replacement motor. As far as the shaft seal, if you have a saltwater pool you'll definitely want the shaft seal for saltwater pools. It more heavy duty and less corrosive. And we do have a motor cover that does add some protection from the elements.
Reply
I have a pool pump motor AO Smith Model C48L2N134 B1. It overheated and stopped. Is there a reset switch? Or is it dead?
Reply
It's most likely dead. Once you overheat something electrical, the damage is usually done.
Reply
I purchase a new Hayward Super pump (1.5 HP) , last year. Just the other day, white wire, burned. I repaired it and now it is running but the case is hot to the touch. I think I need a new one. The first pump I had one prior to the one I have now lasted over 10 years. Any ideas? I don't what to rush you but, if I could get your opinion asap, so I can order if need be. thanks
Reply
Bill, Is the motor shutting off? If not, it is likely running under normal operating temperatures. The motors can be very hot to the touch,
Reply
I have a Century UST1152 that is 2 years old. The pump is on a timer. 2 days ago the filter did not turn on. It is getting power. Tried turning on and off several times and it finally turned on and ran all day without issue. Today the same thing occurred. Any idea what I should troubleshoot first?
Reply
can this motor powerful enough to propel a surfboard with a person weighing 120lbs
Reply
Could you give me some more details on what you are trying to use this motor for so I can give you a better answer to your question?
Reply

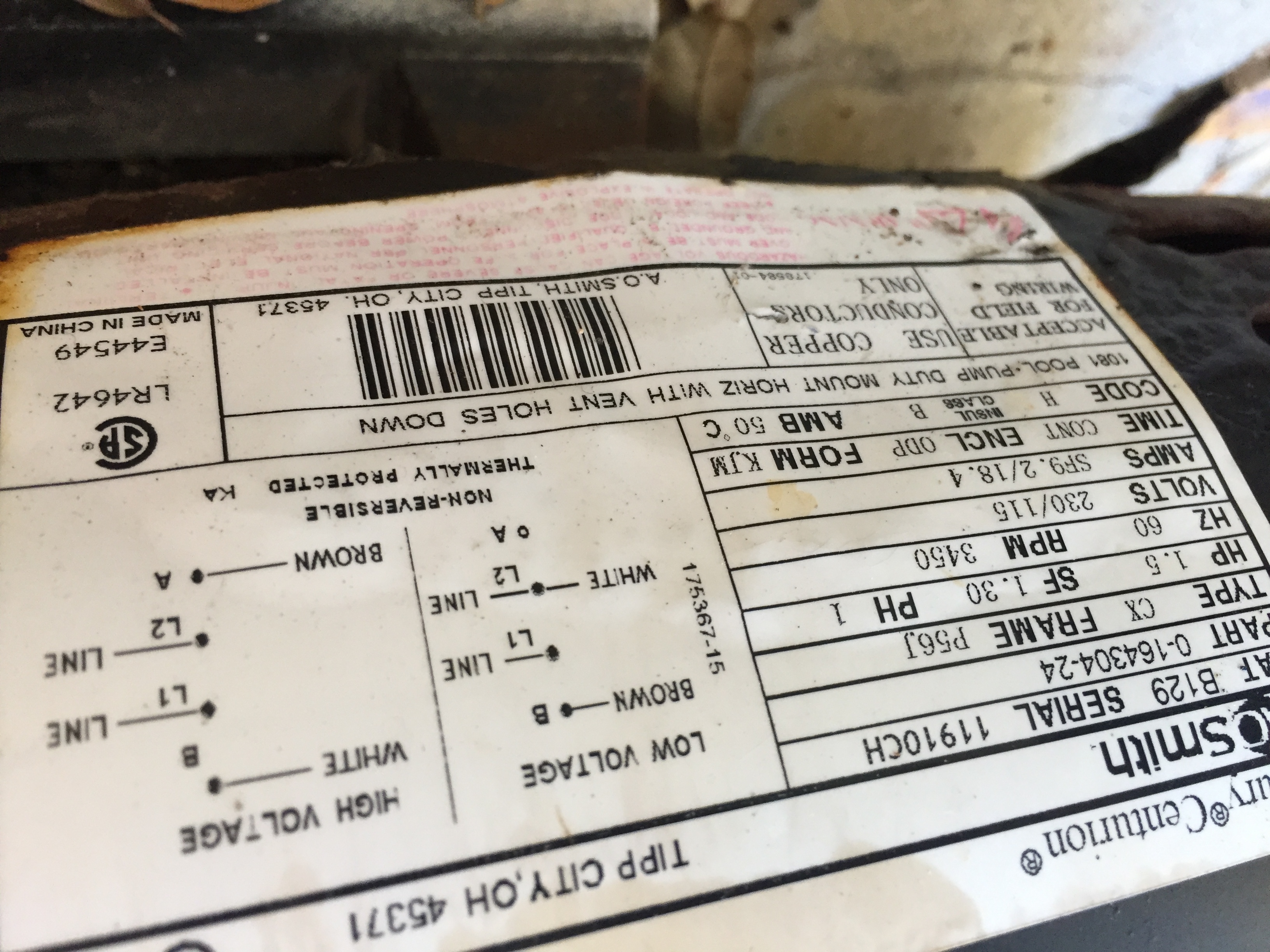

I need to replace pump motor. I have an AO Smith motor; CAT B129 Serial # 11610CH, FrameP56J, 2.5hp, SF 1.30. I have a Hayward RS1500 pump. What type of motor and kit do I need to purchase. Thanks
Reply
need a replacement pump for my Hayward super pump model C48L2N134B1 HP1.5 SER OF06 KW 1.10 RPM 3450 AMPS 18.6/9.3 HZ60 SF 1.0 AMB 50C, ENCL- ODP TYPE-UAC CODE-H INSUL-B SP1610Z1M
Will this Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152 works or compatible ? your expertise is highly appreciated.thank you
Reply
Hi, Yes, this Century UST1152 motor is the correct replacement for the SP1610Z1M motor. I will also recommend that you get the Hayward Super Pump Tune Up Kit GOKIT3 or GOKIT3SALT.
Reply
Can you tell me where I can find a template for the valve positions on the A.O. Smith 1.5 HP Round Flange Up Rate Motor?
Reply
Unfortunately a template you are requesting does not exist as motors do not have valve positions. The motor is a part that is attached to the back of your pump. In front of the pump is a valve(s) that control the water drawn from the skimmer, main drain, vacuum port, etc. before it enters the pump. You can always send in pictures to uplaod@inyopools.com of your plumbing setup if you have specific questions. Keep in mind there are multiple different plumbing configurations for pools so photos will assist us in assisting you. Thank you!
Reply
I'm replacing my SP2607X10 pump with this pump. First is it the right replacement pump and is it OK to go from a 1HP to 1.5HP?
Reply
Hi,
I have a 1.5hp Hayward Super II pump. In april it simply hummed but didnt rotate. I opened to see that nothing was blocked, all was free. all of a sudden it ran fine. It has run since April full time not cycling. The only time the pump stops is during cleaning, backflushing, etc. Today I turned it off for backflushing and it has the same humming as in April. Could this be a start capacitor issue? Where is that located in the pump and if yes how do I trounle shoot/replace it? Thanks
Reply
I need repair or new irrigation motor. AO Smith, C48c53a06. SER 8c04
PLease Call Larry Ball (803) 646-1127
331 forest pines rd
AIken, S.C. 29804P
Pump motor is used for in ground sprinklers.
Reply
Hello Larry, Please check specs, but the closest I could find for you was UST1152. Please check all specs, amps, frame and is you have cface or square flange.
Reply
I have a Hayward Pump model # SPX2810X5. This maybe a Hayward Max Flo? Will this motor be a direct replacement? And what other items I will need to install this. Thanks.
Reply
UST1152 motor, does it come with gaskets and seals for this price?
Reply
The only seal that comes with it is the water slinger that is on the shaft of the motor. You would need to get a tune up kit if you wanted to seals and gaskets. It has not come with it because that motor goes to an abundance of different pumps. If you know the model of your pump, not the motor, I can help you identify the correct tune up kit to get.
Reply

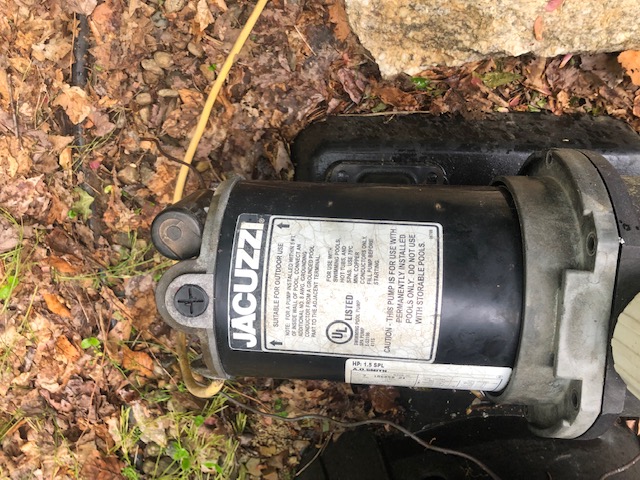

I am replacing the motor on my Jacuzzi pool pump. The current motor is a c48k2n143c2c. Will this motor work? Thanks!
Reply
Hello Mike, for the c48k2n143c2c number you gave it came up with A.O. Smith Round Flange 3/4 HP Full Rate Motor - ST1072. Depending on your housing we would need to see pictures or the model of the pump to give you a seal kit. You can send pictures to upload@inyopools.com so we can better assist you.
Reply
Bought century 1.5 HP motor to replace Hayward and when turn on it shuts off . Thinking it may be ser at wrong voltage. How do you switch it? I see a black arrow shows 230 but does not turn easily, is there something special you need to change the dial?
Reply
Here's a link to a video from our website that takes you step by step on how to wire a motor.
Reply
Hi,
I have a 12 year old pump, Magnum Force Jacuzzi. The motor is a AO Smith 1.5 HP.
Here are the numbers listed on the motor.
Ao Smith 1-10SF
Cat Part 7 -184949 -22
Type: CX
ER 56j form: KJM
Class : B Code: K
Serial: BY 11-24
Is this motor UST 1152 56j the replacement for my motor? I would also need the correct seals.
Reply
My motor just fried and stopped working. Wondering if this is the right motor to replace it.
Model number is 1203006488 HZ60 Franklin Electric/Jandy Pumps. It says 1081 pool motor.
Thank You
Reply
Hi,
Wich model do I need to replace my Hayward Super Pool motor, Model is C48L2N134B3.Serial is 03208FM
The condenser is Packard PMJ161, 161-193MFD
Will the new pump come with the condenser?
Do you ship to Canada?
Thank you very much.
Reply
Hello Martial- The c orrect replacement MOTOR is the Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152. The motor will come ready to install including the capacitor. Whenever you replace a motor, we highly recommend you replace the seals. The correct seal kit for the Hayward Super Pump is the Tune Up Kit Hayward Super Pump - GOKIT3.
Reply
Hello,
I bought pool pump UST1152 (A.O. Smith 1.5 HP Round Flange Up Rate Motor - C48L2N134) a little over a year ago from you and it just recently started to make a louder than normal screeching sound. I've been researching and am pretty sure that it's more than likely the bearings. At least, I hope that's the issue.
Can you please tell me which replacement bearings I need to order for this motor?
I'd really appreciate any information and advice that you can give me.
Thanks,
Sergio
Reply
Good morning Sergio, This is the part you are looking for. Next A.O. Smith Bearing, 203 (62032rs) (Single) A.O. Smith Bearing, 203 (62032rs) (Single) How To Replace the Bearings in a Pool Pump Motor - Part I How To Replace the Bearings in a Pool Pump Motor - Part II Bearing, 203 (62032rs) (Single)
Reply
HI,
I have Hayward super 2 pump (model # sp-1610-z2-mkb) which motor is compatible to this pump if I like to buy just motor (would it fit to rest of my old pump). Thank you very much.
Reply
The UST1152 will fit the Super Pump and the Super 2. According to the model # though, that tells me it is a Super Pump not a Super 2. If you want to attach a picture of your complete pump I can make sure we are talking about the correct pump and then I can get you the correct seal kit to go with your motor.
Reply
My pool pump went out...model c48m2n111b4 1.5 hp volts 230 rpm 3450 ser 8b01 amps 10.8
sp-1615-z1-bbk
What should I buy from you to replace this motor?
Reply
The motor on my pump is model # C48L2N136 which your search engine says to use a UST1152 replacement. But my motor is a two speed motor and your replacement is only a single speed. How can this be?
Shouldn't my replacement motor be a dual speed also?
Reply
Good morning Rick, If you need a dual speed pump 1.5hp you are looking for A.O. Smith 1-1/2 HP Round Flange Dual Speed Full Rate Motor (STS1152R)
Reply
What is the difference between a full rated and an up rated motor? Will they work for the same application?
Reply
Good evening Ted, The difference between full rated and up rated is the service factor. Up rated motors have a higher service factor giving them a higher total horsepower. Heres a link that will help you understand this How to Replace Full Rated and Up Rated Motors
Reply
I have a hayward model number C48L2N134B1 1 1/2 horse motor. Will this motor work?
Reply
Hello Joseph- The Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152 would be the correct replacement motor.
Reply
I have a Hayward max flo pump and I plan on replacing the motor with the A.O. Smith motor UST1102. What other parts do I need to buy? O-rings, shaft seal, etc..? Thank you
Reply
Hello Marc- Here is a link to the Hayward Max-Flo Parts page for your reference. Anytime you change a motor, we recommend you replace the seals. The Tune Up Kit Hayward MaxFlo - GOKIT1 or the Tune Up Kit Hayward MaxFlo Salt Pools - GOKIT1SALT contain all of the seals you would need to replace for your Max-Flo pump.
Reply
Need a motor for my Jandy stealth JHP-1.5. Round flange. Part number on the motor is AO Smith 7-193633-24. Is this the correct motor?
Reply
Good afternoon Charlie, You are looking for part Motor 56j Thrd Full 1.5 Hp (b129) You also will need to replace the shaft seal you can purchase aTune Up Kit Jandy JHP + JHPU Pump Series - GOKIT77 which will have everything you need.
Reply
I have a Hayward super pump that is 20yrs old can't read the model # but the service # is 8197 can you tell me anything about this motor it went out . Want to replace it . I can by a Hayward 2 hp variable for cheap. The pool is 10,000 gal w/2" plumbing and Hayward 3040 filtration will this be to much?
Reply
Good afternoon Steve, Here is a link to Hayward super parts.Hayward Super Pump Parts You will be able to find your replacement motor and seals here.
Reply
I have a Hayward Super 2 pump 1.5Hp Model C48L2N134B3 & need a replacement motor. Is this the correct replacement motor for my pump?
Reply
Good morning Kenneth, You are looking for a Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152 If you let me know what type of pump this motor is on. I can recommend the correct seal kit you will need.
Reply
I need to make sure this pump is the replacement for my 1.5 hp Hayward super pump C48L2N134B1 before I order it. I had my Hayward super pump freeze up/burn up and I'm just needing a replacement.
Reply
Hi, Jason. Yes, this UST1152 motor is the correct replacement motor for MOD # C48L2N134B1 which can be used with the Hayward Super Pump. I will also recommend that you get the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a Hayward super pump AO Smith model c48k2n143b1 Is this a good replacement?. I see where this is a 1.5 HP whereas mine is a 1Hp, will that have a negative effect?
Reply
Hello Tony- Based off the part number you provided c48k2n143b1, the correct motor for you is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102. Using the Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152 without changing the impeller or checking if your filter can handle the added flow could damage your filter and/or motor.
Reply
On the Century UST-1152 (replacing c48L2n134b1 AO Smith) is servicing motor required. Current
motor is 2-3 years old and making strange noise. How do you service motor if necessary.
Reply
Hello,
I have a Hayward C48L2N134B3 - HP 1.5 - RPM3450
115/230V
Do you have an equal to this model?
Reply
Yes, the UST1152 is the correct replacement motor. If you have the model of your pump I can help you find the correct shaft seal you will need to complete your motor install.
Reply
Will this motor fit in a Hayward model SP2600VSP (1.5 HP)?
Reply
I have what seems to be a super II Hayward pump. It looks square and every technician is telling me to get a square flange.
However th e frame number on the motor plate is 56J and that is a C face motor plate reads:
K48M2N110
SER 8104 HP 1 1/2 KW= 1.1 Volts 115/230 RPM 3450
AMPS 19.4/9.7 HZ 60 SF 1.34 ??(not sure since it is partially scratched) PH 1
Thermally protected CET36WX AMB 50 RU TYPE UAK DUTY COTA?? CODE L Insulation Type B
SP-1615-2-1BE
Reply
Hello Matt- The correct replacement motor for your Super II motor # K48M2N110 would be the A.O. Smith Round Flange 1 1/2 HP Full Rate Motor (C1101, ST1152). We also recommend getting the Tune Up Kit Hayward Super II - GOKIT2.
Reply
could you tell me what the max pump flow is on this motor? CA48L2N134B1
Reply
These flow rates are not dependant on the motor models alone but the pump housing models as well. Please call in and provide that information or submit that information here. Also it looks as if the actual motor model number is C48L2N134B1.
Reply
How do I determine the age of a motor/pump? From the plate, I see
RS 1500
Hayward
A.O. Smith
> Model K48M2N110
> SER 8G04
Reply
Hello- According to Century's motor date code explanation, it would appear that your motor is from 2004. For the age of the pump you would have to call the manufacturer Hayward with your serial number.
Reply
Is this pump compatible with a Motor Model C48L2N134C2 (Original Motor was A.O. SMITH MOTOR)?
Is this pump really a 1.5 HP pump (continuous run at 1.5 HP) or a 1 HP pump with a SF of 1.5?
Reply
Hello Ben- According to the part number you provided C48L2N134C2 your motor should be a 1 hp with a 1.5 S.F A.O. Smith 1 HP Full Rate Round Flange Motor - ST1102, but you can use the Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith UST1152 as well. They have the same Total HP.
Reply
I have a replacement motor that I believe the bearings are going out on. Its a US Motors, Model # K63CXDGJ-5170 1.5 HP, 230/115 Volts. Is this the correct replacement for that? Also, do you sell motor parts? I had a screw break on the front end bell so I wasn't sure if you sold those as well as the actual bearings.
Thanks,
Reply
Hi, Geoff. The Century 1.5HP 56J Full Rate EE Motor - B796 would be the correct replacement motor. We do not sell replacement parts for US Motors.
Reply
I have a Hayward Super II Pump and I need to replace the electric motor.
My motor is A.O. Smith Model K48L2N104, S/N 8B07,115/230V 60Hz, 1 HP, 3450 RPM, FR 56J, Hayward # SP-1610-Z-1.
I would like to upgrade to a 1.5 HP and get a new slinger and all of the seals.
What is the cost?
How fast can you ship it to me?
Thank you,
Reply
Hi, Bill. Based on the info provided the pump you have has a total hp of 1.5 due to the service factor of the motor. So you would not need to upgrade to a 1.5 hp motor. The next size up would be a 2 hp which would be the B796 Full Rate Motor. You would also need the following parts SPX3015C, SPX3005R and GOKIT2/GOKIT2SALT.
Reply
i have an AO Smith C48l2N134B1 motor for my pool pump, can you tell me the exact replacement I would need to order
Reply
Hi Steve, the UST1152 would be the direct replacement for your C48l2N134B1 motor.
Reply
What's the difference between the C48l2N134B1 and the C48l2N134B3. Will this replace the B3 also?
Reply
Hi, Mike. There is no difference between the two model numbers. The UST11052 motor can be used as a replacement for both numbers.
Reply

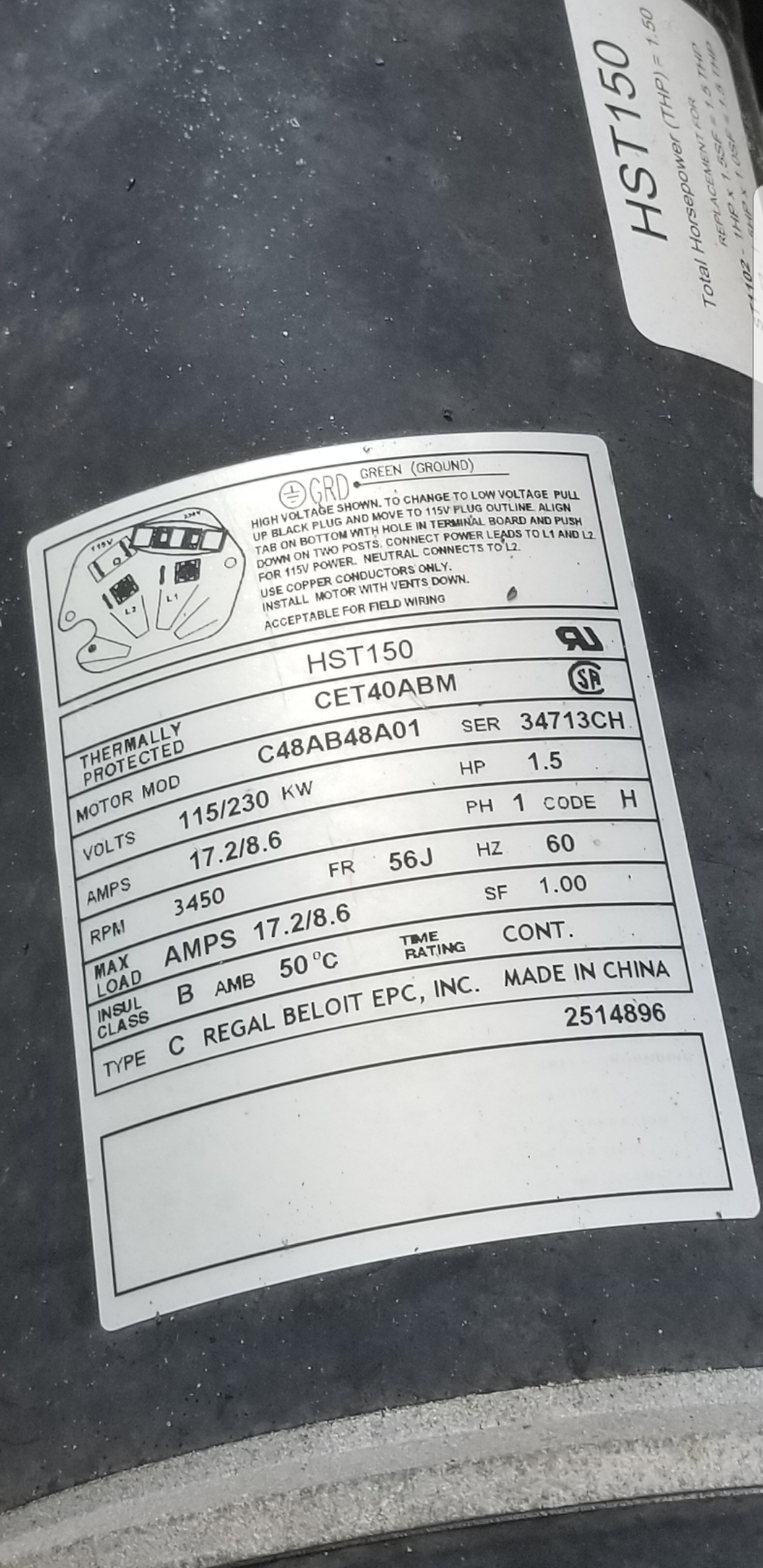

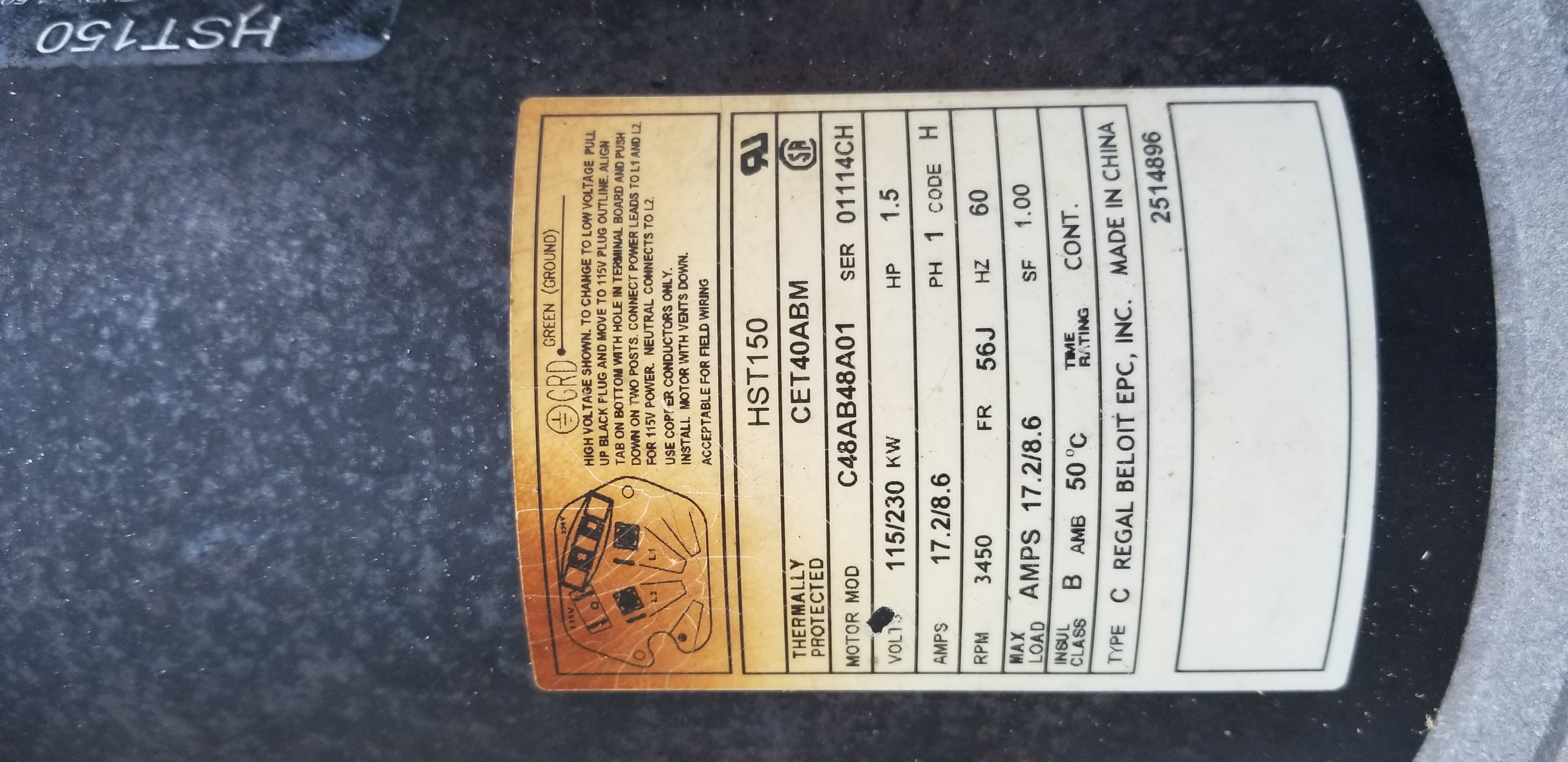

My old motor is a C48AB48A01 that is the motor mod. will this one work with in place of mine.
Reply
Hi, Terry. I was not able to cross reference the MOD # C48AB48A01 to a specific motor. Please provide the HP, SF, FR and Type from off of the motor label or a photo of the motor label and housing so that I can locate the correct replacement.
Reply

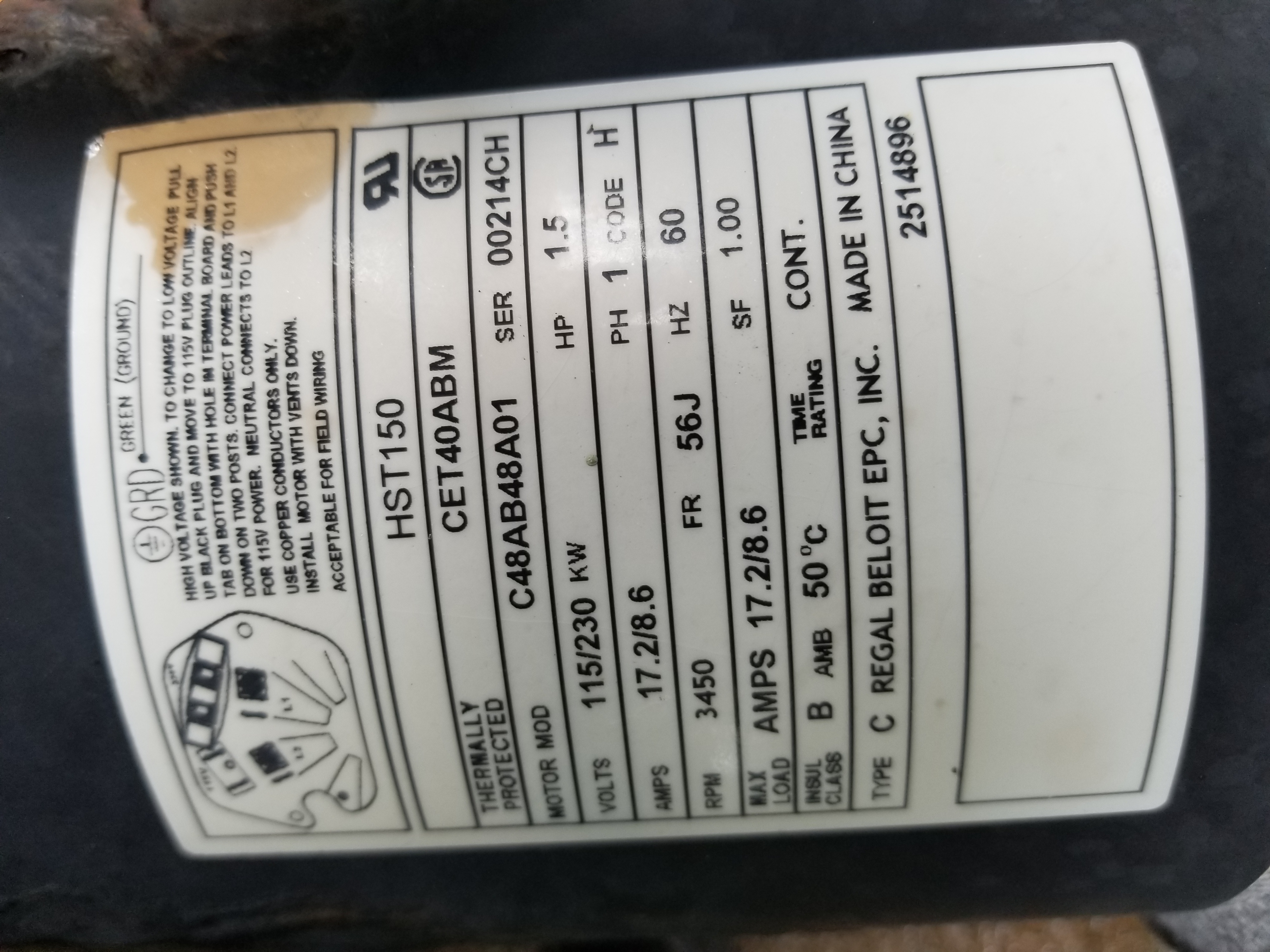

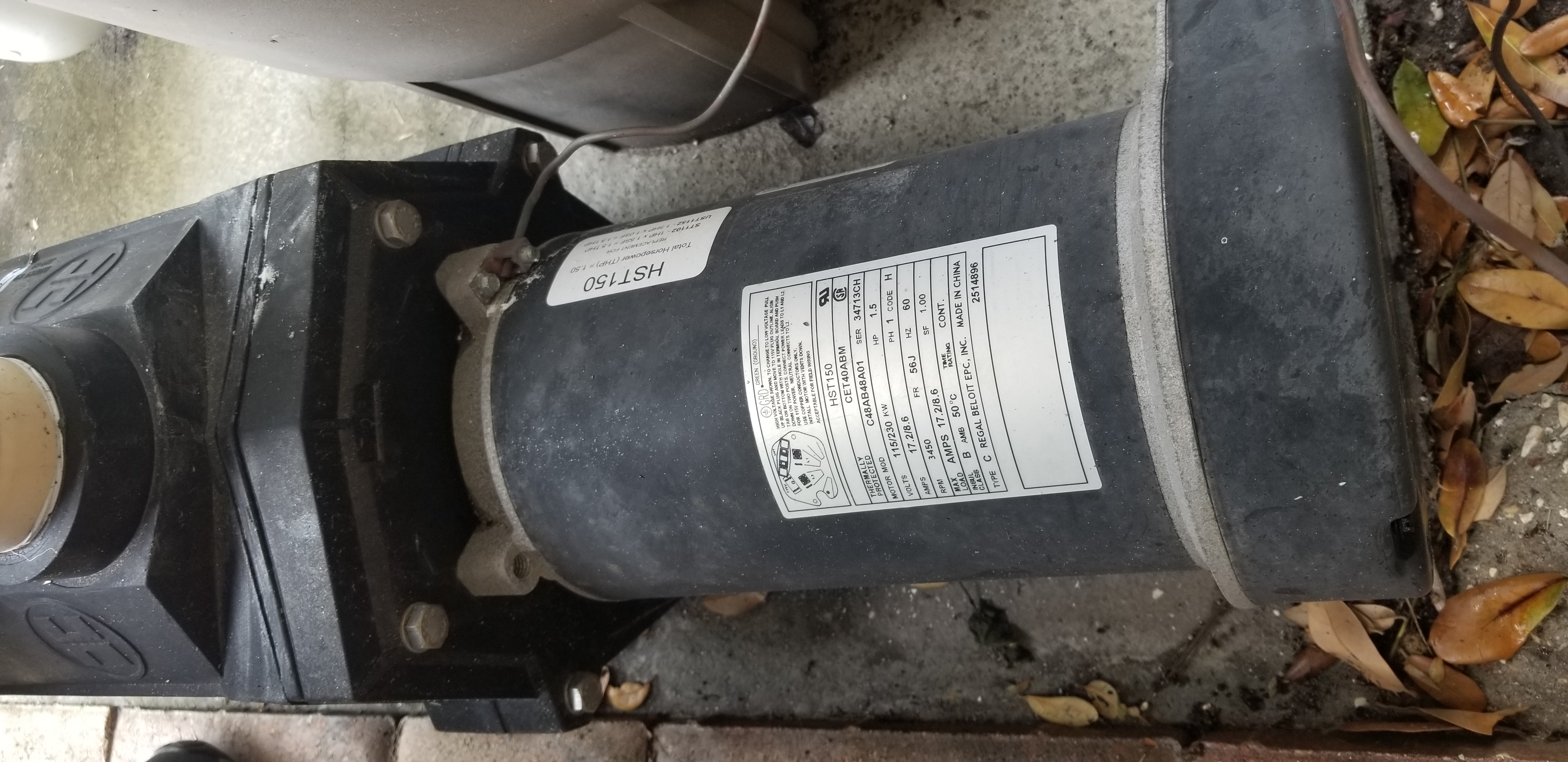

what would be the best motor to use . my motor HST150 CET40ABM. MOTOR MOD C48AB48A01. (TYPE C REGAL BELOIT EPC,INC) I'M JUST NOT SURE WHAT MOTOR TO USE THEREIS SO MANY. THERE IS A STICKER ON IT THAT SAYS.. ST1102-1HPX1.5SF =1.5THP AND THEN UST1152 -1.5HPX1.0SF=1.5 THP. I HOPE THAT HELPS YOU. MINE SAYS THE MAX LOAD AMPS 17.2/8.6. BUT EVERYTHING ELSE IS THE SAME THAT IT SAYS ON YOUR 'S
Reply
You could replace your motor with either St1102 or UST1152. If you have your pump model I can help you with the correct shaft seal you will need for the motor install as well.
Reply
Pump motor A.O. Smith model # C48L2N134 serial 8L96 hums and the shaft is bound. I figured I would change the motor while I have to change the shaft seal. Is this a good replacement part / motor?
Reply
Hi, Mike. This Century UST1152 motor is a good replacement for the C48L2N134 motor.
Reply
I have a Hayward Flo Max 2 1.5 horse pump with an AO Smith motor C48D43A04. I just ordered the replacement motor by Century from your site. I read that I need a gasket kit. Please advise as to part number. Thank you.
Reply
Can you tell me which motor will replace the AOL Smith SP3210z1m?. Thanks
Reply
Hi, John. This Century UST1152 motor is not the correct replacement, the correct replacement motor is p/n SPX3210Z1MR.
Reply
Is this motor interchangeable with an AO Smith K48M2N110
Reply
No this motor is not a replacement for your K48M2N110 motor, you would require the ST1152 1-1/2 HP Full Rate Motor which would be a replacement for your motor.
Reply
is this the correct replacement for hayward #SP2610X15
Reply
Yes this is the proper replacement motor for a Hayward 1.5 HP Super Pump SP2610X15. We would also suggest a Hayward Super Pump Seal Kit when replacing your motor.
Reply
The pump is leaking. There is a rubber band type seal between the motor and pump housing. It's difficult to get seated properly and water started coming out down below. After talking with a friend in the business we followed his suggestion of applying silicone and it still leaks. The spring loaded ceramic seal provided for the original inner seal but wouldn't fit due to the i.d. of the metal ring. We used the original spring loaded ceramic seal (it has no metal ring). Suggestions? Thanks.
Reply
I would recommend replacing all of the seals and gaskets and inspect the pump parts for any damage such as cracks or warping. In order to cross reference the correct seal kit for your pump you will need the front pump housing model name or number that the motor bolts to. If you cannot locate that information then you can send a few images of that housing to our support request page.
Reply
Will this replace my Haywood Super pump 1-1/2 hp motor? SPX1610Z1M
Reply
Hi, Don. Yes, this Century UST1152 Motor is the replacement for the SPX1610Z1M motor. I would also recommend getting the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a c48L2n134B1 ( -SP1610Z1-M). Which is the correct motor replacement and do I need anything else?
Reply
Hi, Joe. This Century UST1152 Motor is the correct replacement for MOD C48L2N134B1. You will also need the Pump Seal - SPX1600Z2.
Reply
I have a motor to replace on my pool. Info on it is: hp 1.5 SPL 70 GPM ,hayward Flo lx, series OK05, type SP amps 12.0, SP1515-Z-1-BC, FR T48Y. Is this what I need to replace it? Thanks
Reply
Can the GOKIT3SALT tuneup kit be used on the Heyward Super Pump WITHOUT the chlorine generator when one is adding salt to his pool water but has not installed a salt/chlorine generator?
Reply
Hi, King. The Super Pump Saltwater Tune Kit can be used with a chlorine pool that is not yet converted.
Reply
I bought the 1hp version of this motor from you last year and now it stops running and is super hot in under 30 mins. Would the 1.5 hp version run better? The 1hp version even when new would always shut off constantly on hot days. Never had this issue with any previous pumps that were installed. 1 lasted 7 years.
Reply
Hi Joe, you wouldn't happen to have the motor information from the motor you replaced? By chance you could have replaced a 1 HP full rate motor with a 1 HP uprate motor which would have overworked the new motor. I would suggest going with the 1.5 HP replacement as the motor will be under less stress and should last longer.
Reply
I'm replacing a Hayward 1HP pump. Is it ok to upgrade to this pump? Will it make much difference?
Reply
Hi, Jamie. If your goal is to increase the water flow you'll need to replace the impeller of the pump. If you do not change the impeller and increase the motor the water flow will not increase. It will only make a difference if you change the pump's impeller.
Reply
Just bought a new motor. I couldn't get the motor mount plate off the old pump so I bought a new one. I used all other old parts. Put it together. Its leaking. Not between the pump House n motor mount. Looks like between the shaft seal n motor mount. Where do I go wrong?
Reply
A number of things may have gone wrong but most often it is due to a seal or gasket being, bad or dirty. Sometimes it is the condition of them over time and other times one could have somehow gotten compromised during installation. We would recommend inspecting all seals and gaskets. Inspect the housings and parts and go back over installation process.
Reply
My Hayward Super Pump model C48L2N134B3 SP-1610-Z1-MBK just died on me due to lack of maintenance by the previous owner. It looks a bit old and I am wondering if this motor would be able to fit where the current motor resides. My internet searches keep coming up with this particular pump and so I am looking into purchasing it as the replacement. Thanks for your help.
Reply
Yes, this is the replacement motor for your pump. You may also want to purchase either the standard seal kit GOKIT3 or the salt water seal kit(if you have a saltwater pool) being the GOKIT3SALT. These contain all of the seals and gaskets when changing the motor which is highly advised.
Reply
hi my pool motor pump C55CXKMC-5013 just burn out i wondering if you have the right one to buy thanks
Reply
Yes the UST1152 Motor is the proper replacement motor for your C55CXKMC-5013 motor.
Reply
The line supplying my in-ground pool equipment was permanently tripped. Forcing the breaker in place, the pump motor buzzes but doesn't come on.
The pump is Hayward 1.5hp super pump, with a Century motor c48l2n134b1. Should I just replace the motor or the whole pump? (it is only 2 years old). If the motor - the model you have is black, but my motor is gold. Also, your model # doesn't have a "b1" at the end.
Thanks
Reply
Igor, If the housing is still in good shape, you can replace the motor and seals. Century makes the Hayward motor. The gold color is Hayward's trademark color. The replacement motors can not be the same color. The only difference between the 2 motors is the color. The motor model number we have listed, is a partial one. There are many different variations on the model number. You should be able to find your exact model number in the alternate part numbers list.
Reply
I just bought the above motor and I am trying to figure out what side is the top so that I can properly attach the mounting plate and seal plate?
Reply
Hello- The vents on motors will always face down.
Reply
Is the 5kcr39sn2823ax the same as 5kcr39sn2823x, and is the replacement for 5kcr39sn2823x a good replacement for the 5kcr39sn2823ax?
Reply
I have a C48L2N134B1 that no longer works and I need to replace.
Will this motor work? What will I need to replace?
Thank you.
Reply
I'm replacing a Hayward 1 HP Super 2 pump motor with a 1.5 HP Century Electric. What impeller and diffuser would I need to use? Will the Hayward brand for a 1.5 HP Super 2 work for the 1.5 HP Century Electric?
Reply
I have a Hayward Super II Pump with this motor. It's old and the motor is rusted out...could be 20 years or more! The past week the water flow has been steadily decreasing, and now flow starts out at 50% of what it used to be and drops more and more as it runs. I checked all my lines for air leaks and replaced the pump gaskets, and no matter what source in and water out valves I switch to it's still very slow. Could the motor old and tired, losing power as it runs and not keeping the RPMS up?
Reply
It is possible that the motor is having issues with RPM's but that doesn't happen too often. It is also possible there is a pump priming issue. Please view the results here to view a few how-to guides to try and assist in locating other options as to what may be causing your issue.
Reply
Our c48l2n134b1 Hayward motor went out on our pool pump. What is the correct model to replace it with. I can't seem to find that exact number
Reply
Yes the UST1152 would be the replacement for the c48l2n134b1 .
Reply
Replacing 1hp motor ust1102. For Hayward pump SP2007x10. I want to put 1.5hp motor on this pump. Is this a direct fit or are there other parts I will need
Reply
Hi. Yes, you will also need to replace the Impeller - SPX2610C and the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Is there a way for me to send a pic of my pool pump to see if this motor would work?
Jack
Reply
Hi, Jack. Yes, you can. You can email us at upload@inyopools.com.
Reply
I have this pump and for some reason, water flow stopped going to it. Shouldn't it have cut off before it burnt up the motor? If so, is how do I reset it?
Thanks
Joe
Reply
How To Troubleshoot a Pool Pump Motor - Motor Overheated
Reply
I have an old pump that is making a LOT of noise when it runs. It is model C48L2N134C1 (UST1152). I would like to replace it. Do I need any additional parts? I have a salt system.
Reply
Hi, Larry. You will need this motor UST1152 and the pump shaft seal and or the Tune Up Kit. However, you will need to know the model of your pump housing. You can reference our How To Find The Correct Pool Pump Shaft Seal blog for assistance.
Reply
I have a Hayward Super Pump model SP2610X15. The motor (UST1152) is making a lot of noise so I would like to replace it. What else besides the motor will I need?
Reply
It is recommended to replace the seals and gaskets as well. For the Super Pump, those would be the GOKIT3 or the GOKIT3SALT for a saltwater swimming pool.
Reply
I have a Hayward pool pump with a 1.5 HP motor. Will this fit the Hayward assembly?
Reply
If your pump has the model number SP2610X15 or the motor that you are replacing has a service factor(s.f.) of 1 and has been working well then yes this motor would work.
Reply
I have a Hayward Max-Flo pump model #SP2800ZL with motor model C48L2N134B3.. will this motor work? Any instructions on how to replace the shaft seal and which one I need. The pump model # is not that popular, google's not turning a lot of results when I search it.
Reply
I am replacing a Hayward Super Pump model # C48L2N134B1. Also has the following on it, SP-1610-Z1-M. It is a 1.5 hp. Will this work to replace it and will I need any additional parts?
Thanks
Reply
Laura, Yes, this is the correct replacement. I would also recommend getting the GOKIT3 or the GOKIT3SALT to replace the seals.
Reply
Can I use this motor to replace a hayworth motor?
Reply
As long as your motor model, part or catalog number matches this one then yes. That information should be right on the motor label itself.
Reply
currently have a hayward sp2607x10 with a ao smith c48k2n143b1 which is a 1 hp motor. We think we need a larger motor 1.5. will this fit and work.
Reply
Hi, Brian. This motor will fit your current Hayward Super Pump. You will also need to replace the Impeller - SPX2610C, Diffuser - SPX2600B and the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have the UST1152 motor (brand new from you) and i believe I need a new pump also. Is there any certain one I would need to match this? Thanks!
Reply
Hi. We do not sell pump pumps without motors. You will have to return the motor (if it's in new and unused condition) and purchase a new pump. They're more than 2 dozen different pump that can use this motor.
Reply

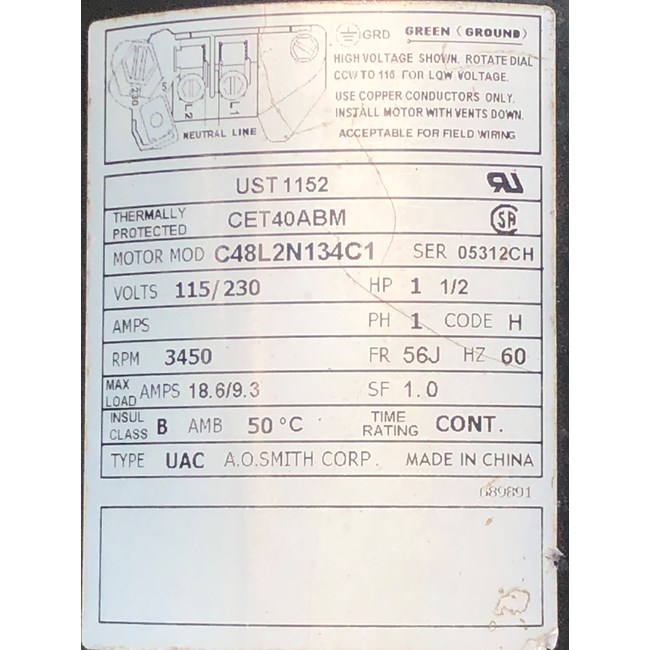

I need to replace UST1152 motor, mod #C48L2N134C1, HAYWARD PUMP SP2610X15. I found the exact replacement on your site, do I need any other parts such as seals or anything?
Reply
We recommend replacing the seals and gaskets as well. For a chlorine pool that would be the GOKIT3 and for a salt pool that would be the GOKIT3SALT.
Reply
Do you have a motor to replace US Motors ( Emerson) model: C63MWHPB-5073? tHANKS.
Reply
Hi, Thuy. I was unable to locate a replacement in our database for model: C63MWHPB-5073. If you can provide the motor's CAT #, I can use that.
Reply
I need a replacement motor for a Hayward SP2610X15 pump. My current motor is a Hayward and want to make sure I can get a motor than I can replace myself without modification. Is it possible to get by tomorrow?
Reply
Hi Larry, This UST1152 replacement motor would be the correct replacement motor for your Hayward SP2610X15 Super Pump. We would also suggest this Hayward Super Pump Tune Up Kit when replacing your motor. If you select the Next Day Air option during checkout and you purchase before 1 PM EST then you would have the motor the next business day.
Reply
Just checked and my current pump is a Hayward SP2610x15 Super Pump with a 1.5 HP motor. The motor says Century Model C48L2n134B1. Need the correct drop in replacement motor.
Reply
Hi, Larry. This UST1152 - 1.5HP Motor Round Flange Up Rate Motor will be the correct drop-in replacement. You can also use the PL2229 Pureline Motor. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I called and was told that UST1152 is the correct replacement for a.o.smith C48L2N134C2- do I need to order anything else in order to replace motor?
Reply
Hi, Heidi. You will need a pump shaft seal or tune up kit. You will need to provide the make and model of the pump housing.
Reply
I have a c48l2n134b3 that needs to be replaced. What do I need and how long to receive the replacement? Zip code is California, 95832
Reply
I need to replace my pool pump and want to make sure of which replacement is best. Motor model isiC48AB48A01. There is another label that says MOD # HST150. I can email you pictures if neccesary. Thank you.
Reply
Hello Sir, My pool pump is still working but getting noise when running longer period, (> 0.5 hour). It may need to be replaced, Motor model is C48L2N134B1. The model of C48L2N134C1 you have is matched to my model, and easy to replacement by myself? If I order the motor, do I need other accessories for the installation? your service ship that product to Canada, in Ottawa? Thank you!
Shiping
Reply
Hi. You will need to replace the pump shaft seal and o-rings along with the motor. We can ship to Canada. Shipping and Duties cost will be additional.
Reply
i'm guessing that the Century 1.5 HP Round Flange Up Rate Motor (C48L2N134) Formerly A.O. Smith - UST1152 is compatible with the Hayward Superpump 1.5 HP motor Model # C48L2N134B1? Thanks Alan
Reply
Hi, Alan. Yes, it is. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I opened my pool and existing pump worked for 2 weeks, then started to constantly trip the breaker. Electrician said electrical sde was OK.
I replaced the motor, and it runs for 20 minutes and shuts off....This time the GFI breaker doesn't trip. I can turn it back on after an hour or two,
but again it shuts off in around 20 minutes. Is the reason a short in electrical wiring, a wrong setting on pump, a breaker switch? I replaced motor, had electrician and pool guy out and still can't resolve.
Reply
Hi, Nathan. The only thing that I can recommend that you check it the pump impeller for ware, damage etc. You can also use the A.O. Smith Troubleshooting for additional troubleshooting tips.
Reply
Hi, I have a 1 1/2 HP C48L2N134B1. The pump and motor work fine. But, the motor end cap, to cover the electrical terminations, is rusted out. Can I buy just this cap? Thank you.
Reply
Hi, Steve. The End Cap for this motor is not currently available.
Reply
Question asked before, Can this motor be used on a well pump. Thanks.
Well pump motor model# C48L2N134C1
Reply
We do not actually work with irrigation pump applications but we have learned that many of those pumps do use these types of motors as well.
Reply
currently have a "ust1152" pump with 1.5hp. bearings are going bad. if I wanted to increase hp, what model would I use to upgrade hp? will that increase water flow (as it currently seems weak)and if so will it cause any problems with lines or pol itself???
Reply
Hi, Bruce. The next size up will be the UST1202. To achieve an increase in water flow, you will also have to replace the impeller and the diffuser and or other parts depending on the type of pump you have. It can cause filtration and other problems if your system cannot handle the increased water flow. You can use Inyo's How to Size a Pool Pump for Your In-Ground Pool, How To Size a Pool Filter and How To Measure Total Dynamic Head With Gauges guides to assist you in confirming if a 2 hp pump will meet and not exceed your pool needs.
Reply
I have a Hayward Super II pump with a Century 2 speed motor rated at 1.5 total hp, SF =1.0 on my part:7-181093-03 X56J frame. What model replacement motor do I need? Thanks Sal
Reply
HaywardSP2610X15 pump installed Jul. 2015- 1.5 hp Century motor failed while running No debris in impeller turns freely. Replaced capacitor hums, won't start. Previous motor AO Smith lasted 2 years ( use July - mid Sept 8 hrs./ day on timer) Nameplate : HP 1-1/2 Model C48L2N134 B1 V 115/230 RPM 3450 Fr. 56J SF 1.0 SP1610Z1M
Need replacement motor and kit of Shaft seals& gaskets for flange & diffuser
Many alternatives on Internet. Need certainty new motor will match
Reply
Hi, Anatole. This UST1152 Motor is the correct replacement. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Hi
My Hayward motor C48L2N134 B3 stop working after 25 yrs, I want to replace it with Century UST1152, do I need any other part for motor replacement, please advise.
Thanks
Reply
Hi, Joe. You will need to replace the seals along with the impeller and diffuser. I will need to know the make and model of your pump housing.
Reply
This motor is described as a regular efficiency single speed motor. Is there a energy efficient 1.5hp motor and exactly how much more efficient is it supposed to be?
Reply

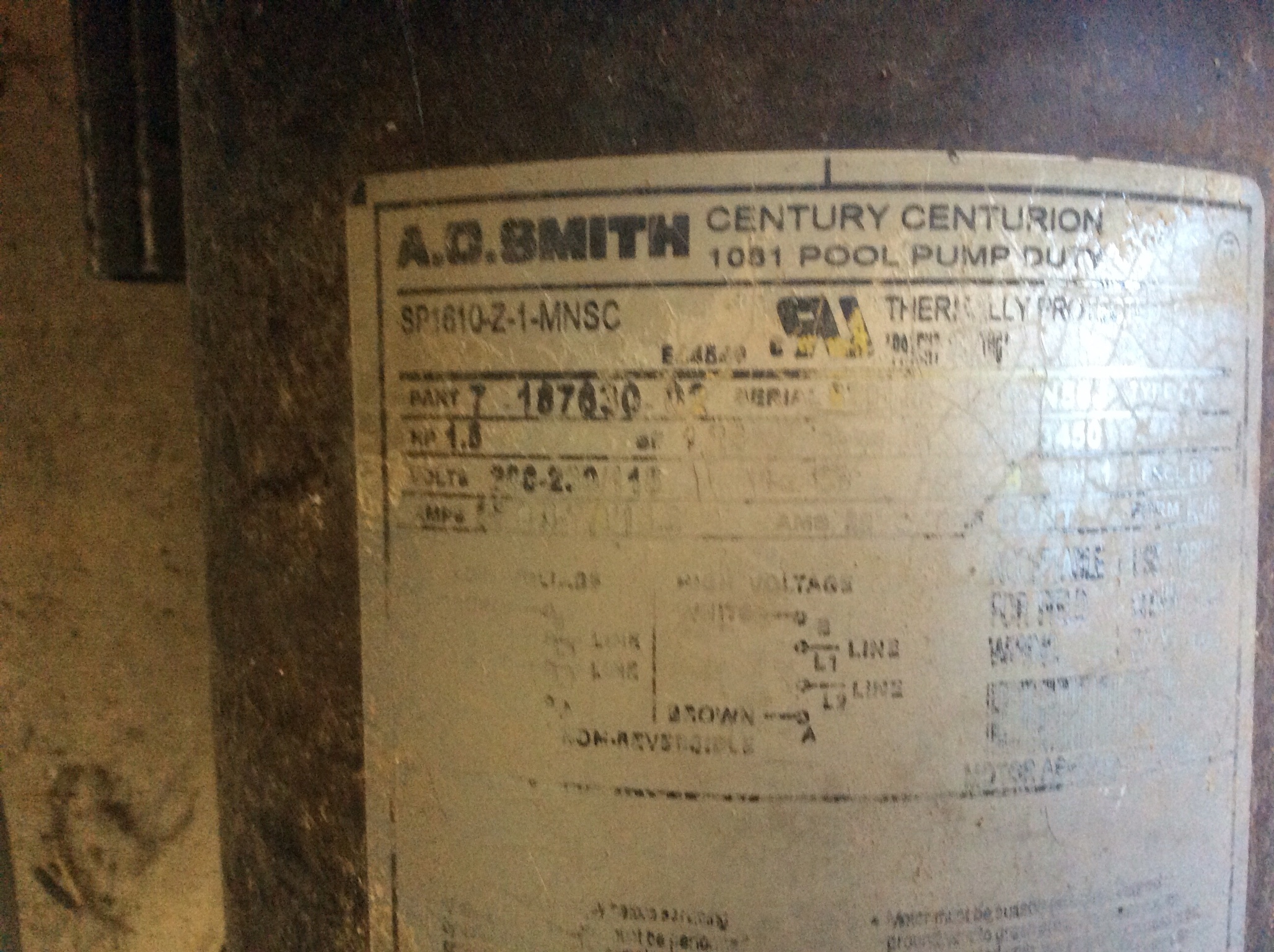

Hi! I have a A.O. Smith SP1610-Z-1-MNSC that needs to be replaced. Will this item work without having to modify? If yes, are there additional items needed? Thank you!
Hi Penny, based on the photos you supplied you have the Hayward 1.5 HP Up Rated Northstar Pump SP4010X15NS and you will require the USN1152 1.5 HP Hayward Northstar Replacement Motor If your pump is prior to 2003 you will need this Pre 2003 Hayward Northstar Shaft Seal and if your pump is from 2003 and later then you will require this Hayward Northstar 2003 and Later Shaft Seal. We have put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this the direct replacement for the pump shown? It seems the model number matches. Just looking to double check.
Hi, Steve. This UST1152 motor is a direct replacement for your Hayward Super Pump. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I am replacing my Hayward super pump model Sp1610Z1M model C48L2N134B1 and found both a Century UST1152 and a UCT1152. The UCT looks to be a more energy efficient version of the other. Which one does INYO recommend and which has the same energy rating as my current motor? Thanks.
Reply
We would recommend going with the energy efficient model and we would not be able to pull up your current model's amperage rating. If you have the serial number and contact A.O. Smith/Century they can in their database at 800-262-6484.
Reply
Looking to replace a HST 150 (pictures attached). The one pictured is only 4 years old. How much more efficient is the efficient motor?
Good Morning- If you are looking for a more energy efficient motor you are looking for the A.O. Smith 1.5 H.P Pool Motor Energy Efficient Round Flange - UCT1152. This motor will provide a lower amp draw contributing to more efficiency.
Reply
Hello,
Pic attached, motor is a AO smith C48L2N125 ON AN OLDER ABOUT 1980?, MAXFLO HAYWARD PUMP POWERING AN INSIDE HOT TUB NEED THE REPLACEMENT MOTOR AND THE REBUILD KIT FOR THE SEALS SHAFT ETC PLEASE.
Best,
Jeff
THANKS
Hi, Jeff. The STS1102R is the correct direct replacement motor based on the info on the motor label. You can also use this UST1152 as a single speed replacement option. You'll also need the Hayward MaxFlo Tune Up Kit - GOKIT1 or GOKIT1SALT.
Reply
Will this motor work as a replace for the Motor on my Hayward pool pump?
Reply
To determine the correct motor could you please reply back with the model of your Hayward pump, examples would be Super Pump, Super II, Northstar, Max Flo, etc.. Also if you could supply the HP, SF, RPM, Amps and Frame type. This information would allow us to determine the proper replacement for you.
Reply
I have a Hayward Super Pump and the HP is 1.5, Service Factor (SF) is 1, Volts 115/230, Amps 18.6/9.3 and Frame says 56J.
Reply
Thank you for that information it is quite helpful. Yes this is the proper replacement motor for the specifications of the motor you have mentioned.
Reply
l this replace: hayward super pump motor c48k2n143b1 ?
Reply
Hello, This will be the correct motor you will need for your pump.http://www.inyopools.com/Products/00200017001331.htm
Reply

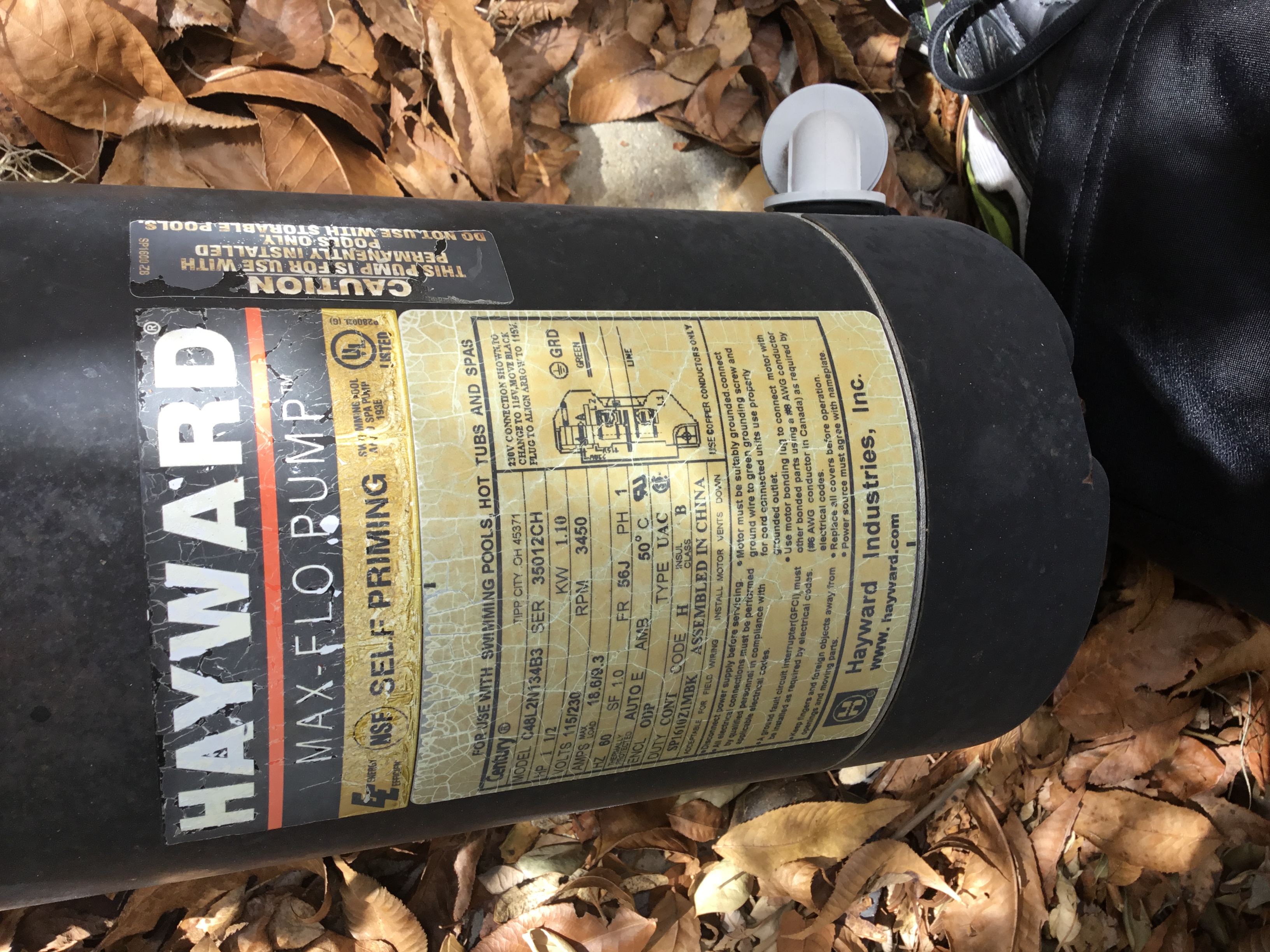

I have a Hayward Max Flo Pump SP2800ZLC with a A.O. Smith Motor Model Number C48L2N134B1. Is the correct replacement the UST1152 Motor with a Go Kit 1?
My pump motor has 2 labels. One says Jandy model: JHP1.5 and Serial J06FJ038. The other label says: Century Centurion AO Smith part # 7-193633-24. Frame id P56J. 1.5 hp. round flange. 10.5 " long approx. What is the correct replacement motor?
Thanks, John
Reply
i have a ao c48m2n111a3. this is 2hp motor. Everything i am finding is 1.5hp for a replacement. Will a smaller motor suffice? see attached motor info
Hello, This will be the proper motor replacement for you,http://www.inyopools.com/Products/00200017003488.htm?Keywords=c48m2n111a3You can go down in horse-power but we will not know if it will be enough for your pool, you will also need to change out the impeller and possibly the diffuser when going down in horse-power.
Reply
I see two motor replacements for my Hayward Super flow pump A.O. Smith UST 1152 and Pureline PL 1152....what's the pros and cons of each? The Pureline looks new to your inventory....what's the track record?
Reply
Hello, They are the same motor. The pureline one is our private label and the AO smith one is the name brand. They both come with a one-year warranty.
Reply
My existing pool pump shows the voltage as 115/230 on the label. Do I need to upgrade my electrical service to the pump to 230 if I replace my pump with one of the dual or variable speed pumps that is recommended? How do I tell what the voltage is in my existing setup?
Thanks, Dave
Reply
Good afternoon, you would only need to change the voltage if you had 115. Here is How To Use a Multimeter to Test a Pool Pump Motor - Voltage. This guide will show you how to test if you have 230 or 115.
Reply

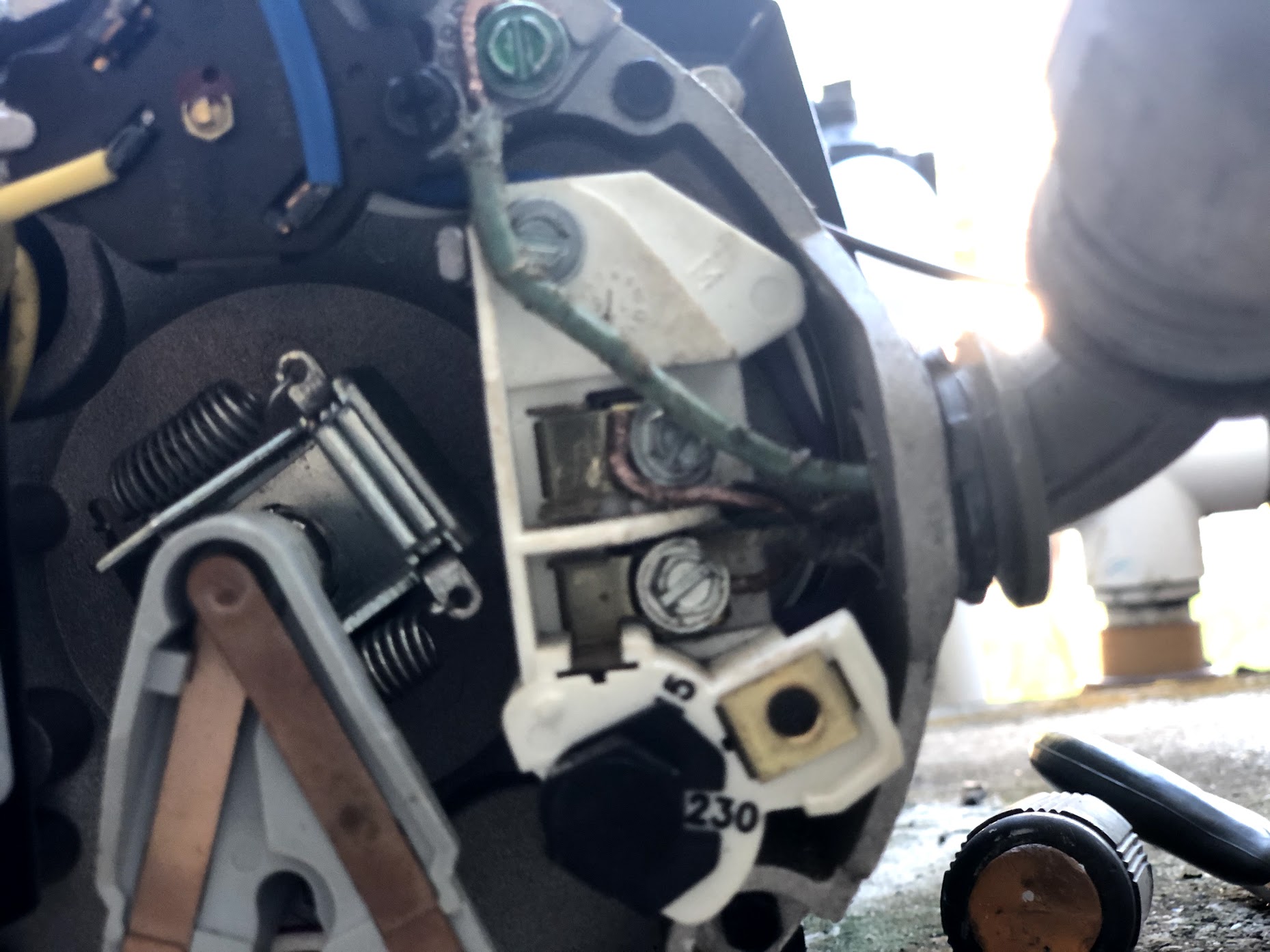

there was no wiring diagram...just need to know black right and white left??
Reply
Hi, Joe. The wiring diagram is located on the motor label. We will also need to know what voltage the motor is being wired for in order to assist you. You can also use our How To Wire A Pool Pump guide.
Reply
I have an A.O Smith #C48L2N134, CET40ABM, SP-1610-Z1-M, 1.5 HP..is this the correct replacement and do have the seal kit too?
Reply
Hi, can you tell me which replacement motor to purchase based on the pump label picture. Also, what else do I need to purchase with the pump? Thanks
Hi, Edward. This UST1152 or the PL1152 can be used as replacements. You will also need the the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a Hayward Superpump C48L2N134B1 that is locked up after just 5 years. So I have two questions. 1) can I replace it with a variable speed pump motor? 2) Is there a better pump or was this a fluke? It is outdoors all year in Ohio. The pool professionals winterize it so not sure what happened. Please let me know your thoughts. Please include price and availability. Thanks for your help!!!
Reply
Hi, Jeff. Yes, you can convert your single speed pump to a variable speed using the PL1116 or ECM16CU motors. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT. It is hard to say if its a fluke or not without knowing what caused the motor lock up. The motor part numbers are hyperlinked so you click it to see the price and availability.
Reply
I received the A.O. Smith 1.5 HP Round Flange 56J Up Rate Motor - UST1152 motor to replace my pump motor. The new motor came with a rubber thread protector on the shaft threads as well as a rubber washer/gasket on the shaft. I know the thread protector gets removed but was wondering if the rubber gasket/washer stays on or comes off before installation.
Reply
Those gaskets are referred to as slingers that sit on the shaft of the motor against the face of it, and do not need to be removed.
Reply
Hi We had a stealth pool pump motor that stopped running, at the pool store they said to put a 1.5 hp motor on it. the motor information is SN BY03-20 part B 193632-24 type CX FR M56J. What type of pool motor should we get?
Reply
I currently have a Hayward super pump, model number: C48J2N131. We recently added a solar system, can I upgrade to this model?
Hi, Kyle. You can upgrade your pump to use this UST1152 motor. You will also need the Super Pump Drive Train UpGrade Kit 1.5 HP - SPX2610CKIT.
Reply
I have been having trouble with my pool motor starting after I turn it off. These are pictures of the old motor, and the current motor. Will this motor be a good replacement?
Need new pump motor for Hayward model sp2610x15. The motor I am replacing has a service factor 1.5. This only is 1 is it the right one. Do you have an estimate for ground shipping to CT (approx days)
Hi Beth, Yes this UST1152 is the correct replacement for your Hayward Super Pump sp2610x15. And the approximate delivery time to CT is 3 business days.
Reply
I have a hayward pool pump model- SP2610X152S with a 2 speed century 1.5hp motor and i wanted to go to a single speed motor, will this one work?
Reply
Hello, Yes, that would be the correct motor if you wanted to change to a single speed.
Reply
Can you recommend the the correct motor for replacement. Upgrade if possible. Thanks.

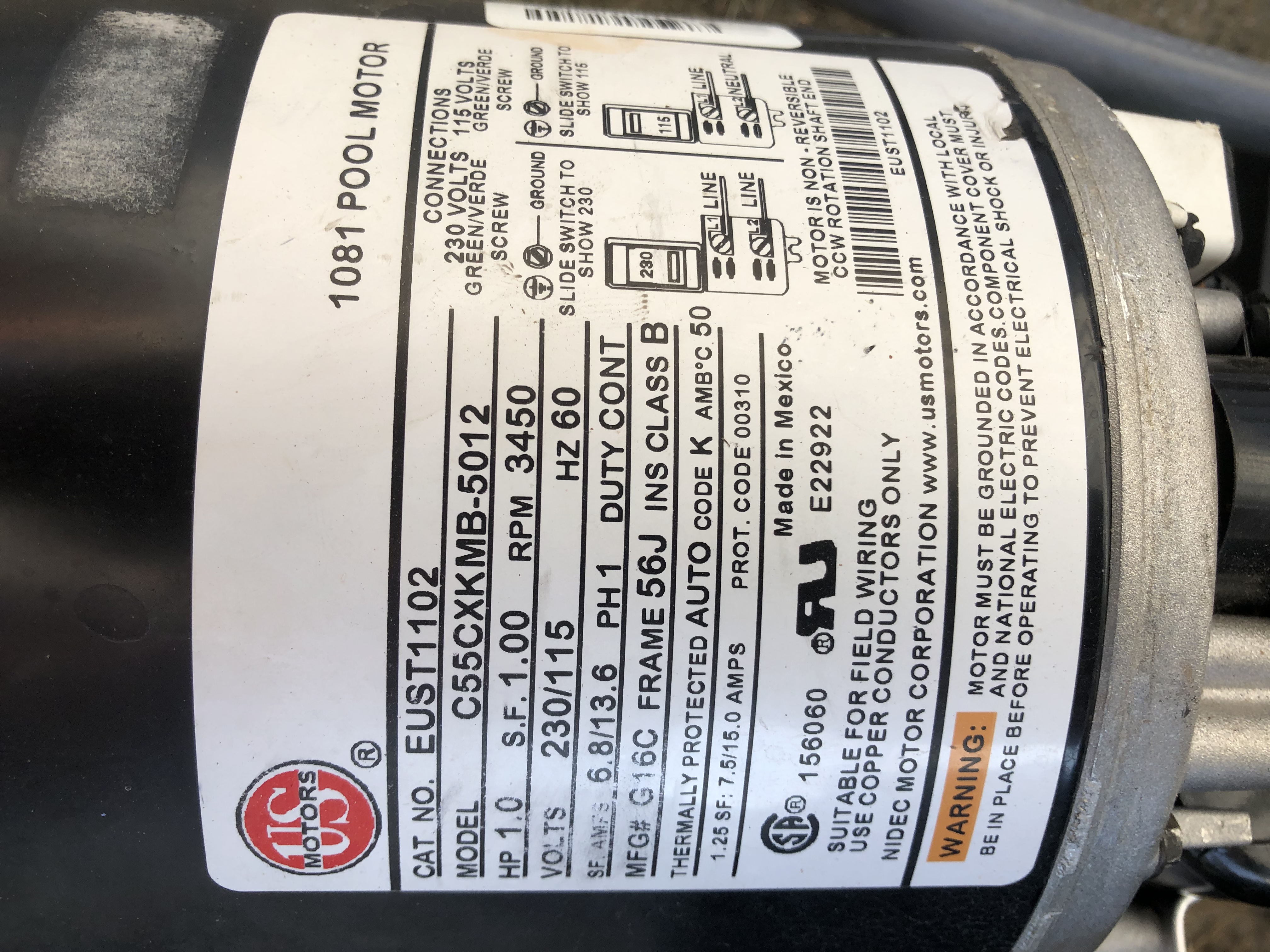

Hi Jeff, This UST1102 motor on this page is the correct replacement motor for your motor in the photo. I would suggest upgrading to this PL1116 Variable Speed Pool Motor as it will save you a ton on your operational costs. If you're not familiar with Variable Speed Motors then check out this Article on How Much does it Cost to Run My Pool Pump.
Reply
I have a Jandy PHPU 1.5 pump with a Century Centurion A.O. Smith Serial CA06-13
Type CX FR M56J motor.
Is this the correct replacement motor?
Reply
Hi Jeff, Yes this is the proper replacement motor for your Jandy PHPU 1.5 you will also need this Jandy Replacement Shaft Seal when you tackle this project.
Reply
What is the part number for shaft bearing
Reply
This motor uses 2 of the 203 Pool Motor Bearings
Reply
Hi. Will this motor replace my current motor? I have a Jacuzzi 160L sand filter, probably 12+ years old. Thank you.
Photos attached.
Hi, Andrew. This UST1152 motor is not compatible with your Jacuzzi LR and SLR Series Pump. The BN35V1 along with the SLR Tune Up Kit - GOKIT41.
Reply
I need to replace our pool motor C4812N124C1. Can you advise me on motor and necessary seals? Picture included.
Hi Tonia, Yes this is the correct replacement motor the motor included in your photo. You will also need a Seal Kit when you replace your motor. To determine the seal kit could you take a wide shot of your complete pump showing the pipes going in and out of the pump? Click the reply link below to upload the photo and then we can let you know the seal kit you need. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply

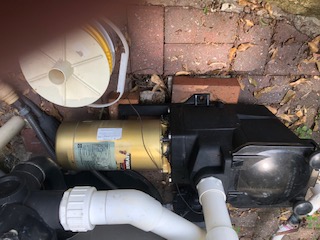

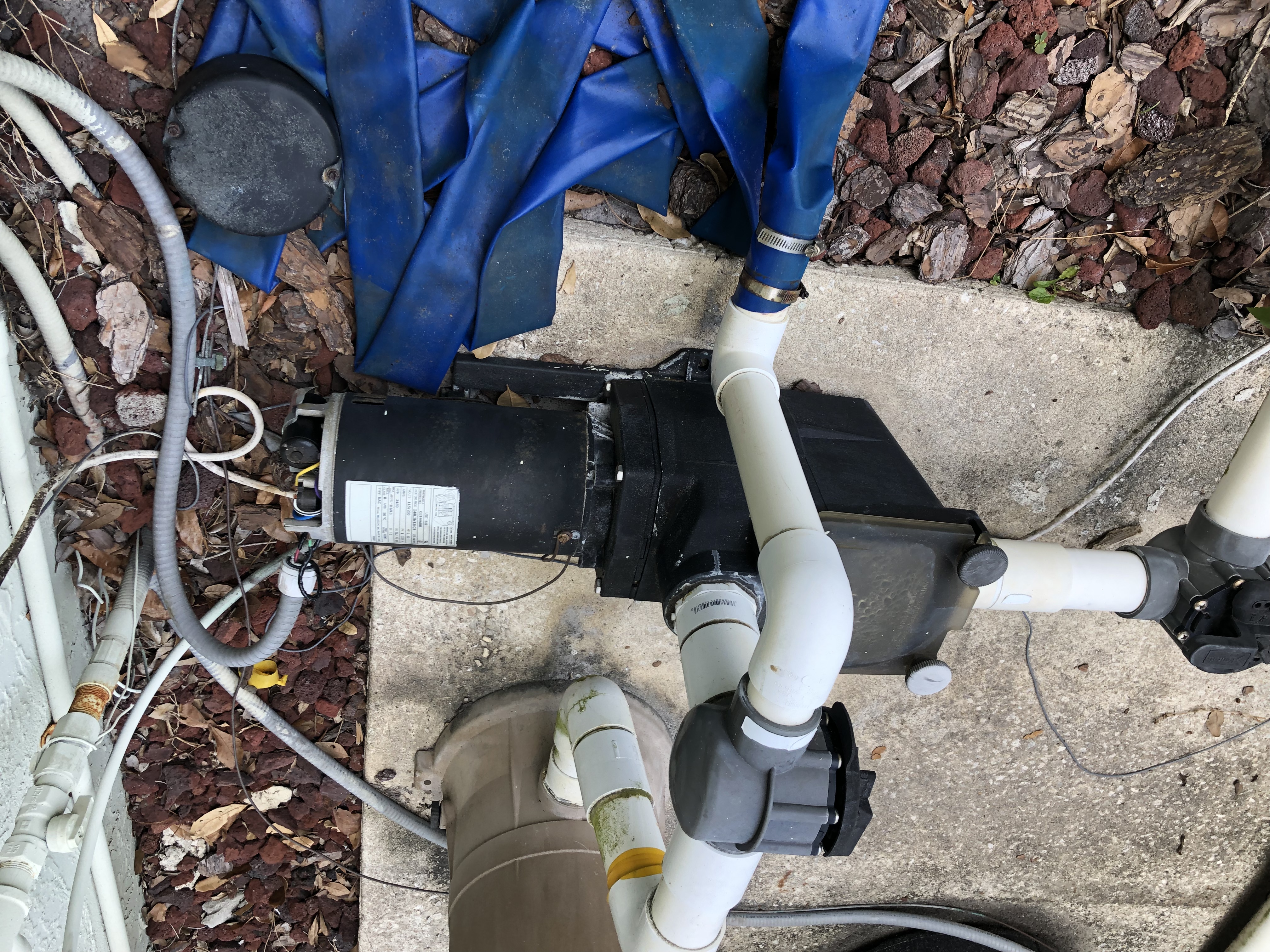

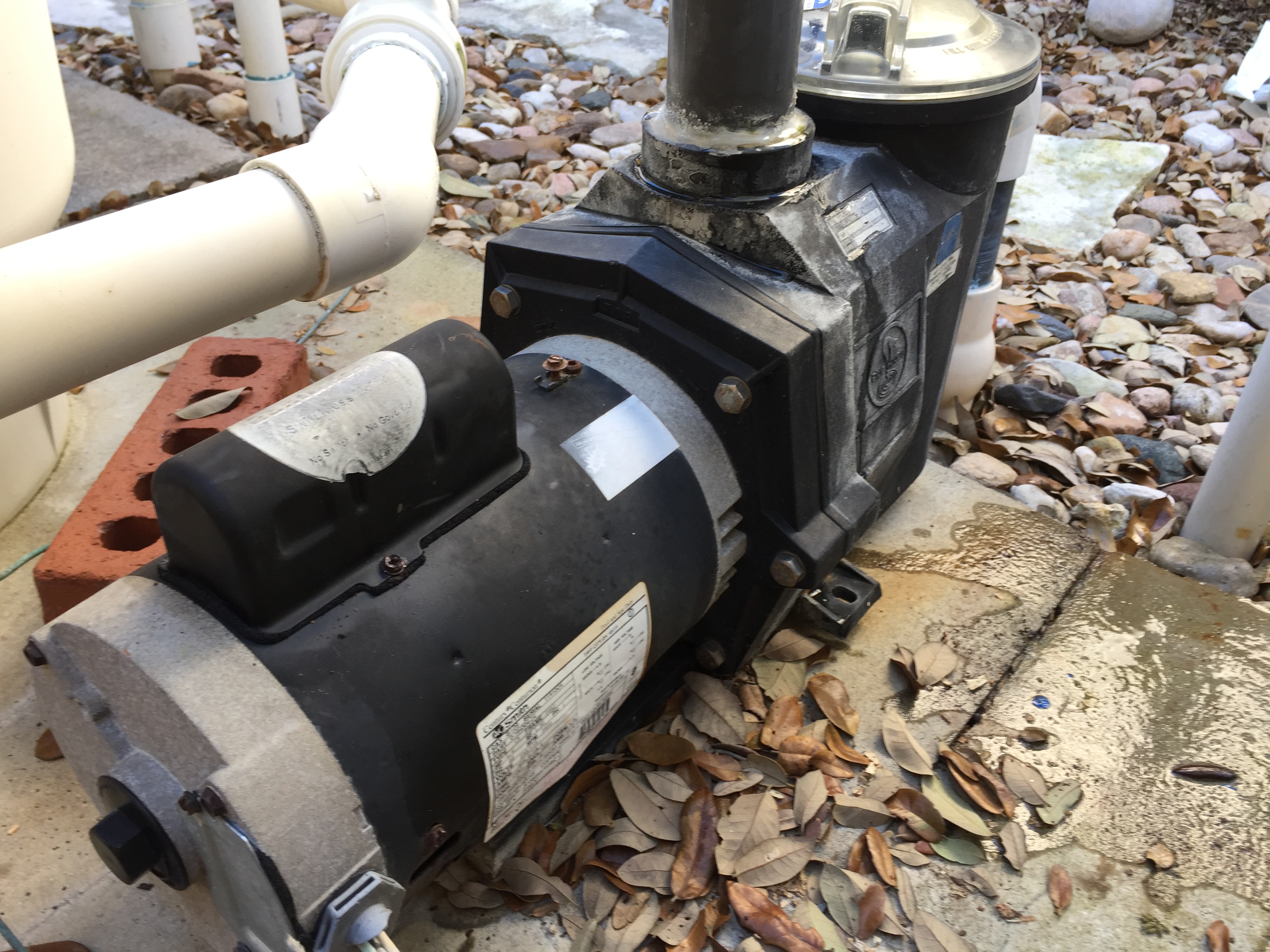

Wide shot picture as requested. For motor and correct seal. Thanks.
Thanks Tonia, that wide shot photo of the pump was exactly what we needed. You have a Hayward Super Pump and you will require this Hayward Super Pump Seal Kit
Reply
Is this the correct replacement for my Hayward pump? What else do I need? Is it possible to just replace the motor bearings?
Hi, Michael. This UST1152 motor is the correct replacement. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT. You can also replace the Bearing - 62032RS.
Reply
wha tis the difference between a Century motor UST 1102 and ST 1102
Reply
Hi Dan, The UST1102 is an uprated motor and the ST1102 is a full rated motor. The full rated motor is more powerful as it has a higher service factor. Here is an article we wrote on the Difference between Full Rate and Up Rate Pool Motors which you may find helpful
Reply
I'm looking to replace my current pool motor: Motor Mod: C48L2N134C1. UST1152. Please let me know what additional parts I will need to buy to change out the motor. The pump housing is a Hayward Super Pump II.
Most commonly homeowners replace the seals and gaskets. For a chlorine swimming pool it would be the GOKIT2 and for a salt water swimming pool it would be the GOKIT2SALT.
Reply
I just asked the other day about replacing my 1.5 hp pool motor, and you mentioned that I should also purchase a GoKit2salt. Although I do indeed have a salt water pool, the cost of the GoKit2salt is about twice the cost of the GoKit2, so I guess my question is: Do I need to purchase the GoKit2salt, or can I get by with the GoKit2. The pool pump housing is a Hayward Super Pump II.
Reply
Can you please tell me exactly what I need to order to replace this motor?
Hi. This UST1152 is the correct replacement motor for your model.
Reply
Thank you for your quick reply. Do I need to order any other parts with this?
Reply
We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Hayward Super Pump, Hayward Super II, Hayward Max Flo, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
my pump died on me few weeks ago it use to have a hard time turning where it would rattle and wine but move water is this the right replacement for this motor picture attached
The UST1152 is the correct replacement motor for your C48L2N134B1. The gasket kit for your Hayward Super pump is either the GOKIT3 or GOKIT3SALT.
Reply
What motor would work to replace my Hayworth max flo
Hi Jennifer, Yes this is the correct replacement motor the motor included in your photo. You will also need a Hayward Max Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Hayward super pump 1-1/2 HP MODEL #C48L2N134B1 that needs replacing. It appear from your site that the ust1152 is a suitable replacement, but the front of the motor looks much different than mine. The square black plastic surround which is how I attached it to the filter basket is missing. Can you confirm that this is the right motor? Do I need to port parts from the old motor to this one? I’ve attached a picture of my original motor
Hi, Tony. This UST1152 is the correct replacement. The plastic components will have to be removed from the old motor and remounted to the new motor. You will also need to replace the seals which are all included in the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT. You can also check out our How To Replace the Motor on Your Pool Pump guide for instructions.
Reply
Did replace 1-1/2HP Century C48L2N134B1, which is SP1610Z1M, with UST1152 1-1/2HP up rated motor had big problem with shaft being too long; when first put together impeller was grinding against the entrance of diffuser and seal did not seat correctly, spring notcompressed enough, so there was a water leak through the bottom drain slot. I assume the Century UST1152 motor was put together incorrectly since it's supposed to be a clear replacement for the Sp1610; is that correct???
Reply
Does this motor fit a Hayward SP3200 pump?
Reply
Hi, Cyril. This motor is NOT compatible with the SP3200 Series pump. See the Hayward TriStar SP3200X Series Pump Parts Diagram for replacement parts.
Reply

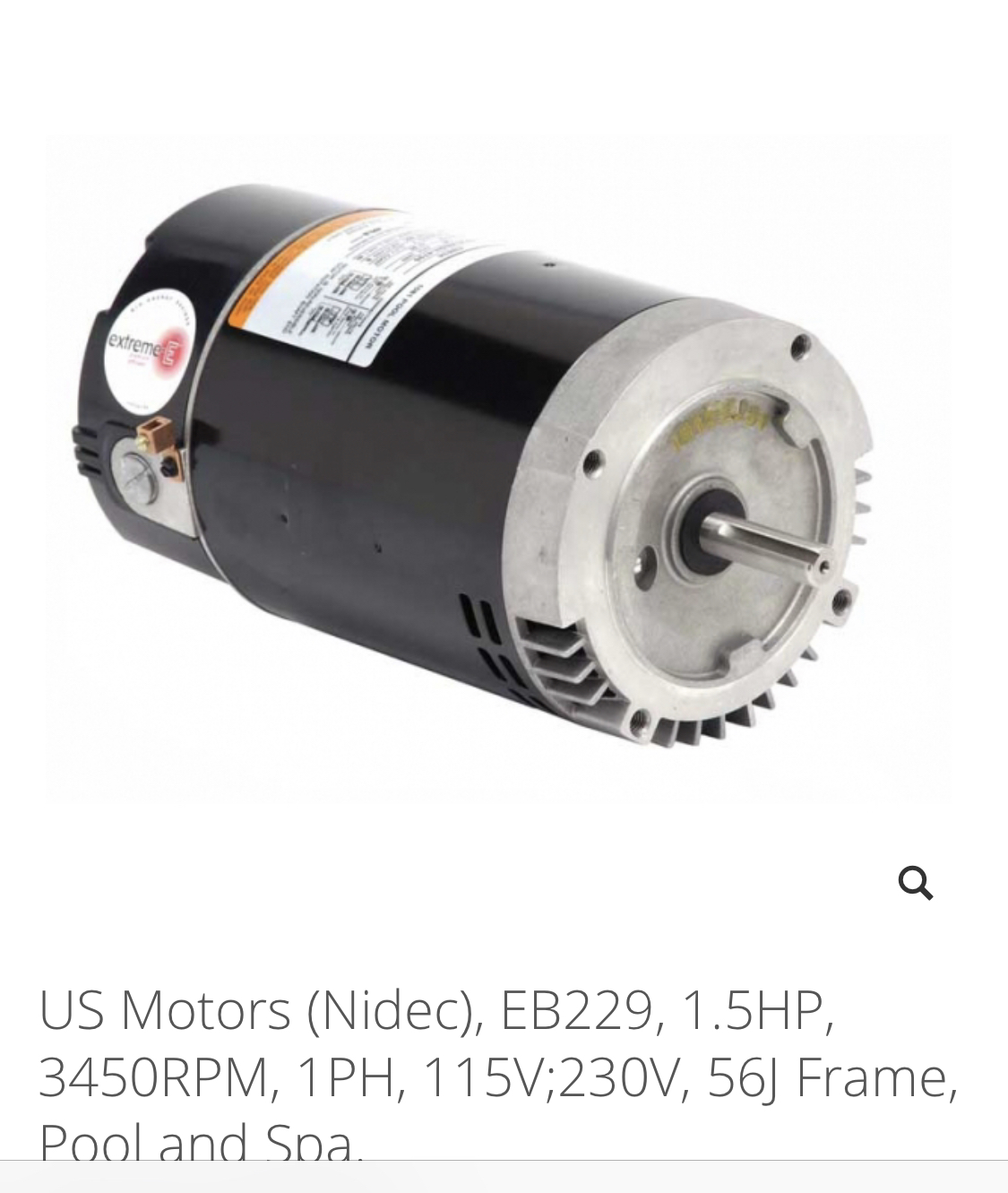

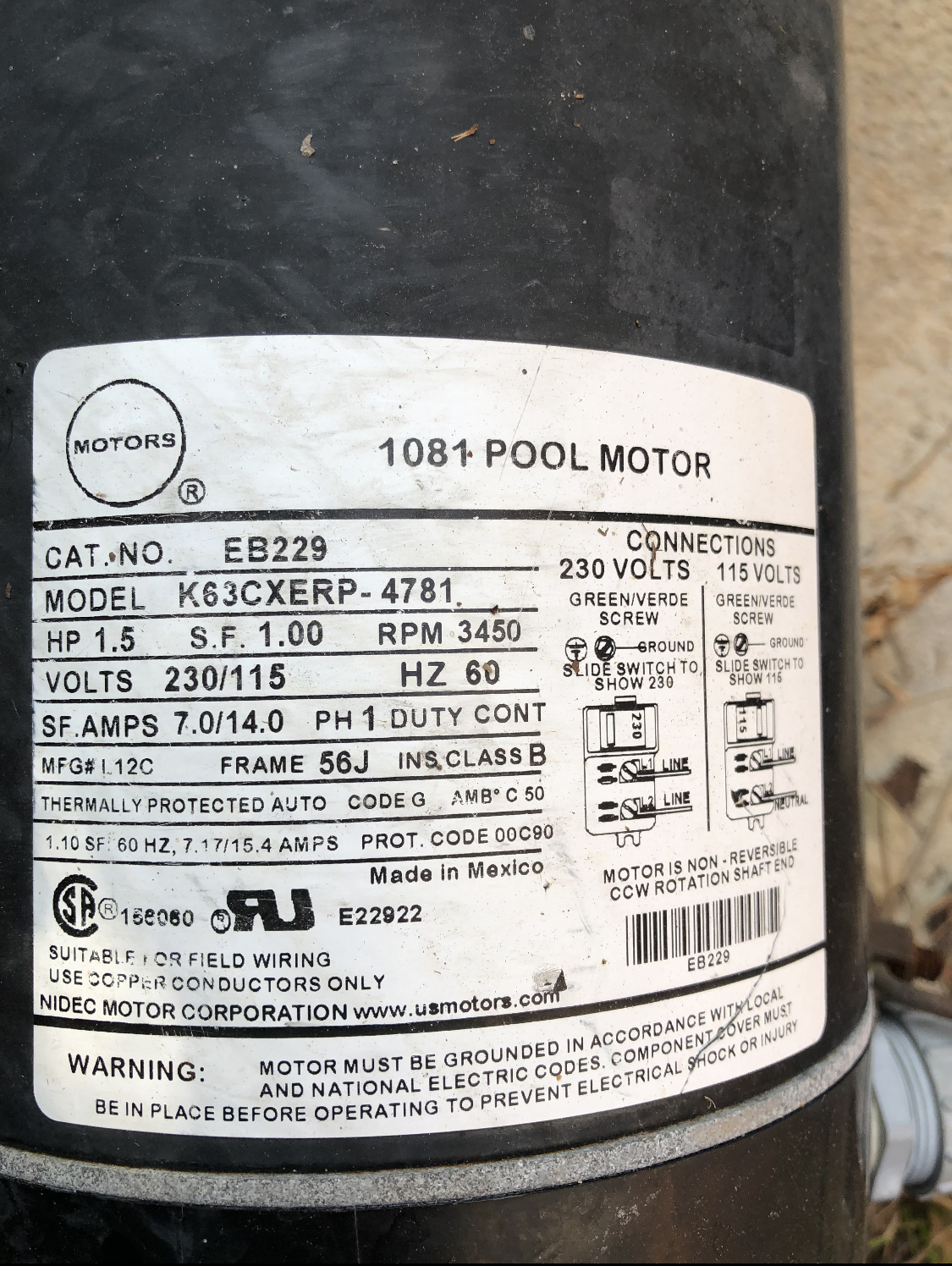

Is this motor compatible with the Hayward SP2610X15. I have a photo of replacement motor a few years back.
Yes this is a suitable replacement motor for the EB229 shown your photos. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
This is what my old motor looks like. How does this one fit. The screws r in a different place or am I looking at it wrong. Thanks
Hi Eddie, The screws in your photo are of those on the motor mounting plate so it looks like they are in a different spot, however that mounting plate is removed and you can see the holes on the motor in the same spot. You can get a better view of this by clicking into our Hayward Super Pump Parts Page
Reply
I have Hayward 1.5 super pump outer cover mostly rusted away. Can I obtain a replacement cover for the motor that was manufactured in China about 10 years ago?
Reply
Unfortunately, we do not carry the motor outer covers and I do not believe that the manufacturer retails those.
Reply
My Pool Pump is MOD: C48L2N134C2
HP: 1
RPM: 3450
FR: 56J HZ:60
AMPS: 18.6/9.3 SF 1.5
Brand is A.O. Smith Corp.
Can I use this pump to replace mine???
Reply
Ressa, Century Motors A.O. Smith 1.5 HP Round Flange 56J Up Rate Motor - UST1152, is not a direct replacement for your C48L2N134C2. The A.O. Smith 1 HP Round Flange 56J Full Rate Motor - ST1102 would be the direct replacement for your C48L2N134C2 motor.
Reply
Not correct, either would work since the total HP is the same = HP rating x service factor.
Reply
Before ordering a new pump, would like to know the replacement model for a GE 5KCR39SN2823AX is your ST1152.
TKS
Pierre
Reply
My spa motor is an Emerson R6cxDMR-189. Will this model work as a direct replacement?
It will not. the direct replacement for your EB977 is the 1.5 HP Round Flange 56J Dual Speed Full Rate Motor - B2977
Reply
My motor is not working only humming?
Reply
Hello,You will need to change the capacitor. This will be the part you will need, 610807-002http://www.inyopools.com/Products/07501352014027.htm
Reply
I have a Hayward II Super 1 1/5 motor Model K458M2N110 VOLTS 115-230 . I am looking a motor on your site would it work on my motor ..
Hello - the correct motor replacement for your K48M2N110 motor is the ST1102 - 1.5 HP Round Flange 56J Full Rate
Reply
Does this motor fit the Hayward motor system for replacement
Reply
It is possible, most Hayward motors accept the C-Frame motor. You will need to verify the Hayward pump model number to confirm, some accept the square flange motors and they do not interchange.
Reply
Can I upgrade my 1hp motor to a 1 1/2 hp motor on my Hayward super pump I have burnt up 2 motors in 3 years and I believe it is due to undersized motor
Yes, you could upgrade to a higher horsepower, but that is not a guarantee it will fix your issue. You may be having a voltage issue that is causing premature failures of your motors. You may also want to check the part number of your pump impeller to confirm you have been buying the correct horsepower motors.
Reply
Hello,
Is this motor a direct replacement for the motor shown in the pic for the pump shown in the other pic? Thanks!
Yes, this is the correct single speed motor replacement for you and if you need the seal kit that would be the GOKIT3 for a chlorine pool or the GOKIT3SALT for a saltwater swimming pool.
Reply
Hi, My motor model is C48L2N134B1 and pump number is SP1610Z1M. Is this the right motor ?
Thanks,
Vincent
Hi, Vincent. Yes, this is the correct replacement motor. You will need to get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Will this motor replace AO smith C48K2N143B1?
Hello - the replacement motor for your C48K2N143B1 is the 1 HP Round Flange 56J Up Rate Motor - UST1102.
Reply
Is there a seal kit for purchase that has all items that need replacing? I am not sure what all needs to be replaced when changing motor. I know the shaft seal is important but are there more?
Reply
Do you have information on the front half of your pump? The best place to find your pump model information is on the pump housing tag. Pool pump manufacturers label each housing with make and model information as well as serial numbers. The pump model number is the golden ticket to finding the proper tune up kit, so we will want to find that most of all. The tag is usually placed on the side of the strainer basket or near the discharge port for easy access. Model number formats vary depending on the manufacture but should be marked clearly.
Reply
I have a Hayward sp1607z1m motor that needs replaced, is the UST1152 motor the correct motor to replace it with?
Reply
looking for replacement in ground pool pump to replace A.O. Smith corp ust1152 mod c48l2n134c1.
noticed your version had only 4 mounting bolts. Mine has 6 mounting bolts.
The six bolts you are referring to in the picture are for your pump housing's seal plate. If you compare the picture of the UST1152 on this product page and the one on your pump, you can see the 4 bolt flanges on the end of the motor barrel that mounts to the seal plate.
Reply
Pump motor is screeching. Will this UST1152 fit my HST150? Which kit will I need?
Hello, Yes, the UST1152 motor will be the one you will need. As for the seal kit, I will need to know the brand and the model of the entire pump.
Reply
The motor of my Hayward Pool Pump with housing identification of SP2610X15 was replaced 8 years ago with the UST1152, after 9 years with the original motor. My question is whether it would make sense or be beneficial to replace the impeller and diffuser this time considering the age of each part. If so, could you tell me the correct part numbers based on my housing identification. Also, if replacing these parts would I still need the tune up kit? Thank you!
Bob
Reply
If the impeller or diffuser are severely worn, cracked or broken then yes I would recommend replacing these however, if not then they should be okay. The part number for that impeller is 5110-10DA, the diffuser is 5110-09A, the seal kit for a chlorine pool is GOKIT3 and for a saltwater pool is GOKIT3SALT.
Reply

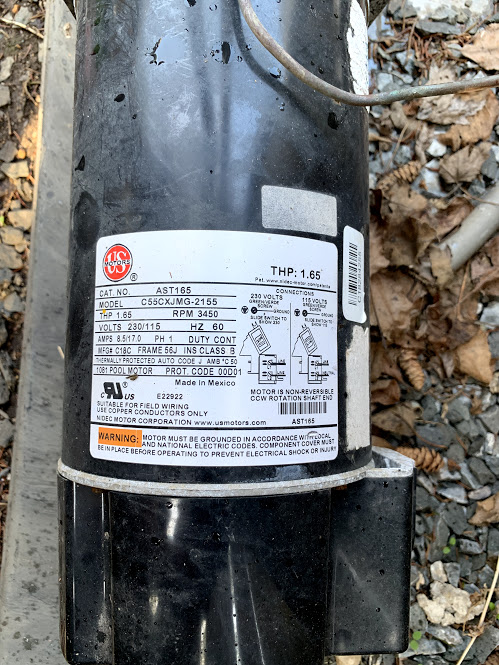

My pool pump model C55CXJMG-2155. What is proper replacement? Thanks
Reply
Yes, this would be the correct single speed replacement motor. If you need the replacement seals and gaskets you will need to know the model name or number of the front pump housing that the motor attaches to. If you cannot locate that information you can always email us images to upload@inyopools.com so we can review and further advise.
Reply
Yes, the UST1152 is the correct motor replacement.
Reply
Looking for replacement for Magnatek Century Part # 10-184982-21 Cat # B229SE Flange S56J. I am wondering if this UST1152 is the same. It is hard to tell the length of the shaft where the pump fits on.
Reply
im looking for a replacement pump for a Hayward model C48L2N134B1 Super Pump 1.5 hp
Reply
Hi, Paul. You can use this UST1152 motor along with the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a Hayward super pump2 sp3010x15az Motor is c48L2n134b3 need new motor and seal kit is this the motor I need
Reply
Yes, this would a correct single speed replacement motor and for a chlorine pool, the seal kit is the GOKIT2. For a saltwater pool, the seal kit is the GOKIT2SALT.
Reply

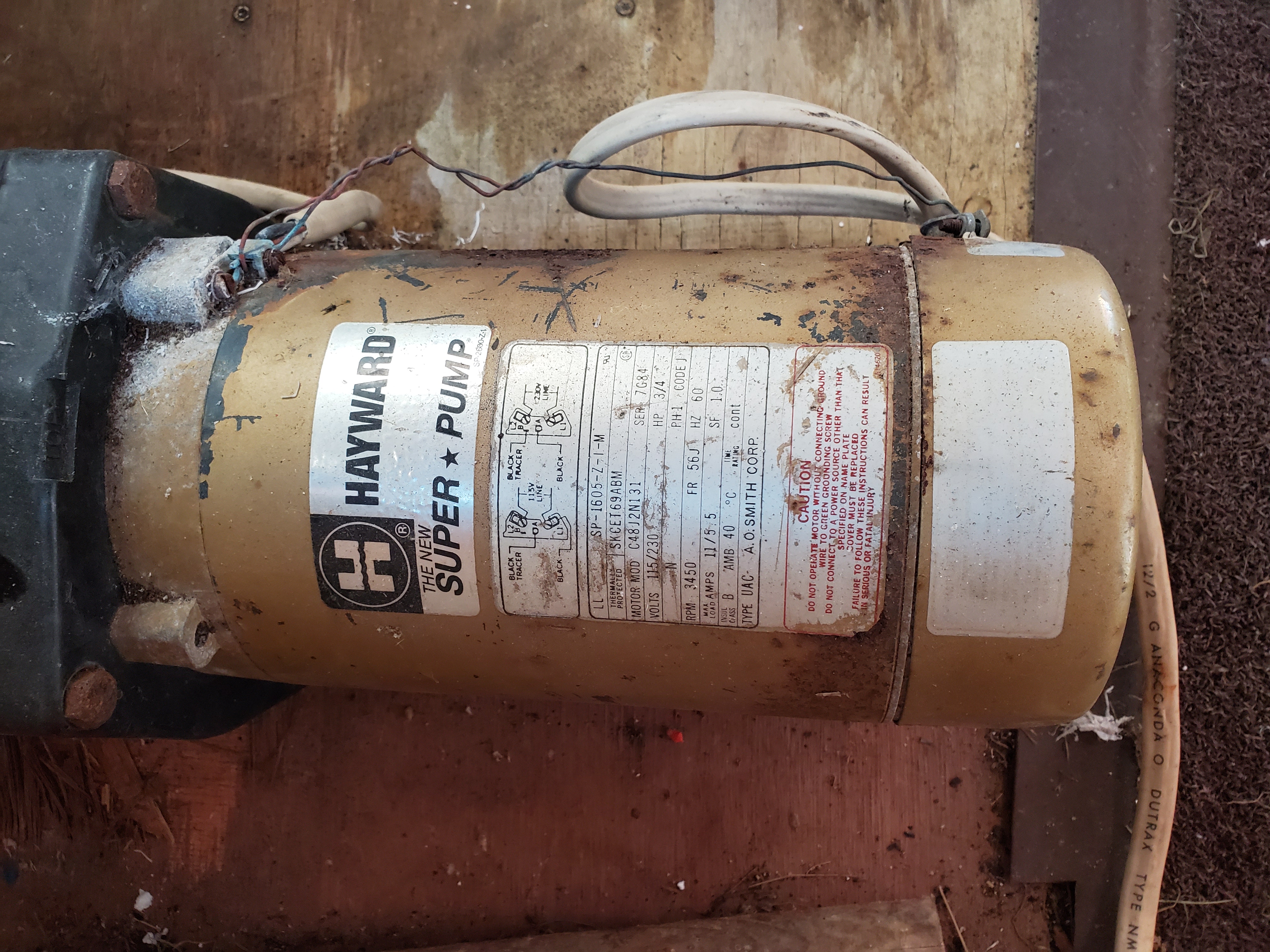

I am looking to replace Hayward Super Pump II (see attached pic) 1.5HP 115/230v?
Reply
Yes, the A.O. Smith 1.5 HP Round Flange 56J Up Rate Motor - UST1152 would be the correct motor.
Reply
Hello,
I just installed one of these because the old motor stopped working. Any Idea why the breaker won't stay on when I try to power it?
the wires to the motor have a clean connection and the motor is brand new out of the box.
Thanks.
Reply
Please see our Pool Pump Trips Breaker / GFCI http://www.inyopools.com/Blog/pool-pump-trips-breaker-gfci/
Reply
I need to replace my pool motor< i have an old Hayward C48AB59A01, would this be the correct replacement?
Reply
Hi, Hector. I was unable to use the info provided to locate the correct replacement. Please provide a picture of the motor label.
Reply
Need a motor for my hayward super II pump. attached is the motor spec sheet photoed from the pump. It's cycling on and off due to over heating. Can you recommend a replacement that I can bolt on? also need a seal?
Hello - the replacement motor for your C48L2N134B3 is the UST1152 - 1.5 HP Round Flange 56J Up Rate. The necessary gasket kit for the Hayward Super II is the GOKIT2 or the GOKIT2SALT
Reply
I am trying to replace an old single speed motor/pump with the Hayward MaxFlo XL. After opening the box, I noticed a label on the motor (Century K48AA35A04) stating I need an additional controller to switch between speeds. I have a Intermatic T40004R timer currently. Can you recommend the easiest (and least expensive) controller to use? The toggle switch looks good but I am not sure which one will work.
Thanks!
Reply
I am using a pump for my sprinkler system to get well water, which needs to be replaced.
Will this be a suitable replacement? and also I have no idea what brand or model the actual pump is (it's too old to read) any idea which gaskets would I need to buy?
Yes, this would be the correct replacement single-speed motor and unfortunately, we do not carry the seals for irrigation pumps.
Reply
Would you know which seal I would need? do they go by size?
Reply
Unfortunately, we would not have a listing for irrigation pump parts. I would recommend contacting an irrigation company as they should have those listed.
Reply
Dear INYO Pool’s
You were recommended to me by Back yard pools in Texas.
I had bought Motors from them with the go kit included for this pump.
Would you be interested in the same deal?
(A.O. Smith 1.5 HP Round Flange 56J Up Rate Motor - UST1152 $155.99)
Cordially yours
C. R. Casas
11330 S.W. 28th St.
Miami Florida
33165
305-220-7589
Reply
We apologize for the inconvenience, however, all of our items are priced as low as we can go. We are unable to provide better pricing then what is listed on our site.
Reply
Hello,
I own this pump - recently its started shutting down after about an hour of use. This is a very obvious burning smell coming from it when it shuts off. I did check the impeller for blocks and also replaced all seals, its still happening. If i buy this, i would like to try to wire it using eyelets or clips instead of having the wires sit under the screws. Can you recommend something? Thanks in advance! -carlos
Hi, Carlos. You can use the Flanged Fork Terminal, Blue 16-14 AWG #8 Stud (Pkg 25) - 60-555-1750.
Reply
I have a used pump FW model. See picture attached.
Frame type: 56J
HP:1.5
SF:1.3, rpm@3450, 60Hz
See picture for detail.
Can AO Smith round flange 56J is compatible for this motor. Thanks.
Quang
Hello
I’m looking to replace the bearings and seals for the Hayward motor, picture below, can you let me know what the numbers are for the appropriate parts that fit this motor.thanks
The following parts would be needed Motor Bearing, Generic 6203, 17mm Id, 40mm Od 35-125-2600 PS 201 seal 35-423-1025 Gasket, Hayward Max-Flo, Seal Plate, 6-1/2"ID, 6-5/8"OD 35-150-2020 Gasket, Hayward Super Pump/Max-Flo, Diffuser 35-150-2030
Reply
Is this model a compatible replacement for mine? (My current motor label picture attached) If not, could you please recommend one that is? Thank you.
how fast can I get a pump if I order today
Reply
Good afternoon Susan, If you order before the shipping cut off time (1 pm est) your order will ship the same day. Motors and pumps typically take 1-3 business days to arrive In u.s
Reply
Hello! We have this motor here, 17969301. Will UST1152 work as a replacement?
Hi Daniel, We are actually showing that the UST1102 1 HP Replacement Motor would be the correct replacement motor for your 17969301
Reply
Need a motor to replace this A.O. Smith motor information on motor plate as follows. part # O-187873-20, FR T48Y. type SP,, SP1515Z1BC ,Serial # 02110CH
Reply
Hi Tim, the UST1152 is not the correct motor for your pump. You will require this BN25V1 Pool Motor
Reply
I am ordering model # UST1152 BUT don't know which tune up kit. I would guessing hayward super pump but worry not right one and do I also need impeller ring (part # ?) usually when you replace the motor which would recommend replace at same time.....
Reply
Hi KHIET, is your pump a Hayward Pump? If so then is the lid where you access your basket square? If your lid is square then you will just need this Hayward Super Pump Seal Kit along with the UST1152 and you will be all set.
Reply
The last couple of numbers on my model number are different, will this work for a replacement? My model number is C48L2N134A3. Picture attached of nameplate.
Yes, this would be the correct single speed replacement motor for your model C48L2N134A3 motor.
Reply
Hello, this is a picture of my current motor. Is this model the correct replacement?
Thanks
Hi Jeremy, Yes this UST1152 Motor is the proper replacement motor for your c48l2n134b1 shown in your photo. You will need a seal kit when you replace your motor and if the lid where you access your pump basket is square then you will require this Hayward Super Pump Seal Kit If it is not square then please send us a few additional photos.
Reply
Morning, hope everyone is safe & well. my pump motor is making a loud whining noise and is extremely hot, so i guess it's that time, i have a hayward RS1000 with a Century Motor C48L2N134C1,
looking for the replacment pump and seal kit.
thanks for help
Looking for replacement for this motor.
Hi, yes this is the correct replacement motor for your motor model c48l2n134b3. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Need to replace the motor portion of a Hayward SP2602VSP. Recently flooded and it killed the circuit boards on the motor. The pump components are only two years old. Will this motor work to replace the motor portion?
Hi, We dont carry the exact variable speed motor which is on your Hayward Super Pump, but this Century 1.65 HP Variable Speed Motor would be a suitable replacement as long as you are not using an indoor automated control system like the Hayward Aqualogic, ProLogic or Jandy Aqua Link. You will also need this Haywad Super Pump Seal Kit when replacing your motor.
Reply
Will this work?
Hi Jake, unfortunately, no this is not a direct replacement for your motor. The direct replacement is this B129 1.5 HP Replacement Pool Motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Hello, my motor burned out on my super II pump and not quite sure what replacement motor to get?
Hello, the correct single replacement motor for the motor included in your photo is the ST1152. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello, my motor burned out on my super II pump and not quite sure what replacement motor to get?
Hi Matty, the correct replacement motor for the motor model k48m2n110 included in your photo is the ST1152. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello, my motor burned out on my super II pump and not quite sure what replacement motor to get?
Reply
Could you send us a few photos of the motor? Please take a close up shot of the motor label. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I am looking to replace a 1.5 hp Hayward super pump motor and want to make sure this motor can directly replace the Hayward motor.
Thank you.
Reply
Most often this motor can replace the standard Hayward Super Pump 1.5 hp model however in order to confirm we would need to know your current motor model, part, or catalog number.
Reply
How long in time can the pump run without getting to hot
Reply
Hi Paul, so motors are designed to run hot and have a thermal overload switch that is designed to shut the motor down if it exceeds normal operating temperatures. Here is a guide that we put together called "Is it normal for my pool pump motor to be hot?" that explains further details.
Reply
I have a Hayward Super II pump motor that has failed. It's about 5 years old and I've attached a photo. I am thinking the UST1152 motor will fit and work correctly. Also, does this ship as 230 or 115? Thanks for your help.
Hi Chuck, Yes this UST1152 Motor is the correct replacement motor the motor included in your photo. You will also need a Hayward Super II Seal Kit when you replace your motor. This motor can be wired either 115V or 230V and shipped in the 230V configuration but it is quite easy to switch to 115V. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a hayward super pump with an ao smith c48l2n134b1 1.5 HP pump attached, The pump is squeeling and I already rebuilt it once several years ago. It's 13 years old and time to replace, It the Century UST1152 an OEM replacement. Is this what you would recommend? Is there anything else i would need to replace the motor? Thanks. J
Hi John, yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. If you have a saltwater swimming pool then you will want to use the GOKIT3SALT. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need to replace the motor pictured; AO Smith model: c48c53a06. This model UST1152 comes up as a replacement, but I noticed that the SF numbers are different. I understand that there’d be a .5 hp discrepancy— correct?
Would you please advise?
Thank you
Hi Chad, Everything you stated is correct and we would suggest going with this more powerful 1.5 HP Full Rate 56J Motor
Reply
Bad link
Sorry here is the correct link for the 1.5 HP Full Rate Motor
Reply
will this replace century motorC48L2N134B1 for Hayward super pump
Reply
Hi Gordon, Yes this is the correct replacement motor for a 1.5 HP Super Pump. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this replace a Hayward 1.5 super pump
Reply
Hi Adam, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Please verify that the Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152, is correct
to replace current u.s.motor1081 eust1152 1.5 h.p..thank you...
Reply
Hi Nicholas, yes this is the correct replacement motor for your motor model EUST1152. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
can this be used on a pool pump
Reply
Hi Danny, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Is this model a direct replacement for Century B229SE, Type: CX, Frame: Y56J?
Reply
Hello Mazar, you can use the 5212X or the UST1152. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I’m looking to replace this pool pump motor. Can you tell me which motor I need?
Hi James, the correct single speed replacement motor for your motor part number 184949 is the B129. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have a 13000 in ground and hot tub. I have replace the motor many time, and don’t remember the original. I currently have a UST1102, which worked flawlessly for 5 years, but was run dry and seized. Is the UST1152 a proper replacement? Will I need anything else like a tune up kit, different size impeller or diffuser for my MaxFloHayward? And what is the octopus looking thing, and is there a repair or rebuild kit for it?
Many Thanks
Hello, the correct single speed replacement motor for the motor included in your photo is the UST1102. Being that your system has been working well with this motor then I would suggest keeping the same motor model on there. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor fit into a Hayward SP2610X15? Looking to replace the motor. Thank you
Hi Cory, Yes this is the correct replacement motor the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor work for Hayward 1.5hp superpump
Hi Scott, Yes this is the proper replacement motor for a 1.5 HP Super Pump. You will also need this Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project. All of these items are in Stock Ready to Ship!
Reply
I replaced my old pool motor with this motor. it is on a 30amp dbl pole breaker. Should I change to a 20amp 2pole?The motor just buzzes and will not turn so I shut it off.
Reply
Hello Michael, most often, unfortunately, no that will not work however we would suggest contacting a local licensed electrician to confirm what you can use per your local code requirements.
Reply
I need to replace the motor pictured below. Can you please let me know if this is the correct replacement part? thanks!
Hi Gail, This is not the correct replacement motor for the motor in your photo. You will need this ST1152 1.5 HP Replacement Motor When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? Once we get this photo we can make the proper recommendation for the seal kit. Simply click the reply link below to upload your photos.
Reply
Okay, attaching the pics of the pump set up and the model number to it. Its a Hayward SP2610X15 if that helps at all. And thank you so much for the quick and awesome customer service!!
Hi Gail, Thanks for the photos. You will require this Hayward Super Pump Seal Kit.
Reply
Will this motor replace my hayward motor model C48L2N134B1/SP1610Z1M,Thanks
Reply
Hi Patrick, yes this is the correct single speed replacement motor for your motor model C48L2N134B1. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
i am looking to replace my pool pump. the motor that as attached to the pump is a hst150 / ust1152. i am not sure what pump is needed or will fit onto this motor.
i'm looking to replace the motor on a hayward sp3010x15az .can us this ?
Reply
Hi Wayne, yes, this is the correct single speed replacement motor for the Hayward Super II model sp3010x15az pool pump. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor replace my hayward super pump SP161Z1M, C48L2N134B1, If it does can you include the seal kit? Best Regards
Hi Pat, Yes this is the correct replacement motor the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
My old hayward pump appear, Do i need to switch I the new motor to 115v,Thanks
Patrick, if your gold motor voltage block was not moved then you will not need to change your new motor to 115 volts. Here is a guide that may also assist to confirm your voltage called Is My Pool Pump 115V or 230V?.
Reply
Your website tells me that it will work with the one that I need to replace. Can you confirm? Also I will need the Motor Shaft Seal kit to go along with and a lubricant to apply to the seals. Please send me an email or call me at 512-293-5200. Thank you!
Best Regards,
Robert
Hi Robert, Yes this is the correct replacement motor the motor included in your photo. You will also need a Hayward Super II Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Got the motor. Thank you! Please confirm, you can see the wire connection of the existing motor. my plans are to connect the red and the black wires exactly as they clipped on the old motor and to switch the dial to from 230 to 115V. Is that the correct way of setting it up? Thank You!
Hi Robert, Take a look at this post with images here on How to Wire a Pool Motor on 115V it will show you the wiring.
Reply
So based on the pictures, can you confirm that it needs to be 115v or 230v? the breaker of the main is a 40 amp, that is feeding the pool breaker panel and then feeds 20 amps to the main pump. Thank you!
Hi Robert, so being that you have a dual breaker providing a circuit to your pol pump, that would indicate that you have 230 voltage.
Reply
I received my new motor, UST1152 and its set to 230V from the factory, my old motor sp1610z1m appears to be set at 230V also, do i have to change the motor to 115v? I attached 2 pictures one of each, Thanks
Hi Patrick, if your prior motor was set at 230 then you do not need to adjust anything on the new motor.
Reply
Is this a direct replacement for a century part 0-164304-24 with P56J frame?
Thanks
Reply
Hi Steve, No this is not a direct replacement for your motor. The direct replacement is this B129 1.5 HP Replacement Pool Motor.
Reply
I need to replace my pool pump motor, which is currently C48L2N134C1. Is this the right replacement and what else do I need to replace it?
Thanks you
Reply
Yes the UST1152 is the correct replacement motor, when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I need a replacement motor for Hayward pool pump model SP 2607X10. Is there any advantage to using the UST 1152 over the UST 1102? Are they both the exact some physical size?
Reply
Hi Larry, in some cases when a system isn't properly sized correctly and there is not enough flow, or when features are added to a system is it a good idea to upgrade the motor but most often keeping the same one is wisest. The two motors do have different sizes. Please see the "size" image beneath the main images of these motors on their pages to compare dimensions.
Reply
I have a Century UST 1152 motor I need to replace along with the seal kit please advise.
Hi Tim, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi can I use this motor to replace what I have in picture and can you tell me what else I need
Hi, yes this is the correct single speed replacement motor for your motor model ST1102. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest provide those using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this motor the same as C48L2N134B1 (see photo)
Hi Mike yes the UST1152 is the direct replacement for your C48L2N134B1 you will also require this Hayward Super Pump Seal Kit
Reply
I want to upgrade my C48L2N134C2 to 1.5hp, I was told that I can just upgrade the motor, but what else would i need?
Hi Matt, you will also need an impeller part number PL2672 and a Hayward Super pump seal kit.
Reply
Please confirm correct motor replacement for my 1.5 HP Hayward super pump shown in the pics. Also, the correct GO-Kit. Thanks. (2 pics attached)
Hi Vince, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I purchased a Century replacement motor for my Hayward super pump in June of 2018. I just turned the pump on and it appears it has seized and will not turn. I have a salt water pool system. Is there anything extra I should be doing to care for pump because of salt system. I am not sure if salt caused motor to fail.
Reply
I am trying to confirm informatiion on a pool moter that you have on your website. Not sure of the numbers that can be cross
referanced from my old motor to your number. I need a call back.770-853-6285.
Reply
Hi Gary, Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
pictures you requested conceriing the pump I would lile to purchase. Pump number on old pump c48l2n134cl. your pump number ist1152. Is this the correct replacement motor?
Hi Gary, Yes this UST1152 is the correct replacement for you motor. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? Simply click the reply link below to supply this photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Hello,
I need to replace motor depicted below. Wondering if UST 1152 is compatible and whwthermi need tune-up kit as well.
Reply
Hi Sean, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
My motor model number is C48L2N134B1. The motor model number for Century Motors Part #UST115 is C48L2N134C1. My motor is part of Hayward Super Pump model SP2610X15. Is the Century motor exactly the same as my motor?
Reply
Hi Pat, yes, this is the correct single speed replacement motor for your motor model C48L2N134B1. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Need a replacement motor.
The model number on my motor is, C48L2N134B3
The motor you offer is, C48L2N124C1
Please explain.
Reply
The UST1152 is the correct single speed replacement motor and there are actually multiple alternate part numbers for the same motor.
Reply
I am having a very difficult time order a motor from you, can you help.
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Will the UST1152 motor be a replacement for motor part # 0-184982-23 ?
Thanks LLoyd
Reply
Yes this UST1152 is the correct motor. If you live in California let us know as you will require a different motor. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
does this motor fit a hayward SP2610x15 ?
Reply
Yes, this is the correct replacement motor for a Hayward SP2610x15 Super Pump. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
All my numbers on hayward pump motor are gone- a guy told me get the number off the basket which is SP3000-M can you recommend a motor ,i think it was 1 hp 120 volt and i would like to put 1 1/2 or 2 hp if possible - pool is 20 x40 with 1 suction and 2 returns , also like to replace diffuser ,impeller and gasket and seals while removing the old motor Thanks Gary
Hi Gary, if you can locate the part number molded/marked on the impeller then we can confirm the replacement single speed motor for your pool pump. Also, you have a Hayward Super II pump that can use the GOKIT2 seal kit for a chlorine swimming pool and the GOKIT2SALT for a saltwater swimming pool.
Reply
Is this a compatible replacement for the pictured motor?
Yes this is the proper replacement motor for your motor in your photo. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Here is the pump.
Hi Zachary, Thanks for the photo! You will need this Hayward Max Flo Seal Kit
Reply
Hello! :) Will this fit the Hayward Super Pump Model number C48J2N131B1? Thank you
Reply
Hi Jerry, This is NOT the correct replacement motor for your C48J2N131B1 motor included in your photo. You will require this UST1072 3/4 HP Replacement Motor You will also need this Hayward Super Pump Seal Kit We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this a direct replacement for the motor I currently have?
MOTOR MOD: C48L2N134C1
MOD # UST1152
Added picture as well.
Yes this is a direct replacement for your UST1152 motor, when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
attached are additional pics. also do you folks provide power cords.
Hi Mike, Thanks for the additional photos! You will require this Hayward Super Pump Seal Kit. The UST1152 can be wired either 115V or 230V if you are wiring 115V then you can use this 115V Pool Pump Power Cord if you are wiring 230V then we do not carry a power cord for 230V.
Reply
I have a 3 year old Hayward SP2603VSP that keeps tripping the GFCI Breaker. I assume a short in the motor. Would this be a direct replacement? Compatible with Omnilogic controller?
Thank you
Reply
Hi Ben, yes, this is the correct single speed replacement motor for the motor on the Hayward Variable speed pump model SP2603VSP that is controlled by an Omnilogic controller. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
need to replace motor. attached are the specs on what i currently have. would like to verify if this is the correct motor. also do you have power cords for this as well as the kits to install the motor.
Thanks
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this work on an irrigation set-up where there is now a C48c53Ao6 motor. I have a seal 10k10 OEM # from Goulds.
Reply
Hello, based on the results this motor should be the replacement however please compare the motor specs to help confirm, and unfortunately, we do not carry Gould pump parts. You may want to check with an irrigation company.
Reply
What is the warranty of a 1.5 hp round flange motor ... hayward ... thank you. 504 451 7631
Reply
Please click here to view the warranty policy for the Century A.O. Smith motors.
Reply
Can the UST1152 Replace the attached motor
Hi Michael, the correct single speed replacement motor for your motor in the photo is the B854. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
do i need any other parts to replace my pump?
Hi John, You will just need the UST1152 Motor and this Hayward Super Pump Seal Kit. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project. All of these items are in Stock Ready to Ship!
Reply
Is this the correct replacement for my motor in the pics?
Thanks.
Hi Bryan, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Hayward Max Flo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need a replacement motor for my Hayward SP2610x15.
Reply
Hi Heather, yes, this is the correct replacement motor for the Hayward Super Pump model SP2610x15. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor fit the Heyward SP2610X15?
Reply
Yes, this is the correct replacement motor for the original Hayward Super Pump model SP2610X15. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What replacement motor and tune up kit do I need to replace this one on a Hayward MaxFlo pump? thanks
Is this a direct replacement for what I have?
Hi, yes this is the correct replacement motor for your motor model HST150. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this a direct replacement for what I have?
Hello, yes this UST1152 motor is a single speed replacement motor for your motor model HST150. It is also recommended to replace the seals and gaskets when replacing the motor. In order to locate those, we will need the model name or number of the front pump wet end housing that the motor is attached to. You can also upload images of that pump housing in a reply to this if need be.
Reply
Doing a double check to make sure this is correct motor to replace Haywood Super Pump Self Priming Motor.
Model# C48L2N134B1 Series 01615J2 SP1610ZM
Other than having a different color casing, is this the right motor?
Reply
Hi Wanda, yes this is the correct single speed replacement motor for your motor model C48L2N134B1. It is also recommended to replace the seals and gaskets which for the Hayward Super Pump series it is the GOKIT3 for a chlorine swimming pool and for a saltwater pool it is the GOKIT3SALT.
Reply
Checking t see if this is the correct motor replacement & asking if you have seal kit.
Hayward Pool Products Model SP3010X15AZ
Serial # 21111007050848005
Many Thanks.
Hello, the correct replacement motor for the motor included in your photo is the 5223X. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Would this be the correct replacement motor ?
Hi Nicole, the correct single speed replacement motor for your motor model c48d43a04 is the SPX2710Z1M. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
will this motor fit hayward pump # sp610x15 ? thank you
Reply
Hi Michael, yes, this is the correct single speed replacement motor for the Hayward Super Pump model sp610x15. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What replacement motor and tune up kit do I need to replace for this 1999 model year Super II pump? I have a 1.5 hp motor.
Hi Bob, the correct replacement motor for the motor included in your photo is motor part number 5223X. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Jacuzzi Magnum Plus pump and need to replace the motor. Could you advise if the UST1152 would be a direct replacement to mount on my pump and would I need anything other than the seal kit?
Would you have this motor in stock and how long would it take to ship to zip 21795? Thanks for your help.
Hi Dan, the single-speed replacement motor for your motor part number 184948 is the UST1102. The seal kit is the GOKIT14. Most often this is all that is replaced, they are in stock and the average motor order takes approximately 3 business days for delivery.
Reply
hello - my pool pump is leaking water between the strainer basket and the motor housing when running . The current unit is a Maxflow Pump 1.5 HP - model SP1610Z1MBK. what replacement motor/seal is required? thank you
is this pump right for my setup,photo enclosed.hayward super flow pump2
Hi Bruce, yes this is the correct single speed replacement motor for you. It is also recommended to replace the seals when replacing the motor. If you have the Hayward Super II as shown on this motor label then the kit will be the GOKIT2 for a chlorine swimming pool and the GOKIT2SALT for a saltwater pool.
Reply
i have hayward super pump model # c48l2n134b3 motor 1.5 hp . does this motor replace it ?
Reply
Hi Ken, yes, this is the correct single speed replacement motor for the motor model c48l2n134b3. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have this motor and it won't start, just hums when turned on. My motor has a an external piece on the housing that I don't see in the picture. (see photo) One of the replies says this motor doesn't have a start capacitor, but the UCT1152 does have an external capacitor. Is that what I'm seeing on mine? If so could that be the issue causing the humming? This motor is just barely 2 years old. I really hope I don't have to replace it again. Any help would be appreciated, thanks.
Hi David, The UST1152 or the UCT1152 are not the correct replacement motors for the motor and pump in your photos. You would require this B2854 1.5 HP 56Y Replacement Motor Normally a humming sound indicates a bad capacitor. We have put together this guide which will show you How to Test for a Bad Capacitor if you do determine it is a bad capacitor then follow this guide here on How to Select the Proper Replacement Capacitor. If you do decide to replace the entire motor then you will need this Jandy PHPM Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi, I’d like to replace the pictured motor. Can you recommend the proper tune up kit? Thanks.
Hi Raghida, For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Need a replacement motor for a Hayward pump SP2610x15
1.5HP
and Go Kit
Hi Mark, yes this is a compatible single-speed replacement motor for your motor model UCT1152 however it is the UCT1152 that is the direct replacement. Also, for the Hayward Super pump series, there are two seal kits. The GOKIT3 for a chlorine swimming pool and the GOKIT3SALT for a saltwater pool.
Reply
How many gallons per hour?
Reply
Hi Jeremy, there are a number of variables to consider when calculating the gallons per minute. Here is a guide that we put together called "How To Read a Pool Pump Curve" that should further assist.
Reply
I have a hayward super pump model # C48L2N134B1 and I was wondering what model replacement pump I'd buy?
Reply
Hi Bobbie, yes this is the correct single speed replacement motor for your motor model C48L2N134B1. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this motor replace my 1.5hp Hayward/ ao smith sp1610z1m and bolt on to my pump correctly?
Thanks
Reply
Hi John, yes this is the correct single speed motor replacement for your motor model sp1610z1m. It is also recommended to replace the seal when replacing a motor. In order to locate those seals, we will need the front pump wet end housing model name or number that the motor attaches to. You can also upload a few images of that housing in a reply to this if you need us to assist with that.
Reply
Will this motor replace and bolt on to my current pump? It’s a SP1610Z1M
Hi, Flo. Yes, this UST1152 motor is the correct replacement. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Hello- looking to replace my pool motor. It’s a century 7-184949-22. Picture attached. Any help is appreciated!
Looking to replace motor. Will this motor be compatible?
I go through a pump about every 4 years. The pool is 26,000 gallons. The pump is a Hayward Super Pump 1.5 HP. Should I move to a 2 HP motor.
If so, can I do so keeping everything else the same.
Hi Larry, if you were to go up in horsepower we would recommend going with a variable speed model so you would not be stuck with a high HP if the suction and water pressure ended up too much for your system. Here is a guide that we put together called "How to Size a Pool Pump for Your In-Ground Pool" that may assist.
Reply
Will this be a replacement motor for a Hayward Super II Self-Priming Variable Speed 1,5 HP motor Model# K48M2N110
Reply
Hi Dennis, the correct variable speed replacement motor for the motor model K48M2N110 is the ECM27CU. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Wanting to make sure I get the right motor. What would be the difference in a 56J and a P56J
Hi Collins, the correct single speed replacement motor for your motor catalog number B129 is part number 5223X. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this fit model C48L2N134B1
Yes, the C48L2N134B1 is replaced by the Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152.
Reply
I own a Hayward Super Pump SP2610X15. Can I fit a dual 2.0 hp motor onto my pump? If so please leave me a link to purchase...
Reply
Yes, you could put a 2HP 2-speed motor on your Hayward Super Pump. The 2HP 2-speed motor is model STS1202. You can use your existing 1.5HP impeller and diffuser. However, if you want to upgrade those parts to take full advantage of the increase in flow, you'd need the 2HP parts. The impeller would be part number 5110-10F and the diffuser would be part number 5110-09EA.
Reply
I have a pump that appears to have blown.
UST1152
Motor Model C48L2134C1
What pump motor do I need to replace this? If I buy a 2hp will I see any benefit?
Reply
Hi Stephen, yes this is the correct single speed replacement motor for your motor model C48L2134C1. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit. Most often unless there have been additional water features added to the swimming pool and this is the original motor then you will want to keep it the same. Unless you decide to become more energy efficient using a dual or variable speed option.
Reply
Will this replace model#C48AB48A01
Reply
Hi John, yes this is the correct replacement motor for your motor model C48AB48A01. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
i live in north new jersey if i need warrant where would i have to take it
Reply
Hi John, you will want to contact the retailer that you purchased the motor with. Please see this warranty card for further warranty details.
Reply
i live in north new jersey if i need warrant work where would i have to take it motor ust 1152
Reply
Hi John, if you need warranty help with the motor and it was purchased with us please use our "Inyo Pool’s Pump Motor Warranty" guide so we can assist.
Reply
I am new to this. Here is a photo of my present Haywood pool pump. Please tell me if you can match it to an INYO pump that I can replace the old one with.
Please let me know if you can't open my photo, or call me at 813-835-1152.
George Meyer
will this replace a centery motor part number 7-184949-22
Reply
Hello,Thank you for contacting Inyopool products!This will be the motor we would recommend for your pump, Part number - 5223x - http://www.inyopools.com/Products/07501352022093.htm
Reply
Hi Is this the correct replacement pump? Please see attached pics
Hello HD,Yes, based on the photo's provided the Century Motors Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 would be the correct motor. We also recommend changing the seals and gasket which would be Tune Up Kit Hayward MaxFlo - GOKIT1
Reply
I have a Hayward Super Pump Model C48L2N134B1, is the UST1152 the correct replacement pump?
Thanks
Reply
Hello Wayne,Based on the information provided Hayward Super Pump Model C48L2N134B1. Yes, the Century Motors Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 would be the correct unit. We would also recommend changing the seals and gaskets which would be the Tune Up Kit Hayward Super Pump - GOKIT3.
Reply
I do not see the exterior cap on this model as I do in the Hayward Super II I am replacing. Is this important?
Reply
Hi, It does not matter if your Capacitor is internal or external as there have been different variations of this motor which have the capacitor external and others internal. The main thing you want to make sure of is that your service factor, HP and amps match up. When replacing your motor you will need this Hayward Super II Tune Up Kit. If you want to confirm you have the correct motor then please send us a close-up photo of your motor label. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
What motor to replace in a 2005 Jacuzzi Magnum Force (15UMF-S)? AOSmith motor label doesn't include Cat No, but shows part number of 7-184949-22. I only find cross ref to a B654 motor, but it doesn't match the same specs - see pics. (1.1SF, 230/115v, 8.0/16.0amp, 3450rpm, DPenc, Type CX) I'm coming down to either a UST-1152 or ST-1152 but both have differing SF. If the motor is slightly different than current, do i need to change impeller and seal housing based on motor? Help please. thanks
Hi Corey, yes this is a bit of a confusing one but yes this UST1152 is the correct replacement motor and you will not need to replace the impeller. You will need this Jacuzzi Magnum Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Can I replace the 1 hp with 1.5hp Super Pump motor? Will it bolt right onto the basket housing? Looking at the specs, they are the same except the horsepower.
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest using our live online chat feature. Once we get those photos we can make the proper recommendation.
Reply
what pump seal do i use with this motor
Reply
Hi Barbara, for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
will replace type cx and 1.47sf?
Reply
Thank you for the information on your motor. To better assist you, we will also need the make and model of your pump. This information is typically listed on a label on the housing area, opposite the motor. Once we have this information, we can better answer your questions/concerns. Please let us know if you need help locating this information on your pump.
Reply
will this fit a super pump model C48L2N134B1 ?
Reply
Will this pump work to replace my old A.O.SMITH Pool pump model K48M2N110 self priming pump CET36WX?
Hi Juan, yes this is the correct replacement motor for your motor part number K48M2N110. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest via our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Please help
Hi Juan, your pump is the Hayward Super II so the seal kit for a chlorine swimming pool is the GOKIT2 and for a saltwater swimming pool is the GOKIT2SALT.
Reply
Hi. Is this the correct replacement motor for the Hayward Max-Flo 1.5 HP? Please provide the part number for the tune-up kit also.
See pictures attached.
Thanks
Miguel
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Max Flo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this the correct motor to replace the motor in the pics?
Yes, the UST1152 is the correct replacement motor for your C48L2N134B3 1.5 HP motor. The necessary gasket kit for the Hayward Super II is the GOKIT2 or the GOKIT2SALT
Reply
Do you sell the impeller and seal plates?
Reply
Yes we do sell the impeller and seal plate. Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Very helpful Q&A below, but just a sanity check, this A.O. 1.5HP and a GOKIT3 are a replacement pump for my Hayward 1.5HP "Super Pump".
Can you please link to a matching impeller, if you're able to suggest one.
Thank you.
Here is a link to the parts breakdown for the Hayward Super PumpThe impeller you need is the Generic Super Pump™ Style Impeller 1.5 THP This is the impeller I recommend.
Reply
I have a 1 hp Century on a Hayward super pump. It has a service factor of 1.5. Is there advantage to that vs this 1.5 hp with a sf of 1.0?
Reply
Hi Ted, There is no difference between those 2 motors, I would go with whichever is less expensive. You will also require this Hayward Super Pump Seal Kit when replacing your motor.
Reply
I currentely have a 1 hp century motor on my pool pump, will the 1.5 hp work as well?
Reply
Hi Larry, Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have a Max Flo Pump 1 and 1/2 motor which trips breakers, so I assume it is burned out. Will this pump replace what I have.
Reply
The UST1152 will replace a 1.5HP motor on a Max-Flo as long as the service factor rating on your current motor specification label is 1.1 or lower.
Reply
Hi, I need a 1 1/2 hp superpump motor, will this work?
Hello Tina, The Century Motor UST1152 is the correct replacement motor for a Hayward Super Pump. When replacing the motor it is recommended that the motor shaft seal, pump gasket, and O-rings be replaced as well. The GOKIT3 provides these parts for standard installations. The GOKIT3SALTis recommended for saltwater pools. Tune Up Kit Hayward Super Pump - GOKIT3 Saltwater Tune Up Kit Hayward Super Pump - GOKIT3SALT
Reply
I’m trying to know if this is the replacement pump I need. Mine has burnt out. This is the only information on the pump. I have a pool/spa combo so I’m assuming it’s a 1.5 HP. Attached is also a pic of the pump itself which is Hayward.
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Max Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi
Does this pump replace the Hayward Super Pump 1.5hp model C48L2N134B1?
Reply
Yes, this is the correct replacement motor for your pump. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I did the chat bot on your site and it sent me to this motor. However, my flange is square, not round. Which motor do I need?
Hi Jonathan, This is indeed the correct replacement motor. When you first look at your motor it looks like a Square Flange motor however it is indeed a Round Flange motor. There is a motor mounting plate on your motor and when removed it will uncover a round flange motor. This can be seen better by viewing this Hayward Super Pump Parts Diagram see key 14 and key 22
Reply
can i replace century model C48D64D72 with this motor
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
A.O. Smith Hayward Super Pump Model C48L2N134B1
Thanks for the photo! Yes the UST1152 is the proper replacement motor for you. You will also need this Hayward Super Pump Seal Kit when replacing your motor.
Reply
do you ship to canada
Reply
We do ship to Canada. Here is the link to our shipping policy.
Reply
According to your info, the UST1152 replaces the C48L2n134B1. Is that correct? And do I need a pump?
The UST1152 will replace your C48L2n134B1 motor. This motor will be used on your Hayward Super Pump
Reply
I want to replace this failing motor with a single speed, is this the model I will need?
Hello Weldy. Your current 2-speed motor has a total horsepower (THP) of 1.95. THP = HP X SF Information from your motor plate: 1.5HP X 1.3SF = 1.95. The correct single-speed motor replacement is the Century Motors 2.2 THP motor model UST1202. A slight increase in THP is acceptable. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. The GOKIT3 or the GOKIT3SALT (saltwater pools) contain the necessary parts to complete this project. Century 2.0 HP Round Flange 56J Up Rate Motor - UST1202 Tune Up Kit Hayward Super Pump - GOKIT3 Saltwater Tune Up Kit Hayward Super Pump - GOKIT3SALT
Reply
Hi,
I need to replace my pool motor, will this one be a good replacement? Please see attached pic.
Thank you
Hello Robin. The Century Motors 1.5HP Up Rate motor model UST1152 is a compatible replacement for your current US Motor model EUST1152. It is recommended that the motor shaft seal, 0-rings, and gasket be replaced at the same time. These parts are specific to the pool pump manufacturer and pump model. Please provide that information in order to identify those parts.
Reply
Will this pump motor replace the one I have attached a picture of? seems to me it will. Thanks
Hi Tracey,This is not the correct replacement motor for your pool pump. The SPX1515Z1E is the correct replacement for your model pool pump. You will also need the Hayward PowerFlo Matrix Pump Tune Up Kit - GOKIT74.
Reply
I am looking to replace a motor for a Hayward model no# SP2610X15. In reviewing the model number, I noticed that particular model number is rated for a 1.5 hp pump, however the pump that just went (and is currently installed) was a Cenury 1 hp motor (model no. UST1102). Would this Centry 1.5 hp work or should I look for a 1 hp motor. Thanks
Reply
Thank you for contacting Inyo Pools, Since it's supposed to have a 1.5, I would replace it with a 1.5 so it matches the impeller.Tune Up Kit Hayward Super Pump - GOKIT3
Reply
can you match this pump?
Hello Paul. The Century Motors 2.0 HP Round Flange 56J Up Rate Motor model UST1202 is a compatible replacement for the Century Motor model 184950. The capacitor has been moved to a top mount position and the motor length, less shaft, is 12 5/8". Century 2.0 HP Round Flange 56J Up Rate Motor - UST1202
Reply
Hi,
I believe this motor will replace the Carvin century motor part number 7-1849-22 on a magnum force pump. Is that correct?
Thx much,
Bob
Hello Bob. The direct motor replacement is the Century 1.0 HP Full Rate EE Motor model B654. Referenced your motor part number 7-184949-22. Century 1.0 HP Round Flange 56J Full Rate EE Motor - B654
Reply
I need a replacement motor for my Hayward super pump. The photo is the one I just removed. What is a good replacement?
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi, I would like to know if this can replace the current motor I have that blew out. Model:UST1152 serial: 08910CH0302066
Yes,The UST1152 is the correct replacement for the pool pump motor in your pictures.
Reply
I recently replaced my original pump motor: century 1.5hp with 1.5 sf
I installed a century 1.5 hp with 1.0 sf
I realize that i have cut back on actual horsepower,,,,but does this matter?
I used same original impeller.....will this present a problem with flow or overworking the motor.....motor is extremely hot after a few min or run time.
Reply
Yes, this will cause an issue. You need to use the proper HP motor that is the same as the HP rating of your pump. Just like you said the impeller and some of the other internals of the pump are made for the HP motor. I typically recommend if you want to decrease or increase your HP just swap out the entire pump. If you do not your pool pump motor will burn out.
Reply
I have a Hayward Super Pump SP2610x15 that is in need of a new motor. Please see attached photos and let me know if this motor is the correct replacement and what additional parts, seals, etc would be necessary to rebuild. Thanks!
Yes the UST1152 is the correct replacement motor for your Hayward SP2610x15 Super Pump. I would also suggest getting the Tune Up Kit - GOKIT3 that includes needed orings and seals that need to be replaced when you replace a pool pump motor.
Reply
Hi, i'm replacing an 1152 for my hayward sp2607x10 will this pump fit ?
What tune up kit should i get for o rings and seals ?
Thanks jay
Reply
Hello Jay. The Hayward SP2607X10 is a 1.0 HP Super Pump. While the Century Motors UST1152 is compatible, (it is a 1.5 HP motor), the more accurate replacement is the Century Motors UST1102. Please verify the Horsepower (HP) specification listed on the motor label to properly identify the correct match. The Tune-Up Kit (GOKIT3) for the Super Pump contains the motor shaft seal, seal plate gasket, diffuser gasket, and pump lid gasket. All parts to complete this project. The GOKIT3SALT is appropriate for saltwater pools. Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 Tune Up Kit Hayward Super Pump - GOKIT3 Saltwater Tune Up Kit Hayward Super Pump - GOKIT3SALT
Reply
Hello. I need to replace the AO Smith motor on my pool pump. It is Model # C48L2N1348B. Would you please confirm that this is the correct replacement motor. Also, do I need to order any other parts, wiring, etc., to install. I've attached a picture of the plate on my current motor. Thanks.
Hello Geoffrey. The Century motors 1.5 HP Up Rate Motor model UST1152 is the correct replacement for the A. O. Smith Motor model C48L2N1348B. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. These parts are specific to the pump manufacturer/model and not the motor. Please provide pump manufacturer/model information and a recommendation can be made. If this information is no longer visible on the pump's label, please provide several pictures of the pump inclusive of the inlet and discharge plumbing to assist in pump identification. The current electrical wiring and conduit can be used when installing the new motor provided they are in proper working order.
Reply
I have only an SN1152. What's the difference between a UST1152?
Reply
Hello Will. Both motors have a 1.5 Horsepower (HP) rating. The SN1152 has a Service Factor (SF) rating of 1.6 for a Total Horsepower (THP) rating of 2.4. HP x SF = THP The UST1152 has a SF rating of 1.0, for a THP of 1.5. The motor barrel diameter on the SN1152 is larger than the UST1152. The UST1152 is not a compatible replacement for the SN1152. Century 1.5 HP Full Rate NorthStar Replacement Motor - SN1152
Reply
Thank you. Do you sell the SN1152?
Reply
Thank you for placing your order. I will reply to this for other inquiries. Yes, we offer the Century 1.5 HP Full Rate NorthStar Replacement Motor - SN1152 https://www.inyopools.com/Products/00200017039392.htm?Keywords=SN1152
Reply
Will this motor work to replace an old Hayward super pump 1.5 horsepower? The numbers are worn off and I am giving you the only numbers I could read off it.
SP2600ZLC and SP1610Z1M. Thanks
Good day, yes the UST1152 would be the correct replacement motor and you will also the GOKIT3.
Reply
I currently have a 1.5 HP motor, The one it replaced was a AO Smith,see photo, is this 2HP. the current one is a Century motor see photos. Which replacment motor should I get? The century was replaced 5 years ago, is this a normal life span?
Hello Paul. The A.O. Smith/Century Motors model BN50 - Dual Speed is no longer available. It has been replaced with the Century Motors model BN50V1 -Dual Speed. If you wish to return to a Dual Speed motor, the BN50V1 is the correct replacement. If you wish to remain with a Single Speed motor, the UST1152 is the correct replacement. The life span of any given motor is related to a number of factors: hours/day of operation, the motor temperature during operation (direct sun exposure/shade), motor ventilation, moisture content of the environment in which the motor is operating, filter pressure, water chemistry, to identify a few. Attached please find a brief tutorial on the topic of Pump Motor Life Span. How To Maintain a Pool Pump Motor
Reply
what is the bearing number
Reply
Hello Diana. The Century Motors Bearing 203 (requires 2) is the correct bearing for the Century Motors 1.5 HP Up Rate Motor model UST1152. Bearing, 203 (Single) - 62032RS Attached please find an exploded parts diagram for the Century Motors UST1152 for reference. Century / A.O Smith UST Series UST1072, UST1102 & UST1152
Reply
Will this work for a Meyers QP15 1.5 HP irrigation pump motor replacement?
Good morning David, I am very sorry for we do not stock any replacement parts for these Meyers pumps. I would check with your local irrigation specialist company.
Reply
I need to replace my Hayward pump motor C48L2N134B3.
Reply
Good day, based on the number provided yes the Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 would be the correct motor replacement.
Reply
Looking to replace my hayward power flow matrix 1 1/2 hp motor. Which one should I get?
Hello Joe. The Hayward Pool Products Motors 1.5 HP with Switch model SPX1515Z1E is the correct replacement motor for your Hayward PowerFlo Matrix Pool Pump. Motor 1.5 HP w/ Switch - SPX1515Z1E It is recommended that the motor shaft seal, housing o-ring, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT74 contains the parts necessary to complete this project. Tune Up Kit Hayward PowerFlo Matrix Pump - GOKIT74
Reply
The wires that connect to power my pump burned and blew up a wire nut. Now the pump is dead and won't turn on. Before this happened the pump was making a screeching noise. The pump is 2.25HP being used with a Hayward Super Pump. What replacement do I need to order?
Hello Nick. The Century Motors 2.0 HP Up Rate Motor model UST1202 is a compatible replacement for the Hayward Super Pump with a 2.25 HP motor. Century 2.0 HP Round Flange 56J Up Rate Motor - UST1202 It is recommended that the motor shaft, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the necessary parts to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
Hello, this is my current pump. What is the correct replacement?
Hello Carl. The Century Motors 1.5 HP Up Rate Motor model B229SE is the direct replacement for your Century Motors 1.5 HP Up Rate Motor Model B229SE, part number 0-184982-23. Century 1.5 HP Round Flange 56J Up Rate Motor - B229SE
Reply
Hi, I have a Hayward 1.5hp Super Pump Model # C48L2N134B1. Is this the correct replacement?
Hello Michelle. The Century Motors 1.5 HP Up Rate Motor model UST1152 is the correct replacement motor for your Hayward Super Pump 1.5 HP motor model C48L2N134B1. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the necessary parts to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
My current motor on my Hayward Max Flo SP2810X15 is a ST1152. Your website says the replacement motor is a UST1152. Is there any difference or would it make a difference if I purchased the UST1152? I am not sure why we purchased the one we currently have. I did notice the Max load Amps are different and the SF. I am thinking that this current pump did not last as long as the previous ones.
Reply
Hello Craig. The Century Motors 1.5 HP Full Rate Motor model ST1152 has a total horsepower (THP) of 2.25. The Century Motors 1.5 HP Up Rte Motor model UST1152 has a THP of 1.5. The correct replacement for your ST1152 is another ST1152. The pump's impeller is mated to the THP of the motor. The impeller size determines the gallons per minute (GPM) the pump is capable of circulating. Reducing THP and using the same impeller places additional operational stress on the motor, shortening its life span. Century 1.5 HP Round Flange 56J Full Rate Motor - ST1152 The GOKIT1 contains the seals necessary to replace concurrent with the new motor. Hayward MaxFlo SP2800X Series
Reply
I have a Hayward SP2807X10 with a 1.5 HP motor. Which motor should I buy and what seal kit.
Reply
Hello Robert. The Century Motors 1.5 HP Up Rate Motor model UST1152 is the compatible replacement motor for the Hayward MaxFlo Pool Pump model SP2807X10. Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT1 contains the necessary parts to complete this project. Tune Up Kit Hayward MaxFlo - GOKIT1
Reply
which would be the impeller for this motor?
Reply
Hello Matias. The pump impeller is specific to the Manufacture/Model of the pump and not the motor. Please provide pump Manufacturer/Model information and a recommendation can be made. This information is generally located on the pump housing. If this information is no longer visible or can't be found, please provide several photos of the entire pump inclusive of the intake and discharge plumbing to assist in identification.
Reply
I need a replacement for my Hayward Super pump2 . SP1610-Z-2-MC, Frame X56J, Service factor 1.0. It is a dual speed pump. What would be the dual speed and a single speed replacement?
Reply
Hello Fred. The Hayward Super II SP1610Z2MC cross-references to the Century Motors 1.0 HP Dual Speed Full Rate Motor model B2975. Century 1.0 HP Round Flange 56J Dual Speed Full Rate Motor - B2975 The Century motors 1.0 HP Single Speed Full Rate Motor model CT1102 would be a compatible single-speed motor replacement. Century 1.0 HP Round Flange 56J Full Rate EE Motor - CT1102 The GOKIT2 contains the motor shaft seal, seal plate gasket, and diffuser o-ring necessary to complete the motor replacement. GOKIT2 Attached please find a Hayward Super II exploded parts diagram for reference. Hayward Super II
Reply
I have a Hayward SP2607x10 pump and have been running a 1.5 hp Century B229SE motor for 2 years and the motor does not even come on now. What could cause it to not run and what is the best replacement option? I have a solar heater with panels on my roof is the reason I bumped the hp up to 1.5 .
Thanks for your help!
Reply
Hello Tim. Motor failure can be the result of numerous factors. The use of a multi-meter can determine if the proper supply voltage is present at the motor electrical terminals. Attached please find a brief tutorial on the topic of pump motor failure. Why Did My Pump Motor Stop Working? The Century Motors 1.5 HP Up Rate Motor model UST1152 would be a good replacement single-speed option. The GOKIT3 contains the shaft seal and gaskets necessary to install a new motor. GOKIT3 Hayward Super Pump Parts Diagram
Reply
My A.O. Smith model # K48m2N110 just went out on me is the centuryST1152 the proper replacement motor?
Reply
Hello Ben. The Century 1.5 HP Round Flange 56J Full Rate Motor - ST1152 is the compatible motor replacement for the A. O. Smith Motor model K48m2N110.
Reply
I had a part 8 -177949-20 magnetek motor on a jacuzzi magnum pool pump.i have solar panels on my roof.can I use the ust1152 as a replacement pump thank you
Reply
Hello Bob. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is a compatible replacement motor for the Jacuzzi Magnum Pool Pump, Magnetek Motor part 8-177949-20. The Tune Up Kit Carvin/Jacuzzi Magnum Series - GOKIT14 contains the necessary shaft seal and o-rings to complete the motor change. Attached please find the Jacuzzi Magnum exploded parts diagram for reference.
Reply
Hi, Is the Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is the correct replacement motor for the same two motors in the pictures that I have included. The Hayward motor was my original motor and the black UST 1152 was its replacement a few years back.
Also is the GoKIT3 tune up kit for the Hayward super pump the correct kit for these pumps?
Thank you.
Tony
Hello Anthony. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is the correct motor replacement for the Hayward Motor model C48L2N134B1 and the A. O. Smith Motor model UST1152. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the necessary seal, gasket, and o-rings to complete the motor replacement on the Hayward Super Pump. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
Need a replacement motor for this what do you have. Superpump C48L2N134B1
Reply
Hello Kevin. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is a compatible replacement for the motor model C48L2N134B1. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the necessary seals and gaskets that should be replaced concurrent with the new motor. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
I have Hayward SP3010XAZ pump. It appears the current motor is EUST1152, its very faint and hard to read. Everything I have researched thus far says this is an acceptable replacement. The Hayward site says my motor should be an SPX1610Z1M. I would really like to save $100 and purchase this pump. Could you please let me know if this is acceptable and what is the round vs C flange? I think I need the round. Thanks for your help!
Hello Jen. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is a compatible motor replacement for the US Motors model EUST1152 installed on the Hayward Super II Pool Pump model SP3010X15AZ. The Tune Up Kit Hayward Super II - GOKIT2 contains the seals and gaskets that should be replaced concurrent with the new motor. Attached please find a brief tutorial How To Replace the Motor on Your Pool Pump The terms C-Flange and Round Flange are synonyms and refer to the shape of the motor face that meets the pump's wet end.
Reply
Will the UST1152 fit?
Pump is a Carvin Magnum Force model #15UMF-S, item #94027115.
Motor is a Century Part 7-184949-22
Pictures attached.
Hello Chuck, The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is compatible with the Carvin Force Model 15UMF-S with the Century Motor model 7-184949-22. The Tune Up Kit Carvin/Jacuzzi Magnum Series - GOKIT14 contains the seals and gaskets necessary to complete the motor replacement.
Reply
Will a ust1152 replace sp2610x15
Reply
Hello Harold. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is a compatible motor replacement for the Hayward Super Pump SP2607X15. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the necessary seals and gaskets to complete the new motor installation. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
I have a Hayward Super Pump - Model C48L2N134B1. Will this pump replace mine and will it bolt up to the housing.
Hello Terry. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 is a compatible replacement motor for the motor model C48L2N134B1. It will attach to the motor mounting plate in exactly the same fashion. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the parts necessary to complete the new motor installation. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
I have a Hayward pool pump that the motor died but the housing is perfect. motor model # SP2610X15. can this motor fit the housing ?
Reply
Hi Rachel, the UST1152 motor would be a perfect replacement for the motor on your Hayward Super Pump 1 1/2 HP Single Speed - SP2610X15 . Don't forget to order a Tune-Up Kit so you can replace the motor shaft seal and the gaskets for a leak-free installation. Check out our guides on How To Replace a Pool Motor Shaft Seal and How To Replace the Motor on Your Pool Pump for some helpful tips.
Reply
I currently have model # SP1610Z1MBK motor on my pump. I just need to replace the motor only. From what I am researching the UST1152 would work as a replacement motor, is that correct? Would anything additional be needed if I went with the UST1152 motor? Thank you for your time.
Reply
Hi Jack the UST1152 motor will be a perfect replacement for your SP1610Z1MBK motor. Be sure to get a Tune-Up Kit as well so you can change all of the gaskets and the motor shaft seal for a leak-free installation.
Reply
I have a US motors Model C55CXJMG-2155 . Will this fit my configuration?
Hi Christopher, yes, the UST1152 motor is a perfect replacement for your C55CXJMG-2155. If you have a Super Pump be sure to add a Tune-Up Kit to your order so you can replace the gaskets and the motor shaft seal when you replace the motor.
Reply
From what I see this motor should be a direct replacement for mine, but just to be sure, I would like to confirm based on the images below. Thanks.
Hello Marco. The Century (A.O. Smith) 1.5 HP Up Rate Motor, Round Flange 56J Frame, Single Speed - Model UST1152 is a compatible motor replacement for the motor C48L2N134B1 installed on the Hayward Super Pump SP2610X15. The Hayward Super Pump Seal Kit - Model GOKIT3 contains the seals and gaskets necessary to complete the new motor installation. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
what is the difference between HST andUST/
Reply
Hello. Attached please find the Regal Rexnord web pages for the Century Centurion HST150 and the Century UST1152 Please reference the Product Specifications for both motors. The primary difference is the rated amperage of each motor. There are minor physical characteristic differences.
Reply
What tune up kit goes with this pump
Reply
Hello Jason, each pool pump requires different seals or gaskets. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that we put together that should assist you with that.
Reply
Need a replacement motor for my Hayward pump. Will this motor work? Pic's attached.
Hello, the single speed replacement motor for the motor in your image would be the ST1152. We also recommend replacing the seals and gaskets when replacing a pool pump motor. For your Hayward Super pump that would be the GOKIT3. If you have a salt water swimming pool then it would be the GOKIT3SALT. Lastly, here is our "How To Replace Pool Pump Gaskets" guide that should offer some further guidance.
Reply
The model num. on my pump is C48L2N134B1 and your pump is the same with All numbers the same except the model number is C48L2n134C1 The only difference is the C1 instead of what I have B1 does that make a difference? Can I use this pump?
Hello Chris, this is a compatible single speed motor replacement for you motor model C48L2N134B1. When replacing a pool pump motor we also recommend replacing the seals and gaskets. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that we put together which should assist you with that.
Reply
what is the direction of rotation ust1152 motor
Reply
Hello. Attached please find the Regal Rexnord UST1152 Product Specifications webpage. The Century Motors UST1152 has a Counterclockwise Pump End rotation. CENTURY POOL PUMP MOTOR, 1 1/2 HP, 1 PH, 60 HZ, 230/115 V, 3600 RPM, 56J FRAME, ODP - UST1152
Reply
Hi i have a Hayward super pump pt # sp1610z1mmade by century model #c48l2n13b1
Will ur pump ust1152 bolt up to the flange thanks manny
Reply
Hello, yes, the UST1152 will bolt up properly to your Super Pump's flange, you will just need to replace the shaft seal to properly mate the motor to the housing. You can use this shaft seal to install the replacement motor.
Reply
